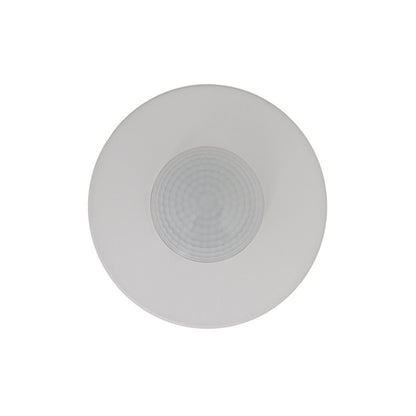

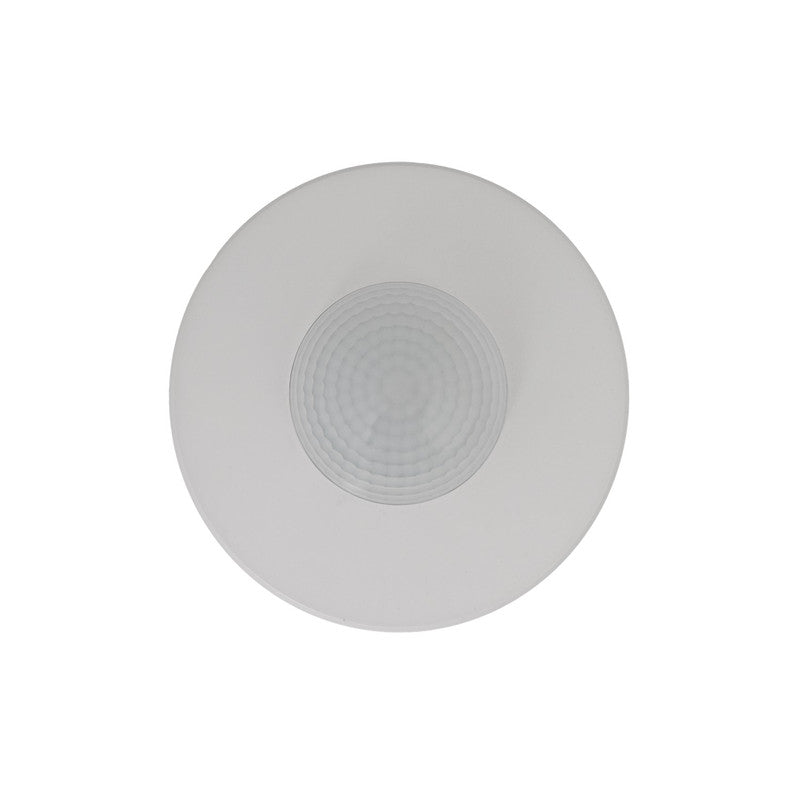

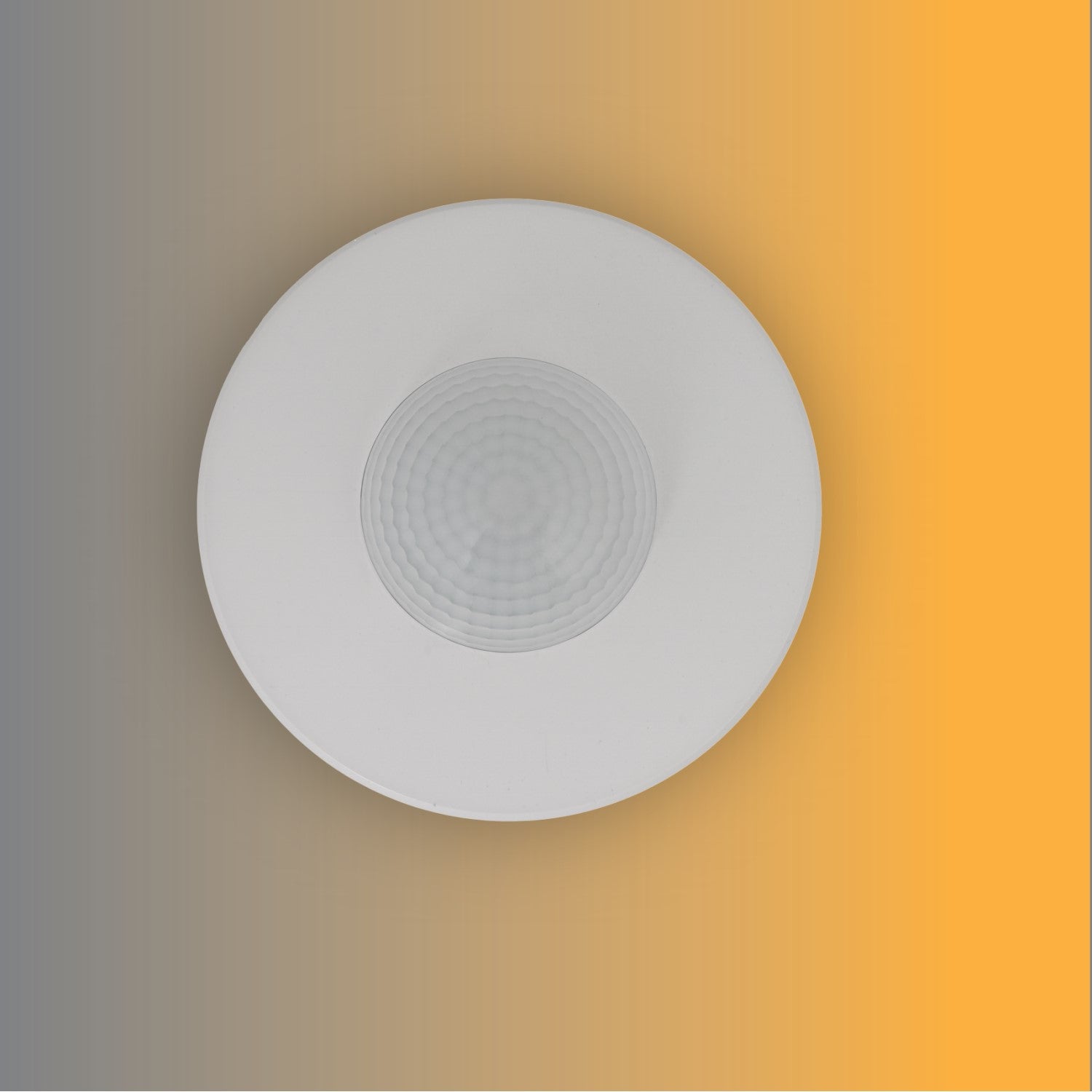

JS-OCT Delta Surface Mount Microwave Day Night Occupancy Sensor OCTDEL20PD
Couldn't load pickup availability
JS-OCT Delta Surface Mount Microwave Day Night Occupancy Sensor OCTDEL20PD
Vendor: Eliante by Jainsons Lights
SKU: OCTDEL20PD
Dimming Options: No

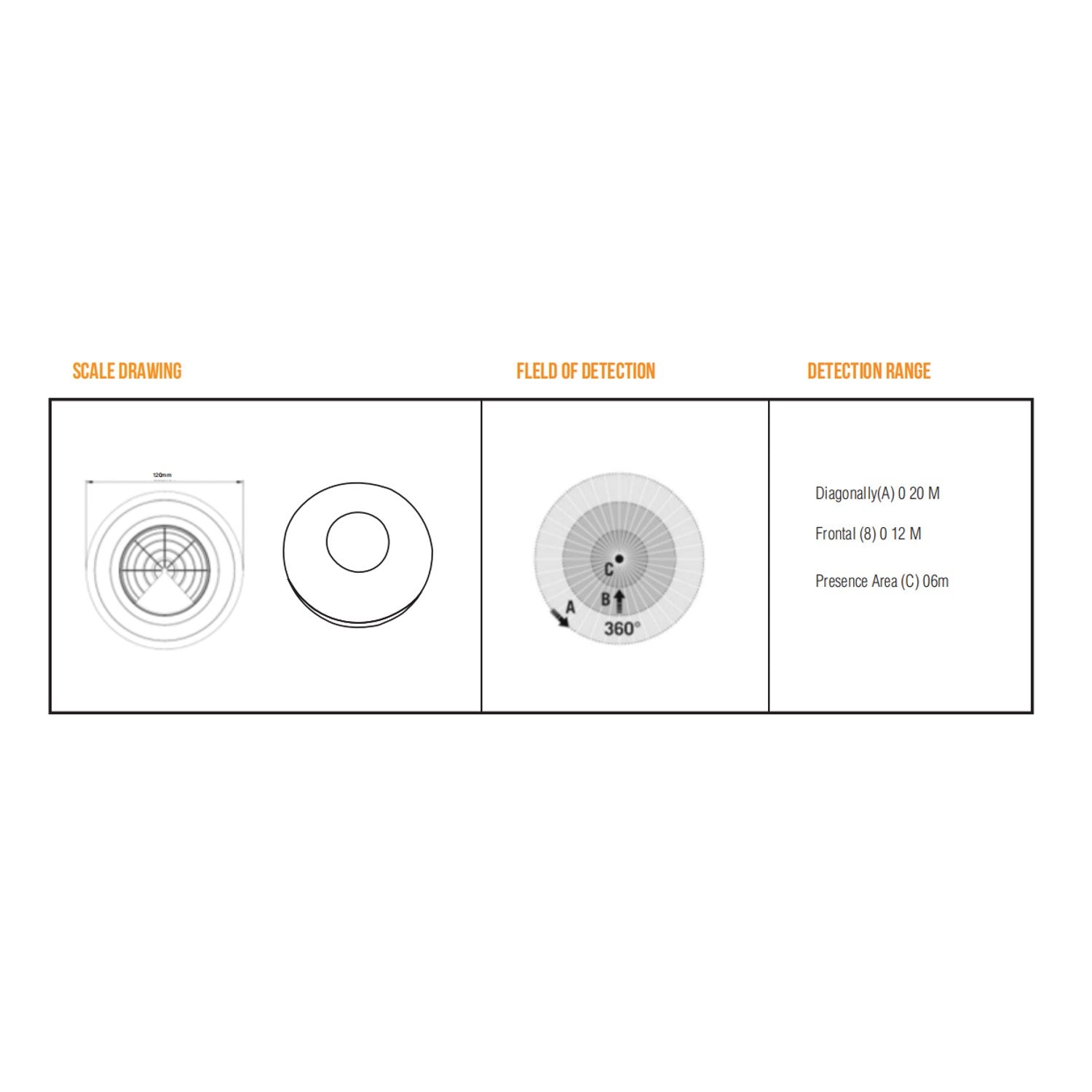

Detection Range: 12m
Detection Angle: 360°
Time Delay: 10 sec to 30 min
Product Dimensions: Height 52.2mm, Diameter 120mm
Body Material:
IP Rating: IP20
Fixing Type: Surface Mount
Warranty: 2 YEARS
Body Colour: White
Detection Motion Speed:
Input Voltage: 230V/50Hz
Description: Presence Detector With 360° Field Of Detection For Ceiling Mounting. Slim with high-quality finish for smart workplaces. Range up to 20m diameter at 2.5m installation height. High-performance relay (10A). Zero-cross switching. OCT-iSense enabled with factory settings for quick deployment.
| Product Description | Details |
|---|---|
| Ambient light | 3–2000 LUX |
| Application | Cabins, meeting rooms, classrooms, bed rooms, private offices, and restrooms |
| Body colour | White |
| Detection angle | 360° |
| Detection range | 12m |
| Dimming options | No |
| Fixing type | Surface Mount |
| Input voltage | 230V/50Hz |
| Installation height | 2.3m to 6m |
| Ip rating | IP20 |
| Mrp | 3499 |
| Power consumption | 0.6W |
| Product dimensions in mm | Height 52.2mm, Diameter 120mm |
| Product family | JS-OCT |
| Product weight (kg) | 121g |
| Protection class | Class II |
| Rated load | 2000w |
| Relative humidity | 5–93% non-condensing |
| Sensor function | Automatically turns ON light at full brightness when occupancy is detected in low ambient light conditions, and turns OFF after a preset time delay when the area is unoccupied. |
| Sku | OCTDEL20PD |
| Technology | Microwave |
| Time delay | 10 sec to 30 min |
| Type of item | Day Night Motion Sensor |
| Warranty | 2 YEARS |
| Working temperature | -30°C to +50°C |
