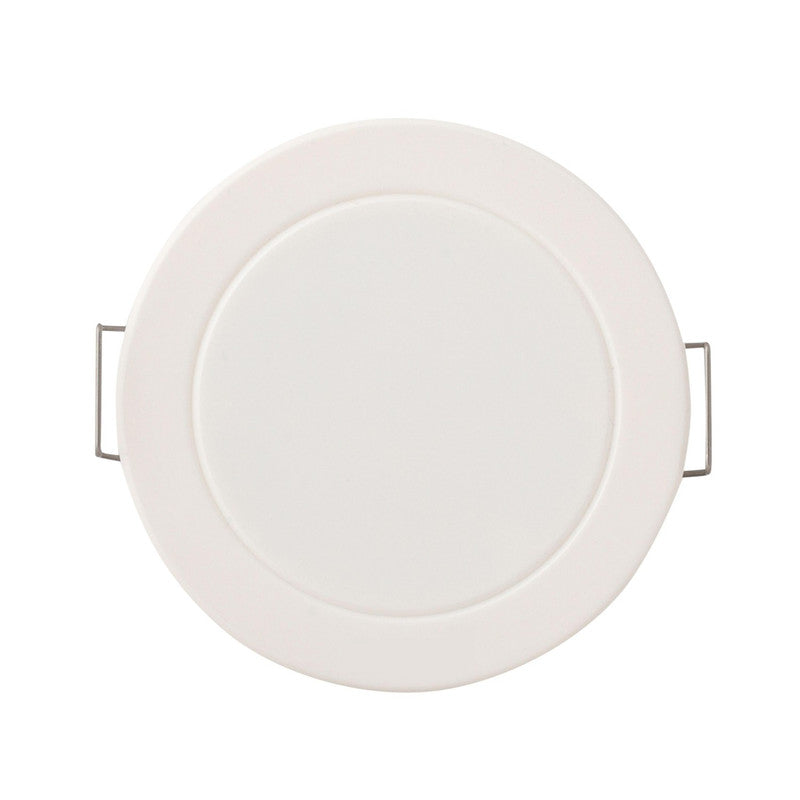

JS-OCT Esy Max Recessed False Ceiling Microwave Day Night Presence Sensor OCTEMAXO8HF
Couldn't load pickup availability
JS-OCT Esy Max Recessed False Ceiling Microwave Day Night Presence Sensor OCTEMAXO8HF
Vendor: Eliante by Jainsons Lights
SKU: OCTEMAXO8HF
Dimming Options: No
Detection Range: 1–2.5m (Standard), up to 3.5m
Detection Angle: 93° XZ Plane, 99° YZ Plane
Time Delay: 30s to 15min (adjustable)

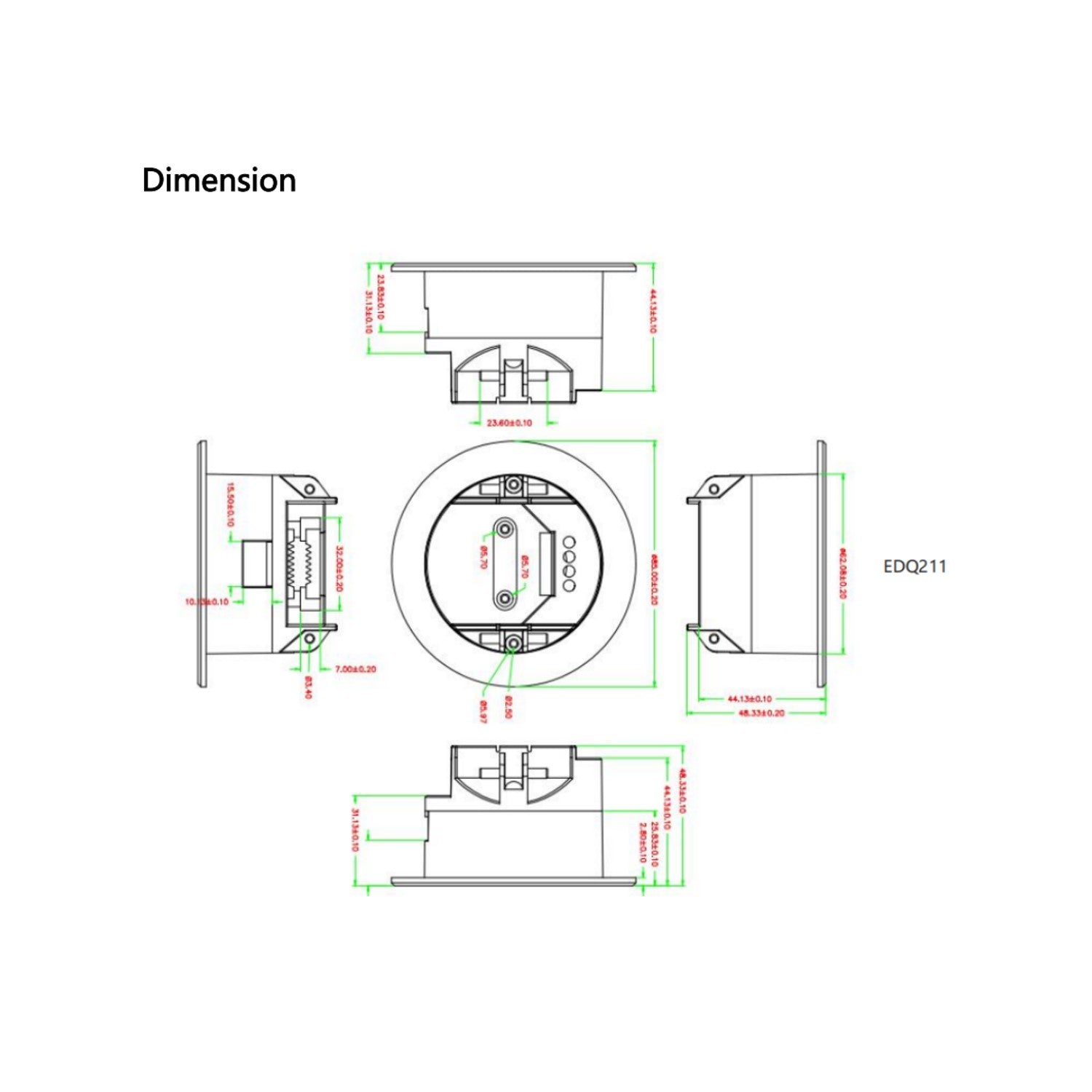

Product Dimensions:
Body Material:
IP Rating: IP20
Fixing Type: Recessed False Ceiling
Warranty: 2 YEARS
Body Colour: White
Detection Motion Speed:
Input Voltage: 100–277V AC
Description: EDQ211 is a microwave motion sensor based on Doppler principle, transmitting high frequency electromagnetic waves to detect motion. Suitable for lighting, security systems, and smart homes. It offers wide coverage, strong anti-interference, and supports installation in various indoor areas like garage, balcony, and bathrooms.
| Product Description | Details |
|---|---|
| Ambient light | 10/30 Lux |
| Application | Staircases, Corridors, lobbies, washrooms, and utility areas |
| Body colour | White |
| Detection angle | 93° XZ Plane, 99° YZ Plane |
| Detection range | 1–2.5m (Standard), up to 3.5m |
| Dimming options | No |
| Fixing type | Recessed False Ceiling |
| Input voltage | 100–277V AC |
| Installation height | 3m |
| Ip rating | IP20 |
| Microwave system | 24GHz Doppler Radar |
| Mrp | 14999 |
| Power consumption | 1W |
| Product family | JS-OCT |
| Rated load | 400w |
| Sensor function | Utilizes 24GHz Doppler radar technology to accurately detect human presence, even with minimal movement,—automatically turns ON light in low ambient light conditions and turns OFF after a preset delay when no presence is detected. |
| Sku | OCTEMAXO8HF |
| Surge protection | 2.5KV |
| Technology | Microwave |
| Time delay | 30s to 15min (adjustable) |
| Type of item | Day Night Presence Sensor |
| Warranty | 2 YEARS |
| Working temperature | -40°C to 85°C |
