JS-OCT Esy Sense Surface Microwave Day Night Presence Sensor OCTESENS20C
Couldn't load pickup availability
JS-OCT Esy Sense Surface Microwave Day Night Presence Sensor OCTESENS20C
Vendor: Eliante by Jainsons Lights
SKU: OCTESENS20C
Dimming Options: No
Detection Range: Diagonal: Ø20 m Frontal: Ø12 m Presence zone: Ø6 m
Detection Angle: 360°
Time Delay: Adjustable: 2 sec to 30 min
Product Dimensions: Ø102 mm × 56.5 mm
Body Material: UV Stabilised PC
IP Rating: IP40
Fixing Type: Surface
Warranty: 2 YEARS
Body Colour: White
Detection Motion Speed: 0.5–5 m/s
Input Voltage: 230 V AC

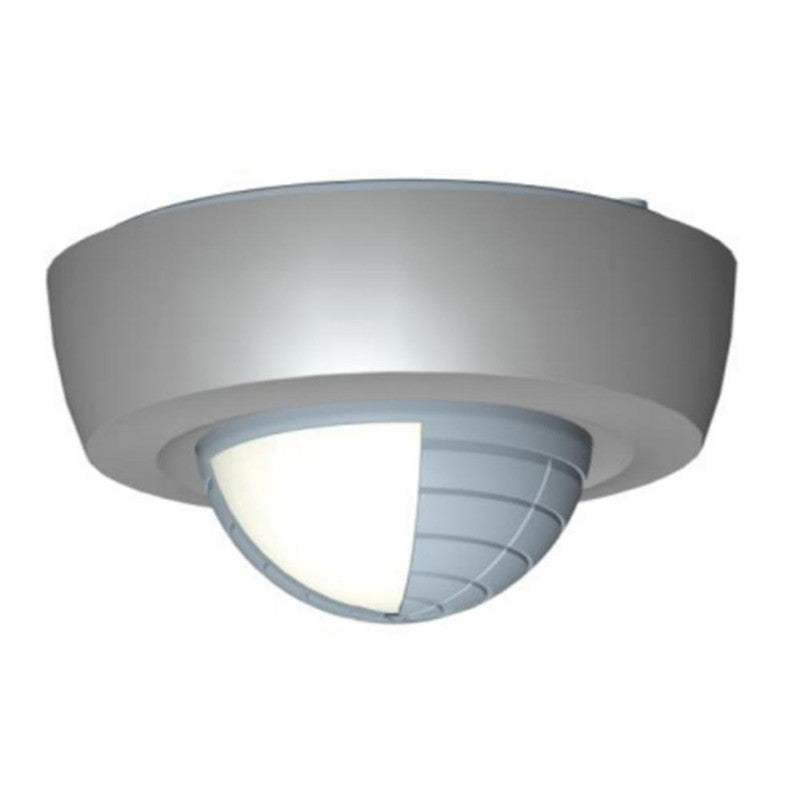

Description: Presence detector with 360° field of detection for ceiling mounting. Detects motion and presence with up to Ø20 m range diagonally, Ø12 m frontal, Ø6 m presence zone. Automatic light control with high-performance relay.
| Product Description | Details |
|---|---|
| Ambient light | 3–2000 Lux adjustable |
| Application | offices, corridors, washrooms, staircases, meeting rooms, and common spaces |
| Body colour | White |
| Body material | UV Stabilised PC |
| Detection angle | 360° |
| Detection motion speed | 0.5–5 m/s |
| Detection range | Diagonal: Ø20 m Frontal: Ø12 m Presence zone: Ø6 m |
| Dimming options | No |
| Fixing type | Surface |
| Input voltage | 230 V AC |
| Installation height | 2.2 m (max 6 m) |
| Ip rating | IP40 |
| Mrp | 3999 |
| Power consumption | 0.6 W |
| Product dimensions in mm | Ø102 mm × 56.5 mm |
| Product family | JS-OCT |
| Product weight (kg) | 118 g |
| Protection class | Class II |
| Rated load | Max. 2000 W |
| Relative humidity | 5 - 93%, Non-Condensing |
| Sensor function | Automatically turns ON light at full brightness when occupancy is detected in low ambient light conditions, and turns OFF after a preset time delay when the area is unoccupied. Sensor settings can be adjusted via remote control for ease of use |
| Sku | OCTESENS20C |
| Technology | Microwave |
| Time delay | Adjustable: 2 sec to 30 min |
| Type of item | Day Night Presence Sensor |
| Warranty | 2 YEARS |
| Working temperature | –30 °C to +50 °C |
