📘 20mm Magnetic Track — with Round & Curve — Catalogue & Price List
A complete modular lighting system with standard straight tracks PLUS unique circular tracks — full circles, half rounds and quarter curves in 600mm diameter. View all components, dimensions, prices and curve-track modules in the catalogue.
⬇ Download Catalogue & Price List (PDF)JS-NPT 20mm Magnetic Track System — with India-First ROUND & CURVE Track
The only 20mm magnetic track range that gives architects a complete circular vocabulary: full-circle (Ø600mm), half-round, and quarter-curve tracks in both surface-mount and recessed versions, alongside the classic straight 1m / 2m / 3m channels. Pair them with dedicated curve-track light modules (NL-MT-CURVE-02 grille, NL-MT-CURVE-03 spot) and a dedicated MT-CURVE 48V DC power supply to build chandelier-like ring installations, halo coves, and curved feature lighting that simply isn't possible with straight track. Standard 20mm track + 12 track-light modules + adapters + drivers also included.
⭐ The Round / Curve Track — what makes this range unique
Most magnetic-track ranges sell only straight channels and corners. JS-NPT 20mm adds true circular and half-round geometry:

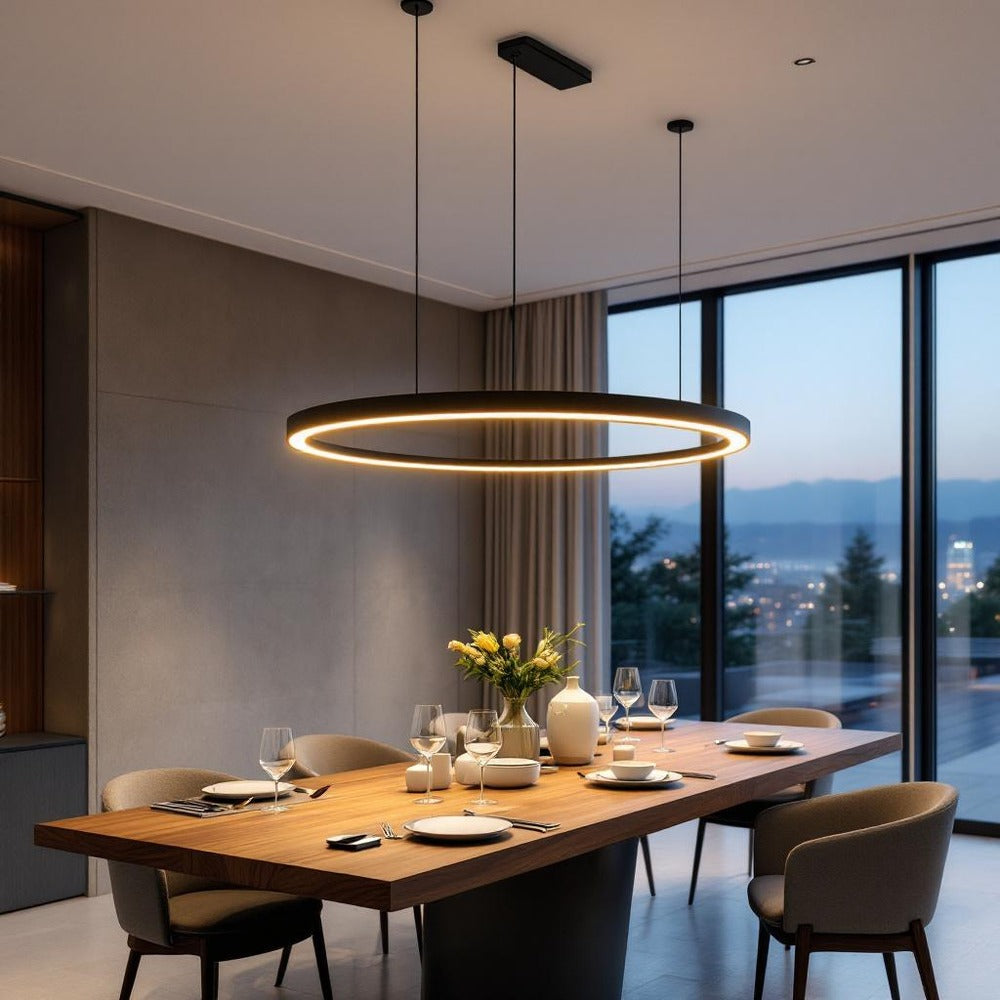

- MT-Full Circle 600-SM / 600-RM — Ø600mm closed-loop ring (surface or recessed). Perfect over dining tables, kitchen islands, reception desks.
- MT-Half Round 600-SM / 600-RM — Ø600mm semicircle. Ideal for corridors, bedheads, asymmetric installations.
- MT-Quoter Curve 600-SM / 600-RM — 90° quarter-arc Ø600mm. Combine multiple to build any curved path.
- NL-MT-CURVE-02 Grille 12W & NL-MT-CURVE-03 Spot 12W — light modules designed to clip into curved track and bend with it.
- MT-CURVE Power Supply 100W — dedicated 48V DC PSU for curve-track installations (regular straight-track PSUs won't work on the curve).
All circular components are 20mm width compatible. Combine straight + curve sections in a single layout using corner-connect modules.
Product Range

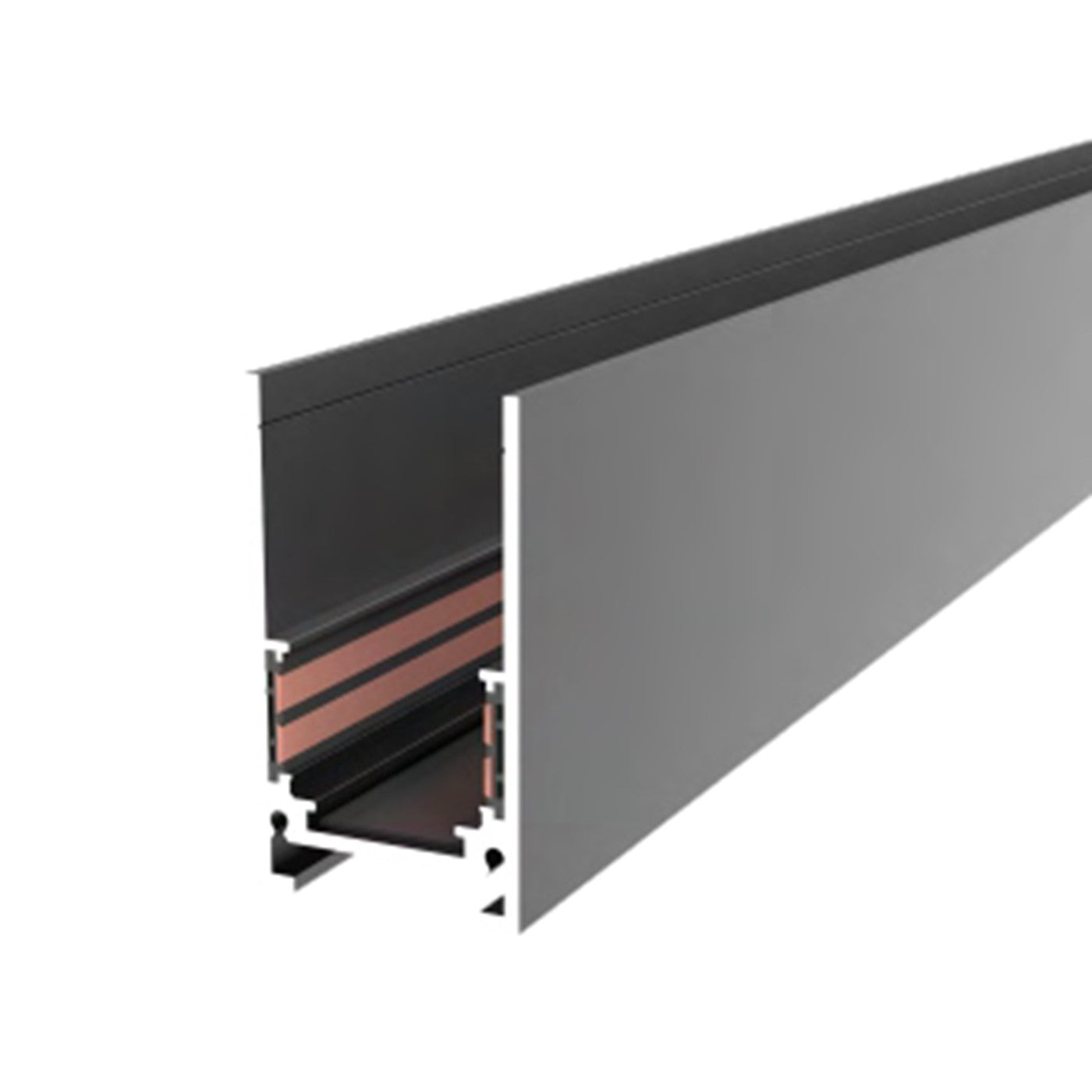

1. Surface-Mount Straight Track (MTS 20)
Surface-mounted 20mm wide black track in three standard lengths. Hangs from ceiling or surface-mounts to soffit. Combine with corners, jointers, and hanging kits for any layout.

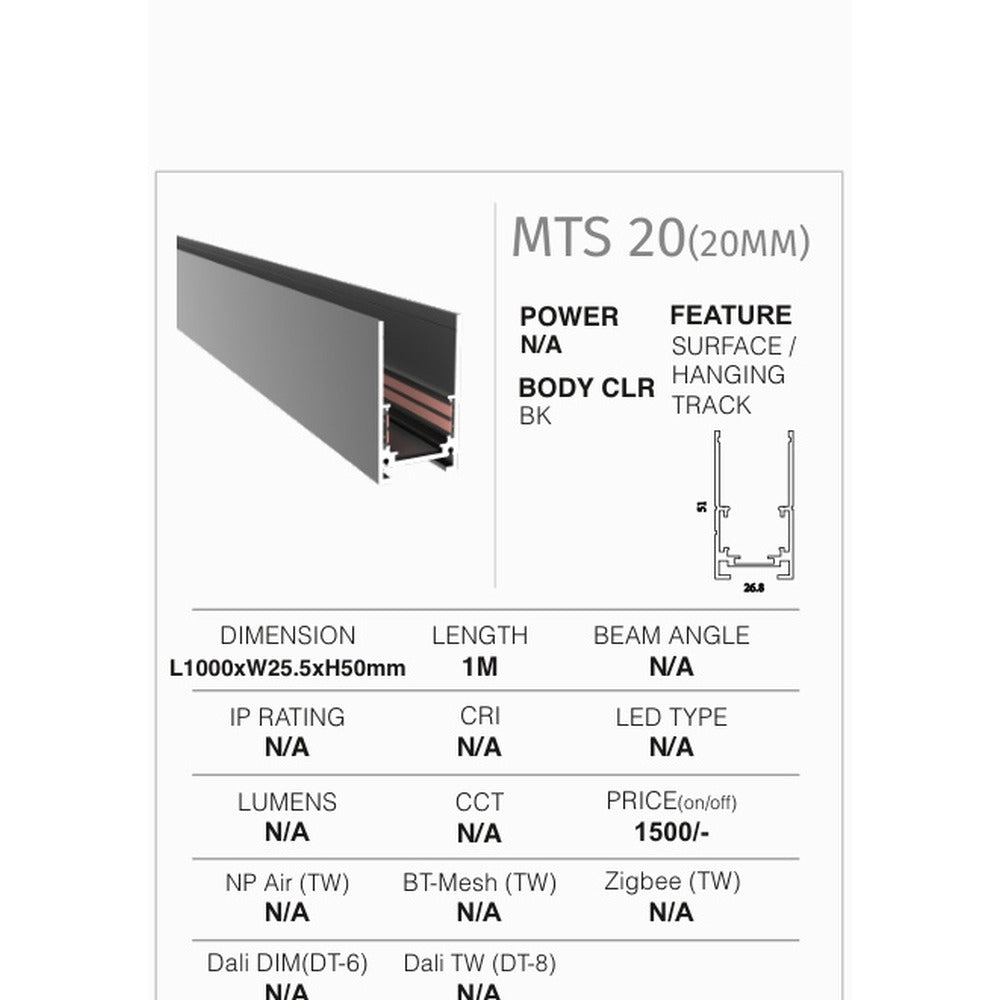

- MTS 20 — 1M · L1000 × W25.5 × H50mm · Black

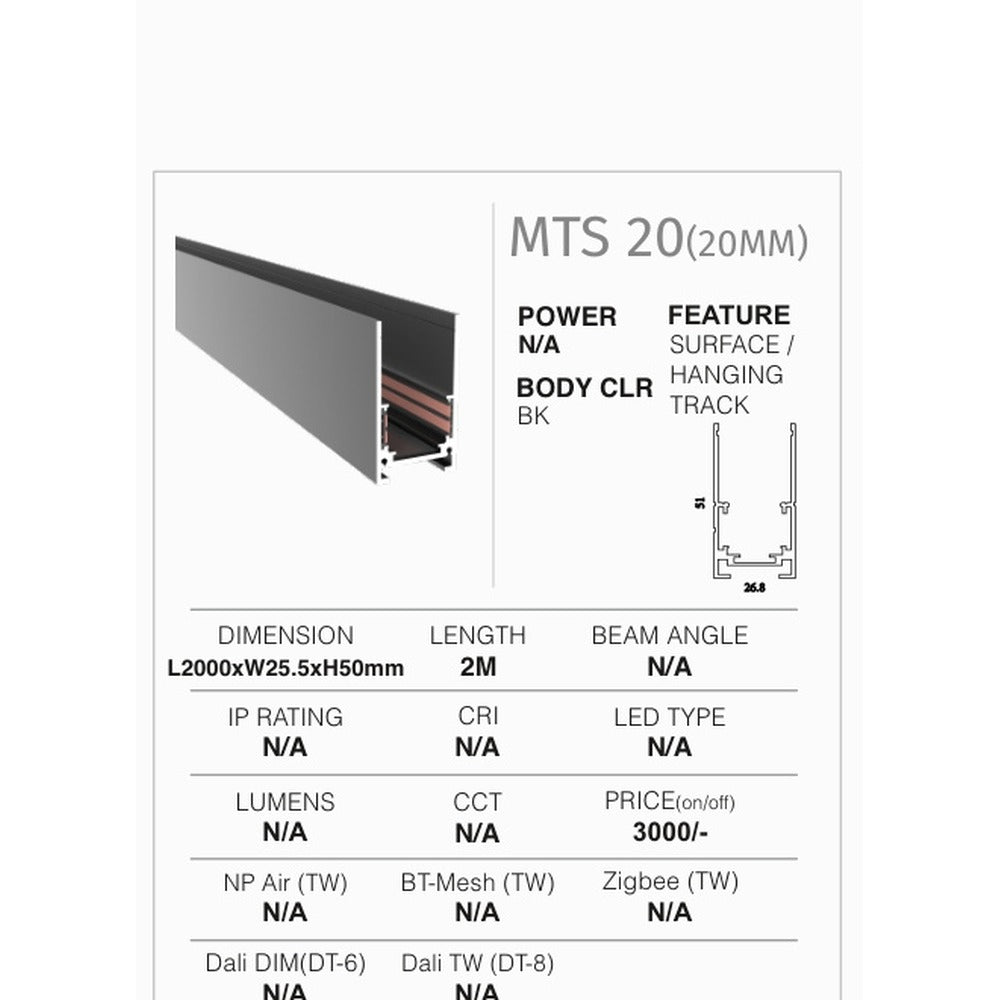

- MTS 20 — 2M · L2000 × W25.5 × H50mm · Black

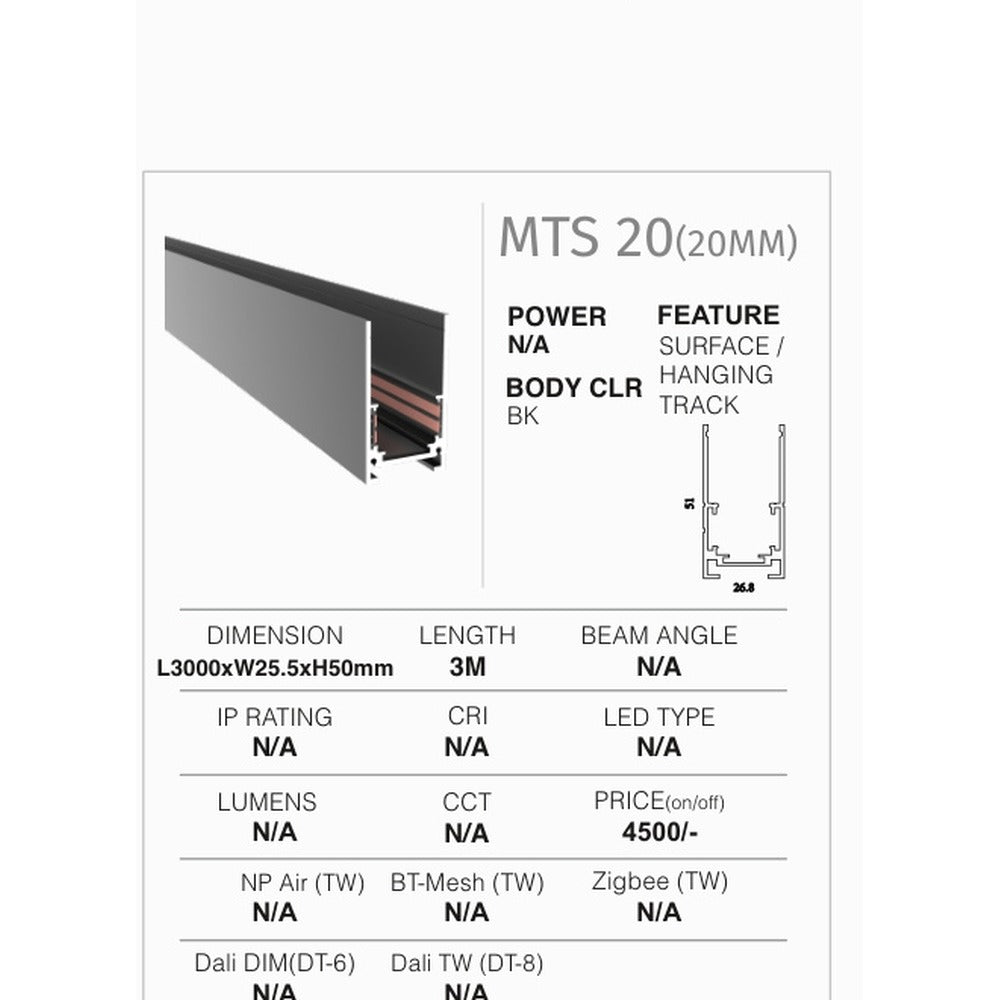

- MTS 20 — 3M · L3000 × W25.5 × H50mm · Black

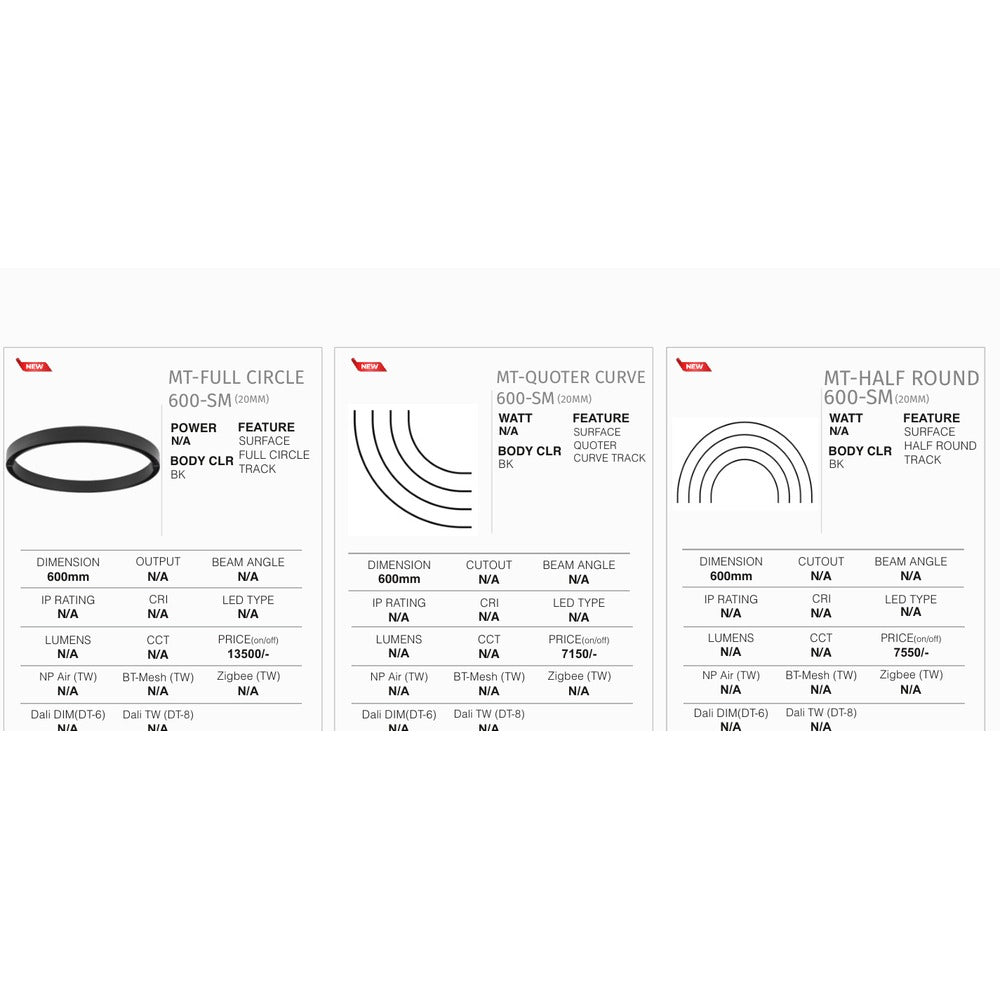

2. Surface-Mount ROUND / CURVE Track ⭐
Pre-formed Ø600mm circular and curved tracks for surface mounting. Create rings, halos, and dramatic arcs.

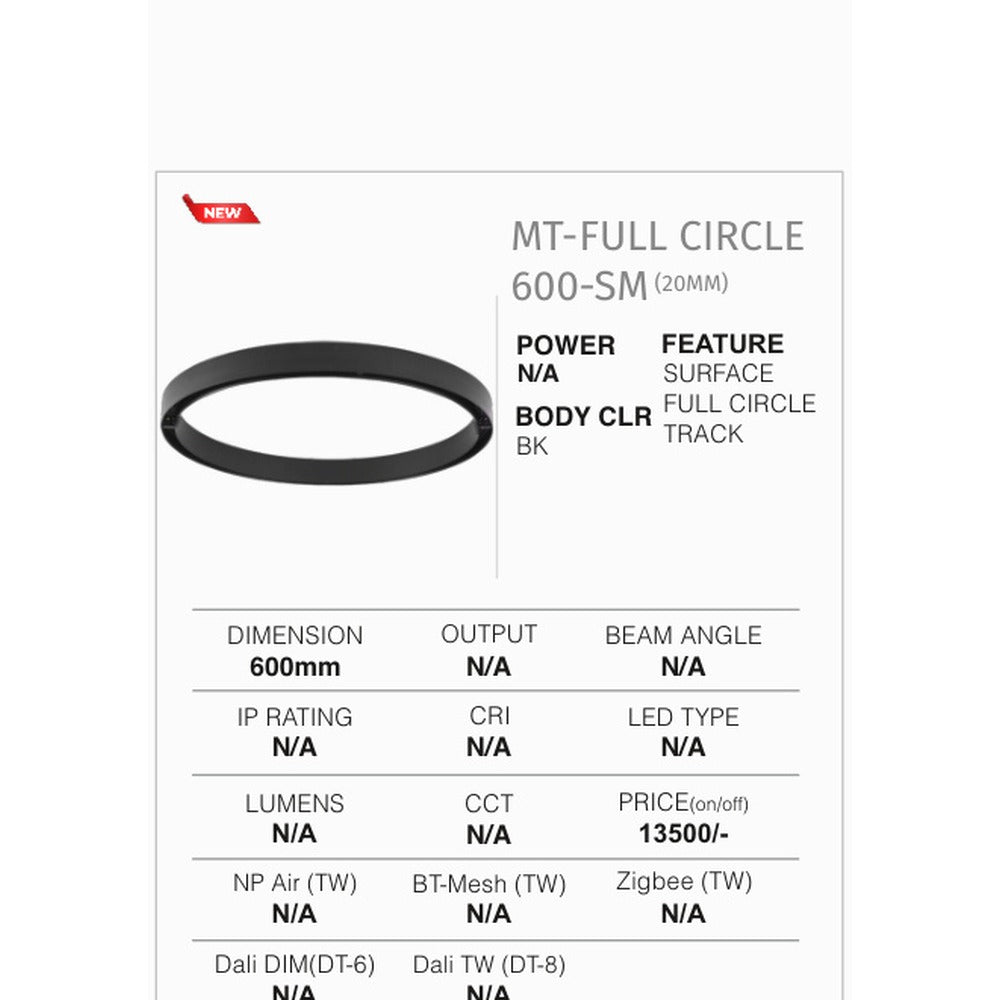

- MT-Full Circle 600-SM — Ø600mm closed ring (surface)

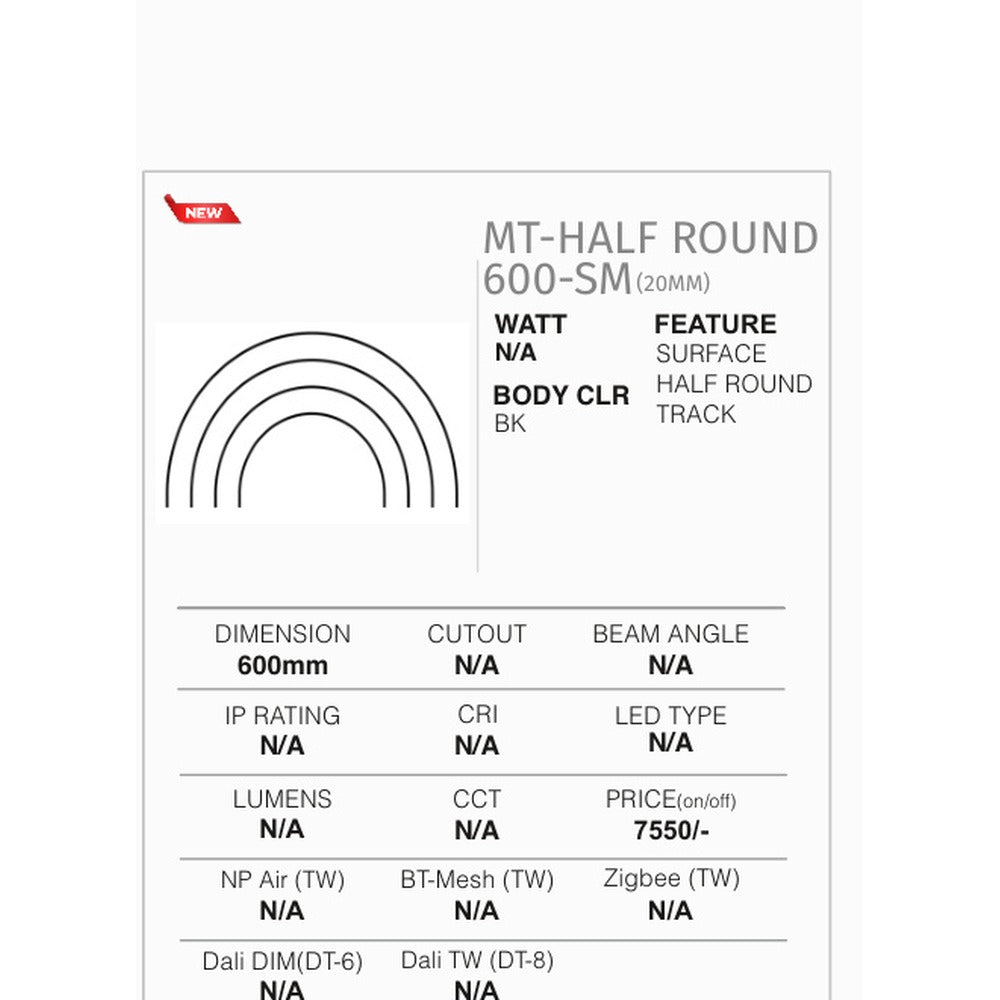

- MT-Half Round 600-SM — Ø600mm semicircle

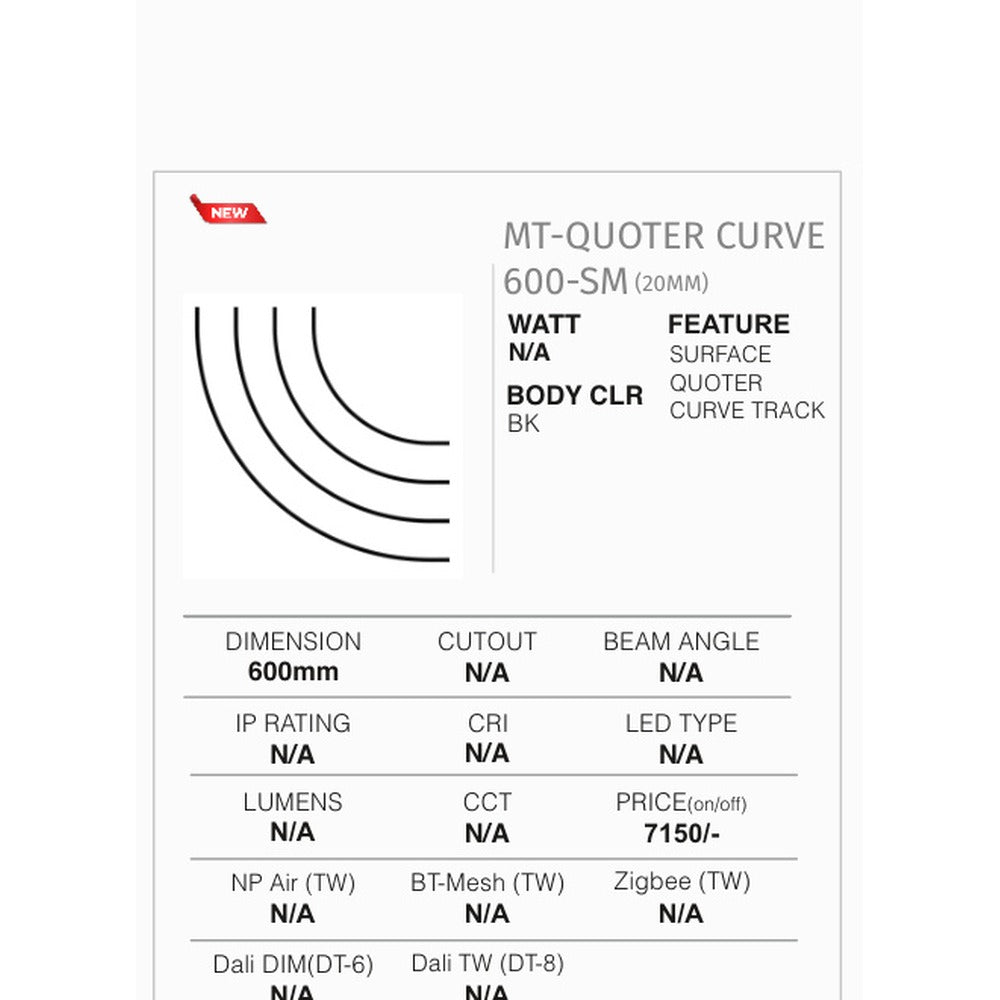

- MT-Quoter Curve 600-SM — 90° quarter arc

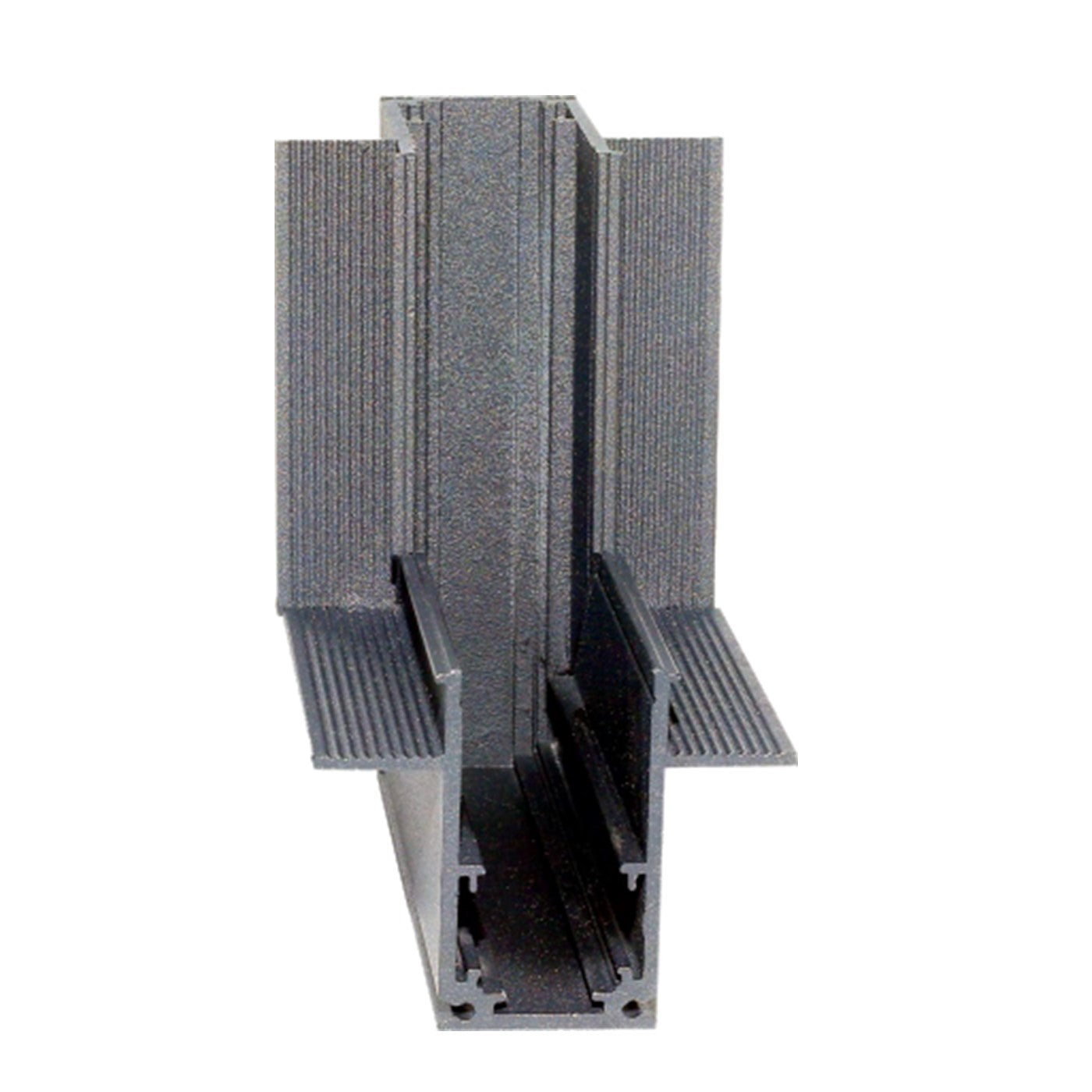

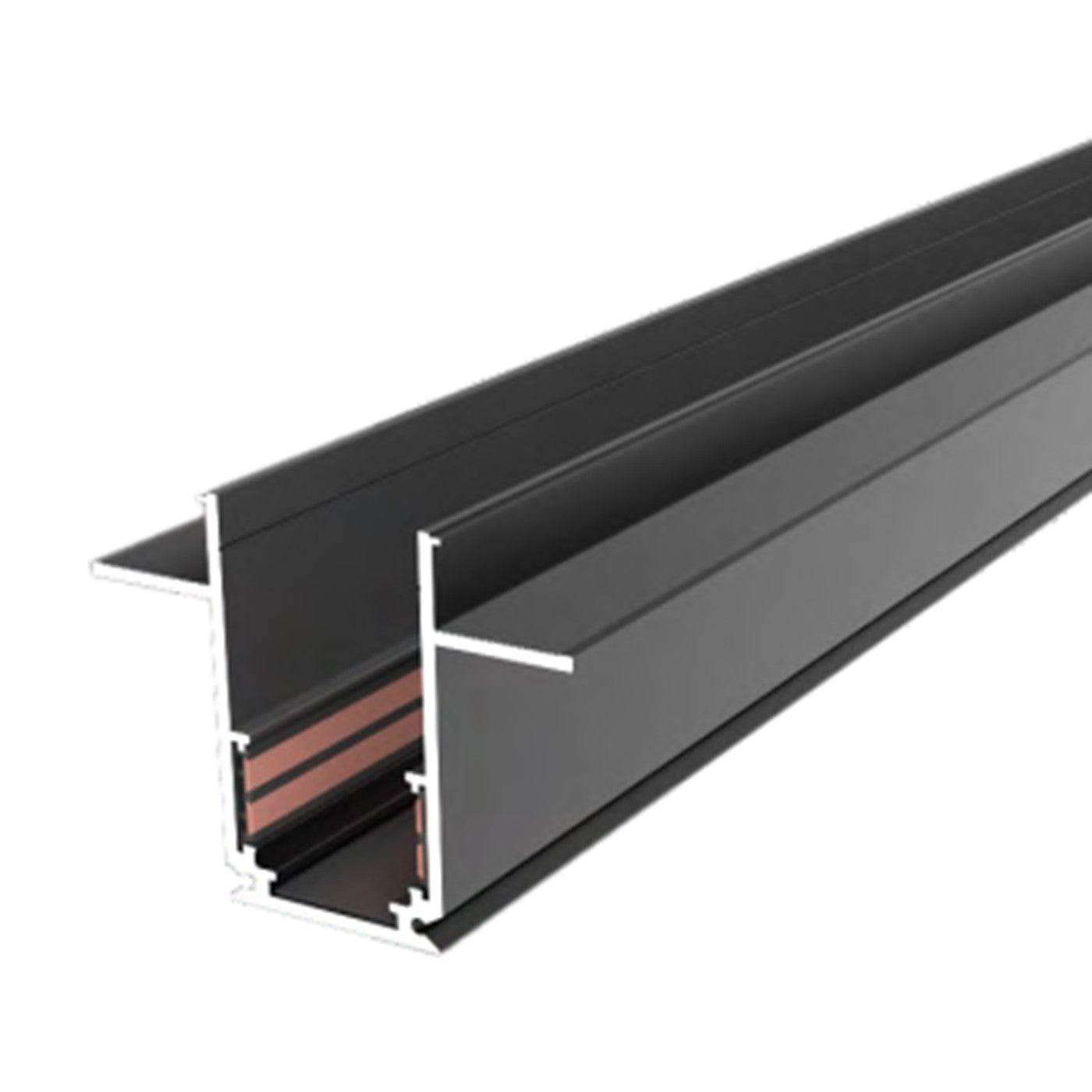

3. Recessed Straight Track (MTR 20)
Plaster-in 62mm wide recessed track with hidden housing. Track sits flush with the ceiling surface for trimless architectural lighting.

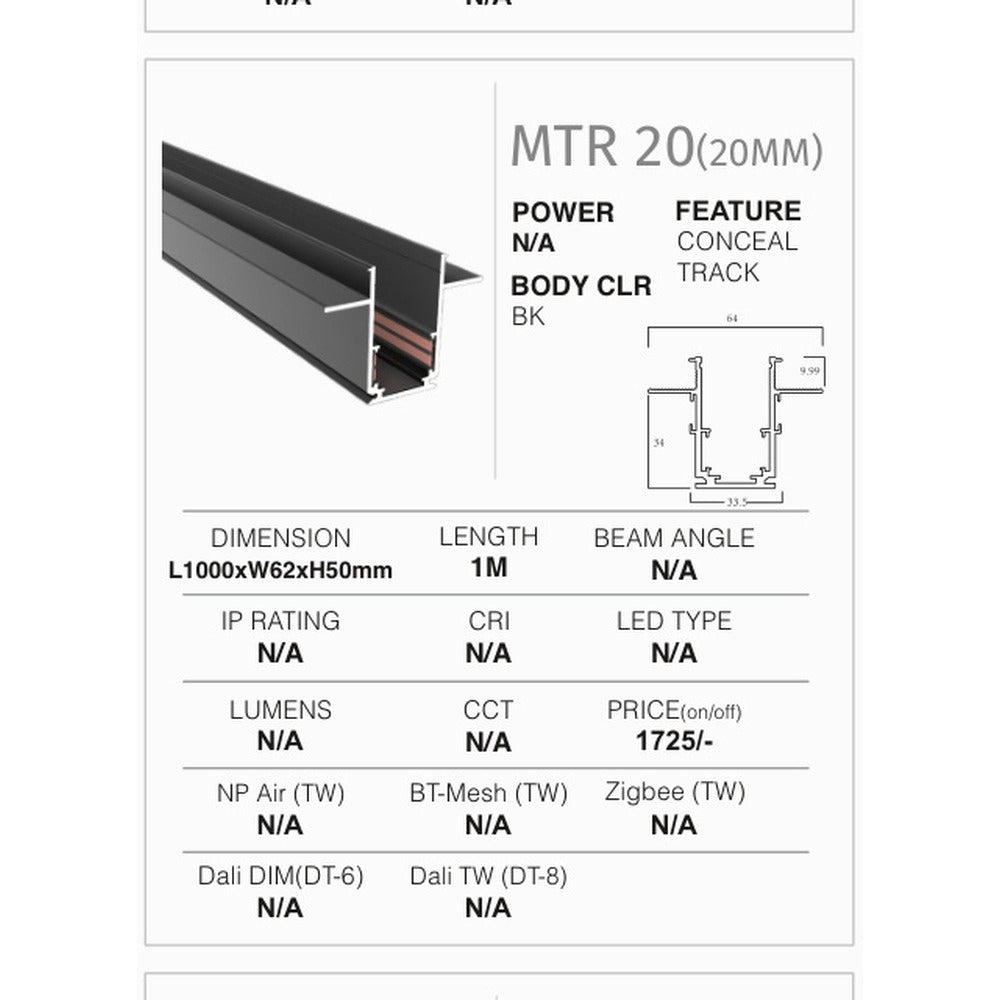

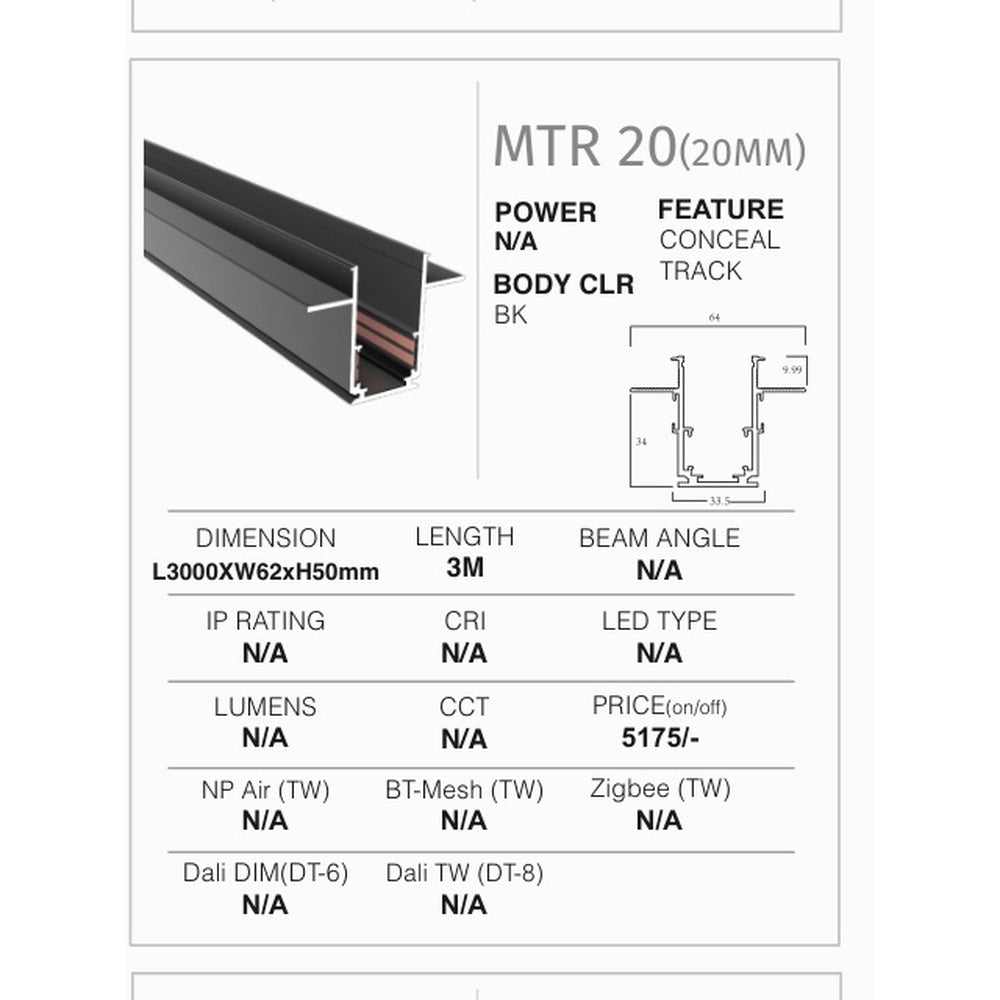

- MTR 20 — 1M / 2M / 3M · L × W62 × H50mm
4. Recessed ROUND / CURVE Track ⭐
Same circular geometry as the surface range, but built for recessed plaster-in installation. Track sits flush with the ceiling, completely hidden.

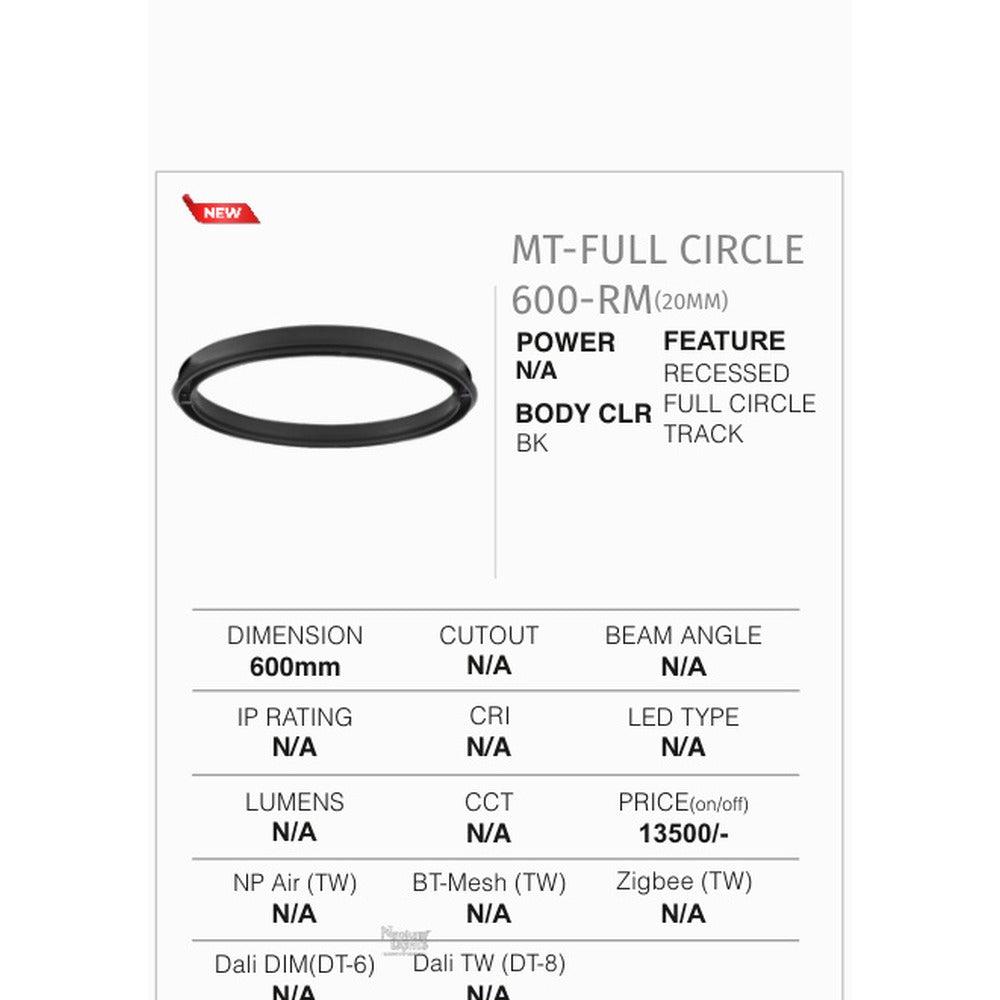

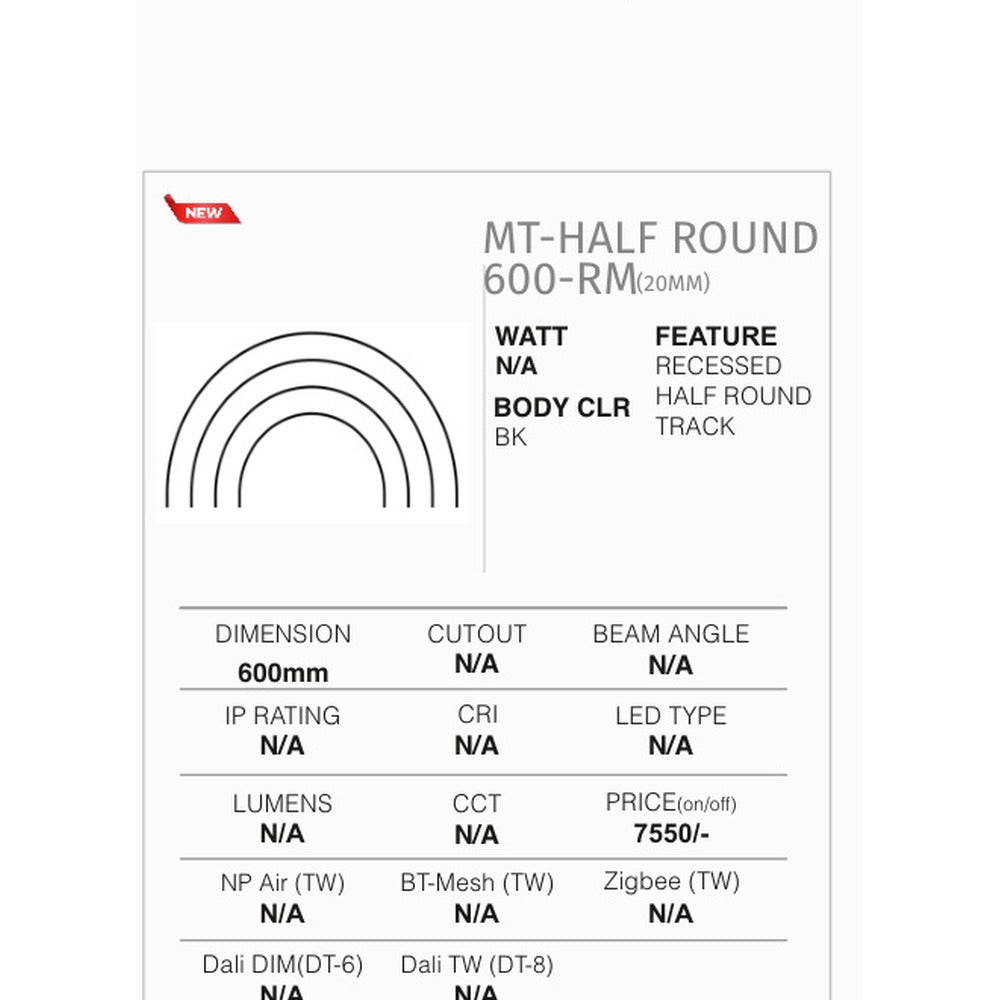

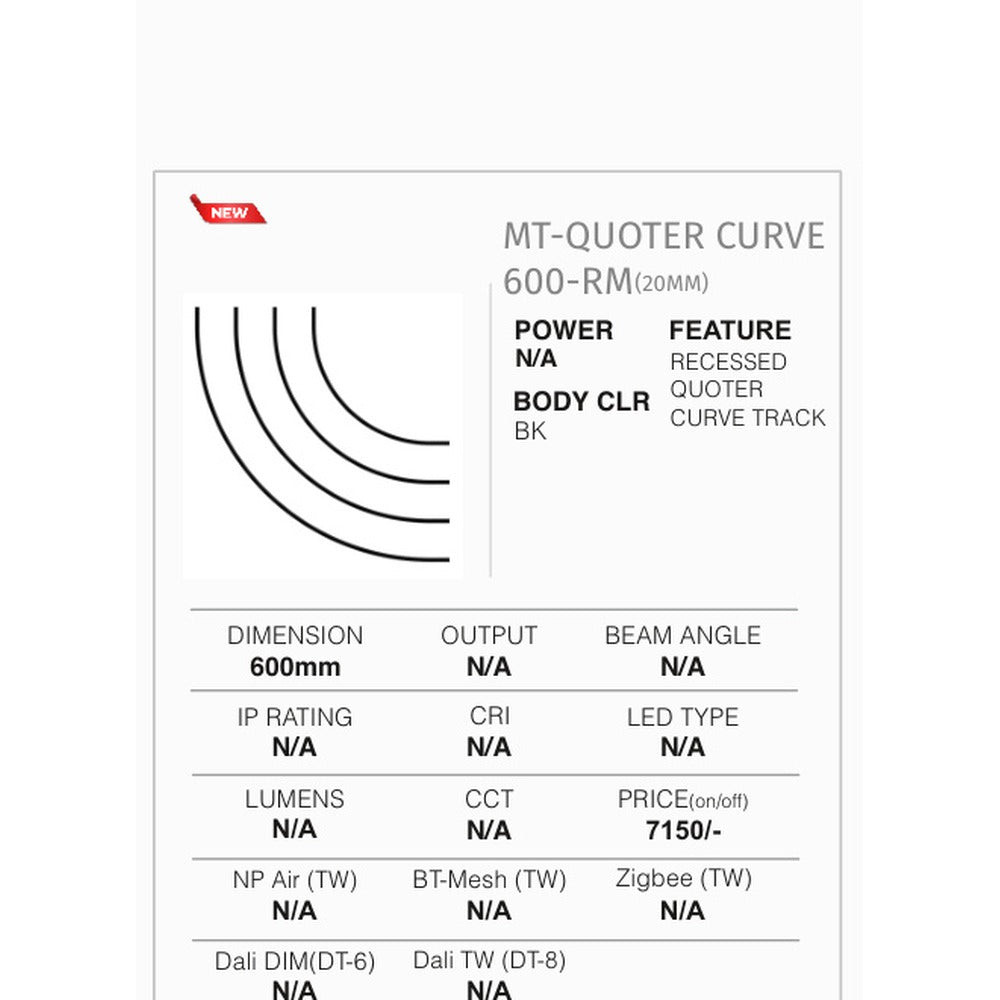

- MT-Full Circle 600-RM · MT-Half Round 600-RM · MT-Quoter Curve 600-RM
5. Parts & Connectors

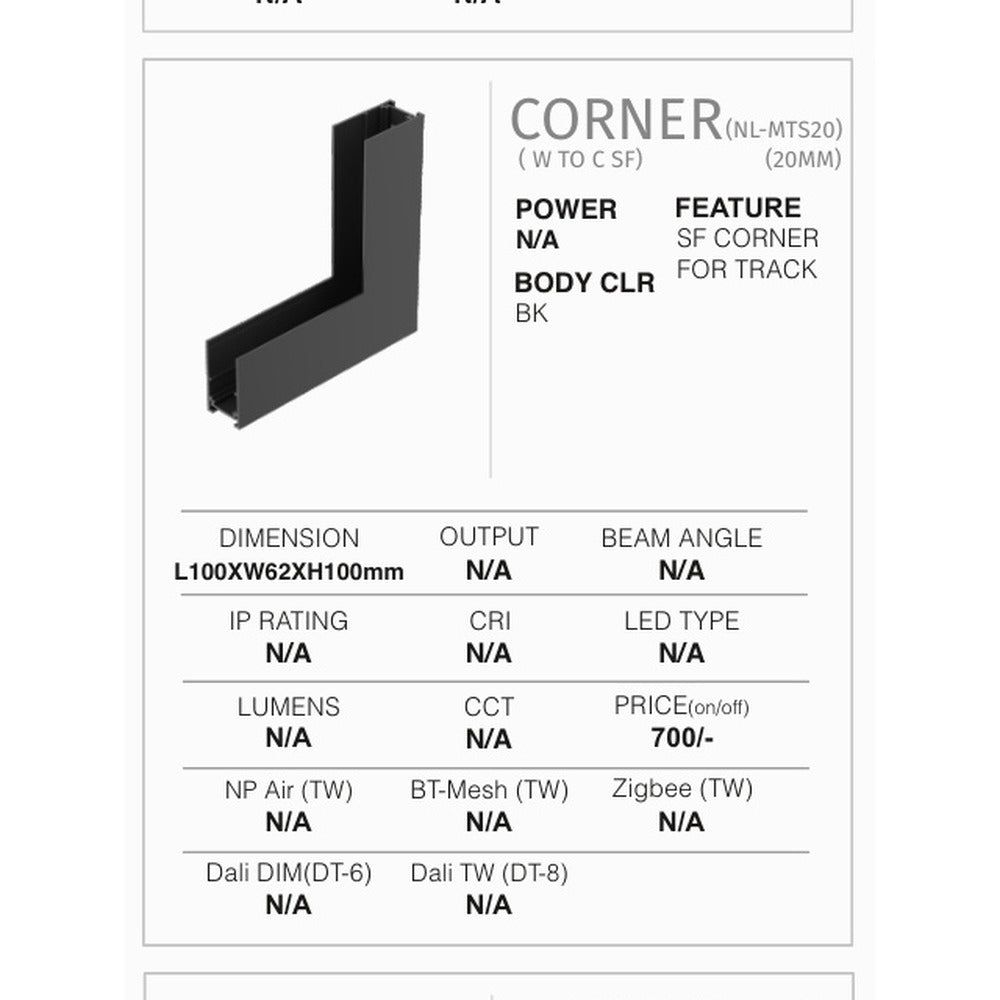

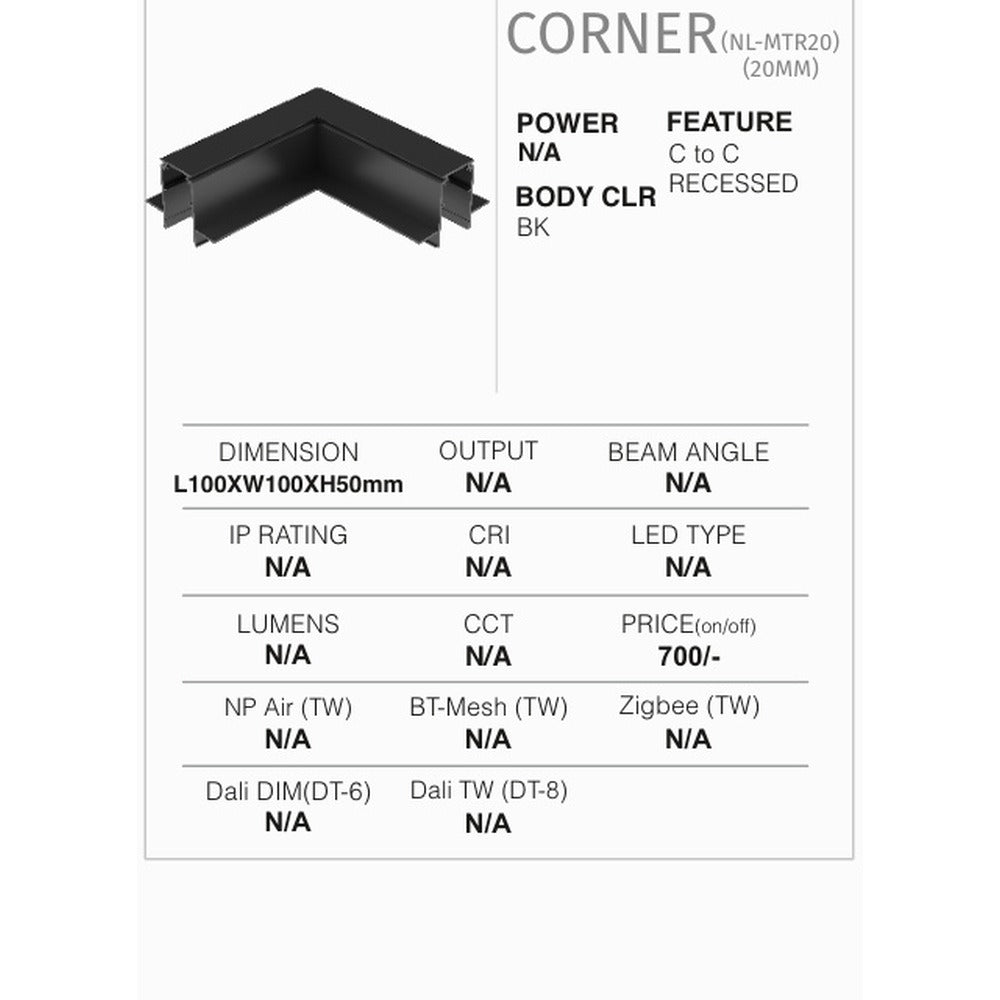

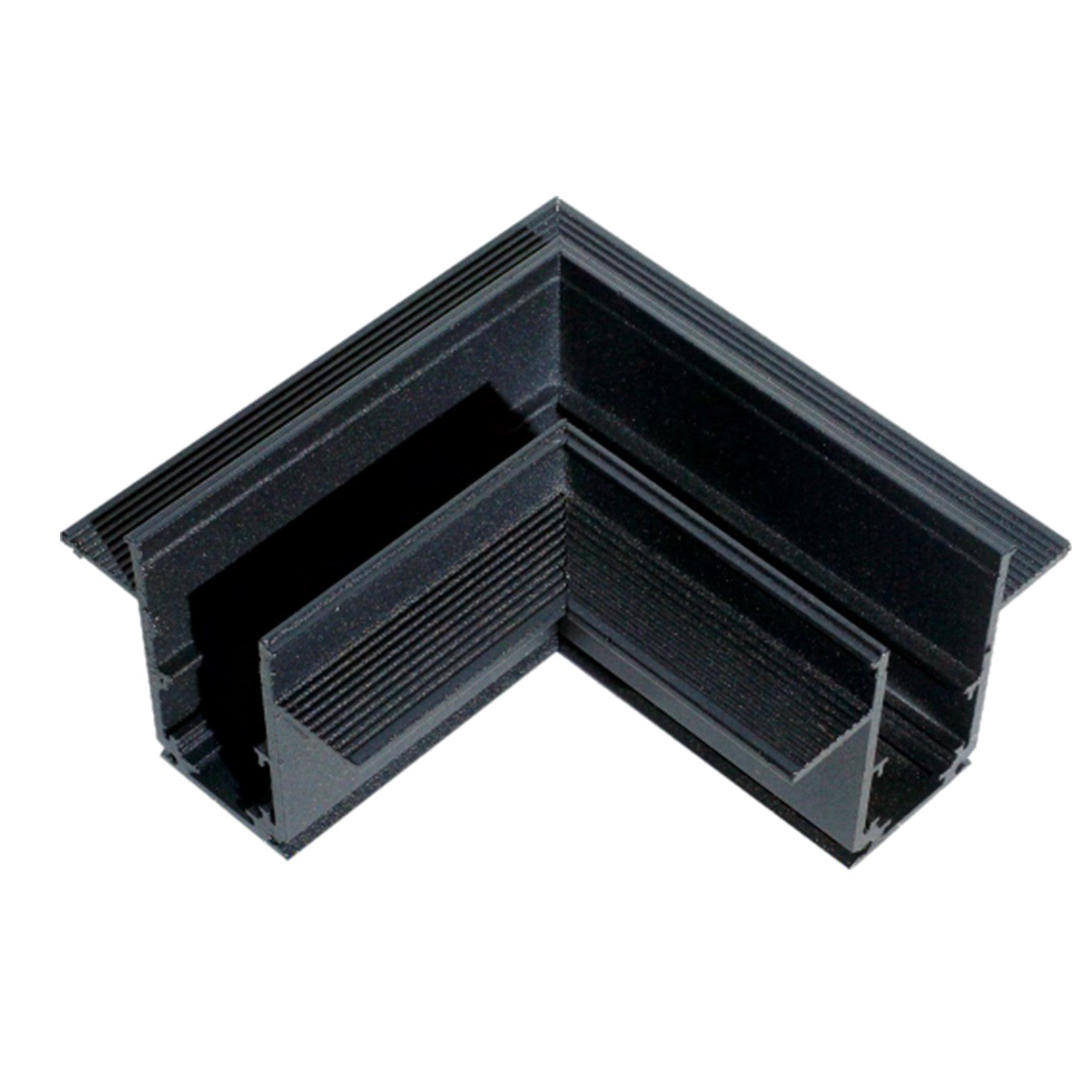

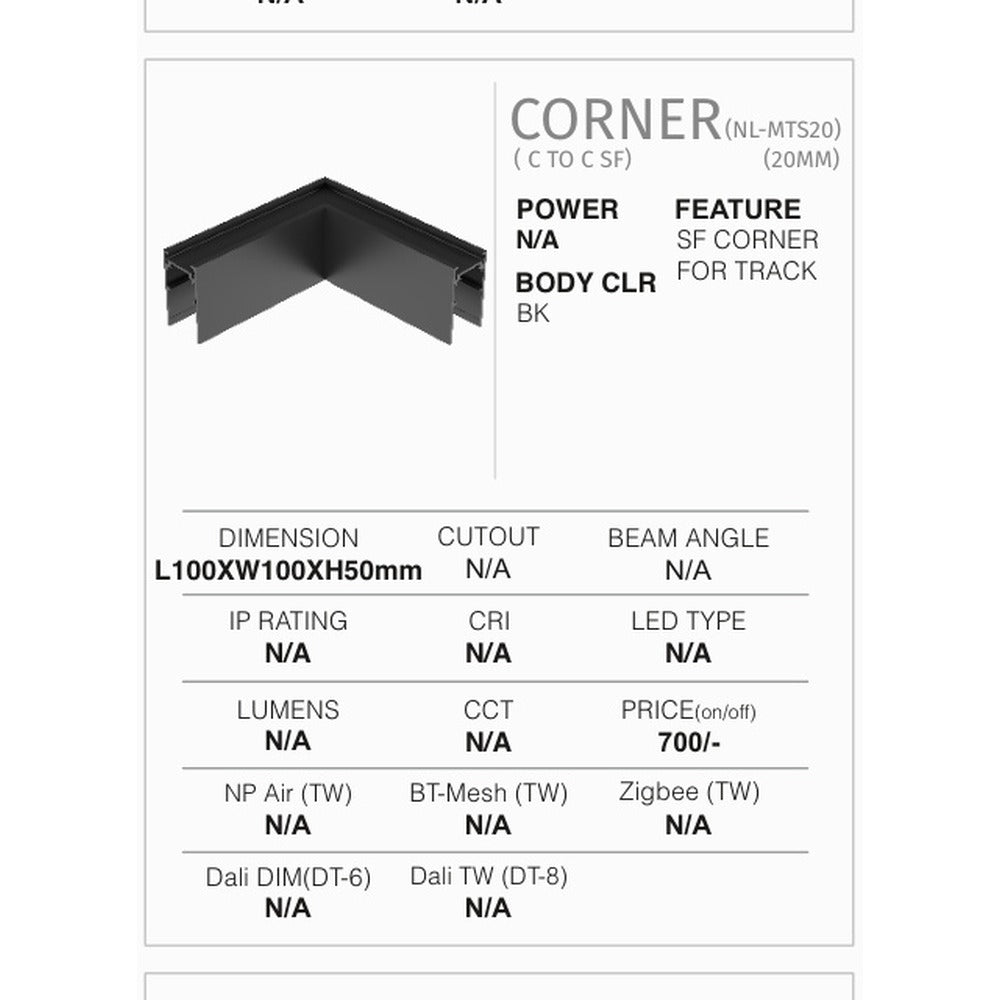

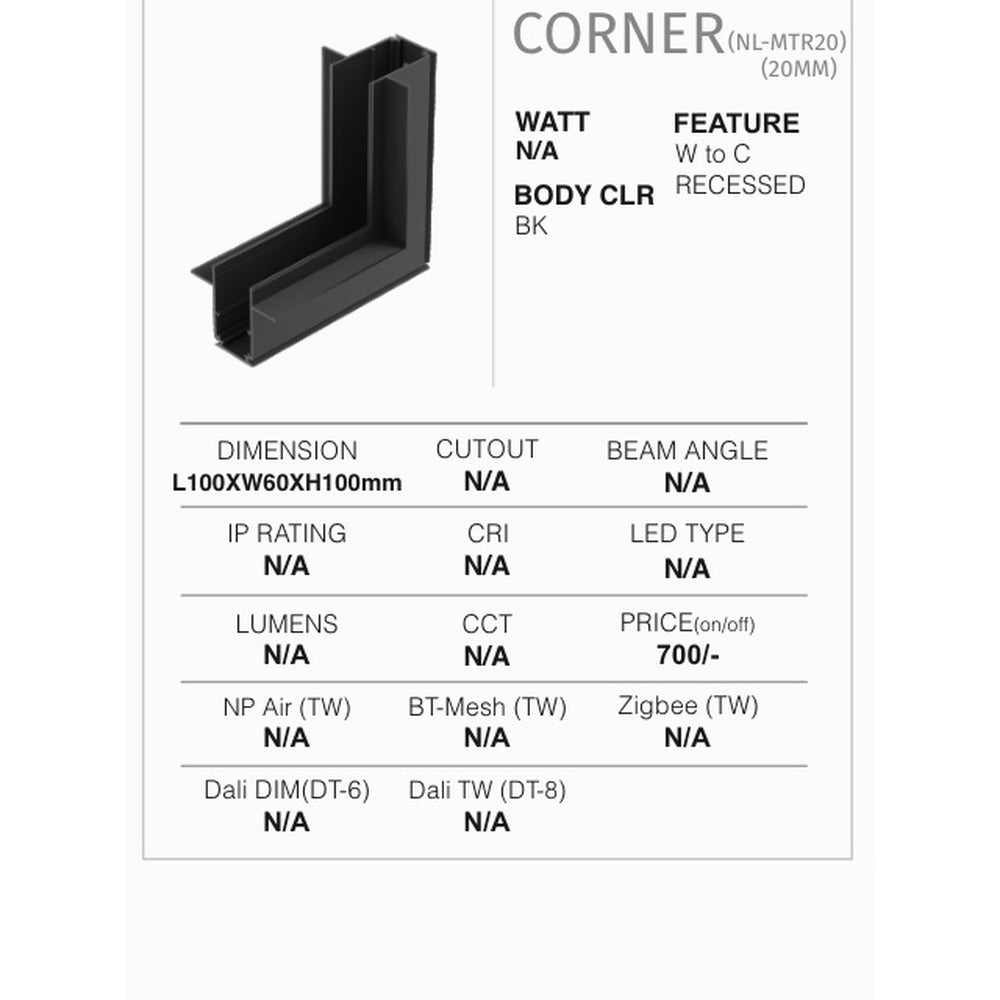

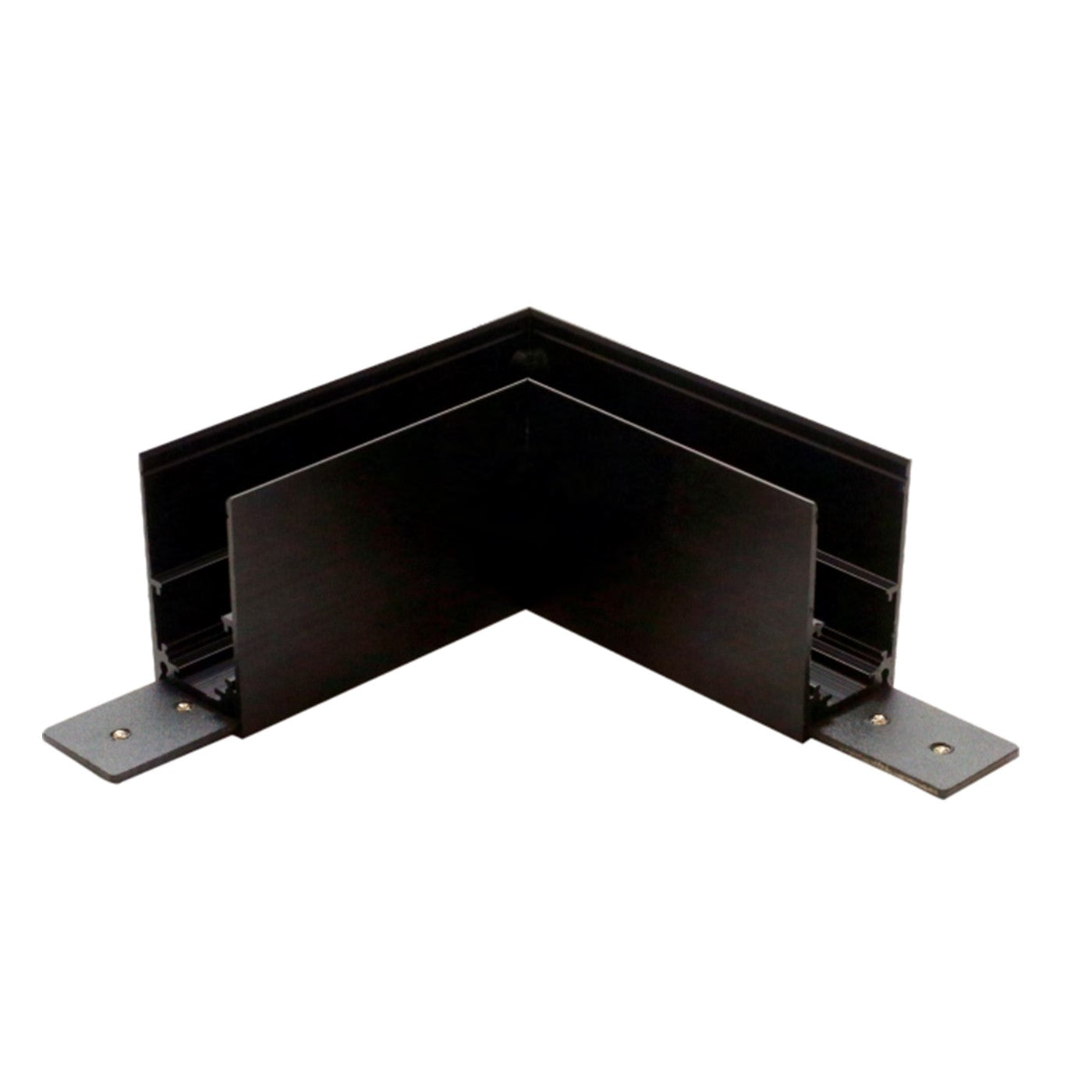

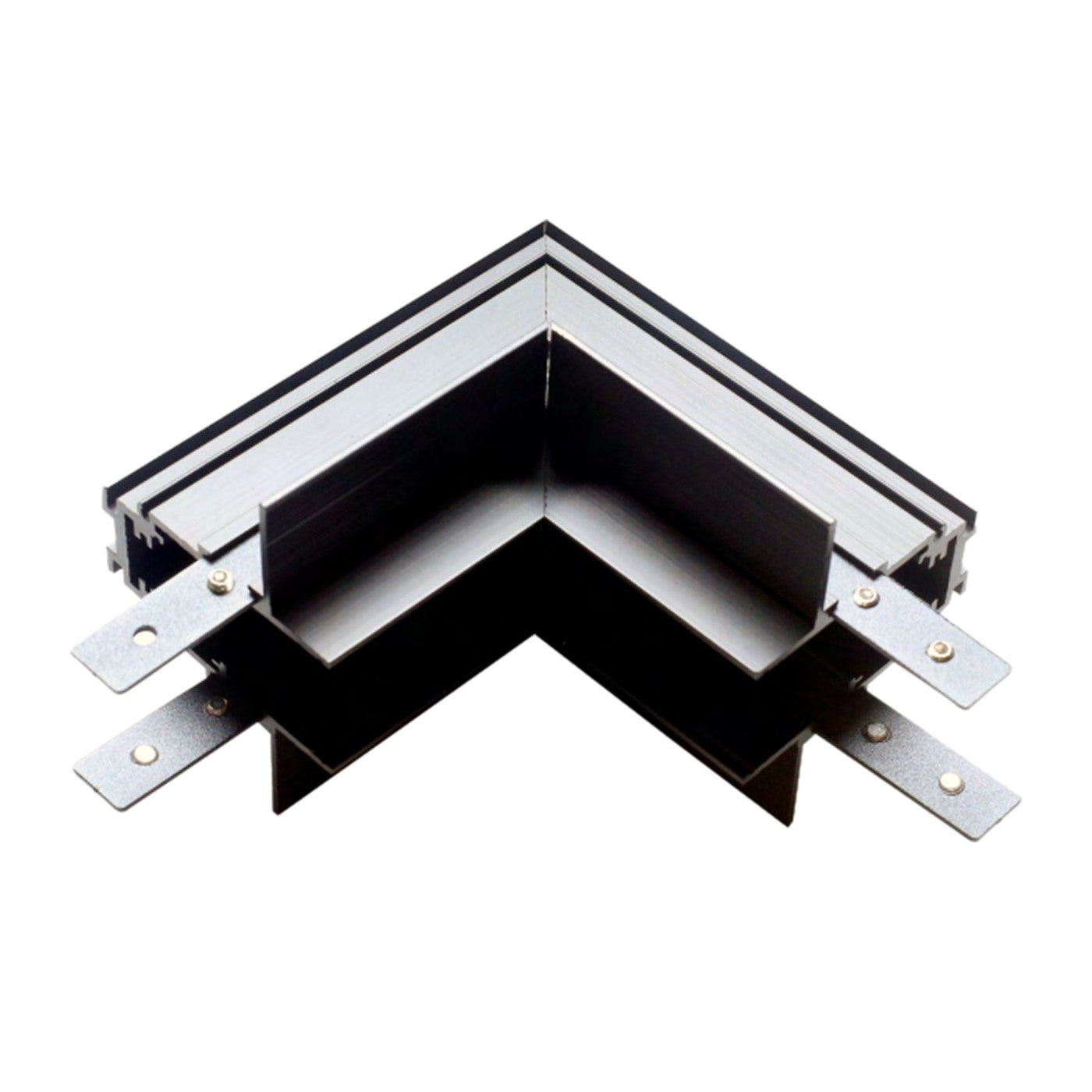

- Surface & Recessed Corners (Centre-to-Centre & Wall-to-Centre)

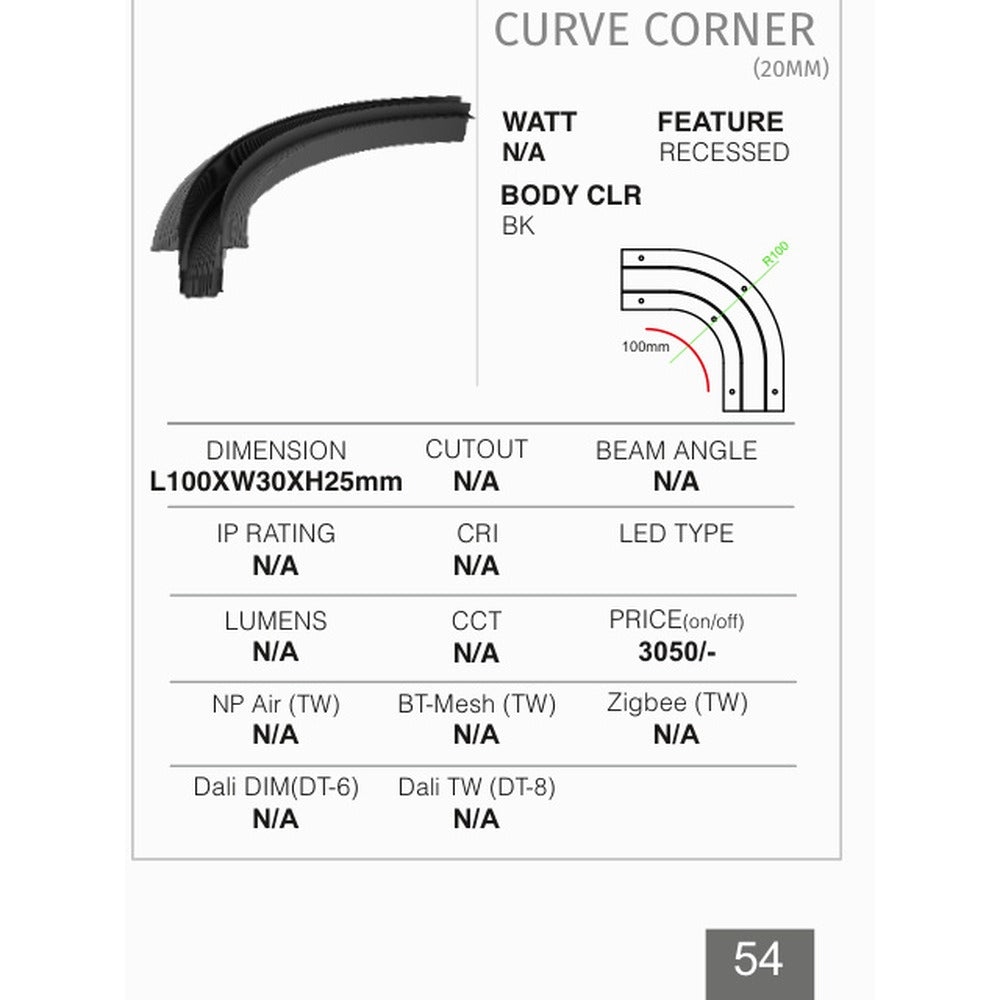

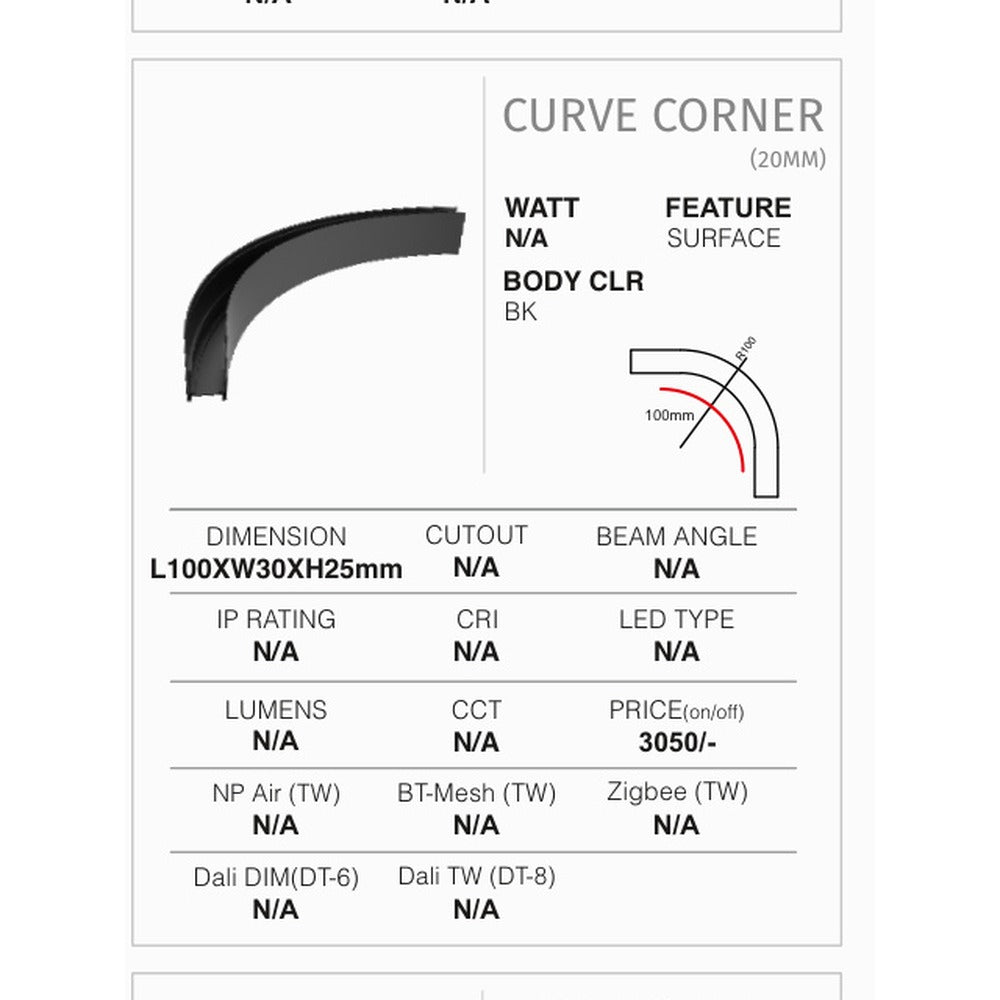

- Curve Corner 100mm (for joining straight to curve)

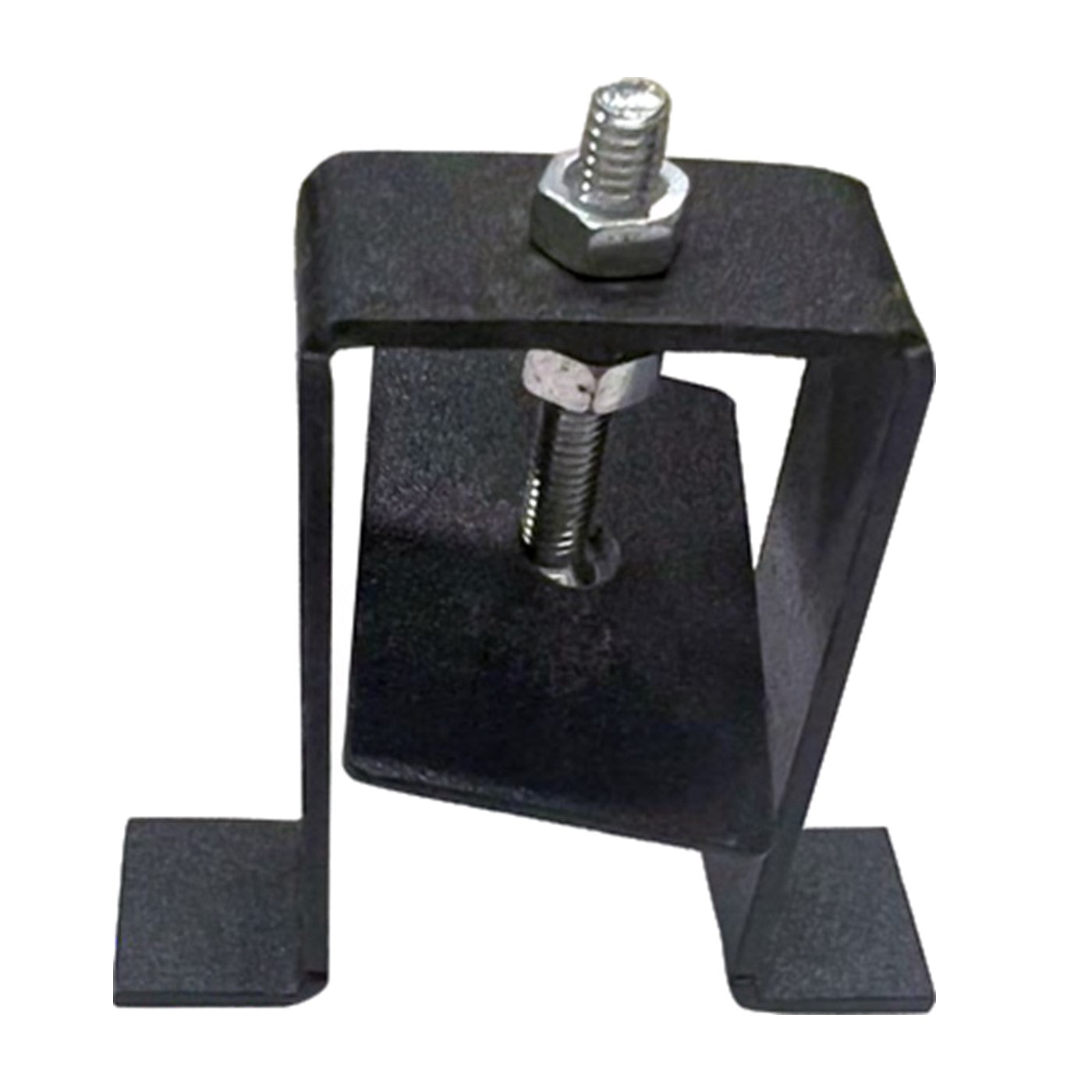

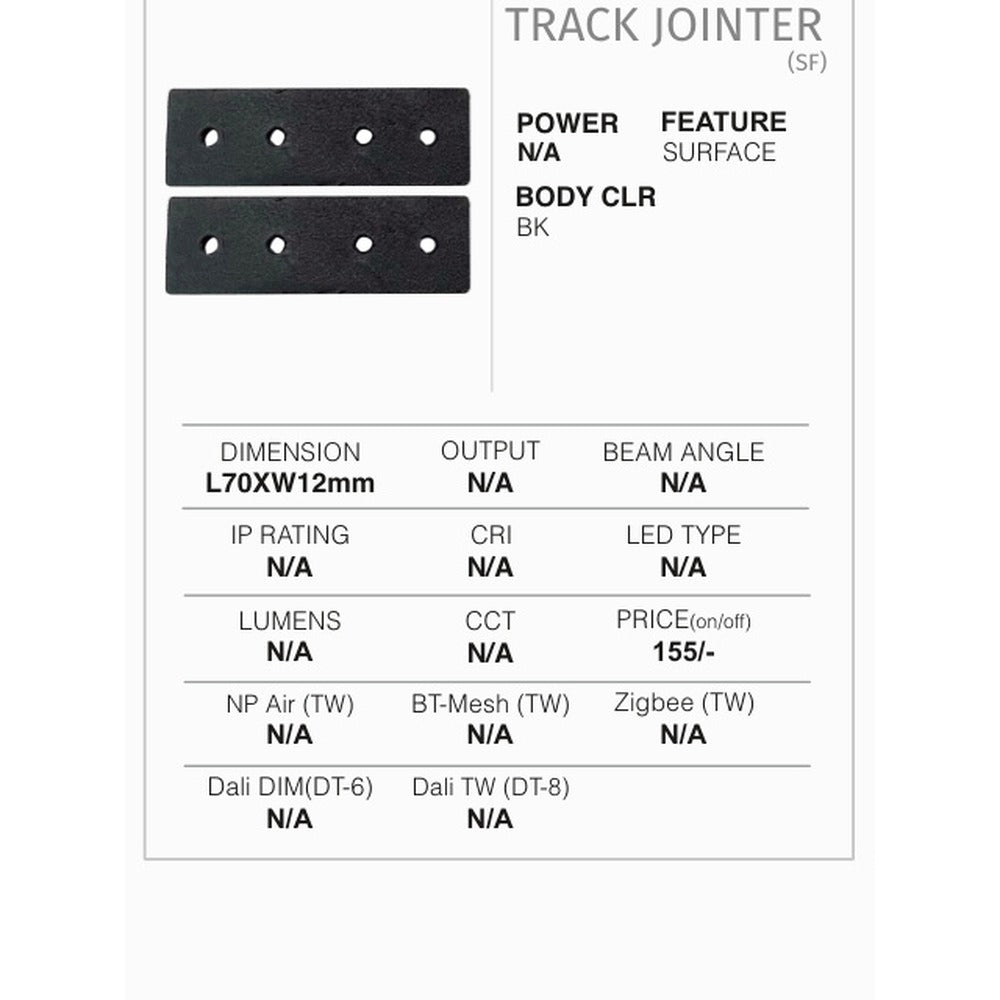

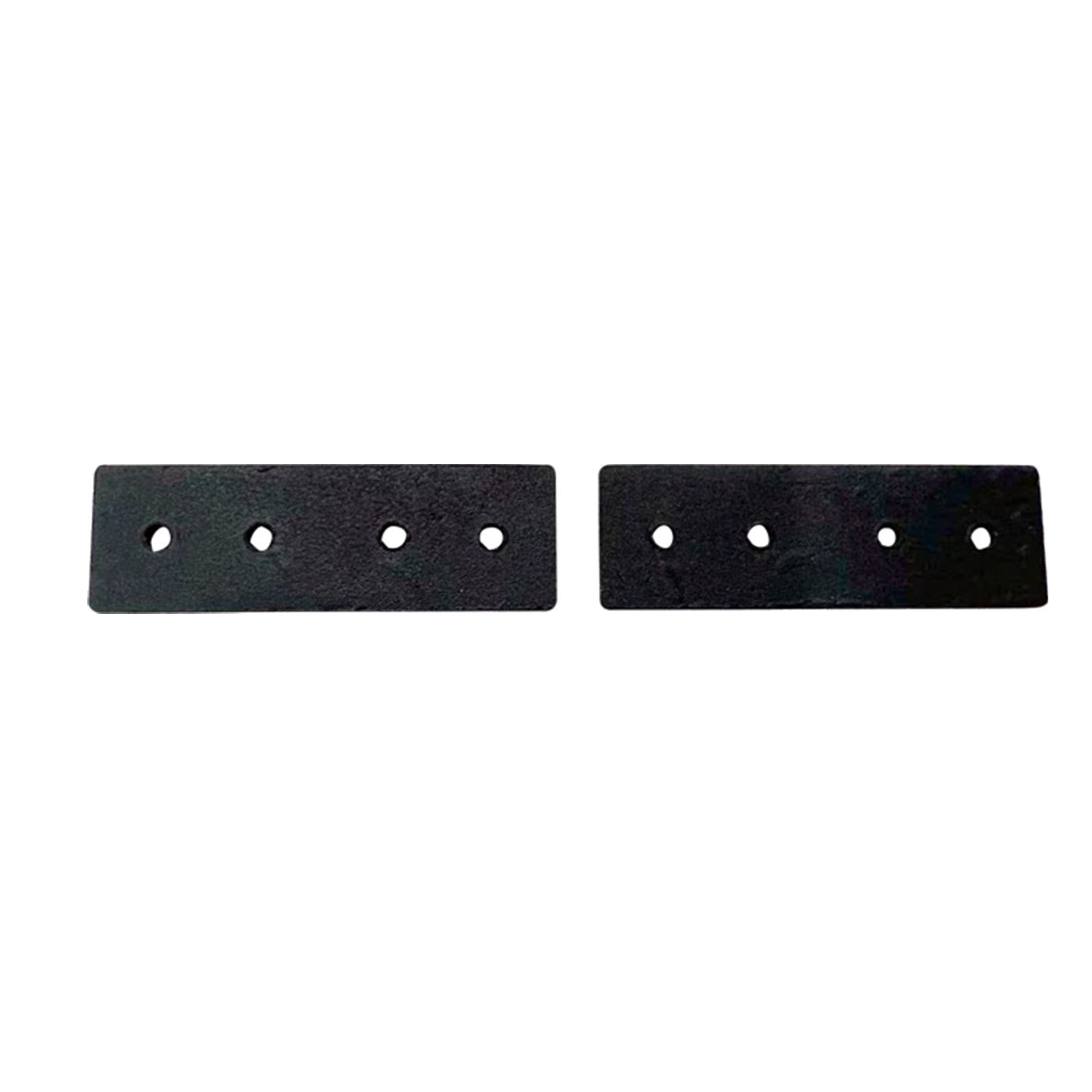

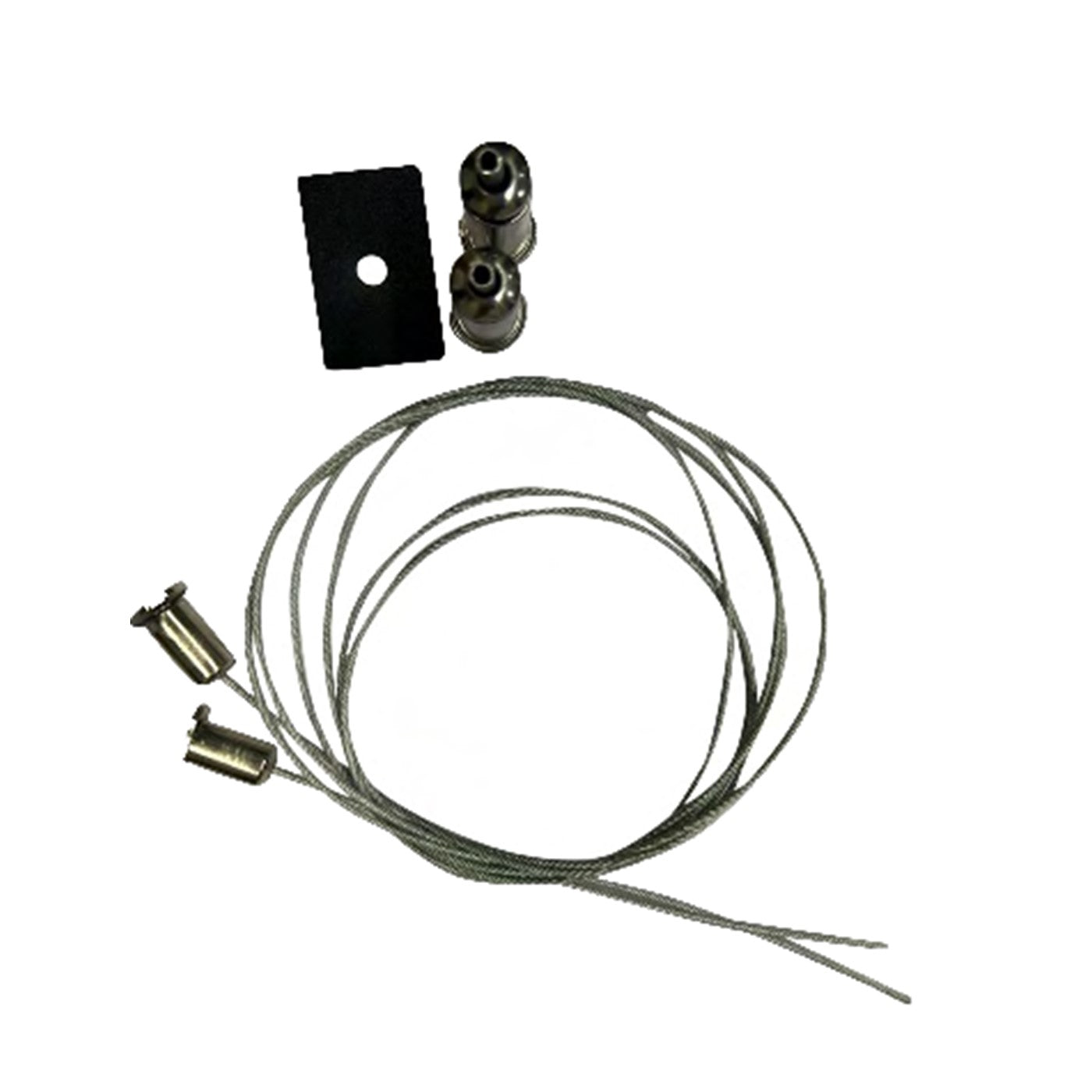

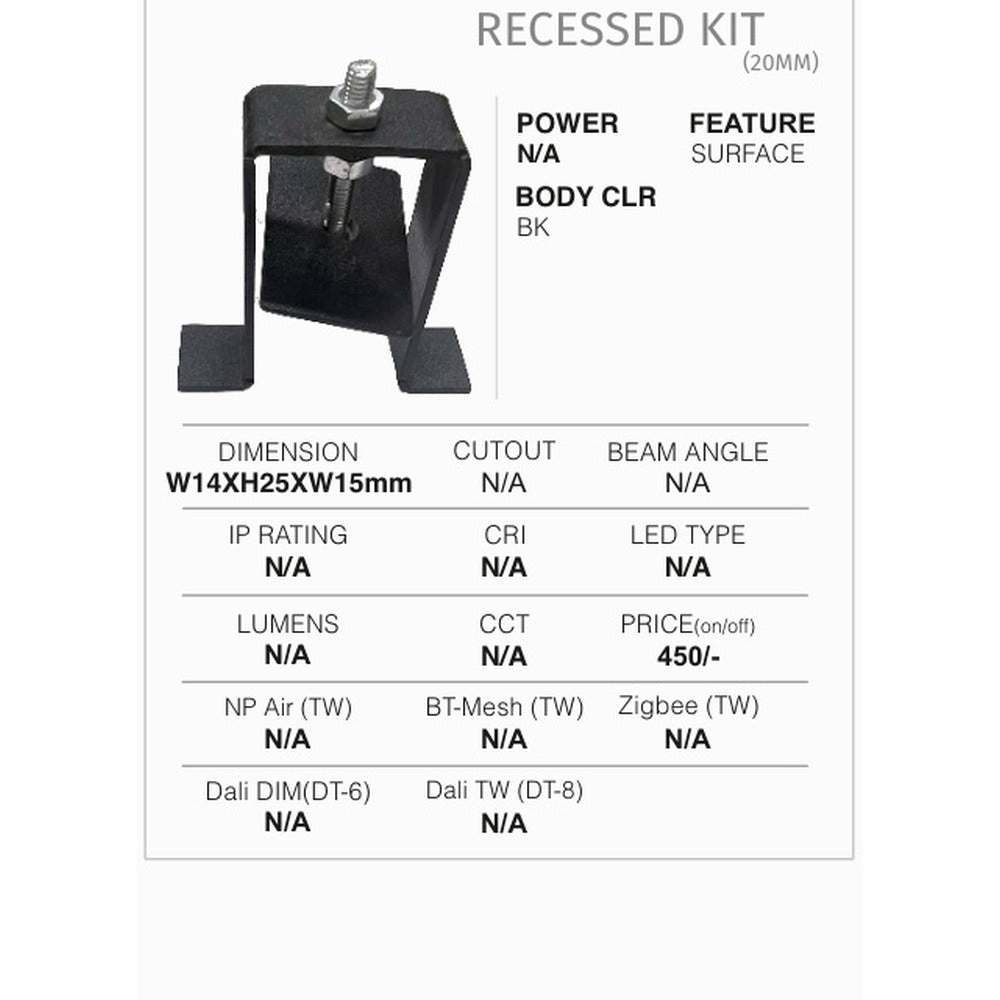

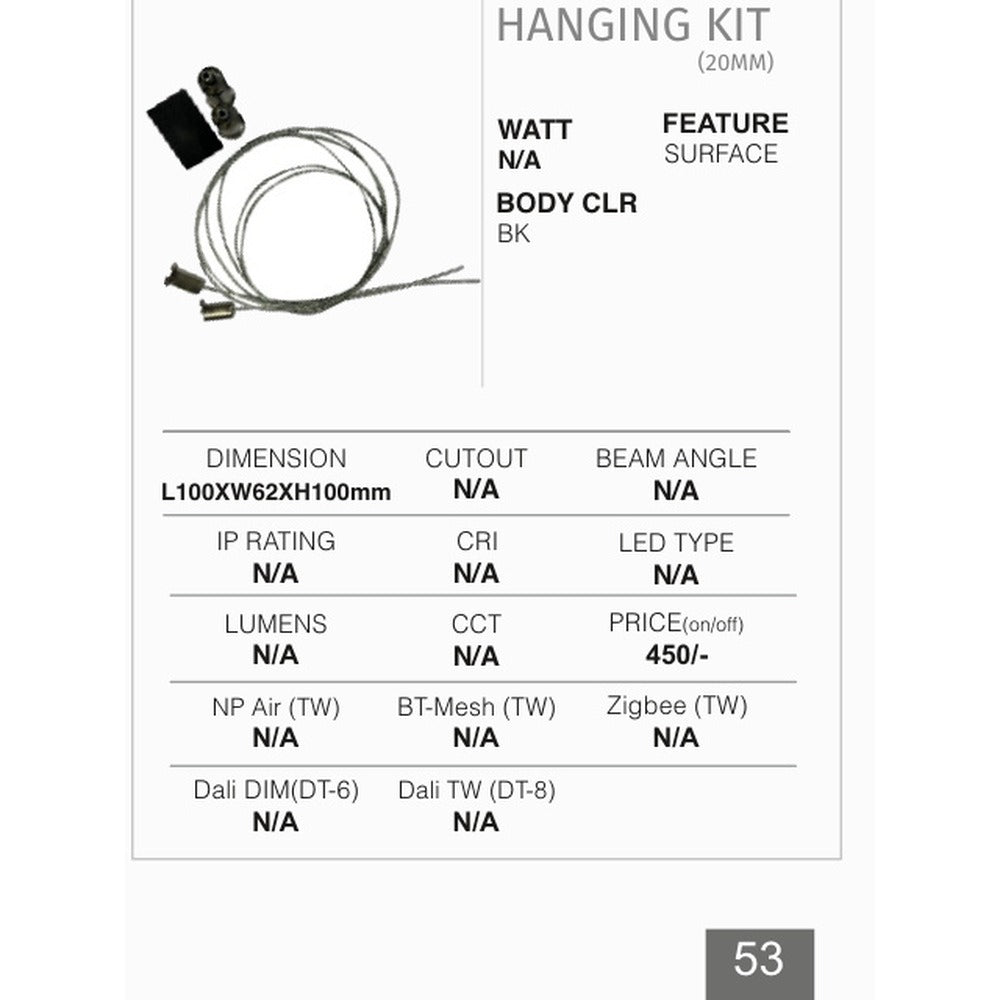

- Track Jointer (L70 × W12mm) · Hanging Kit · Recessed Kit
- Input / Straight / Curve-Corner / Corner-Connect Modules — for power feed-in and conducting current across joints
6. Power Supplies (48V DC)

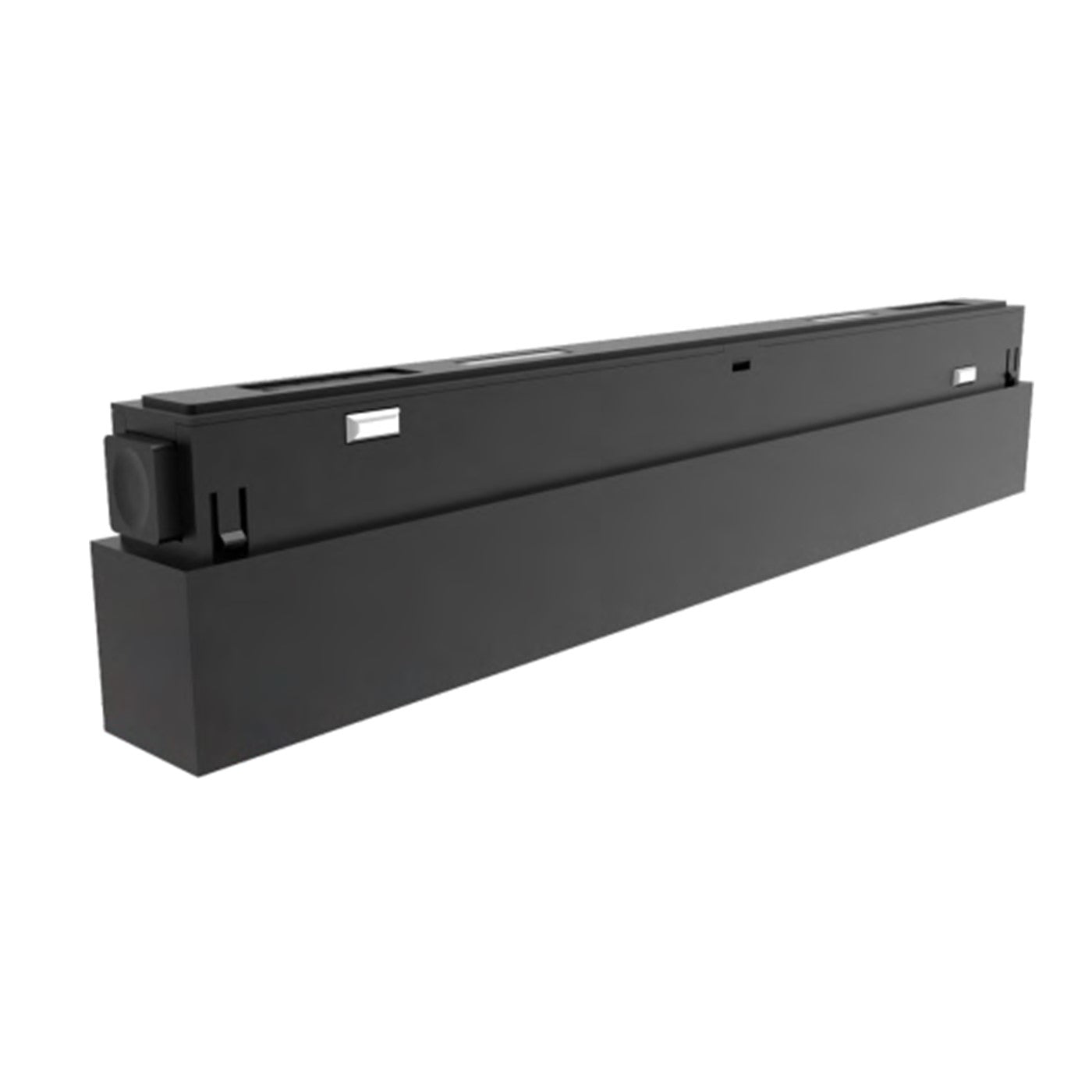

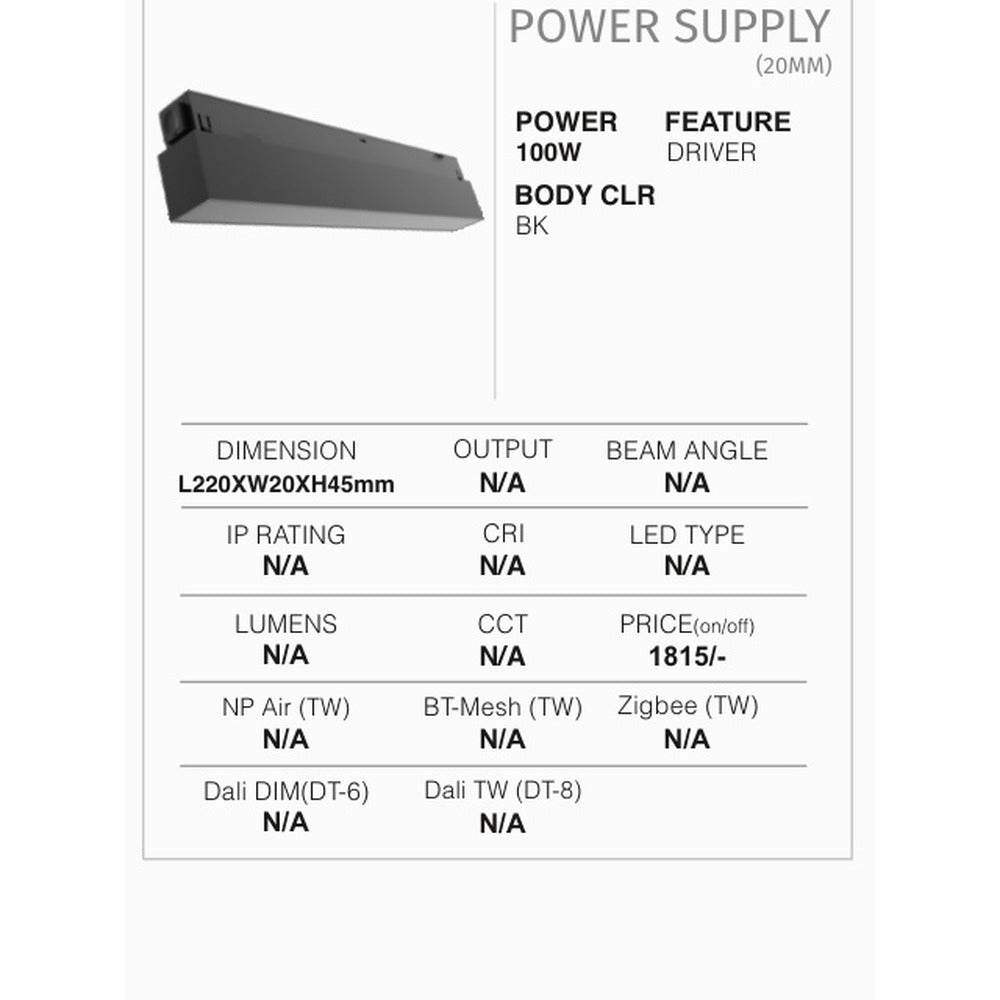

- Power Supply 100W · DC 48V · 2.1A · L220×W20×H45mm

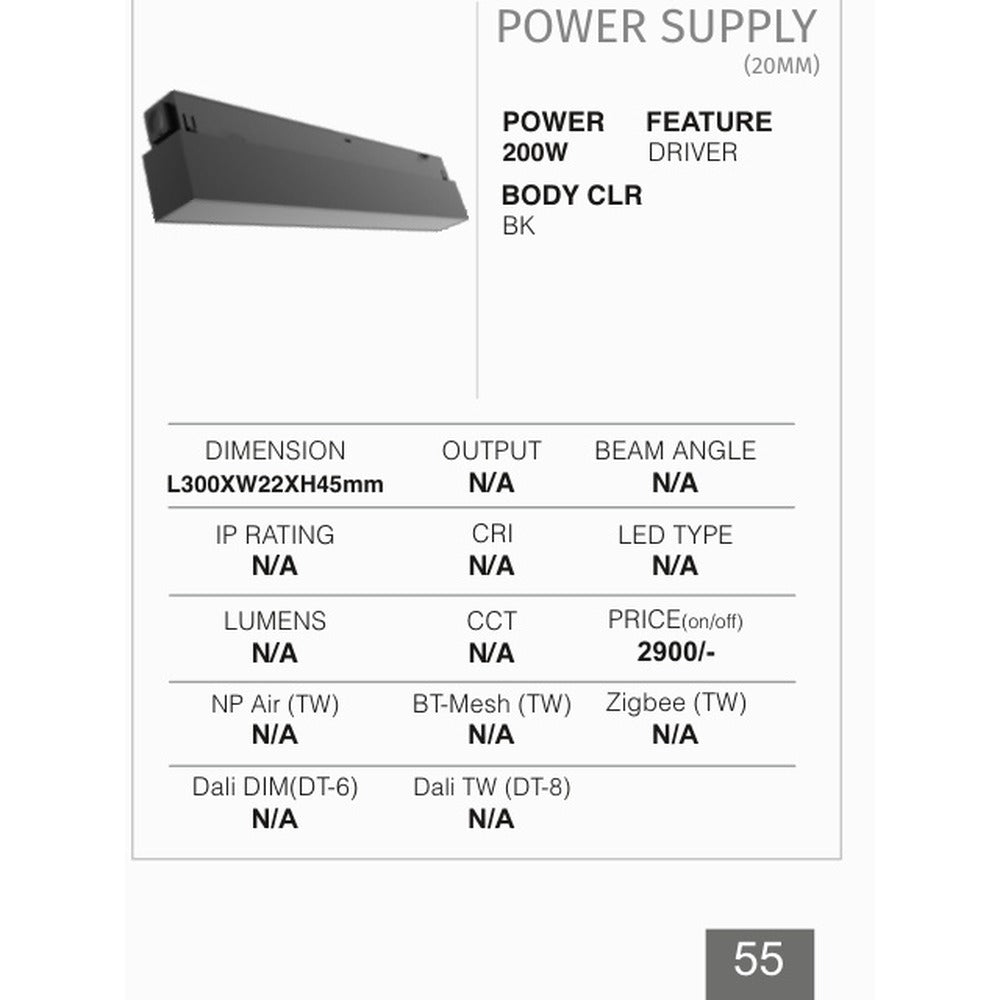

- Power Supply 200W · DC 48V · L300×W22×H45mm

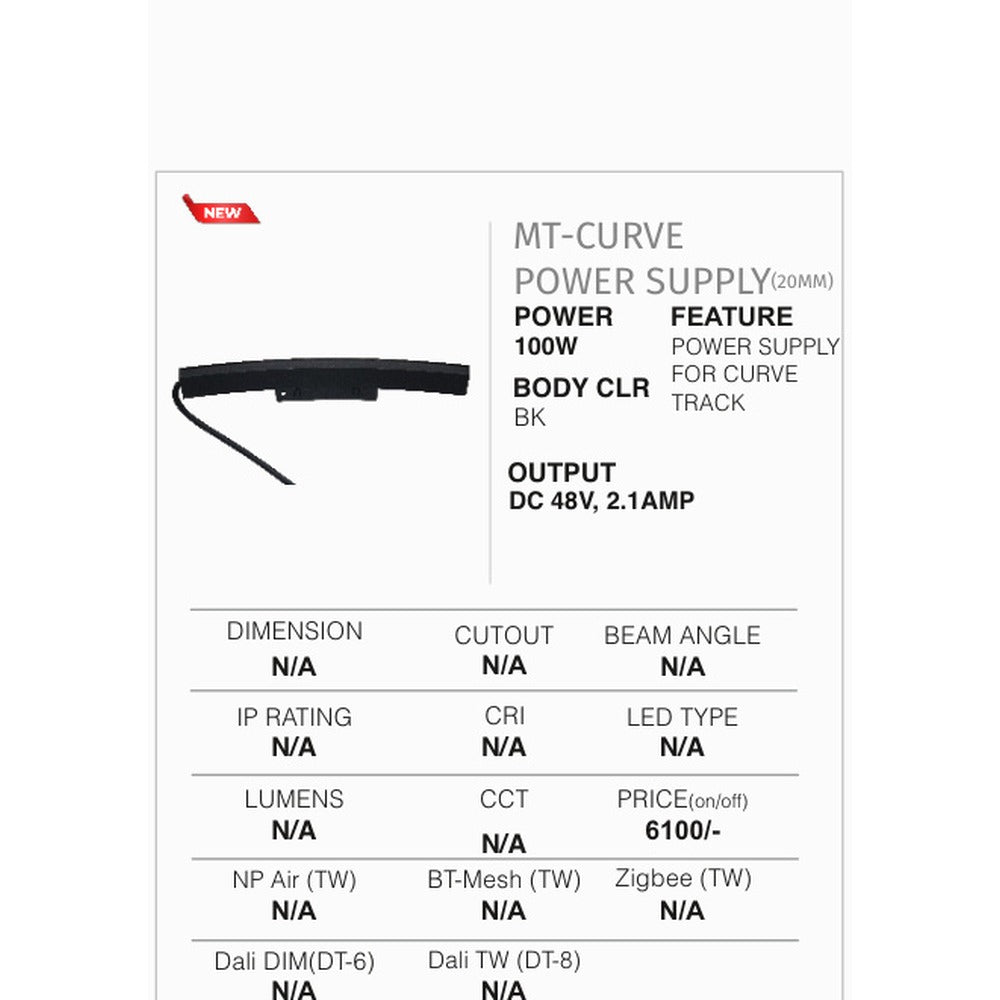

- MT-CURVE Power Supply 100W ⭐ · for curve-track installations only
7. Track Lights for Straight Track (NL-MT 01–07)

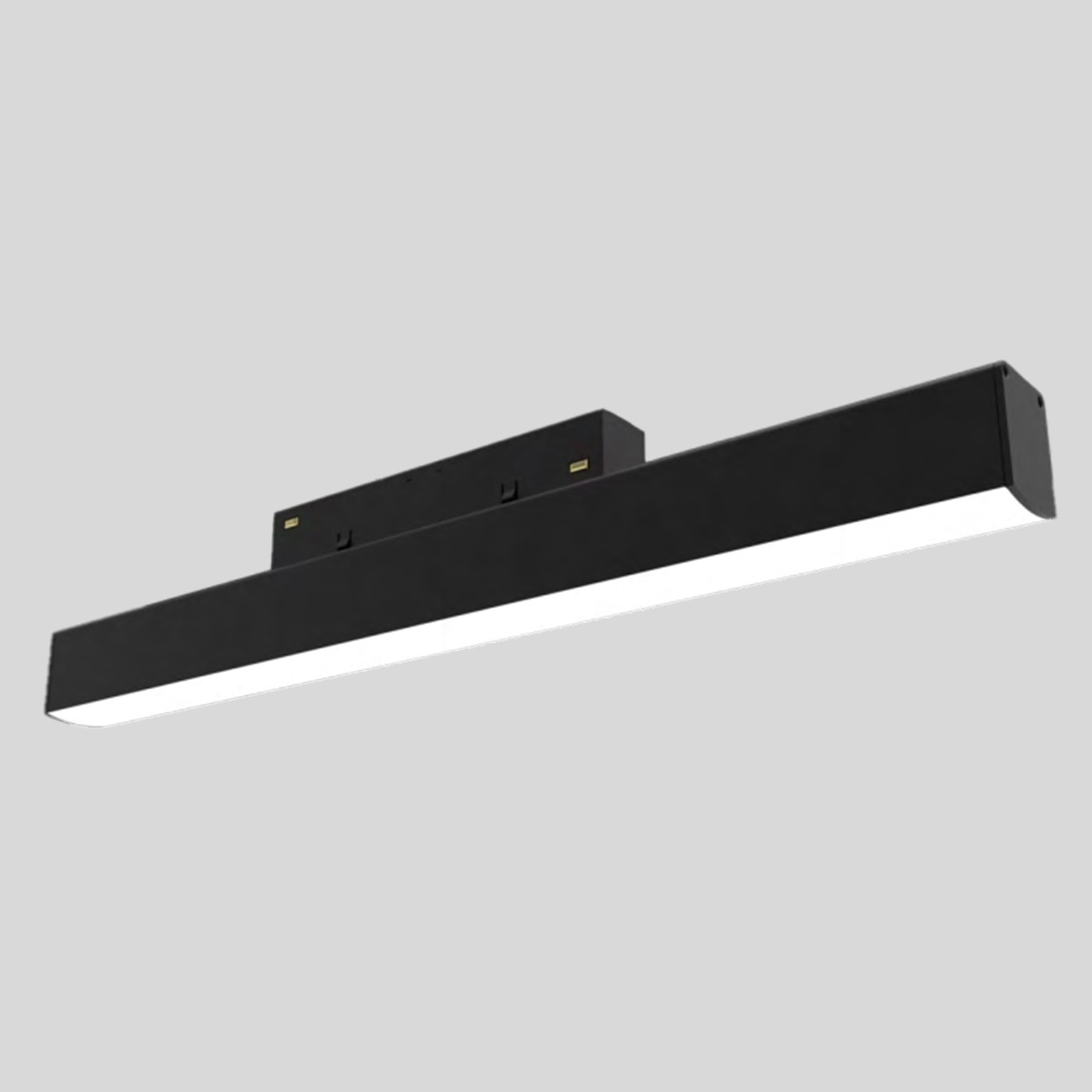

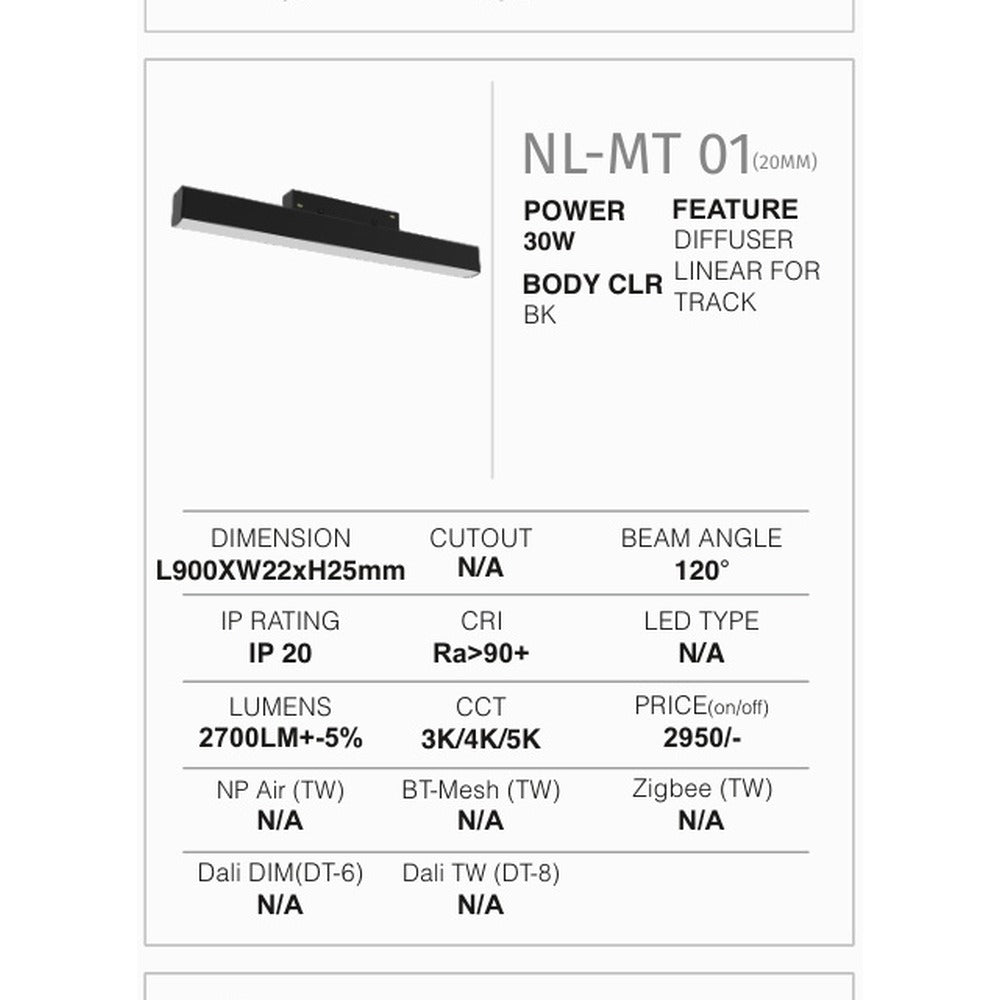

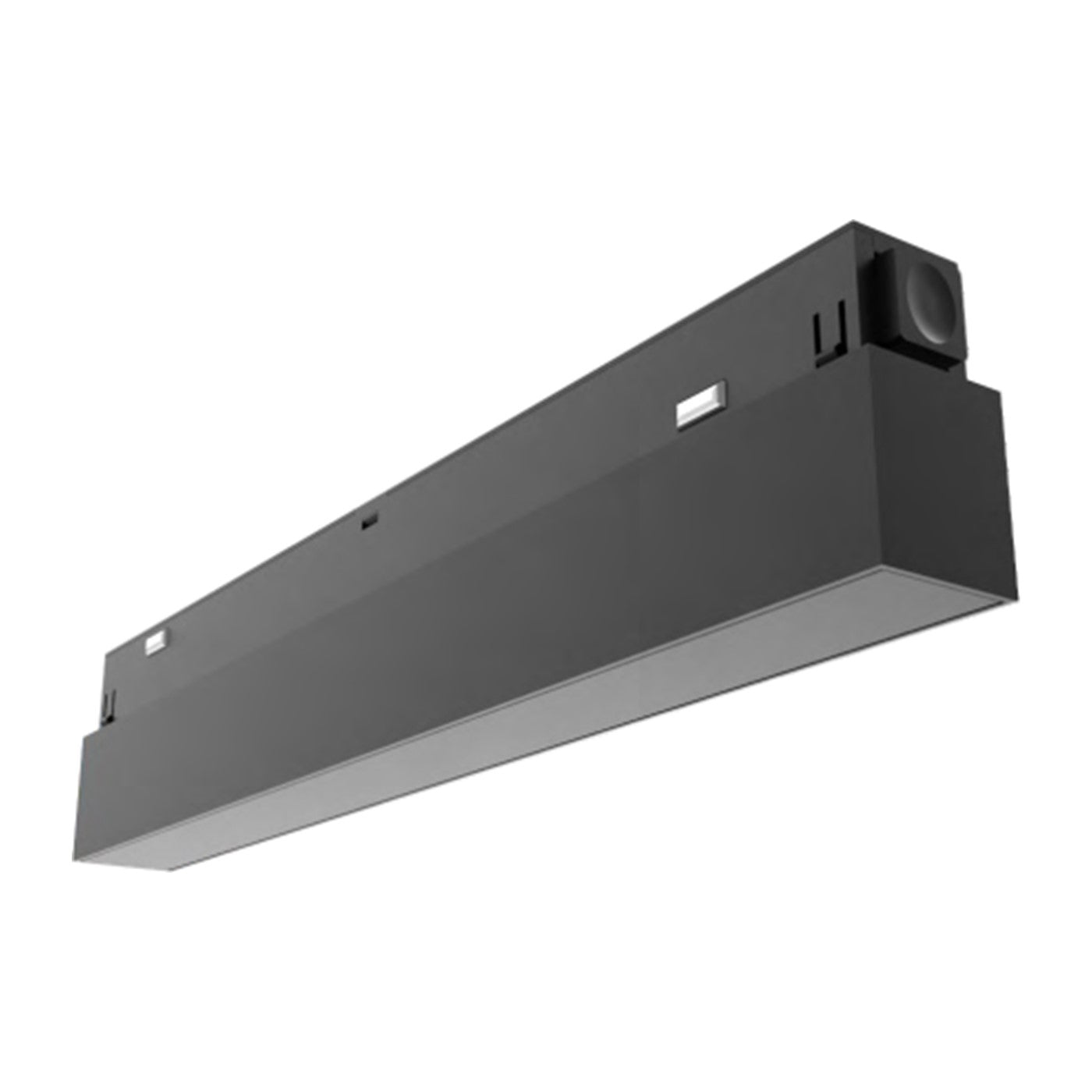

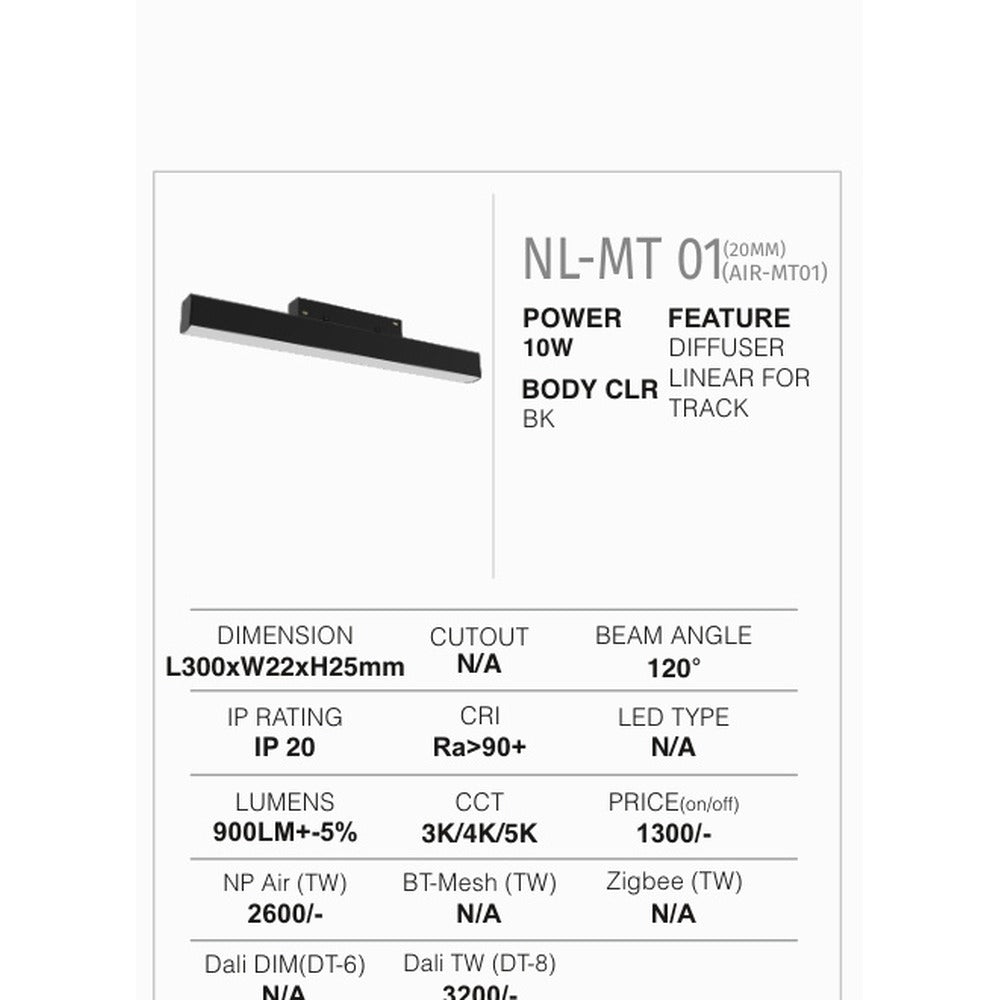

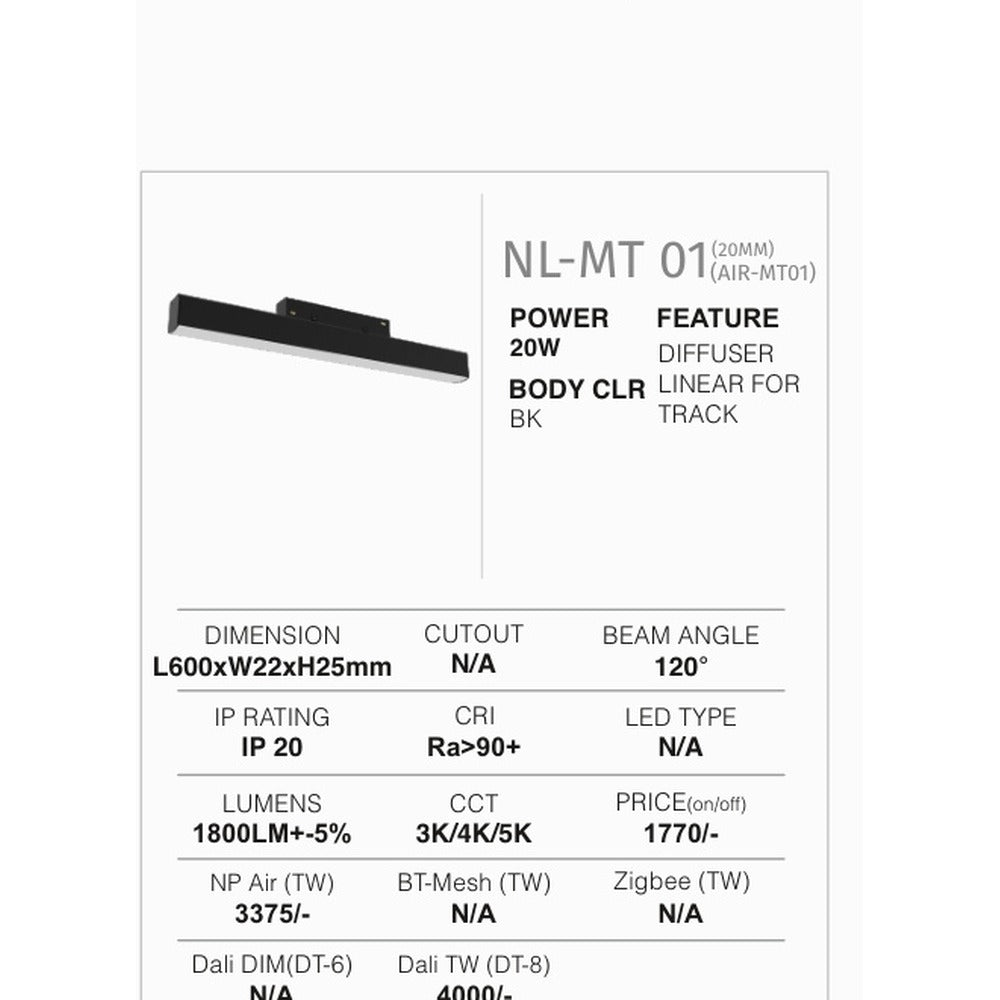

- NL-MT 01 Diffuser Linear — 10W / 20W / 30W (300 / 600 / 900mm) · 120° wash · 3K/4K/5K

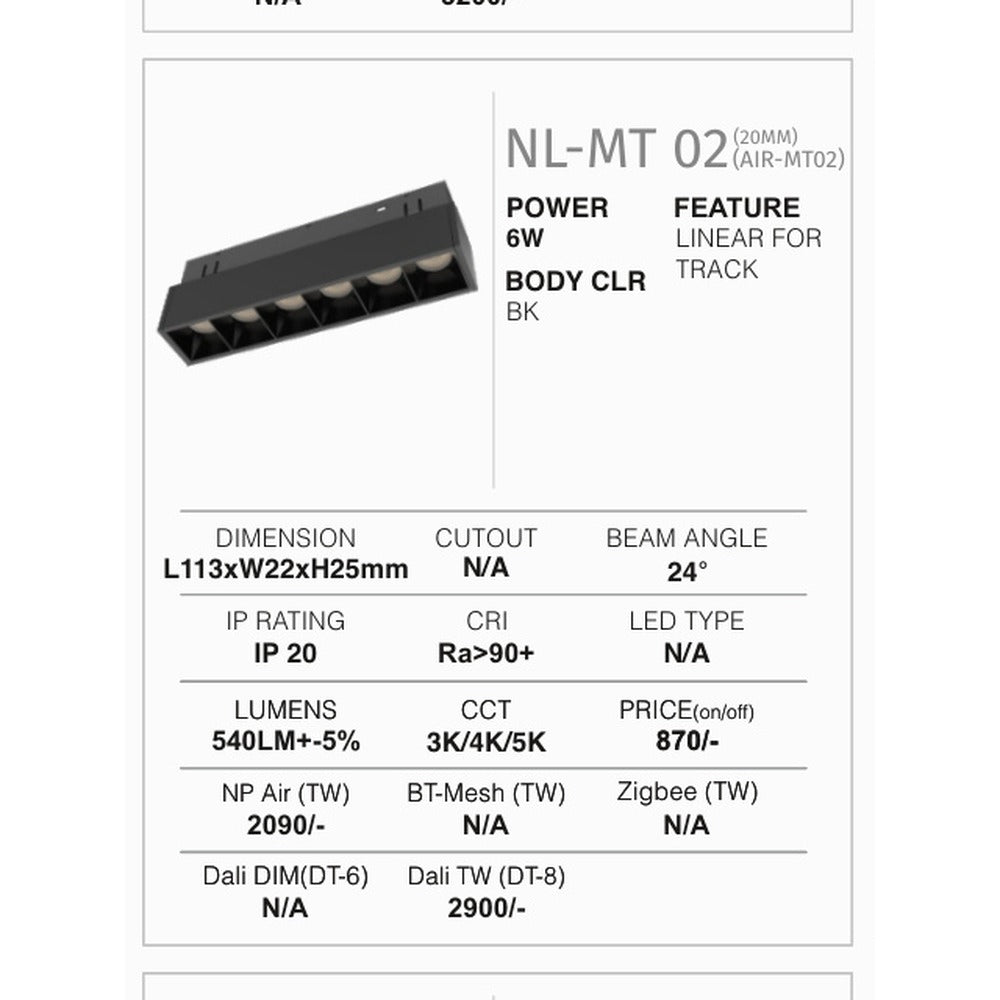

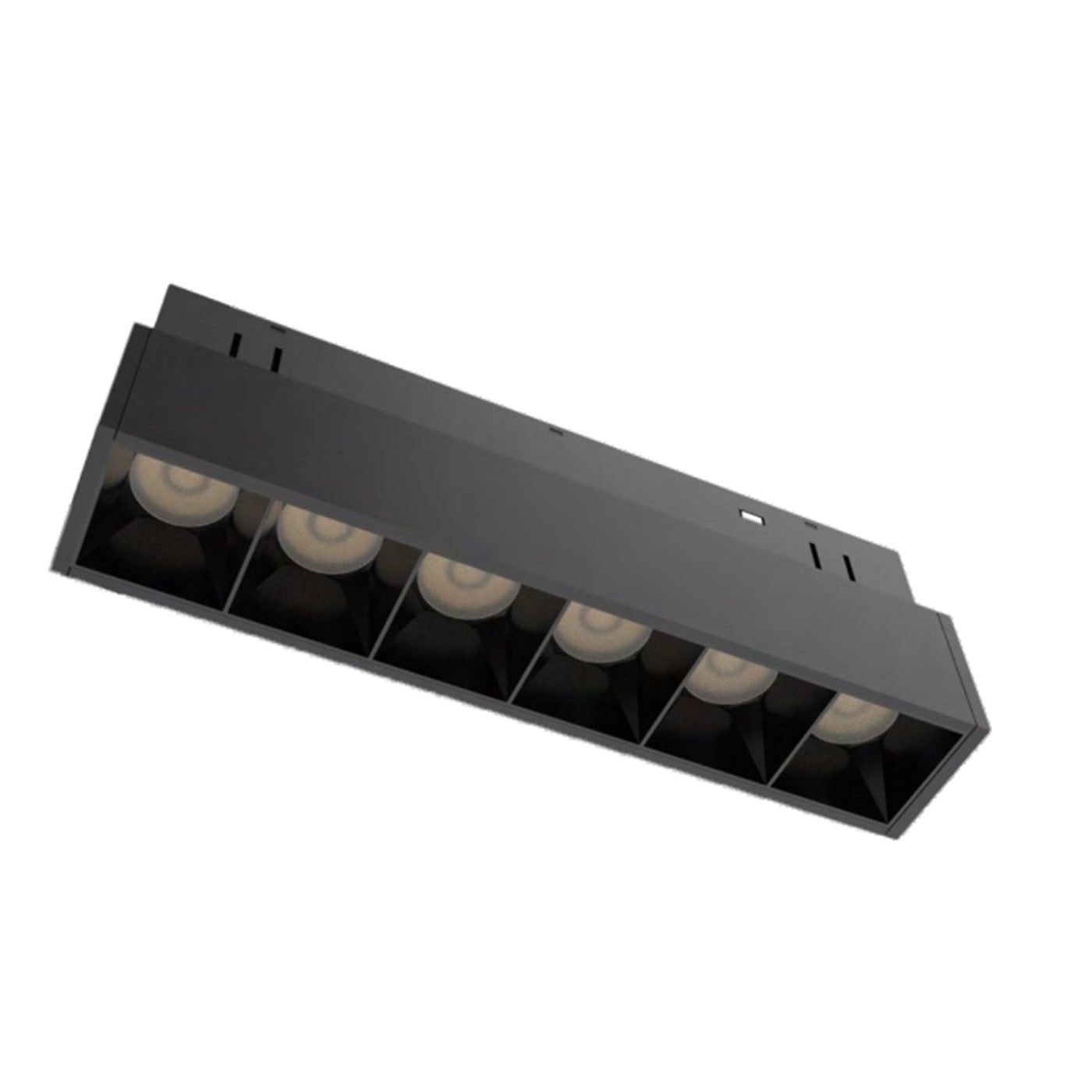

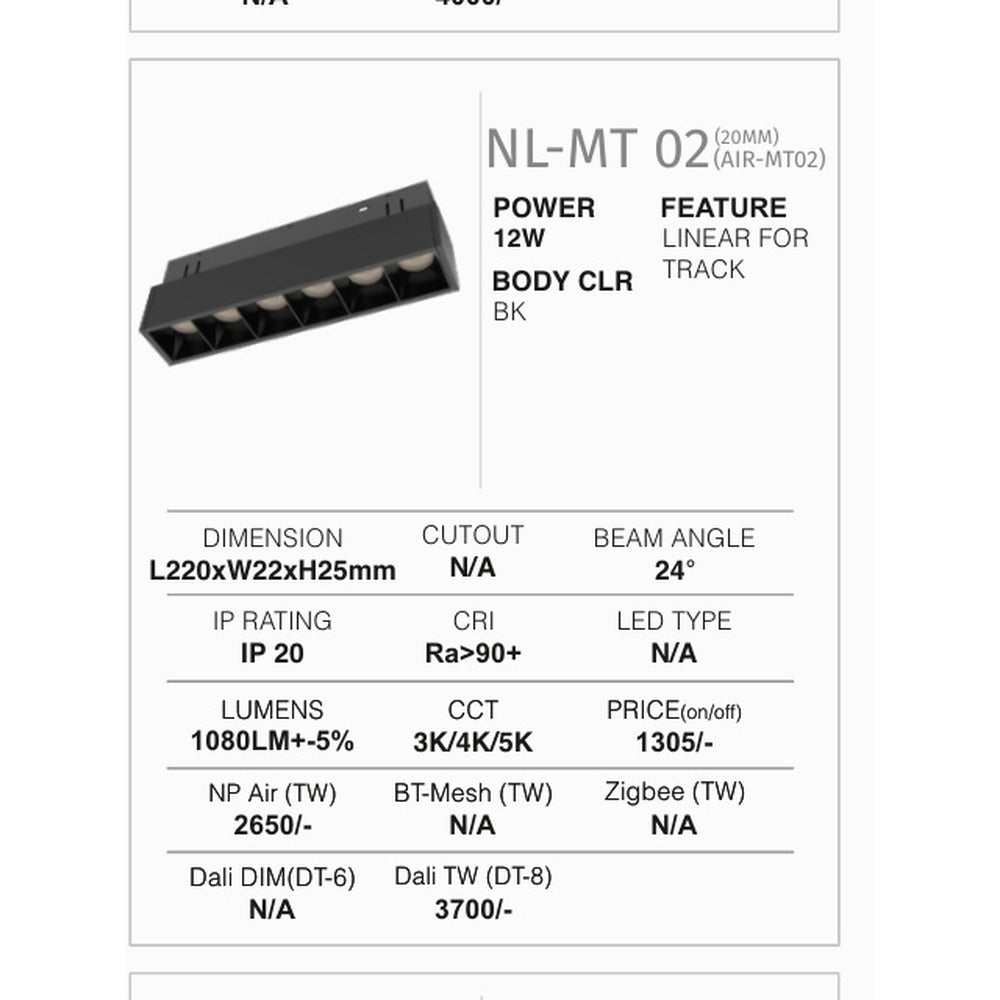

- NL-MT 02 Spot & Linear — 6W / 12W / 20W (35×80 / 113 / 220mm) · 24° narrow beam · 3K/4K/5K

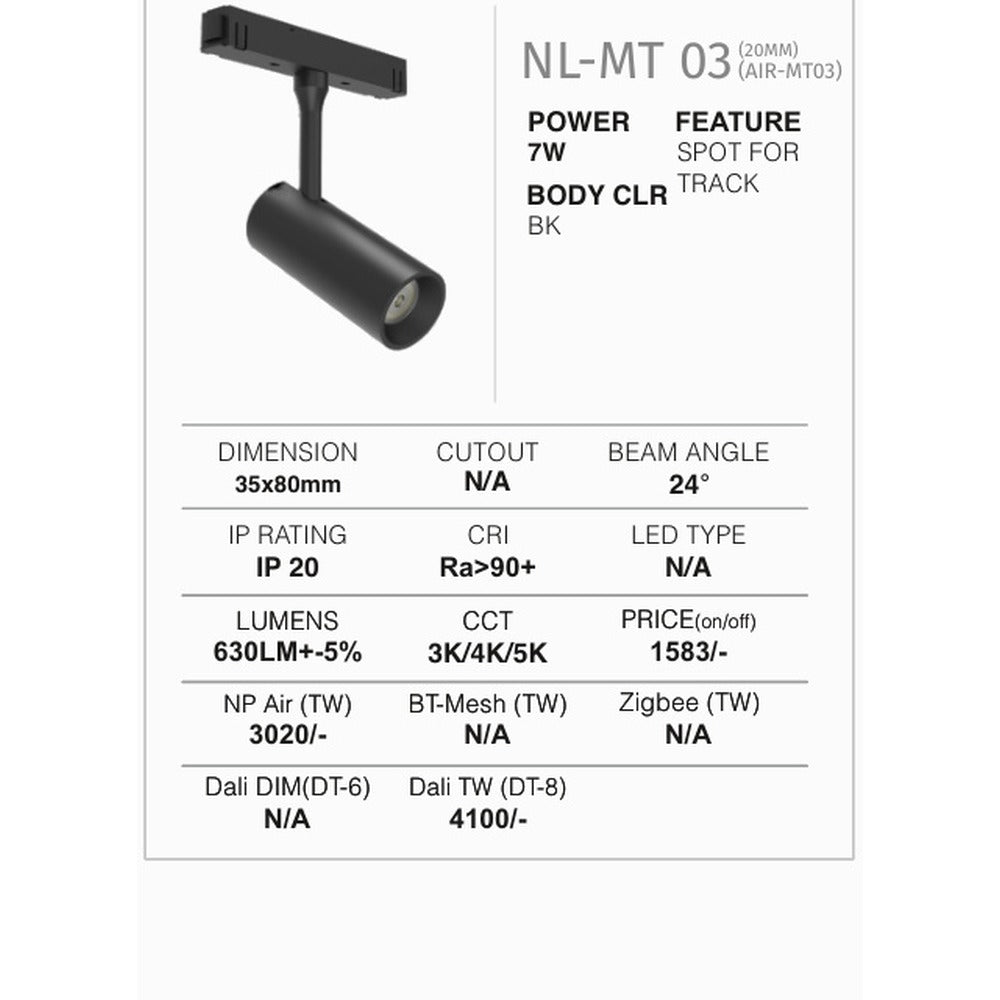

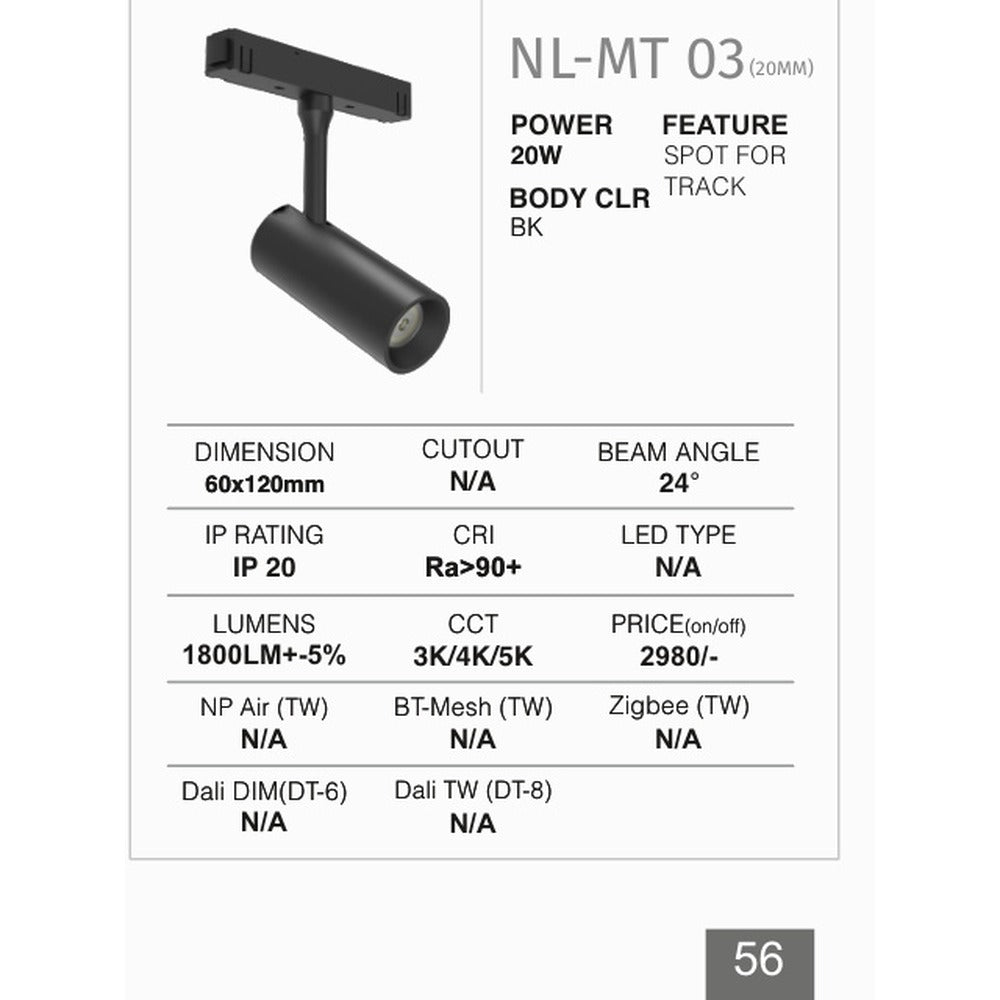

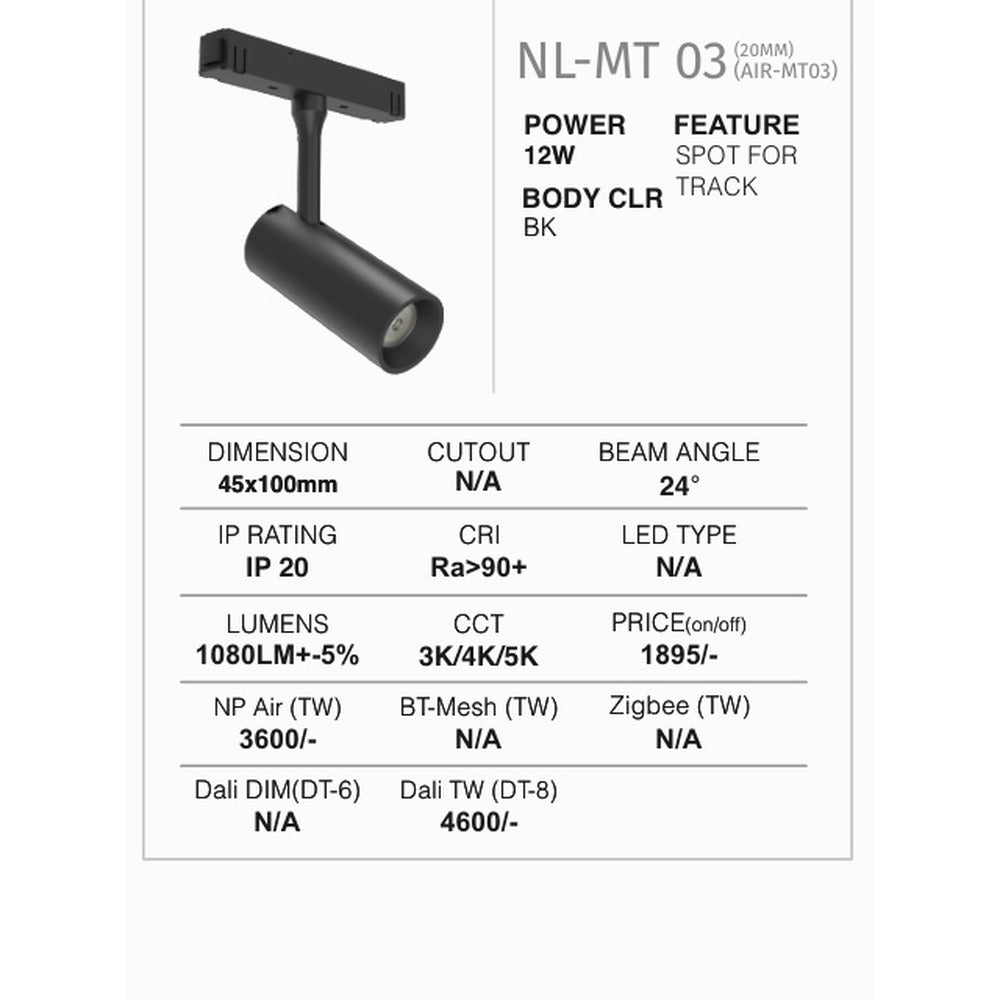

- NL-MT 03 Spot — 7W / 12W / 20W (35×80 / 45×100 / 60×120mm) · 24° · 3K/4K/5K

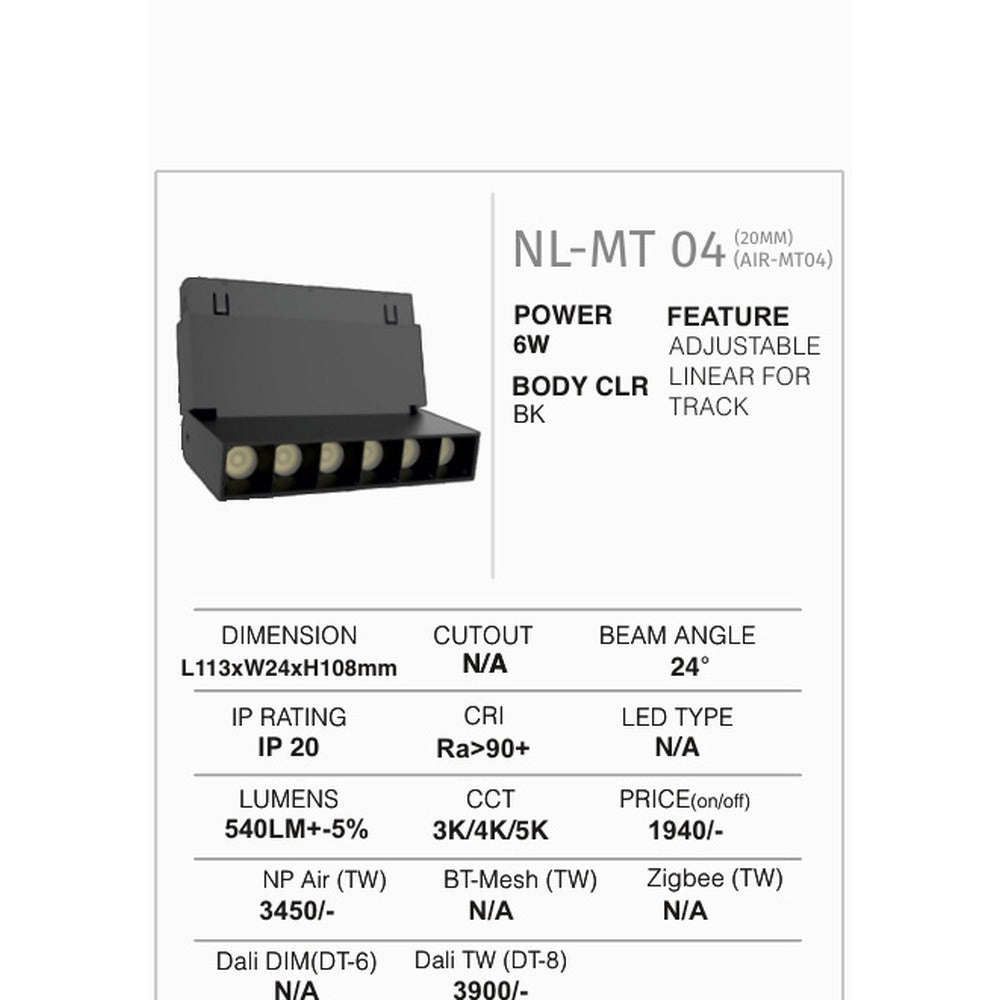

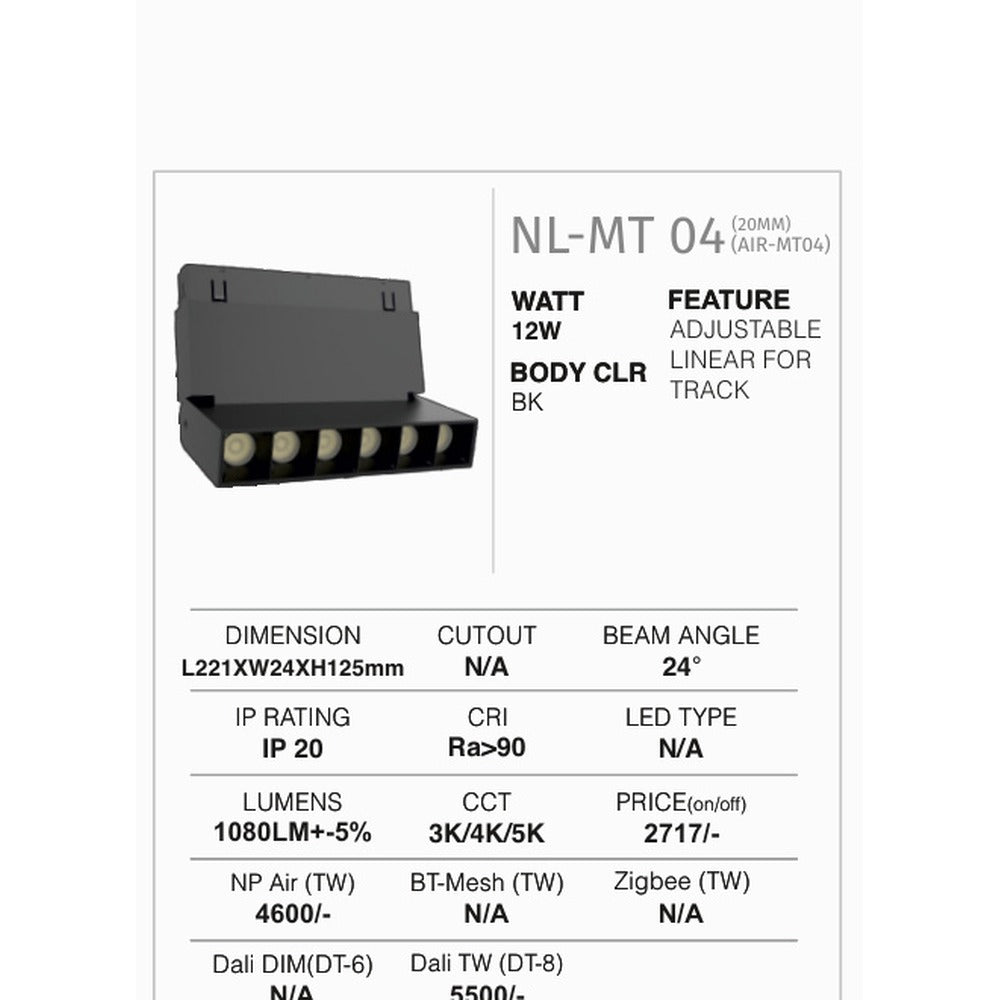

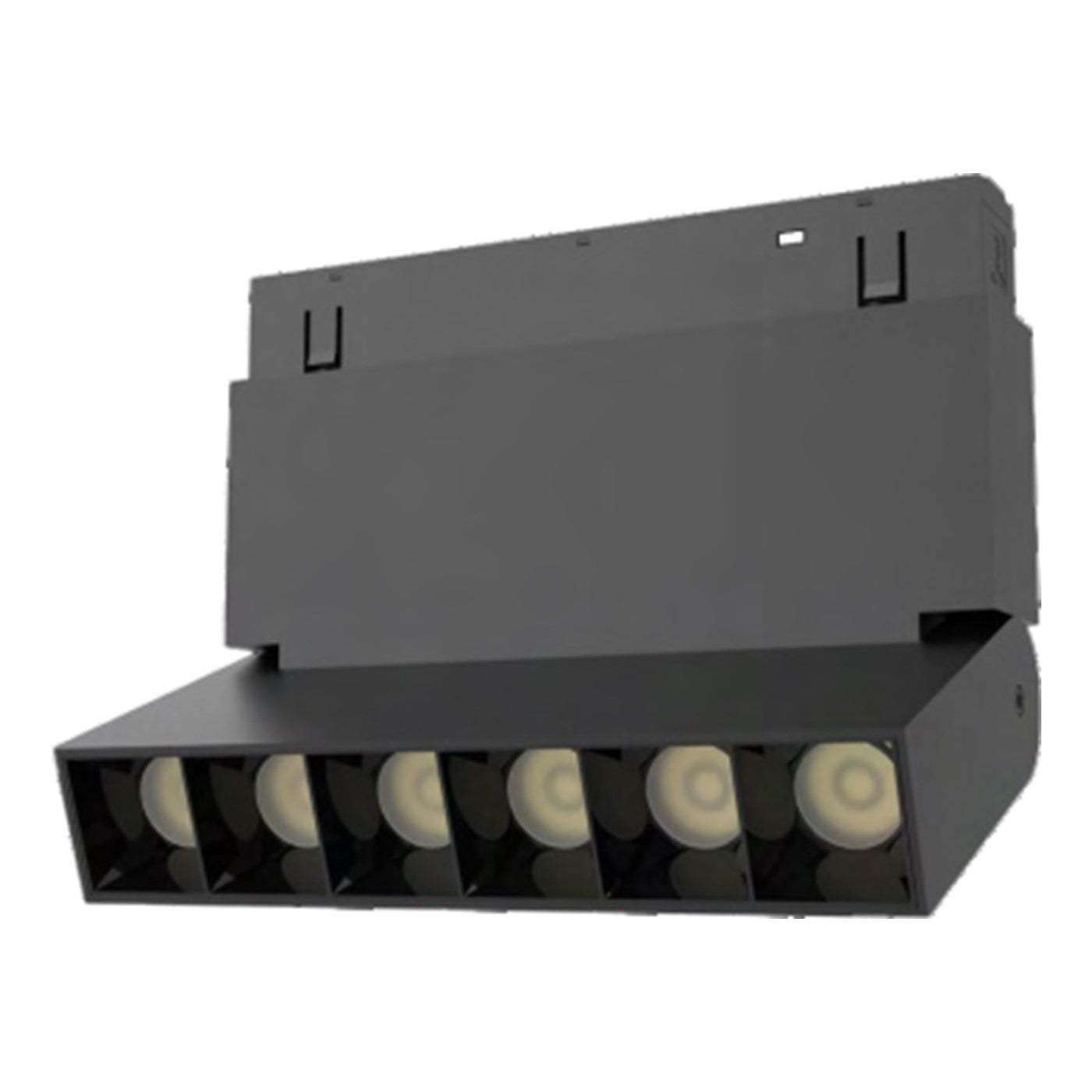

- NL-MT 04 Adjustable Linear — 6W / 12W · pivoting head · 3K/4K/5K

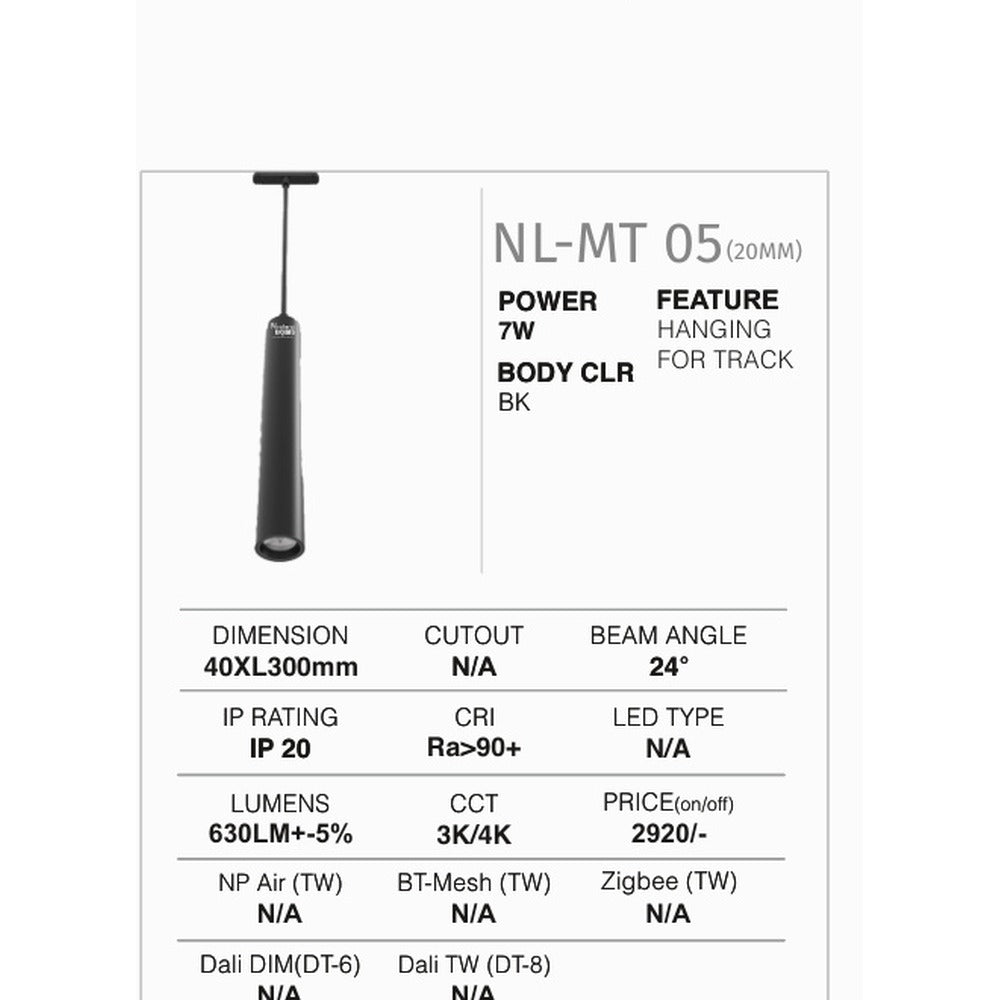

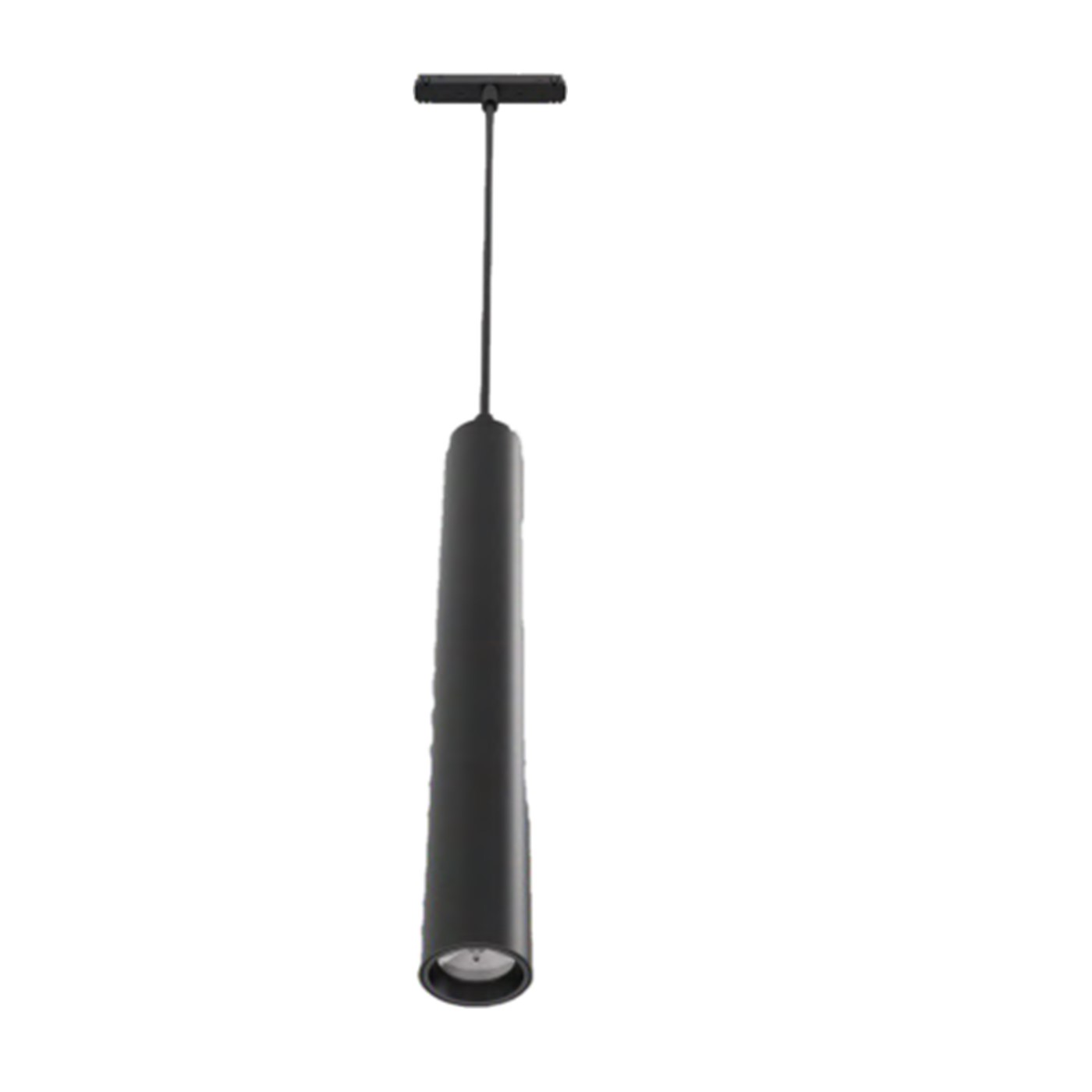

- NL-MT 05 Hanging — 7W pendant style (40×L300mm) · 3K/4K

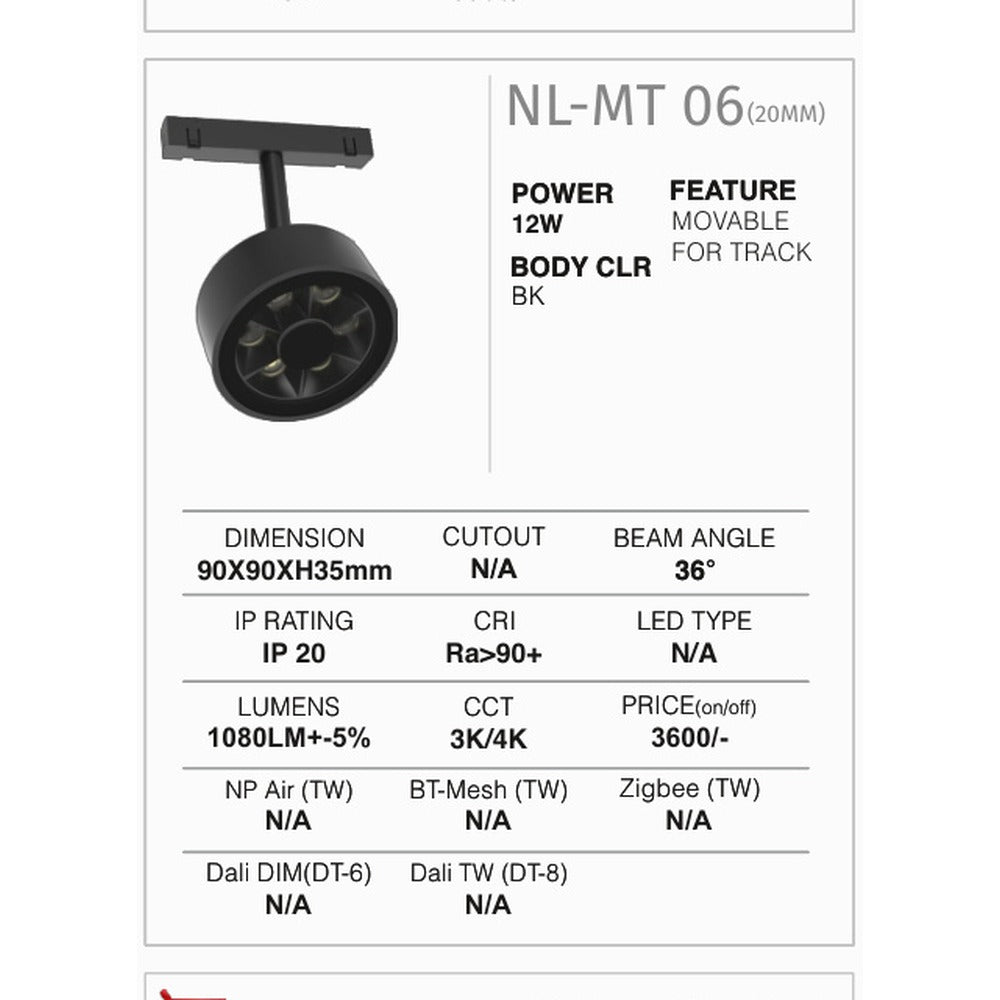

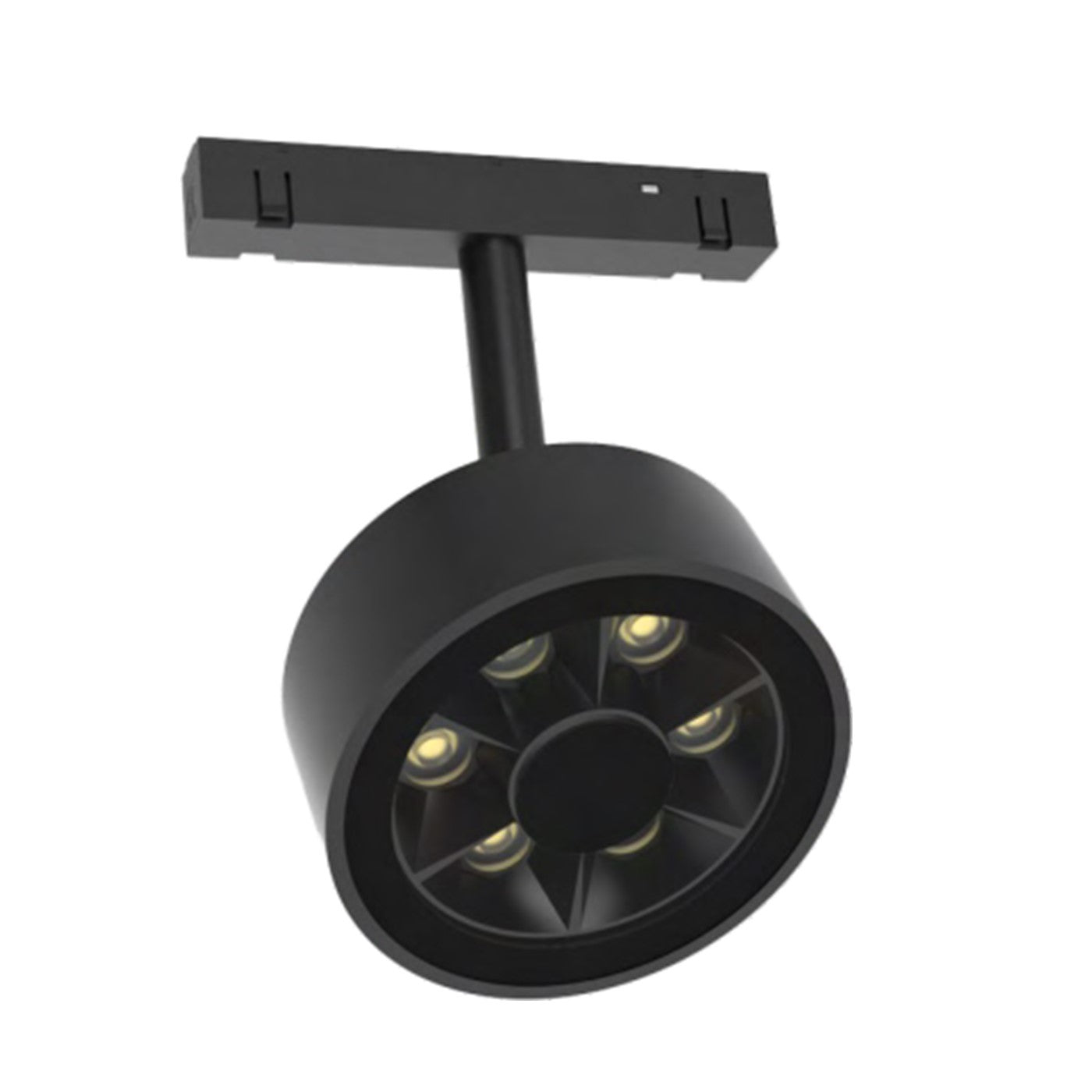

- NL-MT 06 Movable — 12W round head (Ø90mm, 36°) · 3K/4K

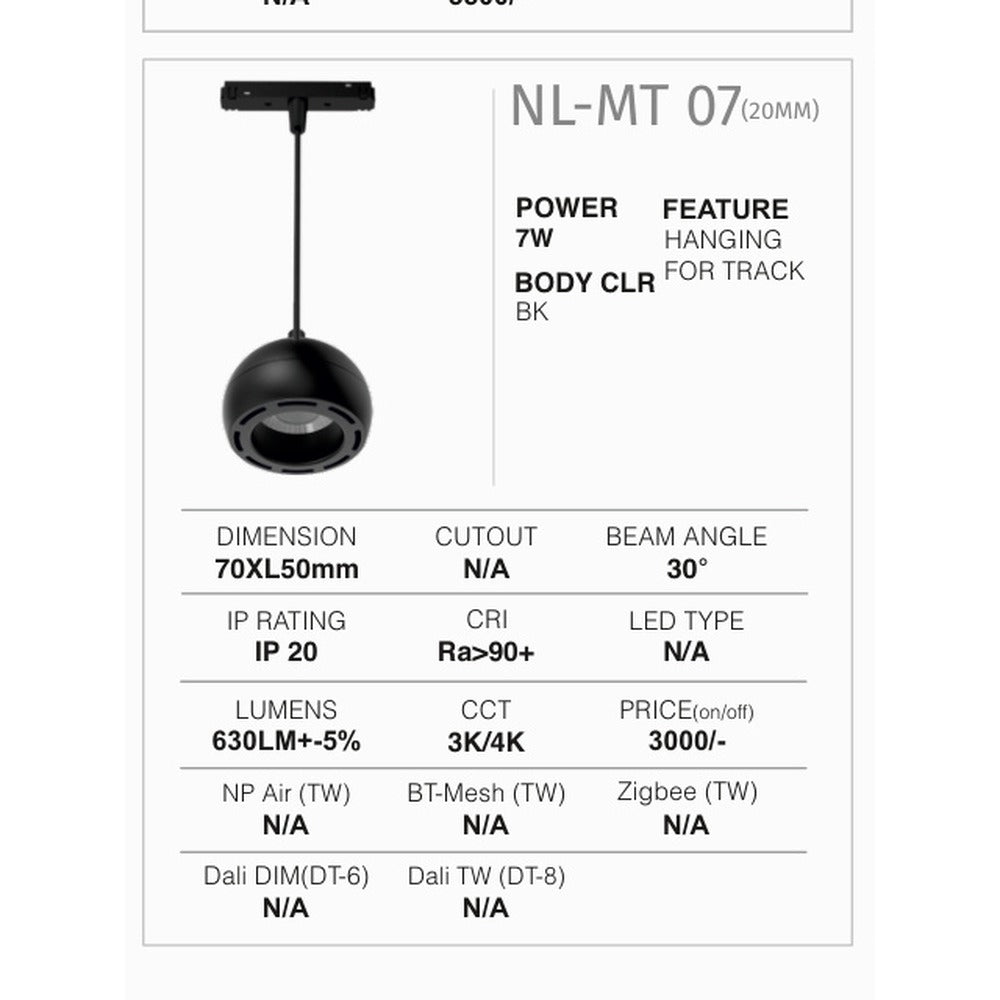

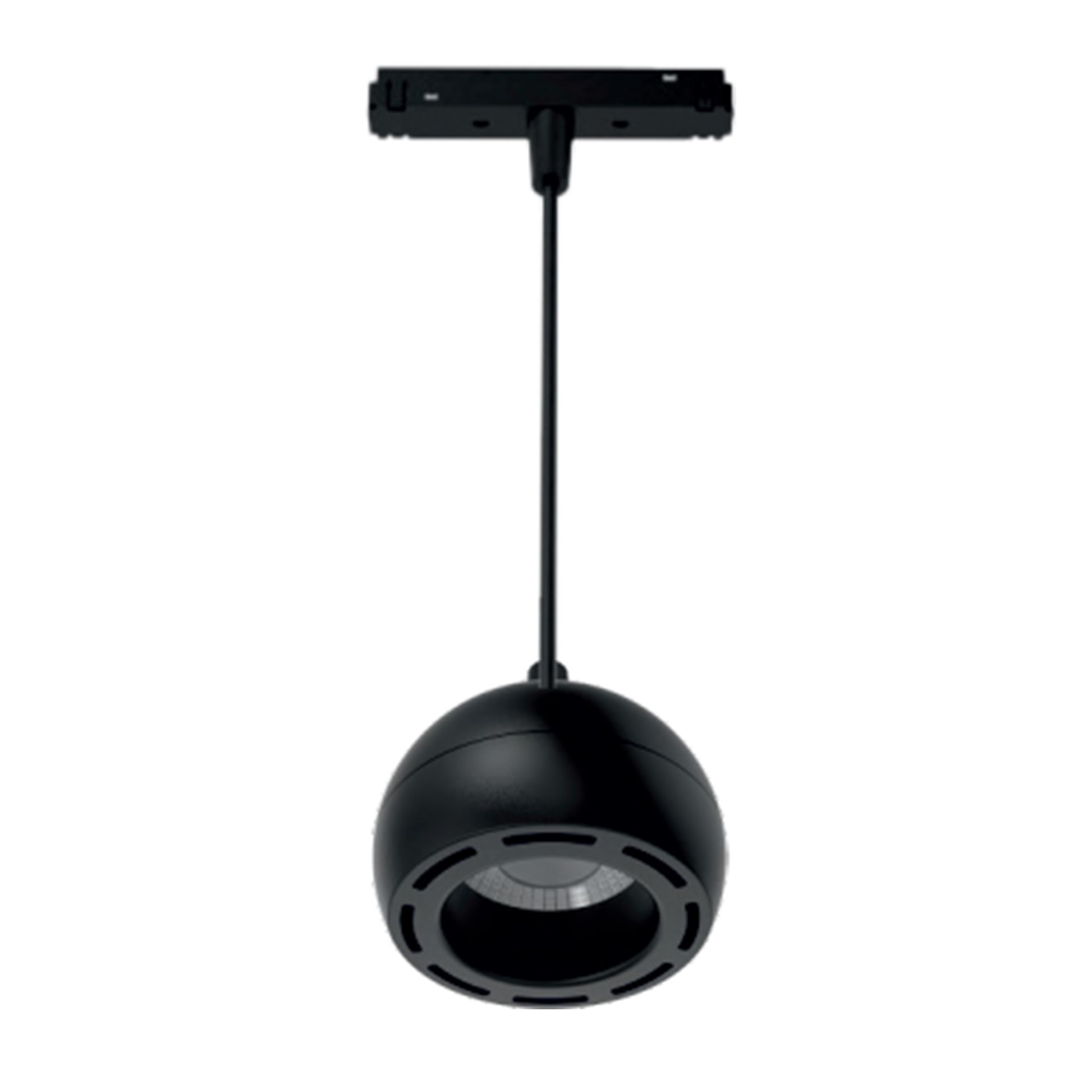

- NL-MT 07 Hanging — 7W spherical (Ø70mm, 30°) · 3K/4K
8. Track Lights for CURVE Track ⭐ (NL-MT-CURVE series)
Light modules engineered to clip into the round/curve track and follow its curvature. These are the only modules that work on circular tracks.

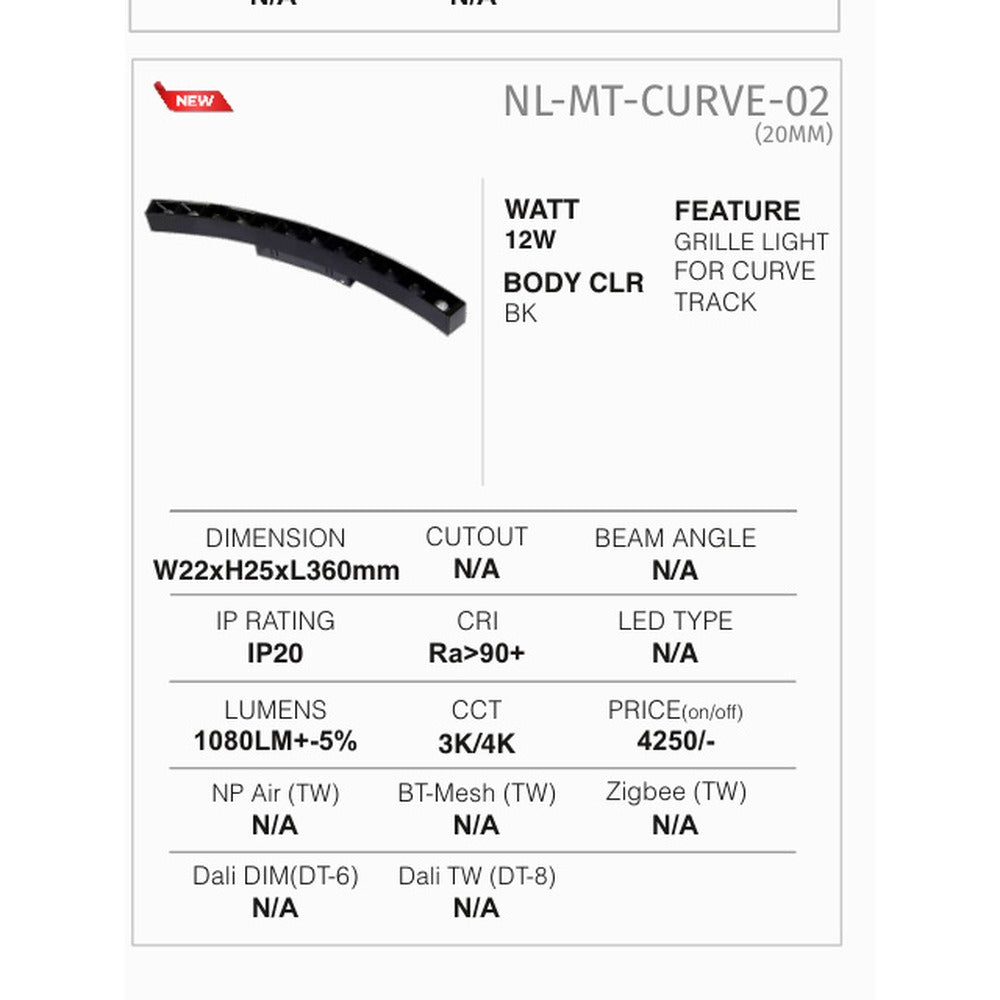

- NL-MT-CURVE-02 Grille 12W · W22 × H25 × L360mm · IP20 · CRI Ra>90+ · 3K/4K

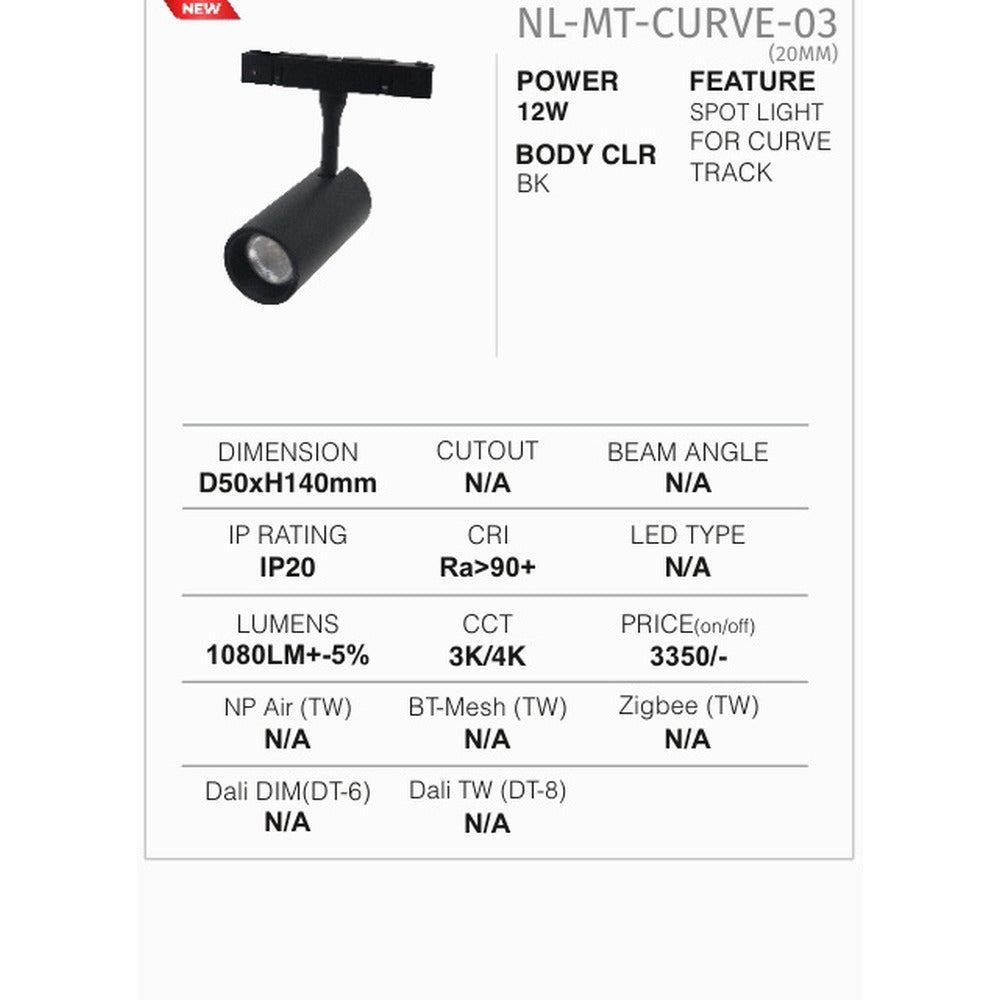

- NL-MT-CURVE-03 Spot 12W · Ø50 × H140mm · 36° beam · 3K/4K
Technical Specifications
Straight Track & Recessed Track
| Code | Description | Length | Cross-Section | Mount |
|---|---|---|---|---|
| MTS 20 — 1M/2M/3M | Surface / Hanging Track | 1m / 2m / 3m | W25.5 × H50mm | Surface or hanging |
| MTR 20 — 1M/2M/3M | Recessed / Conceal Track | 1m / 2m / 3m | W62 × H50mm | Plaster-in recessed |
Round & Curve Track ⭐
| Code | Geometry | Diameter | Mount |
|---|---|---|---|
| MT-Full Circle 600-SM | Closed circle | Ø600mm | Surface |
| MT-Half Round 600-SM | Semicircle (180°) | Ø600mm | Surface |
| MT-Quoter Curve 600-SM | Quarter arc (90°) | Ø600mm | Surface |
| MT-Full Circle 600-RM | Closed circle | Ø600mm | Recessed |
| MT-Half Round 600-RM | Semicircle (180°) | Ø600mm | Recessed |
| MT-Quoter Curve 600-RM | Quarter arc (90°) | Ø600mm | Recessed |
Track Light Modules
| Code | Type | Wattage | Beam | CCT | Dimensions |
|---|---|---|---|---|---|
| NL-MT 01 | Diffuser Linear | 10W / 20W / 30W | 120° | 3K/4K/5K | L300 / L600 / L900 × W22 × H25mm |
| NL-MT 02 | Spot & Linear | 6W / 12W / 20W | 24° | 3K/4K/5K | Various |
| NL-MT 03 | Spot for Track | 7W / 12W / 20W | 24° | 3K/4K/5K | 35×80 / 45×100 / 60×120mm |
| NL-MT 04 | Adjustable Linear | 6W / 12W | 24° | 3K/4K/5K | L113 / L221 × W24 × H108–125mm |
| NL-MT 05 | Hanging Pendant | 7W | 24° | 3K/4K | 40 × L300mm |
| NL-MT 06 | Movable Spot | 12W | 36° | 3K/4K | 90 × 90 × H35mm |
| NL-MT 07 | Hanging Spot | 7W | 30° | 3K/4K | Ø70 × L50mm |
| NL-MT-CURVE-02 ⭐ | Grille for Curve Track | 12W | — | 3K/4K | W22 × H25 × L360mm |
| NL-MT-CURVE-03 ⭐ | Spot for Curve Track | 12W | 36° | 3K/4K | Ø50 × H140mm |
All modules: 48V DC input · CRI Ra>90+ · IP 20 · Black finish · 2 years warranty.
Power Supplies & Modules
| Code | Description | Output | Dimensions |
|---|---|---|---|
| Power Supply 100W | Driver for straight track | DC 48V · 2.1A | L220 × W20 × H45mm |
| Power Supply 200W | Driver for larger straight installations | DC 48V | L300 × W22 × H45mm |
| MT-CURVE Power Supply 100W ⭐ | Dedicated driver for curve track | DC 48V · 2.1A | — |

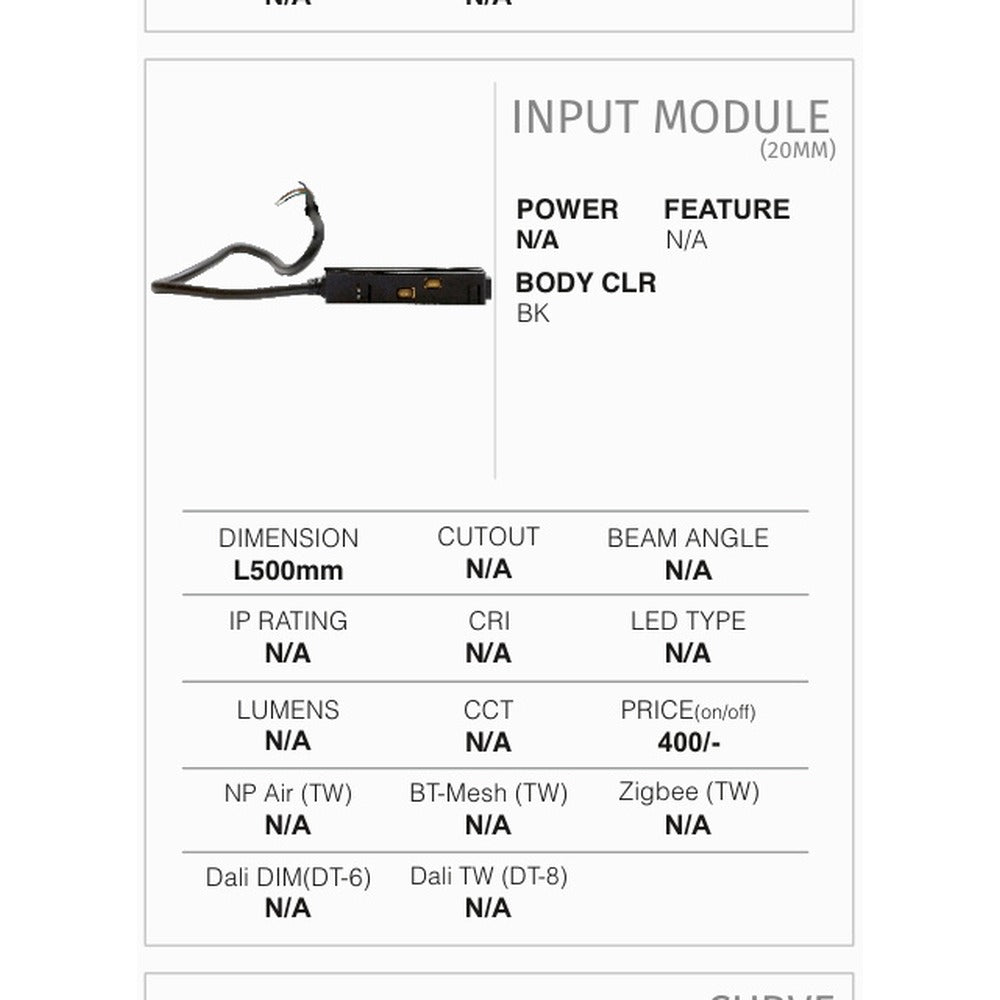

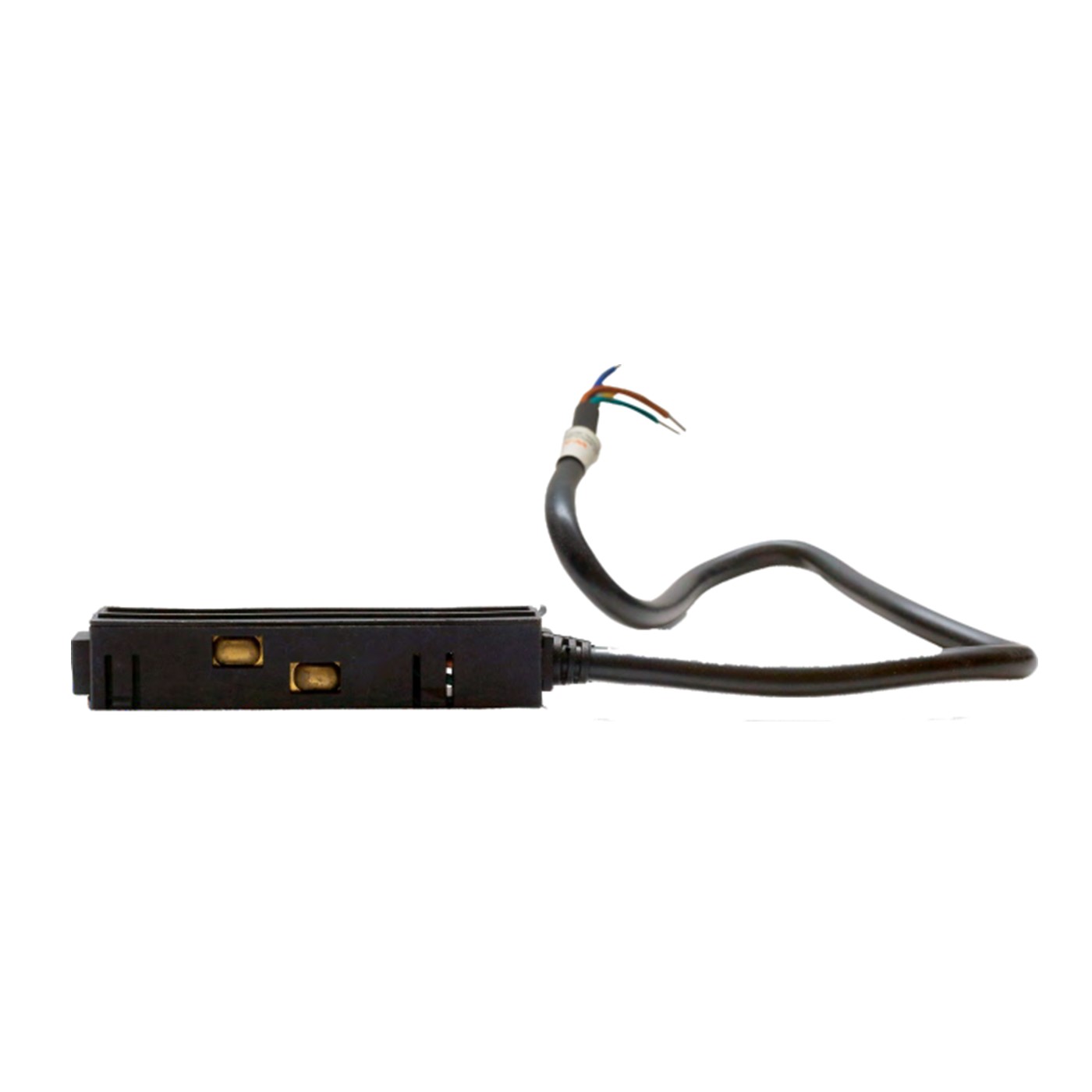

| Input Module | Power feed-in | — | L500mm |

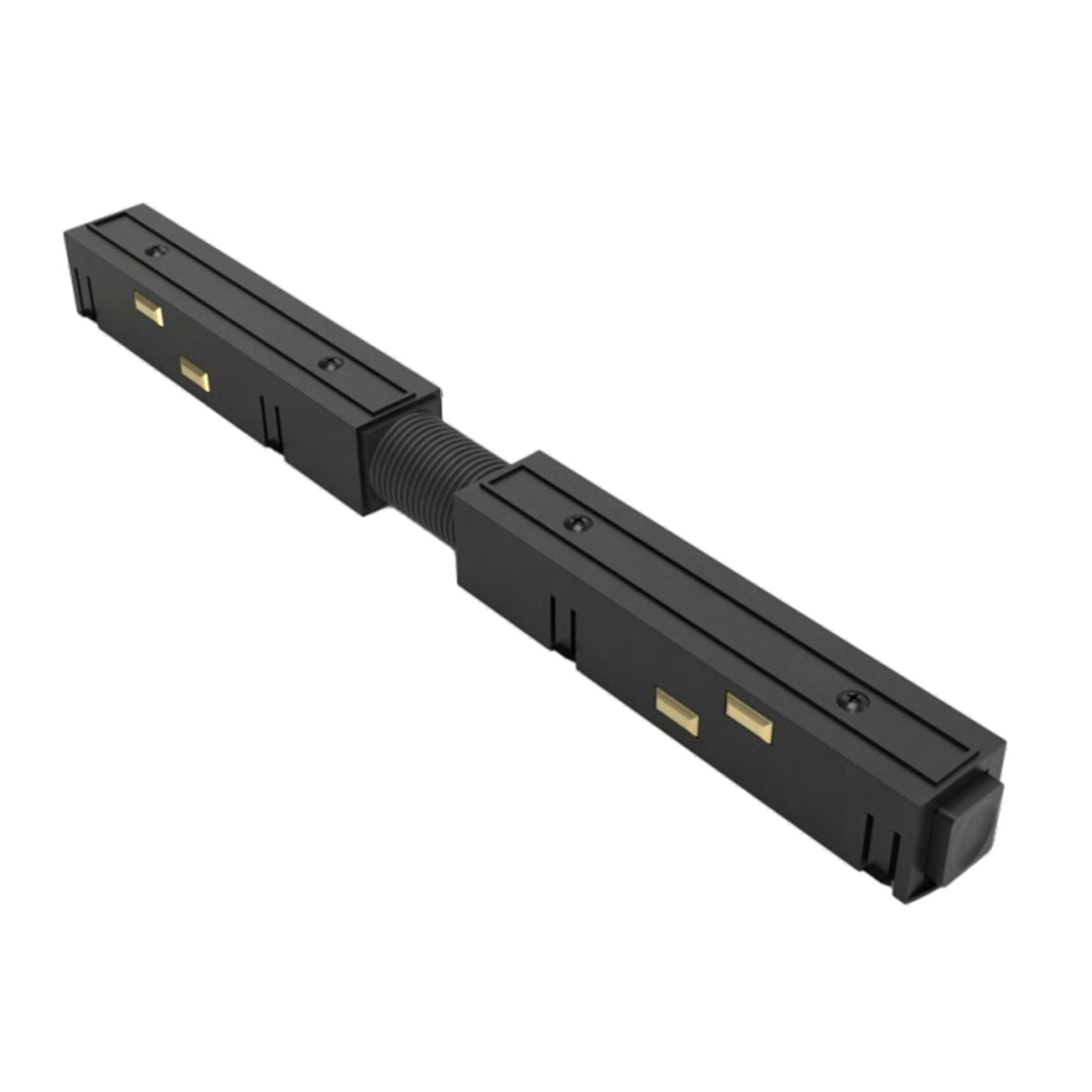

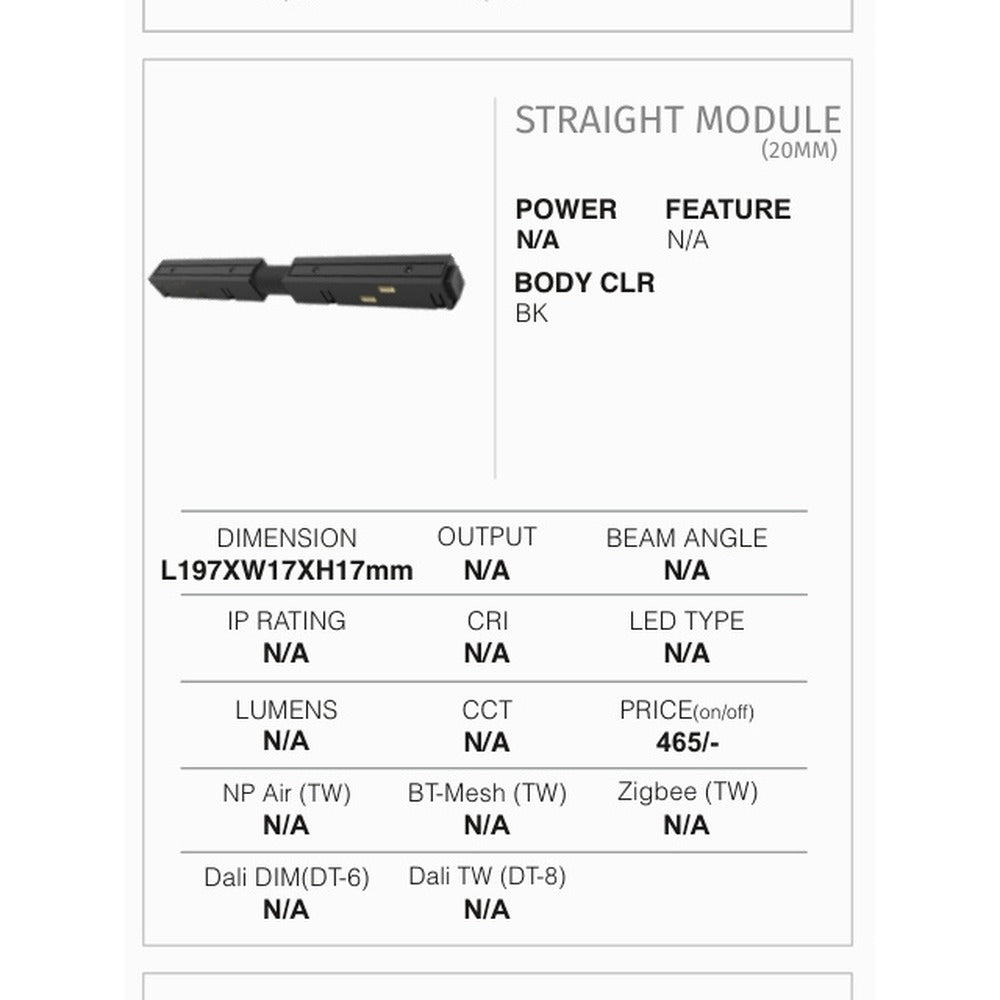

| Straight Module | Current conductor across joints | — | L197 × W17 × H17mm |

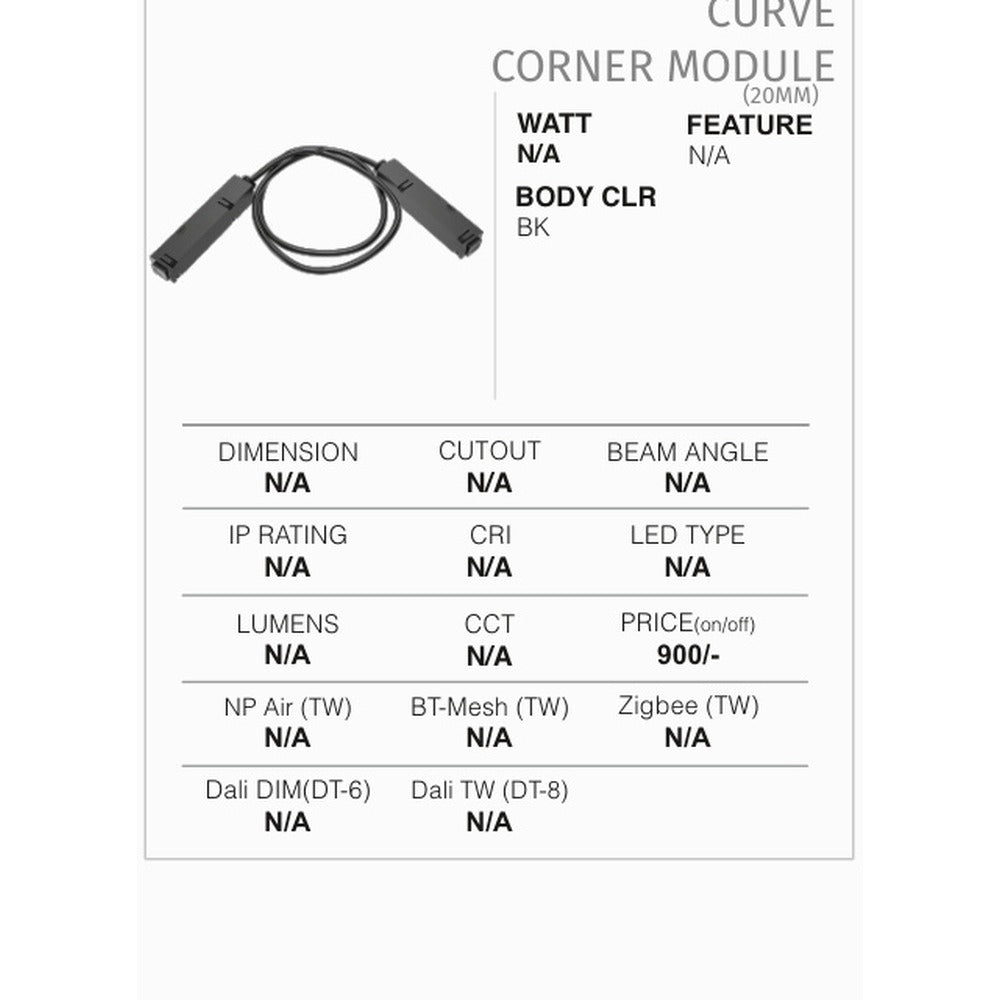

| Curve Corner Module | For curve-to-straight transitions | — | — |

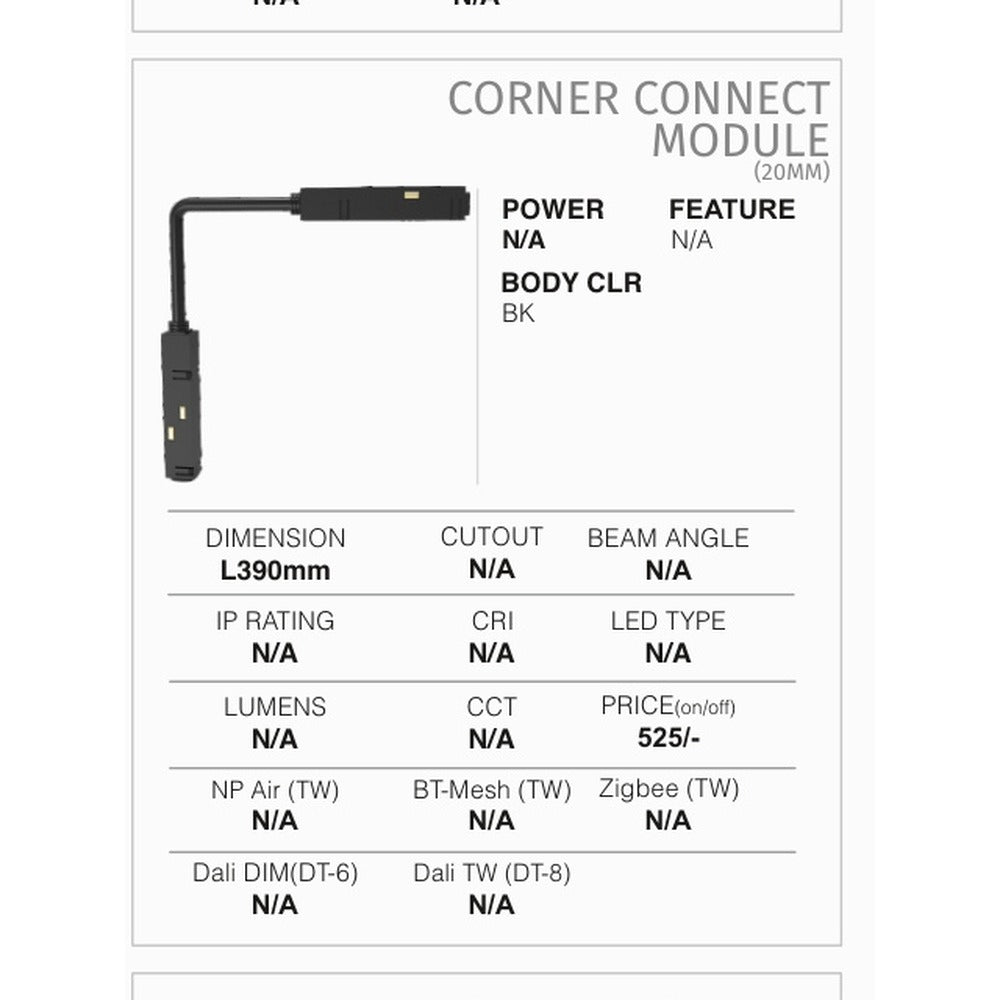

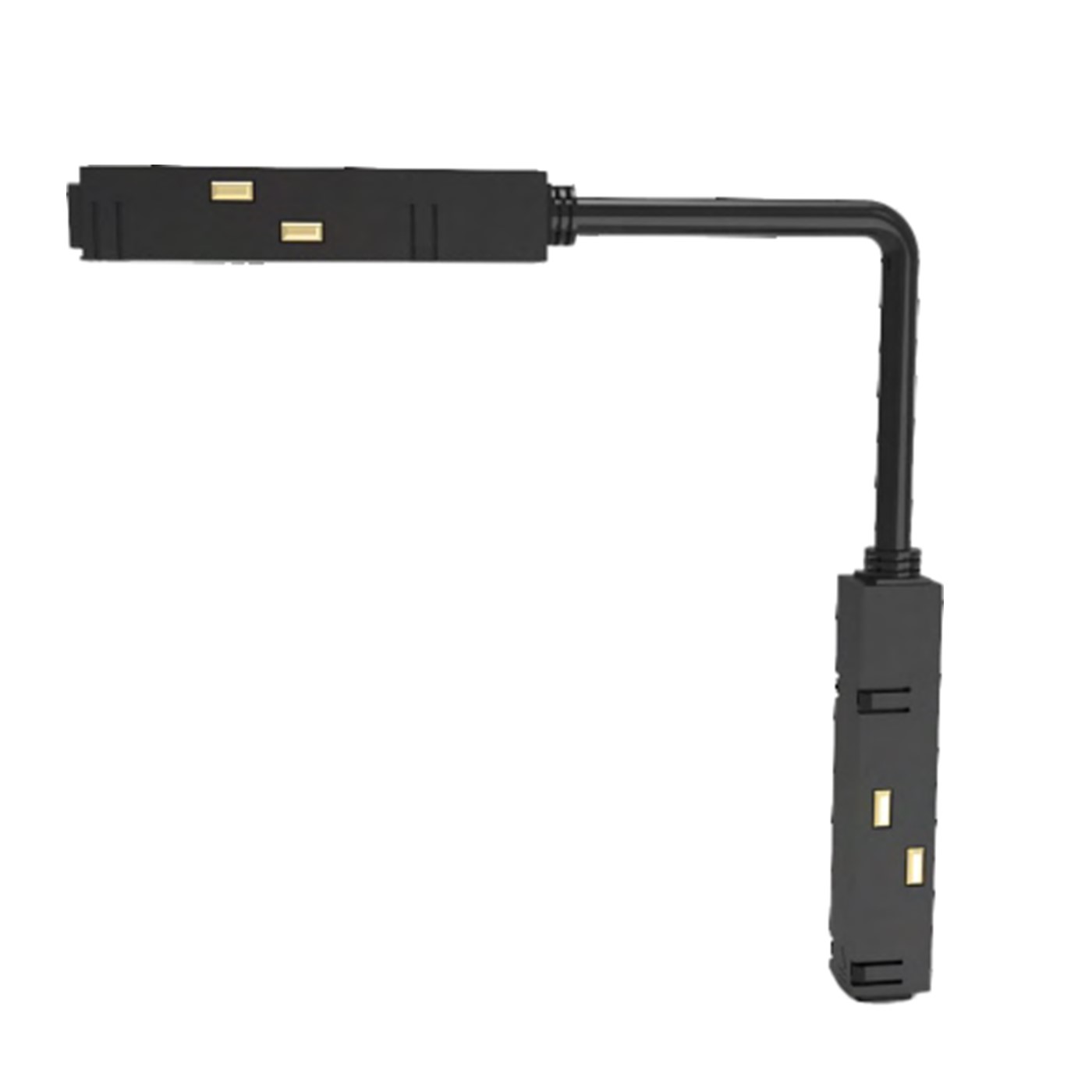

| Corner Connect Module | For corner joint conductivity | — | L390mm |
How to Order — Plan Your 20mm Track Layout in 6 Steps
Whether you're planning a simple straight run or a complex curved/ring installation, send us your layout and we'll prepare a complete BOQ free of cost.
- Sketch the Layout — straight runs, curves, full circles, or mixed. Note total run length and each fixture position.
- Choose Mount Type — Surface (MTS 20 / SM round) for visible architectural track, OR Recessed (MTR 20 / RM round) for trimless plaster-in look.
- Pick Track Pieces — straight 1/2/3m sections, Ø600 full-circle, half-round, or quarter-curve. Use corners + curve corners to connect.
- Pick Light Modules — Diffuser, Spot, Linear, Adjustable, Hanging for straight; CURVE-02 / CURVE-03 for the round/curve track. Confirm 3K / 4K / 5K CCT.
- Size the Power Supply — 100W or 200W for straight track. Curve tracks REQUIRE the dedicated MT-CURVE PSU 100W — not interchangeable with straight-track PSUs.
- Share & Order — WhatsApp your BOQ; we verify wattages, suggest optimisations, and quote.
Need Help Designing or Ordering?
Round/curve magnetic track is an unusual system — most lighting designers haven't worked with it before. We'll help you plan the geometry, fixture mix, and power-supply sizing.
- WhatsApp: Click to chat with our lighting expert
- Call: +91 98991 88821 · Mon–Sat · 10am–8pm IST
- Visit a showroom: 4 Delhi locations — see the round track and curve modules in person before ordering.
| Product Description | Details |
|---|---|
| Beam angle | 15°, 24°, 36°, 38°, 60°, 120° |
| Body colour | Black |
| Cri | Ra>90+ |
| Dimming | Single Color (on/off), RF Tunable (NP Air), DALI Tunable (DT-8) |
| Driver | 48V DC, dedicated MT-CURVE PSU for curve tracks |
| Fixing type | Surface Mount, Recessed/Concealed (incl. circular Ø600mm) |
| Input voltage | 48V DC |
| Ip rating | IP20 |
| Led colour temperature | 3000K Warm White, 4000K Neutral White, 5000K Cool White, RF Tunable (NP Air), DALI Tunable (DT-8) |
| Led type | CREE / OSRAM (per module) |
| Length | 1m, 2m, 3m + circular Ø600mm full circle / half round / quarter curve |
| Product family | JS-NPT |
| Type of item | 20mm Magnetic Track Lights |
| Warranty | 2 Years |
| Wattage | 6W, 7W, 10W, 12W, 18W, 20W, 30W, 100W, 200W |
| Width | 20mm (track) · 62mm (recessed channel) |
