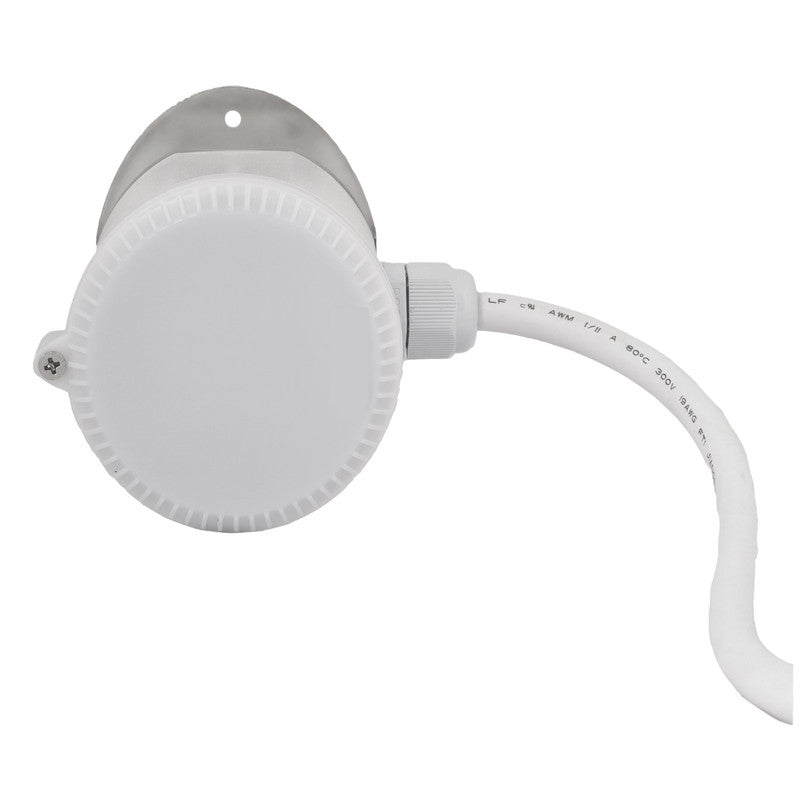

JS-OCT Hbay Surface Microwave IP65 Dimmable Day Night Dimmable Motion Sensor OCTHBAY20HF
Couldn't load pickup availability
JS-OCT Hbay Surface Microwave IP65 Dimmable Day Night Dimmable Motion Sensor OCTHBAY20HF
Vendor: Eliante by Jainsons Lights
SKU: OCTHBAY20HF
Dimming Options: 10%,20%,30% & 50% optional with 1-10v Protocol
Detection Range: 4-10m (radius)
Detection Angle: 360°
Time Delay: 5s to 30min (choice)

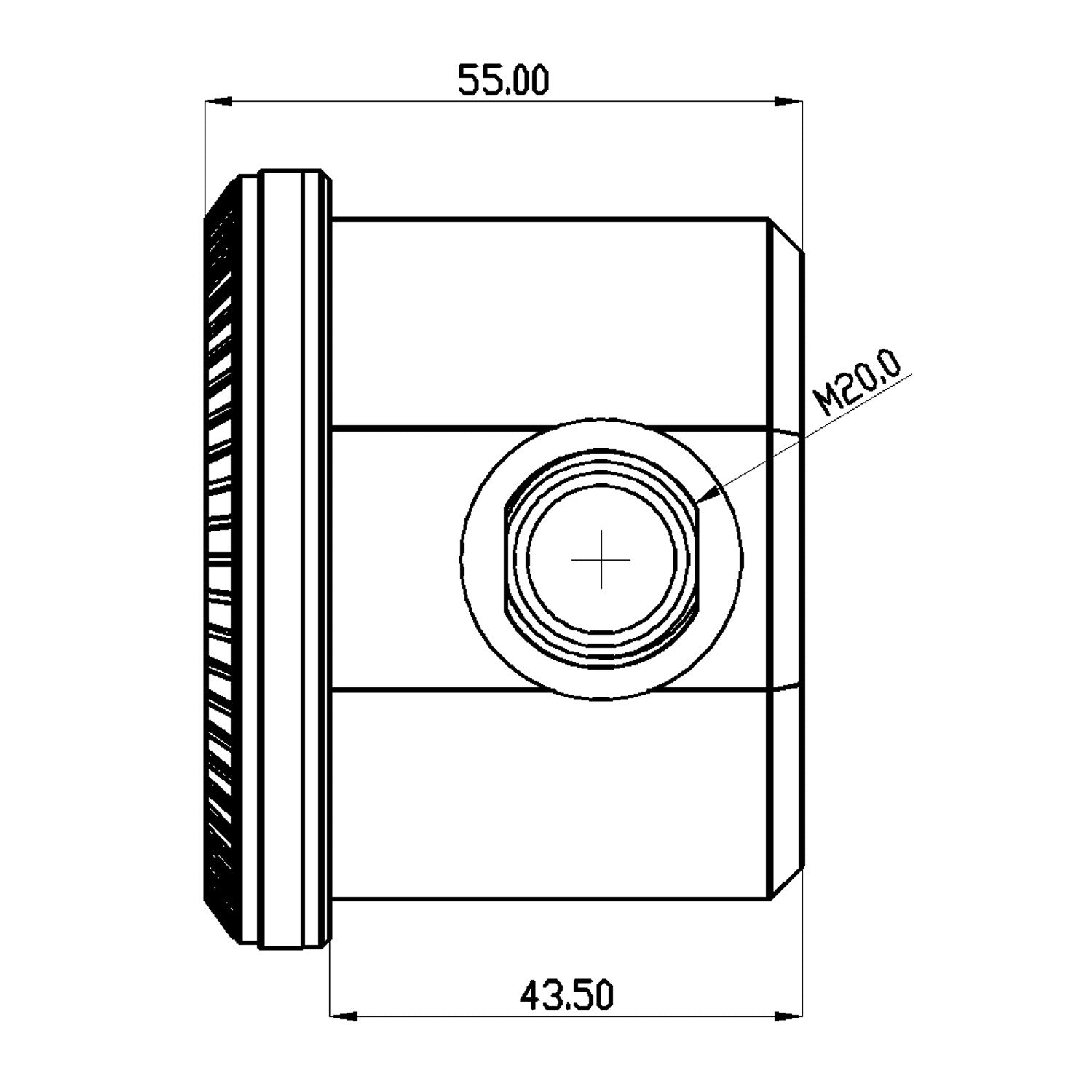

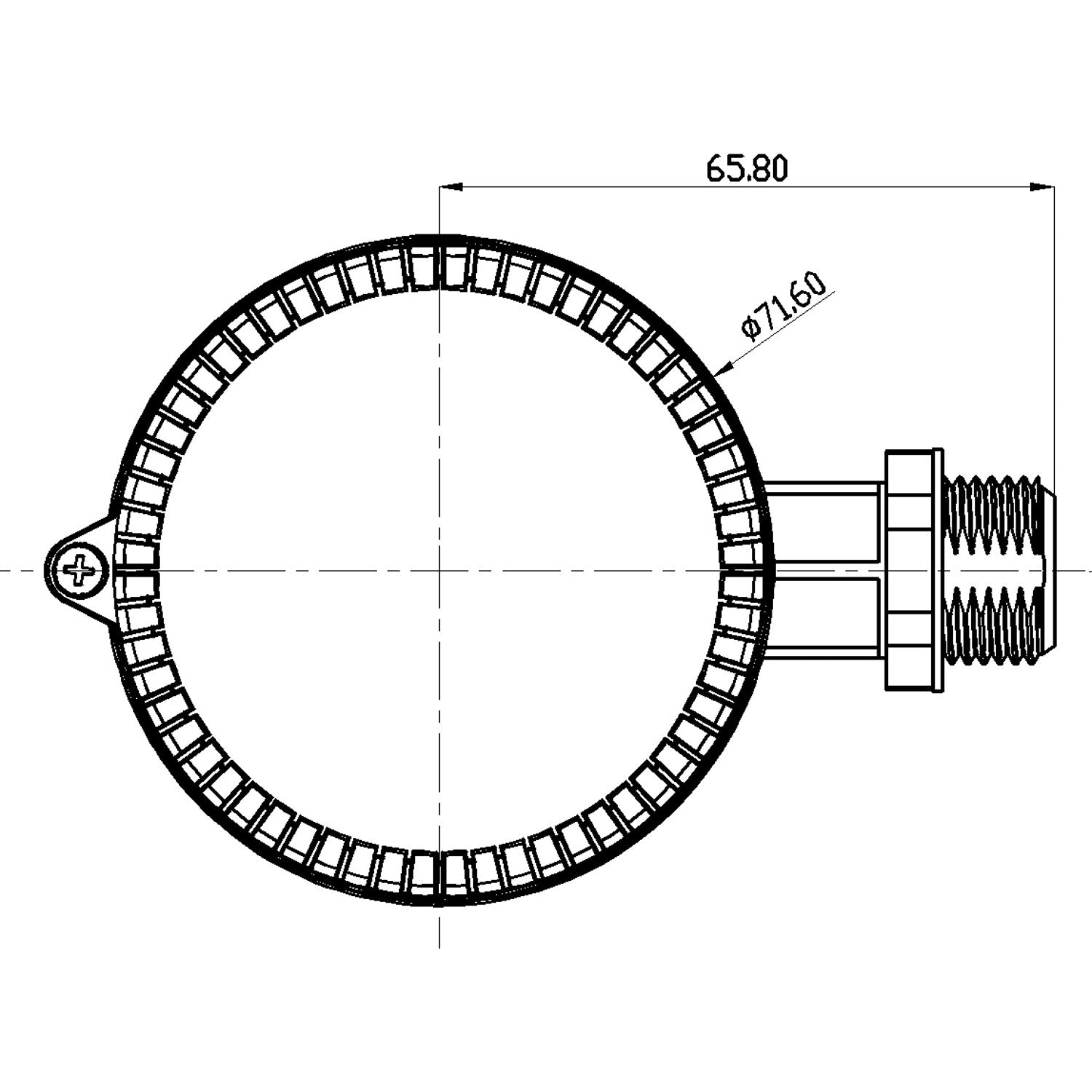

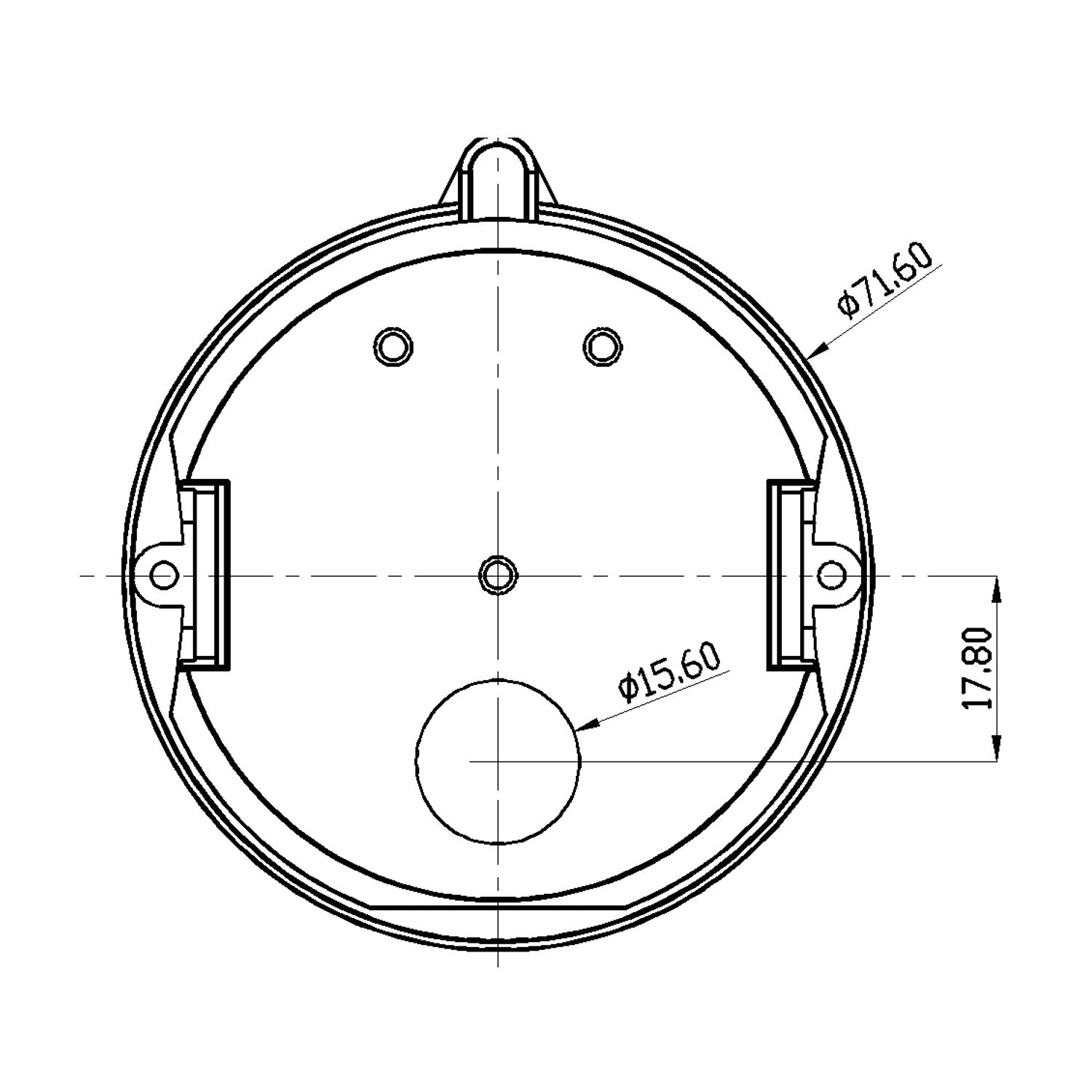

Product Dimensions: Various - Diameter: ~65.8mm
Body Material:
IP Rating: IP65
Fixing Type: Surface
Warranty: 2 YEARS
Body Colour:
Detection Motion Speed: 0.6-1.5m/s
Input Voltage: 110-277V/AC
Description: IP65 microwave dimming sensor for warehouse use. High-frequency 5.8GHz CW radar with ambient light detection and dimming capabilities. Supports 1-10V dimming, multiple hold times, and stand-by dim levels.
| Product Description | Details |
|---|---|
| Ambient light | 2lux, 10lux, 50lux, 2000lux (adjustable) |
| Application | Warehouse,loading bays, storage zones, and industrial sheds. |
| Detection angle | 360° |
| Detection motion speed | 0.6-1.5m/s |
| Detection range | 4-10m (radius) |
| Dimming options | 10%,20%,30% & 50% optional with 1-10v Protocol |
| Fixing type | Surface |
| Input voltage | 110-277V/AC |
| Installation height | 4-15m |
| Ip rating | IP65 |
| Microwave system | 5.8GHz CW radar, ISM band |
| Mrp | 4399 |
| Power consumption | 0.9W |
| Product dimensions in mm | Various - Diameter: ~65.8mm |
| Product family | JS-OCT |
| Rated load | 2000W (220-277V), 1000W (110-130V) |
| Sensor function | Activates light at full brightness upon detecting motion in low ambient light conditions, and automatically dims to a preset level or turns OFF after a defined time delay when no motion is detected. |
| Sku | OCTHBAY20HF |
| Technology | Microwave |
| Time delay | 5s to 30min (choice) |
| Type of item | Day Night Dimmable Motion Sensor |
| Warranty | 2 YEARS |
