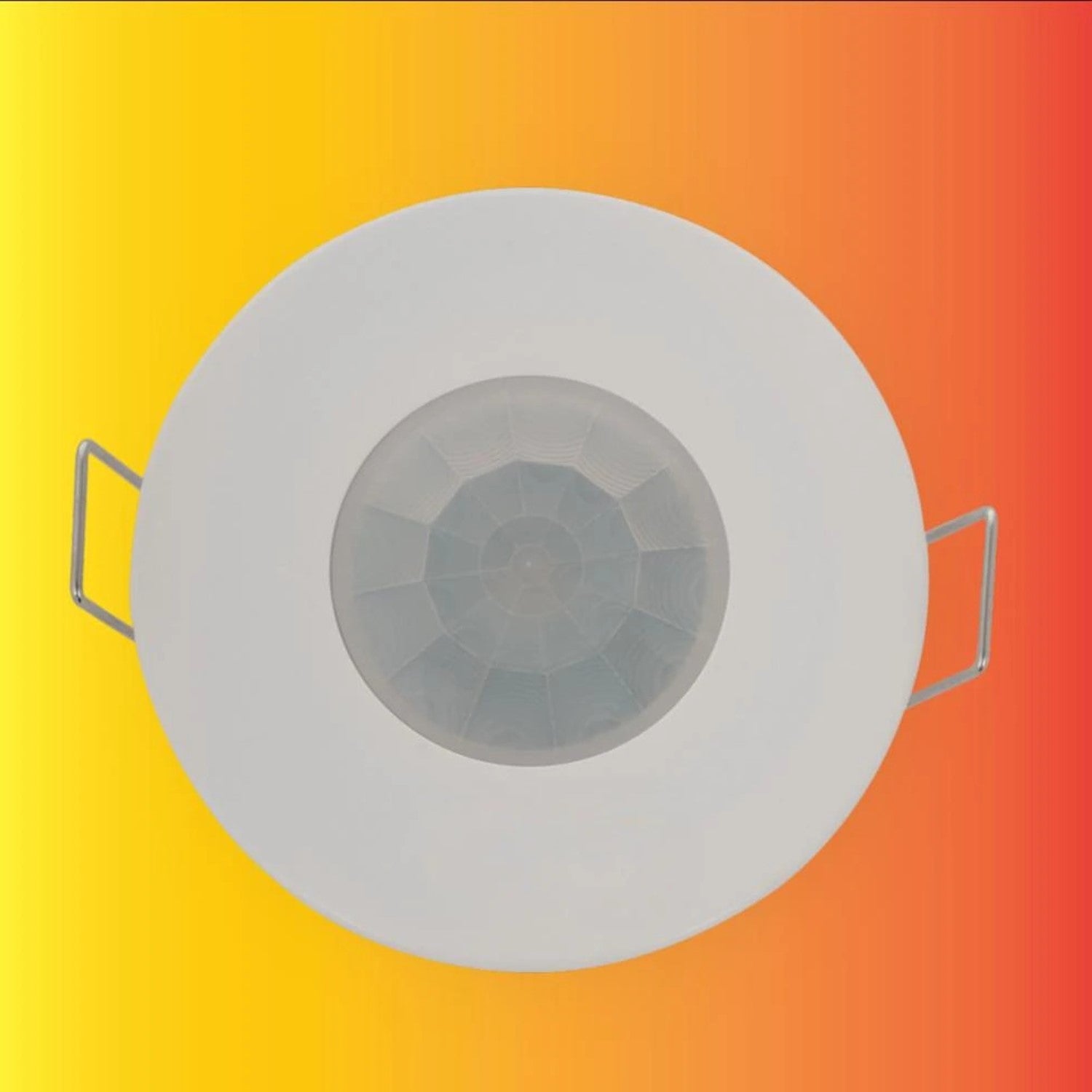

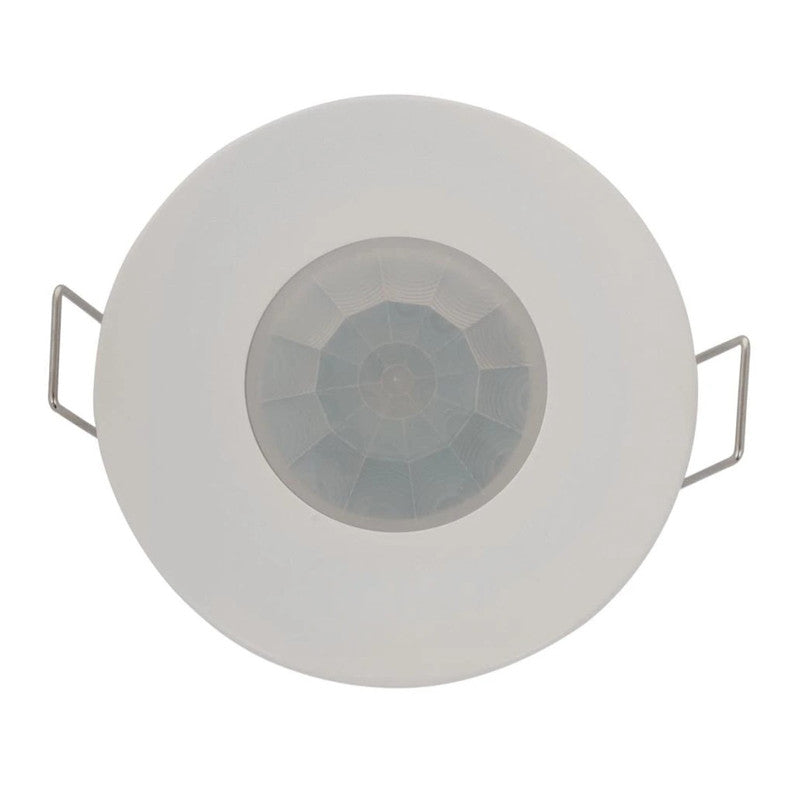

JS-OCT Tubo Recessed False Ceiling PIR Motion Sensor OCTTU06FC
Couldn't load pickup availability
JS-OCT Tubo Recessed False Ceiling PIR Motion Sensor OCTTU06FC
Vendor: Eliante by Jainsons Lights
SKU: OCTTU06FC
Dimming Options: No
Detection Range: 8m
Detection Angle: 360°
Time Delay: Adjustable

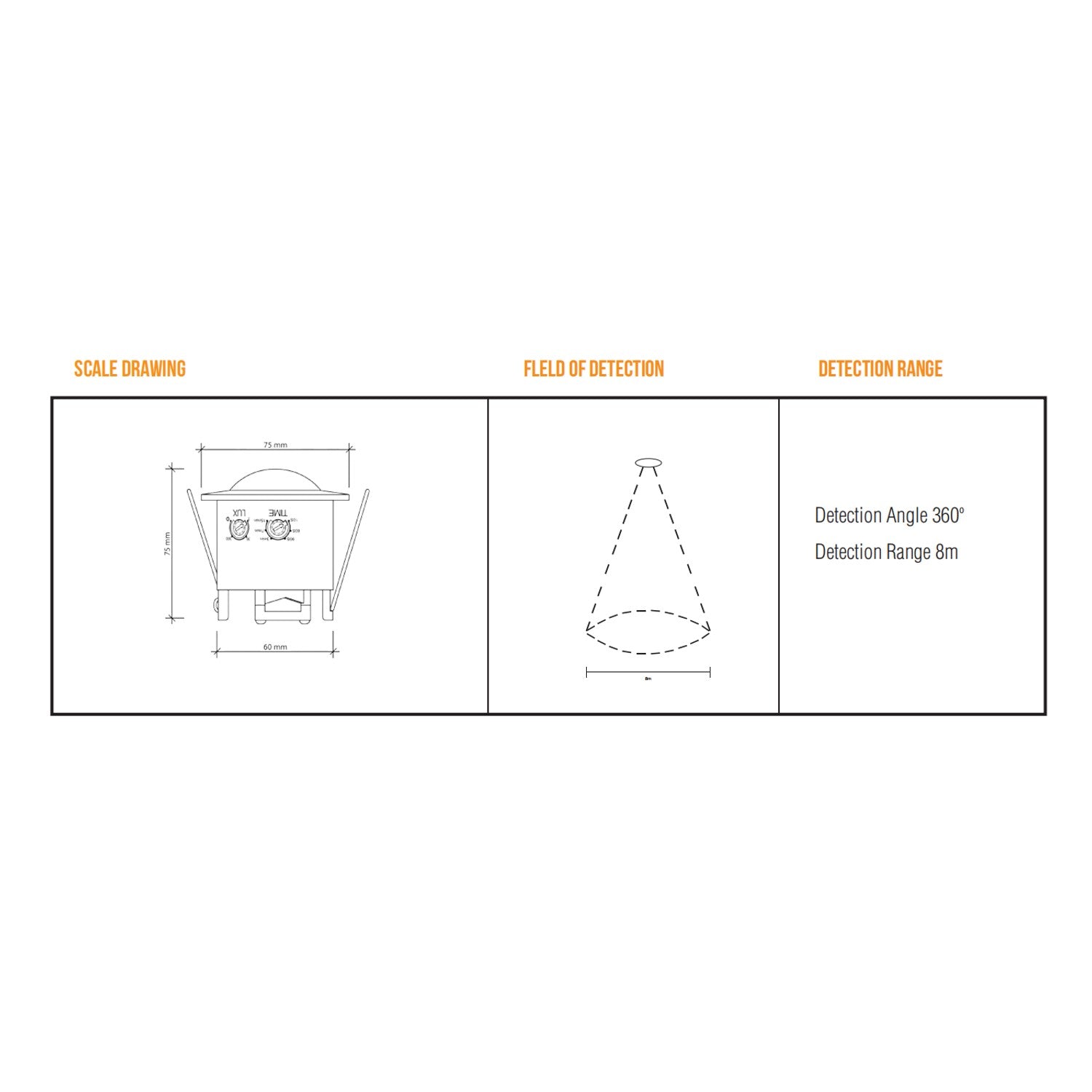

Product Dimensions: Height: 75mm, Ø75mm
Body Material:
IP Rating: IP20
Fixing Type: Recessed False Ceiling
Warranty: 2 YEARS
Body Colour: White
Detection Motion Speed:
Input Voltage: 230V/50Hz

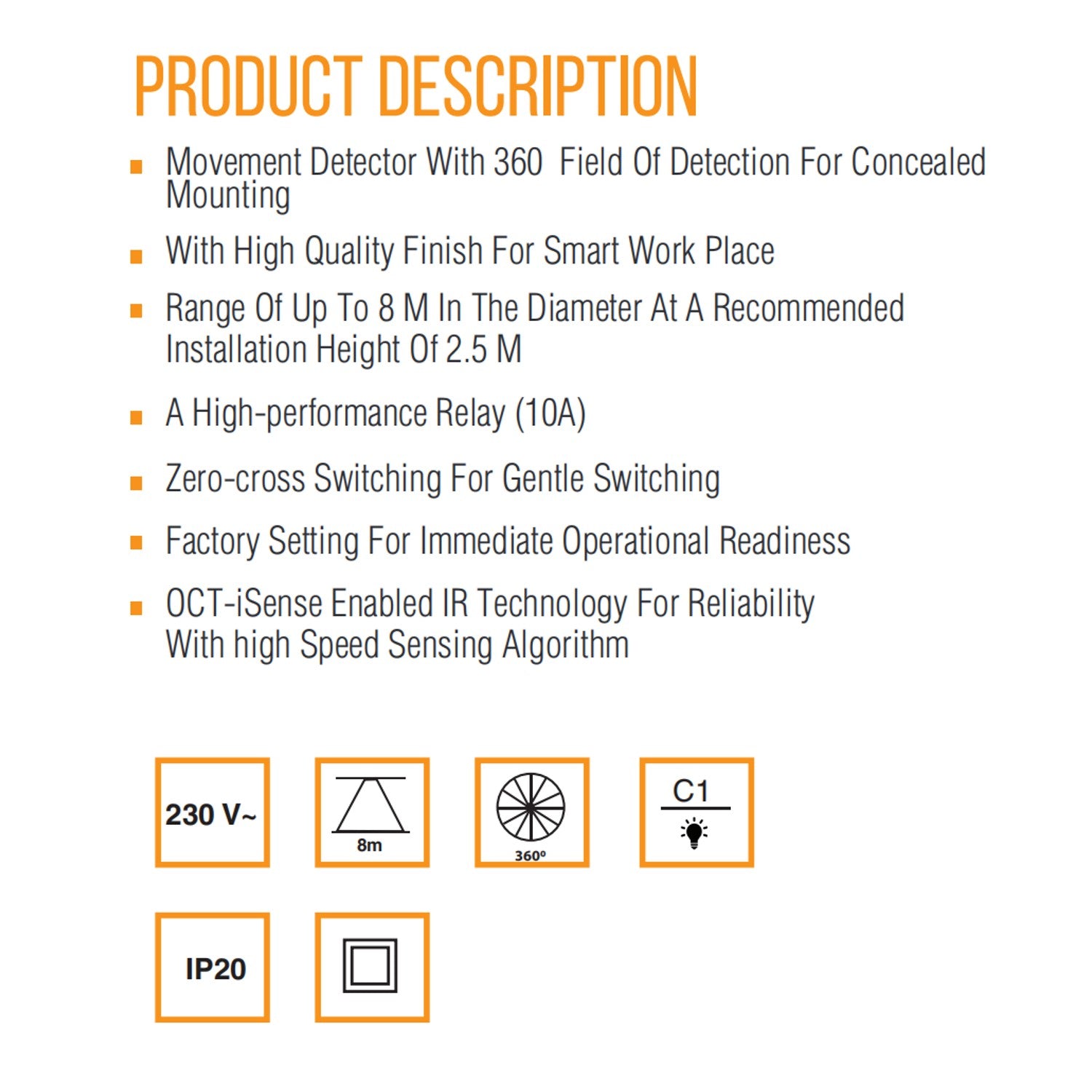

Description: Concealed ceiling-mounted movement detector with 360° field of detection. High-quality slim finish suitable for smart workplaces. Covers up to 8m detection range at a recommended installation height of 2.5m. Includes a 10A high-performance relay, zero-cross switching, factory pre-configured, and OCT-iSense Enabled IR Technology for fast and reliable sensing.
| Product Description | Details |
|---|---|
| Application | Passages, Corridors, Store rooms & Staircases |
| Body colour | White |
| Detection angle | 360° |
| Detection range | 8m |
| Dimming options | No |
| Fixing type | Recessed False Ceiling |
| Input voltage | 230V/50Hz |
| Installation height | Recommended: 2.3m, Max: 4.2m |
| Ip rating | IP20 |
| Mrp | 999 |
| Power consumption | 0.6W |
| Product dimensions in mm | Height: 75mm, Ø75mm |
| Product family | JS-OCT |
| Product weight (kg) | 120g |
| Protection class | Class II |
| Rated load | 300w |
| Relative humidity | 5-93% non-condensing |
| Sensor function | Turns ON light at full brightness upon detecting motion within range, and automatically turns OFF after a preset time delay when no motion is detected |
| Sku | OCTTU06FC |
| Technology | PIR |
| Time delay | Adjustable |
| Type of item | Motion Sensor |
| Warranty | 2 YEARS |
| Working temperature | -30°C to +50°C |
