JS-LM 5mm Microline Slim Magnetic Track Lighting – Surface, POP Recessed & Gypsum Recessed System 24V

Name: JS-LM 5mm Microline Slim Magnetic Track Lighting – Surface, POP Recessed & Gypsum Recessed System 24V
Brand: Eliante by Jainsons Lights
Price: 1181.18 INR
Availability: InStock

Rs. 41.42 - Rs. 4,491.55

Tax included. Shipping calculated at checkout.

Rs. 1,181.18

~~Rs. 1,181.18~~ Rs. 1,181.18

Surface Channel / 1m / NA

Eliante by Jainsons LightsJS-LM 10mm HIGHLINE Magnetic Track System – Surface, Hanging & Recessed Channels

Eliante By Jainsons Lights20mm Trimless Magnetic Track Channel | POP / Gypsum / Surface Mount | Black & White | 1m–3m Lengths | 1–5 Yr Warranty

Product Description
Customer Redressal
Exchange - Return - Cancellation

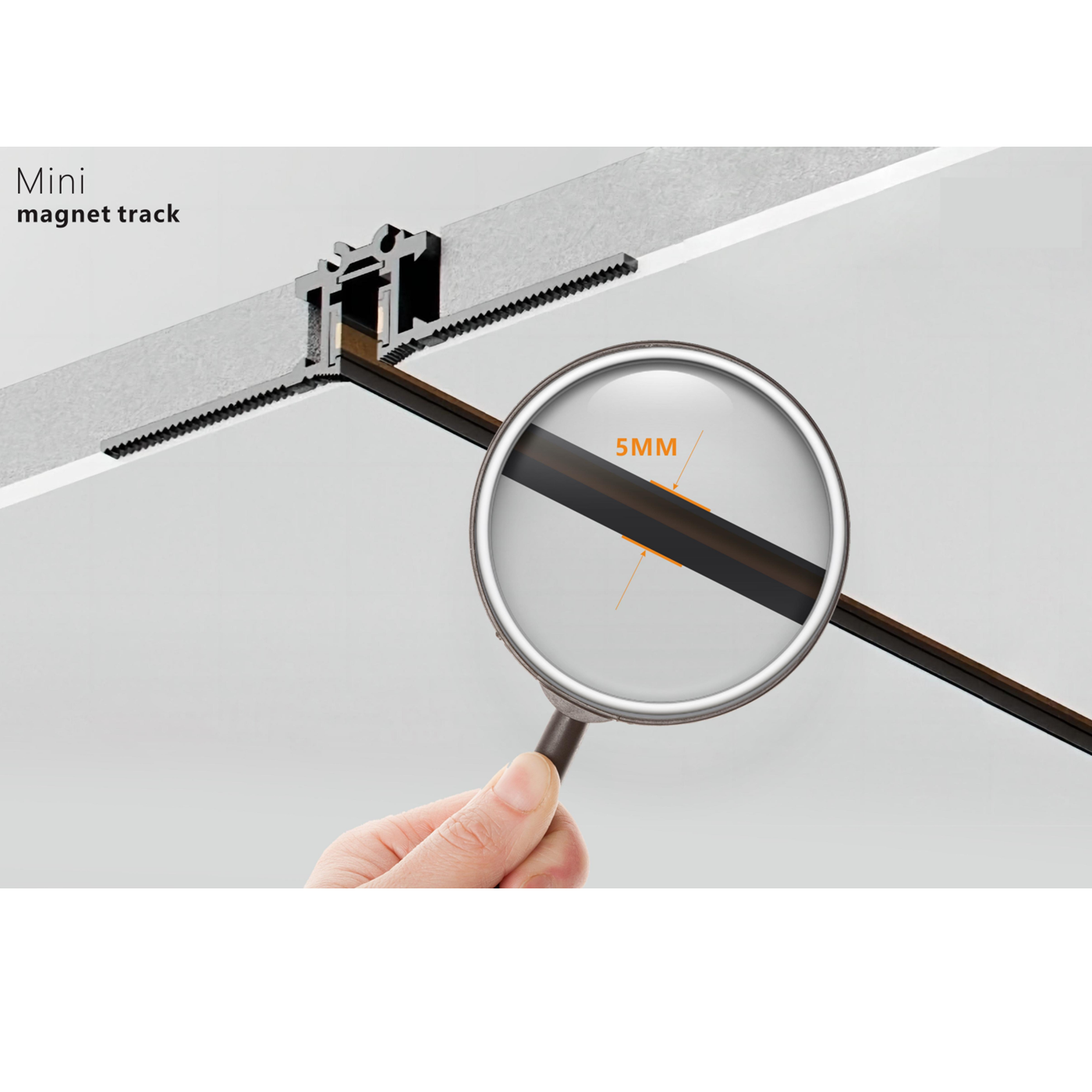

5mm Microline Ultra-Slim Magnetic Track Lighting System

Design flexible, modern and minimal lighting layouts with the 5mm Microline magnetic track light system. This ultra-slim mini magnet track works for surface / pendant, POP recessed and gypsum recessed ceilings and supports straight lines, curves and creative shapes – perfect for homes, retail stores, galleries, offices and luxury interiors.

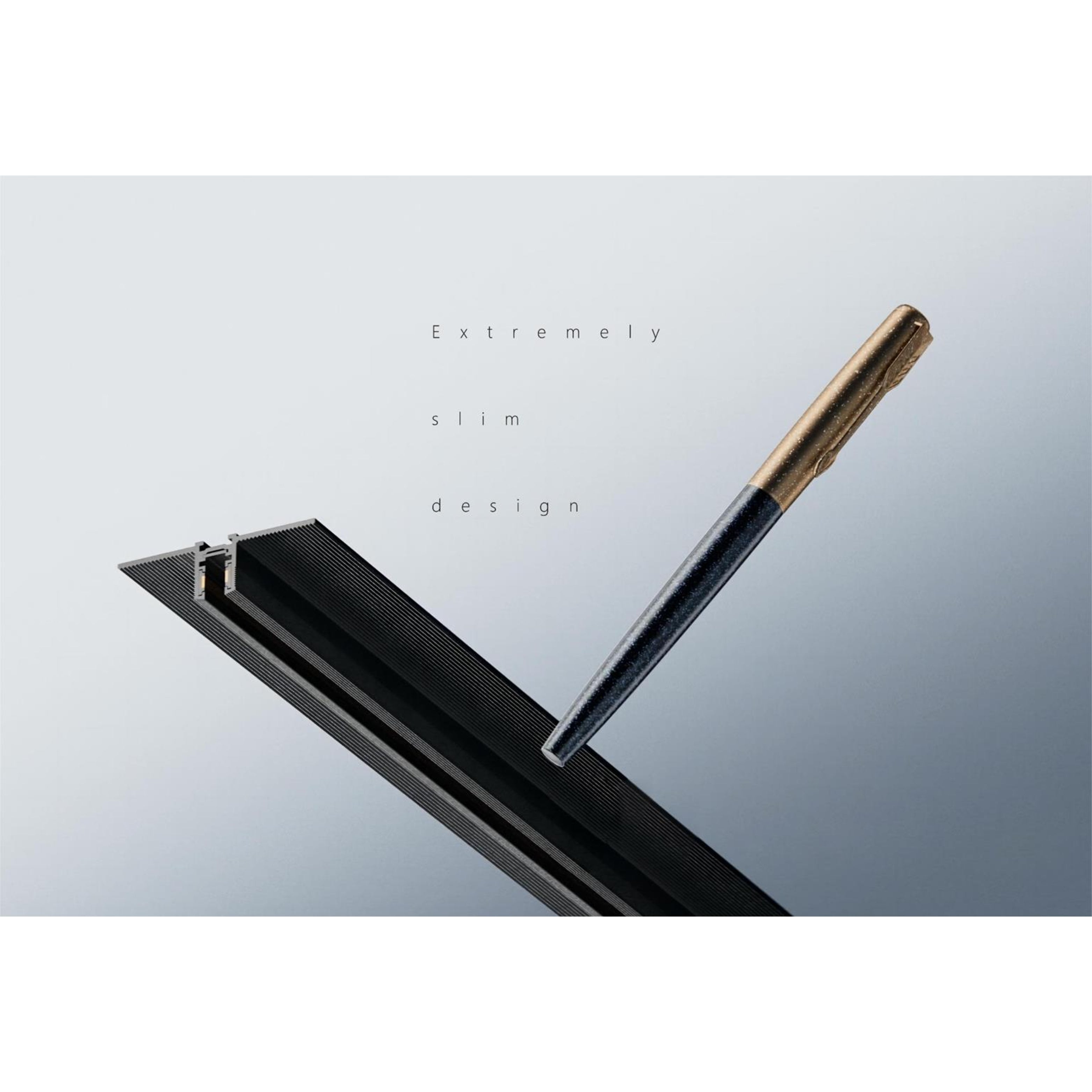

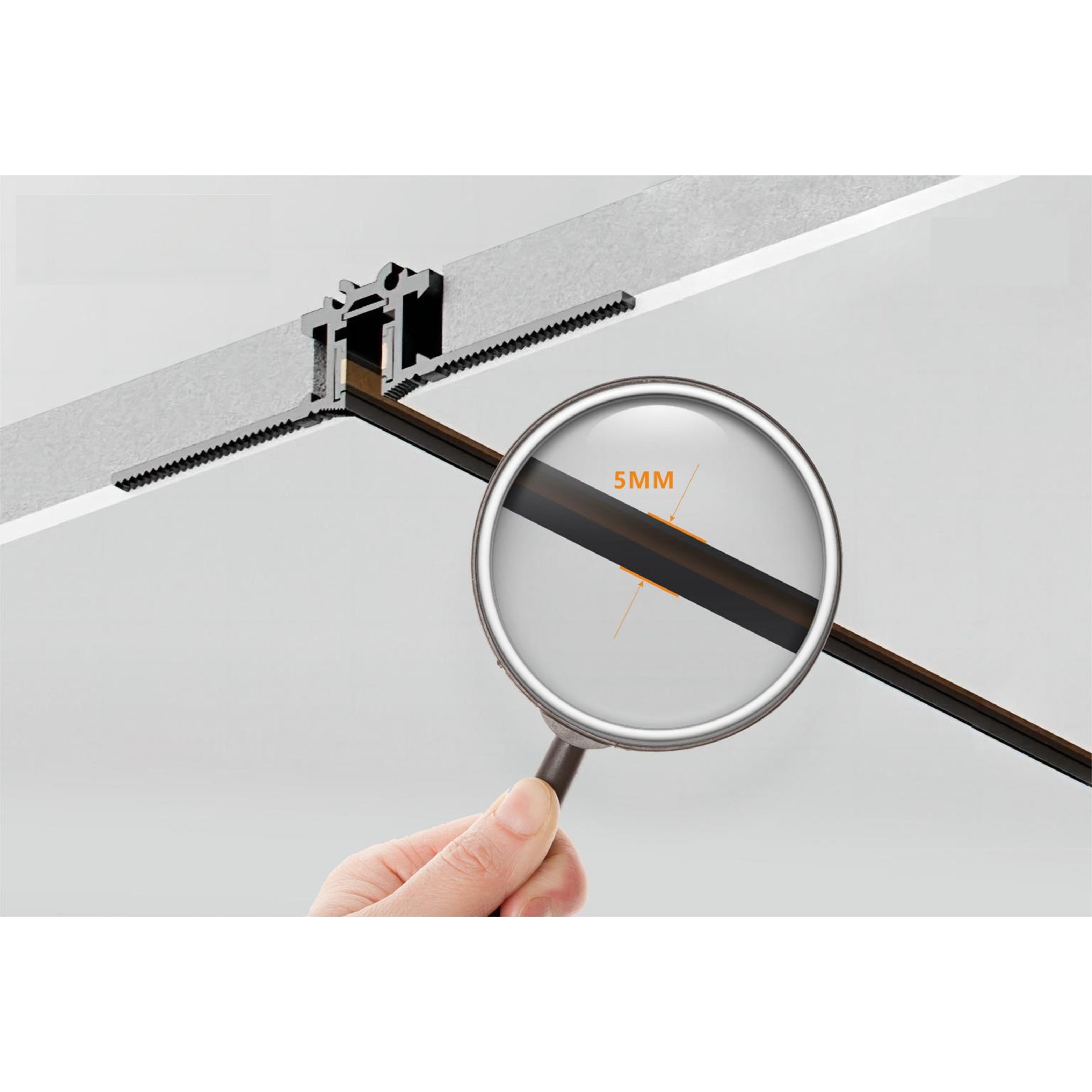

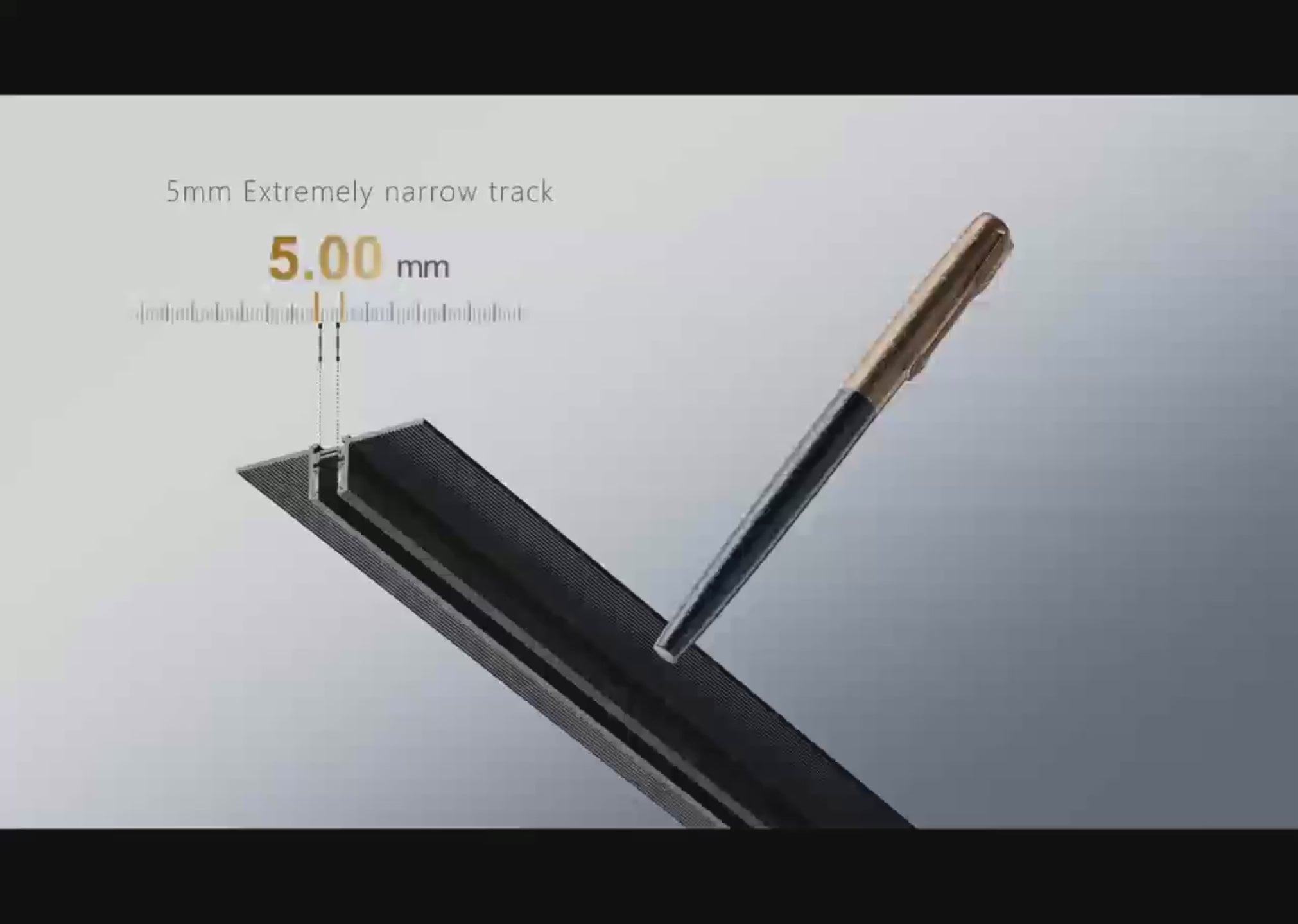

Only 5mm slim track – super minimal look
3 types: Surface / Pendant, POP Recessed, Gypsum Recessed
Magnetic linear, spotlight, diffuser & curve modules

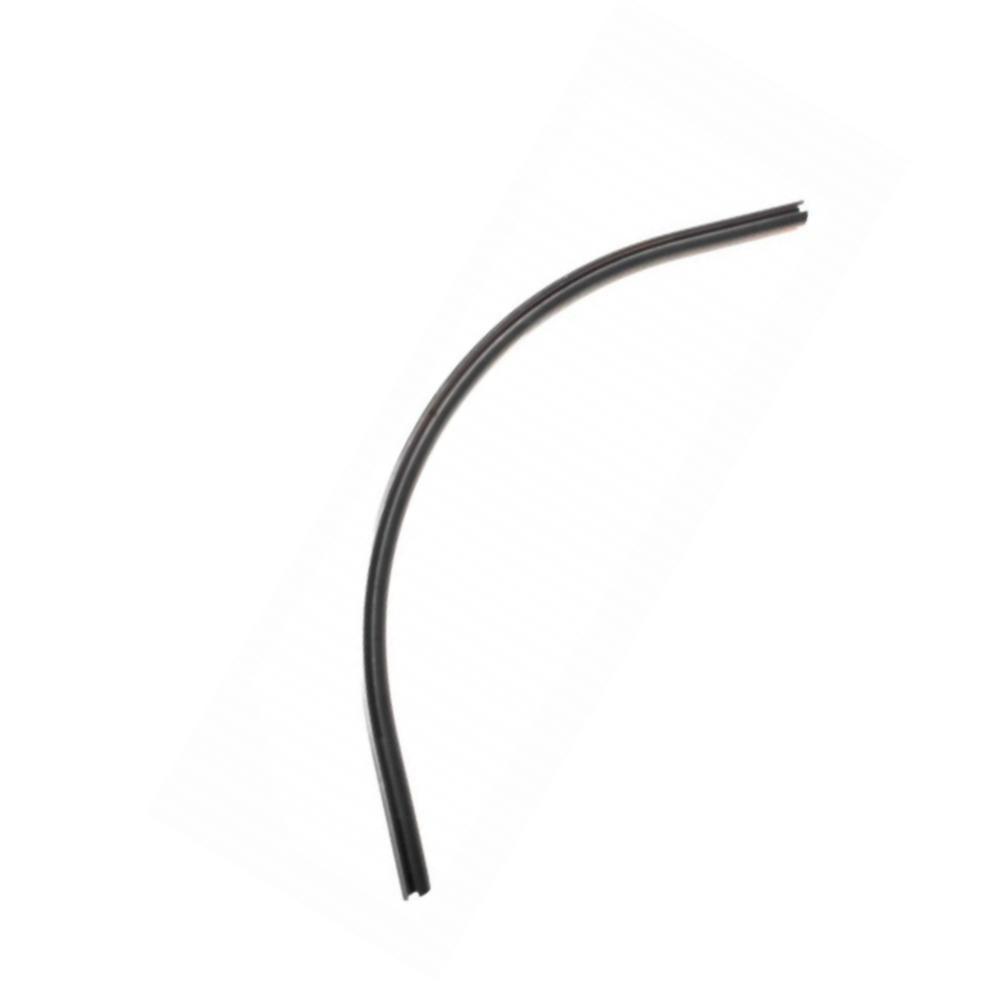

Curved track options for creative, flowing designs
In-line power supply on track – no bulky drivers in ceiling
Complete range of joiners, end caps, clamps & accessories

How the 5mm Microline System Works

The system is built around an ultra-slim magnetic track installed on your ceiling or wall. You can simply snap magnetic light modules onto the track – move, add or remove them anytime without tools. The result is a clean, continuous and highly flexible architectural lighting solution.

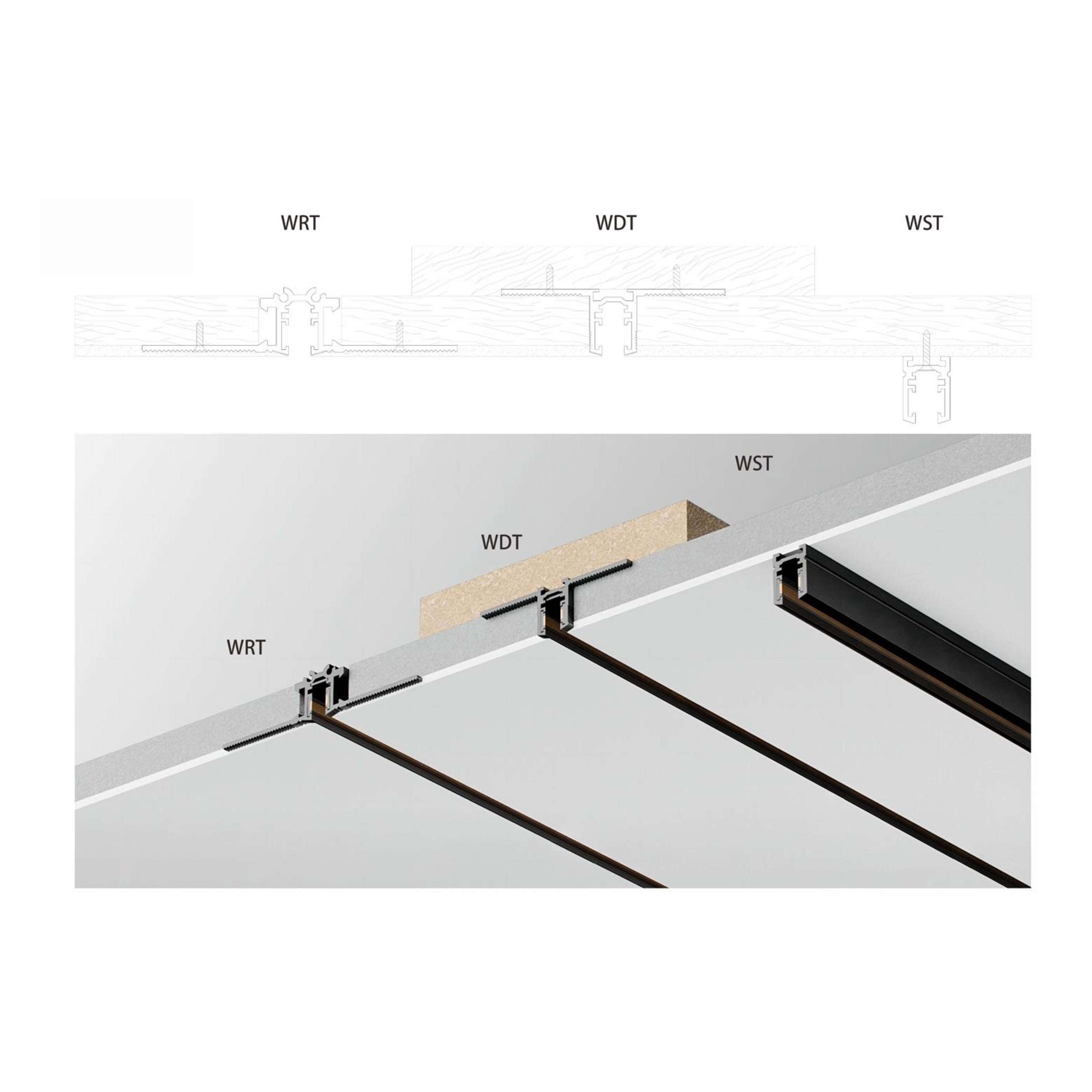

Track Types – Choose the Right Base

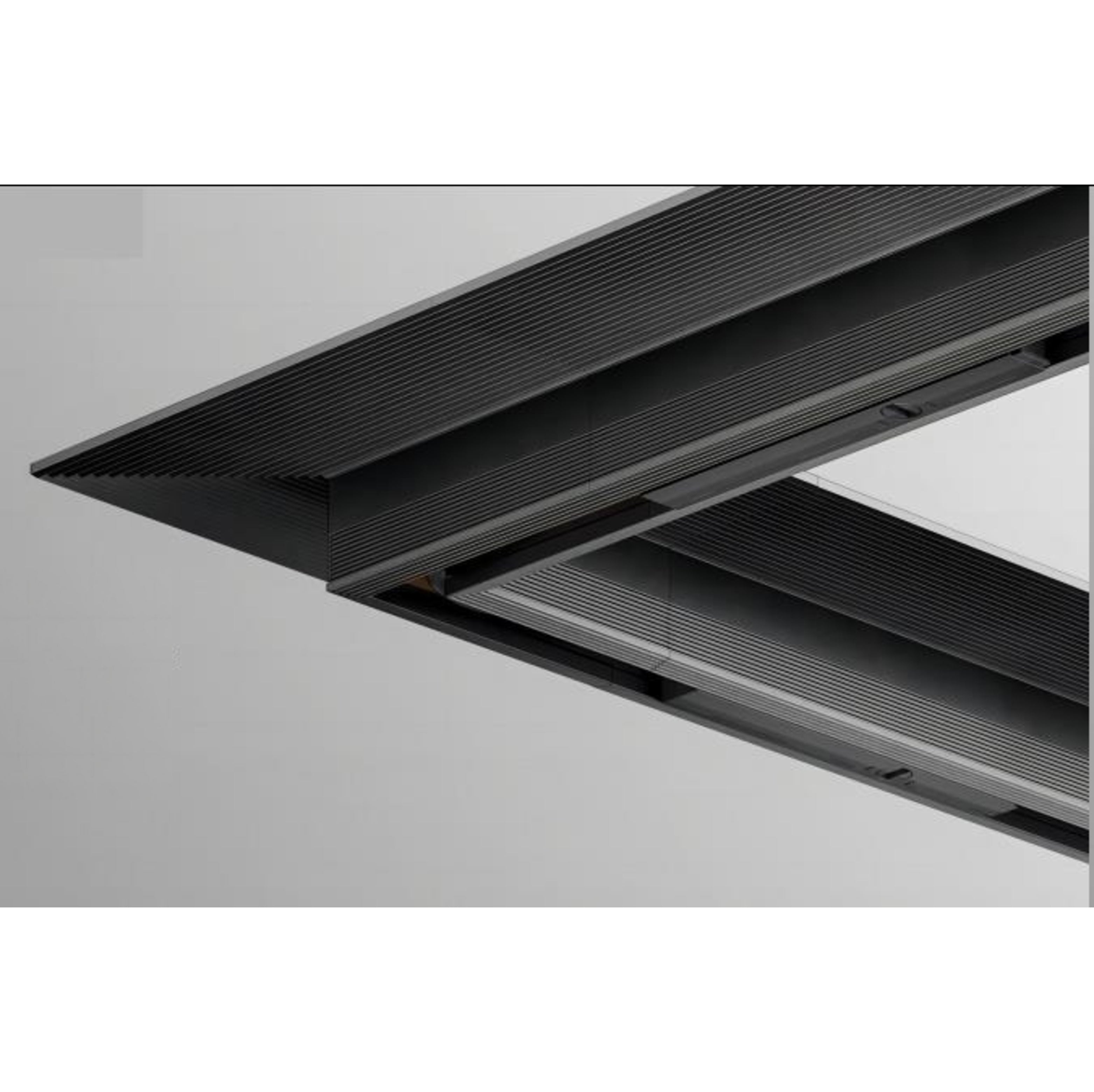

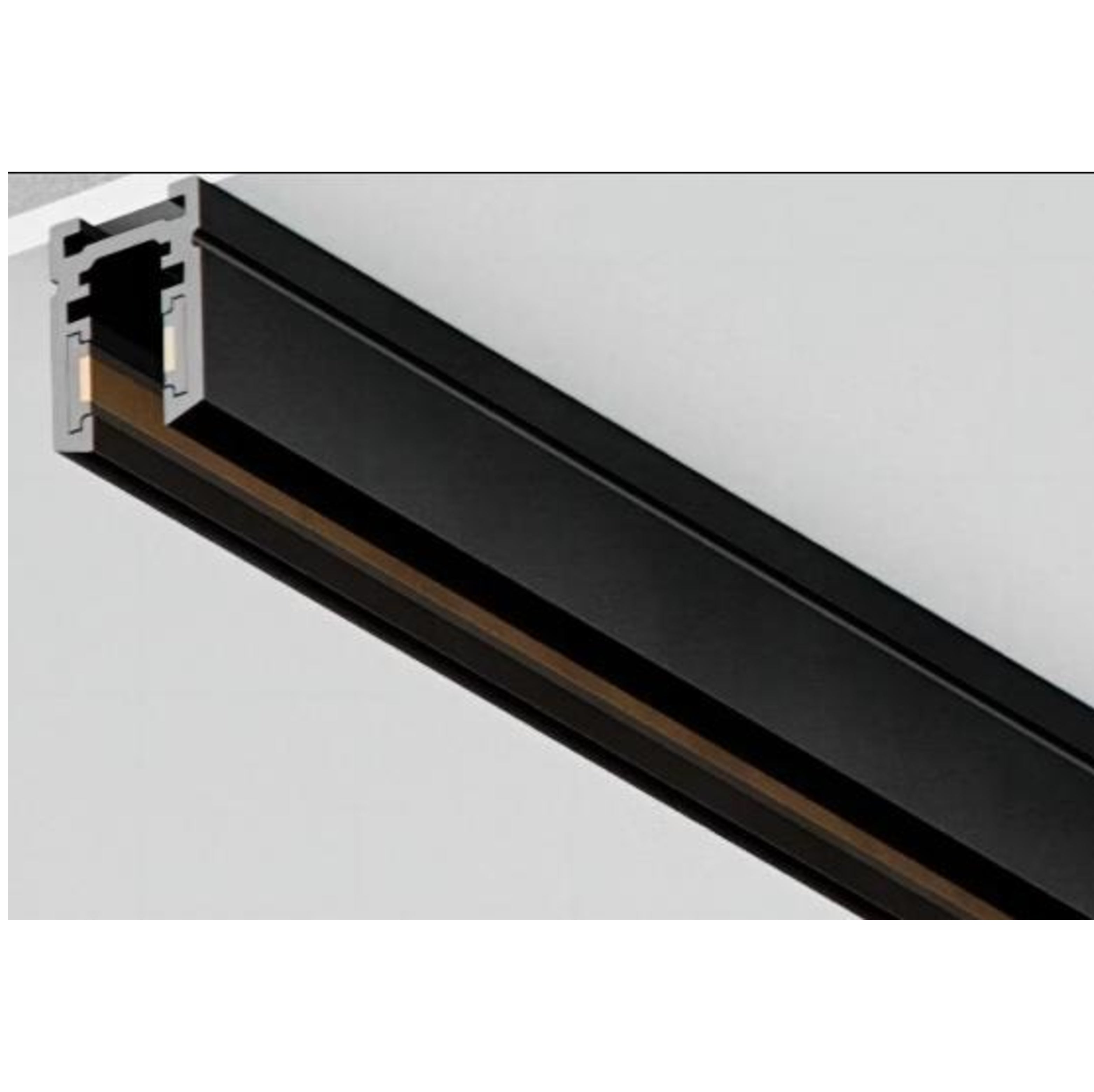

1. Surface / Pendant Track

Ideal for renovations and finished ceilings. Mount directly on the surface or suspend as a pendant magnetic track light above counters, dining tables, islands or retail displays.

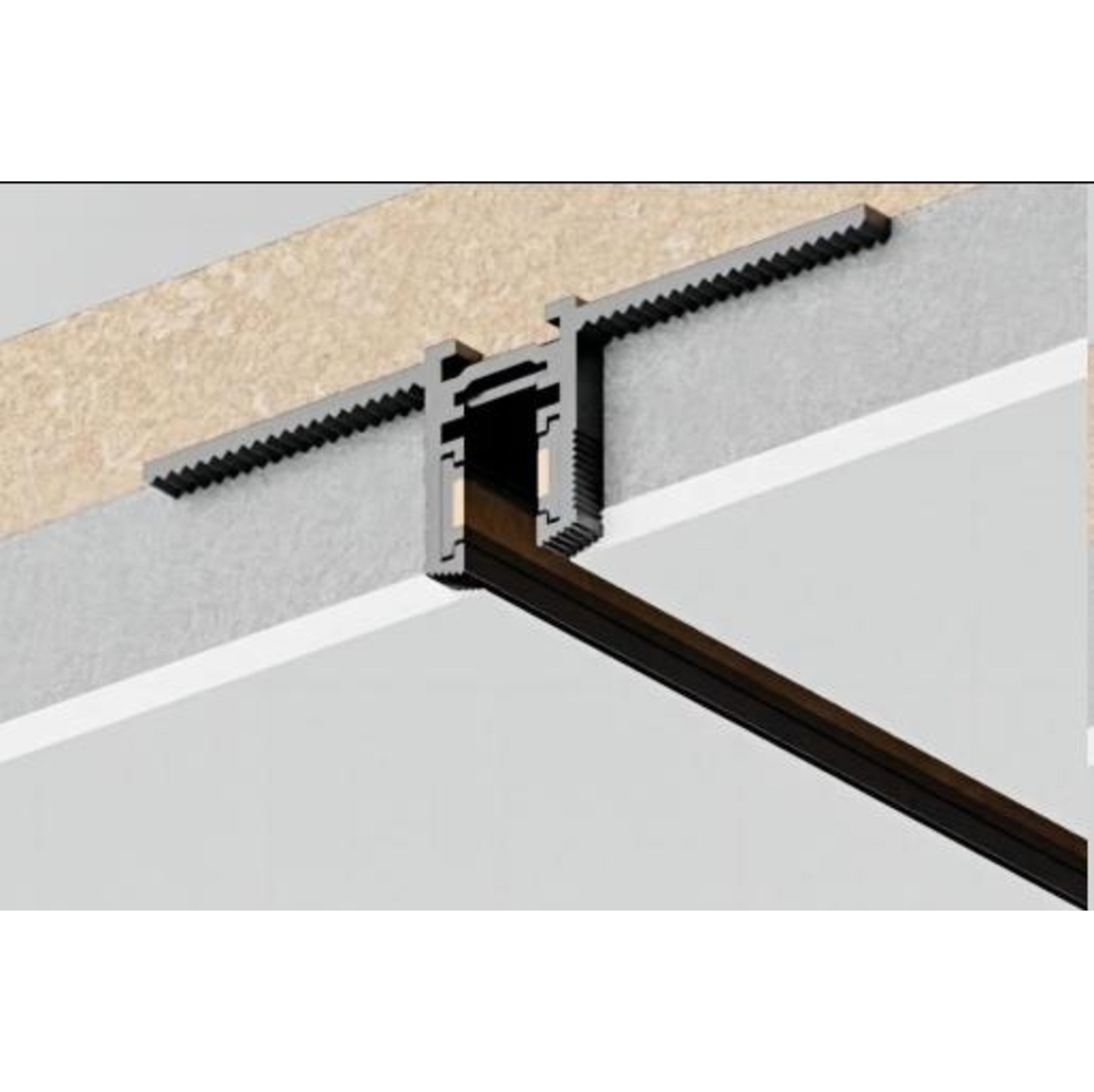

2. POP Recessed Track

Fully flush with the POP ceiling for a zero-gap recessed track light look. Requires complete POP work – best for new projects and high-end interiors.

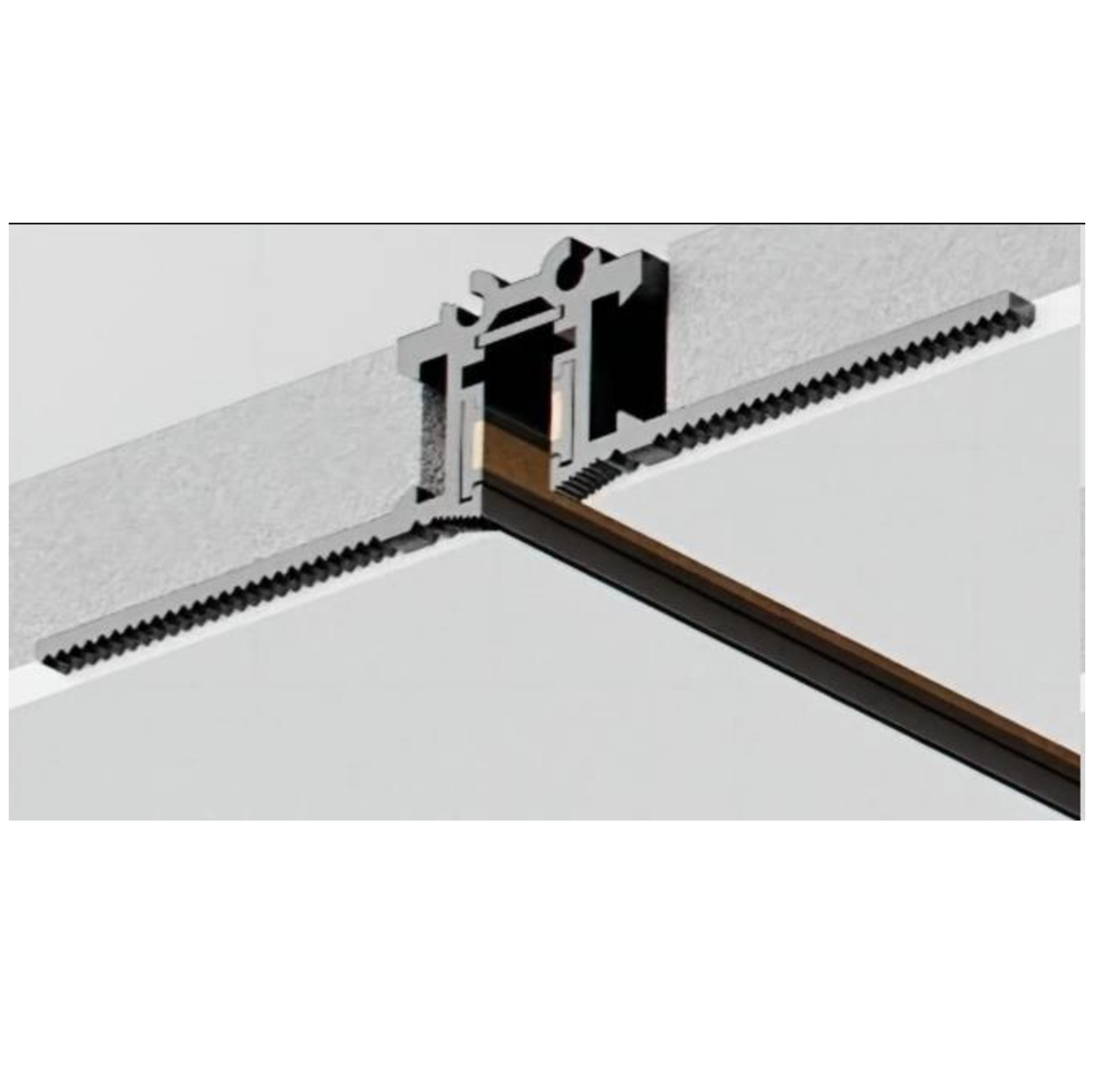

3. Gypsum Recessed Track

Designed for gypsum board ceilings and needs only minor finishing. Gives a neat in-built appearance without heavy POP construction.

Light Modules – Mix & Match on the Same Track

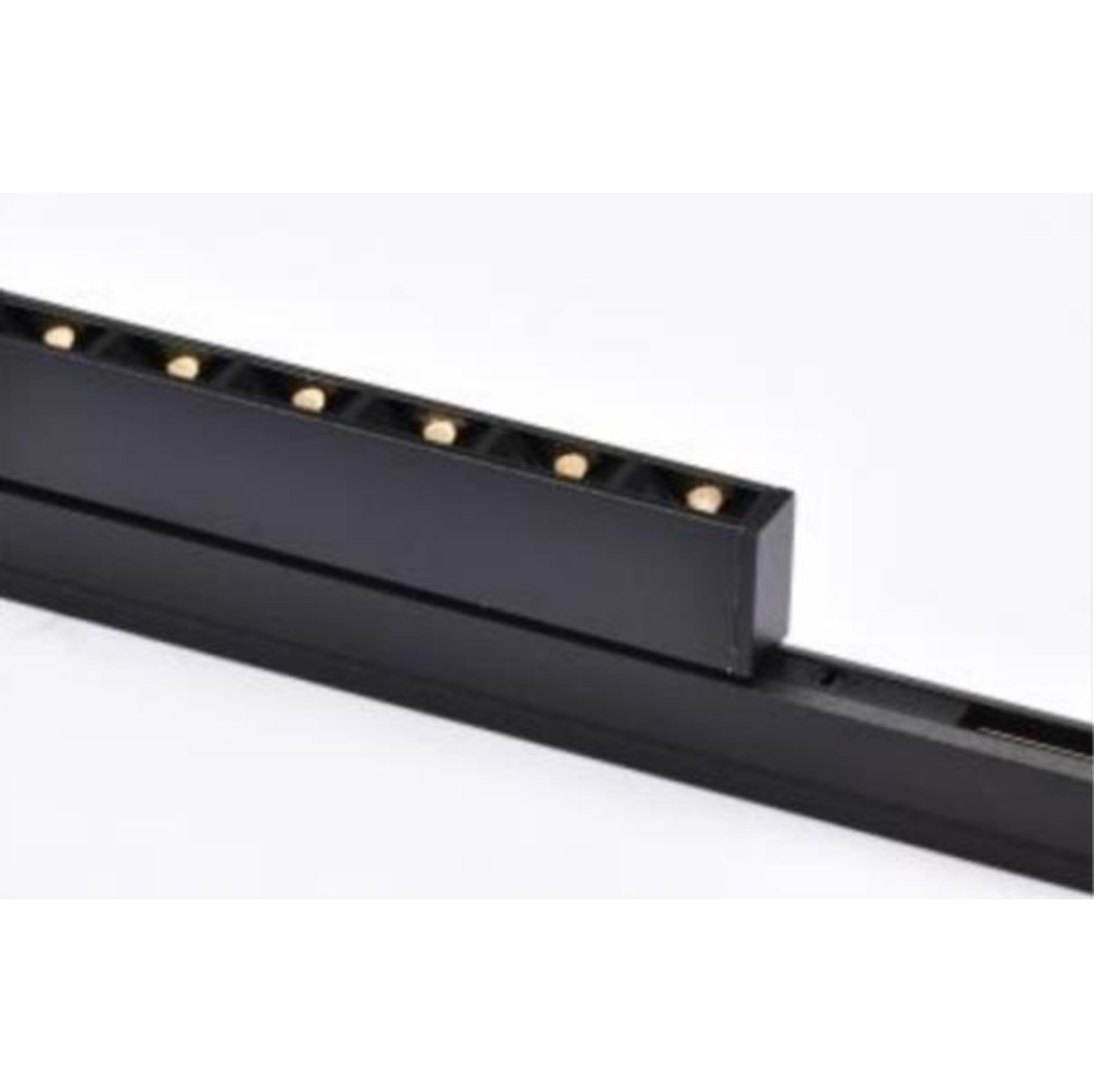

Linear Laser & Diffuser Lights

Slim linear lights for soft, uniform illumination along corridors, wardrobes, counters and feature ceilings. Perfect as ambient and general lighting.

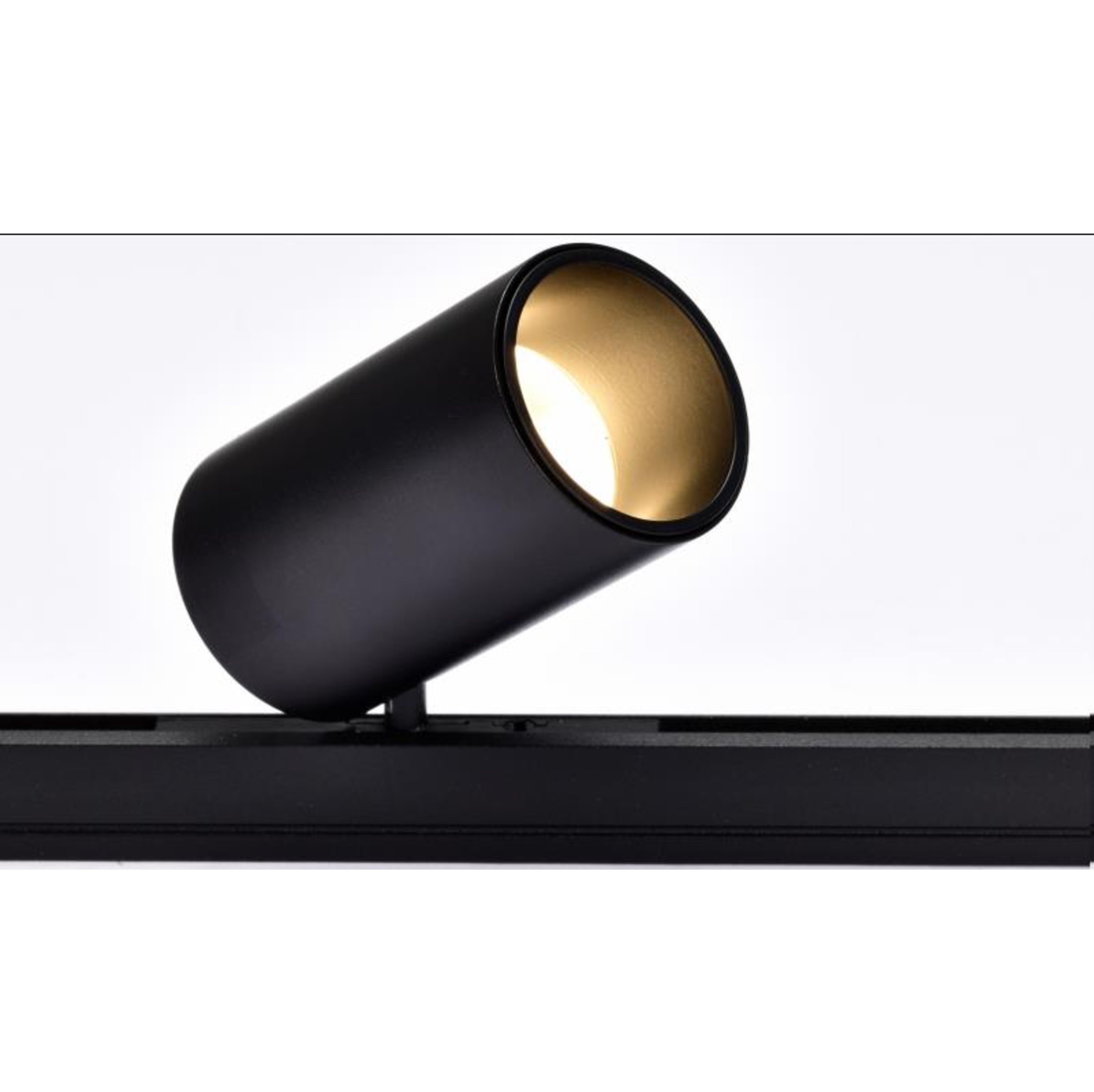

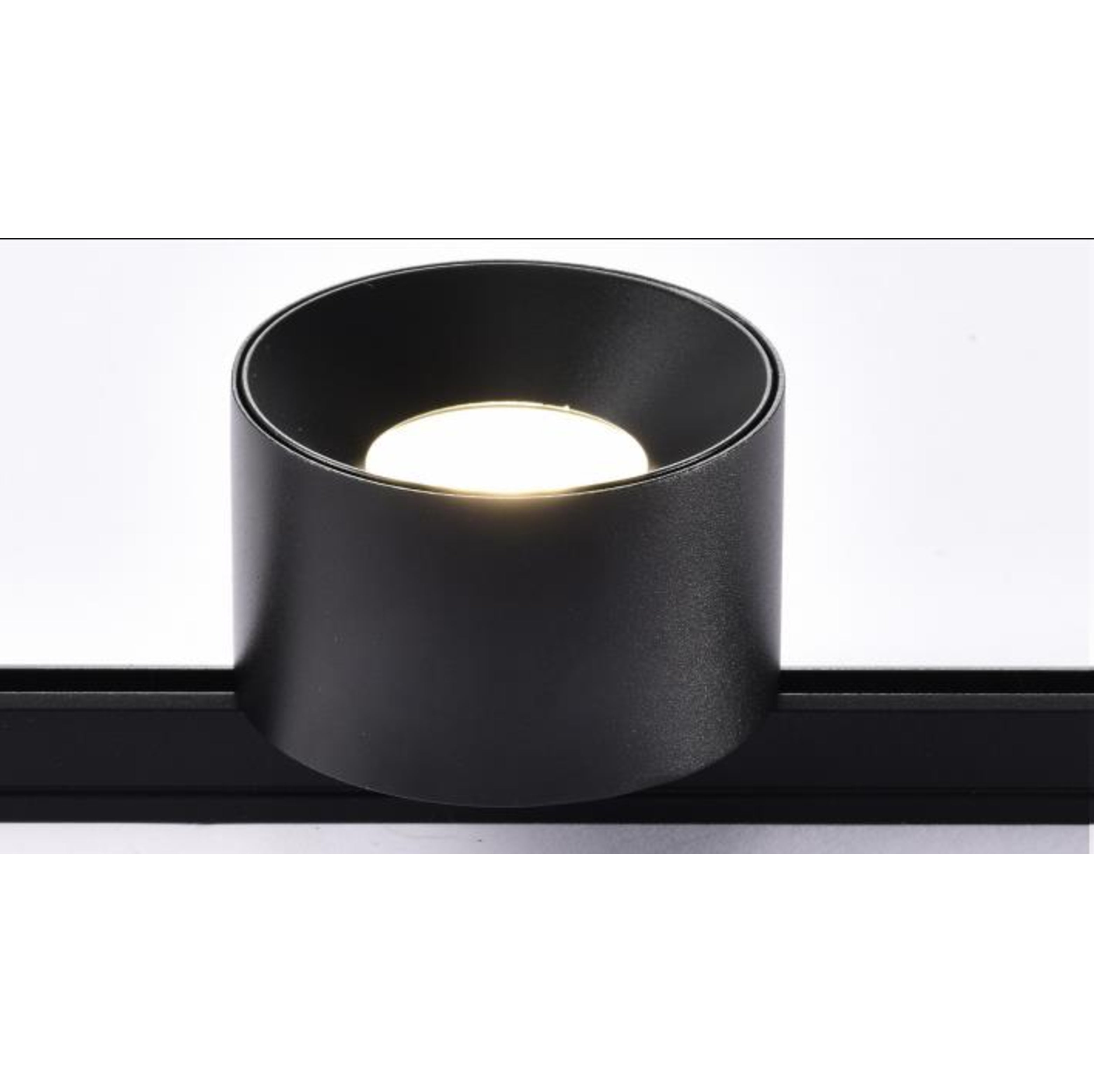

Magnetic Spotlights

Adjustable track spot lights to highlight products, artwork, walls and décor. Ideal for retail, galleries and living rooms.

Curved / Flexible Light Modules

Flexible modules that follow the curved track to create circles, waves and organic shapes – great for designer ceilings and statement lighting.

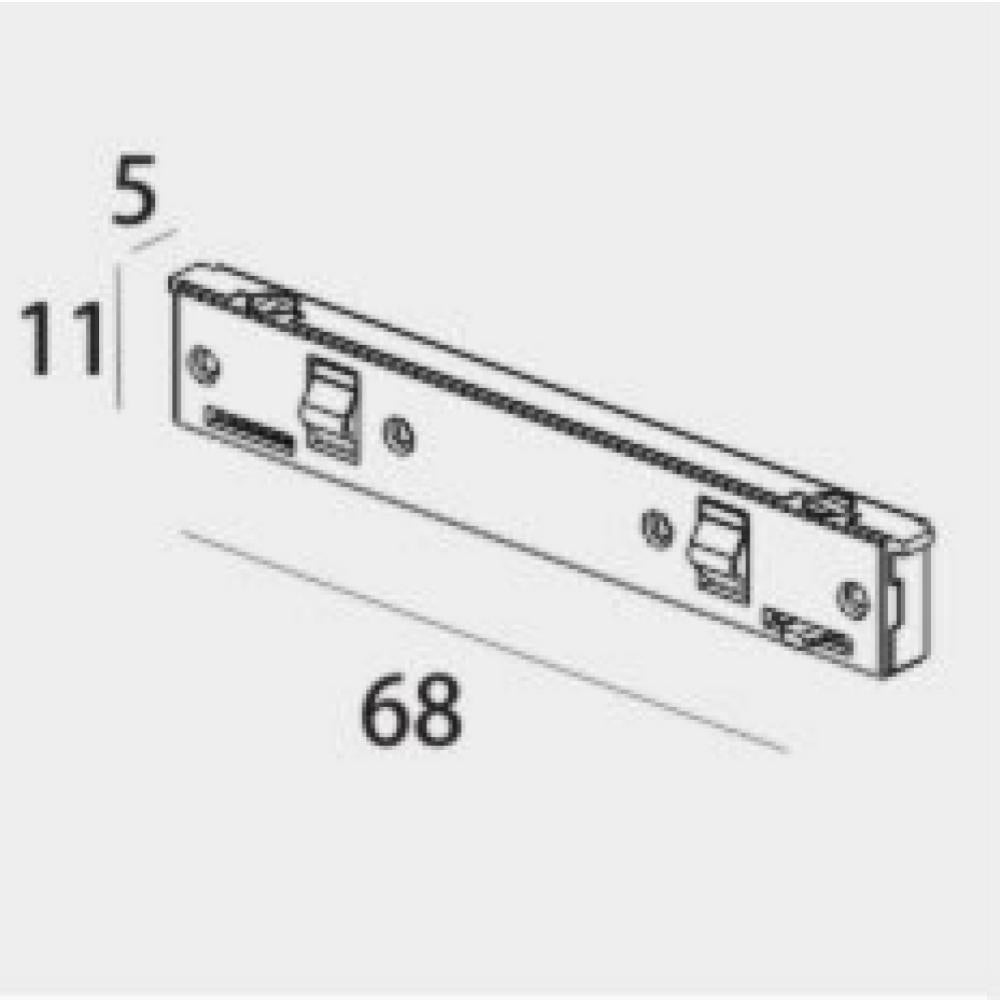

In-Line Power (Driver on Track)

The driver is designed as a slim module that fits directly on the track. No need for separate driver boxes in the false ceiling, and replacements are quick and tool-free.

Accessories – Complete System Components

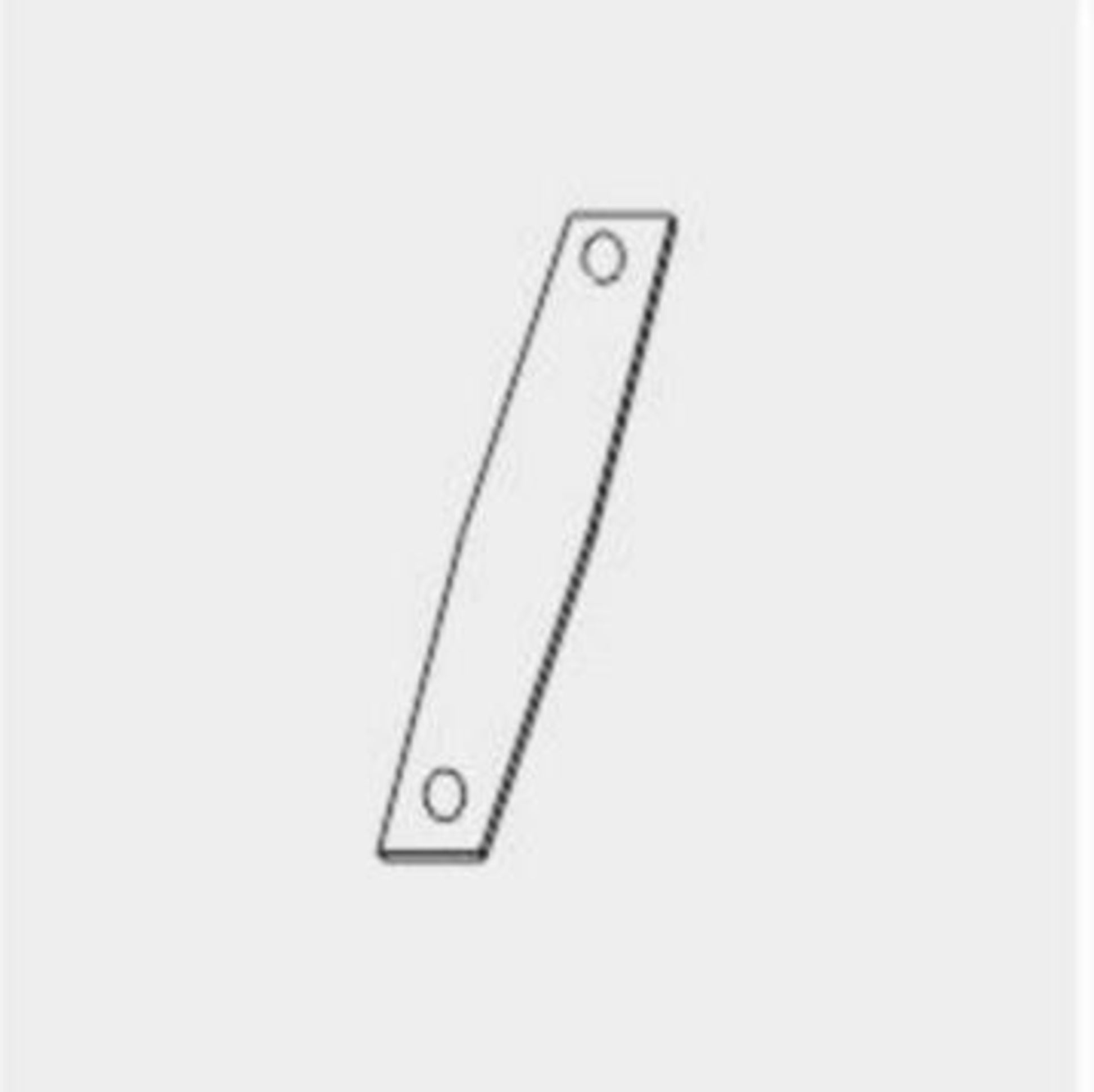

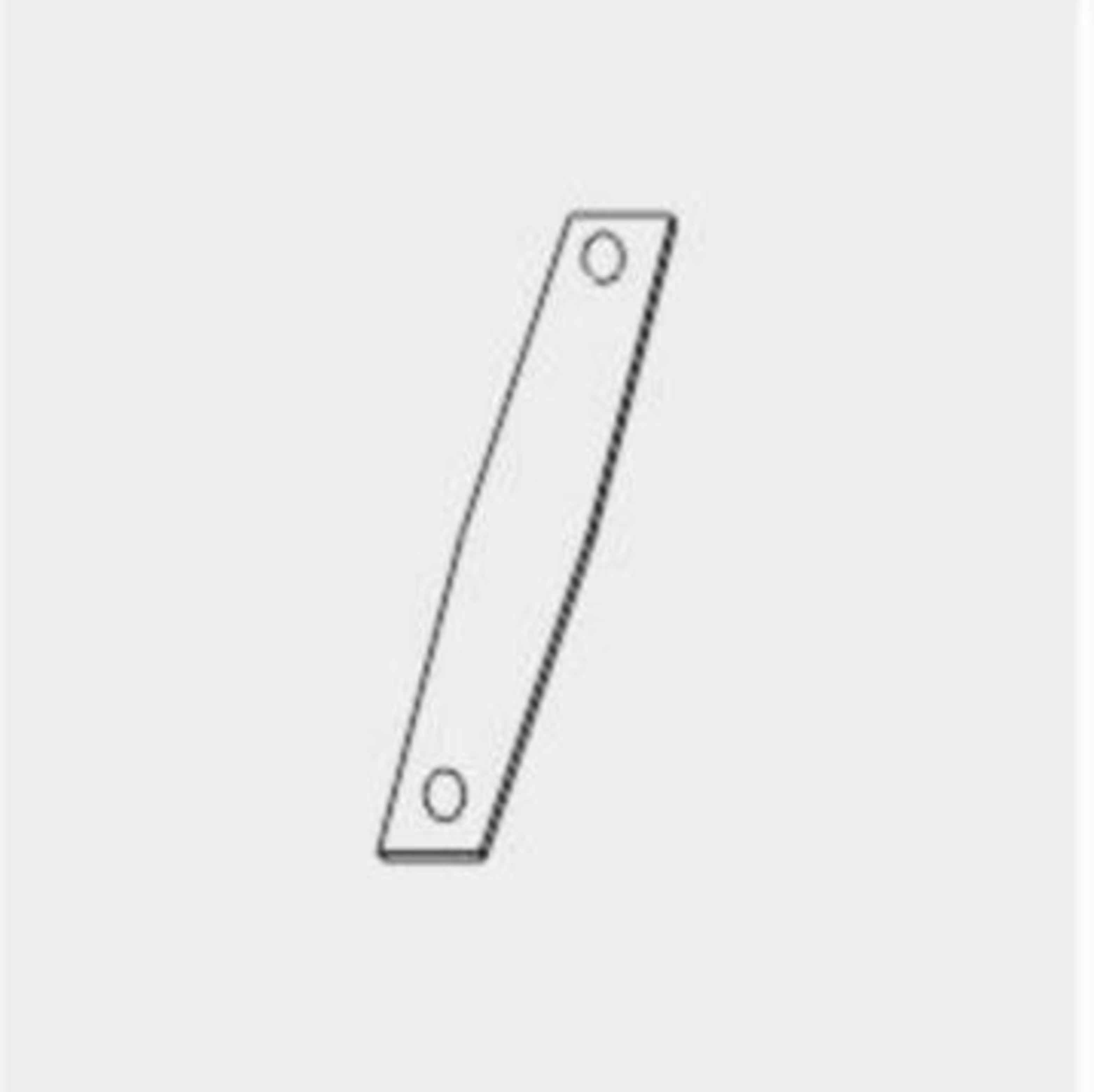

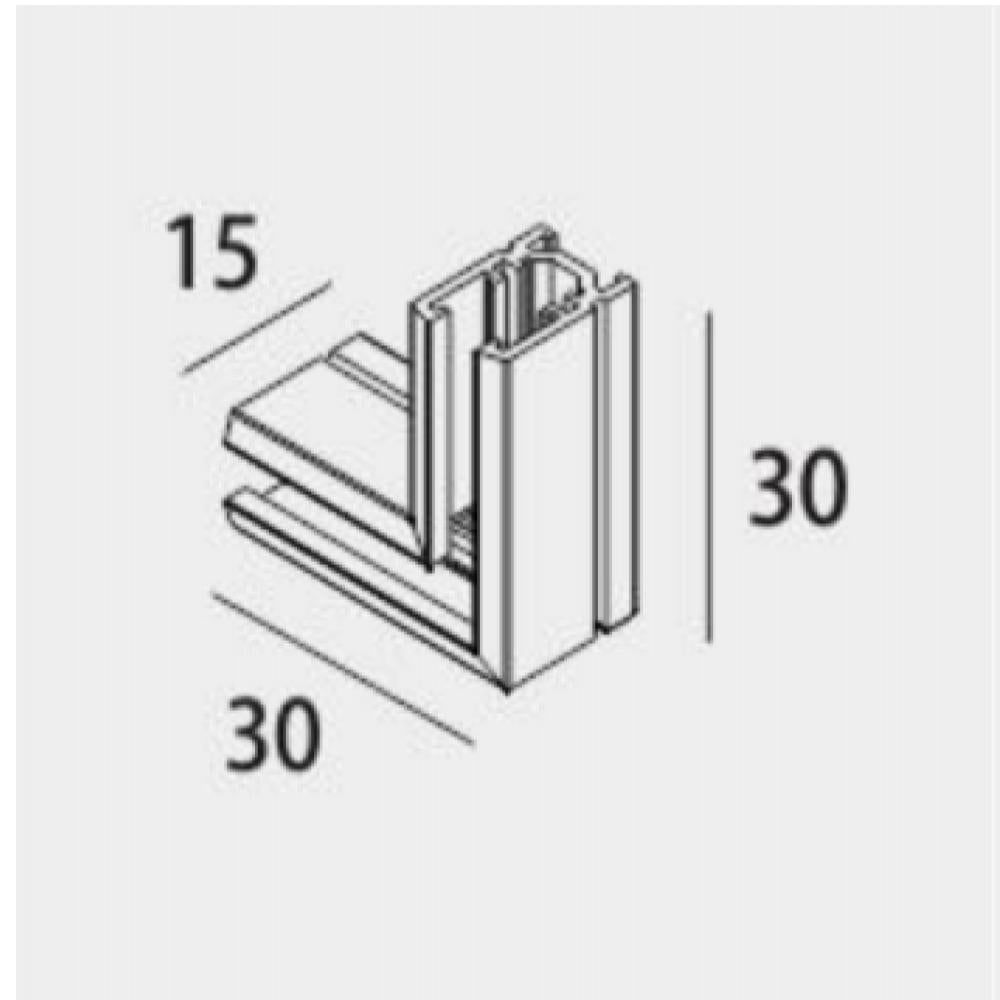

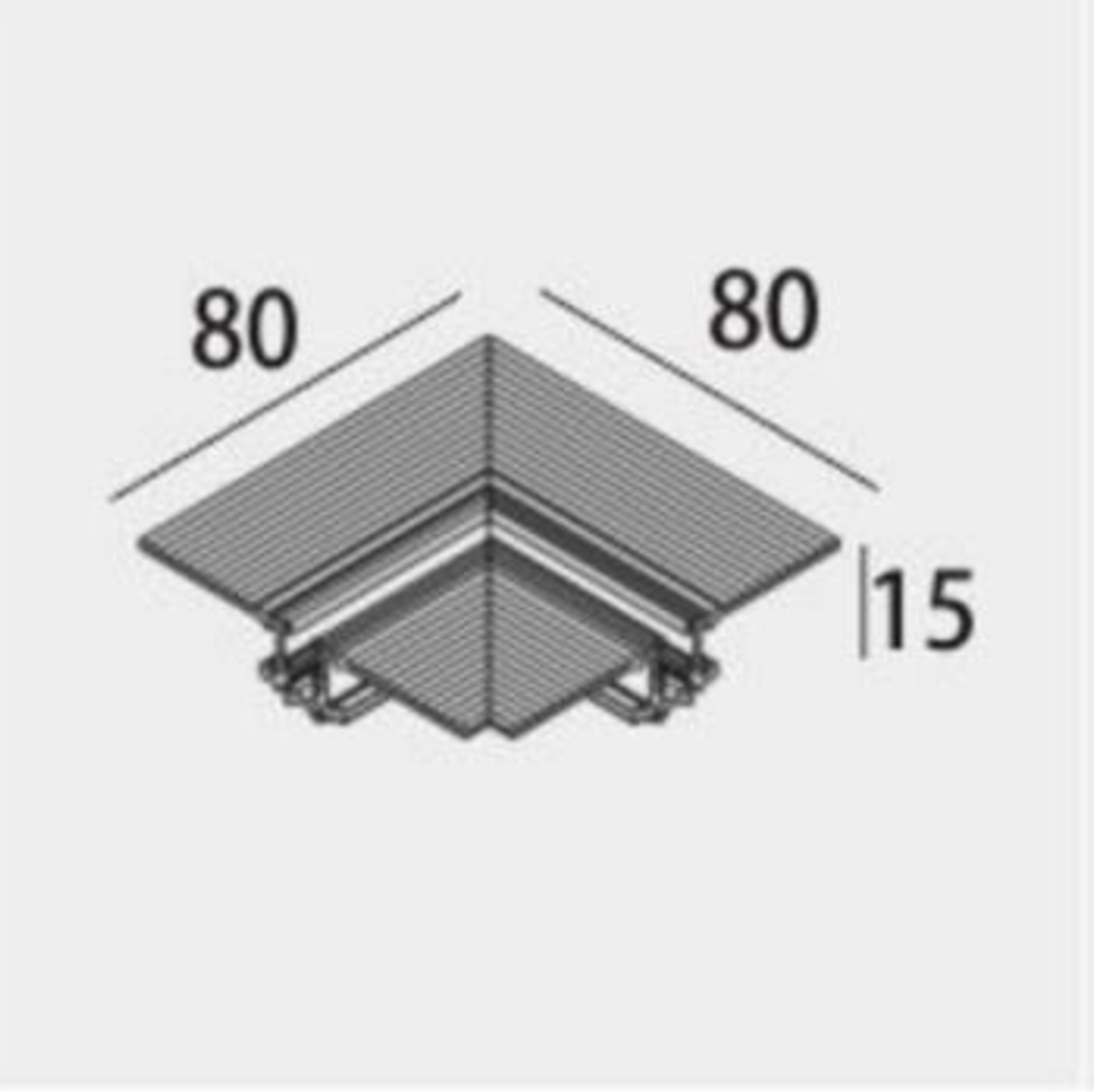

Straight, L, T & X joiners

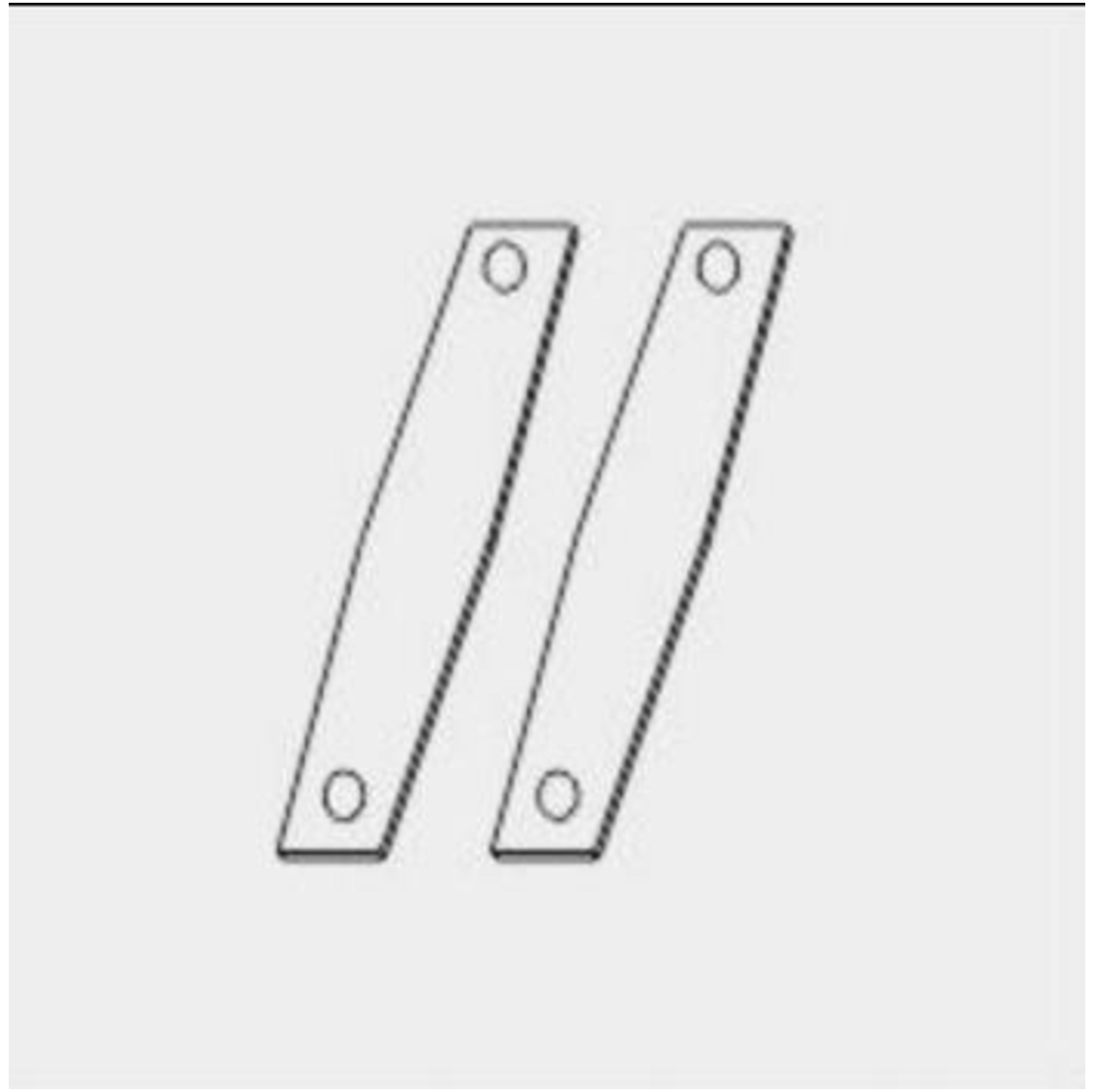

Flexible joiners for curves

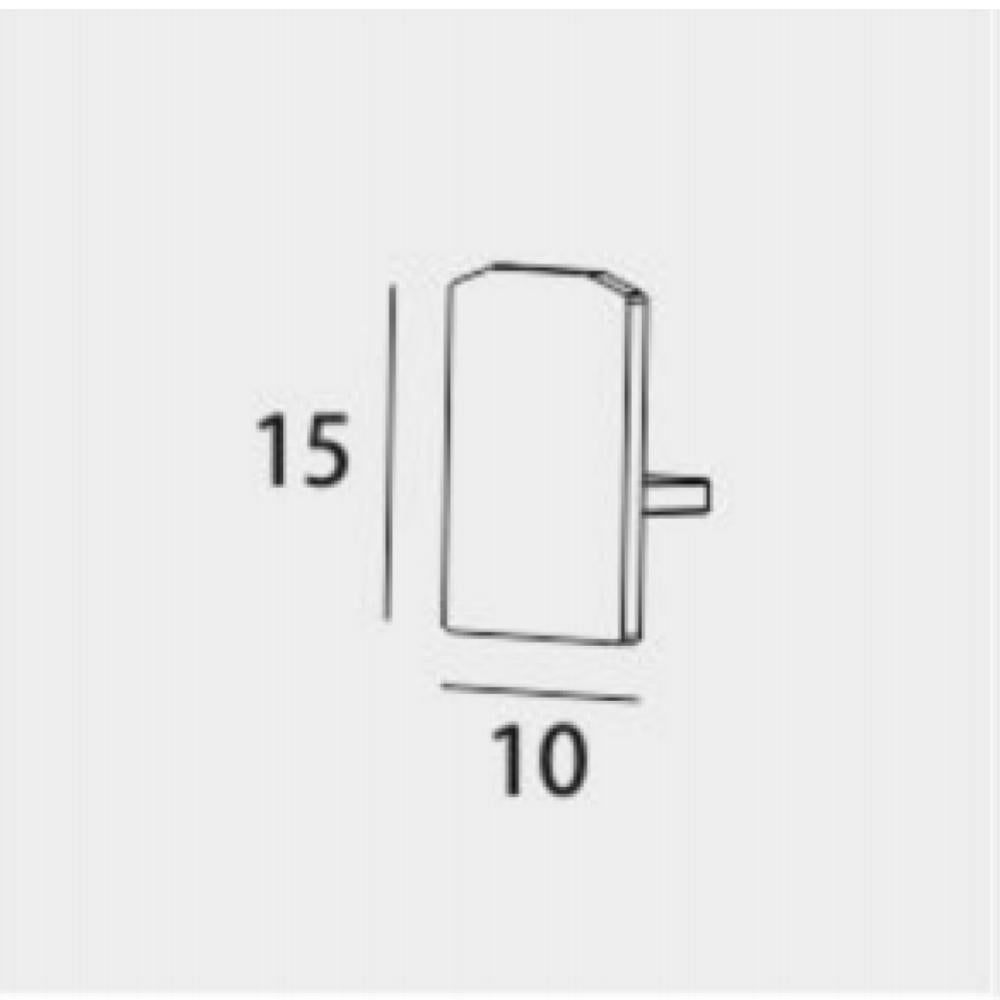

End caps & mounting plates
Suspension kits for pendant installation

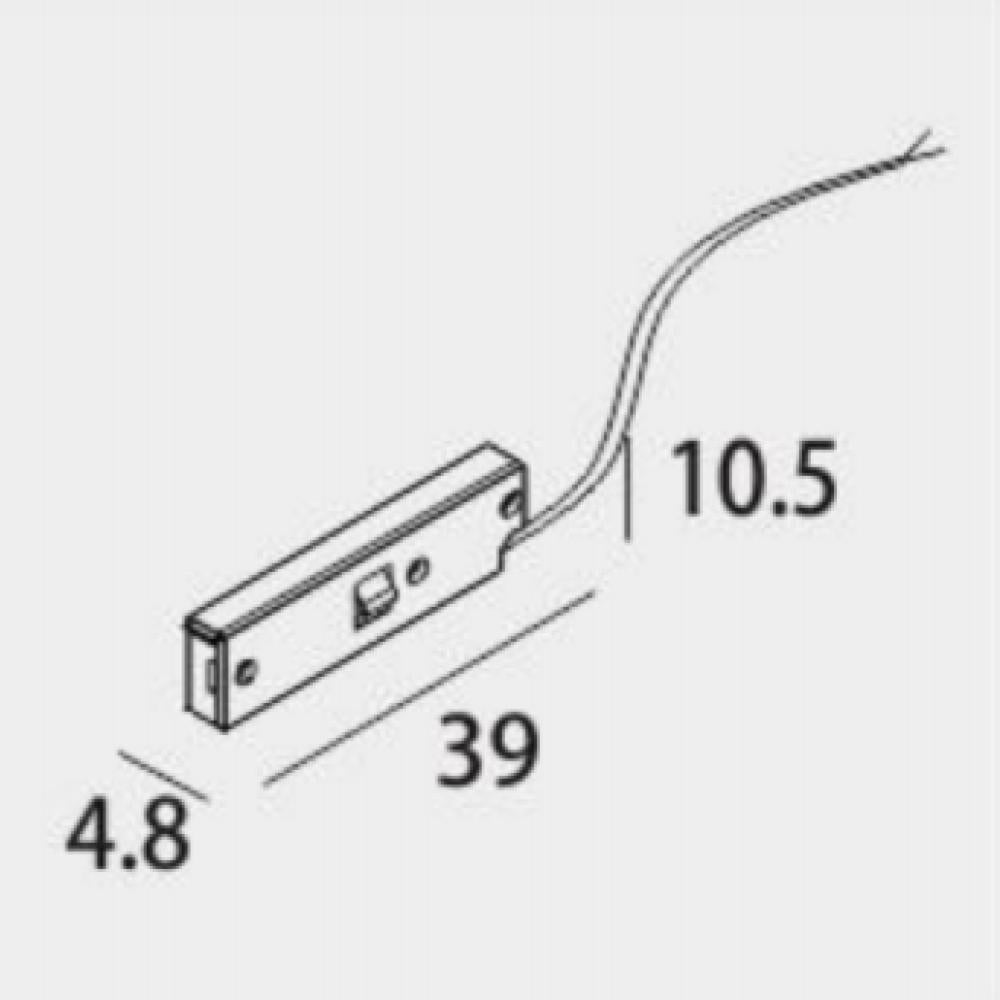

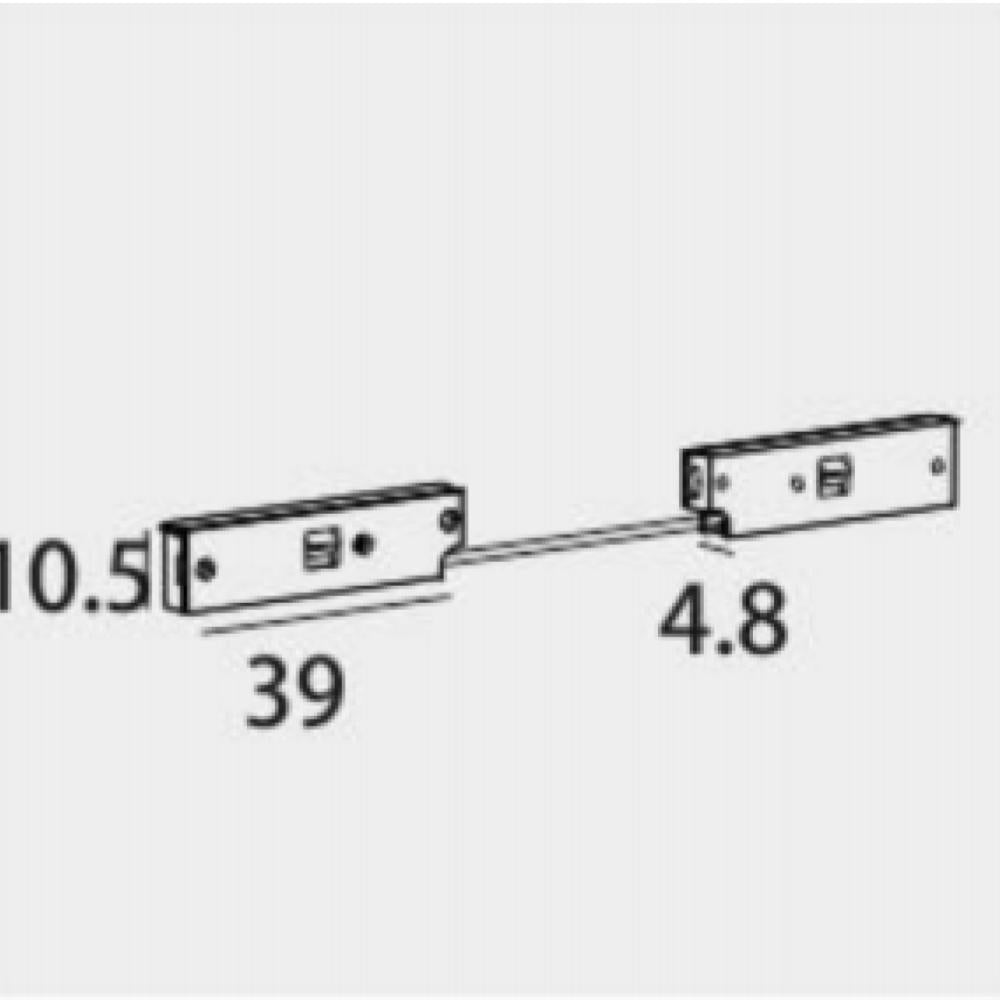

Power feeds & connectors

Every part is available as a variant so you can build a complete BOQ for your project.

Need Help Designing Your Track Layout?

Our lighting specialists can help you:

Design a custom magnetic track lighting layout for your space
Select the right tracks, modules and drivers
Prepare a detailed BOQ (Bill of Quantities)
Share a complete, project-ready quotation

Talk to us now:

📞 Call: +91 98991 88821

💬 Chat on WhatsApp: +91 98991 88821

How to Order This Magnetic Track Light System

Select track type and length (surface, POP recessed or gypsum recessed).
Add the required light modules – linear, spots, diffusers, curves.
Add drivers / in-line power supplies as per total wattage.
Include joiners, end caps and accessories for corners and joints.
Place your order, or contact us for BOQ verification and design assistance.

Technical Sheet – 5mm Microline 24V Magnetic Track System

Below are the key technical specifications of the 5mm Microline ultra-slim 24V magnetic track lighting system, including track profiles, light modules and drivers.

System Overview

System Type	5mm ultra-slim magnetic track lighting system
Operating Voltage	24V DC (not 48V)
Installation Types	Surface / Pendant, POP Recessed, Gypsum Recessed
Typical Applications	Residential, retail, showrooms, galleries, offices, cafes, hospitality interiors
Finish Options	Black / White

Track Profiles

Track Type	Dimensions (W × H)	Standard Lengths	Mounting	Material
Surface / Pendant Track	5mm ×	1m / 2m	Surface mount / suspended with kit	Extruded aluminum
POP Recessed Track	5mm (visible slot) ×	1m / 2m	Recessed in POP ceiling (requires full POP work)	Extruded aluminum
Gypsum Recessed Track	5mm (visible slot) ×	1m / 2m	Recessed in gypsum with minor finishing	Extruded aluminum

MICROLINE MAGNETIC LIGHTS (INPUT 24V DC)

All light modules below are designed to operate on 24V DC only.

Sr. No.	Model / Power & Size	CCT	Description

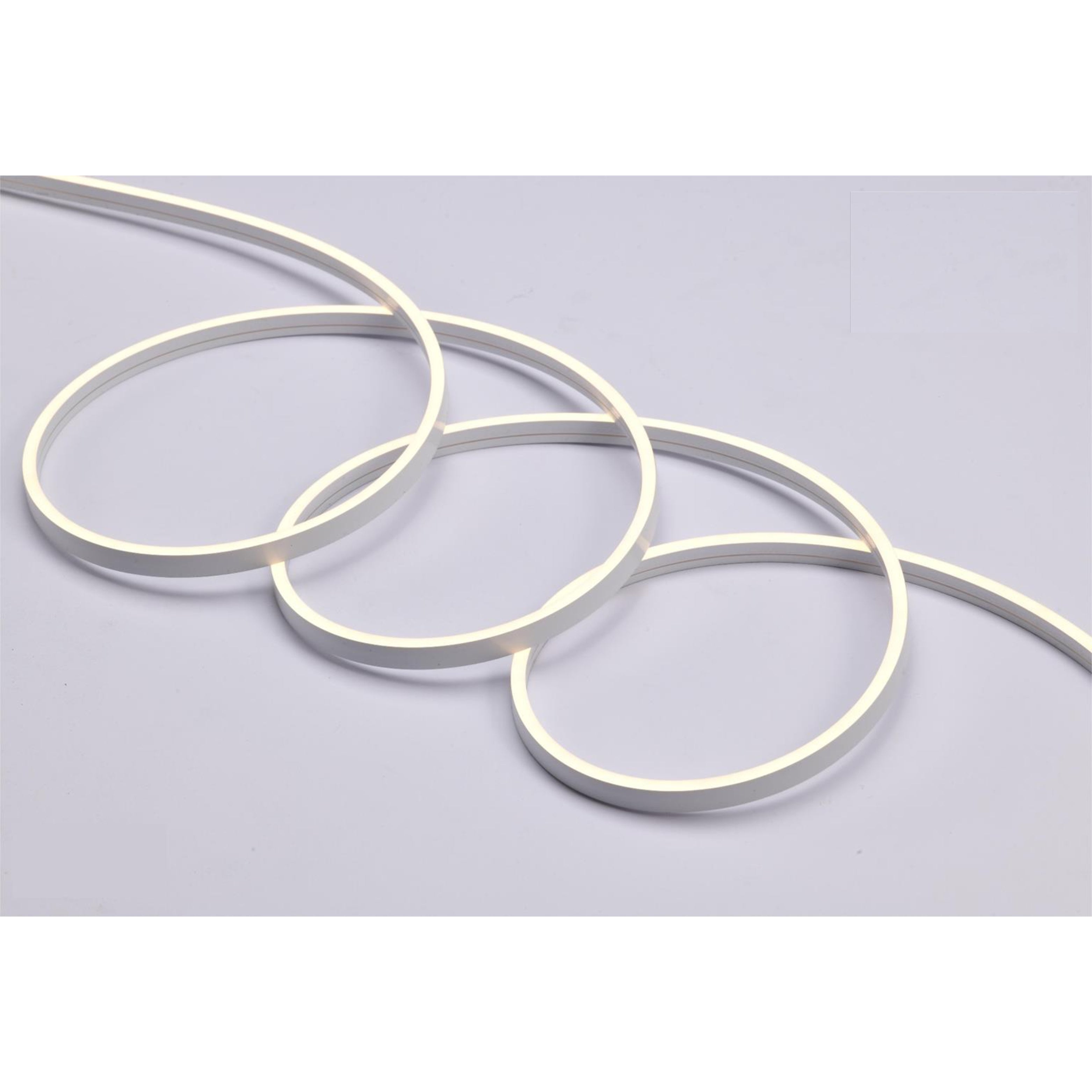

25	ML-A-8W Length: 1000 mm	3K / 4K	Silicon flex light (use clip to fix and install the product – product delicate)
26	ML-B-5W 60 mm × 35 mm	3K / 4K	Track spot – 180° tiltable, rotateable
27	ML-B-9W 65 mm × 40 mm	3K / 4K	Track spot – 180° tiltable, rotateable
28	ML-C-5W 45 mm × 60 mm	3K / 4K	Surface spot – fixed spot

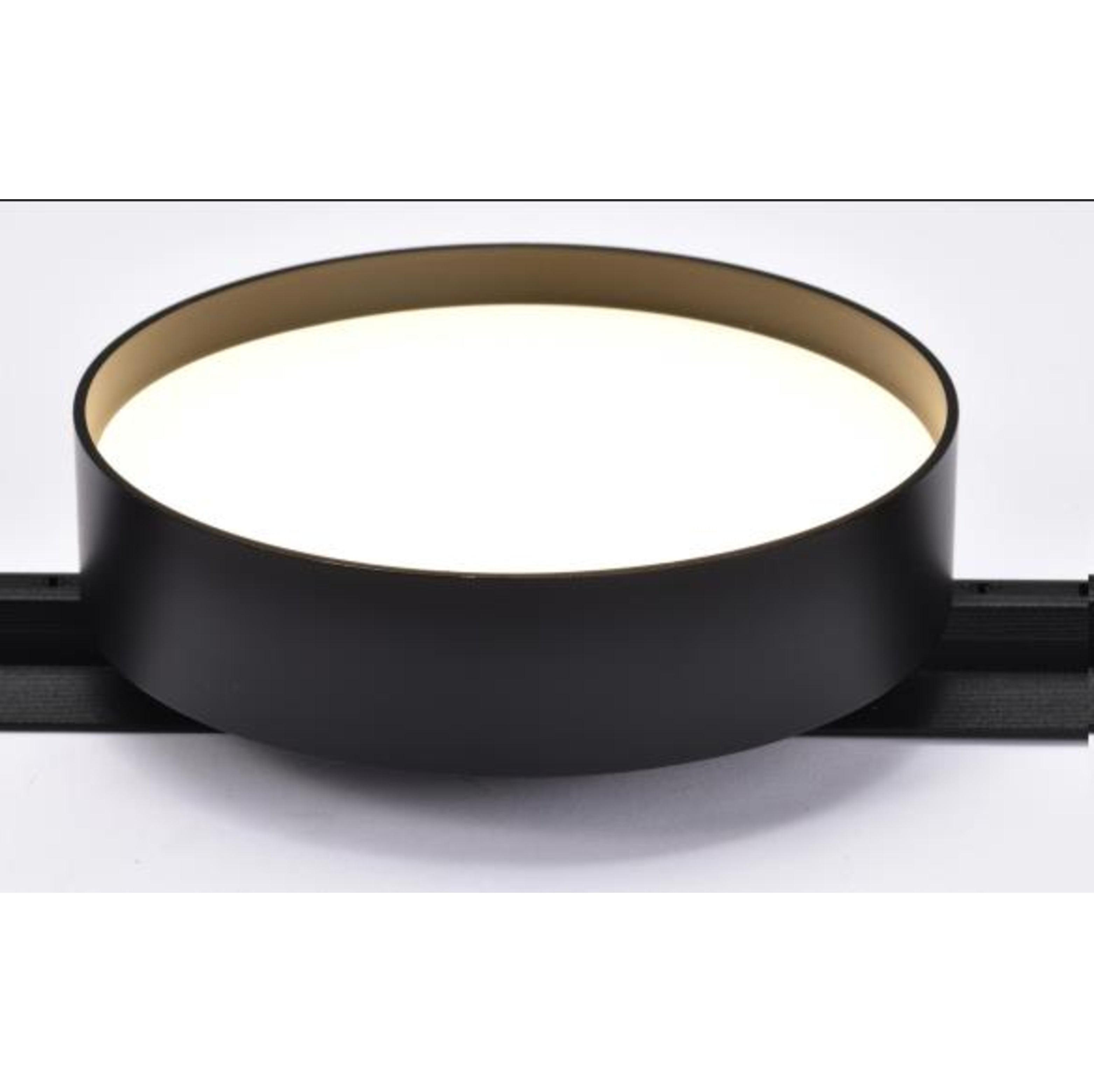

29	ML-D-12W Dia: 115 mm	3K / 4K	Downlight – beam 120°
30	ML-D-18W Dia: 140 mm	3K / 4K	Downlight – beam 120°

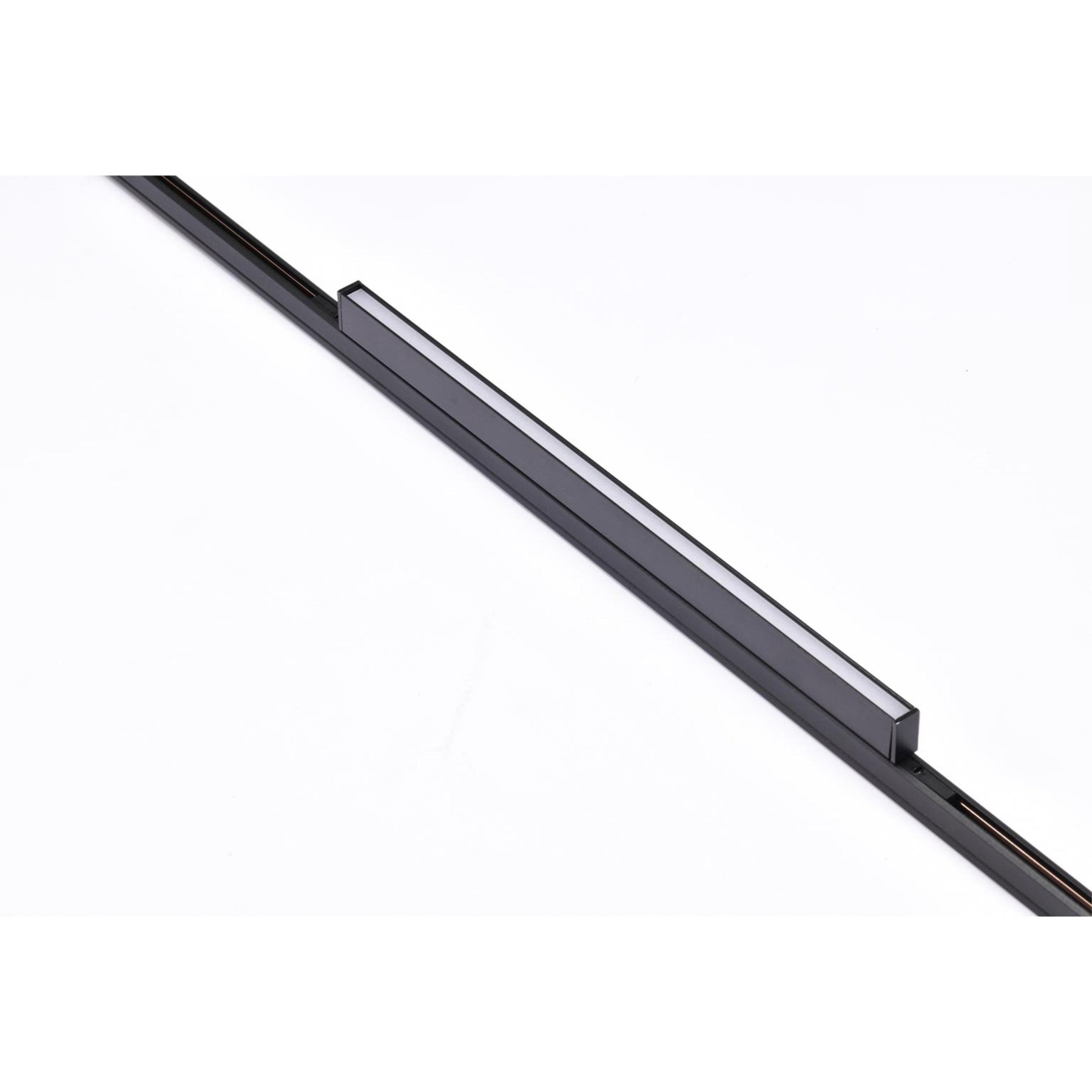

31	ML-E-8W Length: 300 mm	3K / 4K	Linear diffused – beam 120°
32	ML-E-16W Length: 600 mm	3K / 4K	Linear diffused – beam 120°
33	ML-E-21W Length: 900 mm	3K / 4K	Linear diffused – beam 120°

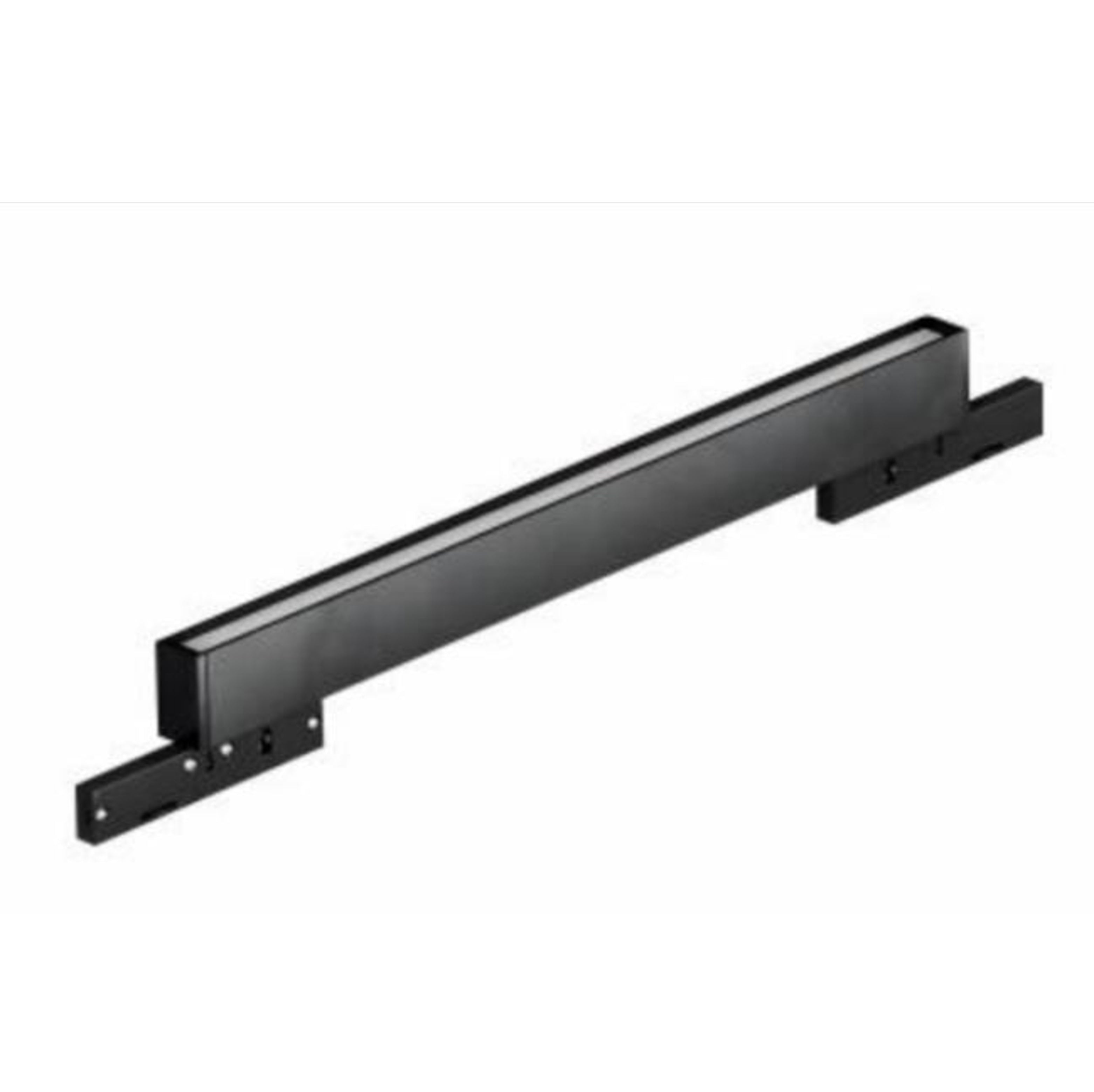

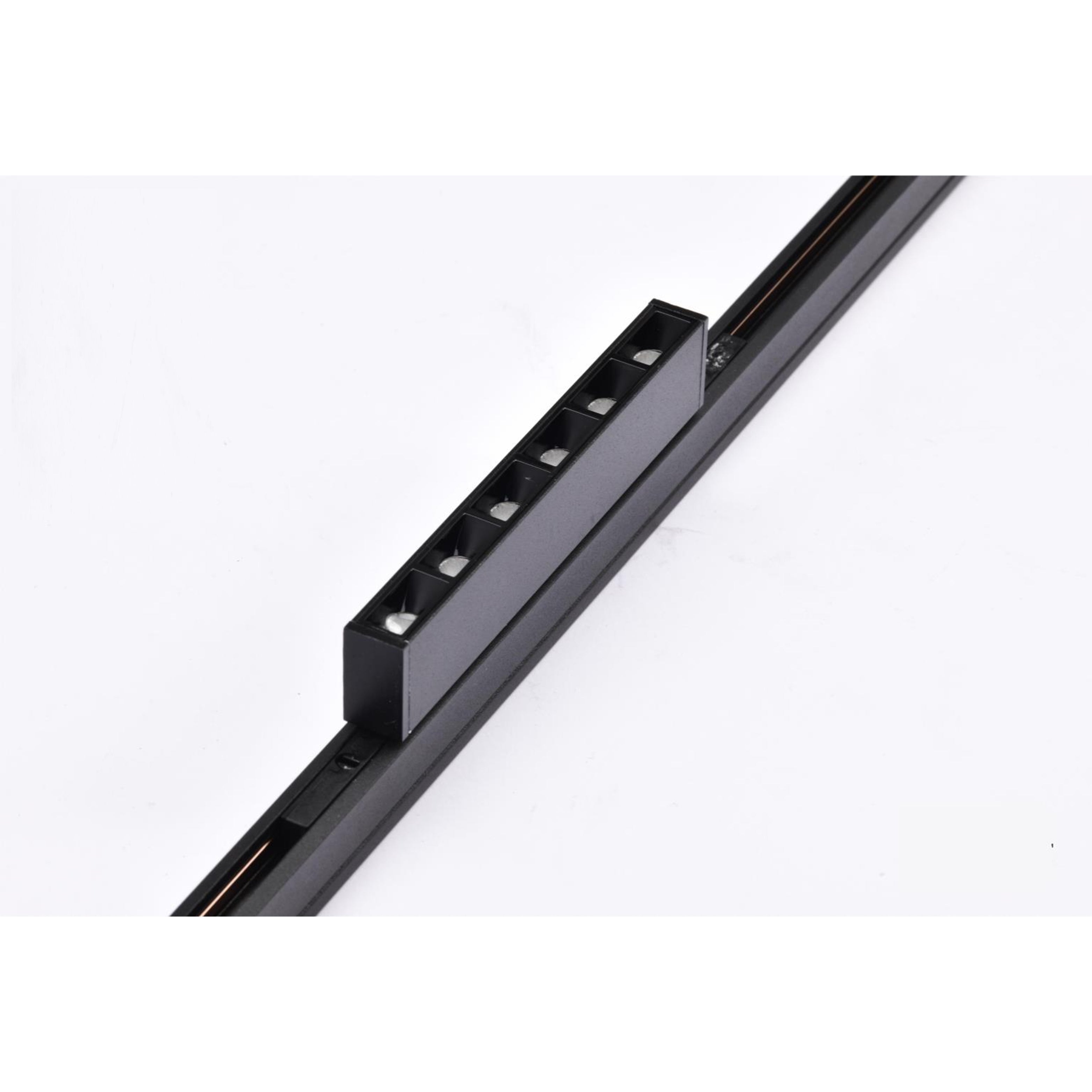

34	ML-F-6W Length: 100 mm	3K / 4K	Fixed linear spot
35	ML-F-10W Length: 200 mm	3K / 4K	Fixed linear spot
36	ML-F-15W Length: 290 mm	3K / 4K	Fixed linear spot

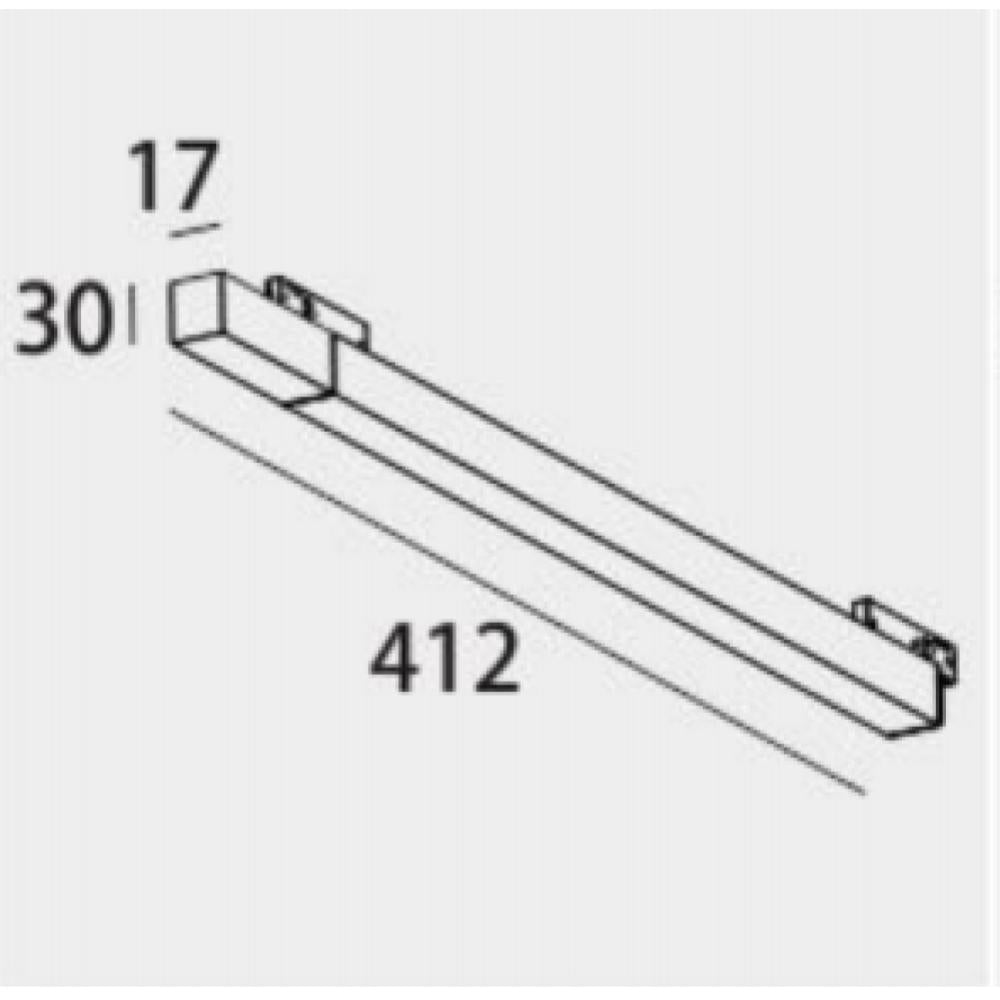

37	ML-F-20W Length: 390 mm	3K / 4K	Fixed linear spot

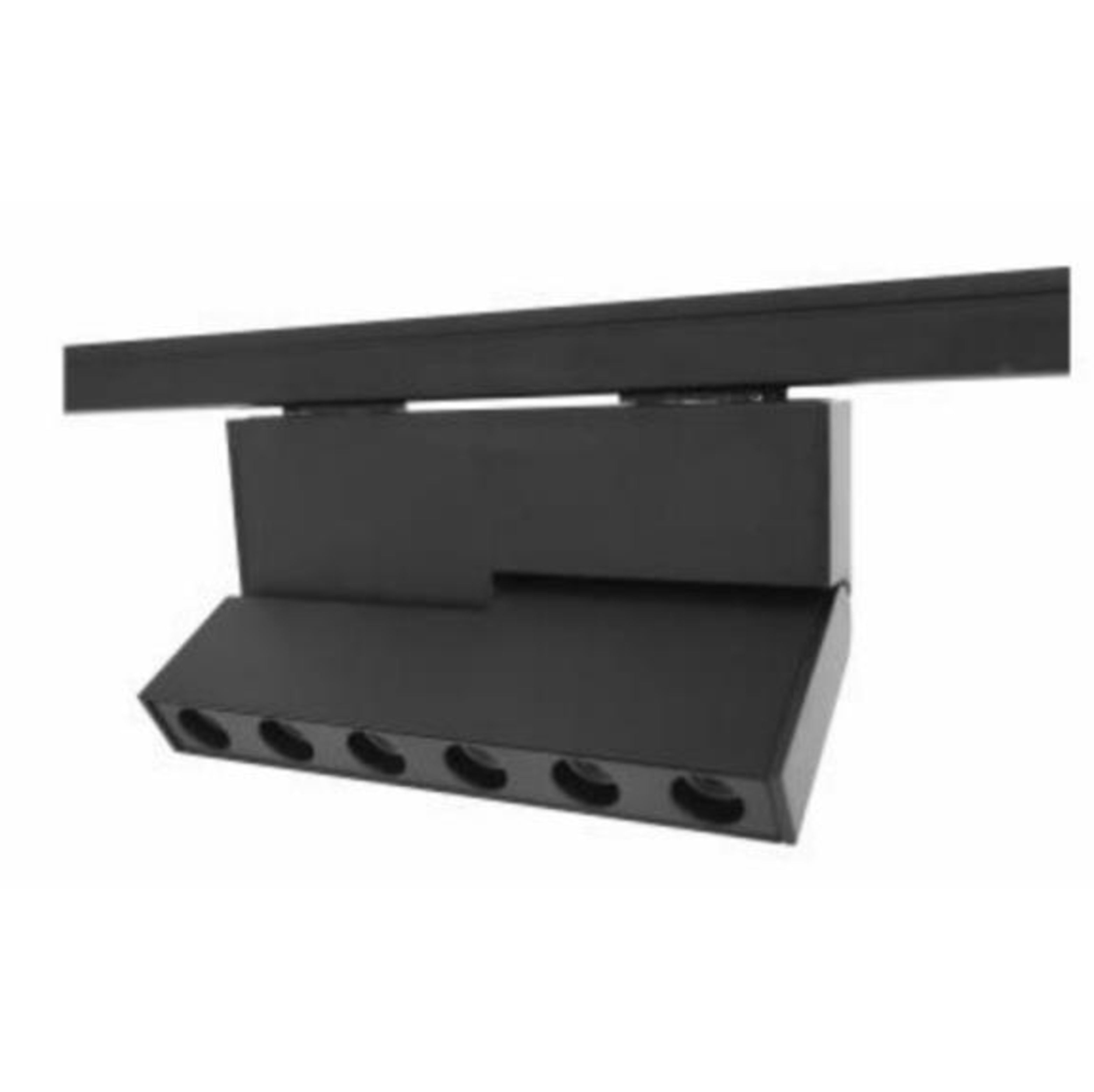

38	ML-G-6W Length: 120 mm	3K / 4K	Tiltable linear spot
39	ML-G-12W Length: 230 mm	3K / 4K	Tiltable linear spot
40	ML-H-5W Length: 300 mm	3K / 4K	Concealed linear diffused
41	ML-I-3W 200 mm × 35 mm	3K	Hanging light – black body

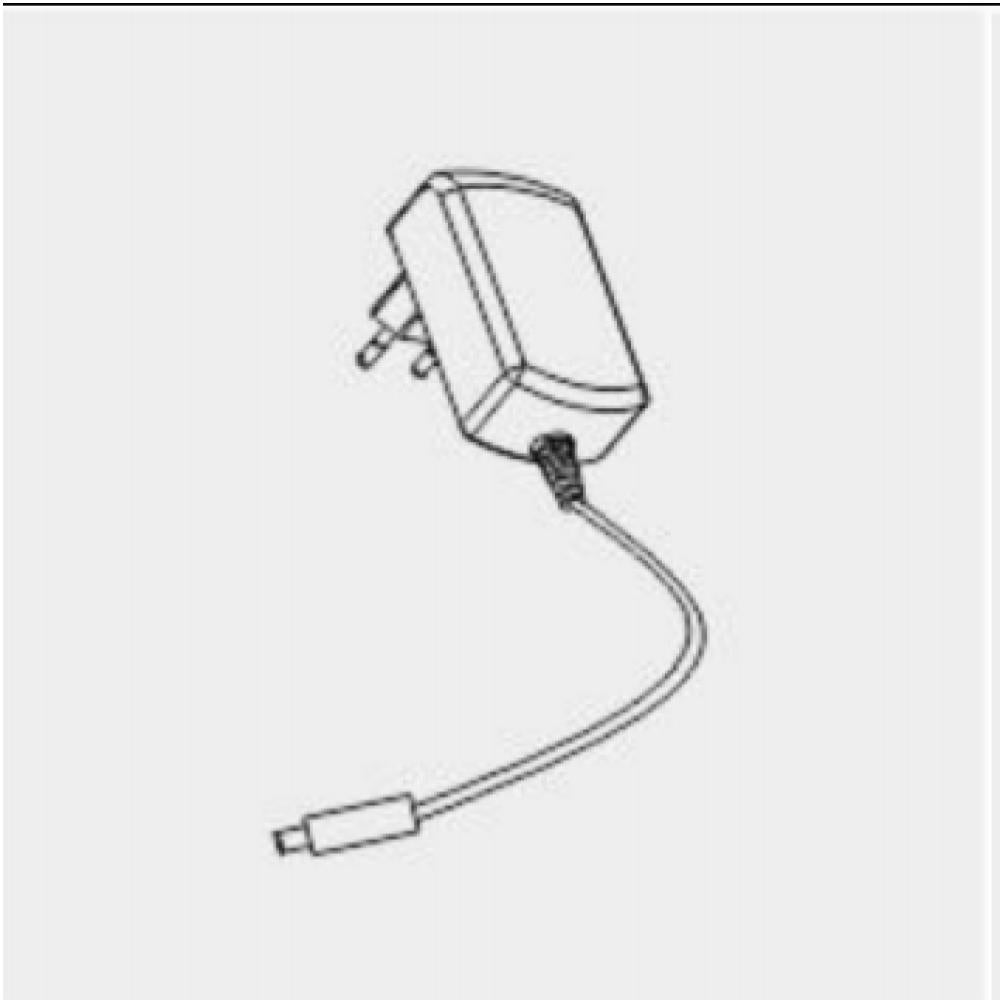

Drivers & Power Supplies (In-Line & Remote)

Driver Type	Input Voltage	Output Voltage	Power Options	Mounting
In-Line Track Driver	AC 220–240V	24V DC		Mounted directly on track as a magnetic module

Important Voltage Note:

The 5mm Microline magnetic track system is designed to work strictly on 24V DC. It is not compatible with 48V magnetic track lights or drivers. Using 48V components can damage the system and will void warranty.

FAQ – 5mm Microline Magnetic Track Lights

Is the 5mm Microline suitable for homes and residential use?

Yes. The slim profile and flexible layouts make it ideal for living rooms, bedrooms, kitchens, corridors and wardrobes, as well as commercial spaces like boutiques, salons and offices.

Can I mix different types of lights on the same track?

Absolutely. You can combine linear lights, spotlights, diffusers and curved modules on the same magnetic track lighting system, and reposition them any time.

Do I need a false ceiling to use this system?

For the POP recessed or gypsum recessed tracks, a false ceiling is required. For existing ceilings without a false ceiling, choose the surface or pendant track option.

Will you help me calculate the drivers and BOQ?

Yes. Share your drawings or basic dimensions via WhatsApp or call, and our team will design the layout, calculate wattage, suggest drivers and send a complete BOQ and quotation.

📘 Download Full Catalogue And Price List (PDF)

Product Description	Details
Product family	JS-LM
