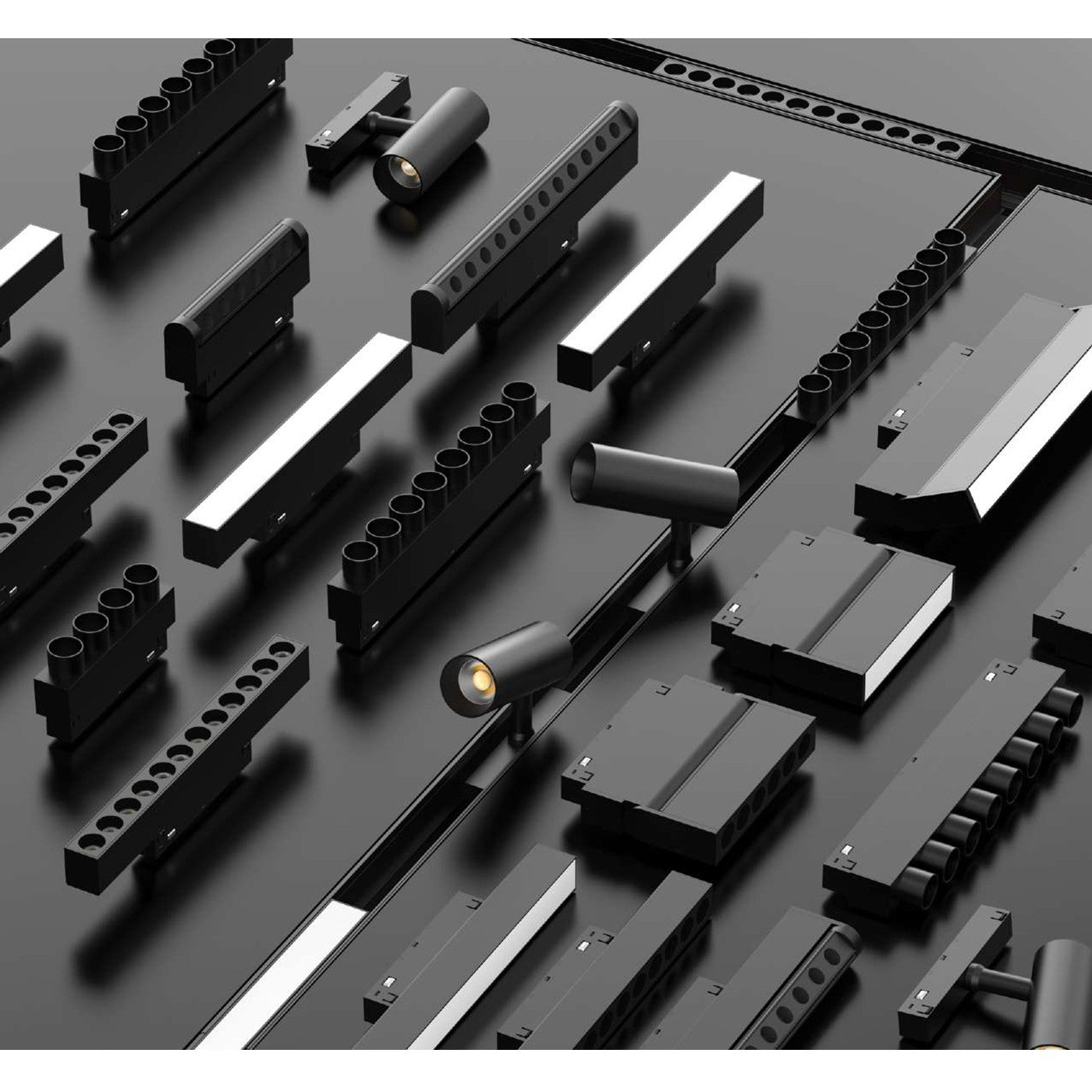

20mm Magic – 20mm Magnetic Track Light Series

The 20mm Magic Magnetic Track Series is a premium,  48V system designed for modern homes, offices, galleries and retail spaces. Enjoy 5-year warranty, high-lumen, flicker-free LEDs, and a complete ecosystem of spotlights, linear modules, wall washers and hanging lights – all running on one seamless magnetic track.

20mm Slim Track 48V Magnetic System High CRI LEDs 5 Year Warranty

Why choose the 20mm Magic Magnetic Track?

  • Very high build quality aluminium profiles and precision-engineered light modules.
  • Magnetic click-in installation – move, add or rotate fixtures instantly without tools.
  • Future-ready control options – from simple single-colour to full app-based tunable white.
  • Long life LEDs with excellent colour consistency and stable performance over time.

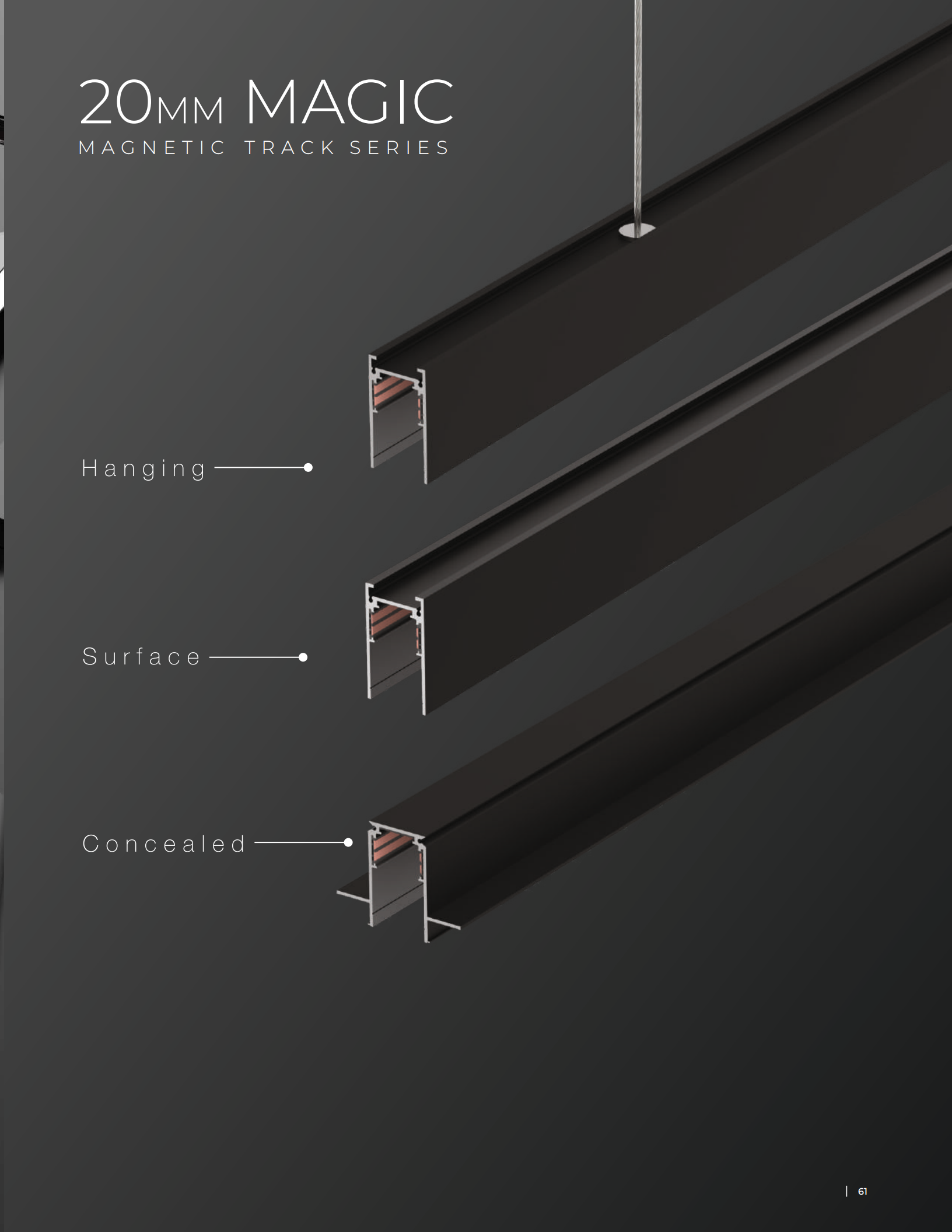

Mounting Options

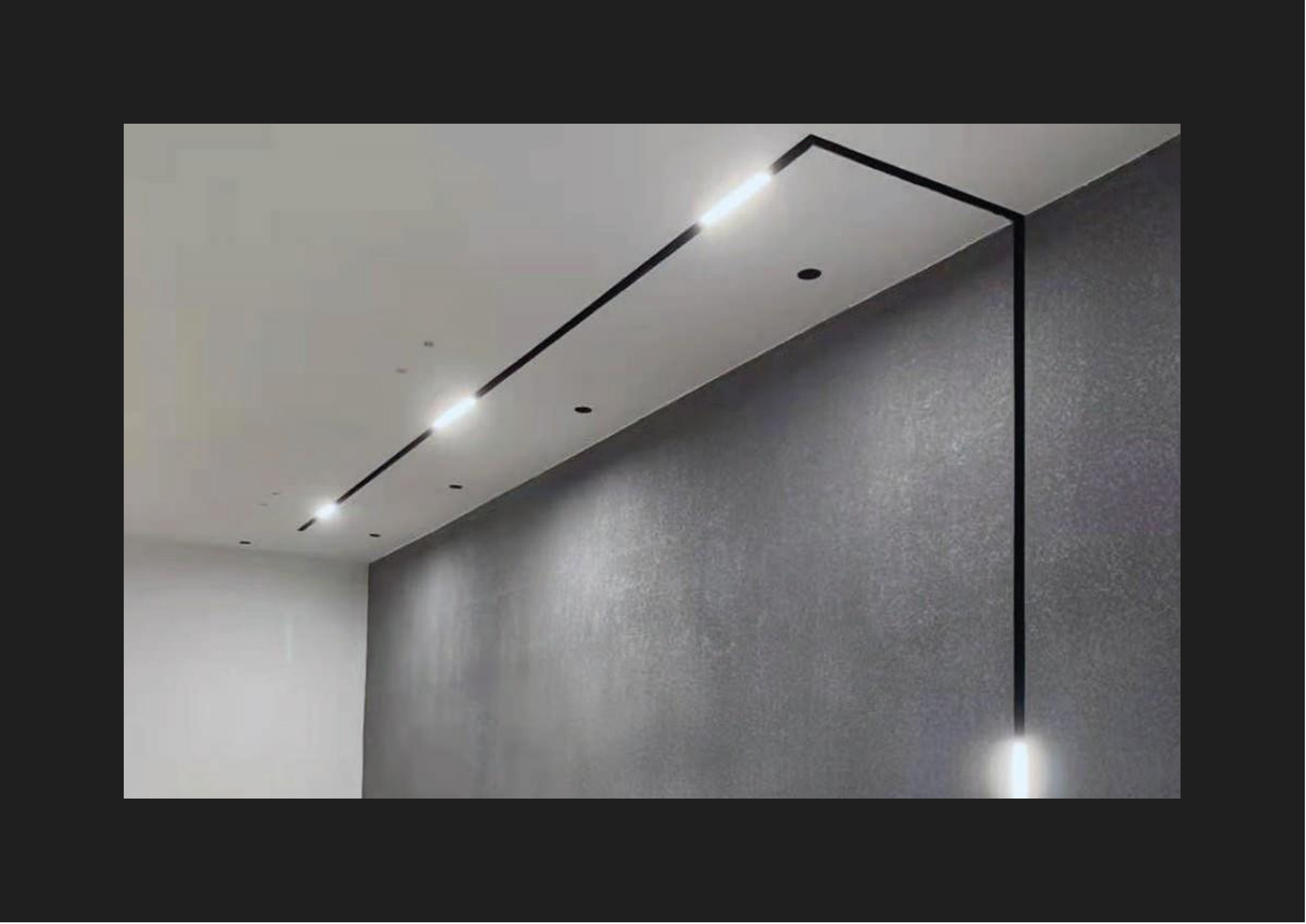

  • Recessed (Trimless/Concealed) – clean, invisible profile for luxury interiors and false ceilings.
  • Surface – ideal where false ceilings are not possible; sits neatly on the ceiling.
  • Hanging/Suspended – elegant linear runs suspended from the ceiling for double-height and open spaces.
Smart Controls & Dimming

Choose the control ecosystem that matches your project – from basic dimming to fully automated smart lighting:

  • Single Colour – fixed CCT options for simple on/off or basic dimming.
  • Wireless Tunable WhiteBLE + RF and Zigbee options for app, remote or gateway control.
  • DALI Dimmable – smooth digital dimming for professional lighting control systems.
  • DALI Tunable White – dynamic white (2700K–6500K, where used) for human-centric lighting.
  • Analog Dimmable – simple, budget-friendly dimming via standard drivers.
Light Modules & Applications

Mix and match different modules on the same track to create layered lighting:

  • Laser Blade & Movable Laser Blade – sharp, glare-controlled beams for retail shelves and feature walls.
  • Linear Diffused Downlights – soft, uniform light for general illumination and corridors.
  • Wall Washers – even vertical lighting to highlight textures, art and merchandise.
  • Track Spots – adjustable beam angles for accenting products or focal points.

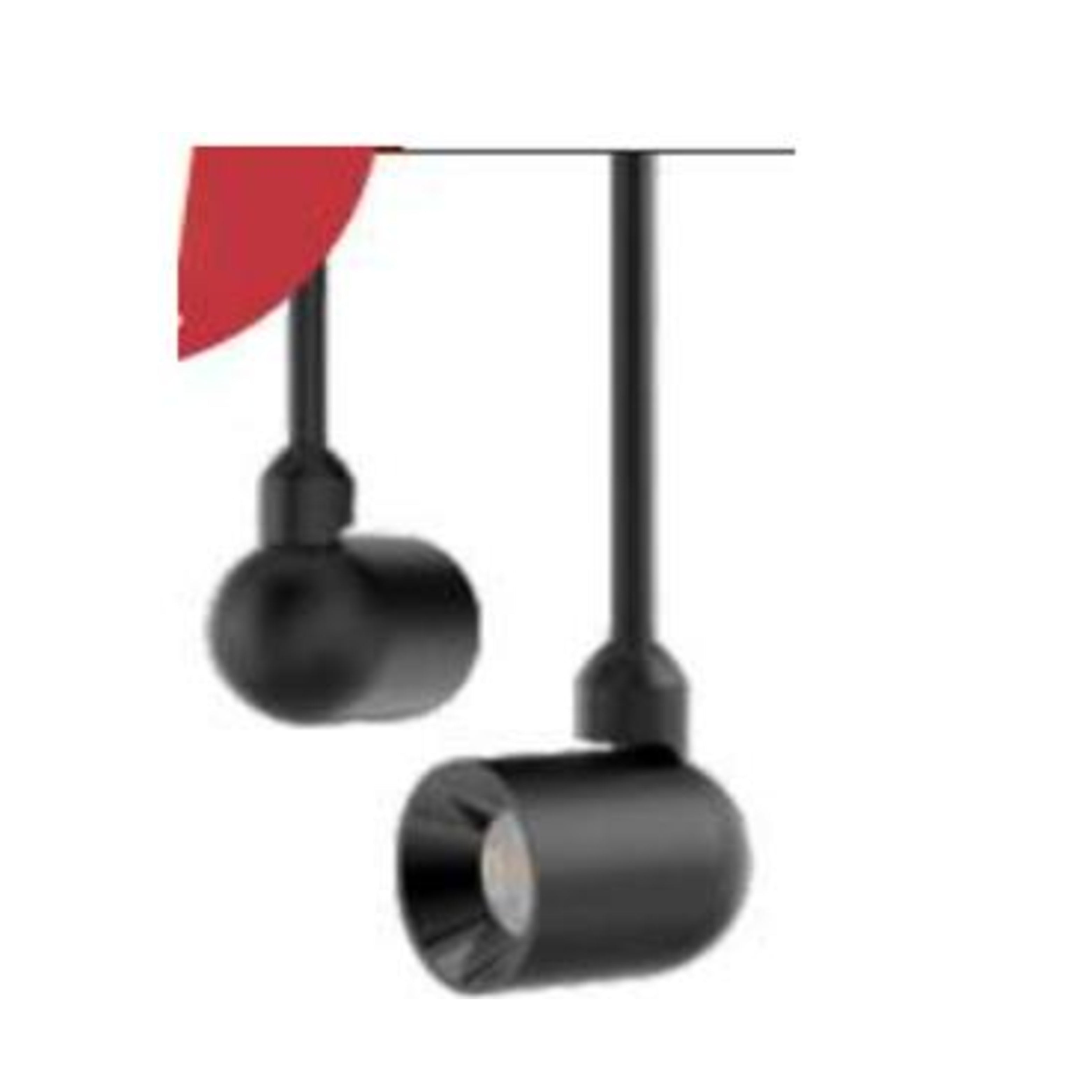

  • Hanging Pendants (Iris, Desire, Ignite, Core, Tubes) – decorative pendants that clip directly onto the track for dining tables, counters and islands.

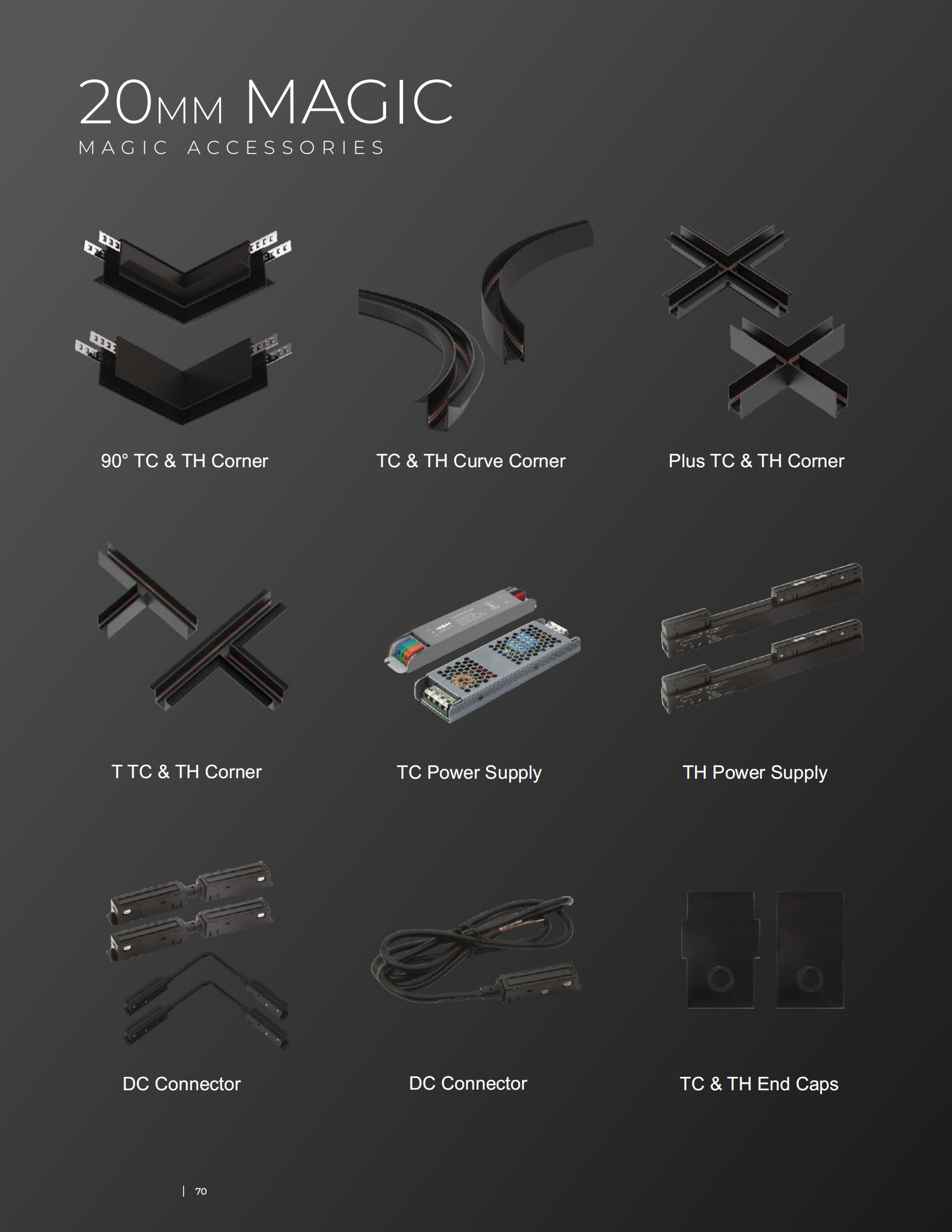

  • Accessories – corners, T & X connectors, hanging kits and power modules to build continuous lines or creative shapes.
Performance & Reliability
  • High lumen output with excellent efficacy for energy-efficient projects.
  • Flicker-free drivers for visual comfort and better performance on camera.
  • Up to 50,000 hours rated LED life (L70) for long-term reliability.
  • Surge & over-voltage protection for stable operation and reduced failures.

Not sure which combination is right for your project? Share your layout with us, and our team will suggest the ideal mix of tracks, modules and control options for your space.

📘 Download Full Catalogue And Price List (PDF)

Complete Technical Specifications – 20mm Magic Magnetic Series

Click on a category below to view detailed specifications. Open one section at a time to quickly compare different modules and accessories.

Item Dimensions / Optics Wattage LED Colour Options

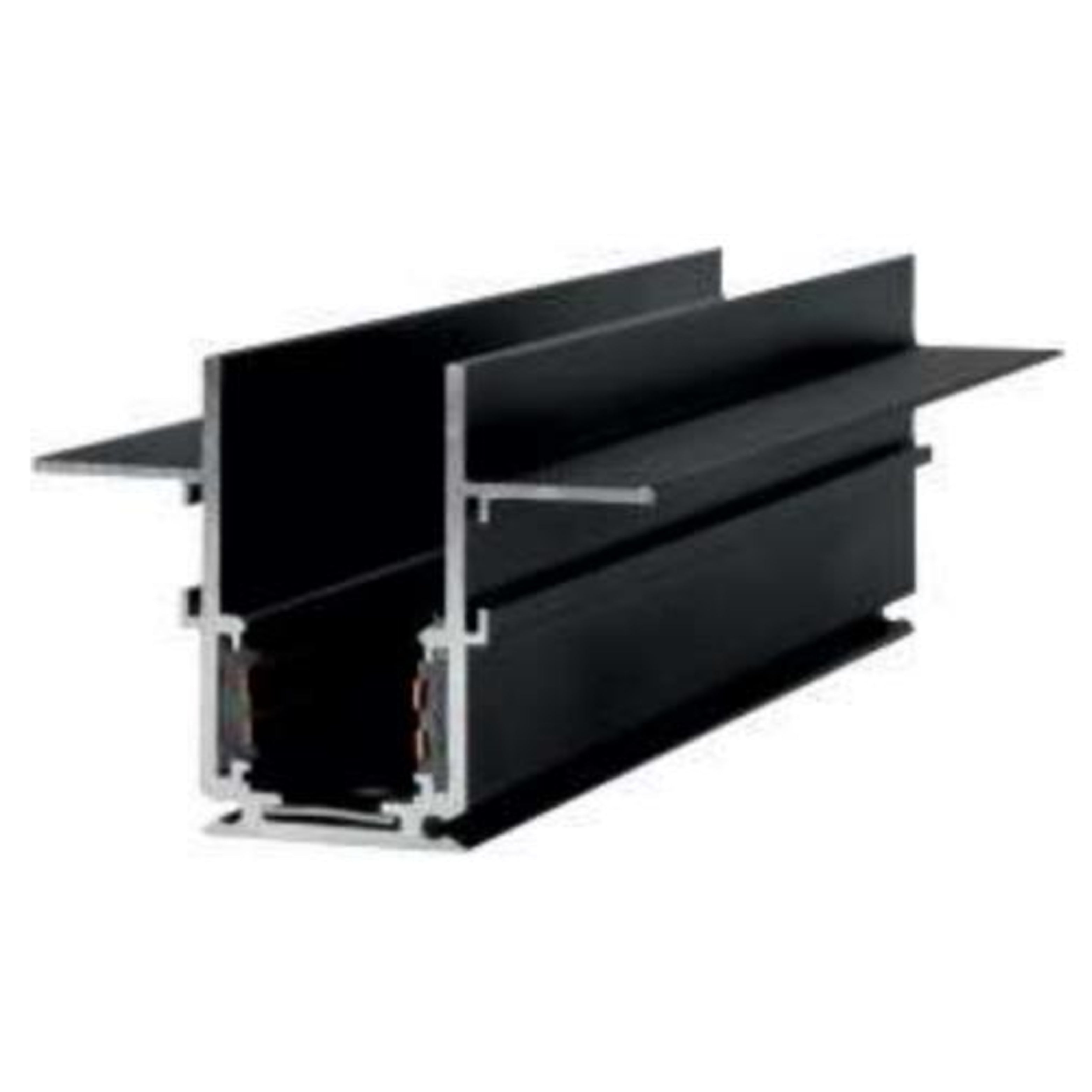

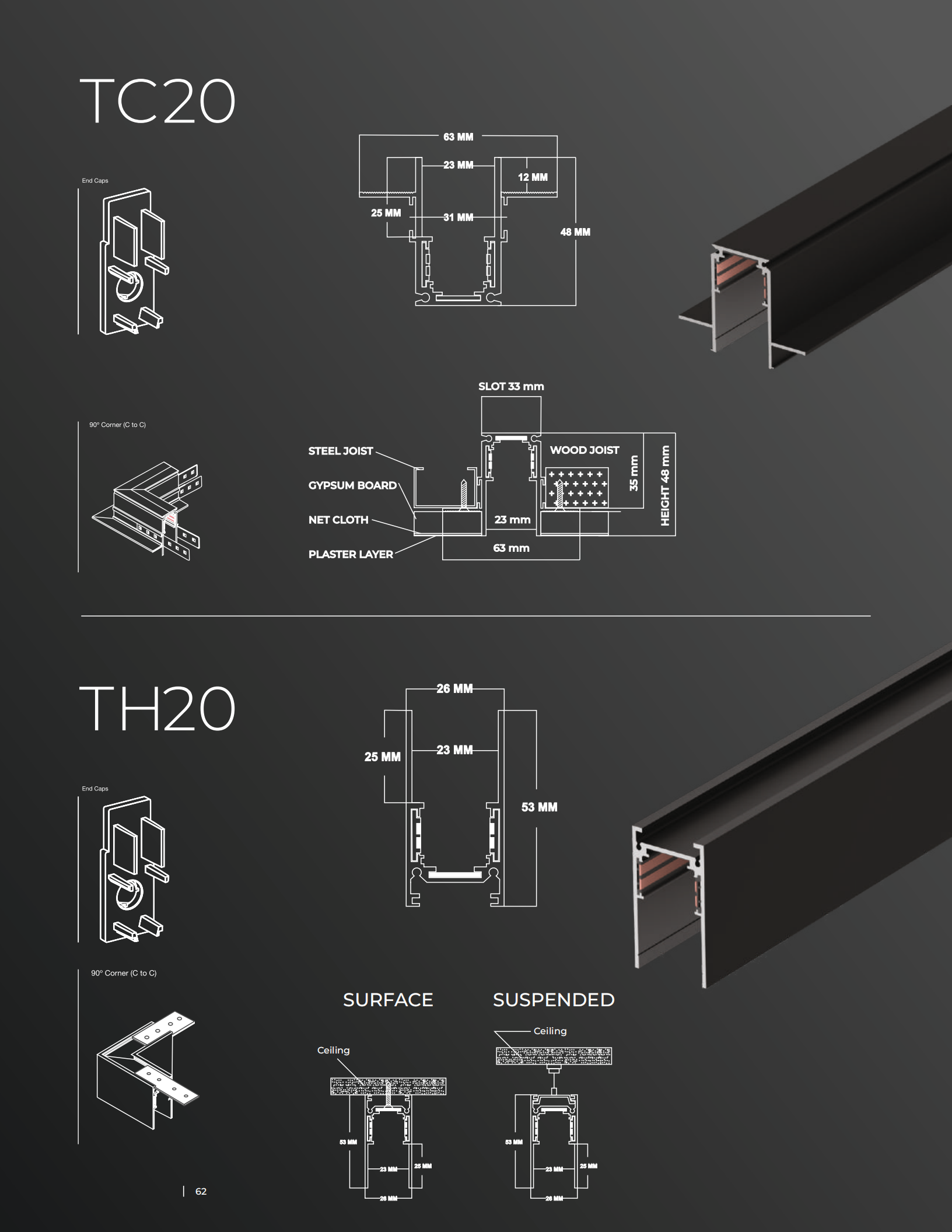

Magic-TC - 20mm Trimless Recessed Track-1M 1000 × 62.4 × 47 mm
Magic-TC - 20mm Trimless Recessed Track-2M 2000 × 62.4 × 47 mm
Magic-TC - 20mm Trimless Recessed Track-3M 3000 × 62.4 × 47 mm

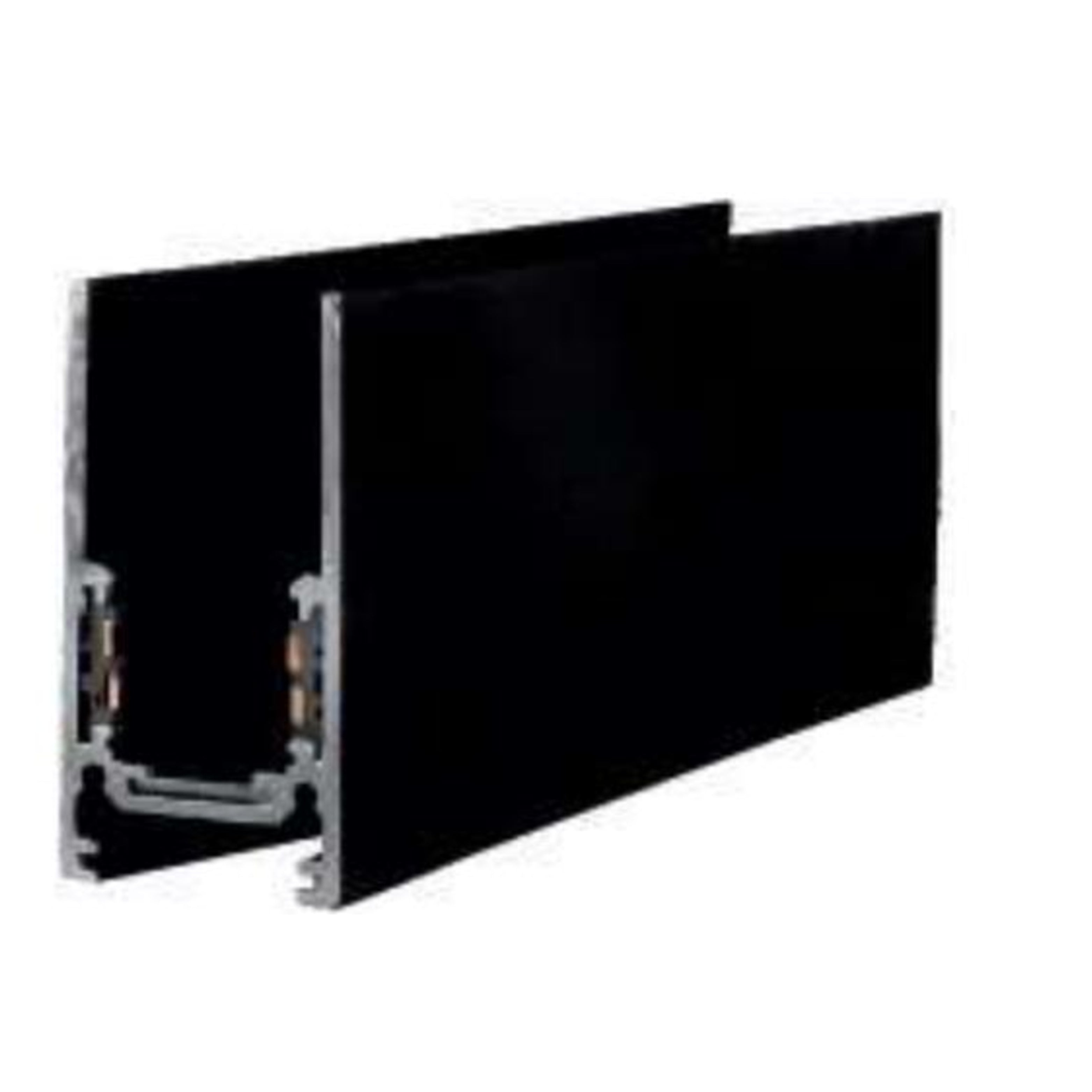

Magic-TH-20mm Surface Track-1M 1000 × 24.7 × 53.25 mm
Magic-TH-20mm Surface Track-2M 2000 × 24.7 × 53.25 mm
Magic-TH-20mm Surface Track-3M 3000 × 24.7 × 53.25 mm

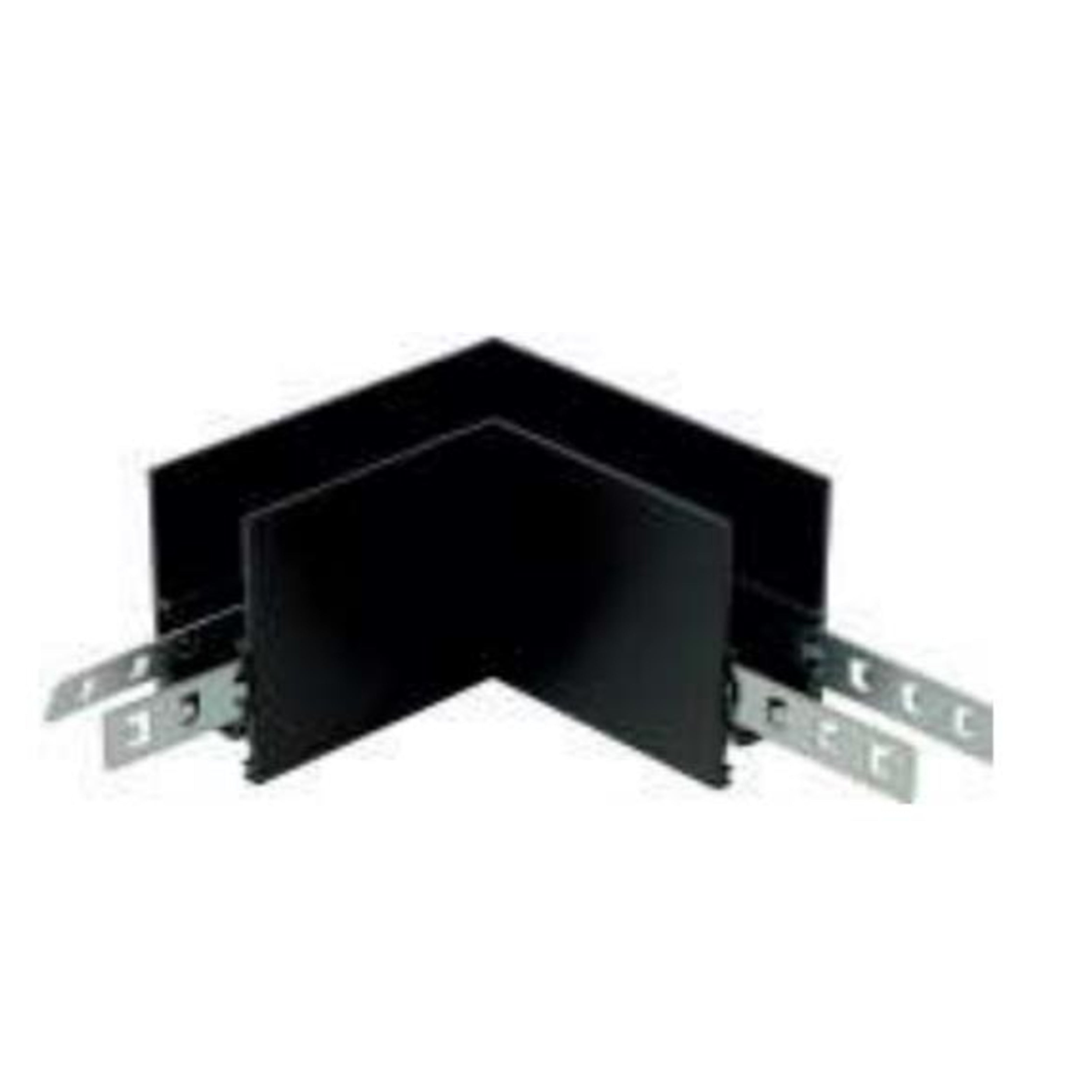

Magic-TC – Trimless Corner 101 × 101 × 47 mm
Magic-TH – Surface Corner 80 × 80 × 53.2 mm
Item Dimensions / Optics Wattage LED Colour Options

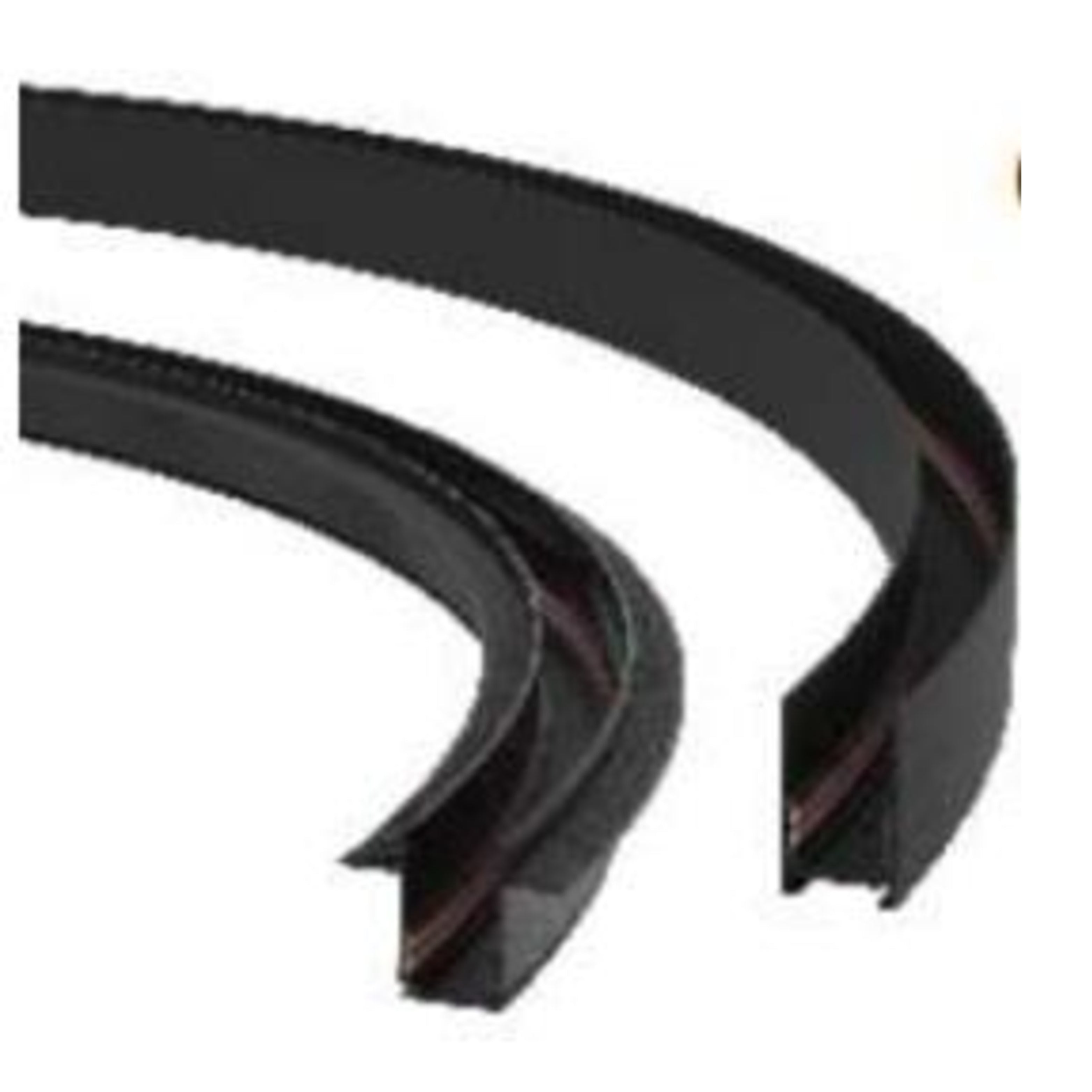

Curved corner for Surface or trimless recessed track

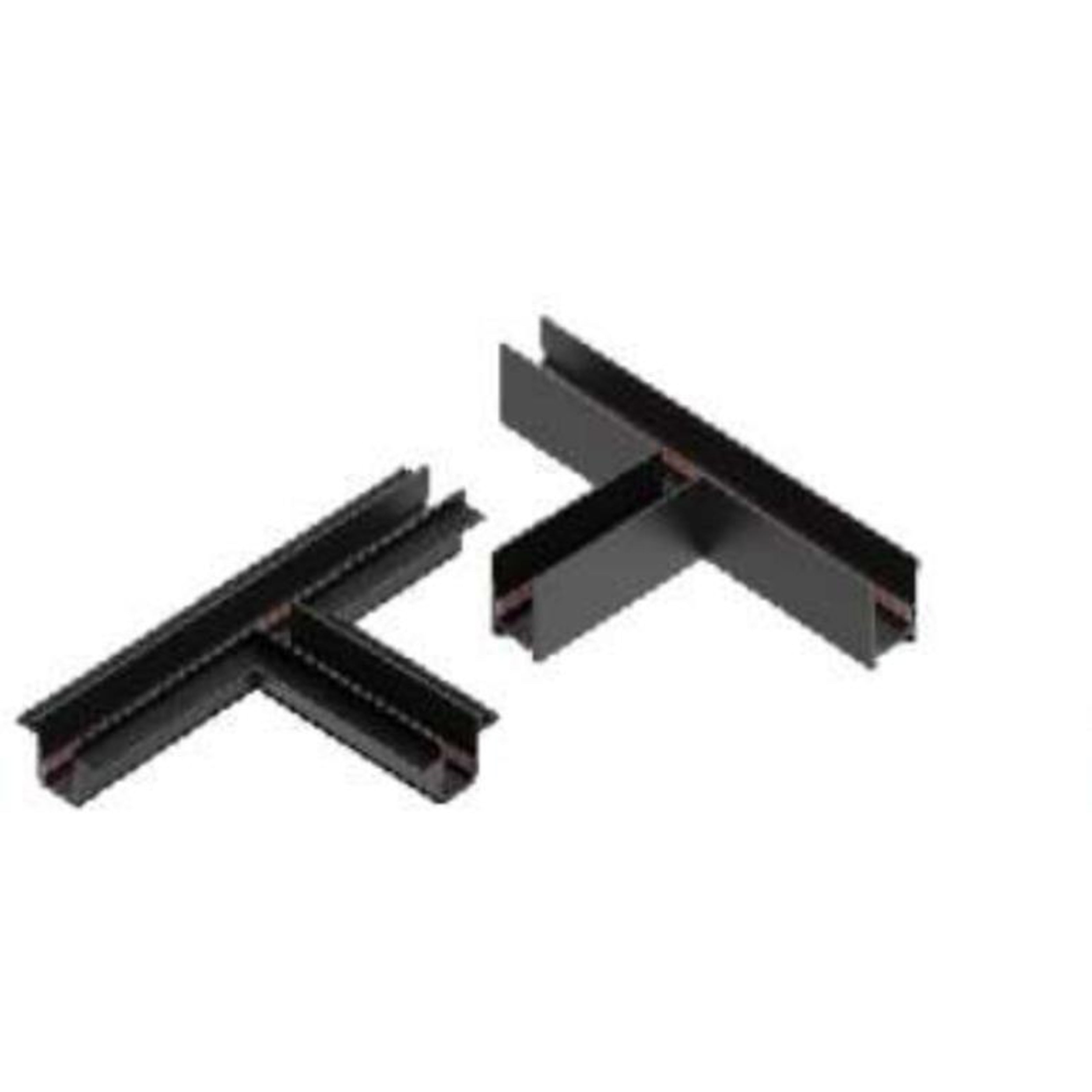

T corner

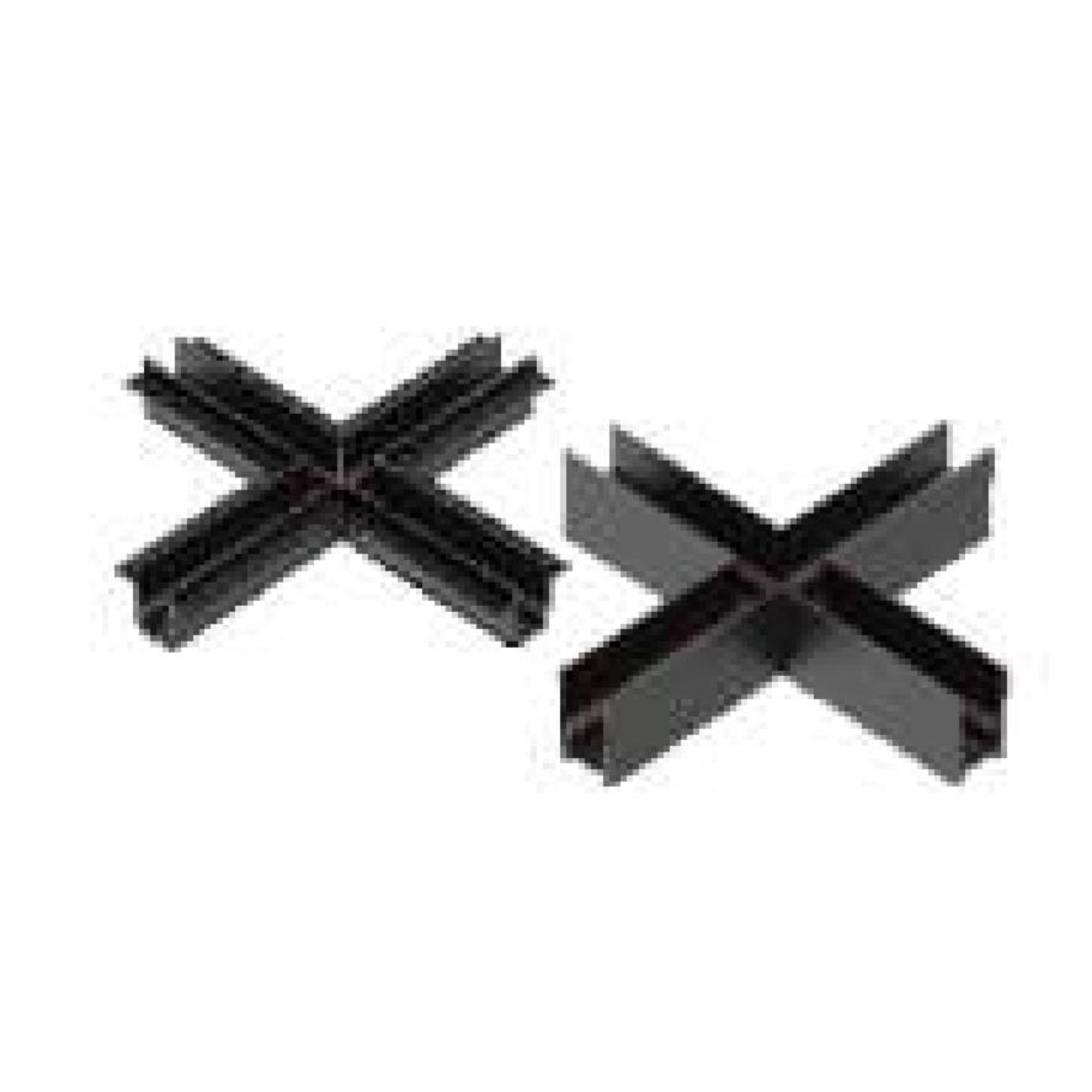

Plus Connector

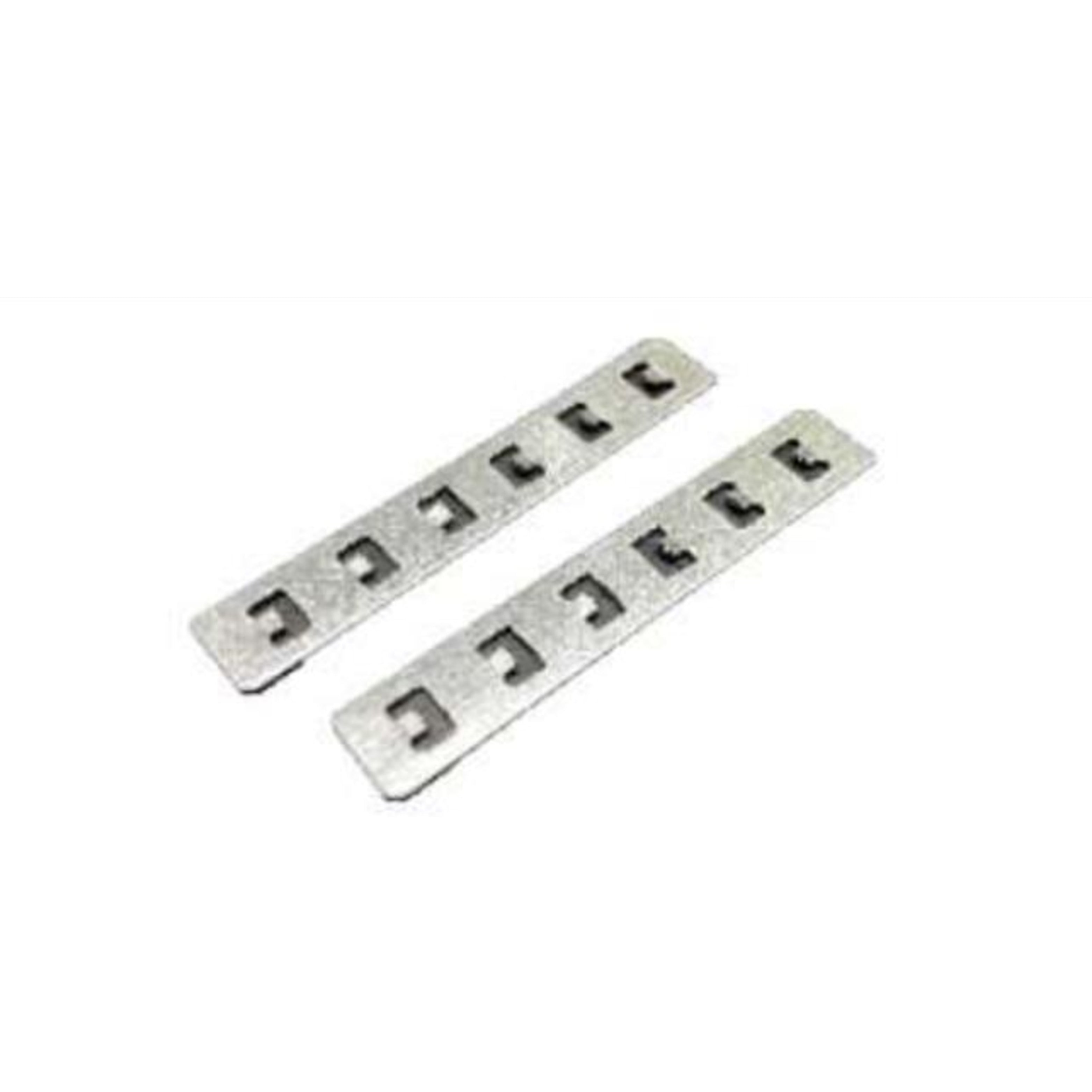

Connection blades for trimless & surface track

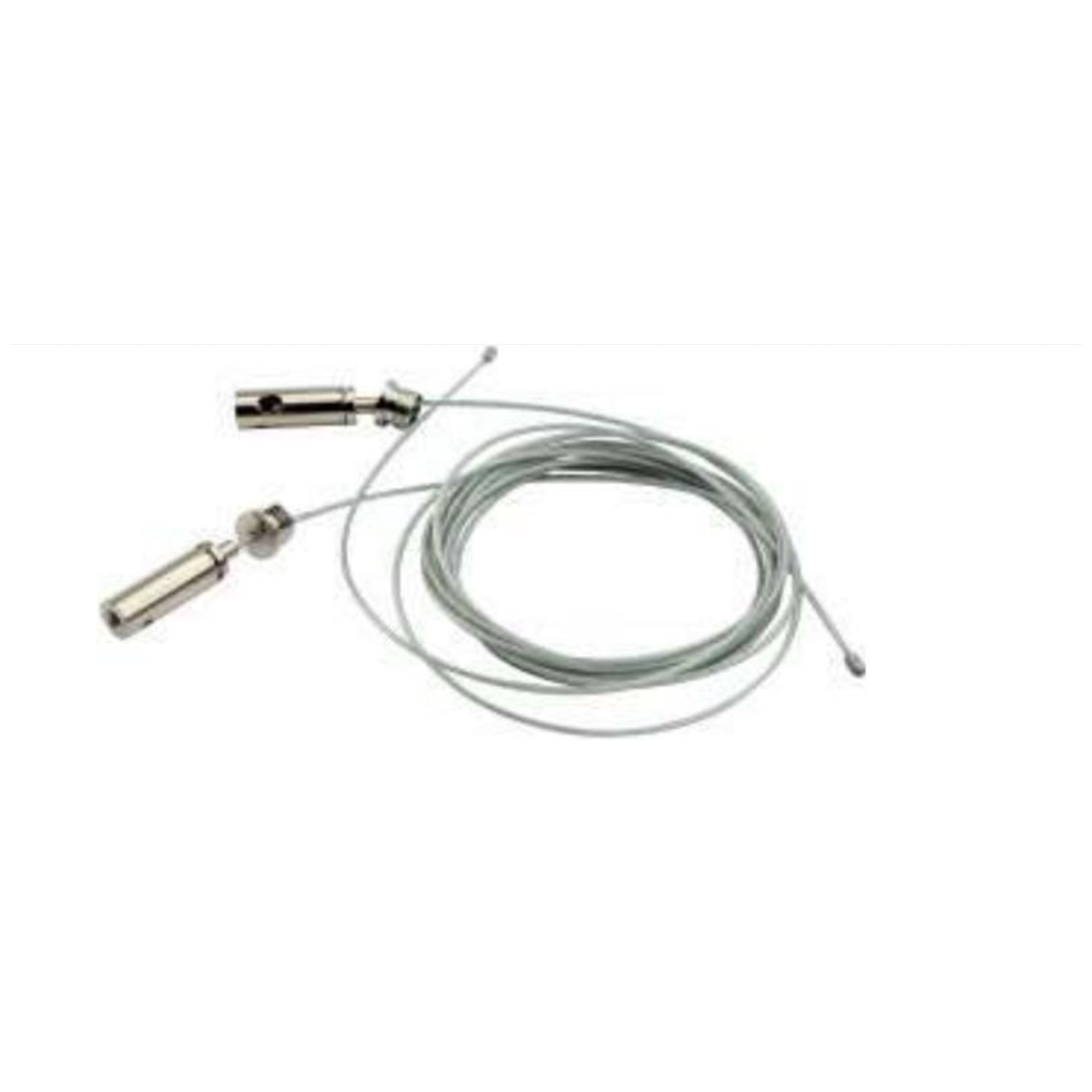

Magic-Hanging set

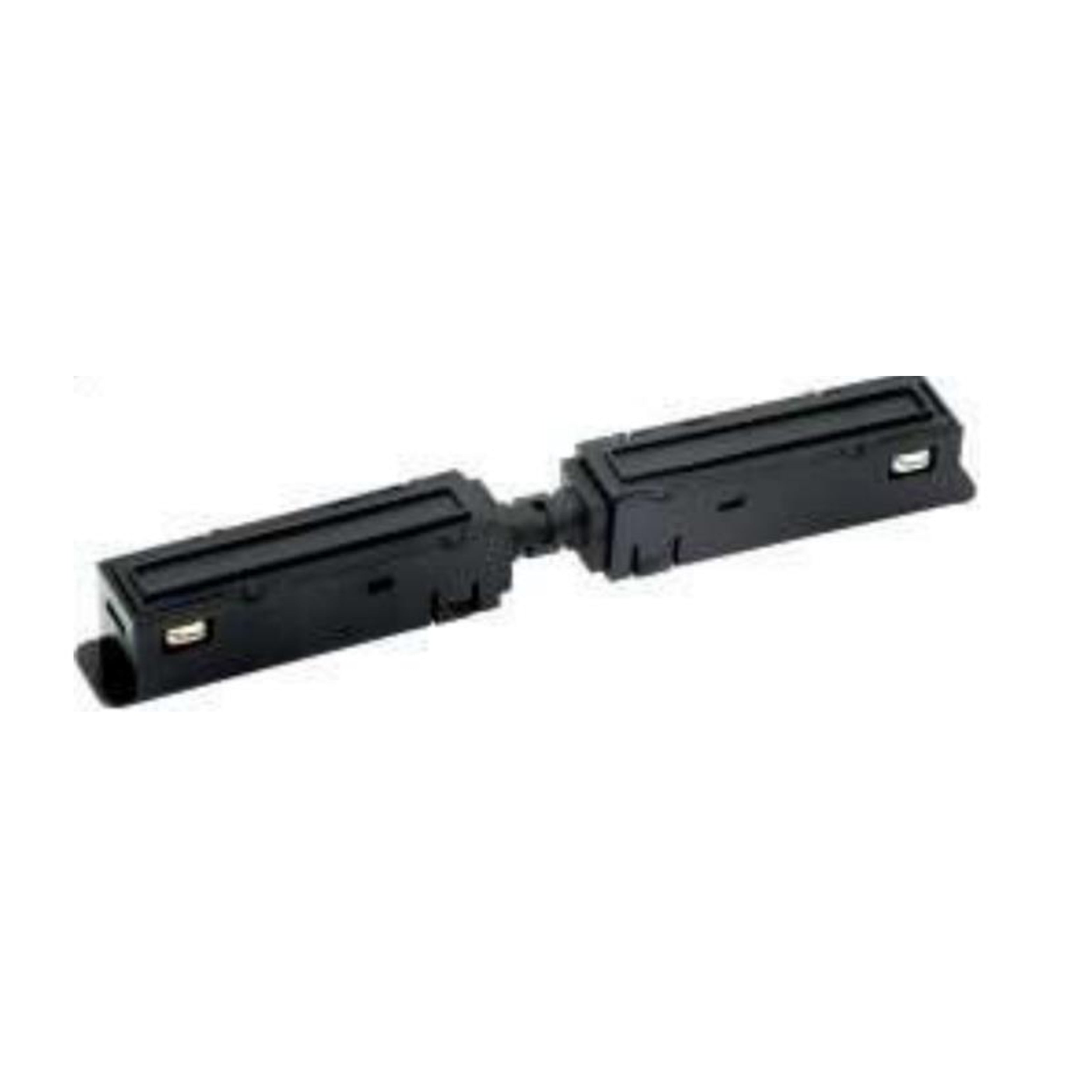

Magic-Straight Joint 18 × 16 × 150 mm

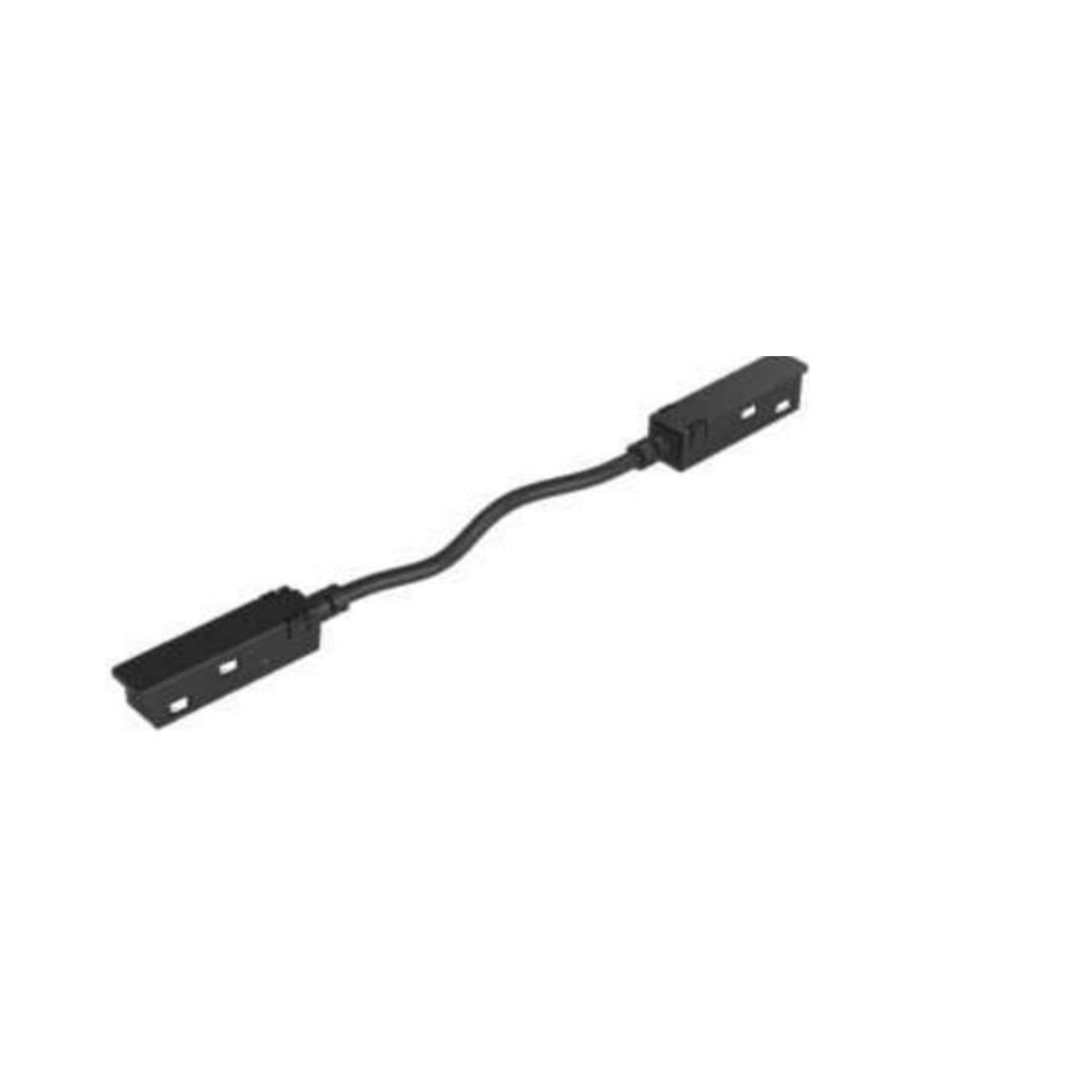

Magic-Corner Joint 18 × 16 × 80 mm

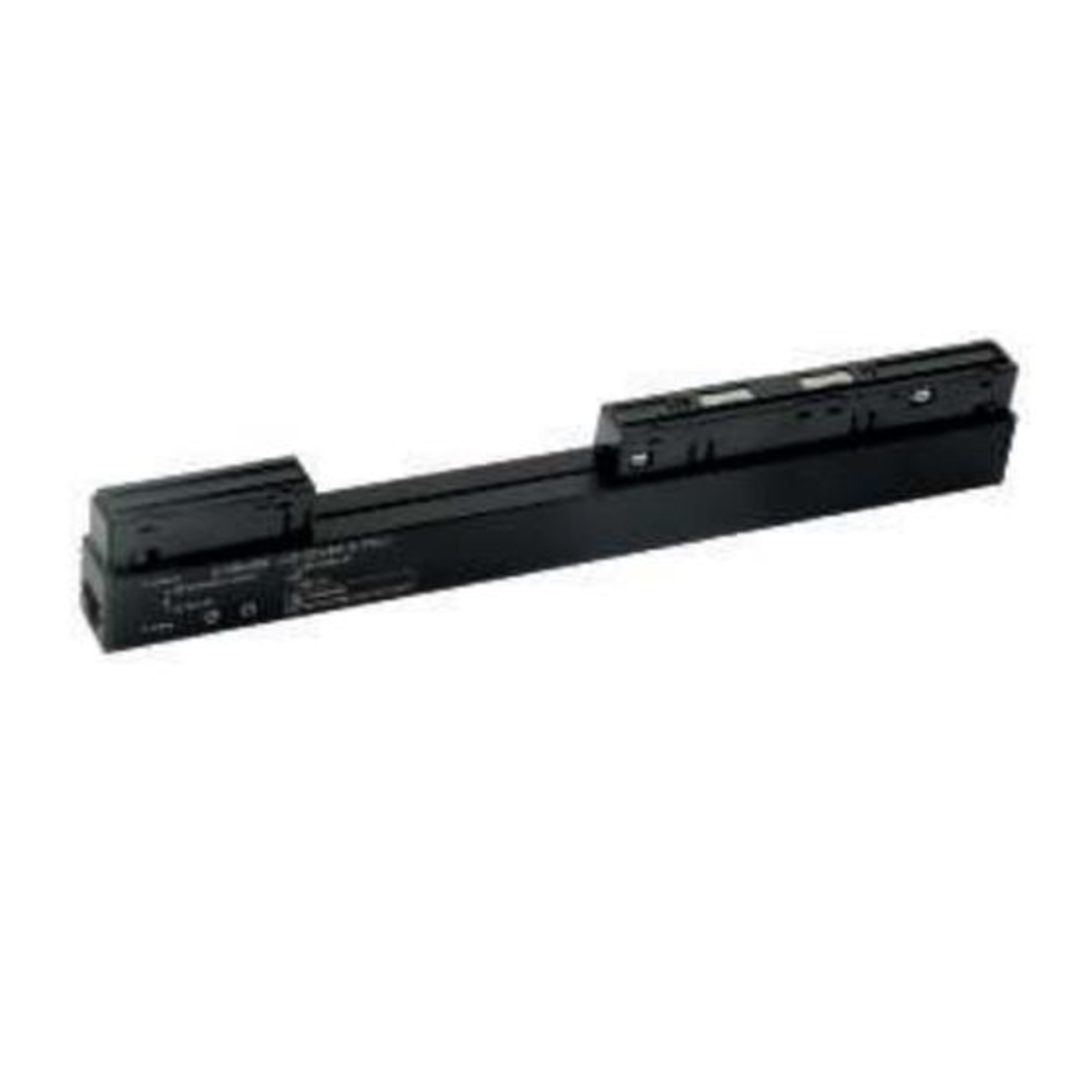

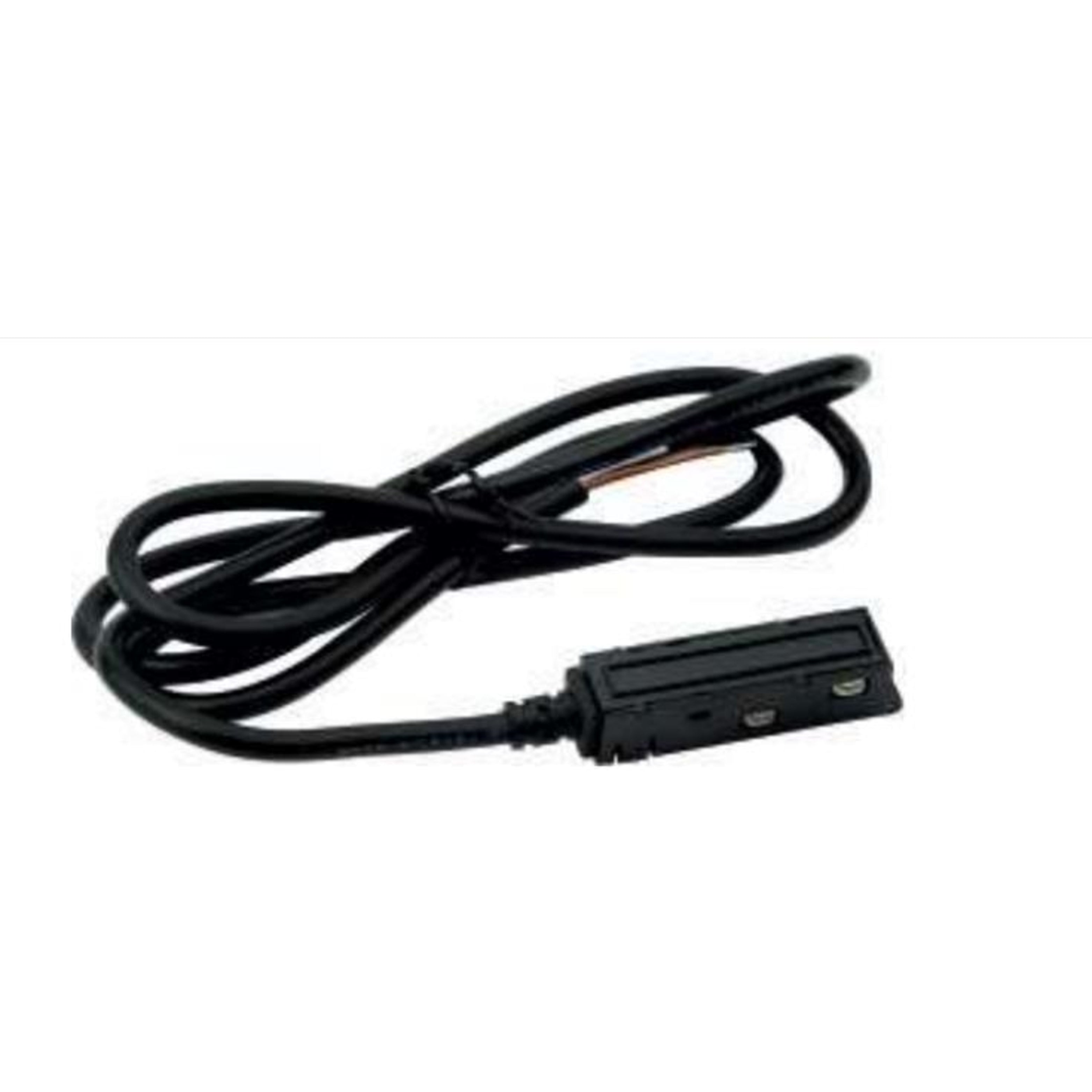

Magic Input Module 50 cm 18 × 16 × 80 mm
Magic Input Module 150 cm

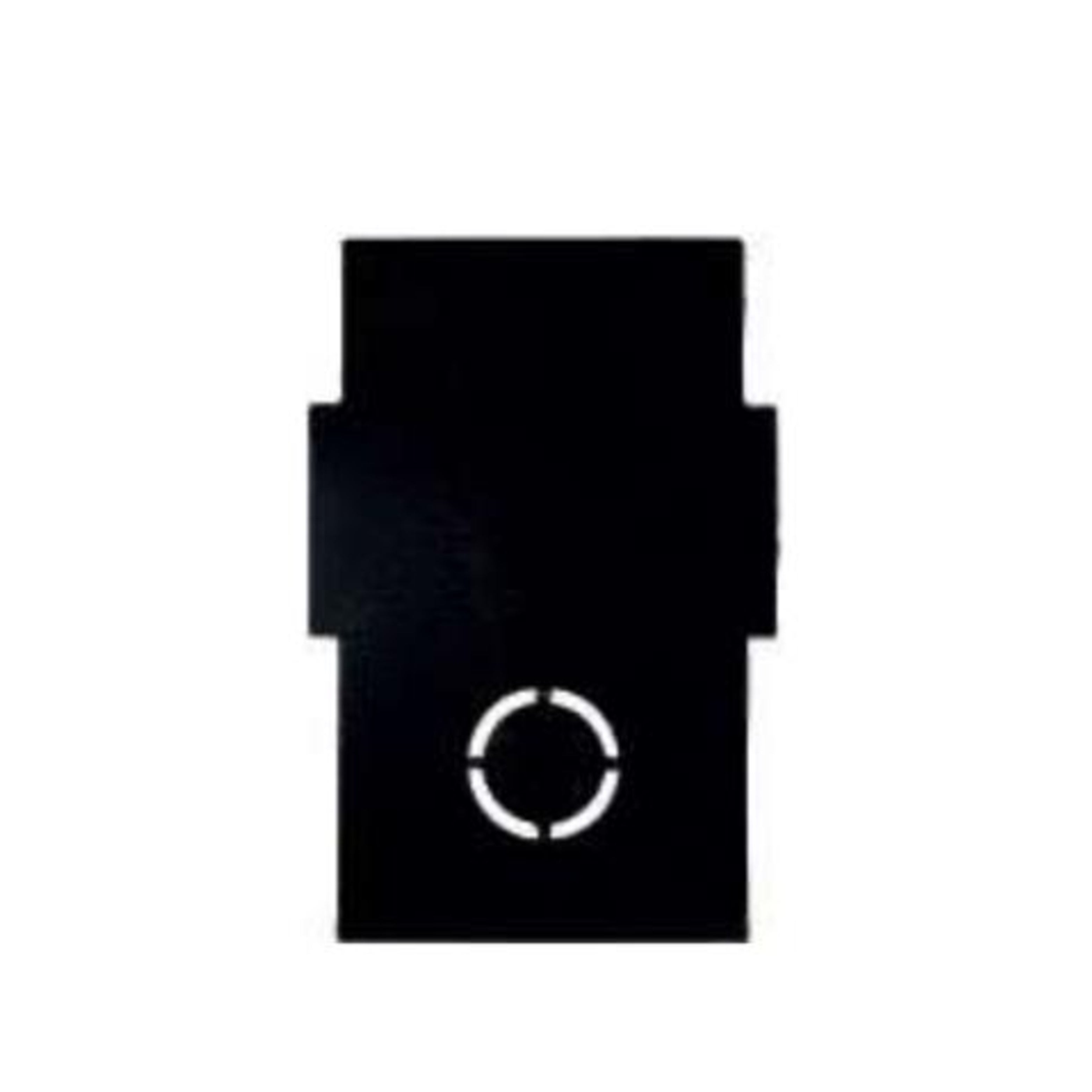

End Cap Set
Item Wattage Dimensions / Optics LED Colour Options

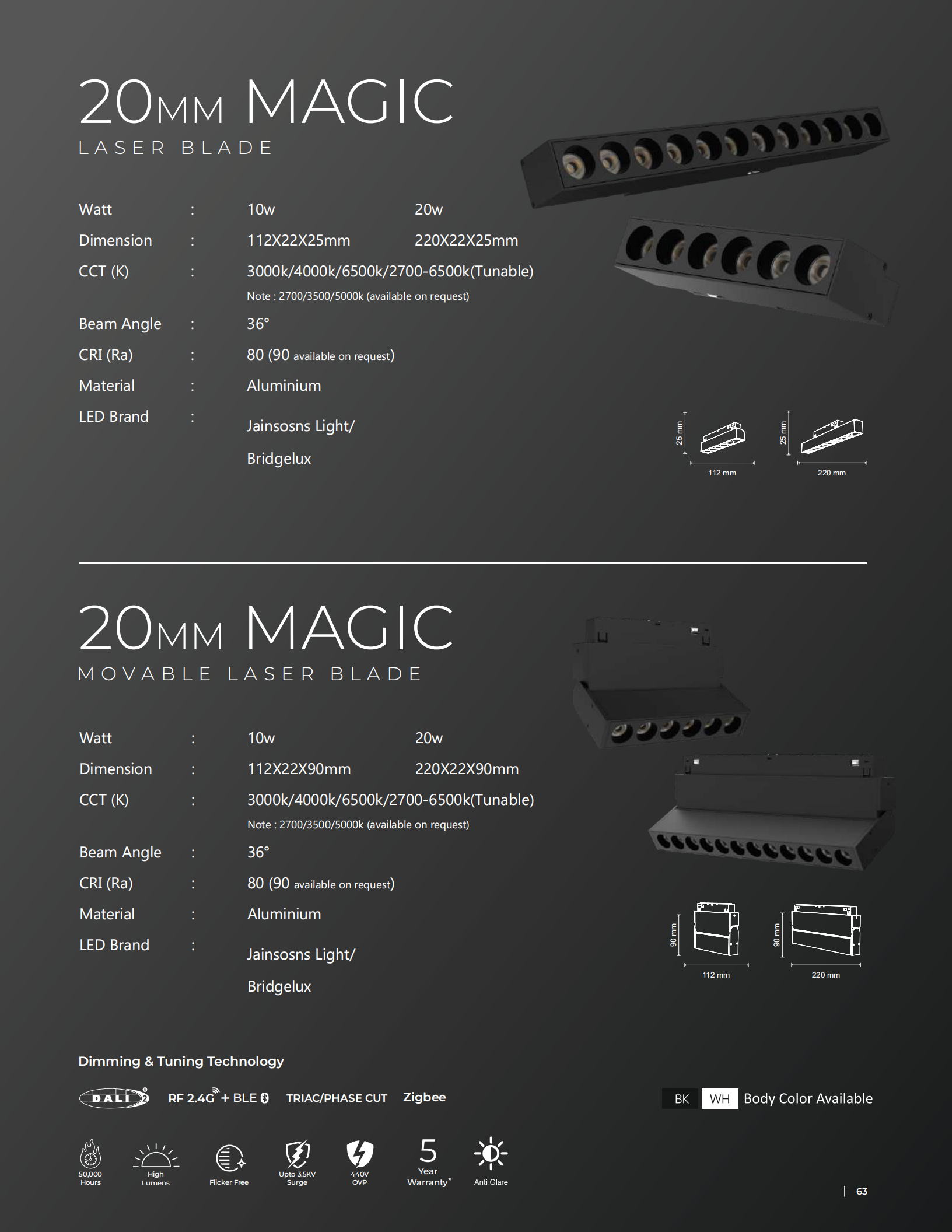

Magic Laser Blade – 6 LED 10W 112 × 22 × 25 mm, 36°, 80/90 CRI 3k / 4k / 65k / Tunable

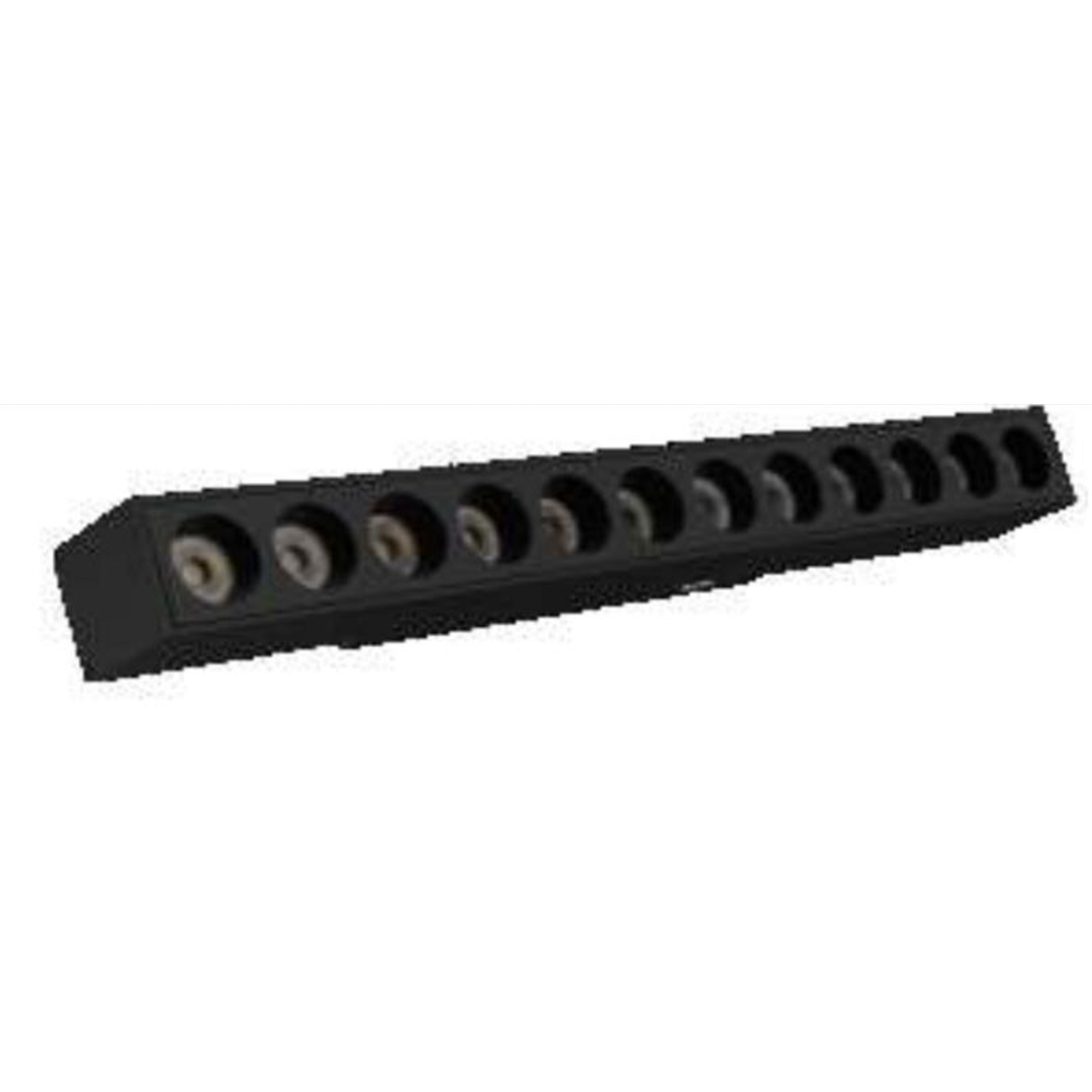

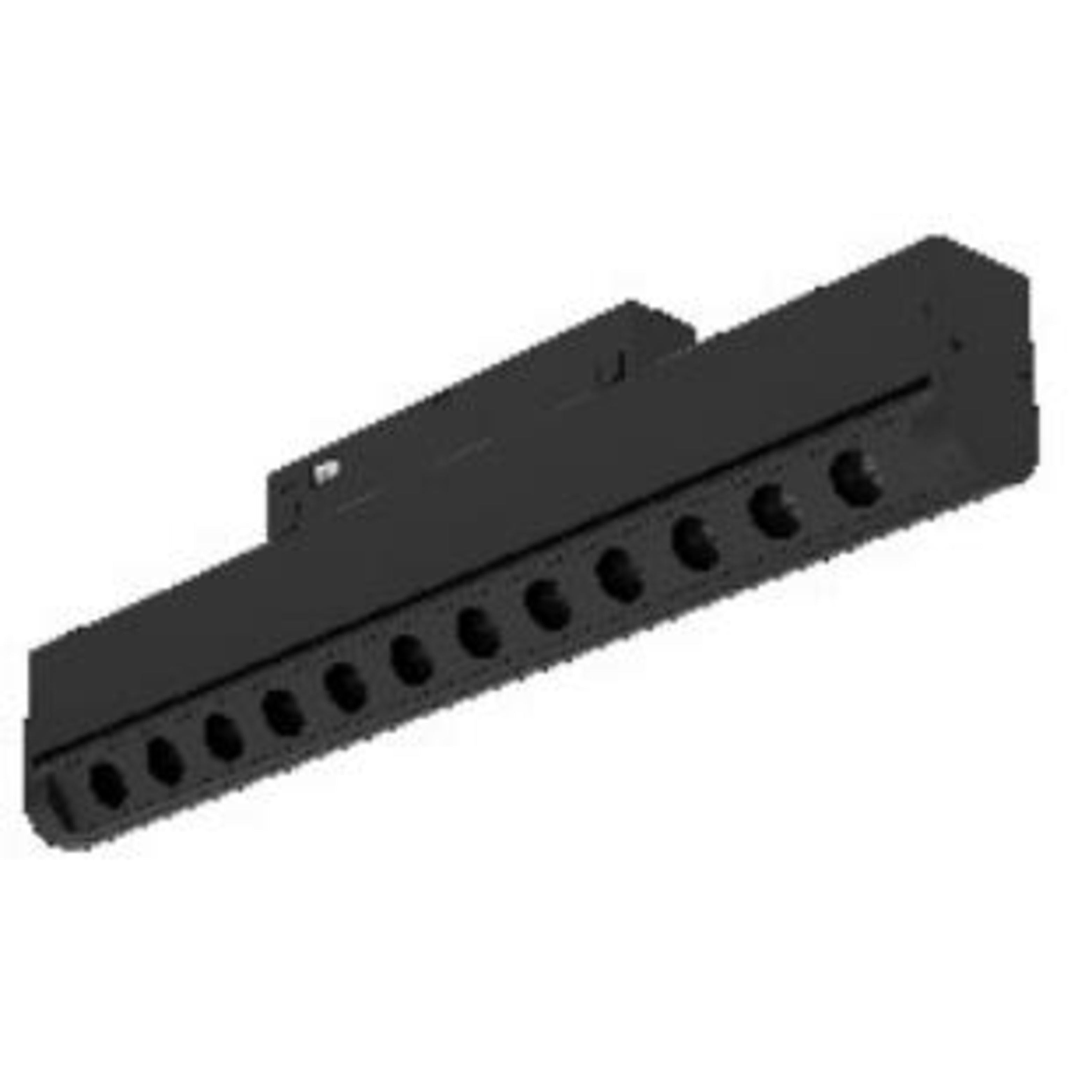

Magic Laser Blade – 12 LED 20W 220 × 22 × 25 mm, 36°, 80/90 CRI 3k / 4k / 65k / Tunable

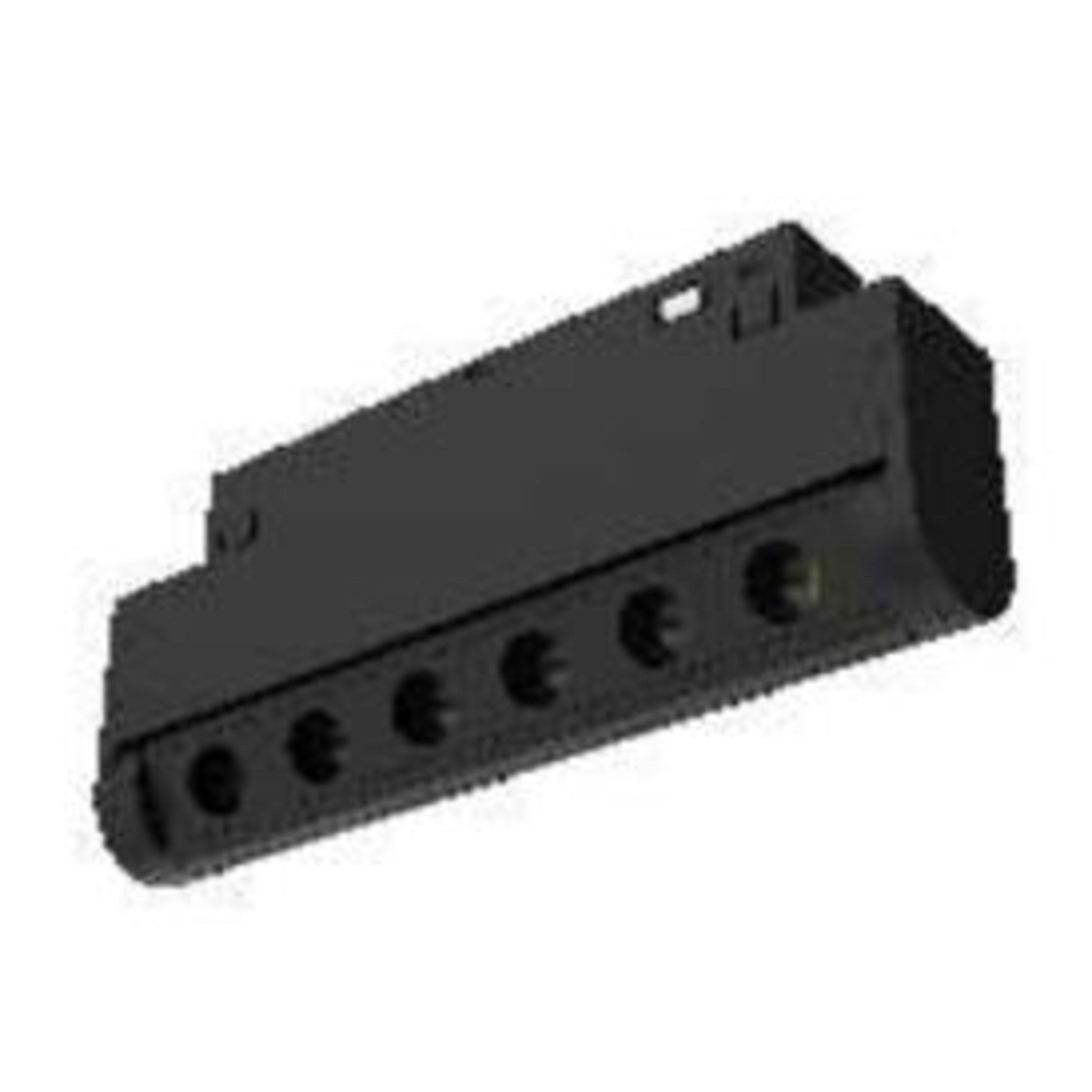

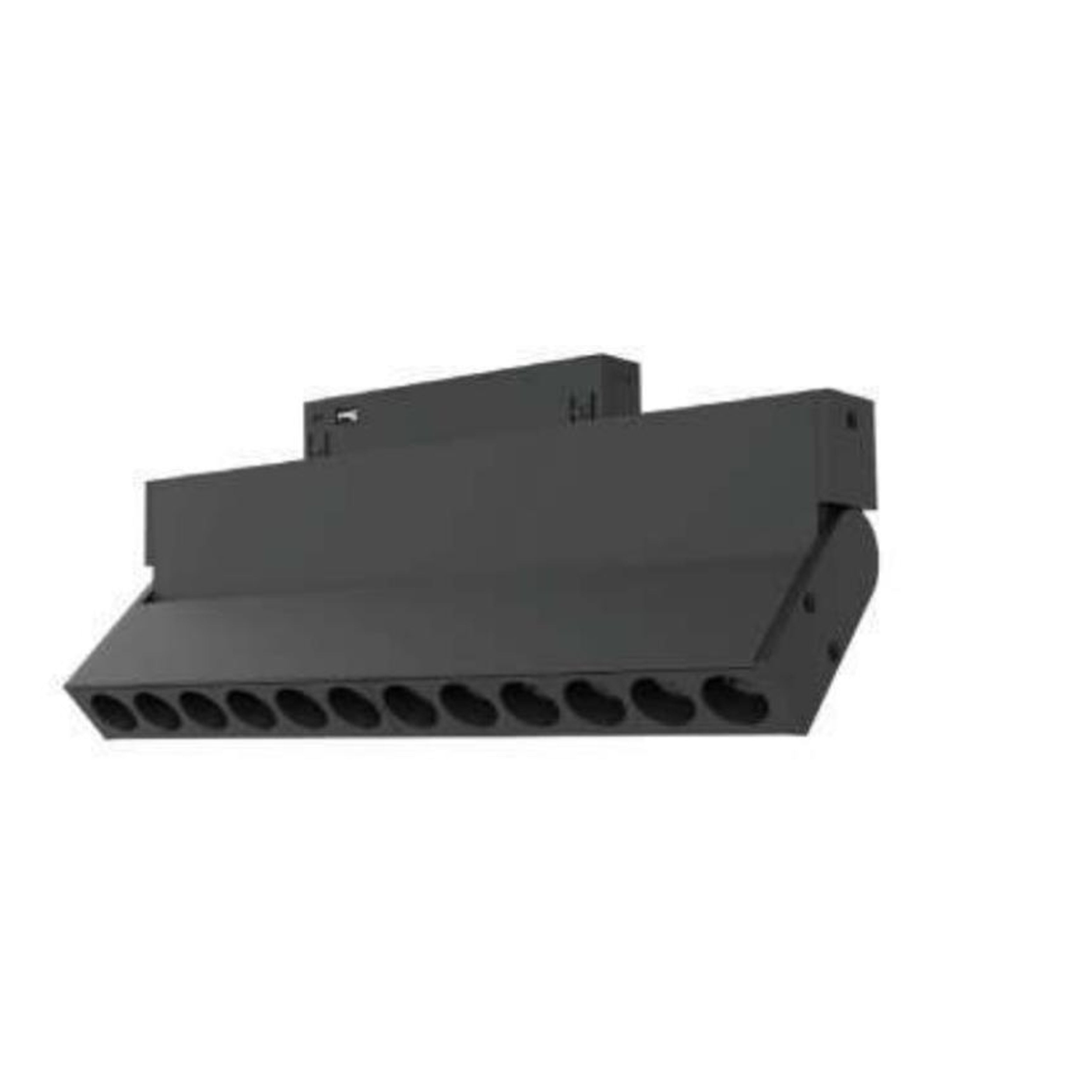

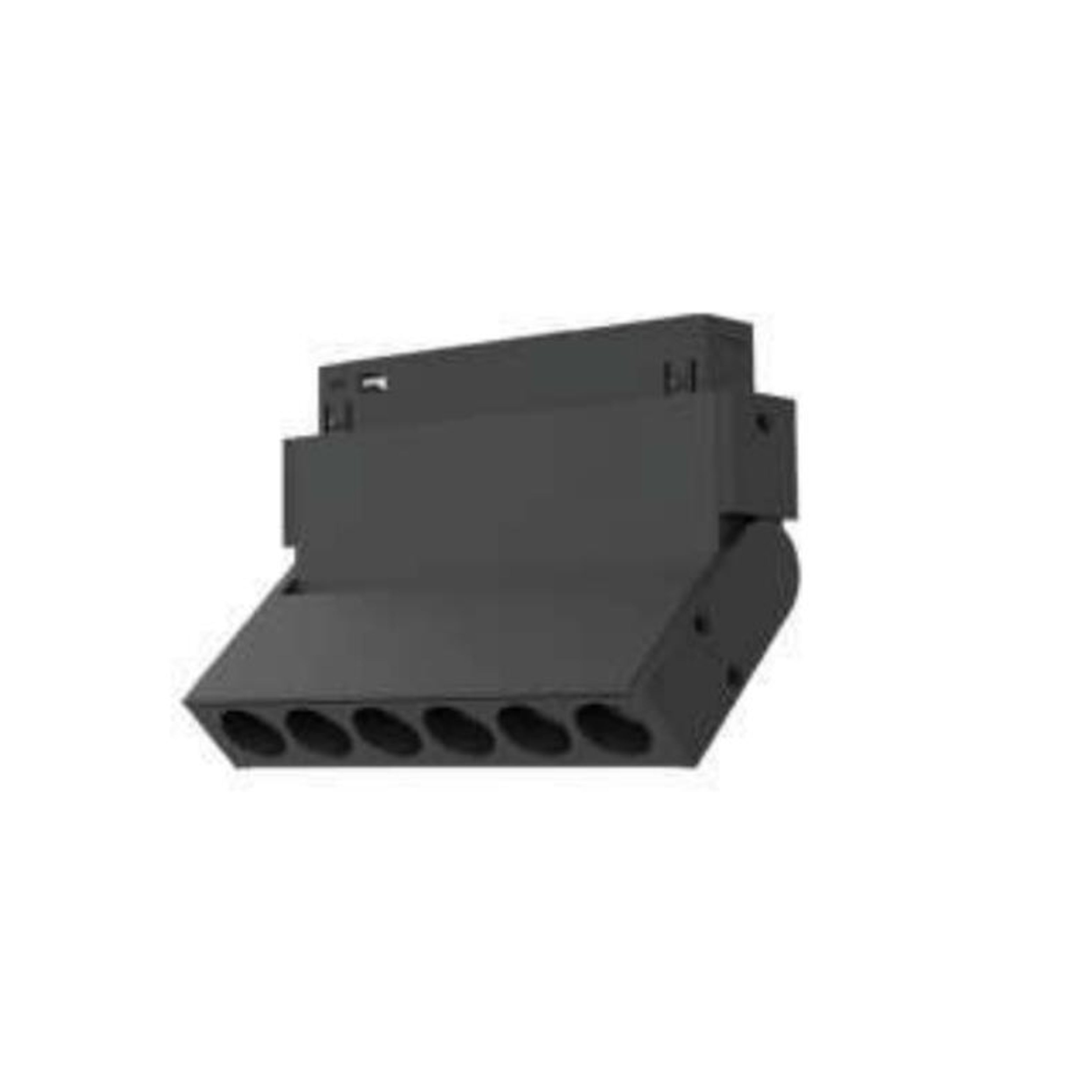

Magic Movable Laser Blade – 6 LED 10W 112 × 22 × 90 mm, 36°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Movable Laser Blade – 12 LED 20W 220 × 22 × 90 mm, 36°, 80/90 CRI 3k / 4k / 65k / Tunable
Item Wattage Dimensions / Optics LED Colour Options

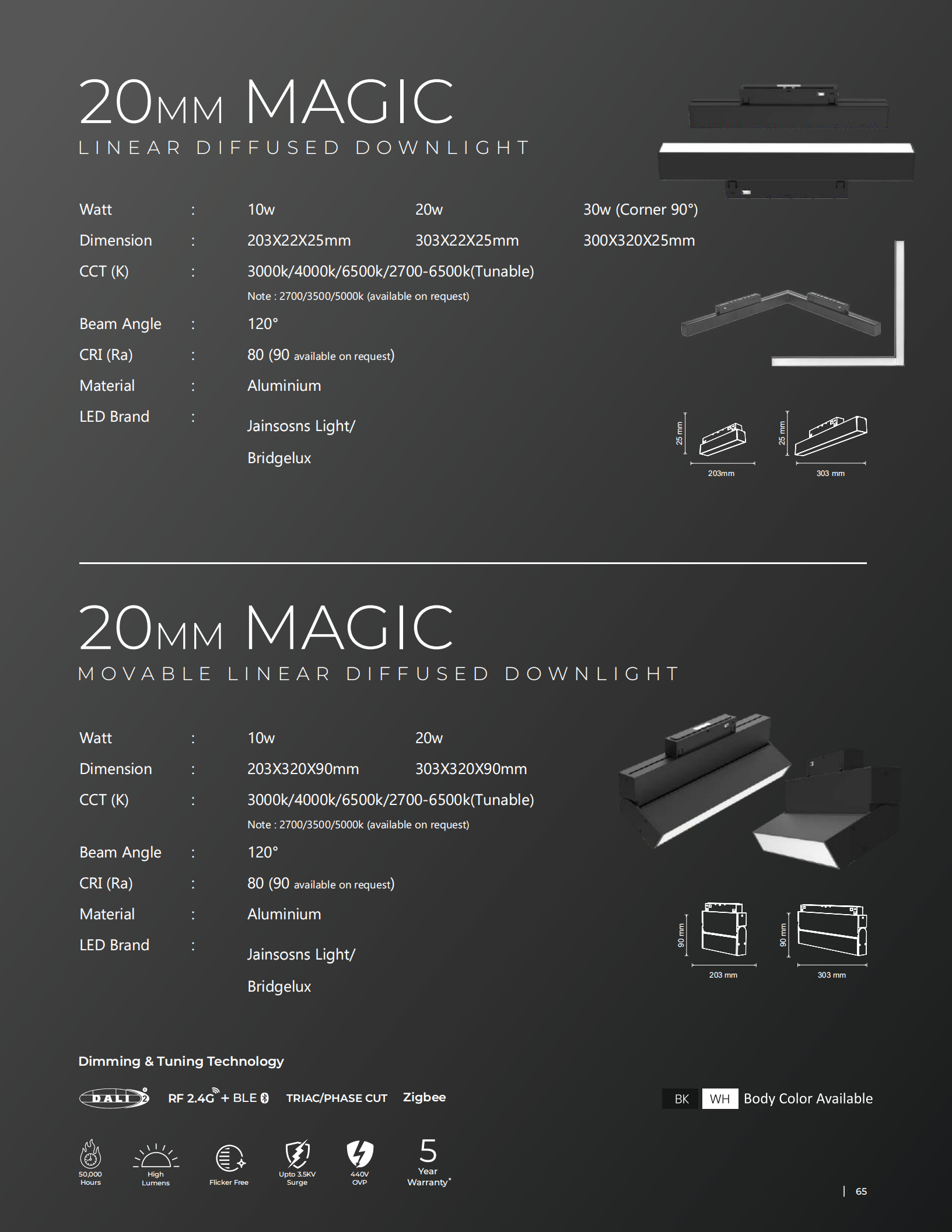

Magic Linear Diffuser 10W 205 × 22 × 25 mm, 120°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Linear Diffuser 20W 305 × 22 × 25 mm, 120°, 80/90 CRI
Magic Linear Diffuser 30W 405 × 22 × 25 mm, 120°, 80/90 CRI

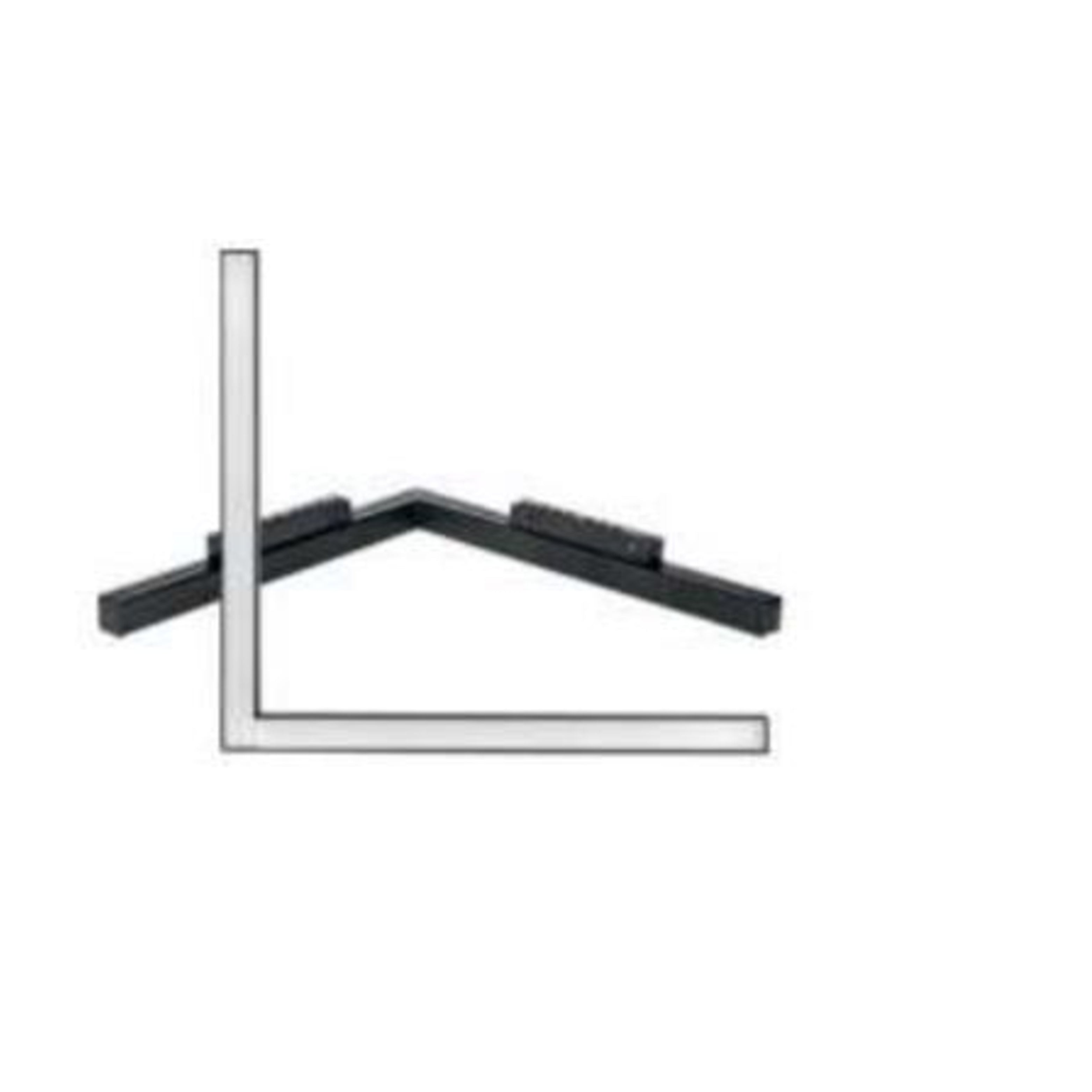

Magic Corner 90° Diffuser 24W 300 × 320 × 25 mm, 120°, 80/90 CRI 3k / 4k / 65k / Tunable

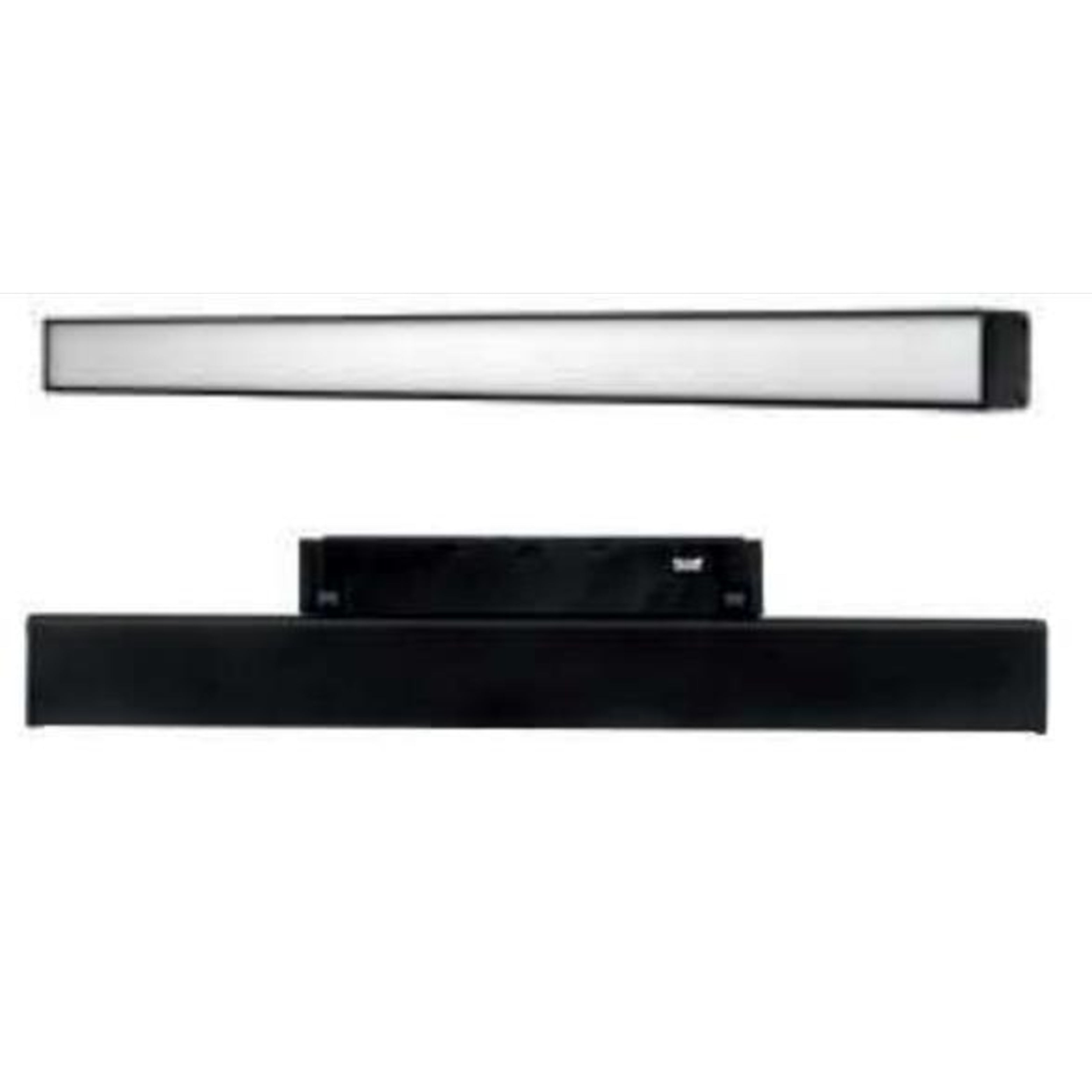

Magic Movable Linear Diffuser 10W 205 × 22 × 25 mm, 120°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Movable Linear Diffuser 20W 305 × 22 × 25 mm, 120°, 80/90 CRI
Item Wattage Dimensions / Optics LED Colour Options

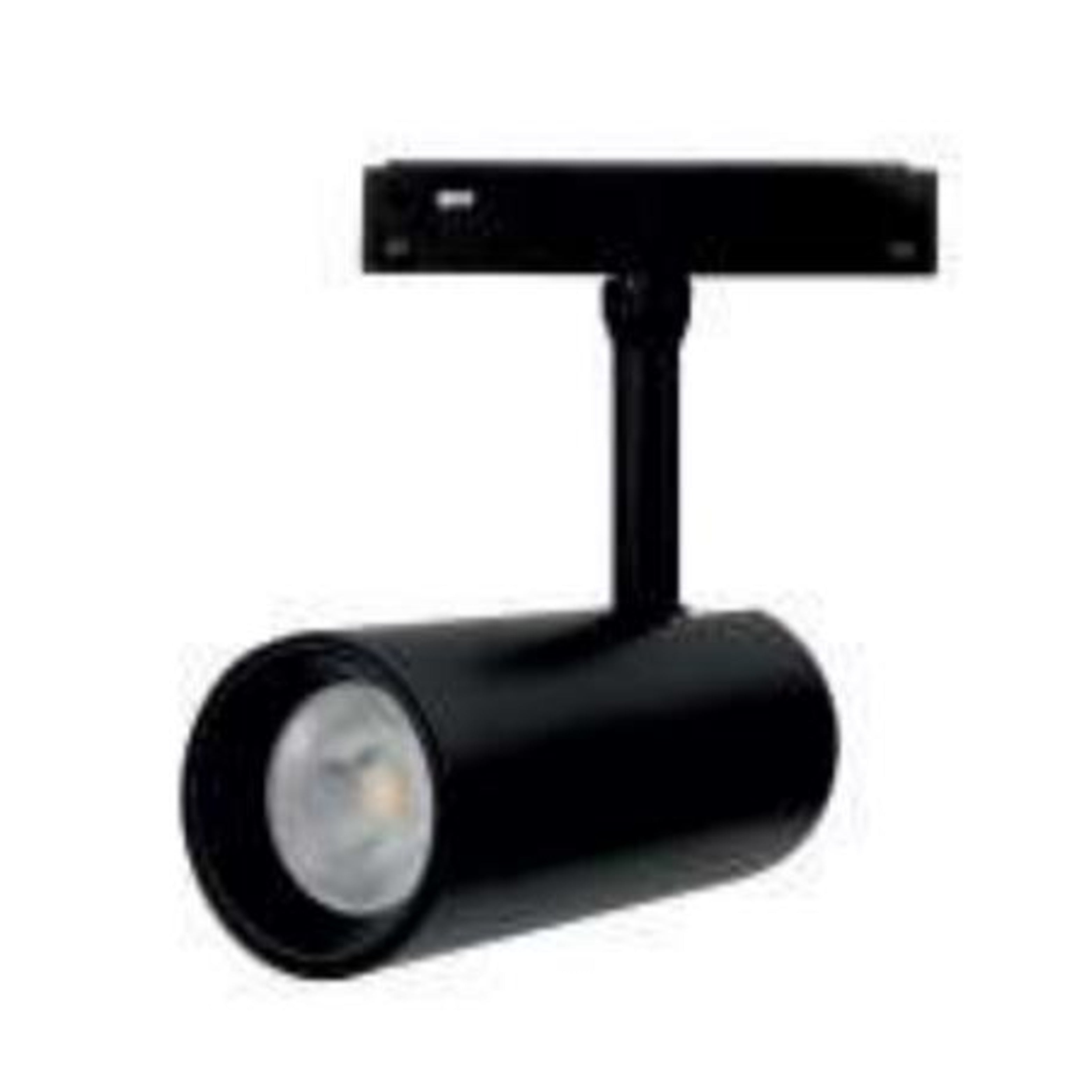

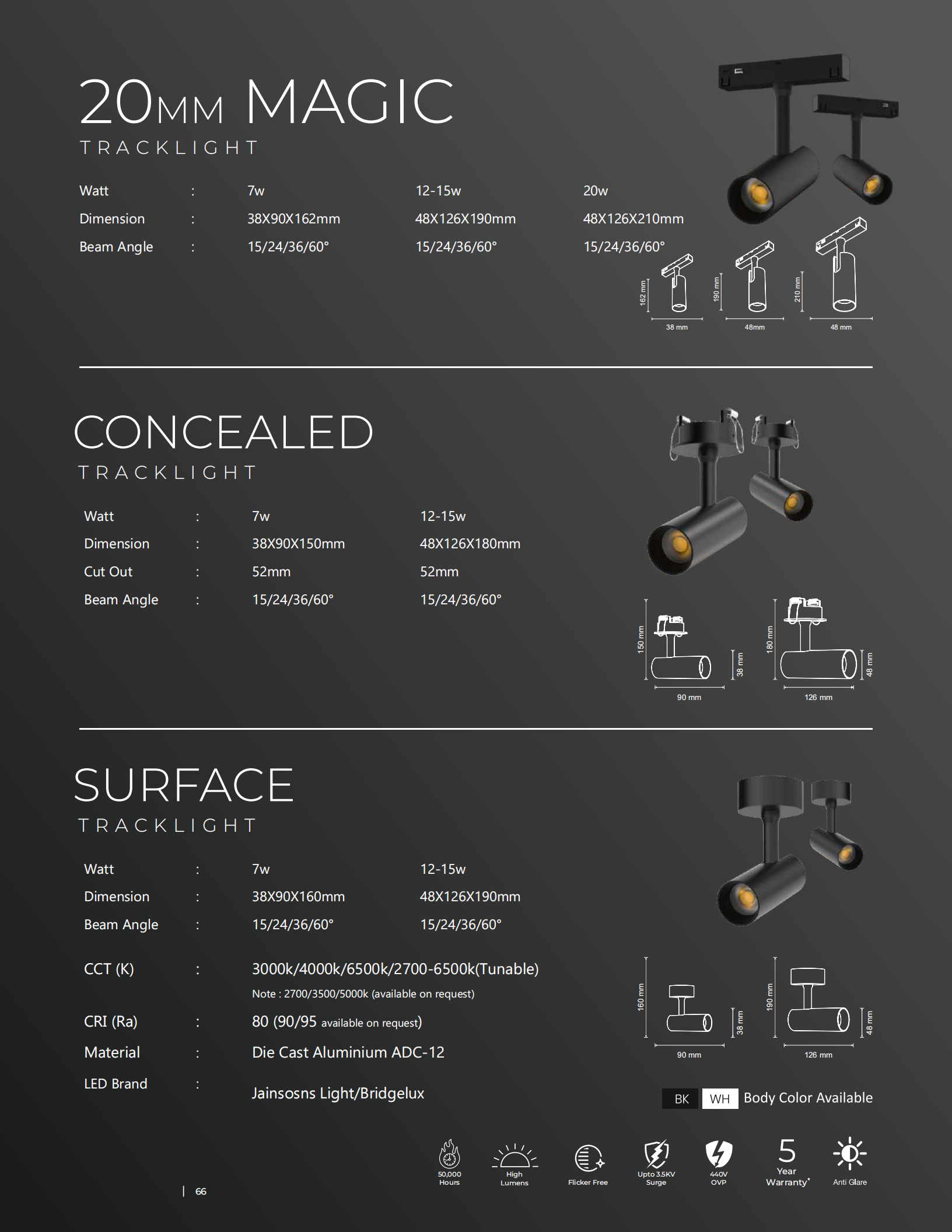

Magic Track Spot 7W 35 × 90 × 105 mm, 15° / 24° / 36° / 60°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Track Spot 12W 48 × 150 × 120 mm, 15° / 24° / 36° / 60°, 80/90 CRI
Magic Track Spot 15W 48 × 150 × 120 mm, 15° / 24° / 36° / 60°, 80/90 CRI
Magic Track Spot 20W 48 × 210 × 126 mm, 15° / 24° / 36° / 60°, 80/90 CRI
Magic Track Spot (Round) 12W D: 54 mm, 24° / 36°, 80/90 CRI
Item Wattage Dimensions / Optics LED Colour Options

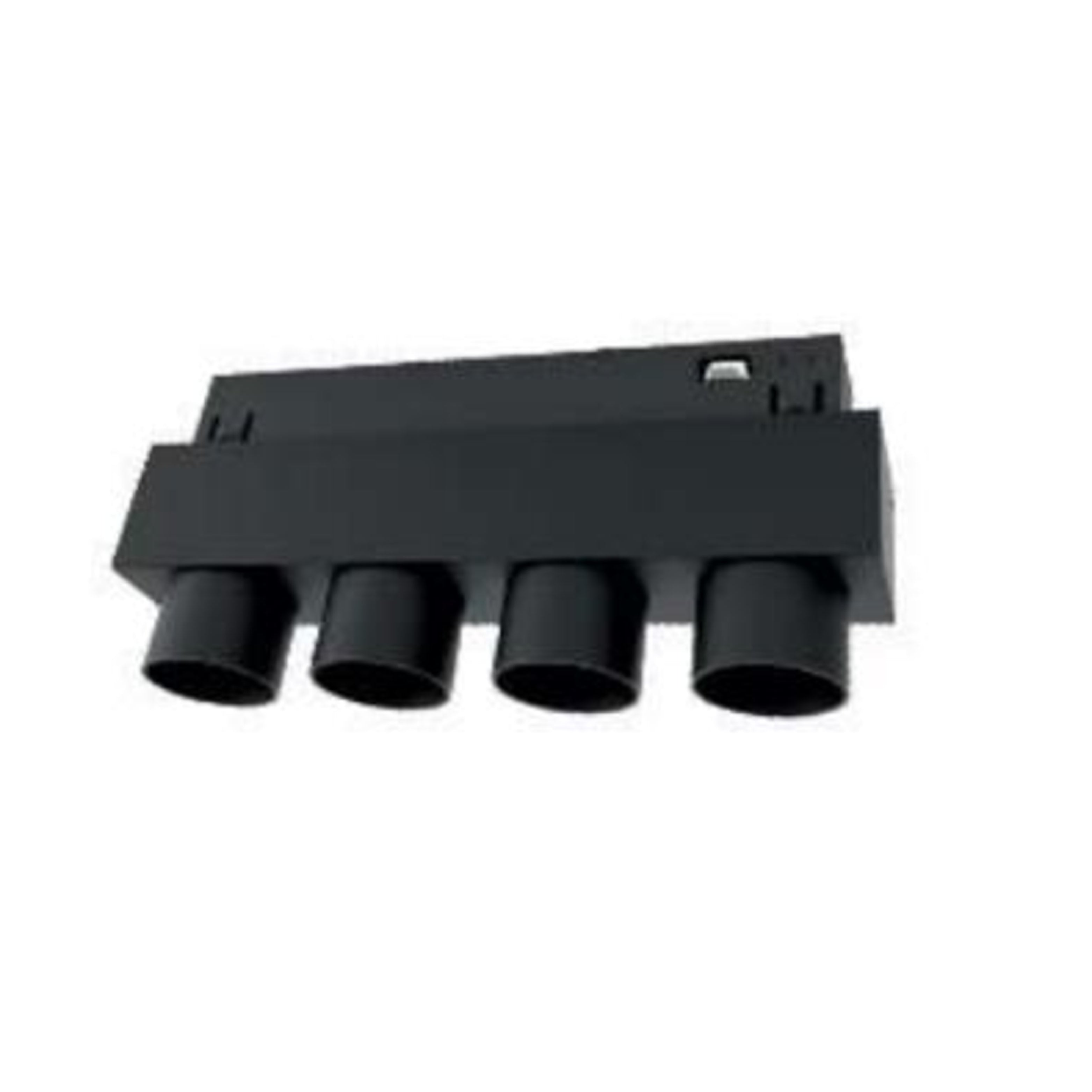

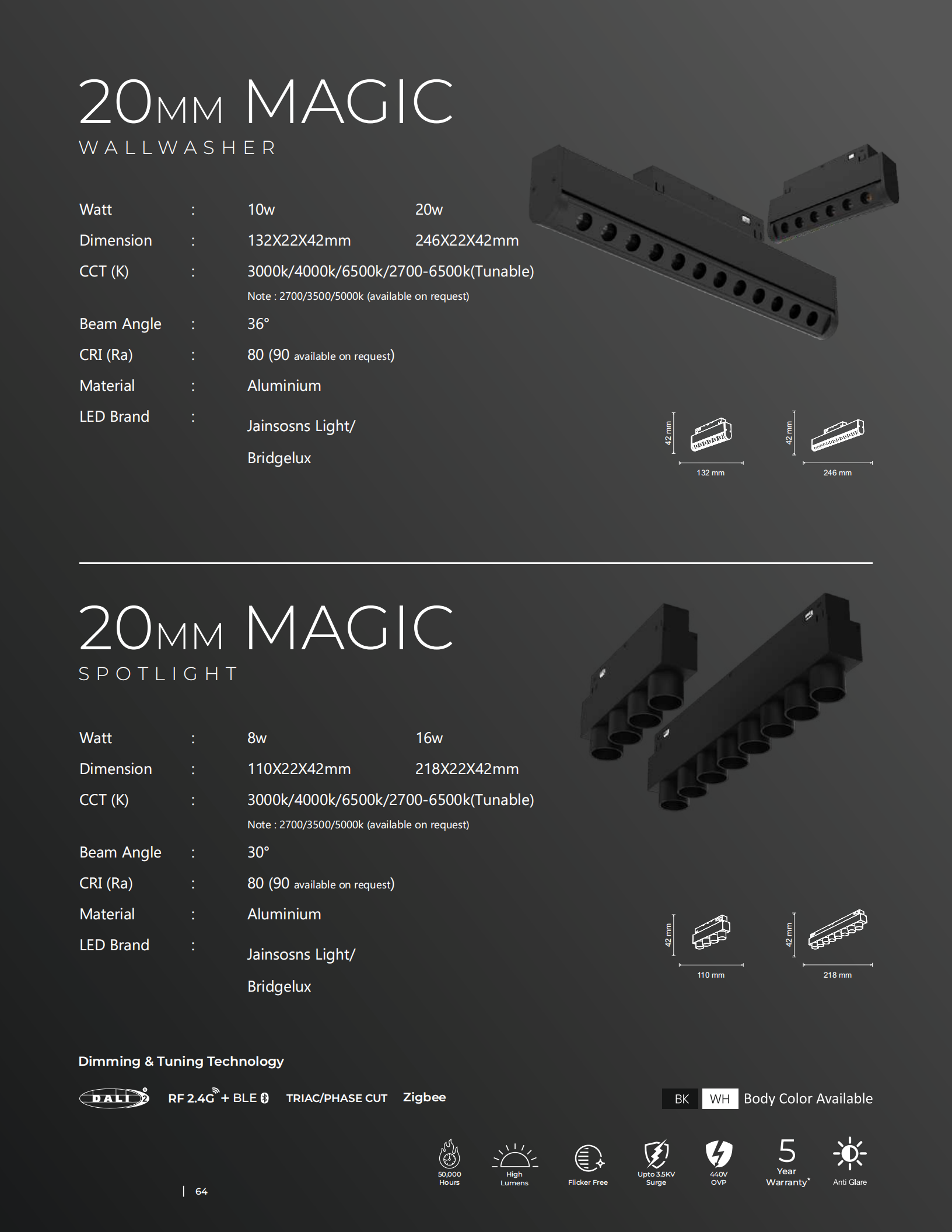

Magic Laser Wall Washer – 6 LED 10W 132 × 22 × 42 mm, 30°, 80/90 CRI 3k / 4k / 65k / Tunable

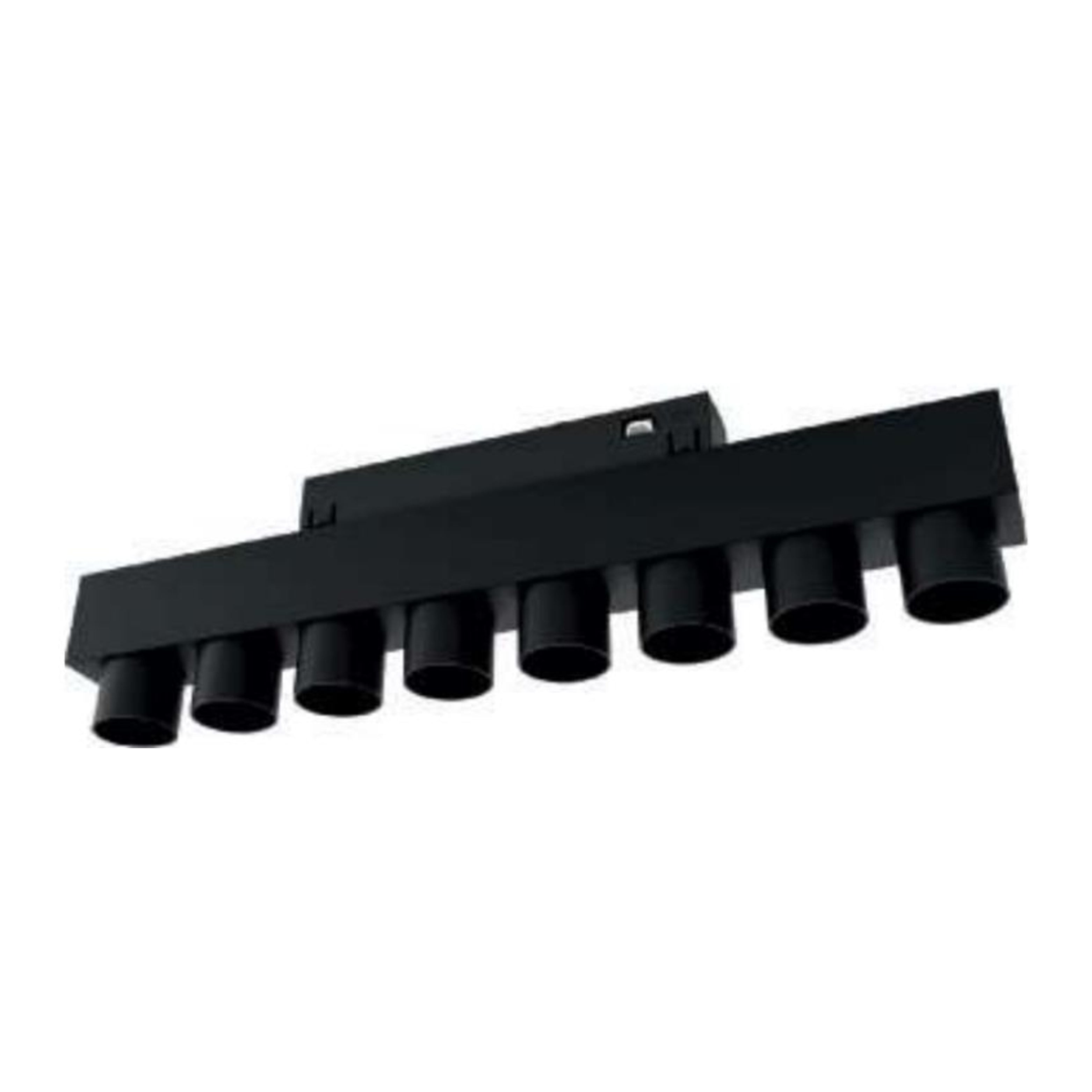

Magic Laser Wall Washer – 12 LED 20W 246 × 22 × 42 mm, 30°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Spotlight 8W 110 × 22 × 42 mm, 30°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Spotlight 16W 218 × 22 × 42 mm, 30°, 80/90 CRI 3k / 4k / 65k / Tunable
Item Wattage Dimensions / Optics LED Colour Options

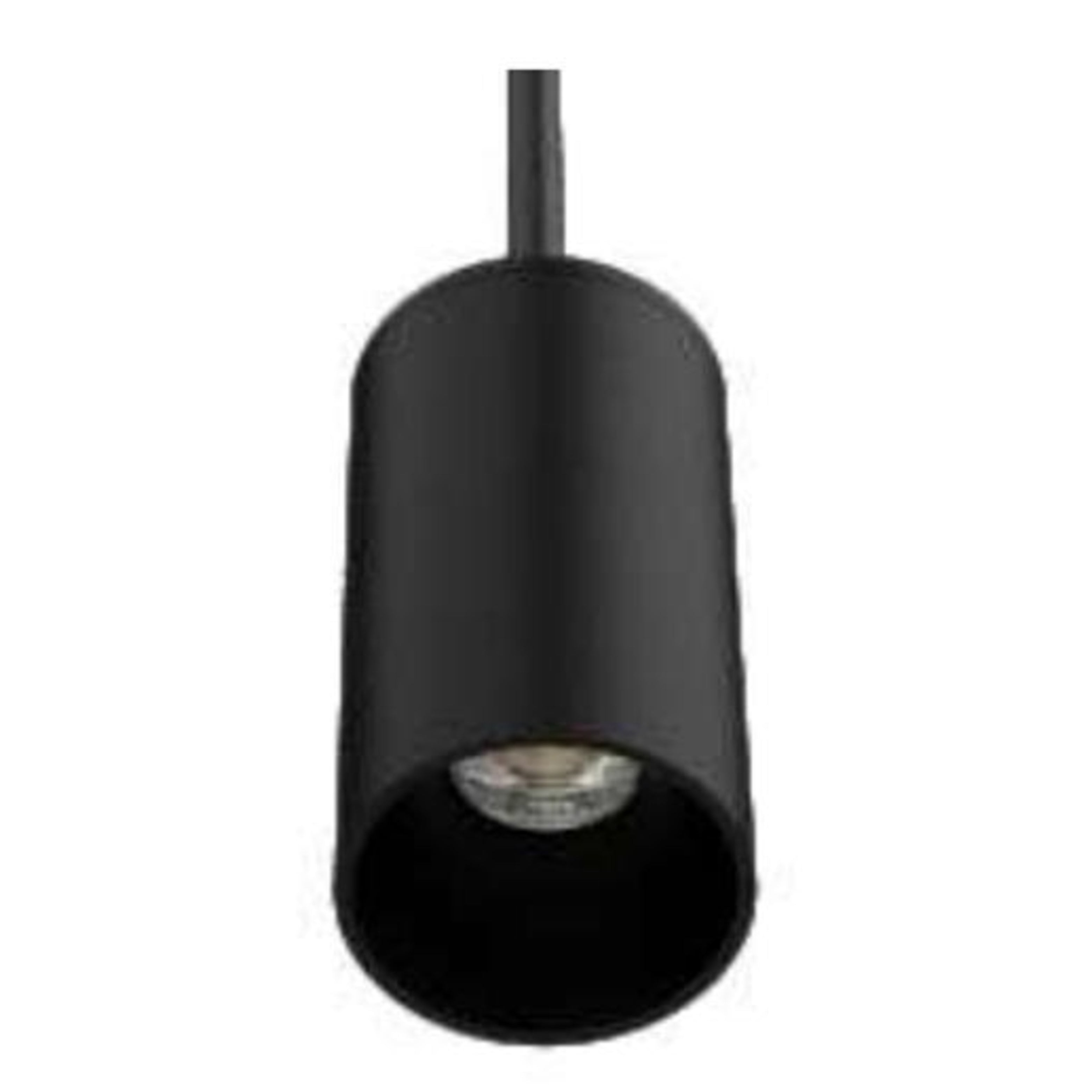

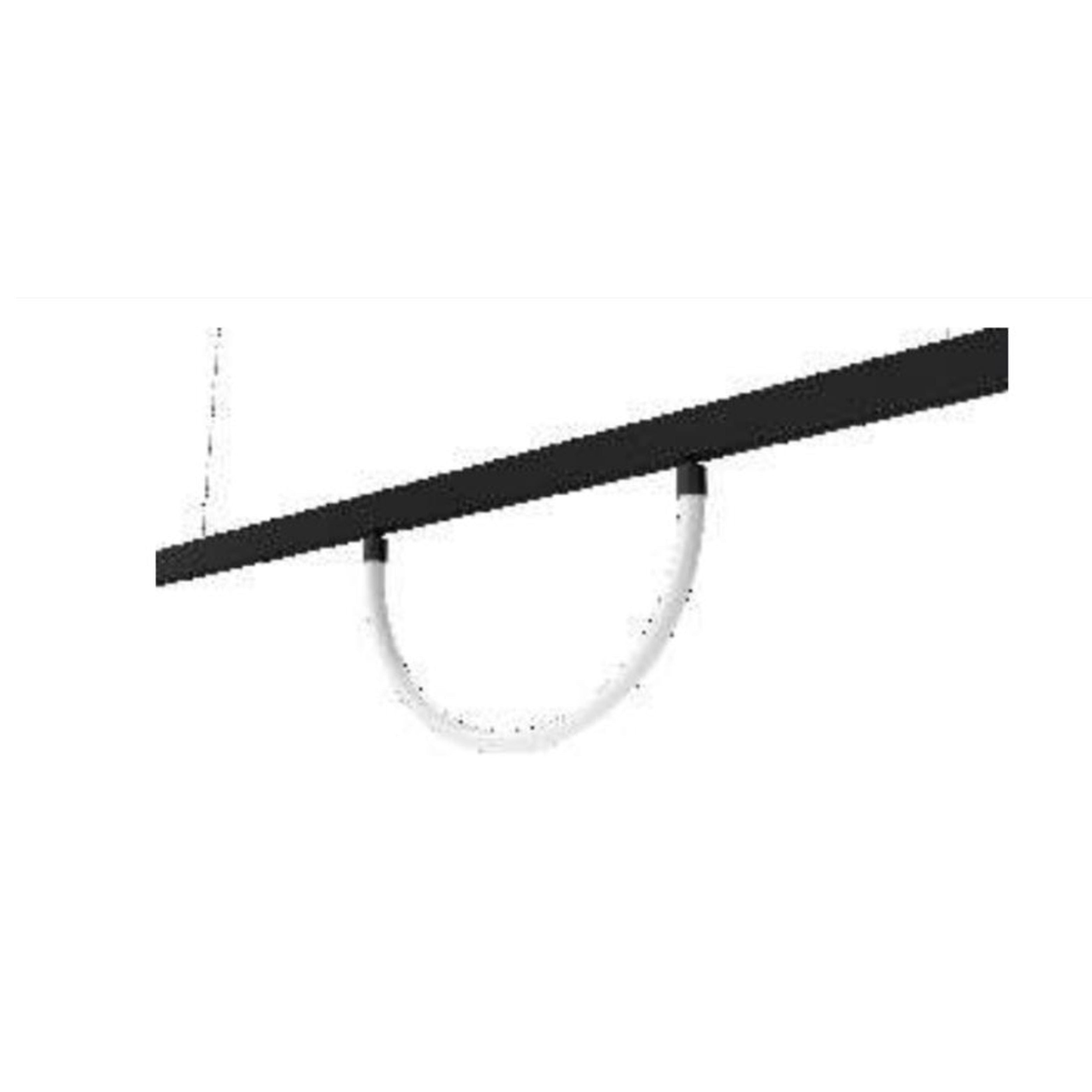

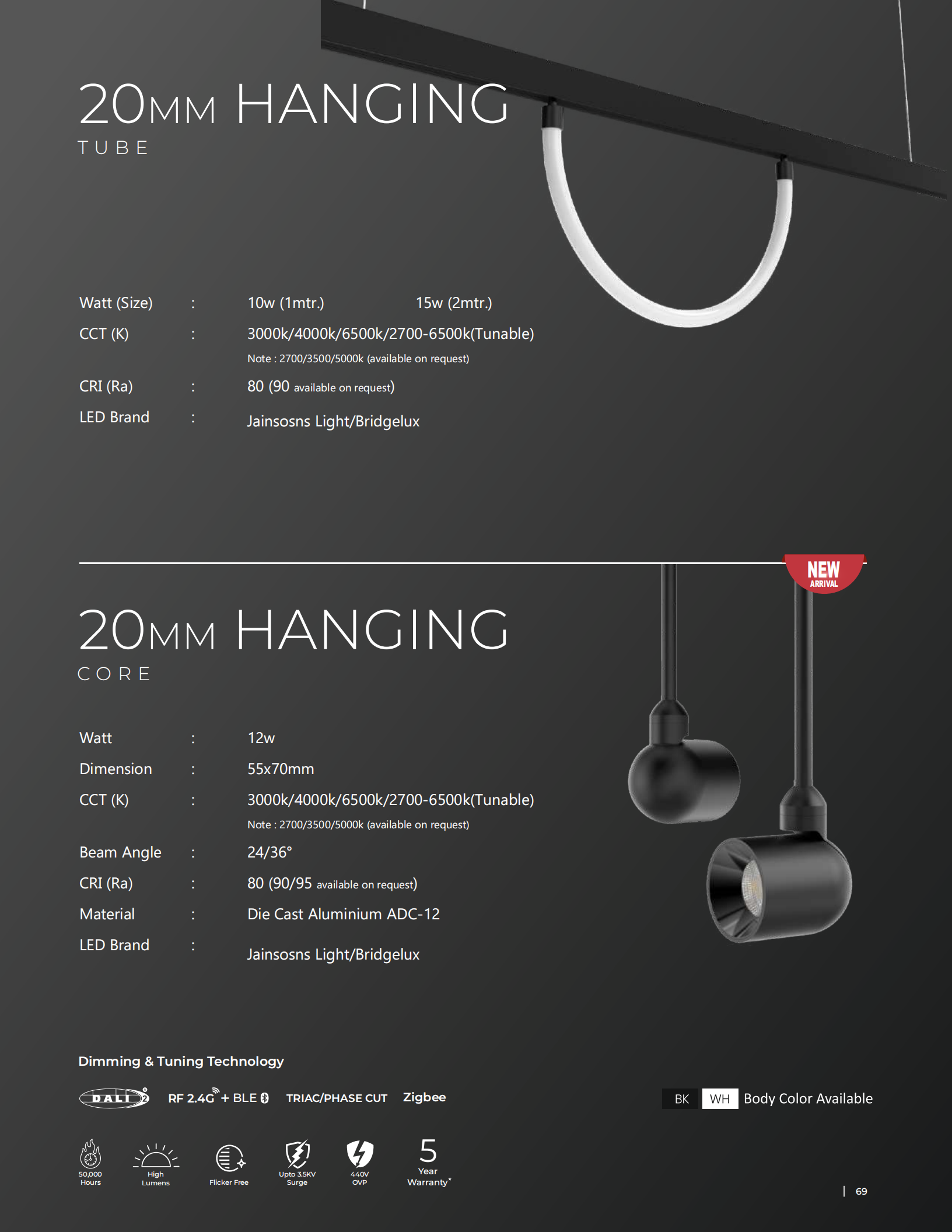

Magic Tube for 20mm Track 10W D: 20 mm, Length: 1 m 3k / 4k / 65k
Magic Tube for 20mm Track 15W D: 20 mm, Length: 2 m
Item Wattage Dimensions / Optics LED Colour Options

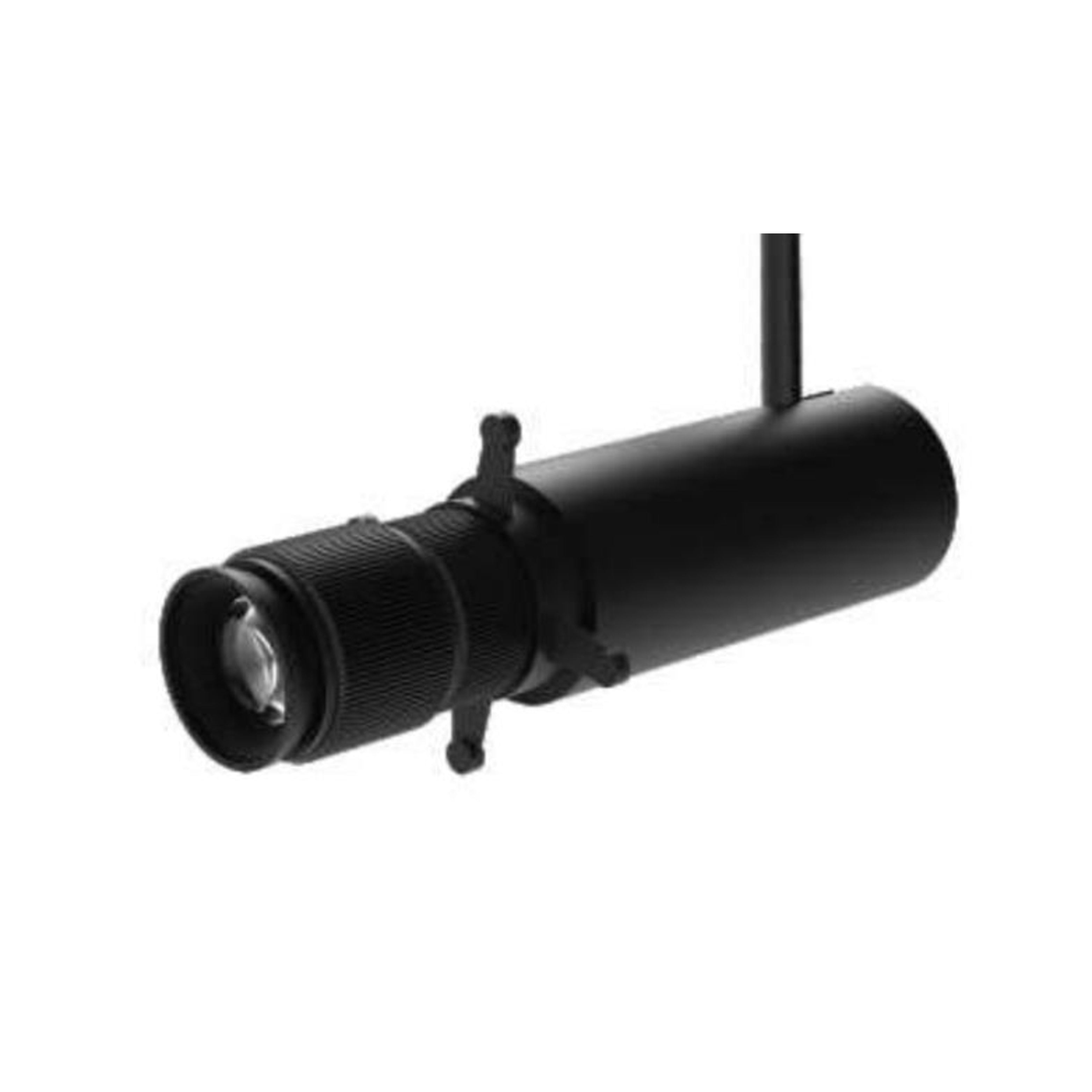

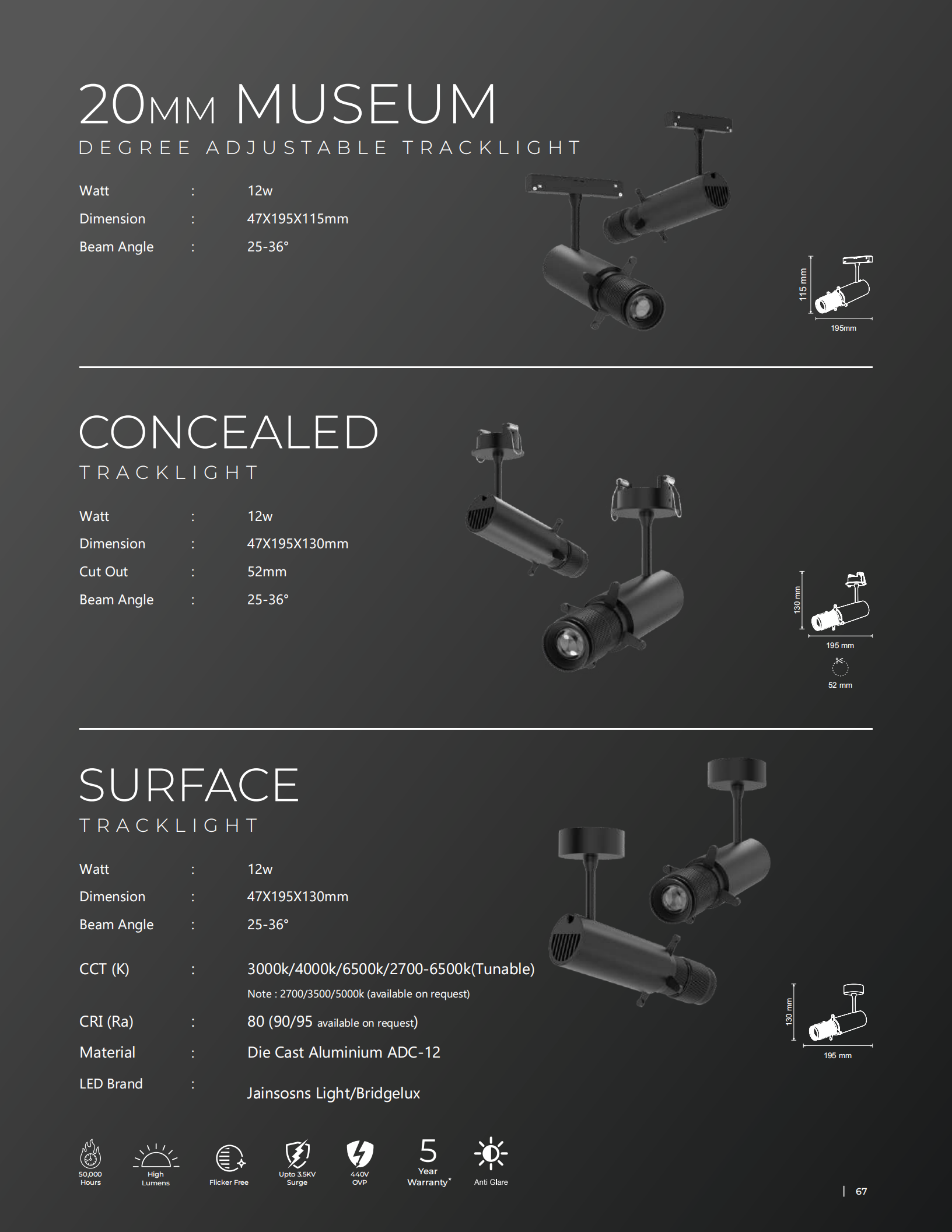

Magic GOBO Track (Beam Angle Adjustable) 12W 47 × 115 × 190 mm, 25–35°, 80/90 CRI 3k / 4k / 65k / Tunable

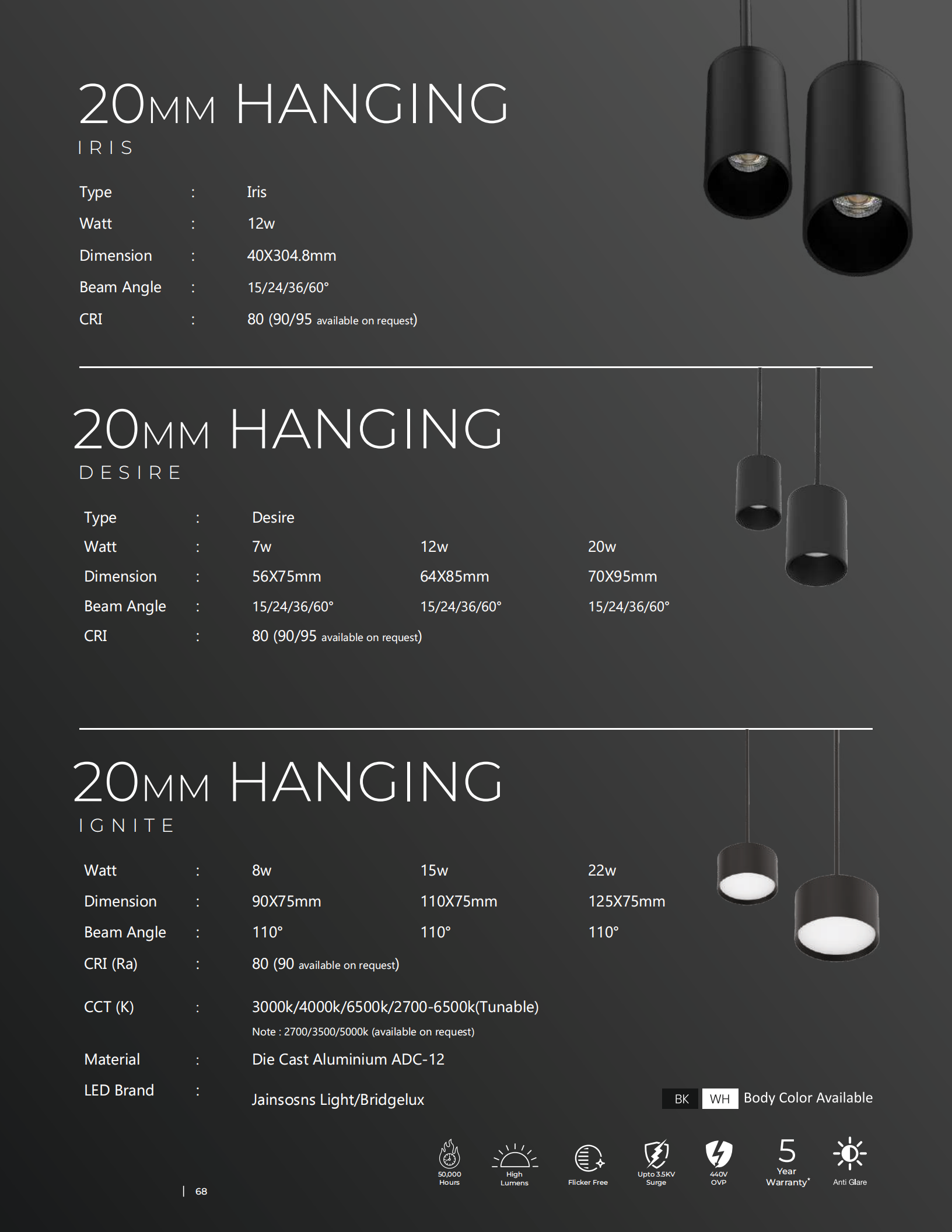

Magic Iris Hanging 12W Ø 40 × 304 mm, 24° / 36° / 55°, 80/90 CRI 3k / 4k / 65k / Tunable

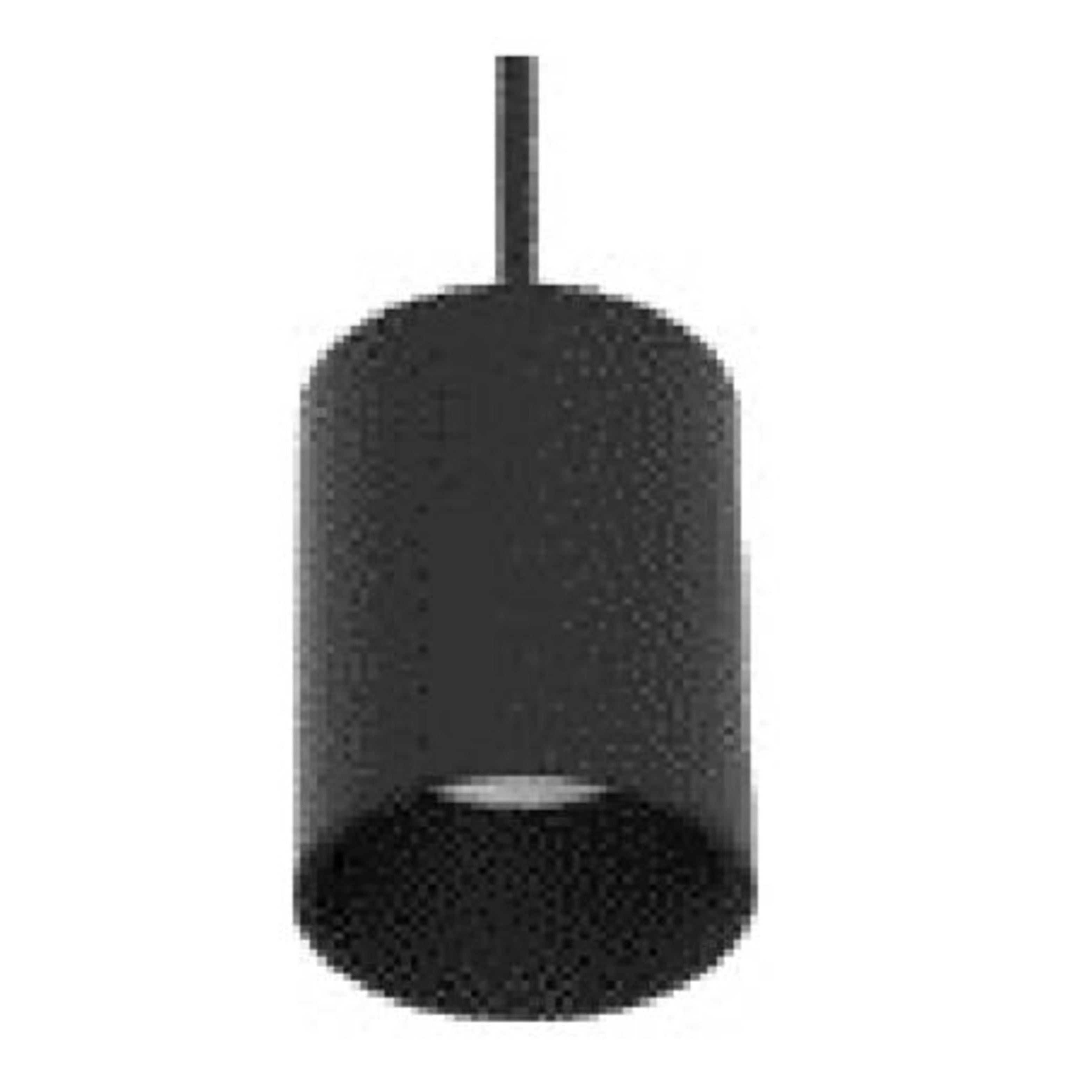

Magic Desire Hanging 7W 56 × 75 mm, 12° / 24° / 36° / 55°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Desire Hanging 12W 64 × 85 mm, 12° / 24° / 36° / 55°, 80/90 CRI
Magic Desire Hanging 20W 70 × 95 mm, 12° / 24° / 36° / 55°, 80/90 CRI

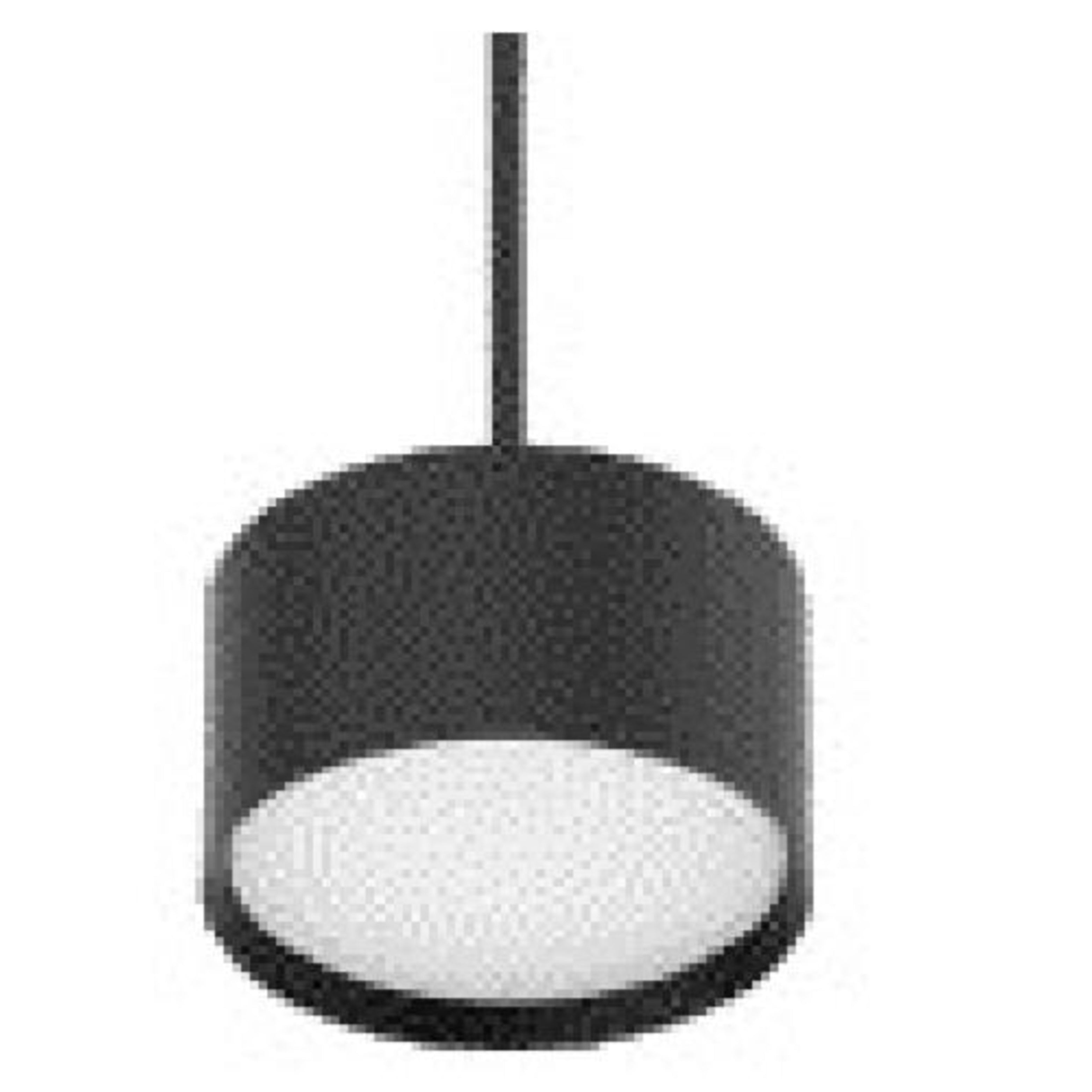

Magic Ignite Hanging 8W 90 × 75 mm, 110°, 80/90 CRI 3k / 4k / 65k / Tunable
Magic Ignite Hanging 15W 110 × 75 mm, 110°, 80/90 CRI
Magic Ignite Hanging 22W 125 × 75 mm, 110°, 80/90 CRI
Item Wattage Dimensions / Optics LED Colour Options

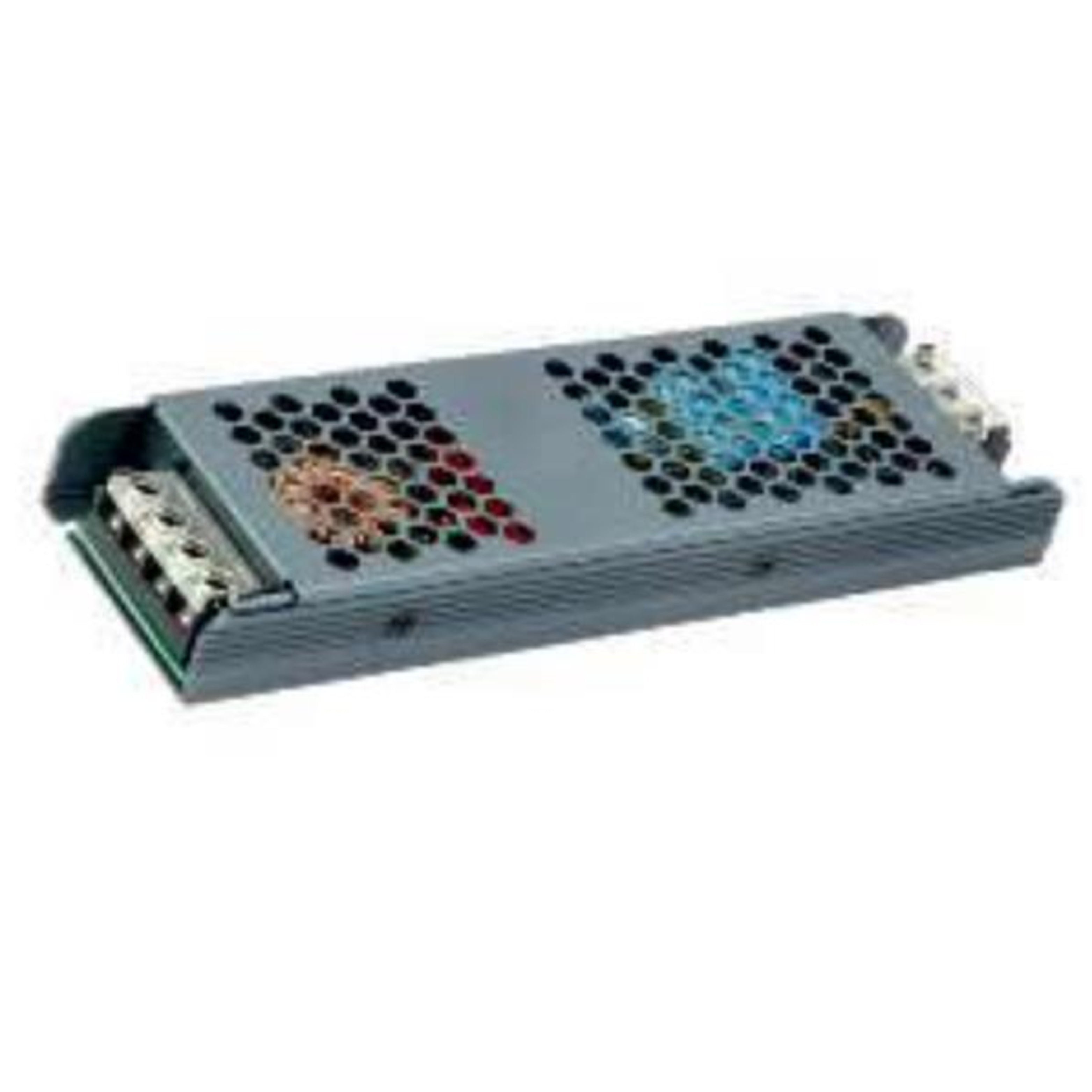

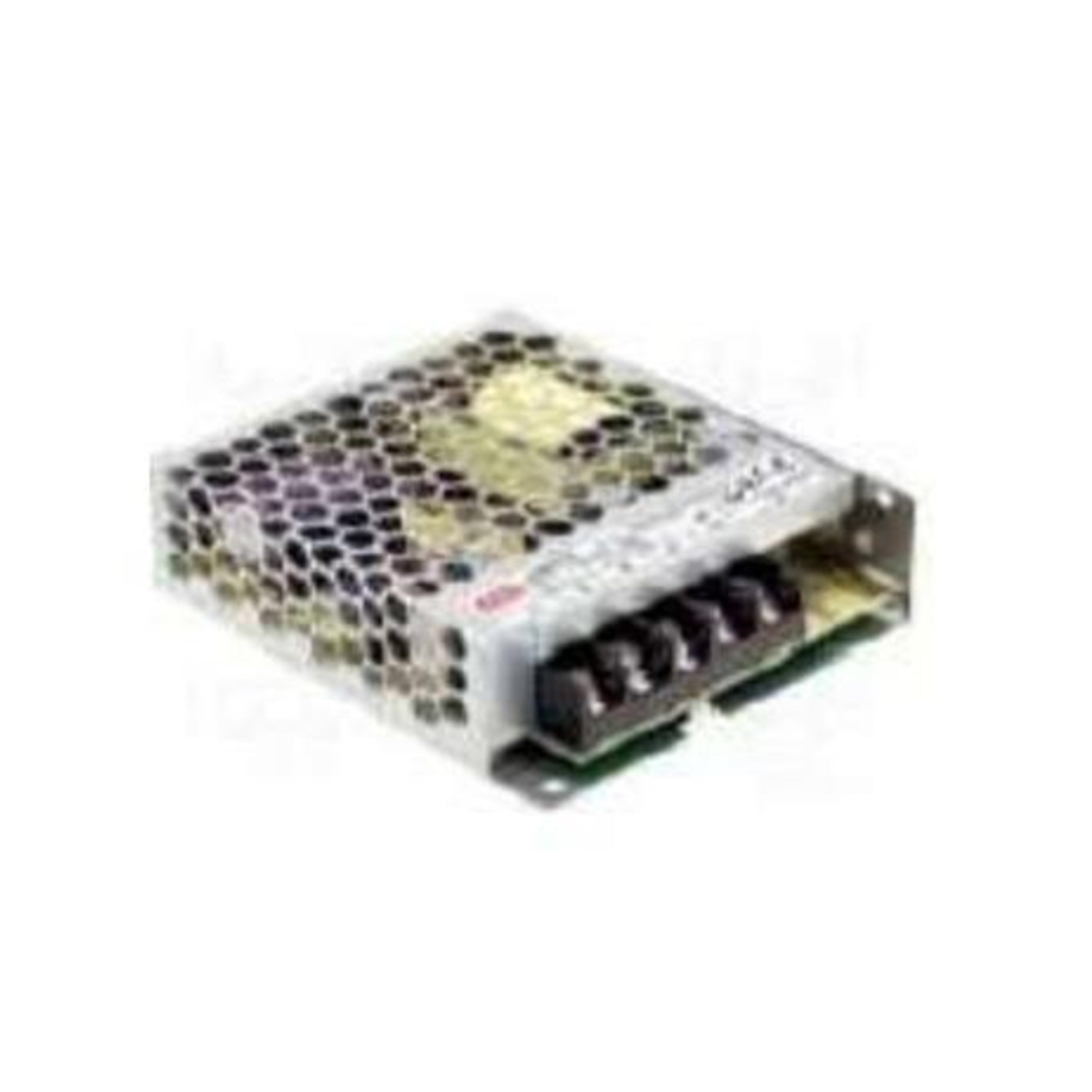

Magic 48V Power Supply 100W
Magic 48V Power Supply 200W
Magic External Power Supply 48V 100W
Magic External Power Supply 48V 200W
Magic External Power Supply 48V 300W
