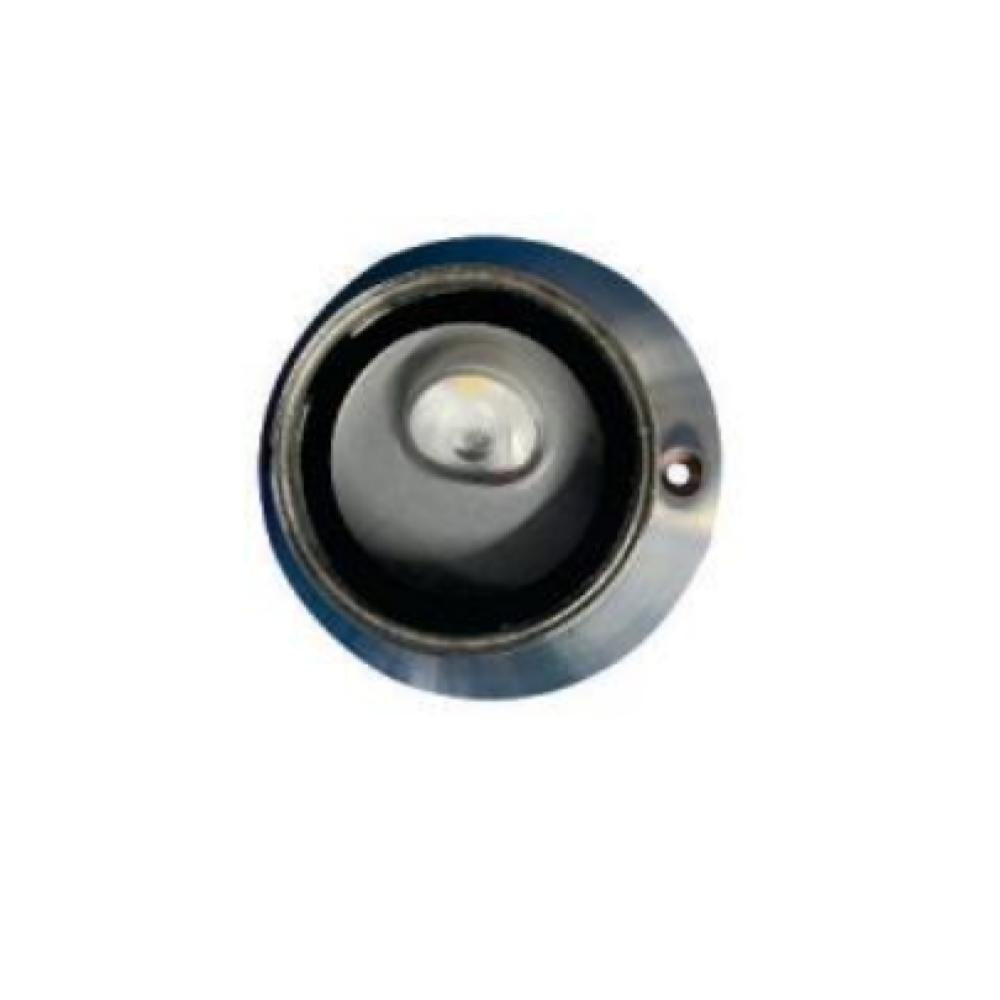

JSRC Stainless Steel Surface Mounted Underwater Pool Light | 3W–18W | 12V / 24V DC | IP68 | 2700K–RGBW | SS304 Body | Swimming Pool Light | Made in India | 2 Year Warranty

JSRC Stainless Steel Underwater Fountain Surface Spot Light | 1W–18W | 12V / 24V DC | IP68 | 2700K–RGBW | 15°–60° Beam | SS304 Body | IK08 | Made in India | 2 Year Warranty

Product Description
Customer Redressal
Exchange - Return - Cancellation

JSRC Stainless Steel Recessed Underwater Pool Light

The JSRC Stainless Steel Recessed Underwater Pool Light is a high-performance lighting solution designed for swimming pools, fountains, water bodies, and architectural underwater lighting applications.

Designed for recessed installation, this luminaire sits flush within pool walls or floors, providing a clean and seamless lighting effect while delivering powerful illumination.

Manufactured using SS-304 stainless steel, the fixture offers excellent corrosion resistance and durability, making it ideal for long-term underwater use. It is also available in SS-316 marine grade on request for highly corrosive environments such as saltwater pools.

Operating on safe low voltage (12V / 24V DC), the light ensures safe and reliable performance in submerged conditions. With an IP68 rating, it is fully protected against water ingress and suitable for continuous underwater use.

Available in a wide range of wattages from 1W to 24W, the luminaire is suitable for both ambient pool lighting and high-output illumination.

Key Features

• Recessed underwater pool light
• Designed for flush installation in pool walls & floors
• SS-304 stainless steel body construction
• Made in India
• IP68 waterproof (fully submersible)
• Safe low voltage operation: 12V / 24V DC
• Available wattages: 1W / 3W / 6W / 9W / 12W / 18W / 24W
• Lumens output: 60 / 180 / 360 / 540 / 720 / 1080 / 1440 lm
• High efficiency SMD LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• 5mm clear toughened glass
• IP68 connectors available on request
• High temperature silicon cable (1 meter length)
• 2 Years Warranty

LED Colour Options

Available in multiple colour temperatures and dynamic options:

• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• RGB
• RGBW

Beam Angle Options

Multiple beam options available:

• 15°
• 24°
• 36°
• 60°

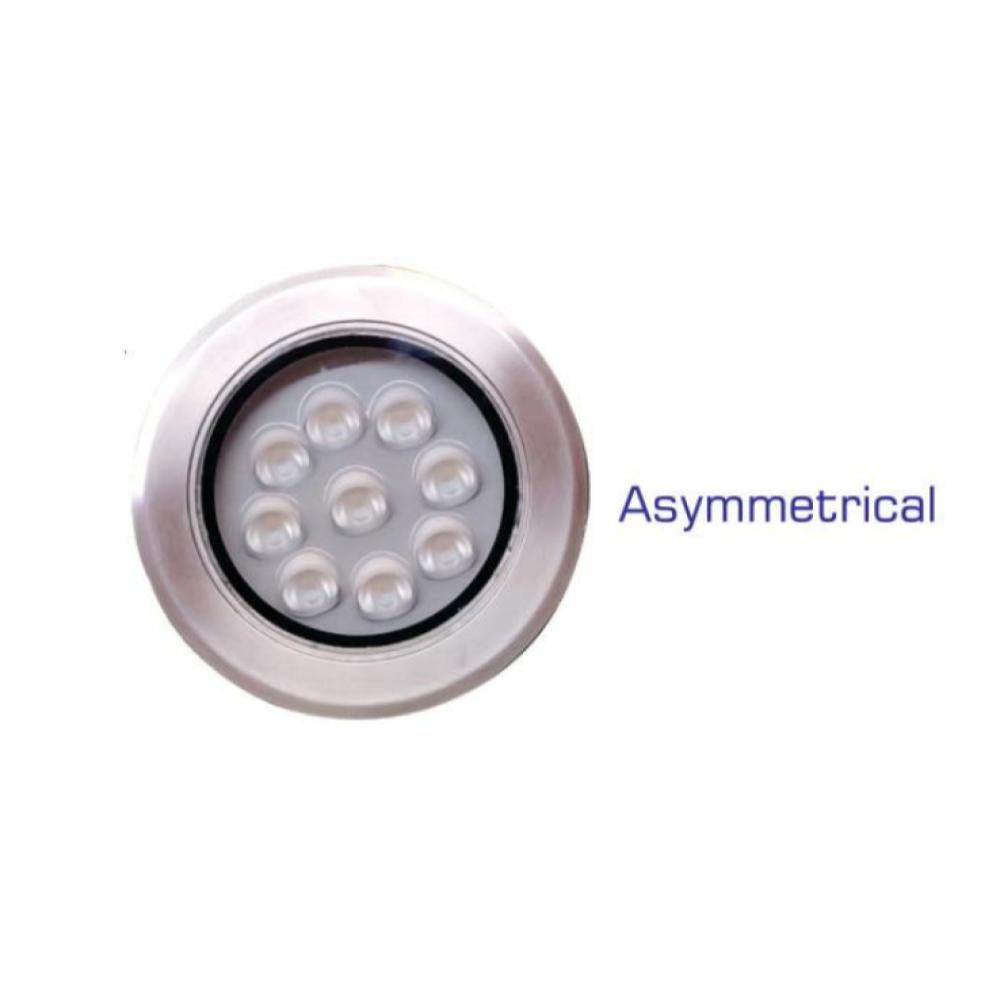

• Asymmetrical

These beam angles allow for focused lighting, wide spread illumination, or directional lighting effects inside pools.

Construction & Materials

• Body: SS-304 Stainless Steel
• Pre-Mount Housing: ABS casing
• Glass: 5mm clear toughened glass
• Ingress Protection: IP68
• Impact Protection: IK08
• LED Type: High efficiency SMD LEDs

Electrical & Installation

• Input Voltage: 12VDC / 24VDC
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 1 meter length
• Accessories: IP68 connectors available

Dimming & Control Options

Supports advanced lighting control systems:

• Triac dimming
• PWM dimming
• 1–10V dimming
• DALI dimming

Applications

Ideal for underwater and architectural lighting:

• Swimming pools
• Water bodies & fountains
• Resort and hotel pools
• Landscape water features
• Residential pools
• Commercial aquatic lighting

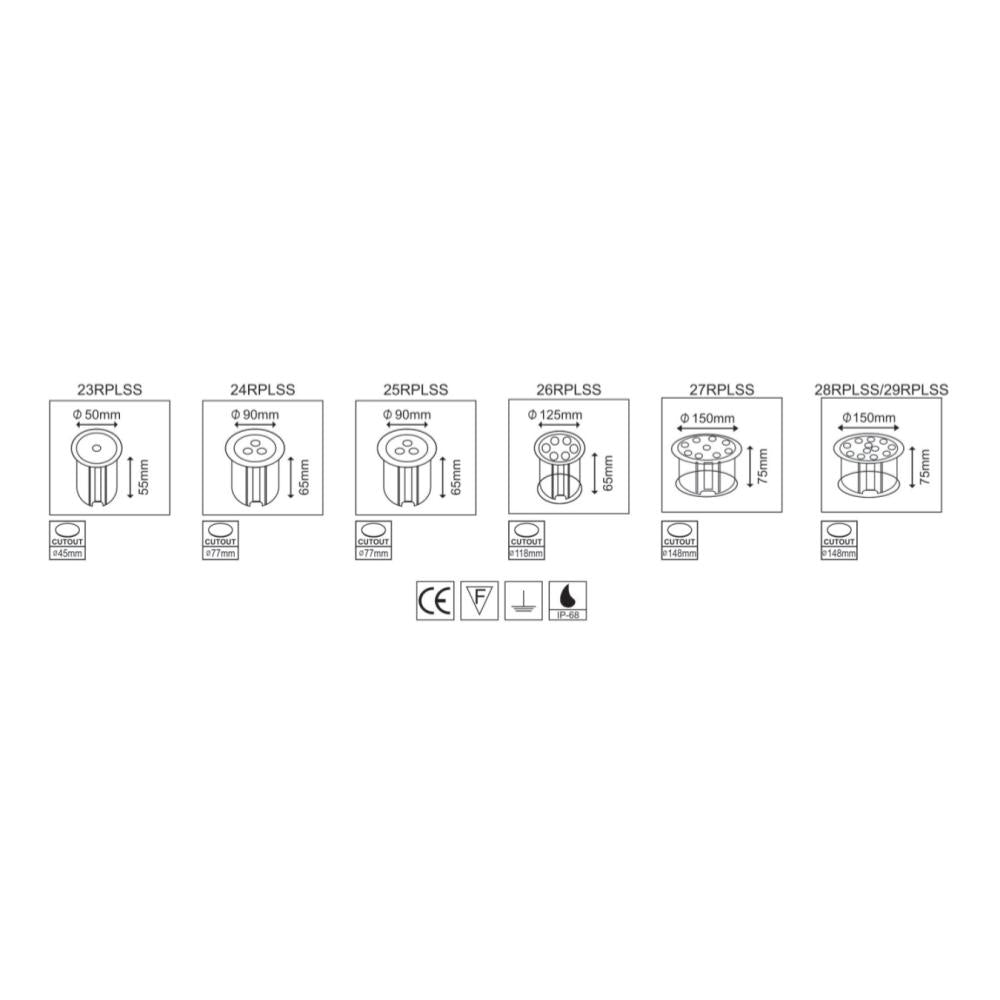

Technical Dimensions & Model Details

Type	Watt	No. of LEDs	Dimensions (OD x Cut-out x Depth)	IP Rating

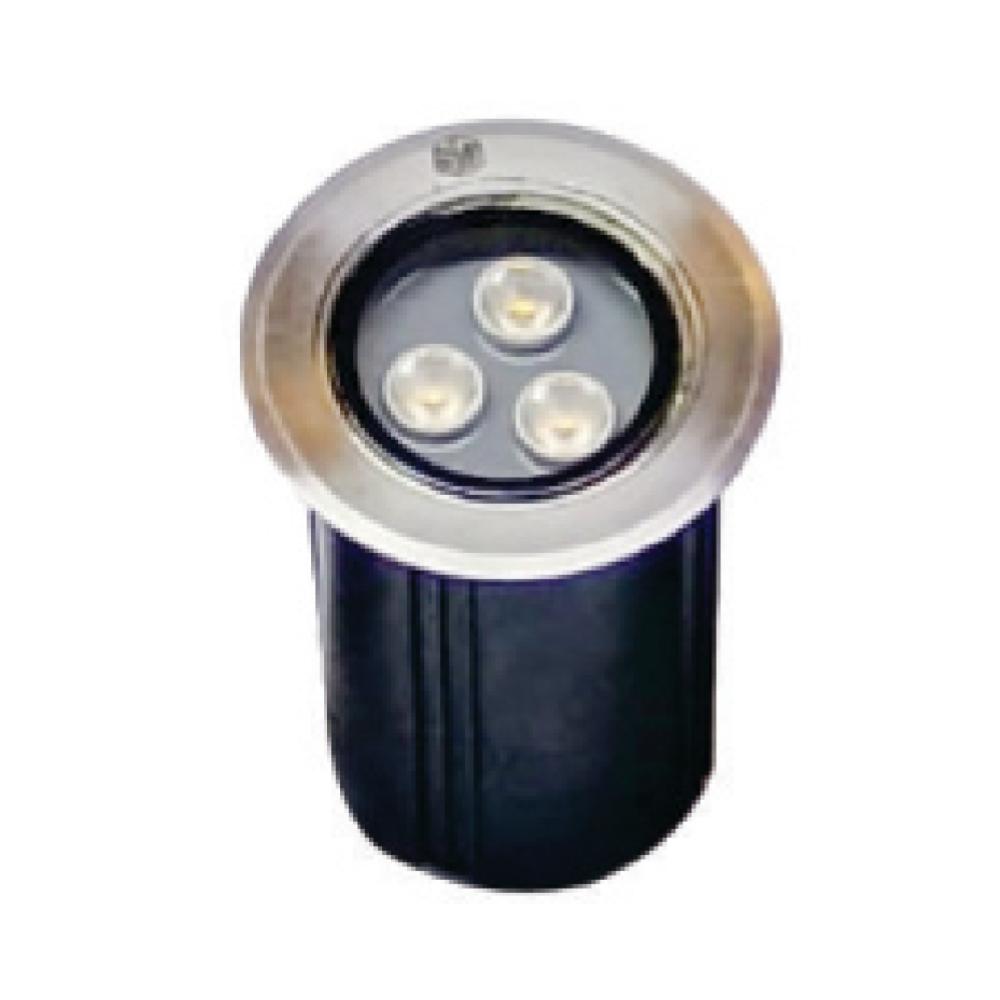

3W (3 LED x 1W) – 90mm	3W	3	OD 90mm x Cut 65mm x Depth 70mm	IP68
6W (3 LED x 2W) – 90mm	6W	3	OD 90mm x Cut 65mm x Depth 70mm	IP68
9W (3 LED x 3W) – 90mm	9W	3	OD 90mm x Cut 65mm x Depth 70mm	IP68

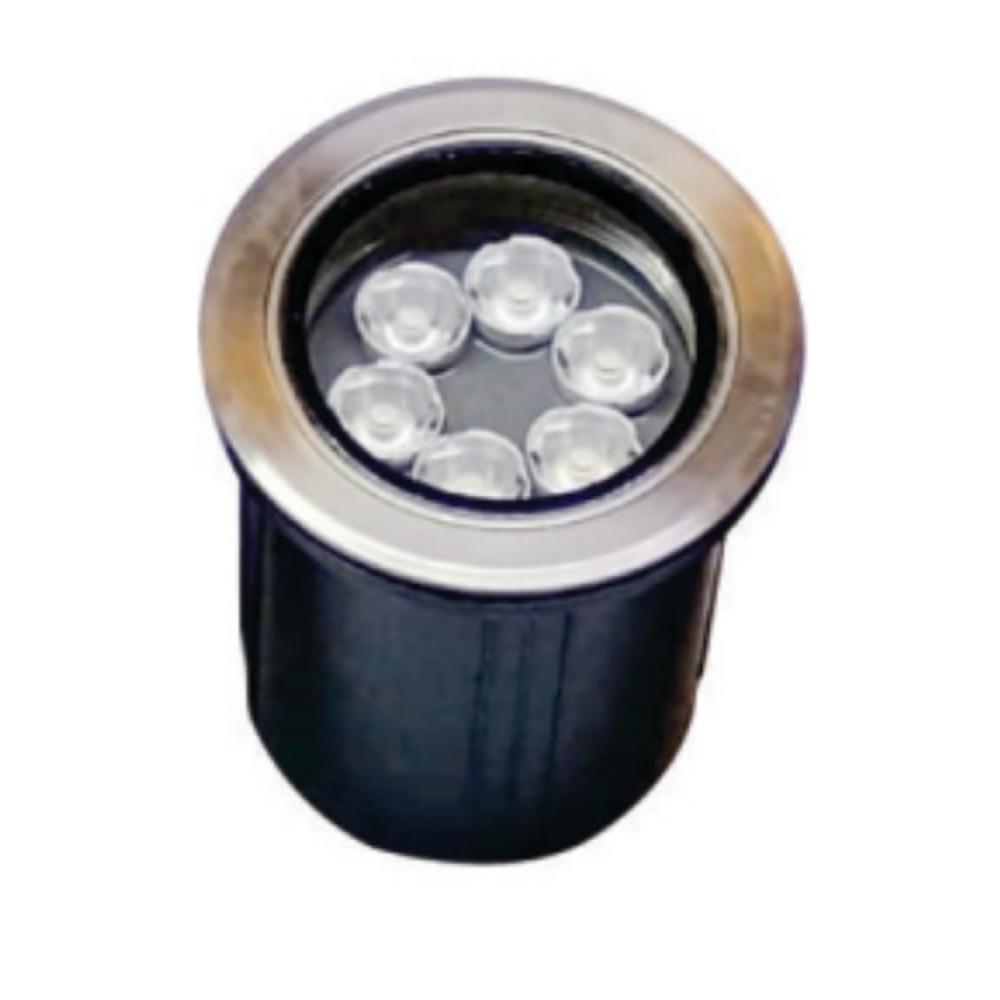

12W (6 LED x 2W) – 125mm	12W	6	OD 125mm x Cut 85mm x Depth 70mm	IP68
18W (9 LED x 2W) – 150mm	18W	9	OD 150mm x Cut 110mm x Depth 80mm	IP68

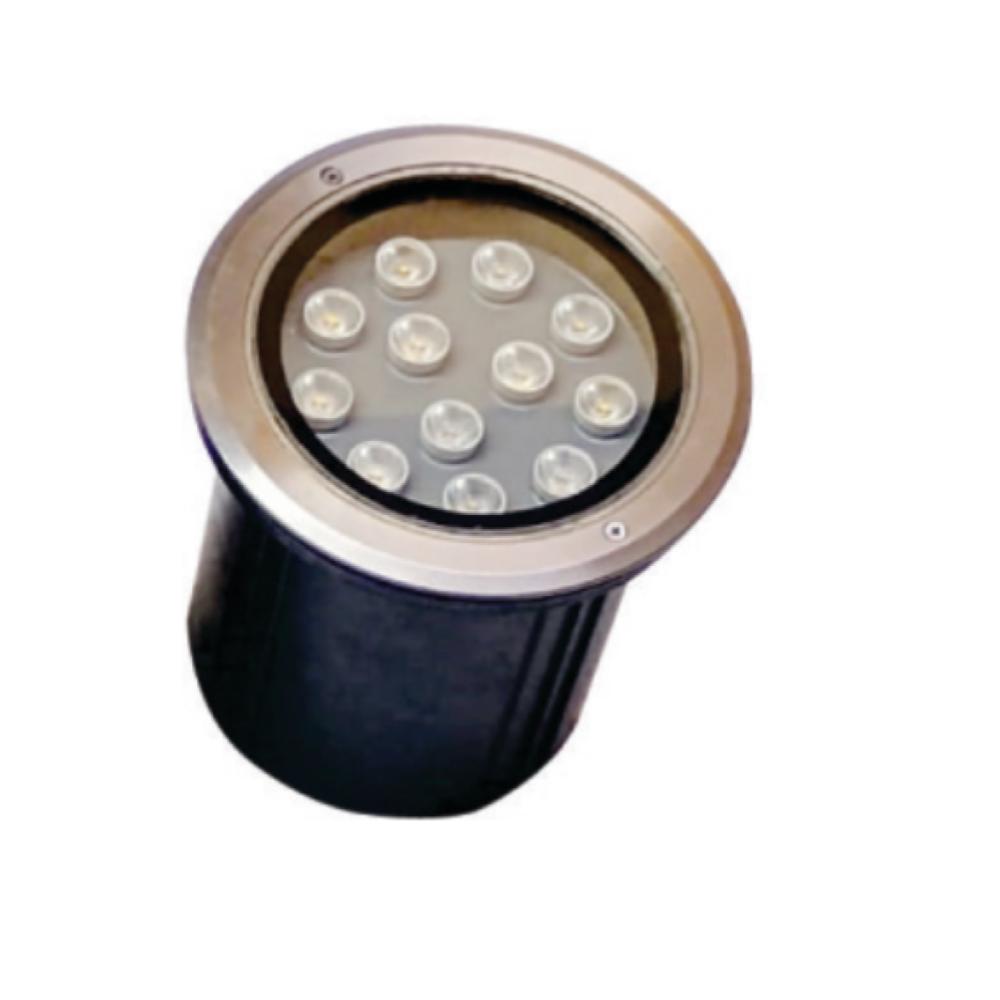

24W (12 LED x 2W) – 150mm	24W	12	OD 150mm x Cut 110mm x Depth 80mm	IP68

Notes

• All models are IP68 rated for underwater recessed installation
• Dimensions include outer diameter (OD), cut-out size, and installation depth
• Suitable for pool walls, floors, and underwater architectural applications
• Ensure proper waterproof installation with IP68 connectors

Product Description	Details
Body colour	Silver
Body material	Steel
Fixing type	Surface
Product family	JSRC
Type of item	Underwater In-Ground Burial Light
Warranty	2 years
