Product Description

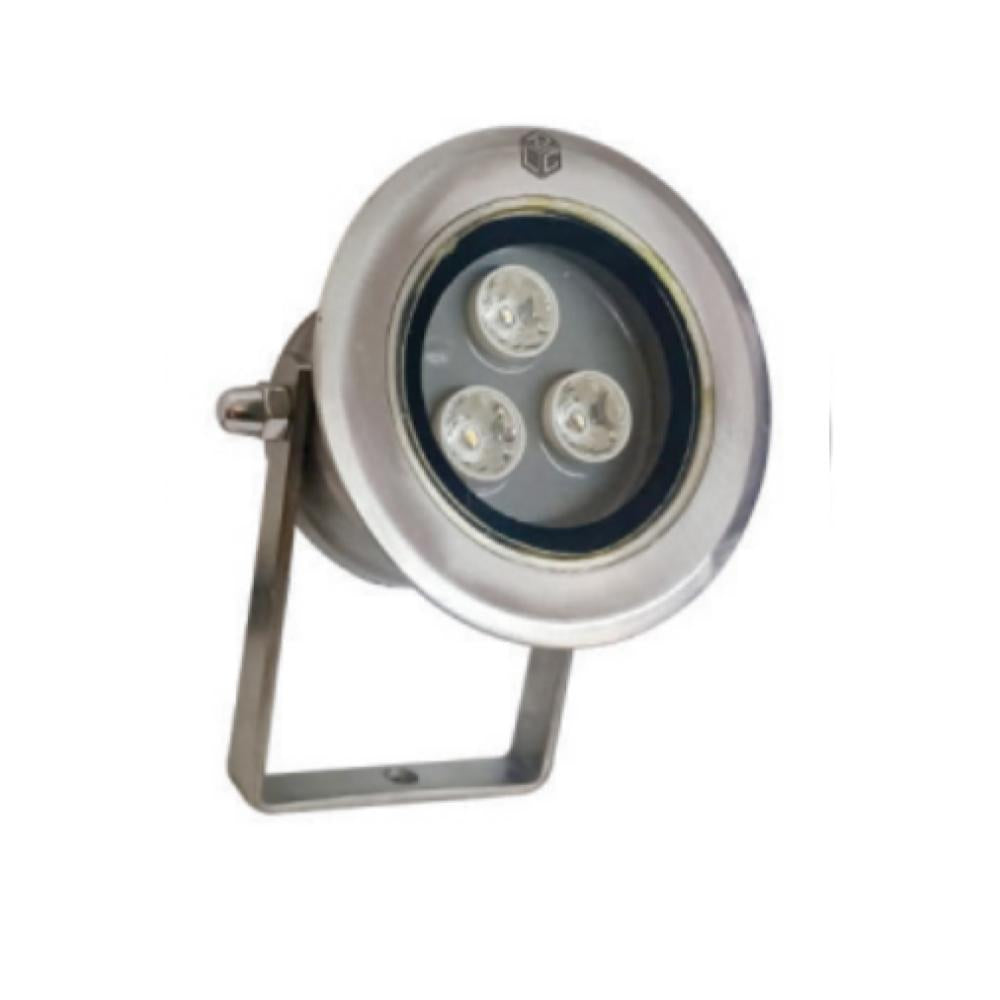

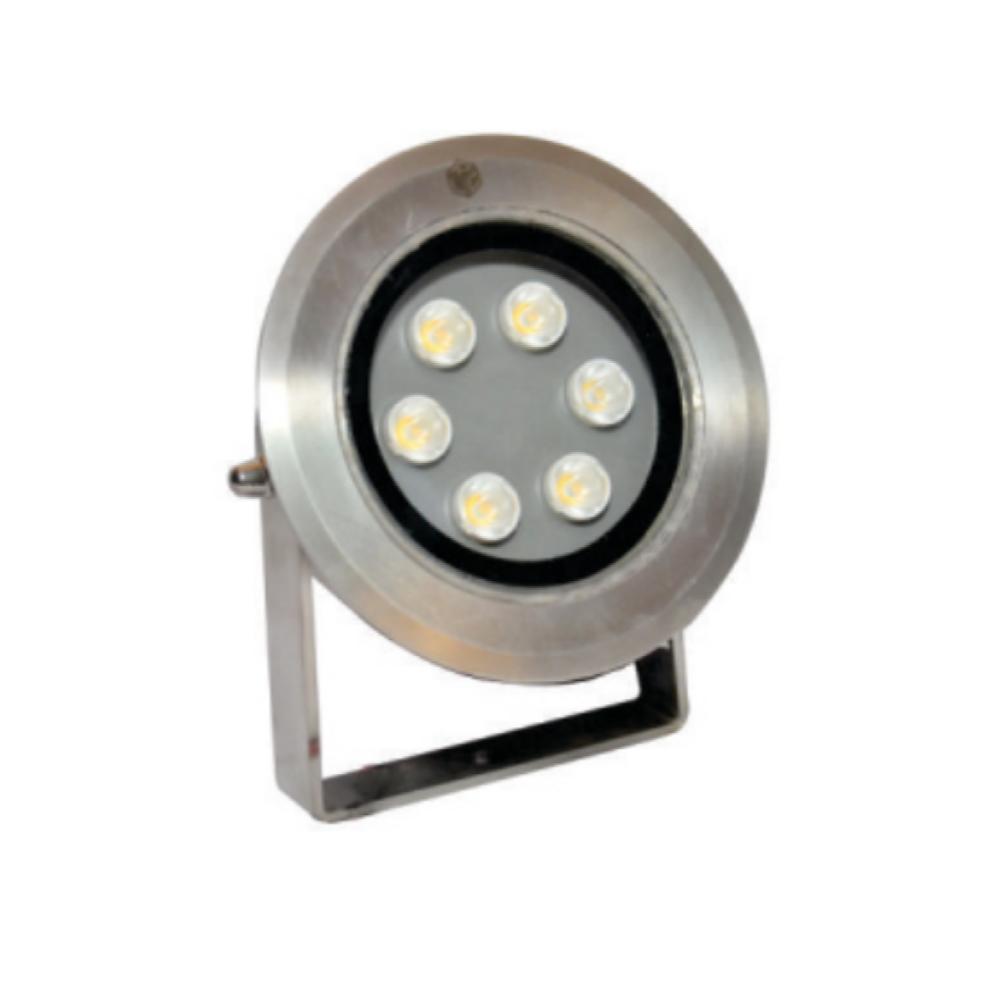

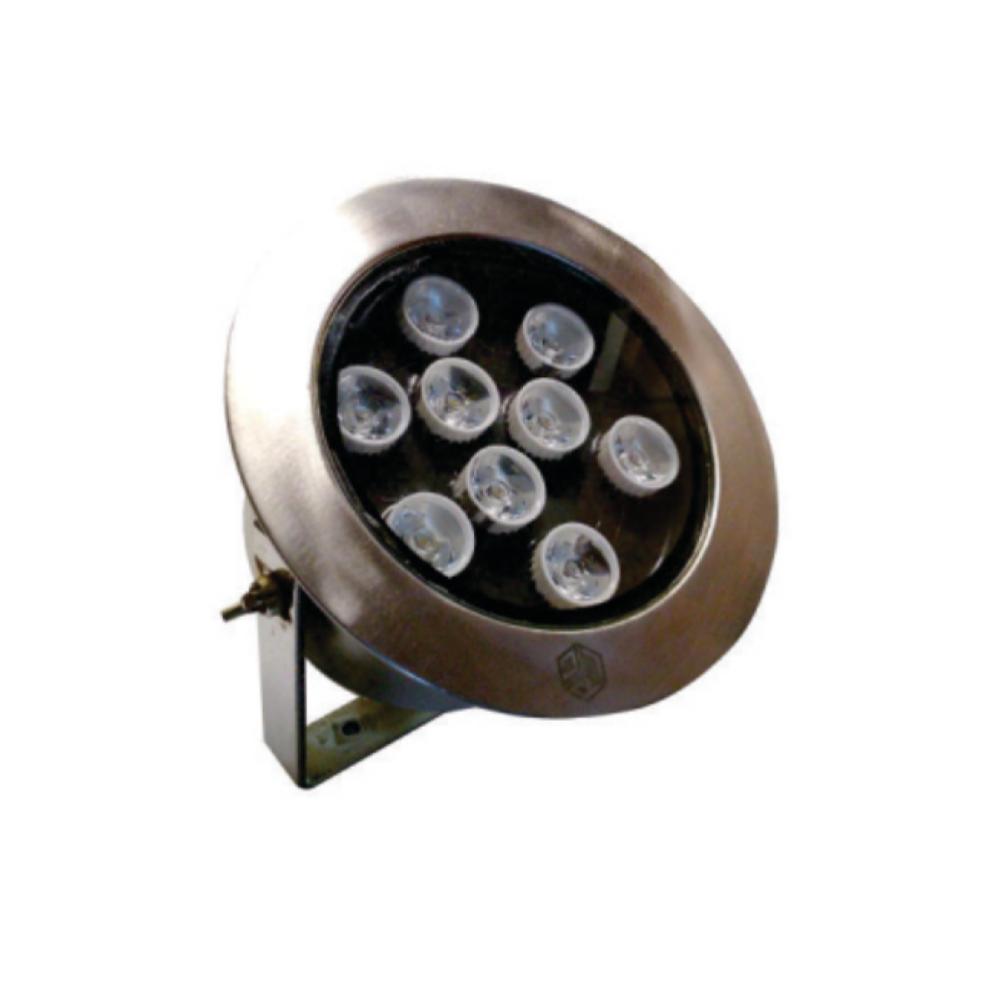

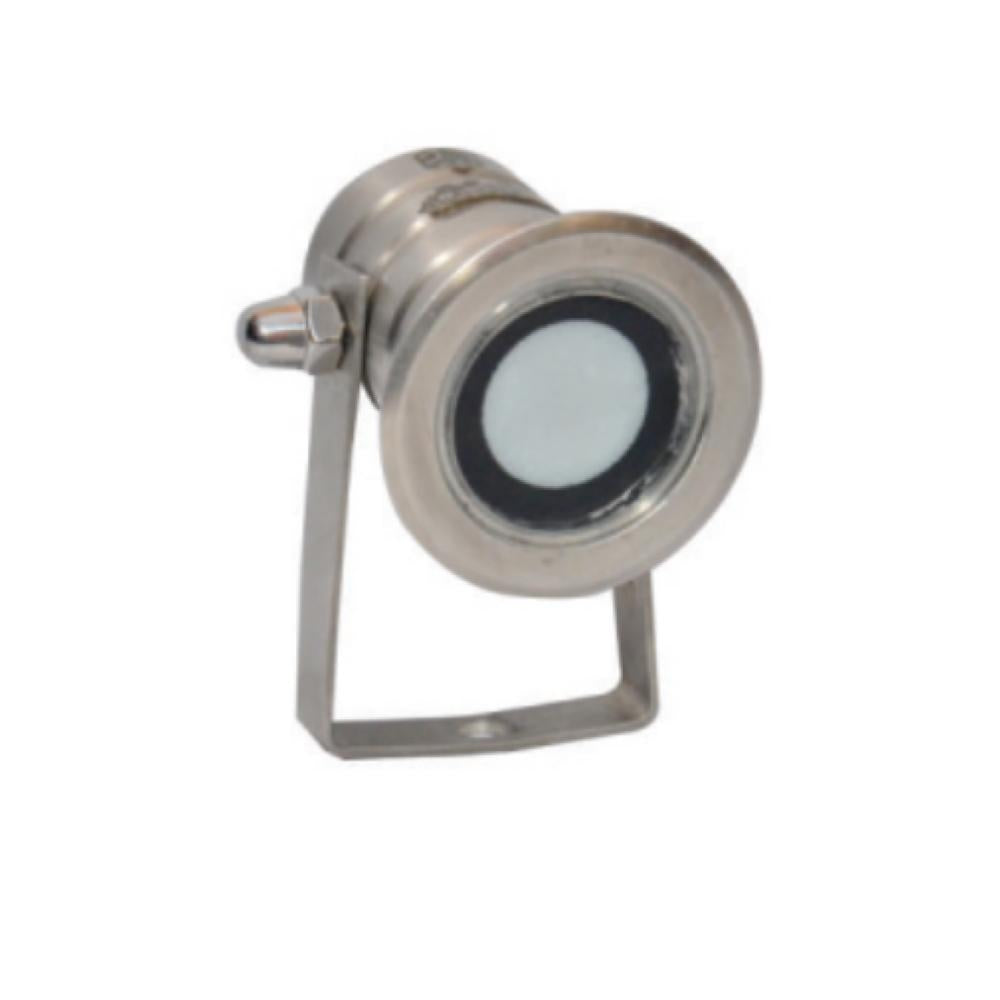

JSRC Stainless Steel Underwater Fountain Surface Spot Light

The JSRC Stainless Steel Underwater Fountain Surface Spot Light is a high-performance lighting fixture designed for fountains, water features, landscape lighting, and underwater architectural applications.

This luminaire is specially engineered for surface mounting inside fountains and water bodies, allowing precise directional lighting to enhance water jets, cascades, and architectural elements.

Constructed with a robust SS-304 stainless steel body, the fixture offers excellent corrosion resistance and durability, making it ideal for long-term use in submerged environments. It is also available in SS-316 marine grade on request for highly corrosive conditions.

Operating on safe low voltage (12V / 24V DC), the light ensures safe usage in underwater applications. With an IP68 rating, it provides complete protection against water ingress and is suitable for continuous submersion.

Available in wattages from 1W to 18W, this spotlight is suitable for both accent lighting and high-intensity fountain illumination.

---

Key Features

• Underwater fountain surface mounted spot light
• Designed for fountains, water jets, and water features
• Adjustable mounting bracket for directional lighting
• SS-304 stainless steel body construction
• Made in India
• IP68 waterproof (fully submersible)
• Safe low voltage operation: 12V / 24V DC
• Available wattages: 1W / 3W / 6W / 9W / 12W / 18W
• Lumens output: 60 / 180 / 360 / 540 / 720 / 1080 lm
• High efficiency SMD LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• 5mm clear toughened glass
• IP68 connectors available on request
• High temperature silicon cable (500mm length)
• 2 Years Warranty

---

LED Colour Options

Available in multiple static and dynamic lighting options:

• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• RGB
• RGBW

---

Beam Angle Options

Multiple beam options available:

• 15°
• 24°
• 36°
• 60°
• Asymmetrical
• Diffused

These options allow for focused jet lighting, wide fountain illumination, or soft diffused glow effects.

---

Construction & Materials

• Body: SS-304 Stainless Steel
• Optional: SS-316 Marine Grade (on request)
• Glass: 5mm clear toughened glass
• Ingress Protection: IP68
• Impact Protection: IK08
• LED Type: High efficiency SMD LEDs

---

Electrical & Installation

• Input Voltage: 12VDC / 24VDC
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 500mm length
• Accessories: IP68 connectors available

---

Dimming & Control Options

Supports advanced lighting control systems:

• Triac dimming
• PWM dimming
• 1–10V dimming
• DALI dimming

---

Applications

Ideal for underwater and architectural lighting:

• Decorative fountains
• Water jets and cascades
• Landscape water features
• Resorts and hotels
• Public water installations
• Garden fountains
• Architectural water elements

---

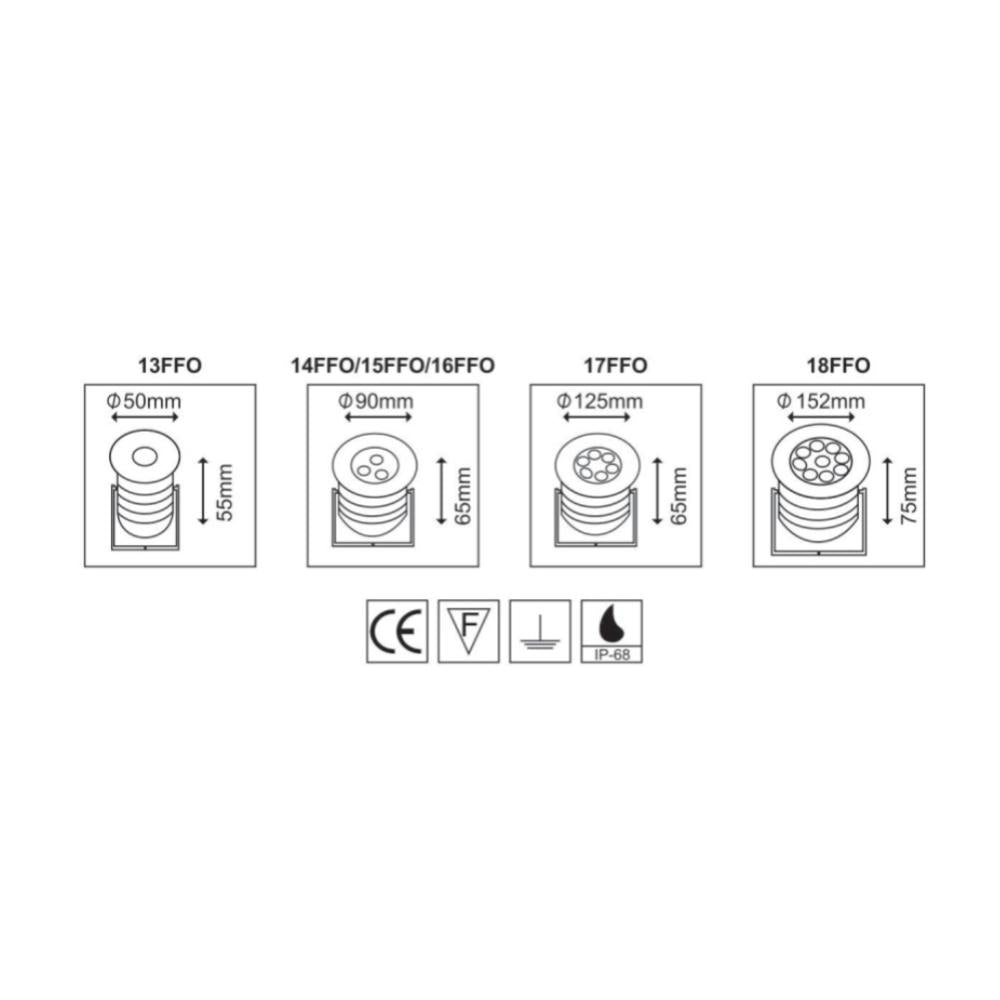

Technical Dimensions & Model Details

Type	Watt	No. of LEDs	Dimensions (OD x Height)
2W (1 LED x 2W) – 50mm	2W	1	OD 50mm x H 65mm
3W (3 LED x 1W) – 90mm	3W	3	OD 90mm x H 75mm
6W (3 LED x 2W) – 90mm	6W	3	OD 90mm x H 75mm
9W (3 LED x 3W) – 90mm	9W	3	OD 90mm x H 75mm
12W (6 LED x 2W) – 125mm	12W	6	OD 125mm x H 80mm
18W (9 LED x 2W) – 150mm	18W	9	OD 150mm x H 90mm

---

Notes

• All models are designed for surface mounting in underwater fountain applications
• Dimensions represent outer diameter (OD) and fixture height
• Suitable for directional lighting of water jets and fountain features
• Ensure proper installation using IP68-rated connectors and wiring



Product Description	Details
Body colour	Silver
Body material	Steel
Fixing type	Surface
Product family	JSRC
Type of item	Underwater Surface Spot Light
Warranty	2 years
