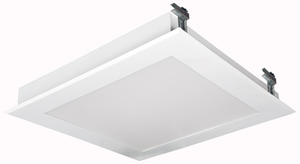

🧼 Cleanroom LED Panel Light – Bottom Openable | IP65 | 1×1 & 2×2

Our Cleanroom LED Panel Lights are specially designed for controlled environments where hygiene, reliability, and consistent illumination are critical.
Suitable for pharmaceutical manufacturing, laboratories, food & beverage units, healthcare facilities, and clean production areas, these luminaires ensure dust-tight performance, easy maintenance, and long operational life.

The product is offered in four variants, based on Series (Anant / Sauber) and Size (1×1 / 2×2), allowing you to select the right balance of performance, protection, and budget.

🔹 Variant Overview

1️⃣ Anant Series – 1×1 (300×300 mm)

(Premium | High Efficiency | Compact Cleanroom Areas)

This variant is ideal for inspection zones, smaller cleanrooms, and areas requiring higher lux levels in limited ceiling space.

Key Features:

High-efficiency LED system delivering higher lumen output per watt
Premium-grade internal components for stable long-hour operation
Bottom-openable design for easy access without disturbing the ceiling
IP54 protection from the room side, preventing dust and moisture ingress
Uniform, glare-free illumination using a non-yellowing opal diffuser
Robust CRCA powder-coated housing with SS hardware for hygiene compliance

Recommended for:
Pharma labs, weighing rooms, quality control areas, clean utility rooms

2️⃣ Anant Series – 2×2 (600×600 mm)

(Premium | High Output | Critical Cleanroom Zones)

Designed for larger cleanrooms and production floors, this variant delivers maximum illumination with excellent uniformity.

Key Features:

High system efficacy for energy-efficient, high-lux lighting
IP65 protection from bottom side, suitable for stringent cleanroom norms
Bottom-openable construction allows maintenance without contamination risk
Superior thermal management for longer LED life and consistent output
Sealed diffuser and gasket system ensures cleanroom integrity
Compatible with continuous operation environments

Recommended for:
Production halls, filling areas, sterile processing zones, pharma manufacturing floors

3️⃣ Sauber Series – 1×1 (300×300 mm)

(Standard | Cost-Effective | Cleanroom Compliant)

A value-driven solution for projects that require cleanroom-grade construction with controlled budgets.

Key Features:

Reliable LED performance with balanced light output
IP65 protection from bottom, suitable for most cleanroom applications
Bottom-openable design for quick servicing
Non-yellowing opal diffuser for comfortable, glare-free light
Powder-coated CRCA body designed for easy cleaning
Optimised for moderate operating hours

Recommended for:
Support cleanrooms, secondary pharma areas, packaging rooms, controlled storage areas

4️⃣ Sauber Series – 2×2 (600×600 mm)

(Standard | Wide Coverage | Budget-Friendly Large Areas)

Best suited for large-area illumination where cleanroom compliance is required without premium output demand.

Key Features:

Wide and uniform light distribution across large ceiling grids
IP65 bottom protection for dust-controlled environments
Bottom-openable panel simplifies maintenance activities
Durable housing with hygienic surface finish
Stable electrical performance with cleanroom-safe construction

Recommended for:
Warehousing clean areas, preparation zones, ancillary clean spaces, large controlled environments

⚙️ Common Features Across All Variants

Cleanroom-grade recessed LED panel design
Bottom openable access – no ceiling disturbance during maintenance
IP-rated protection from the room side
CRCA powder-coated housing with SS fasteners
Non-yellowing opal diffuser for uniform, glare-free lighting
Wide voltage operation for stable performance
Designed for long operating hours in controlled environments

🏥 Typical Applications

Pharmaceutical manufacturing & labs
Food & beverage processing units
Healthcare & hospital clean areas
Laboratories & testing facilities
Electronics & precision manufacturing

Specification	Anant 1×1 300×300 mm	Anant 2×2 600×600 mm	Sauber 1×1 300×300 mm	Sauber 2×2 600×600 mm
Series Positioning	Premium	Premium	Standard	Standard
Mounting Type	Recessed Cleanroom Panel
Opening Type	Bottom Openable (Screw / Screwless Push-Pull)
Ingress Protection (Room Side)	IP54 (Bottom)	IP65 (Bottom)	IP65 (Bottom)	IP65 (Bottom)
Impact Resistance	—	—	IK03	IK03
Housing / Body	CRCA Steel, Epoxy White Powder Coated
Bottom Frame & Hardware	SS 304
Diffuser	Non-Yellowing Opal Acrylic Diffuser
Gasket	XLPE Gasket
LED Make	Bridgelux (USA)
Colour Temperature	6500K / Monochromatic 575 nm / Dual
CRI	≥80 Ra
LED Efficacy	150 lm/W	150 lm/W	140 lm/W	140 lm/W
System Efficacy	115 lm/W	115 lm/W	100 lm/W	100 lm/W
Wattage	30W	45W	30W	45W
Driver Type	Constant Current Driver
Driver Brand	Premium Grade Driver	Premium Grade Driver	Eliante by Jainsons Lights	Eliante by Jainsons Lights
Input Voltage	230 VAC / 50 Hz
Operating Voltage Range	130 – 305 VAC
Power Factor	≥0.95
THD	≤15% @ 230 VAC
Surge Protection	4 kV
Short Time Over Voltage Protection	440 VAC for 8 Hours
Operating Temperature	-20°C to +50°C
Humidity Range	10% – 90% RH
Rated Lifetime	Industrial Grade	Industrial Grade	50,000 Hours	50,000 Hours
Warranty	36 Months	36 Months	24 Months	24 Months
Recommended Application	Critical Cleanrooms	Critical Cleanrooms	Utility Cleanrooms	Utility Cleanrooms
