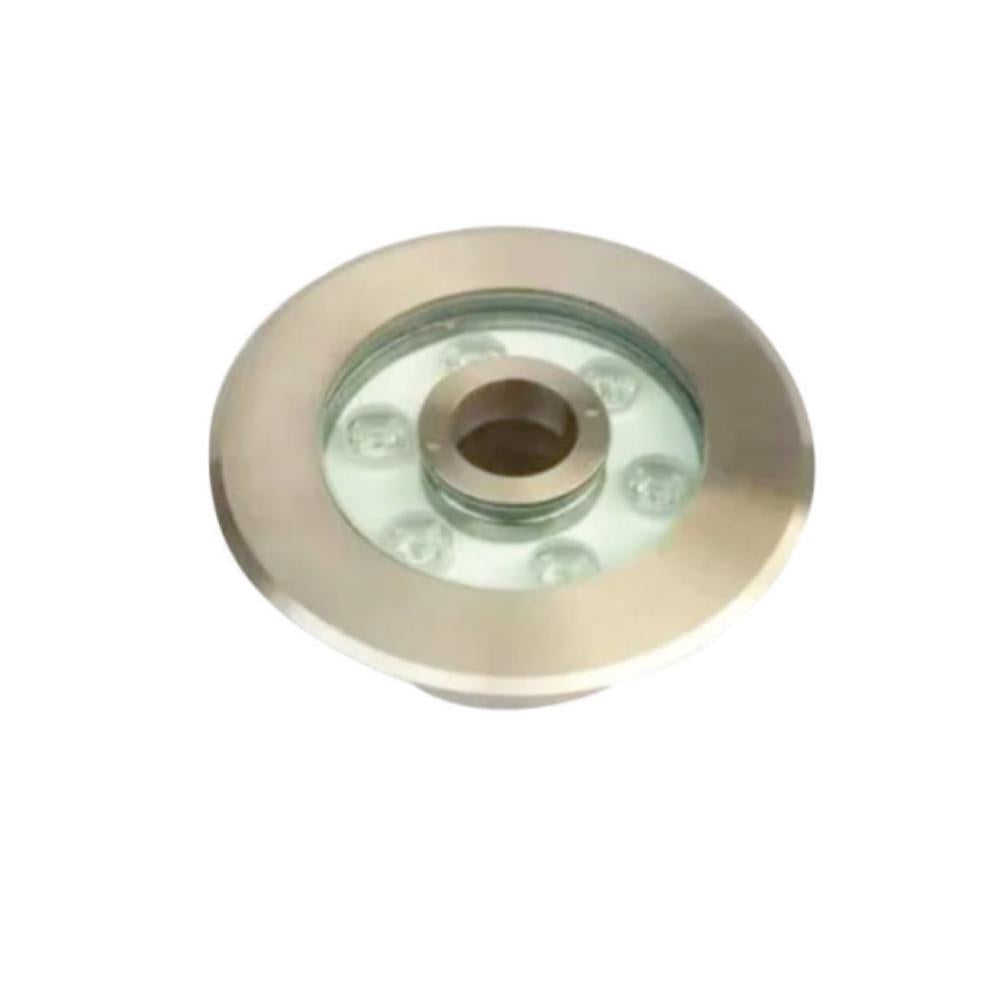

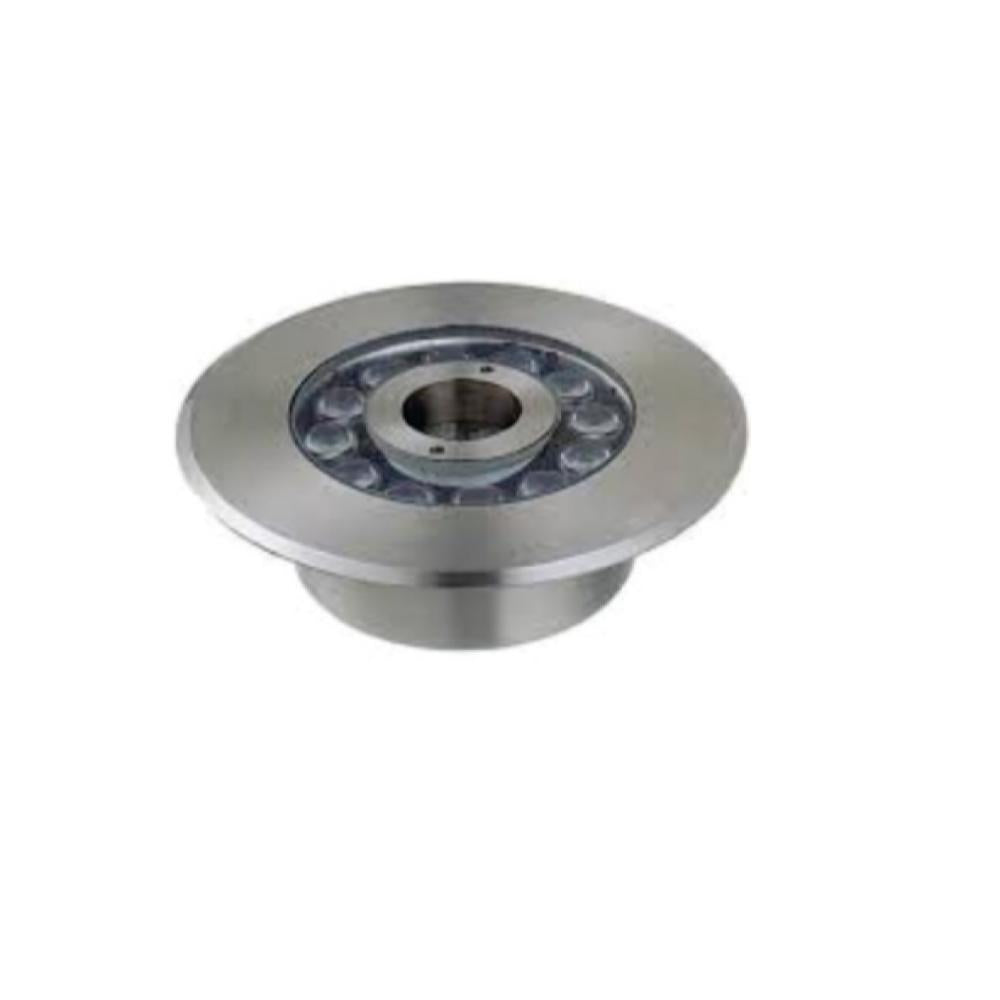

JSRC Stainless Steel Underwater Fountain Nozzle Mounted Light (Donut Type)

The JSRC Stainless Steel Underwater Fountain Nozzle Mounted Light (Donut Type) is a specialized lighting fixture designed for fountain jets, water nozzles, and decorative water features.

Engineered with a central nozzle opening (donut design), this luminaire is mounted directly around fountain nozzles to provide 360° illumination of water jets, creating visually striking lighting effects.

Constructed using a durable SS-304 stainless steel body, the fixture ensures excellent corrosion resistance and long-term reliability in underwater environments. It is also available in SS-316 marine grade on request for use in highly corrosive conditions.

Operating on safe low voltage (12V / 24V DC), the light is ideal for underwater applications. With an IP68 rating, it is fully protected against water ingress and designed for continuous submersion.

Available in 6W, 12W, and 18W options, the fixture delivers powerful illumination for both small and large fountain installations.

---

Key Features

• Underwater fountain nozzle mounted light (donut type)
• Designed for 360° illumination around fountain nozzles
• SS-304 stainless steel body construction
• Made in India
• IP68 waterproof (fully submersible)
• Safe low voltage operation: 12V / 24V DC
• Available wattages: 6W / 12W / 18W
• Lumens output: 350 / 580 / 960 lm
• Nozzle compatibility: 40mm / 65mm
• High efficiency SMD LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• 5mm clear toughened glass
• IP68 connectors available
• High temperature silicon cable (500mm length)
• 2 Years Warranty

---

LED Colour Options

Available in multiple colour temperatures and dynamic options:

• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• RGB
• RGBW

---

Beam Angle Options

Multiple beam options available:

• 15°
• 24°
• 36°
• 60°

These beam angles allow for focused jet illumination or wider glowing water effects.

---

Construction & Materials

• Body: SS-304 Stainless Steel
• Optional: SS-316 Marine Grade (on request)
• Glass: 5mm clear toughened glass
• Ingress Protection: IP68
• Impact Protection: IK08
• LED Type: High efficiency SMD LEDs

---

Electrical & Installation

• Input Voltage: 12VDC / 24VDC
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 500mm length
• Accessories: IP68 connectors available

---

Dimming & Control Options

Supports advanced lighting control systems:

• Triac dimming
• PWM dimming
• 1–10V dimming
• DALI dimming

---

Applications

Ideal for:

• Fountain jet lighting
• Nozzle illumination systems
• Musical fountains
• Decorative water features
• Public fountains
• Hotels & resorts
• Landscape fountain designs

---

Technical Dimensions & Model Details

Type	Watt	No. of LEDs	Dimensions (OD x Height)	IP Rating
6W (6 LED x 1W) – 125mm	6W	6	OD 125mm x H 50mm	IP68
9W (9 LED x 1W) – 125mm	9W	9	OD 125mm x H 50mm	IP68
12W (6 LED x 2W) – 150mm	12W	6	OD 150mm x H 50mm	IP68
18W (9 LED x 2W) – 150mm	18W	9	OD 150mm x H 50mm	IP68

---

Notes

• Designed for nozzle-mounted fountain applications (donut type)
• Provides 360° illumination around water jets
• Dimensions represent outer diameter (OD) and fixture height
• Compatible with standard 40mm / 65mm nozzle sizes
• Ensure proper waterproof installation using IP68 connectors



Product Description	Details
Body colour	Silver
Body material	Steel
Fixing type	Surface
Product family	JSRC
Type of item	Underwater Surface Spot Light
Warranty	2 years
