JS-LYT BF Series Waterproof Dimmable LED Driver 12V/24V 150W-200W – IP67, Triac/0-10V/PWM

Rs. 3,861.79 - Rs. 4,167.81
Tax included. Shipping charged as per actual — confirmed before dispatch.
Voltage: 12V
Wattage: 150W
Rs. 3,861.79
Rs. 18,181.70 Rs. 3,861.79
-79%
In Stock — Ready to ShipOrder today and we dispatch within 2 business days. Ships from · Mumbai
Shipping details

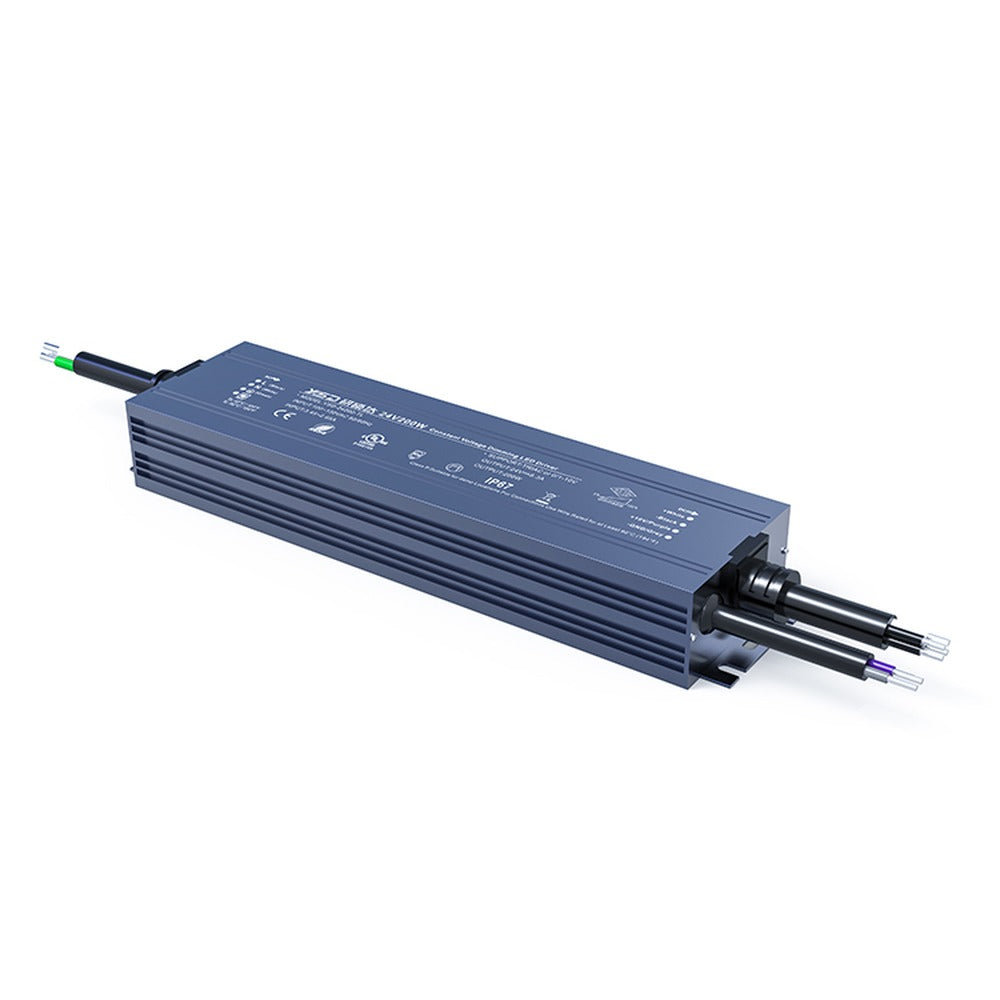

JS-LYT BF Series Waterproof Dimmable LED Driver — official YSD photo (IP67, Triac/0-10V dimming)
Rs. 3,861.79
Rs. 18,181.70 Rs. 3,861.79

YSD “BF” Series IP67 Dimmable LED Power Supply

YSD “BF” Series IP67 Dimmable LED Power Supply — IP67 rated, 12V/24V constant-voltage LED power supply, available from 150W to 200W.

YSD “BF” Series IP67 Dimmable LED Power Supply

Key features

  • Designed for outdoor installations
  • Triac / 0-10V / 1-10V / 10V PWM / Resistor dim
  • Soft and smooth, flicker-free, jitter-free
  • Dimming range: 0~100%, LED starts at 1% possible
  • 0-100% flicker-free, high frequency exemption level
  • A variety of dimming methods, simultaneous control, no interference

Available voltage and wattage combinations

Voltage: 12V, 24V
Wattage: 150W, 200W

Amperage table

Voltage Wattage Amperage
12V 150W 12.5A
12V 200W 17A
24V 150W 6.25A
24V 200W 8.33A

Dimensions (L x W x H)

Voltage Wattage Dimensions
12V 150W 238x61x32mm
12V 200W 238x61x32mm
24V 150W 238x61x32mm
24V 200W 238x61x32mm

IP rating and installation environment

IP67 — suitable for indoor or outdoor installation, subject to correct installation.

Dimming protocol

Triac / 0–10V / 1–10V / 10V PWM / Resistor dim

Warranty & GST

  • GST: 18% extra
  • Warranty: 2 years
  • No warranty for human damage, wrong wiring, overload use, or environmental factors

Selection & installation guidance

  • Choose a driver wattage at least 20% above your connected LED load for reliable long-term operation.
  • Match the driver voltage (12V / 24V / 48V) to your LED strip or fixture's rated voltage — do not mix voltages.
  • Electrical installation should be completed by a qualified professional.
Specification Details
Body material Metal (sealed aluminium housing)
Dimming method Triac / 0–10V / 1–10V / 10V PWM / Resistor dim
Input voltage 12V, 24V
Ip rating IP67
Product family JS-LYT
Shape Linear
Type of item Constant Voltage Driver
Warranty 2 Years
Wattage 150W, 200W
