JS-LYT H Series LED Driver 12V/24V 36W-250W – Ultra Slim Constant Voltage SMPS, IP20

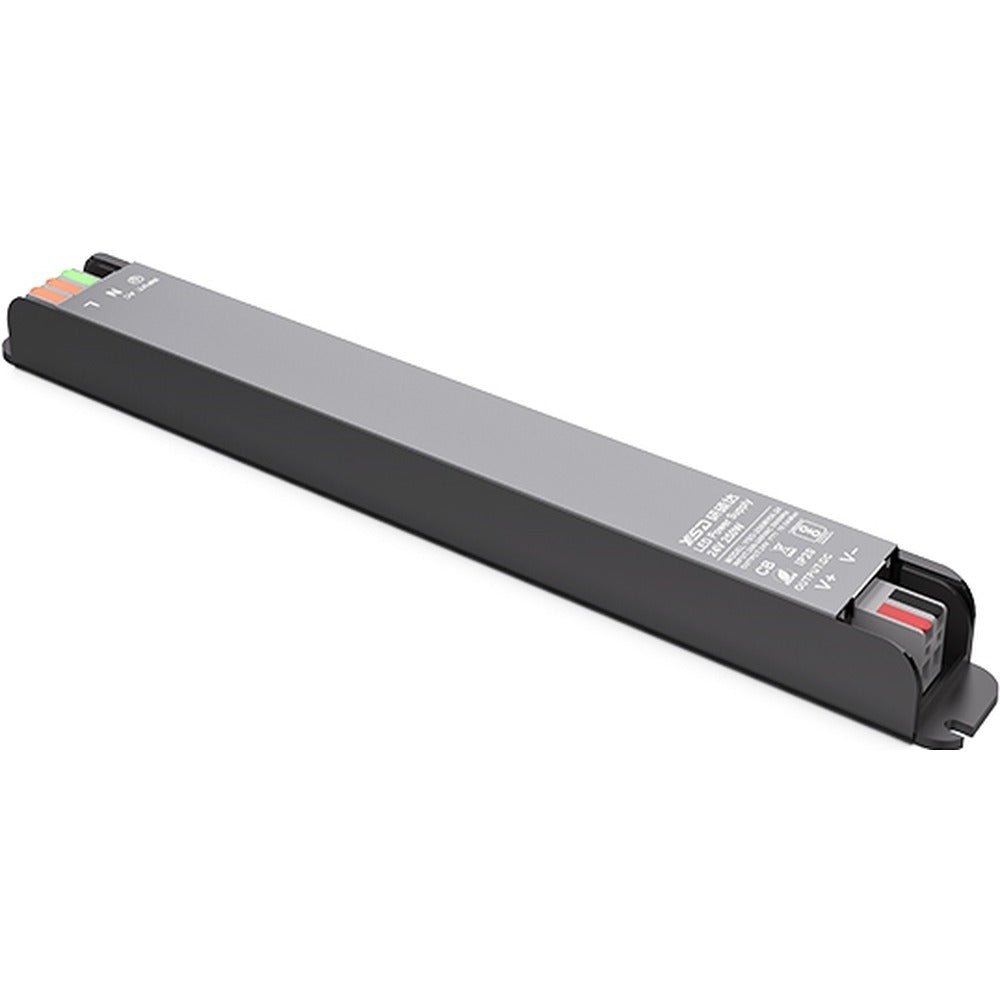

YSD Ultra Fine “H Series” SMPS – IP20

YSD Ultra Fine “H Series” SMPS – IP20 — IP20 rated, 12V/24V constant-voltage LED power supply, available from 36W to 250W.

Key features

• Crimp-type wiring, flexible installation
• High power density, small size & Ultrafine design
• Height only 18mm to 23mm
• Saving installation space
• Suitable for internal lights application

Available voltage and wattage combinations

Voltage: 12V, 24V
Wattage: 36W, 60W, 100W, 150W, 200W, 250W

Amperage table

Dimensions (L x W x H)

Not specified by the supplier for this product — pending confirmation.

IP rating and installation environment

IP20 — indoor, dry-location use only. Water damage is not covered under warranty for IP20 products.

Protection features

Over-temperature, Over-current, Short circuit

Suitable applications

Internal LED lighting application

Warranty & GST

• GST: 18% extra
• Warranty: 2 years
• No warranty for human damage, wrong wiring, overload use, or environmental factors

Water damage is not covered under warranty for IP20/IP40 rated variants.

Selection & installation guidance

• Choose a driver wattage at least 20% above your connected LED load for reliable long-term operation.
• Match the driver voltage (12V / 24V / 48V) to your LED strip or fixture's rated voltage — do not mix voltages.
• Electrical installation should be completed by a qualified professional.

Notes on this listing

36W variant: physical dimensions are not specified anywhere in the supplier catalogue (the spec table starts at 60W) — left blank, pending supplier confirmation. 12V 250W amperage: corrected to 20.8A (the price list's 33.3A was an error — that figure matches the 400W variant, and 20.8A is confirmed by both the spec page and the underlying physics).
