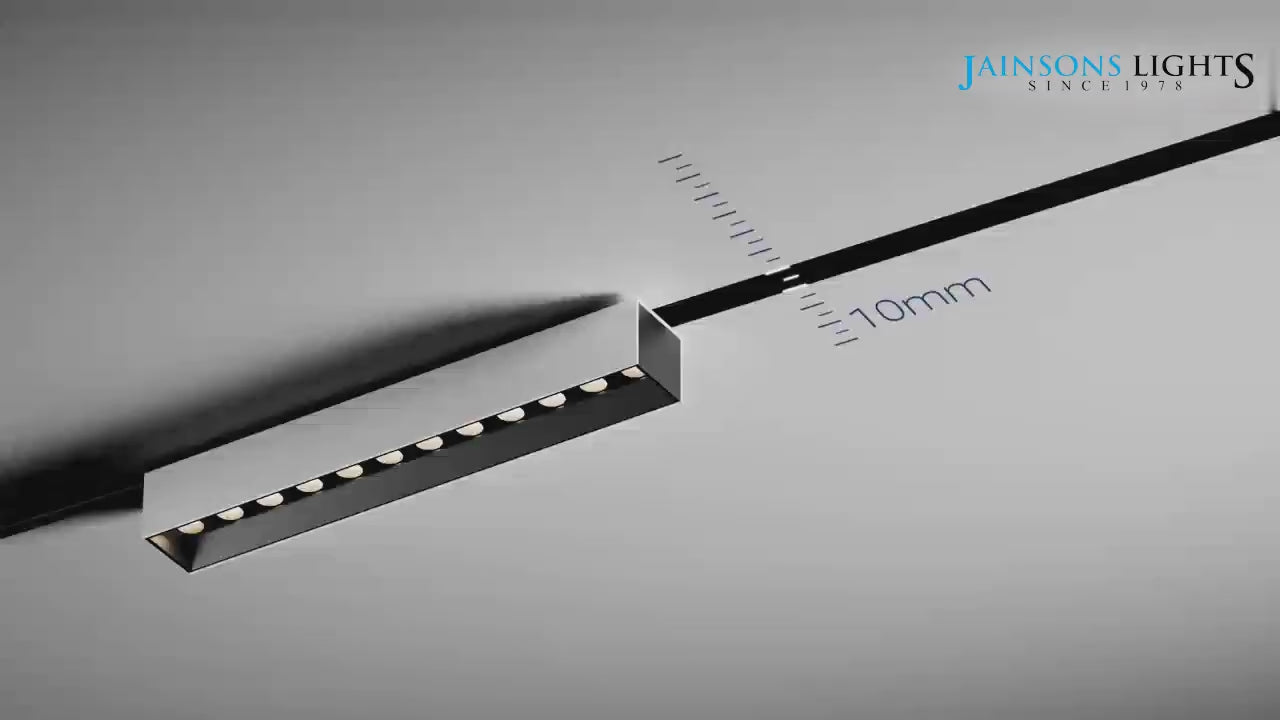

HIGHLINE 10mm Magnetic Track Lighting System – 48V DC

Create ultra-slim, minimal and flexible lighting layouts with our 10mm magnetic track system. The same track can take multiple light modules – spots, linears and diffused lights – so you can mix ambience and accent lighting in one clean line.

Product Range

1. Track Channels – Surface / Hanging (Type A)

For ceiling surface mounting or hanging from wires/rods. Ideal for living rooms, bedrooms, showrooms & offices.

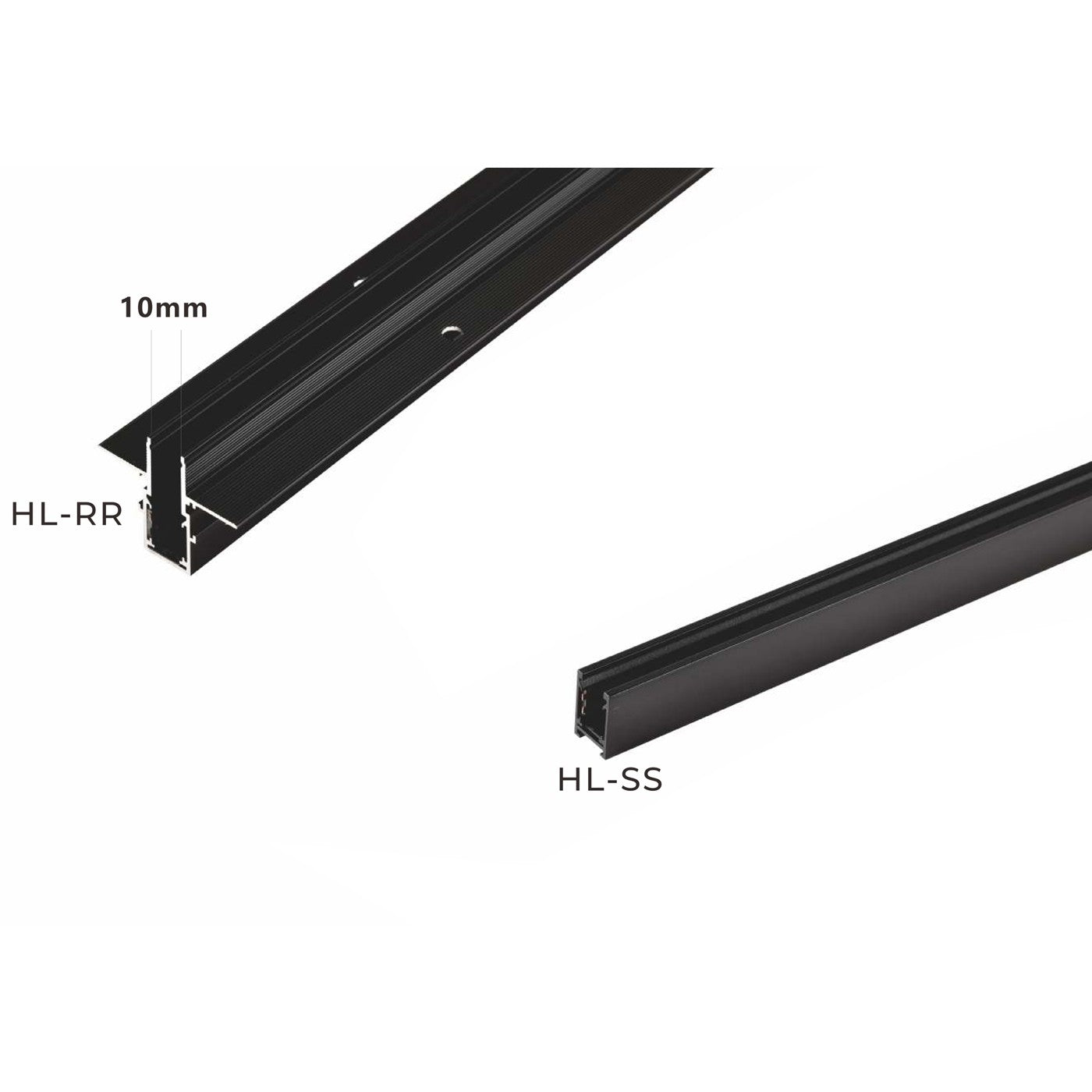

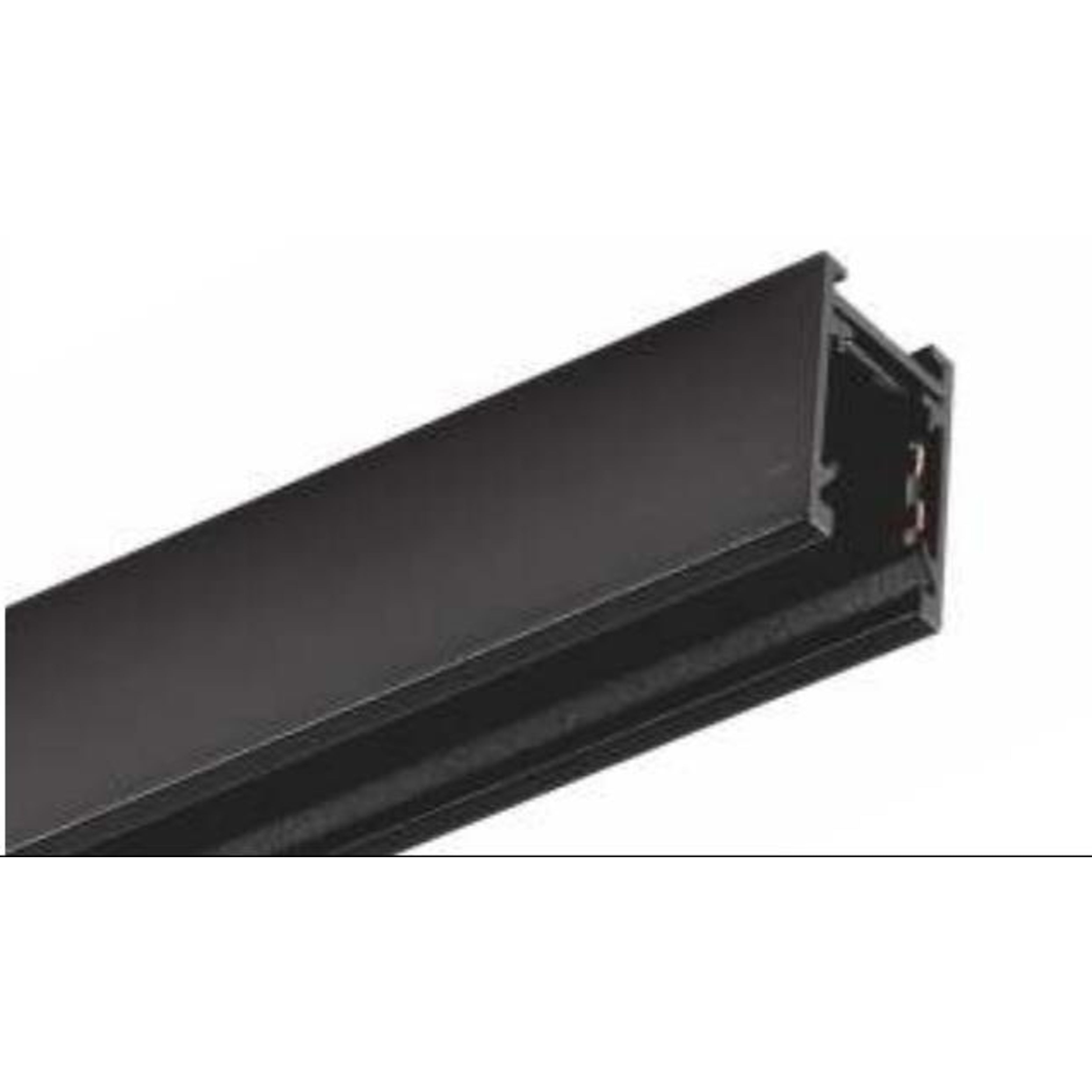

  • Straight Tracks: 1m & 2m aluminium channels (HL-SS-01M / HL-SS-02M).

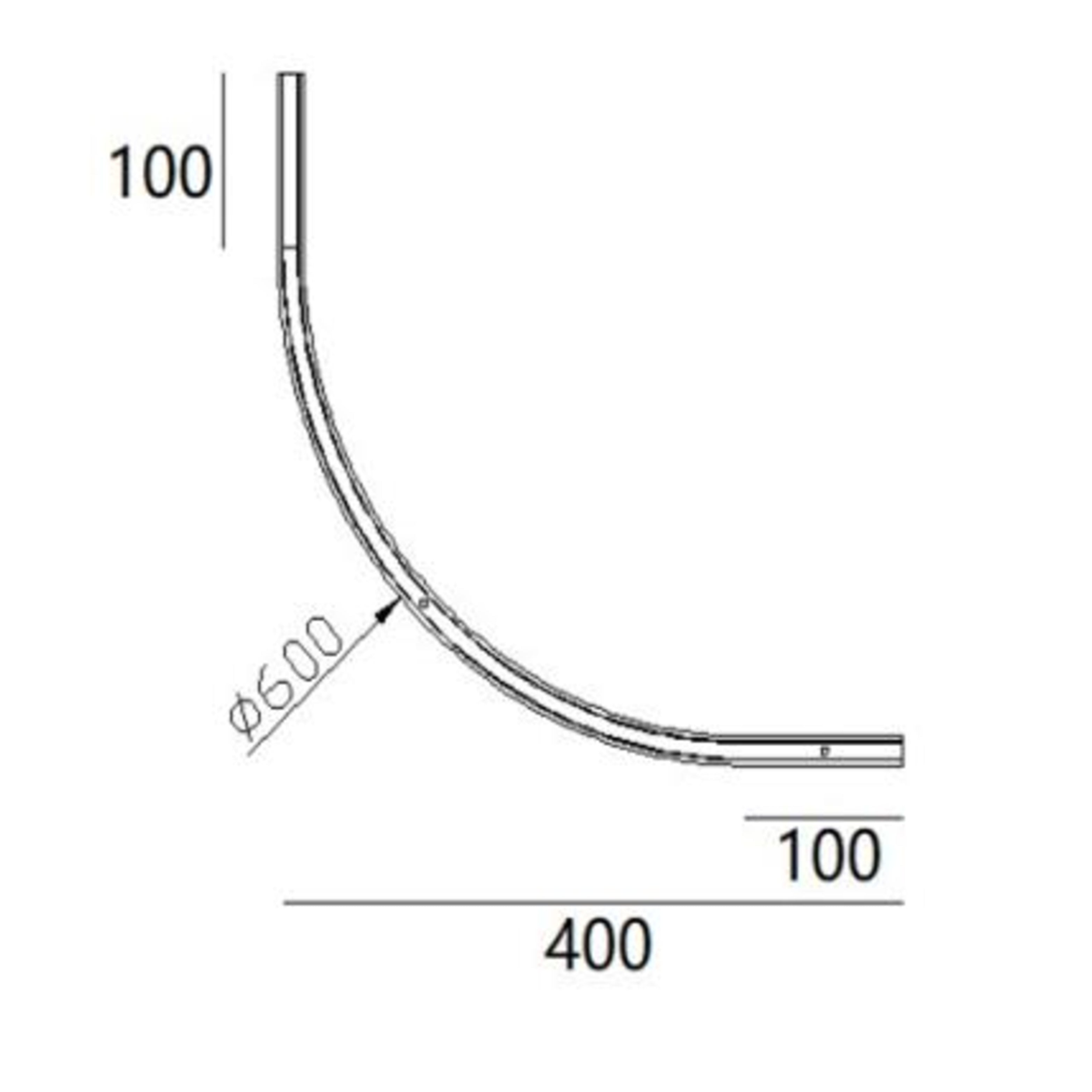

  • Curved Track (Ø 600mm): HL-SS 600 curve for rounded and creative layouts.
  • Accessories: surface curve arcs, corner jointers, straight track jointers, suspension kit for hanging, mounting brackets and surface endcaps – everything needed to fix the track in your desired shape.
2. POP Recessed Track Channels (Type B – Pre-POP)

For a completely flush, hidden look inside POP/gypsum ceilings.

  • Straight Tracks: 1m & 2m recessed channels (HL-RR-001 / HL-RR-002).
  • Curved Track (Ø 600mm): HL-RR 600 curve for circular and organic designs.

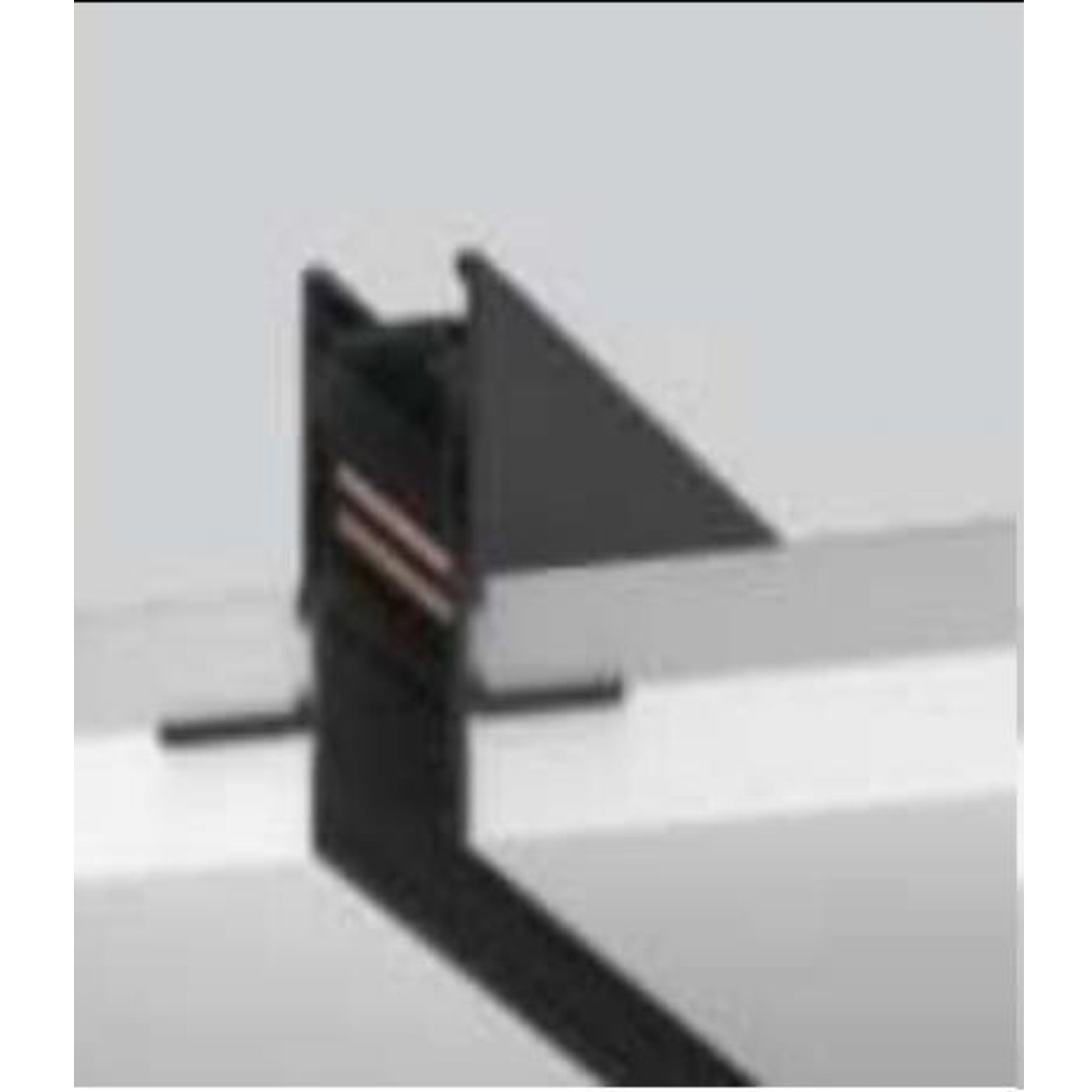

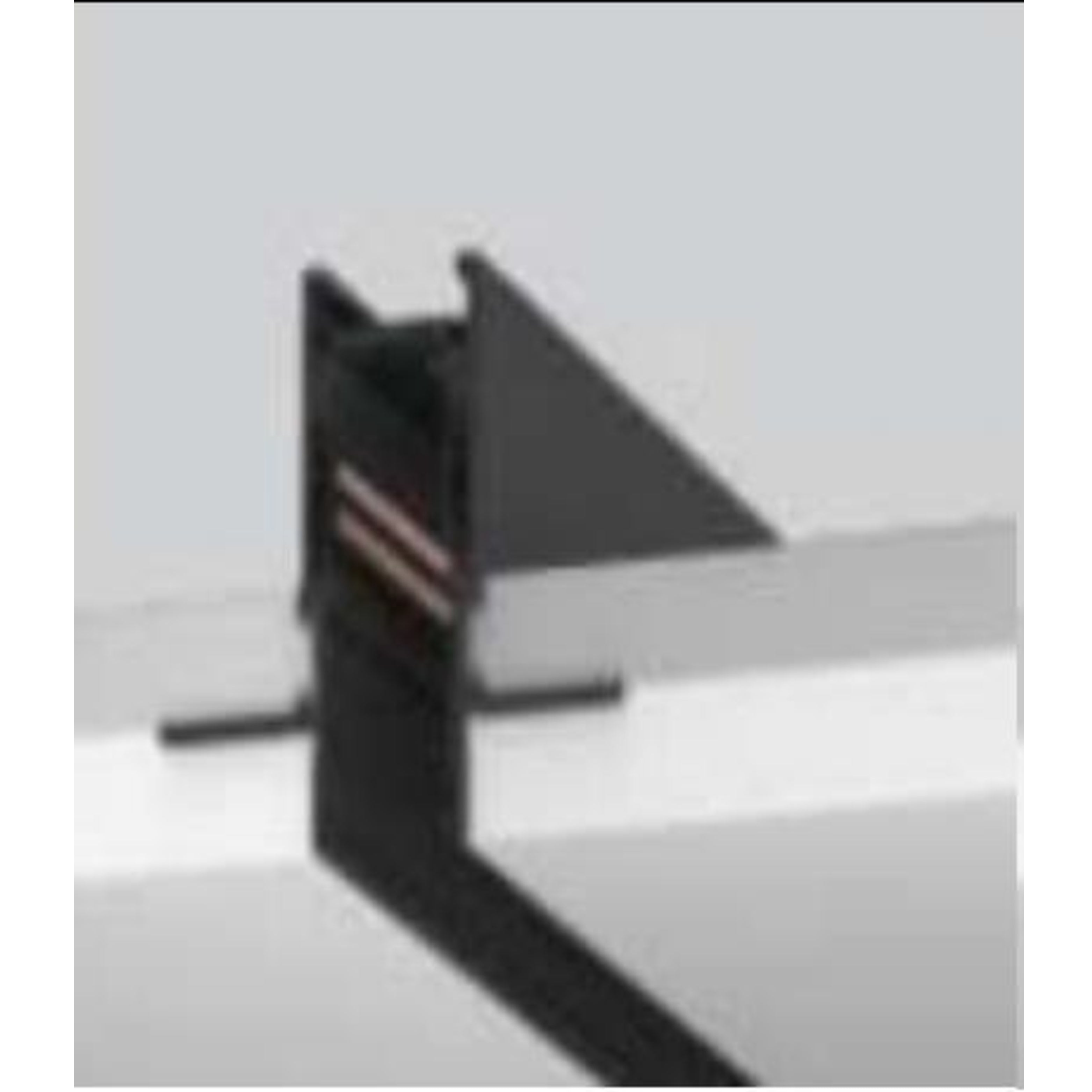

  • Accessories: recessed curve arcs, pre-POP corner jointers, track jointers and recessed endcaps for neat terminations.
3. Light Modules (48V DC – Magnetic)

All light modules are magnetic plug-in type and can be repositioned anywhere on the track without tools.

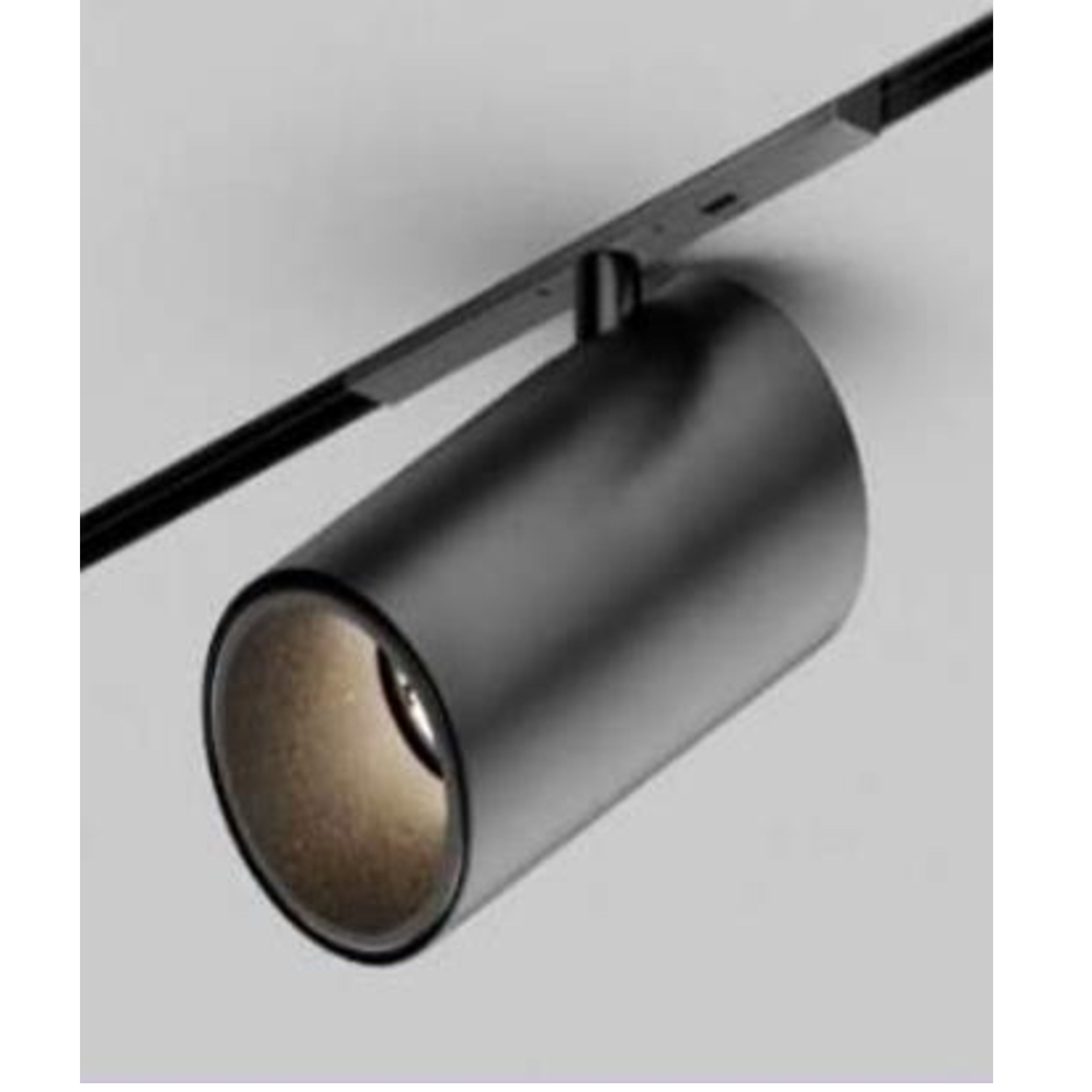

  • Track Spots – HL-B Series
    5W / 10W / 18W, 90° tiltable & 355° rotatable, beam 24°.
    Perfect for highlighting artworks, merchandise, walls or objects.
  • Linear Fixed Spots – HL-F Series
    Compact linears in multiple lengths (approx. 113mm / 195mm / 307mm / 388mm).
    Beam 30° for continuous, focused grazing of walls or shelves.
  • Adjustable Linear Spots – HL-G Series
    5W / 10W versions, 180° tiltable; beam 30° for flexible accent lighting along corridors, wardrobes and niches.
  • Linear Diffused – HL-E Series
    8W / 16W / 24W (approx. 300mm / 600mm / 900mm lengths).
    Beam 100° for soft, continuous ambient light along the track.
  • CCT Options: 3000K & 4000K (warm & neutral white).
  • DALI Dimmable + Tunable White (DT8) Options: Available on selected models for advanced control, mood setting and integration with automation systems.
4. Common Accessories
  • Power adaptor & corner adaptor for feeding power into straight and L-shape layouts.
  • Straight adaptors & jointers for continuous long runs.
  • Suspension kits for hanging track from high ceilings.

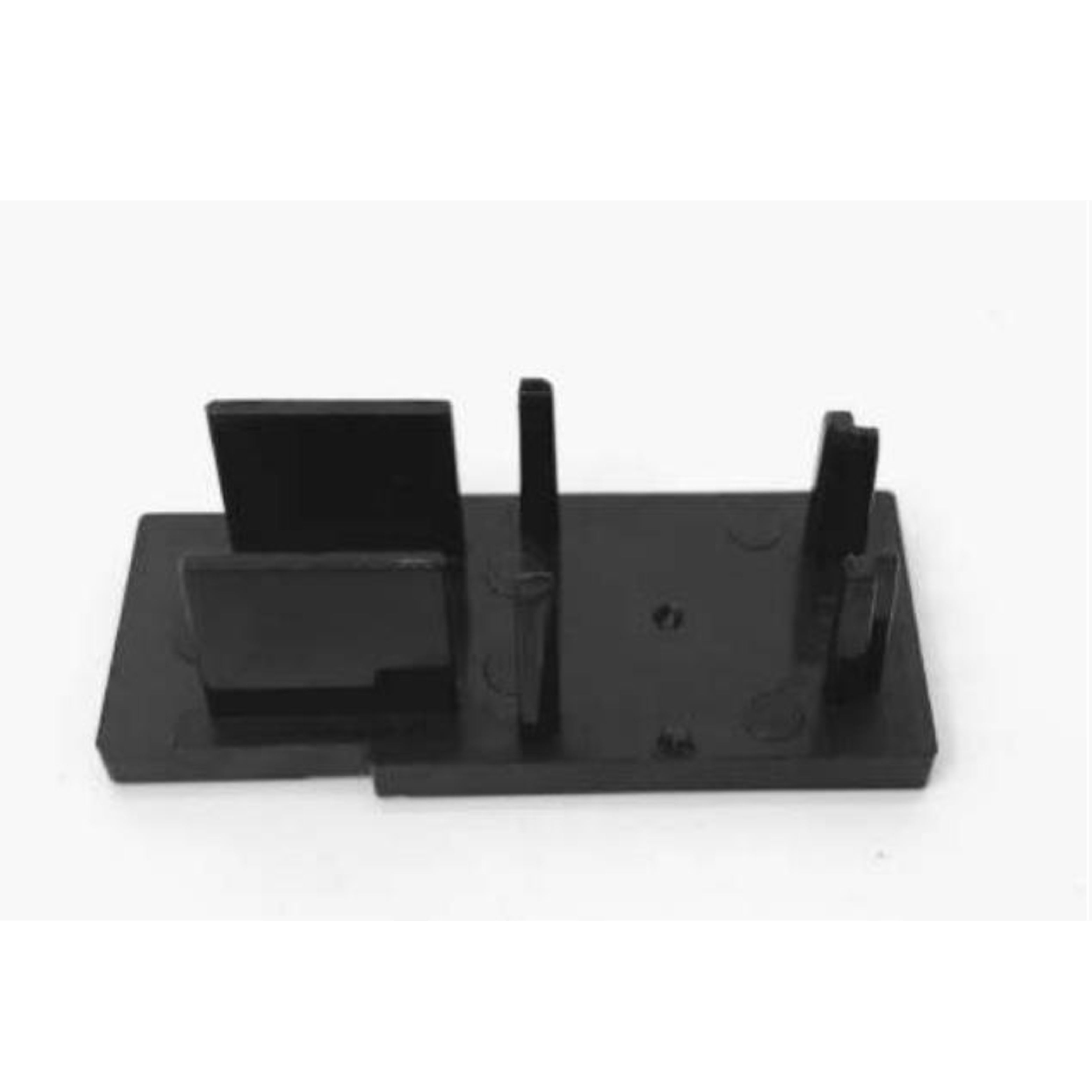

  • Endcaps for clean, finished edges on both surface and recessed tracks.

A detailed price list with all product codes is available in the “Downloads” section of this page.

Technical Specifications – HIGHLINE 10mm Magnetic Track (48V DC)

Track Channels & Accessories

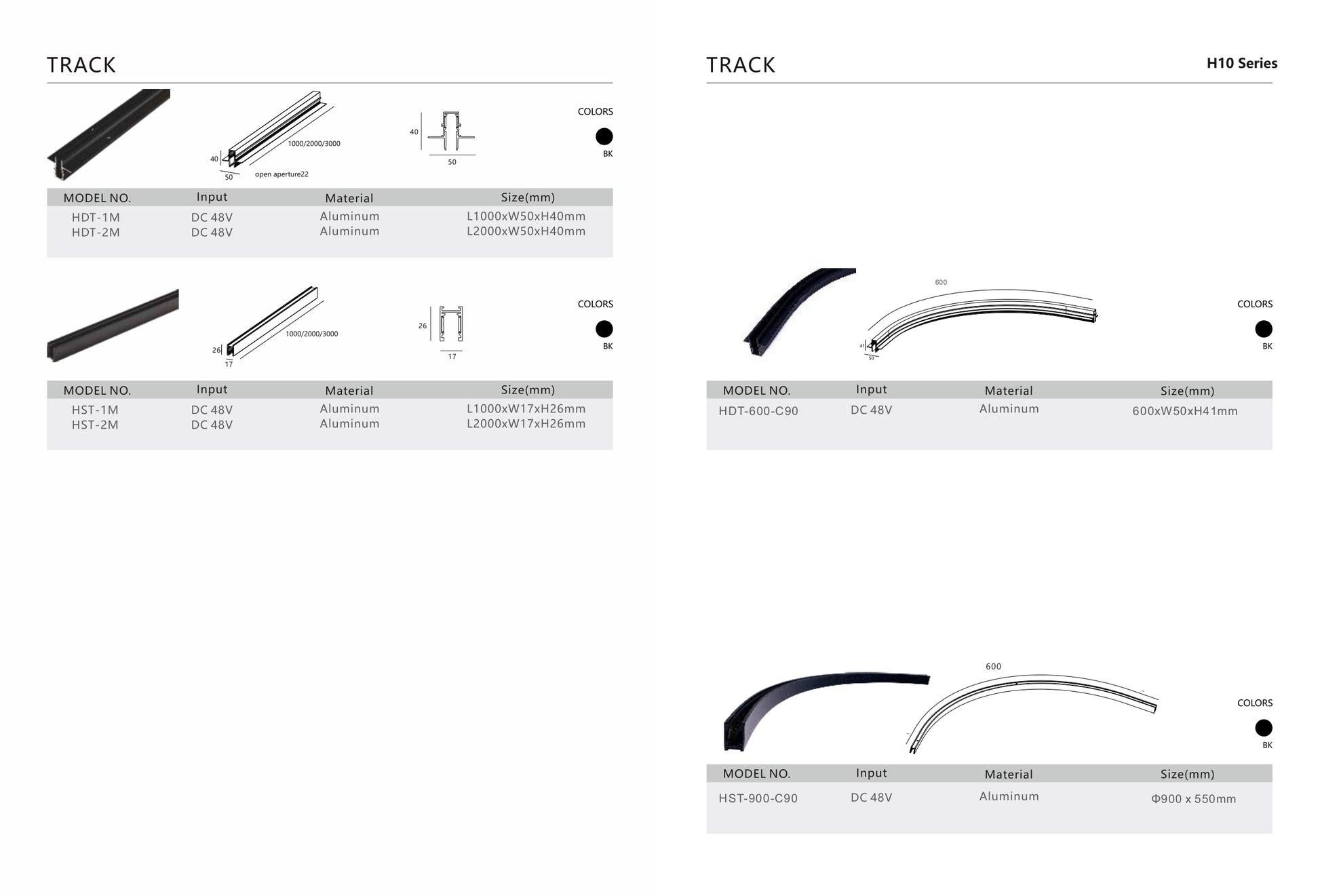

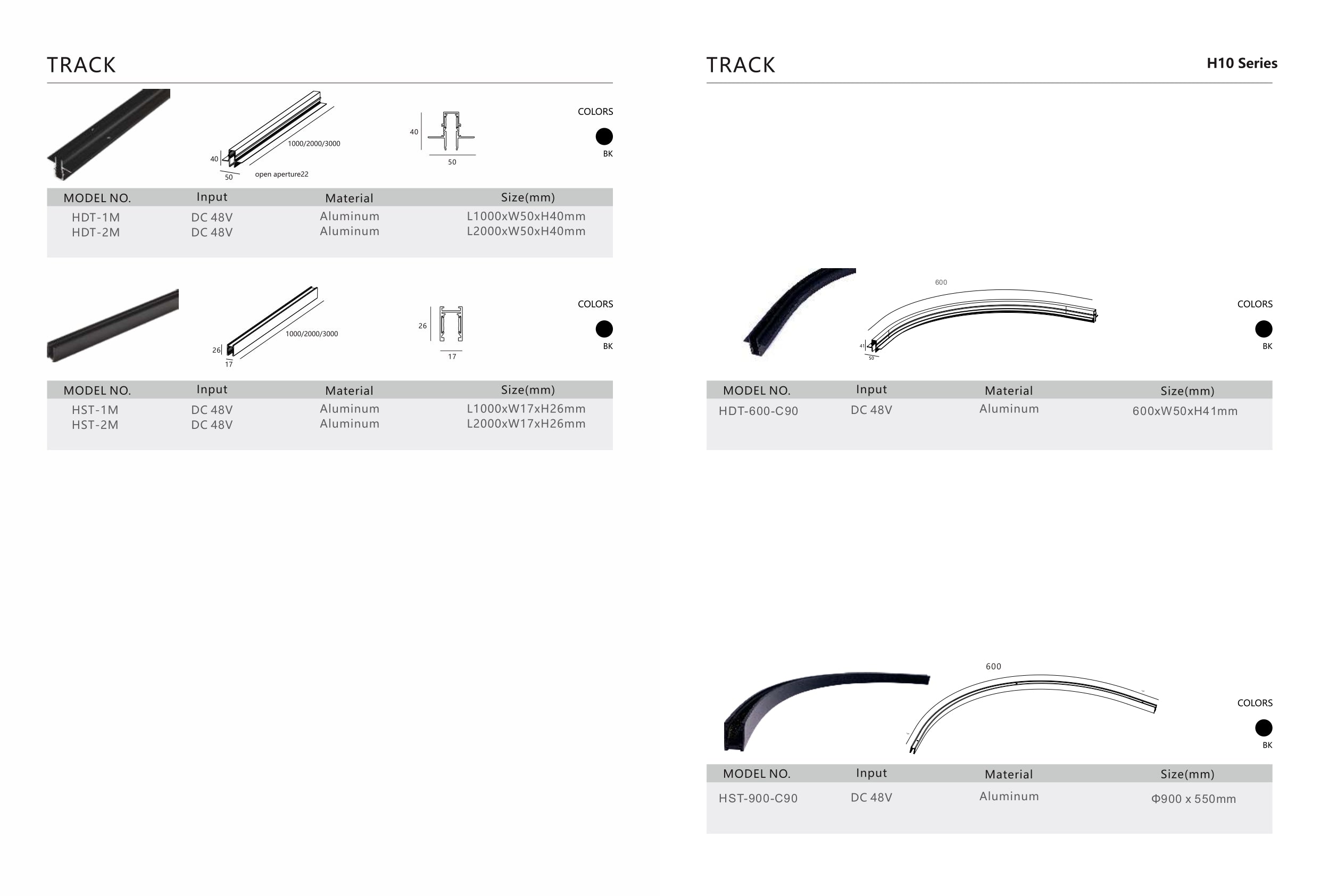

TYPE A – Surface / Hanging Track Channels

Product Code Description Mounting Size / Dimensions Notes
HL-SS-01M 1m Track Channel Surface / Hanging Length: 1000mm 10mm magnetic track profile for 48V modules
HL-SS-02M 2m Track Channel Surface / Hanging Length: 2000mm For longer straight runs

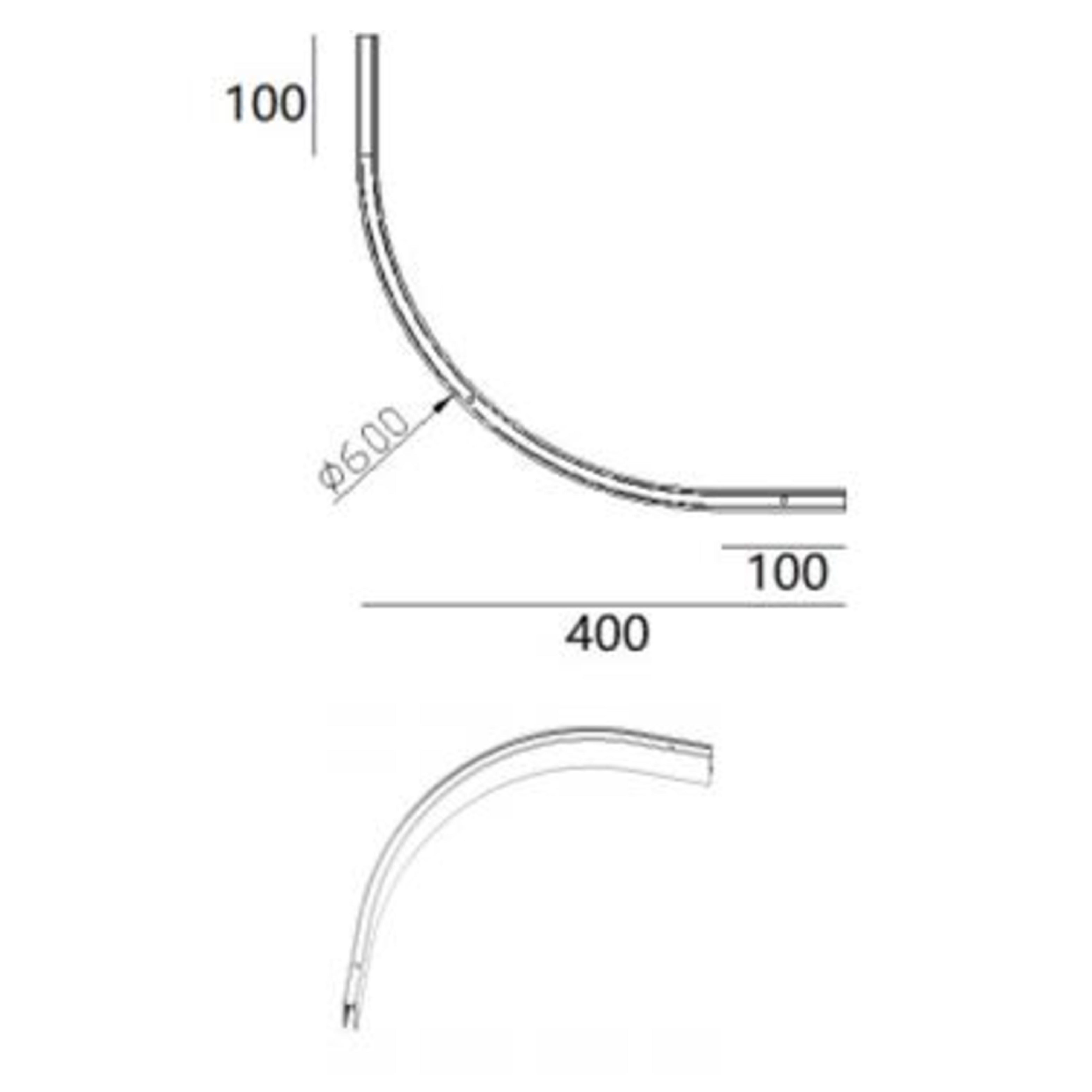

HL-SS 600 CURVE Surface Curve Arc Surface / Hanging Outer Diameter: Ø 600mm For circular / curved layouts

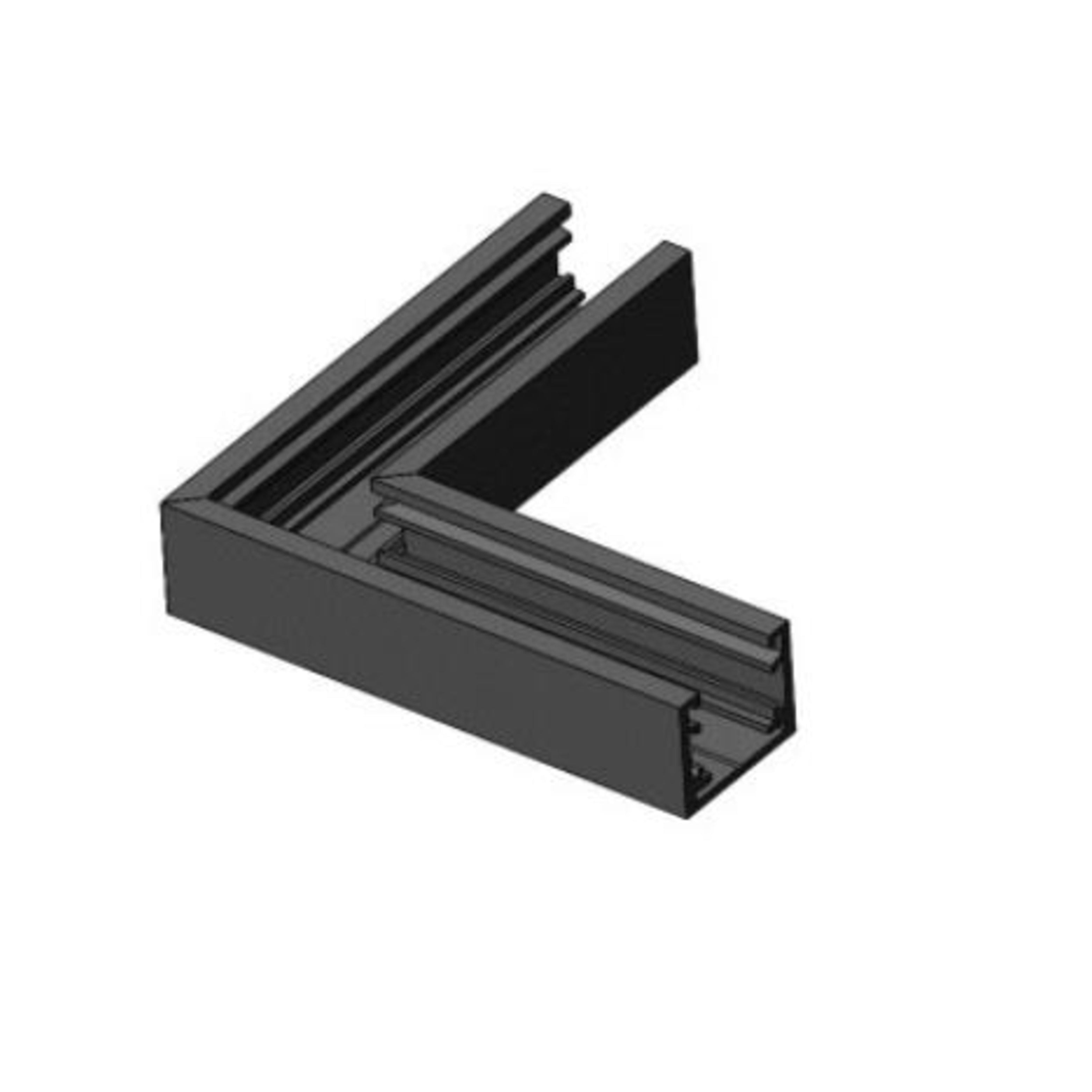

HL-SS-CJ Surface Corner Jointer Surface – Joins two tracks at corner
HL-SS-JOINTER Surface Track Jointer Surface – Inline joining for straight extensions

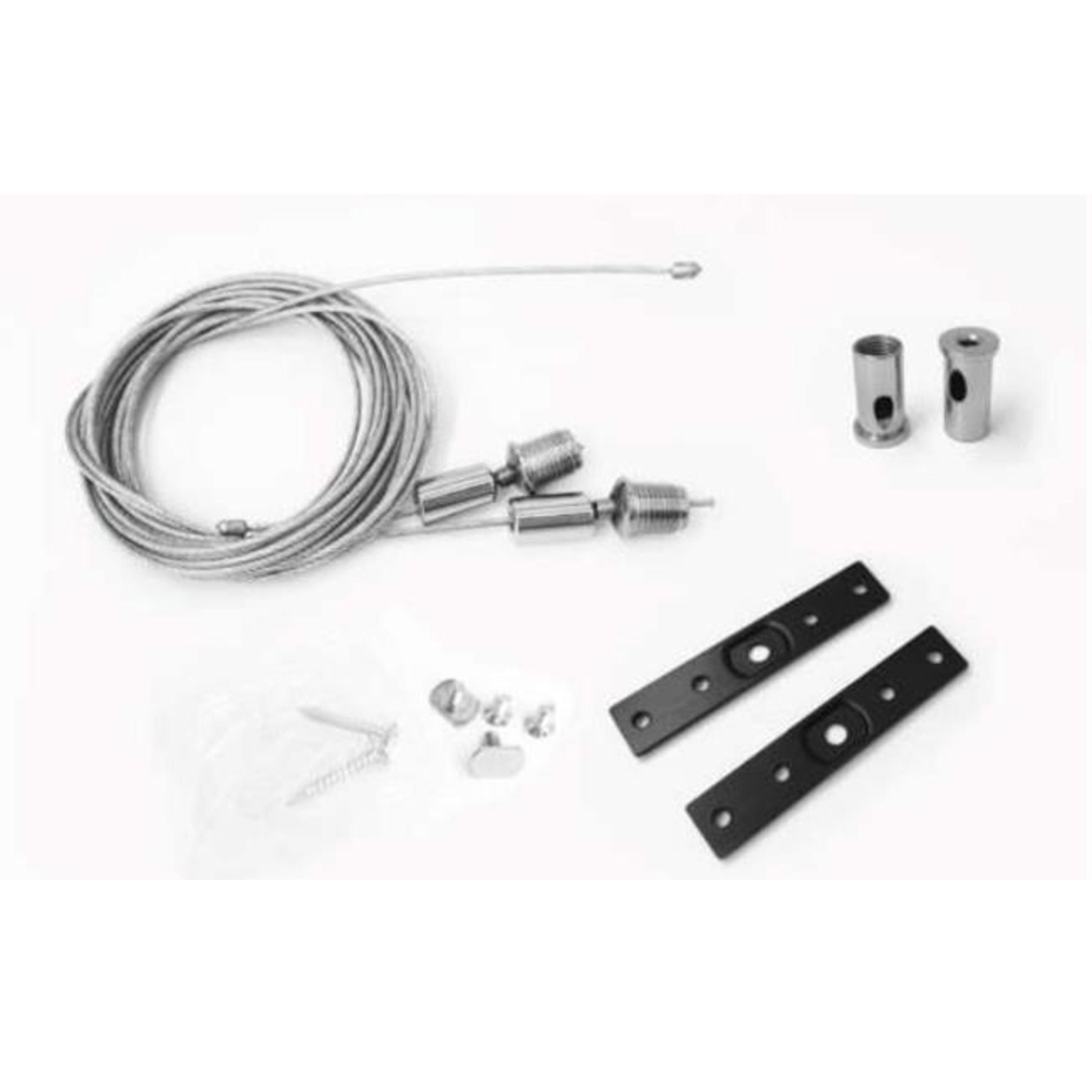

HL-SS-HG KIT Suspension Kit Hanging Wire length as per kit For hanging track from ceiling
HL-SS-ENDCAP Surface Endcap Surface – Neat termination of surface track

TYPE B – POP / Recessed Track Channels (Pre-POP)

Product Code Description Mounting Size / Dimensions Notes
HL-RR-001 1m Track Channel Recessed (POP) Length: 1000mm To be installed before POP work
HL-RR-002 2m Track Channel Recessed (POP) Length: 2000mm For long recessed runs
HL-RR 600 CURVE POP Curve Arc Recessed (POP) Outer Diameter: Ø 600mm Circular / soft corner layouts in false ceiling

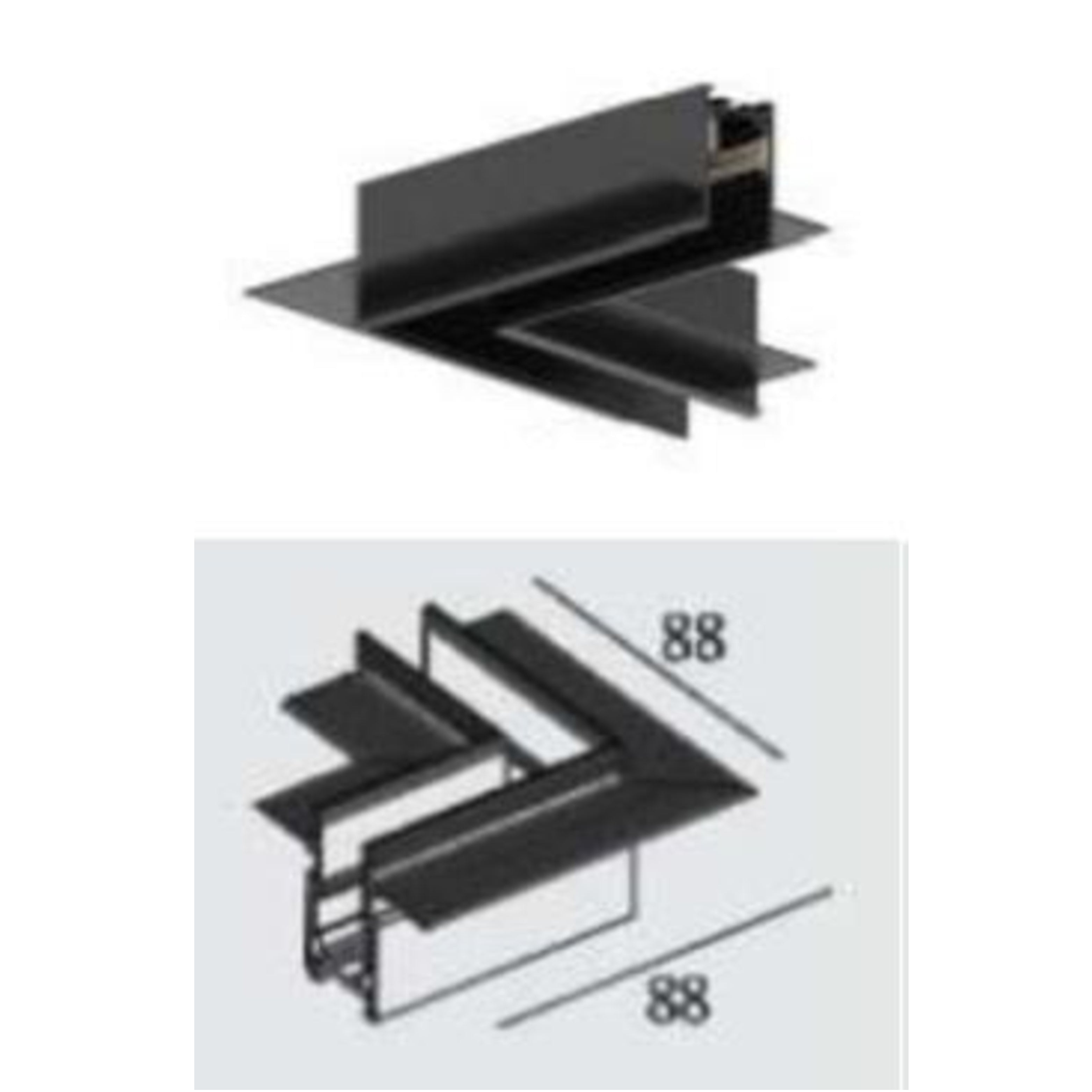

HL-RR-CJ POP Corner Jointer Recessed (POP) – Joins recessed tracks at corners
HL-RR-JOINTER Track Jointer Recessed (POP) – Inline jointer for recessed tracks
HL-RR-ENDCAP Recessed Endcap Recessed (POP) – Neat termination of recessed track

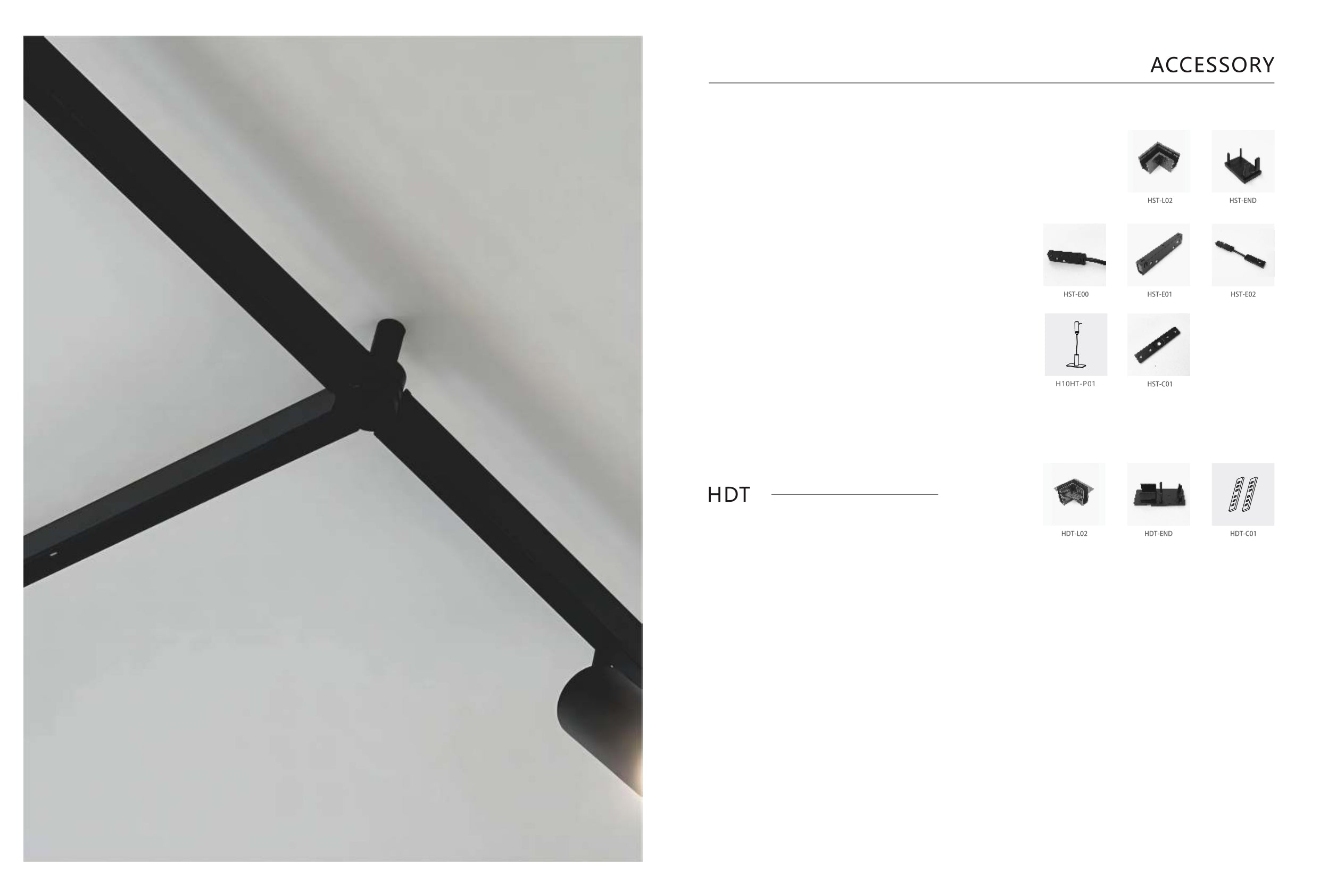

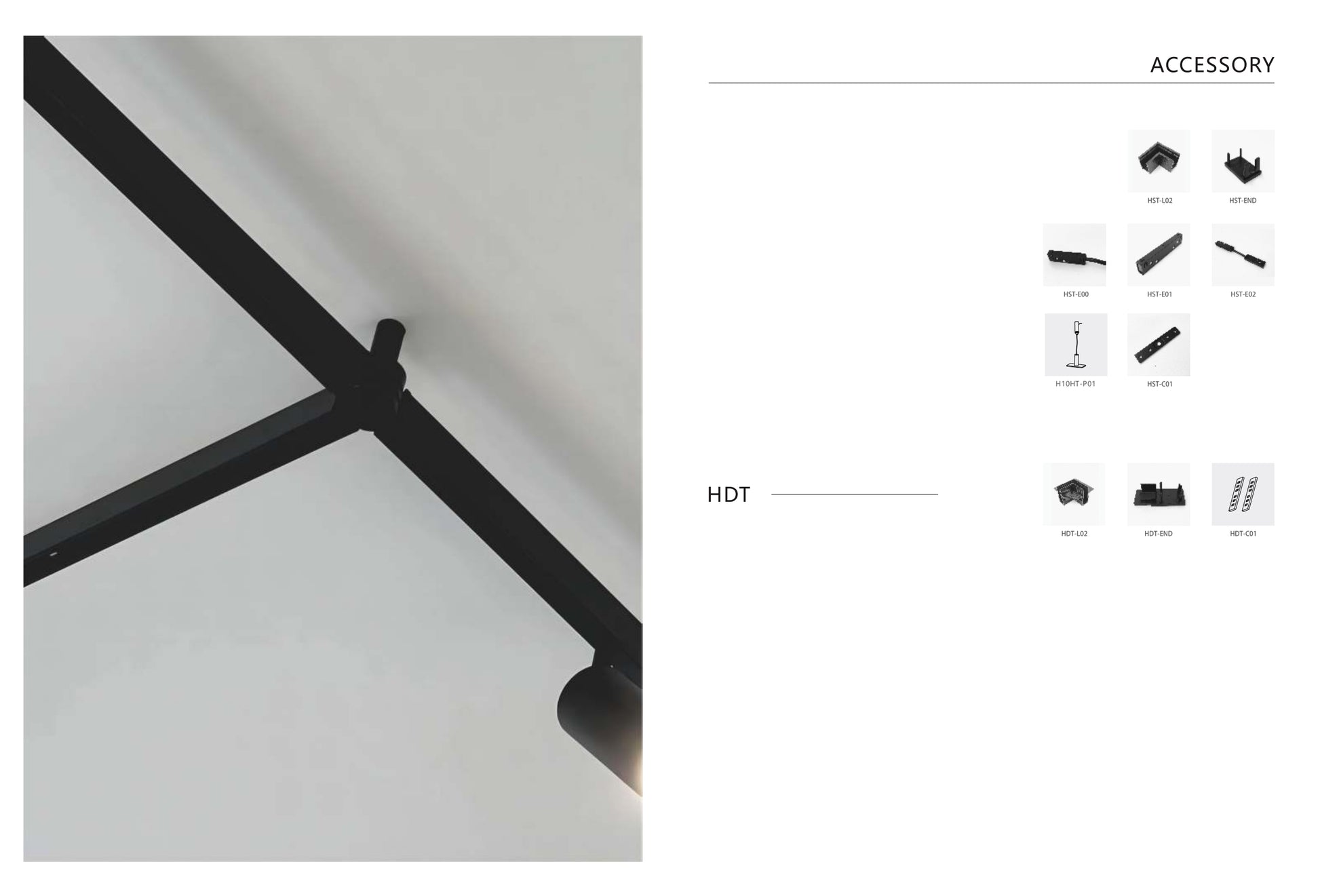

Common Track Accessories

Product Code Description Usage Size / Dimensions

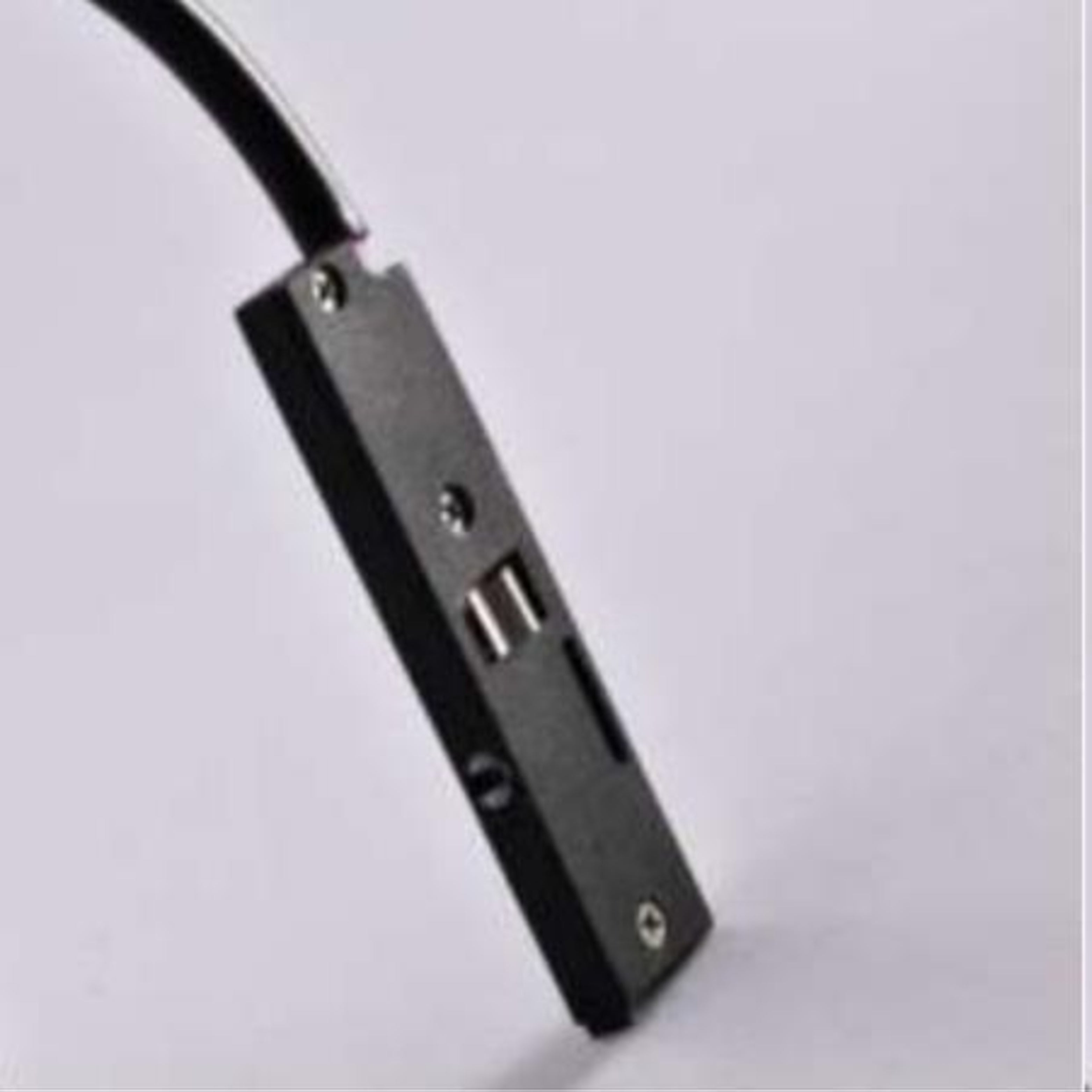

HL-AC-PA Power Adaptor Connects 48V driver to track Wire length approx. 1.5m

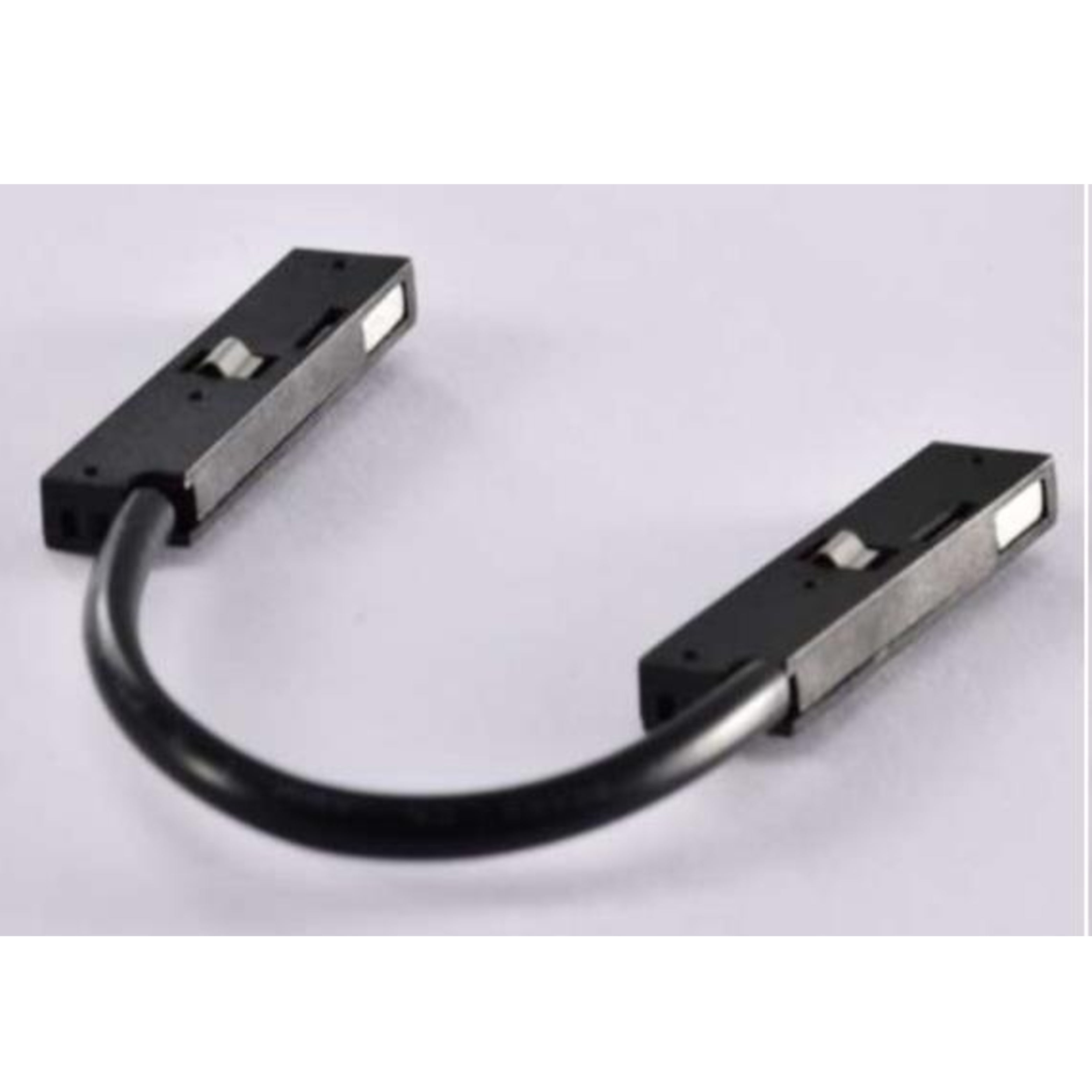

HL-AC-CA Corner Adaptor Power feed at corner joints Middle wire length approx. 4.5cm

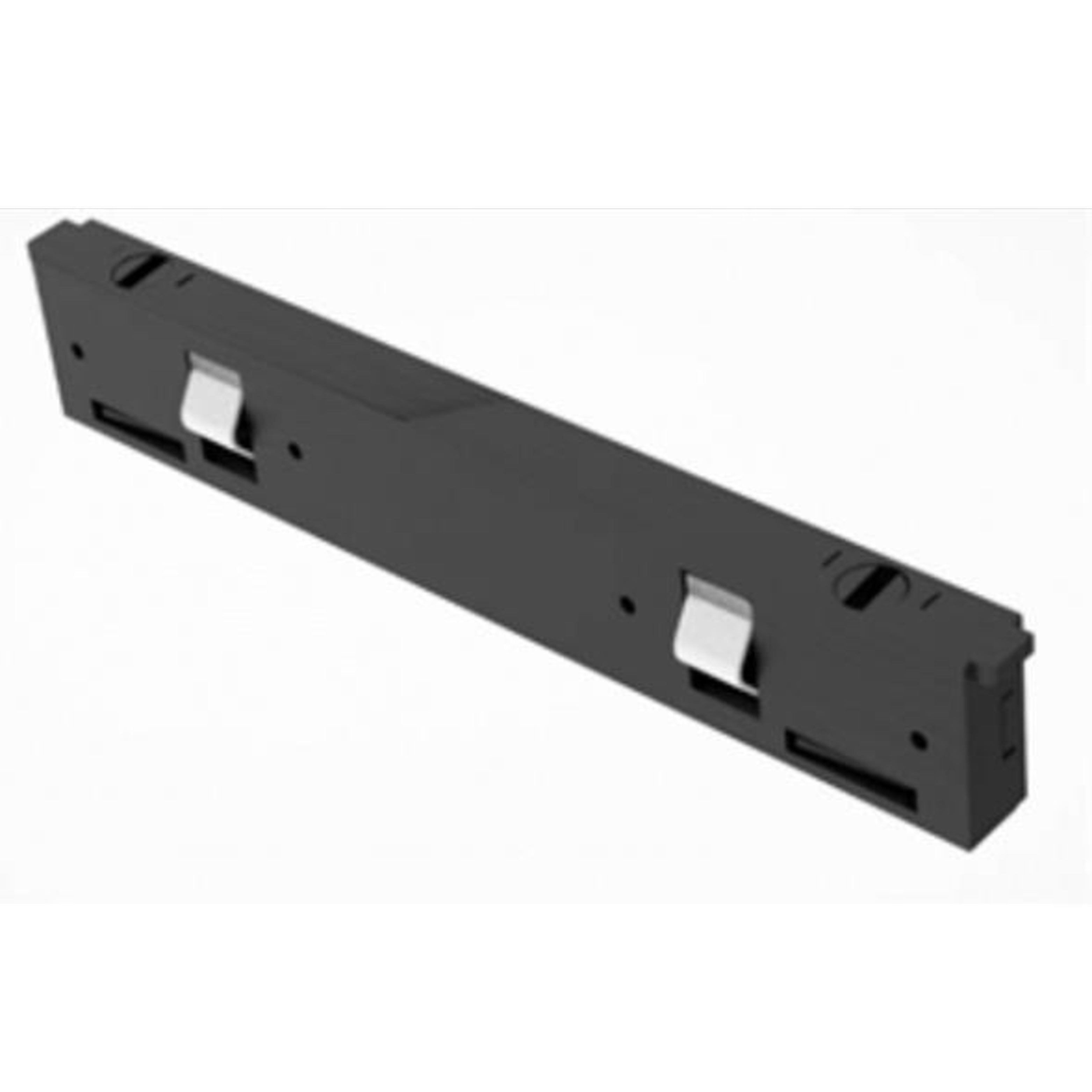

HL-AC-SA Straight Adaptor Power feed on straight runs –

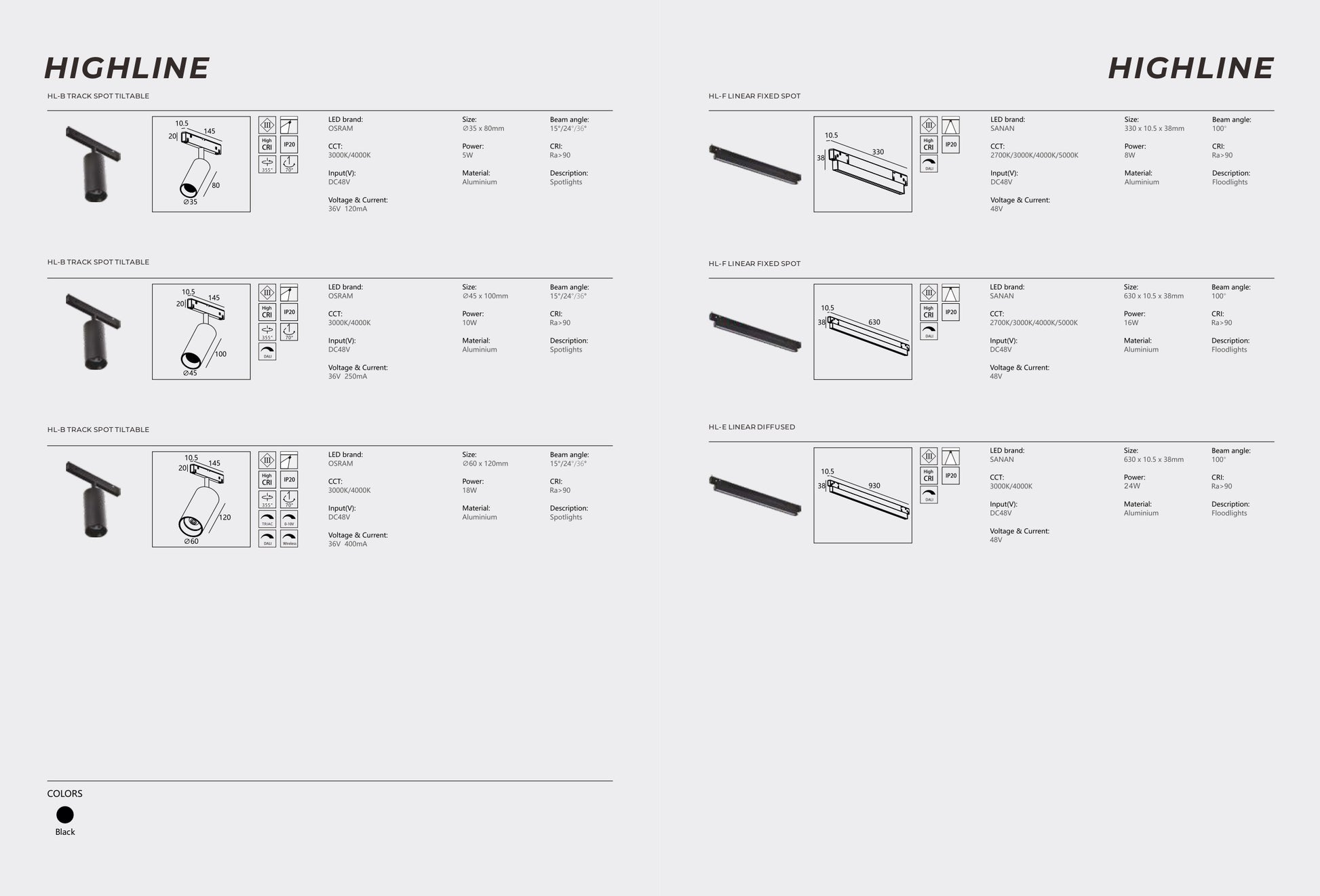

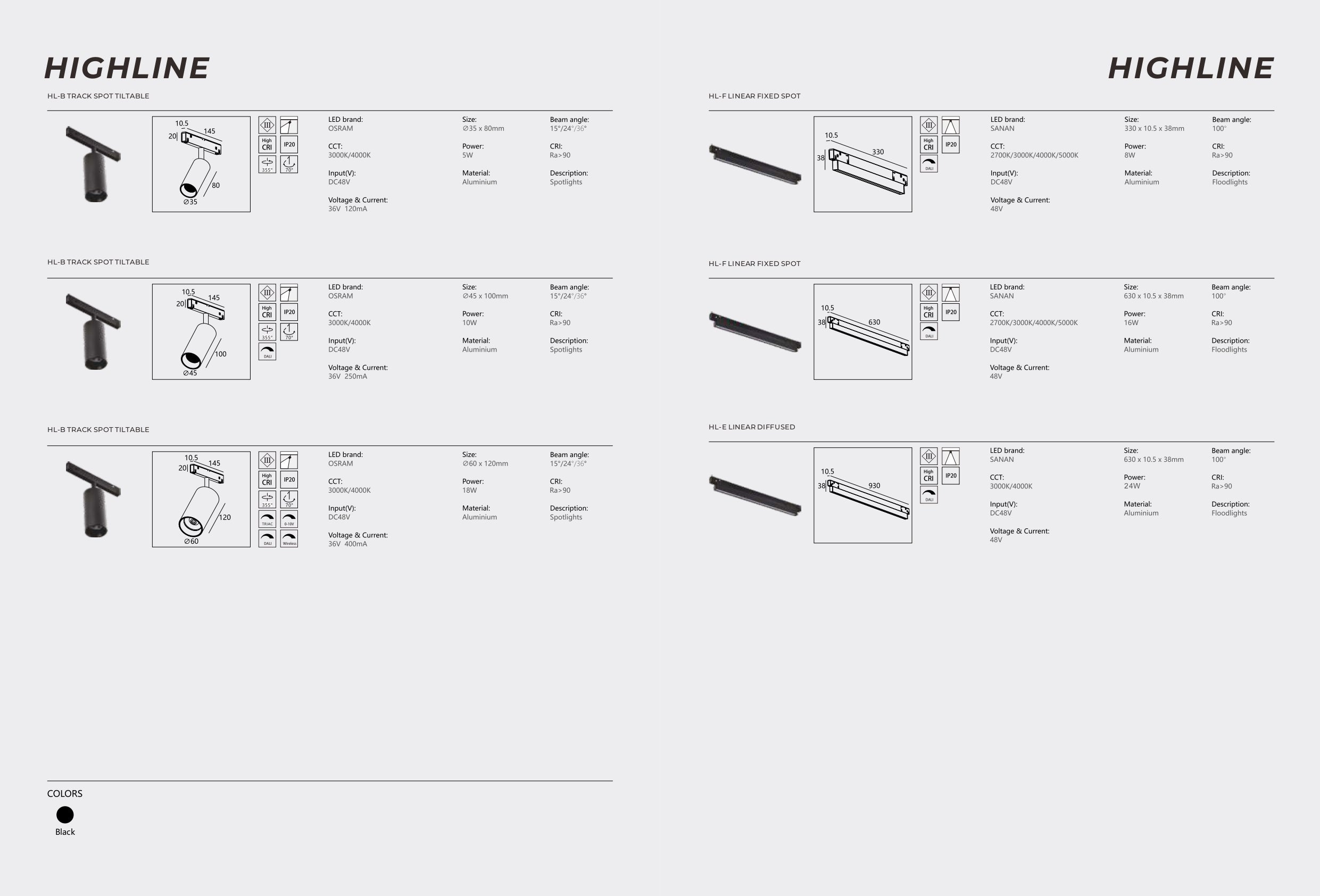

Light Modules – Single CCT (48V, External Power Supply)

CCT Options: 3000K (Warm White) / 4000K (Neutral White)
Mounting: Magnetic mounting on 10mm track, tool-free repositioning

Track Spots – HL-B Series

Product Code Power Type Dimensions (WxH) CCT Beam Angle Adjustability
HL-B-5W 5W Track Spot 35 × 80mm 3000K / 4000K 24° 90° tilt, 355° rotation
HL-B-10W 10W Track Spot 45 × 100mm 3000K / 4000K 24° 90° tilt, 355° rotation
HL-B-18W 18W Track Spot 60 × 125mm 3000K / 4000K 24° 90° tilt, 355° rotation

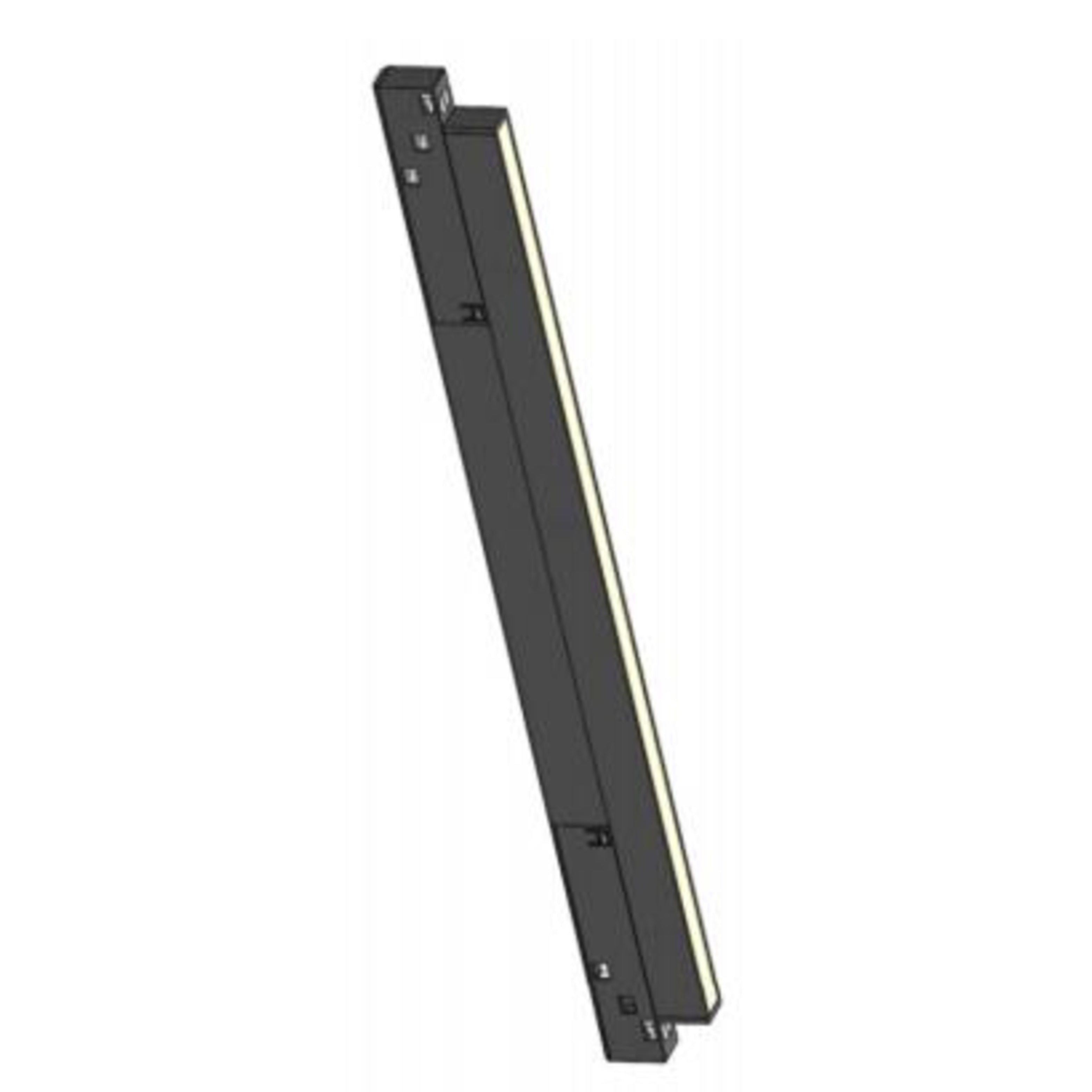

Linear Diffused – HL-E Series

Product Code Power Type Length CCT Beam Angle Usage
HL-E-8W 8W Linear Diffused L: 300mm 3000K / 4000K 100° Soft general & ambient lighting
HL-E-16W 16W Linear Diffused L: 600mm 3000K / 4000K 100° Medium-length ambient runs
HL-E-24W 24W Linear Diffused L: 900mm 3000K / 4000K 100° Long runs, higher light output

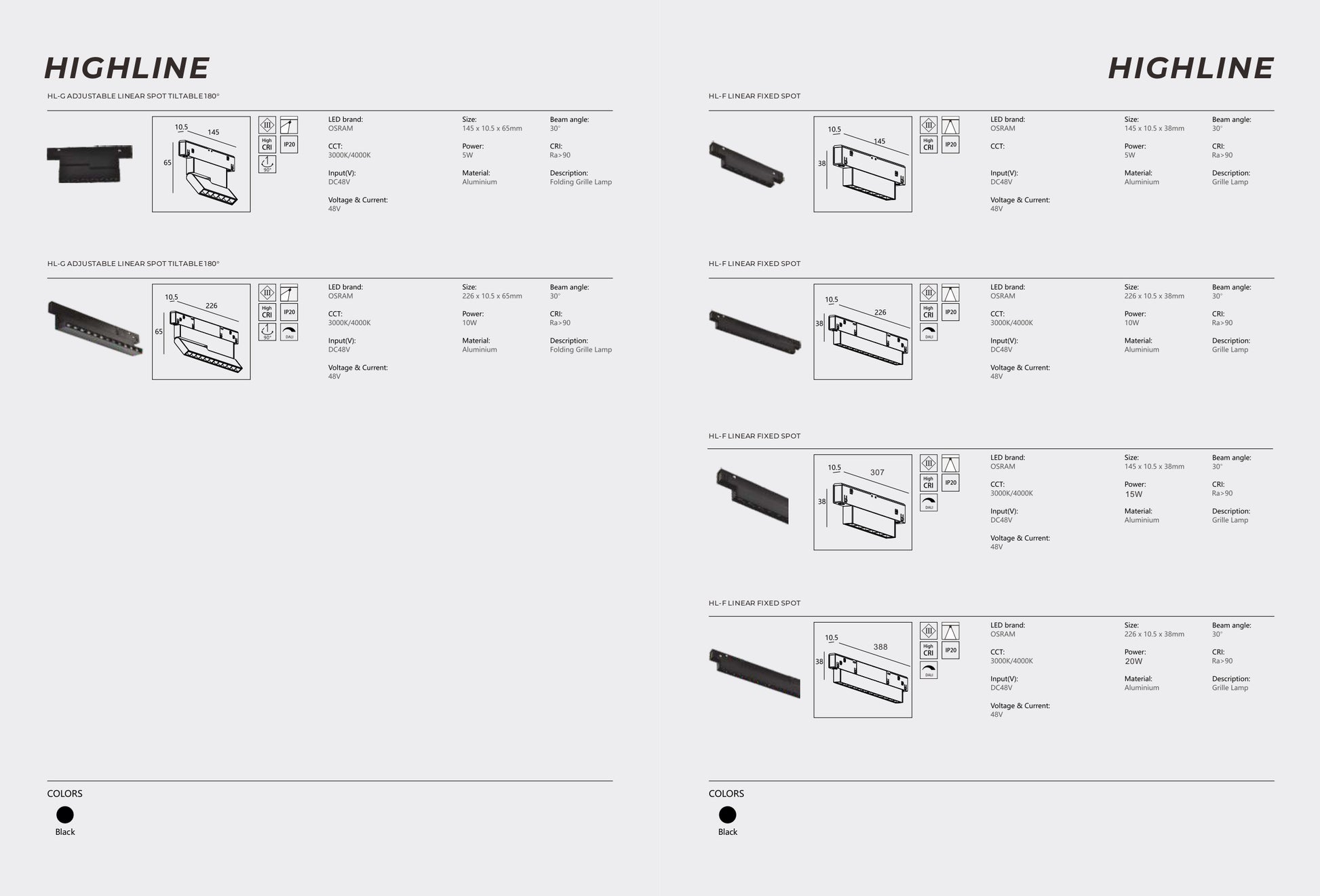

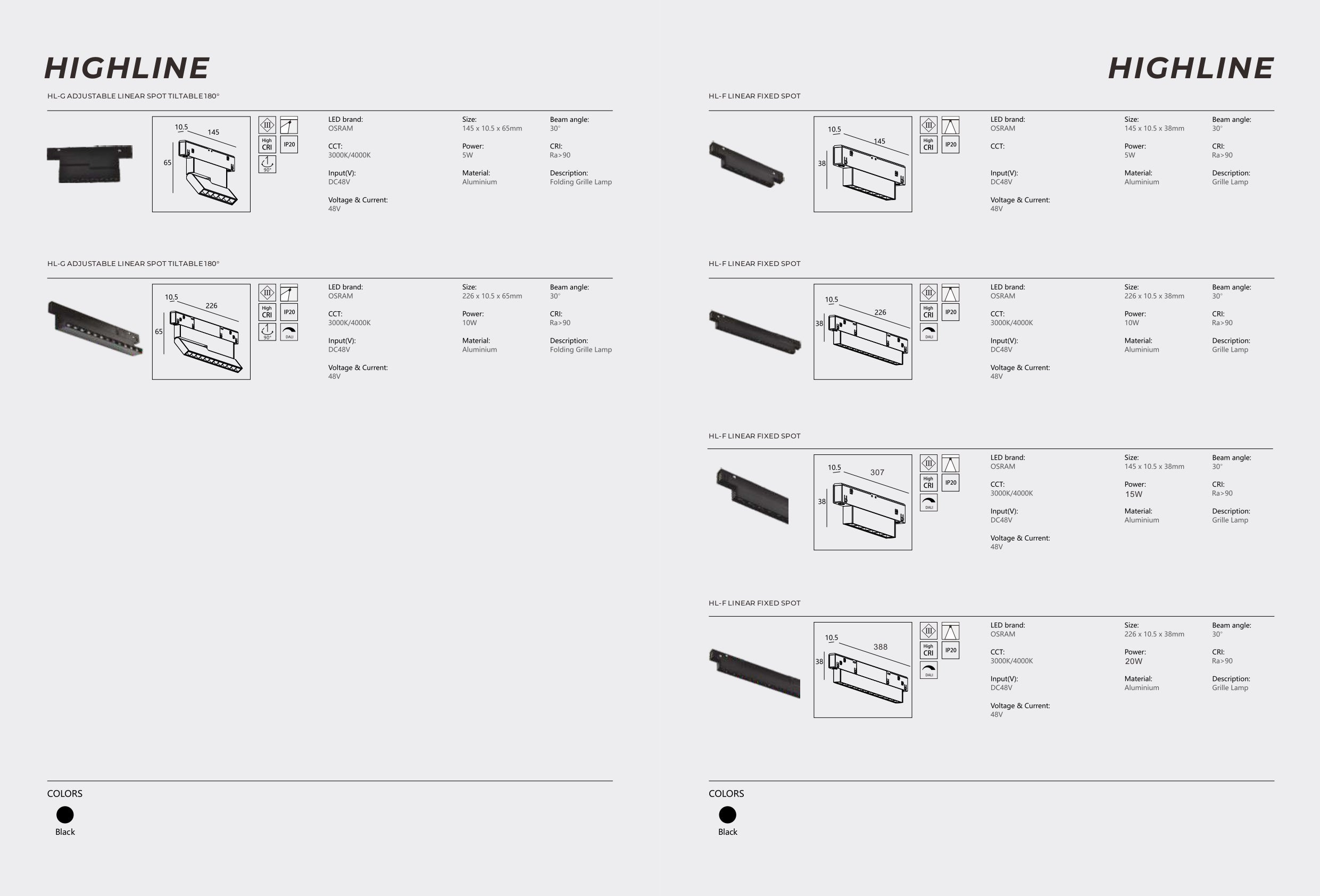

Linear Fixed Spots – HL-F Series

Product Code Power Type Length CCT Beam Angle Usage
HL-F-5W 5W Linear Fixed Spot L: 113mm 3000K / 4000K 30° Short accent lines on walls/shelves
HL-F-10W 10W Linear Fixed Spot L: 195mm 3000K / 4000K 30° Medium accent lines & wall grazing
HL-F-15W 15W Linear Fixed Spot L: 307mm 3000K / 4000K 30° Longer focused linear lighting
HL-F-20W 20W Linear Fixed Spot L: 388mm 3000K / 4000K 30° High-output linear accent

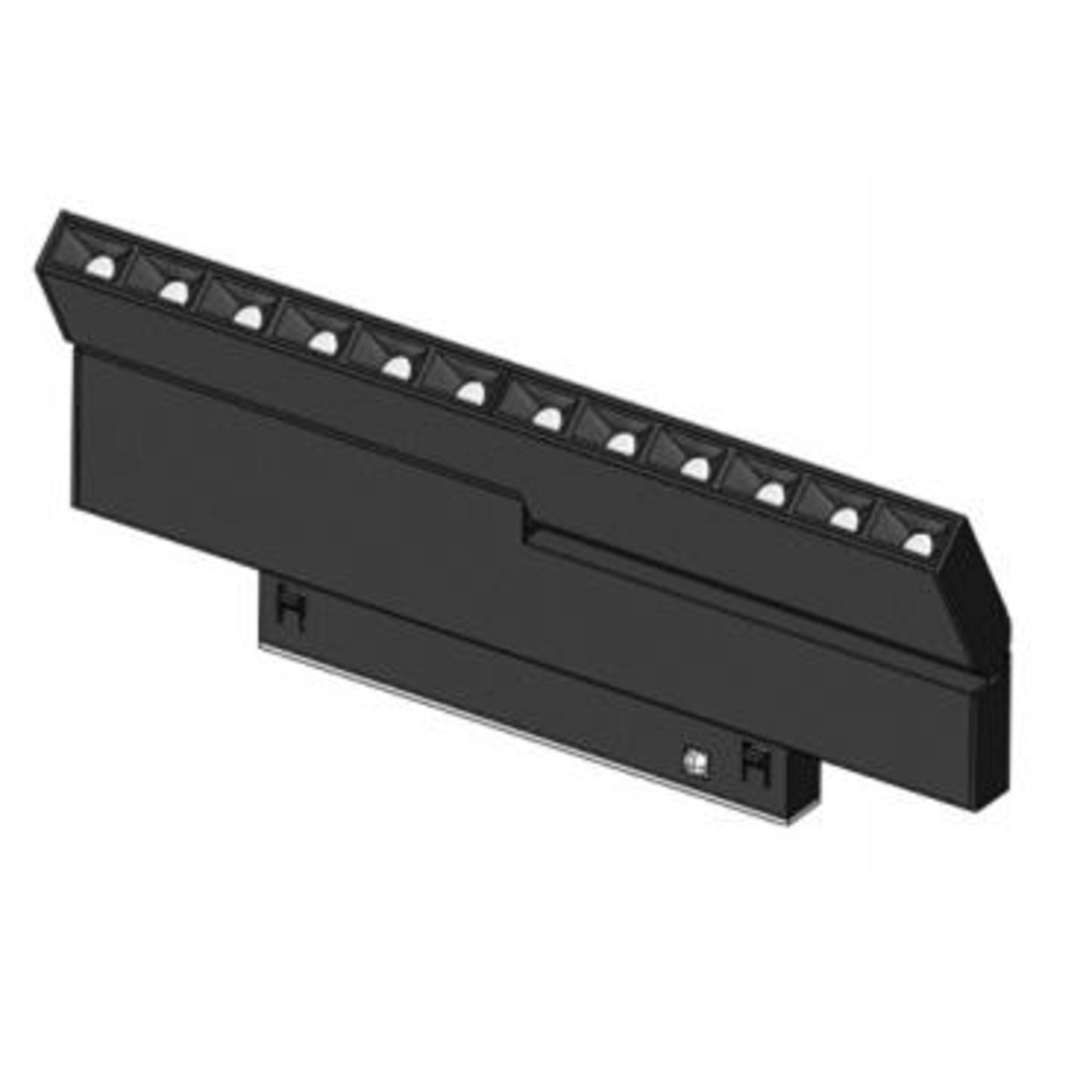

Adjustable Linear Spots – HL-G Series

Product Code Power Type Length CCT Beam Angle Adjustability
HL-G-5W 5W Adjustable Linear Spot L: 113mm 3000K / 4000K 30° Tiltable 180°
HL-G-10W 10W Adjustable Linear Spot L: 195mm 3000K / 4000K 30° Tiltable 180°
Light Modules – DALI Dimmable + Tunable White (DT8)

Control: DALI dimmable + tunable white (DT8, 48V external power supply)
Ideal for premium residential, offices and retail where scene setting and automation are required.

Product Code Base Type Power Type Beam / Feature
HL-B-10W-DDT HL-B-10W 10W Track Spot 24° beam, 90° tilt, 355° rotate, DALI + Tunable (DT8)
HL-B-18W-DDT HL-B-18W 18W Track Spot 24° beam, 90° tilt, 355° rotate, DALI + Tunable (DT8)
HL-E-8W-DDT HL-E-8W 8W Linear Diffused 100° beam, DALI + Tunable (DT8)
HL-E-16W-DDT HL-E-16W 16W Linear Diffused 100° beam, DALI + Tunable (DT8)
HL-E-24W-DDT HL-E-24W 24W Linear Diffused 100° beam, DALI + Tunable (DT8)
HL-F-10W-DDT HL-F-10W 10W Linear Fixed Spot 30° beam, DALI + Tunable (DT8)
HL-F-15W-DDT HL-F-15W 15W Linear Fixed Spot 30° beam, DALI + Tunable (DT8)
HL-F-20W-DDT HL-F-20W 20W Linear Fixed Spot 30° beam, DALI + Tunable (DT8)
HL-G-10W-DDT HL-G-10W 10W Adjustable Linear Spot 30° beam, tiltable 180°, DALI + Tunable (DT8)

How to Order

To make ordering easy, follow these simple steps or share your layout with us and we will prepare the complete BOQ for you.

  1. Understand Your Space
    Note the room size, ceiling height and where you need light: general lighting, wall washing, wardrobe/shelves, highlight points, etc.
  2. Choose the Track Type
    Decide if you want a surface / hanging track or a POP recessed track – or a mix of both.
  3. Plan the Layout & BOQ
    Decide the shape: straight, L-shaped, U-shaped, rectangle or circular. Based on this, calculate:
    • Total length of straight tracks (1m / 2m pieces).
    • Number of 600mm curved pieces (for round or soft corners).
    • Required jointers, corner pieces, endcaps and suspension kits.
  4. Select the Light Modules
    For each track run, choose:
    • Number of track spots (HL-B) for accent & display lighting.
    • Number of linear fixed / adjustable spots (HL-F / HL-G) where you need focused lines of light.
    • Number of diffused linears (HL-E) for general ambient light.
    • Colour temperature (3000K warm / 4000K neutral) and whether you need DALI dimmable + tunable white.
  5. Confirm Drivers / Power Supply
    Match the total wattage of all light modules with the appropriate 48V power supply. Our team can help you size this correctly.
  6. Share Your BOQ & Place Order
    Send us your calculated BOQ or simply share your drawing / sketch. We will verify, optimise and then share a final quote.

Need Help Designing or Ordering?

Not sure how many tracks or lights you need? Want to create a special circular or custom layout with the 600mm curved tracks?

We offer free guidance and BOQ preparation for your home, office or retail project.

Once approved, you can order all track channels, accessories and light modules directly from this page.
