JS-FDS 20mm Magnetic Track System — Premium Own Brand, 3-Year Warranty, 90 CRI, DC-DC Inbuilt Driver, Black & White Body
Build your track system
- Plan the layout
Measure each straight run and count the corners.
- Choose the track
Match the mounting and body colour to your room.
- Choose the light and control
Mix spots and linears, then choose On/off, Remote + app (RF + BLE), Zigbee or DALI.
- Design your track
Plan each room: shape, frame, lights, power supply and power connection.
Options explained
Type
Diffuser Linear
A wide spread of light for ambient and task lighting.
Laser Blade Linear
A lens-array linear module for focused and spread light.
Focus Linear
A folding linear module for adjustable accent lighting.
Spot Light
An adjustable spot for focused light.
Surface / Suspended Track
Track channel for surface mounting or suspension.
Recessed DALI-Ready Track
Recessed track channel with a built-in 4-core DALI bus.
Power Supply
Powers the track and its light modules.
Connector & Accessory
Joins, corners and hanging parts complete the layout.
Size/Model
DF300 12W Diffuser Linear 300×22×45mm (Spread 115°)
12W light module, 300×22×45 mm; 115° spread.
DF600 24W Diffuser Linear 600×22×45mm (Spread 115°)
24W light module, 600×22×45 mm; 115° spread.
LB12 12W Laser Blade 220×22×45mm (Focus+Spread 15/24/36°)
12W light module, 220×22×45 mm; 15°/24°/36° focus and spread.
LB18 18W Laser Blade 328×22×45mm (Focus+Spread 15/24/36°)
18W light module, 328×22×45 mm; 15°/24°/36° focus and spread.
FD6 6W Focus Folding 115×22×105mm (Focus 15/24/36°)
6W light module, 115×22×105 mm; 15°/24°/36° focus.
FD12 12W Focus Folding 223×22×105mm (Focus 15/24/36°)
12W light module, 223×22×105 mm; 15°/24°/36° focus.
FD18 18W Focus Folding 331×22×105mm (Focus 15/24/36°)
18W light module, 331×22×105 mm; 15°/24°/36° focus.
TL7 7W Track Spot Ø35×100mm (Focus 15/24/36°)
7W light module, Ø35×100 mm; 15°/24°/36° focus.
TL12 12W Track Spot Ø45×100mm (Focus 15/24/36/55°)
12W light module, Ø45×100 mm; 15°/24°/36°/55° focus.
TL18 18W Track Spot Ø55×120mm (Focus 24°)
18W light module, Ø55×120 mm; 24° focus.
TL25 30W Track Spot Ø65×140mm (Focus 24°)
30W light module, Ø65×140 mm; 24° focus.
Track 1M Surface/Hanging (1000×22×56mm)
1000×22×56 mm track for surface mounting or suspension.
Track 2M Surface/Hanging (2000×22×56mm)
2000×22×56 mm track for surface mounting or suspension.
Track 1M DALI-Ready Concealed (1000×22×45mm)
1000×22×45 mm track for recessed mounting with a 4-core DALI bus.
Track 2M DALI-Ready Concealed (2000×22×45mm)
2000×22×45 mm track for recessed mounting with a 4-core DALI bus.
Power Supply 100W Inline (220×22×45mm)
100W inline power supply that sits on the track.
Power Supply 200W Inline (280×22×45mm)
200W inline power supply that sits on the track.
75W external 48V driver
75W external 48V driver; order the input wire separately.
100W external 48V driver
100W external 48V driver; order the input wire separately.
150W external 48V driver
150W external 48V driver; order the input wire separately.
Input Wire 2-Wire (for external drivers)
2-wire input lead for an external driver.
Input Wire 4-Wire (for DALI/external driver)
4-wire input lead for an external driver and DALI.
Corner Module 2-Core (280×22×12mm)
2-core module for a 90° turn, 280×22×12 mm.
Corner Module 4-Core (280×22×12mm, DALI)
4-core module for a 90° turn, 280×22×12 mm.
Straight Connector 2-Core (160×22×12mm)
2-core join between track sections, 160×22×12 mm.
Straight Connector 4-Core (160×22×12mm, DALI)
4-core join between track sections, 160×22×12 mm.
L Connector Concealed (80×22×45mm)
L-shaped concealed join, 80×22×45 mm.
T Connector Concealed
Concealed join for a T-shaped layout.
Plus (+) Connector Concealed
Concealed join for a cross-shaped layout.
Hanging Set 2m Adjustable
Adjustable 2 m suspension set for hanging track.
T Power Connector 2-Core (for T Connector Concealed)
Carries power through a T joint; fits inside the T connector housing.
Plus Power Connector 2-Core (for Plus Connector Concealed)
Carries power through a plus joint; fits inside the plus connector housing.
Body Colour & Smart Tier
Black — On/off, single light colour (3K/4K/6K)
Black body with one light colour chosen at order.
Black — Remote + app (RF + BLE), tunable white
Black body with remote and app control (RF + BLE) for warm-to-cool white light.
Black — Zigbee, tunable white
Black body with Zigbee control for warm-to-cool white light.
Black — DALI DT8, tunable white
Black body with DALI DT8 control for warm-to-cool white light.
White — On/off, single light colour (3K/4K/6K)
White body with one light colour chosen at order.
White — Remote + app (RF + BLE), tunable white
White body with remote and app control (RF + BLE) for warm-to-cool white light.
White — Zigbee, tunable white
White body with Zigbee control for warm-to-cool white light.
White — DALI DT8, tunable white
White body with DALI DT8 control for warm-to-cool white light.
Black
Black body finish for this part.
White
White body finish for this part.
Universal
The listed universal version for this power supply.
Light colour
3000K
Warm white.
4000K
Neutral white.
6000K
Cool daylight white.
For bulk, hotel and project orders. We reply on WhatsApp with price and delivery time.
Couldn't load pickup availability
Design your magnetic track system
Pick the shape, then the lights — we list every part and power supply with live prices.
Catalogues & Downloads
📘 JS-FDS 20mm Magnetic Track — Premium Catalogue & Price List
Our flagship in-house range. 3-year warranty + piece-to-piece replacement · 90+ CRI · DC-DC inbuilt driver · black AND white body. View every module, dimension, beam angle and smart-control tier in the catalogue.
⬇ Download Catalogue & Price List (PDF)JS-FDS 20mm Magnetic Track System — Premium Own Brand · 3-Year Warranty · DC-DC Inbuilt Driver
Our flagship in-house 20mm magnetic track range — designed, manufactured and warrantied in Delhi. Built around four non-negotiables that the cheaper market alternatives skip: DC-DC inbuilt driver in every light module (no driver flicker, longer life, instant replacement), 90+ CRI premium LEDs for true colour rendering, high lumens-per-watt efficiency, and a full 3-year warranty with piece-to-piece replacement. The entire range is available in both black AND white body, with four smart-control tiers per module: Single Colour, App Tunable (Smart Life App), Zigbee Tunable, and DALI DT8 Tunable.
⭐ Why JS-FDS over the cheaper market alternatives
Piece-to-piece replacement clause. Industry standard is 1 year.
Every module has its own onboard regulator — no driver flicker, longer LED life, no separate failure point. Cheap alternatives skip this.
True colour rendering — fabrics, art and skin tones look as they should. Most market alternatives are 70-80 CRI.
Premium LEDs deliver more light per watt — less heat, lower energy cost, brighter rooms.
Full range available in both finishes — rare in 20mm magnetic track. Match any interior palette.
No import delays. Local spare parts. Warranty service is 1 phone call.
Single Colour, App (Smart Life App), Zigbee, DALI DT8 — pick your control level per module.
Built-in 4-core DALI bus on the recessed channel. Plug-and-play DALI installations.
Product Range
1. Track Channels — Surface/Hanging & Recessed (DALI-Ready)
- Track 1M / 2M Surface or Hanging · 1000×22×56mm and 2000×22×56mm · Black or White
- Track 1M / 2M DALI-Ready Concealed (Recessed) · 1000×22×45mm and 2000×22×45mm · Black or White · 4-core DALI bus built in
2. Spot Lights — TL Series (7W / 12W / 18W / 30W)
Adjustable head track spotlights with DC-DC inbuilt driver and premium 90 CRI COB LEDs.
- TL7 7W · Ø35×100mm · 15°/24°/36° focus
- TL12 12W · Ø45×100mm · 15°/24°/36°/55° focus
- TL18 18W · Ø55×120mm · 24° focus
- TL25 30W · Ø65×140mm · 24° focus · White body
3. Diffuser Linears — DF Series (12W / 24W)
Wide 115° spread linear modules for ambient and task lighting. DC-DC inbuilt driver, even soft glow, no hotspots.
- DF300 12W · 300×22×45mm · 115° spread
- DF600 24W · 600×22×45mm · 115° spread · Black body
4. Laser Blade Linears — LB Series (12W / 18W)
Anti-glare lens-array laser blade modules. UGR<19, ideal for showrooms, retail and offices.
- LB12 12W · 220×22×45mm · 15°/24°/36° focus + spread
- LB18 18W · 328×22×45mm · 15°/24°/36° focus + spread · Black body
5. Focus Folding Linears — FD Series (6W / 12W / 18W)
Tilt-adjustable focusable linear modules with deep-recessed lens housing. Crisp beam control, ideal for accent lighting on artwork or merchandise.
- FD6 6W · 115×22×105mm · 15°/24°/36° focus
- FD12 12W · 223×22×105mm · 15°/24°/36° focus
- FD18 18W · 331×22×105mm · 15°/24°/36° focus · Black body
6. Power Supplies — 100W / 200W (Inline + External Meanwell)
- FDS Inline 100W · 220×22×45mm · sits on the track (no external driver visible)
- FDS Inline 200W · 280×22×45mm · sits on the track
- Meanwell 48V 75W / 100W / 150W · external drivers (requires input wire purchased separately)
- Input Wire 2-Wire / 4-Wire (DALI) · for Meanwell-driven setups
7. Connectors & Accessories
- Corner Modules 2-Core / 4-Core (DALI) · 280×22×12mm — for turning the track at 90°
- Straight Connectors 2-Core / 4-Core (DALI) · 160×22×12mm — to join track sections in a line
- L Connector / T Connector / Plus (+) Connector — recessed concealed connectors for complex layouts
- Hanging Set 2m Adjustable — for suspending track from the ceiling
⚡ What is "DC-DC Inbuilt Driver" and why does it matter?
In every JS-FDS light module, a small DC-DC converter is built INTO the fitting itself. It takes the 48V DC from the track and locally regulates it to the exact voltage and current the LED needs.
Why this matters compared to cheap alternatives without inbuilt drivers:
- No flicker. Voltage fluctuation on the track is absorbed by the inbuilt driver. Cheap modules without one flicker visibly under load.
- Longer LED life. The LED sees constant clean current, so it lasts much longer than market alternatives.
- Modular replacement. If a module fails, you replace just that module — not the central driver and everything downstream.
- Mixed-CCT compatibility. You can mix 3000K, 4000K and 5500K modules on the same track without any one of them stealing power from the others.
- Better for dimming. Smooth dimming curves without colour shift, because each module has its own current control.
Cheap "no DC-DC" magnetic-track modules look the same on day one. They start flickering, colour-shifting, or failing within 6-12 months. We've seen it on customer site visits. The DC-DC inbuilt driver in FDS is the single biggest reason we put our 3-year warranty on it.
Technical Specifications
Common to all light modules
| Input Voltage (Track) | 48V DC |
| Driver | DC-DC inbuilt (each module has onboard regulator) |
| CRI | Ra > 90 (premium colour rendering) |
| CCT (Single Colour SKUs) | 3000K WW / 4000K NW / 5500K CW — pick at order |
| CCT (Tunable SKUs) | Smooth 2700K–6500K via Smart Life App / Zigbee / DALI |
| Body Colour | Black or White (full range) |
| Warranty | 3 years · piece-to-piece replacement |
| Manufactured | Delhi, India |
Light Modules — Dimensions, Wattage, Beam Angles
| Code | Type | Wattage | Beam | Dimensions (mm) | Body Colours |
|---|---|---|---|---|---|
| DF300 | Diffuser Linear (Spread) | 12W | 115° | 300×22×45 | Black + White |
| DF600 | Diffuser Linear (Spread) | 24W | 115° | 600×22×45 | Black |
| LB12 | Laser Blade Linear | 12W | 15°/24°/36° | 220×22×45 | Black + White |
| LB18 | Laser Blade Linear | 18W | 15°/24°/36° | 328×22×45 | Black |
| FD6 | Focus Folding Linear | 6W | 15°/24°/36° | 115×22×105 | Black + White |
| FD12 | Focus Folding Linear | 12W | 15°/24°/36° | 223×22×105 | Black + White |
| FD18 | Focus Folding Linear | 18W | 15°/24°/36° | 331×22×105 | Black |
| TL7 | Track Spot | 7W | 15°/24°/36° | Ø35×100 | Black + White |
| TL12 | Track Spot | 12W | 15°/24°/36°/55° | Ø45×100 | Black + White |
| TL18 | Track Spot | 18W | 24° | Ø55×120 | Black |
| TL25 | Track Spot | 30W | 24° | Ø65×140 | White |
Track Channels, Power Supplies & Connectors
| Code | Description | Dimensions / Spec |
|---|---|---|
| Track 1M / 2M Surface | Surface or hanging mount | 1000 or 2000 × 22 × 56mm |
| Track 1M / 2M DALI | Recessed/concealed with 4-core DALI bus | 1000 or 2000 × 22 × 45mm |
| PSU Inline 100W / 200W | FDS in-house, sits on track | 220-280 × 22 × 45mm · DC 48V |
| Meanwell 48V 75W / 100W / 150W | External driver (premium option) | Requires input wire |
| Corner Module 2-Core / 4-Core | 90° turn (DALI version 4-core) | 280 × 22 × 12mm |
| Straight Connector 2-Core / 4-Core | Join two track sections | 160 × 22 × 12mm |
| L / T / Plus Connectors | Recessed-track complex layouts | Concealed |
| Hanging Set | Ceiling suspension | 2m adjustable |
How to Order — Plan Your FDS 20mm Layout in 6 Steps
- Sketch your Layout — straight runs, corners, suspended sections. Note total run length + every fixture position.
- Choose Mount Type — Surface/Hanging (1000×22×56) for visible architectural track, OR DALI-Ready Recessed (1000×22×45) for plaster-in trimless look with DALI bus pre-installed.
- Pick Body Colour — Black or White. Match your ceiling, walls or architectural intent. Same price either way.
- Pick Light Modules + Smart Control Tier — Spot / Diffuser / Laser Blade / Focus Folding. For each module pick: Single Colour (cheapest), App Tunable (Smart Life App), Zigbee Tunable, or DALI DT8 Tunable. All deliver 90+ CRI.
- Size the Driver — sum module wattages, add 20% headroom. Choose FDS Inline 100W/200W (sits on track, sleekest) OR external Meanwell 75/100/150W. Confirm input wire (2-wire standard, 4-wire for DALI).
- Share & Order — WhatsApp your BOQ; we validate wattages, suggest optimisations, lock pricing and ship pan-India.
Need Help Designing or Ordering?
The DC-DC inbuilt driver + 90 CRI + 3-year warranty story is a substantial step up from cheap market alternatives. Our team will help you compare specs SKU-by-SKU, prepare BOQ, and configure smart control to match your project needs.
- WhatsApp: Click to chat with our lighting expert
- Call: +91 98991 88821 · Mon–Sat · 10am–8pm IST
- Visit a showroom: 4 Delhi locations — see the FDS modules in person, compare against cheaper market alternatives, and verify the DC-DC + 90 CRI difference yourself.
| Specification | Details |
|---|---|
| Beam Angle | 15°, 24°, 36°, 55°, 115° |
| Body Colour | Black, White |
| CRI | 90+ |
| Dimming | Single Color, App Tunable (Smart Life), Zigbee Tunable, DALI DT8 |
| Driver Type | DC-DC Inbuilt (each module) |
| Fixing Type | Surface Mount, Hanging Suspension, Recessed DALI-Ready |
| Input Voltage | 48VDC |
| IP Rating | IP20 |
| Colour Temperature | 3000K Warm White, 4000K Neutral White, 5500K Cool White, Tunable 2700K-6500K |
| LED Type | COB + SMD (premium) |
| Length | 115mm, 220mm, 300mm, 328mm, 600mm, 900mm, 1m, 2m |
| Product Family | JS-FDS |
| Ship fragile big | true |

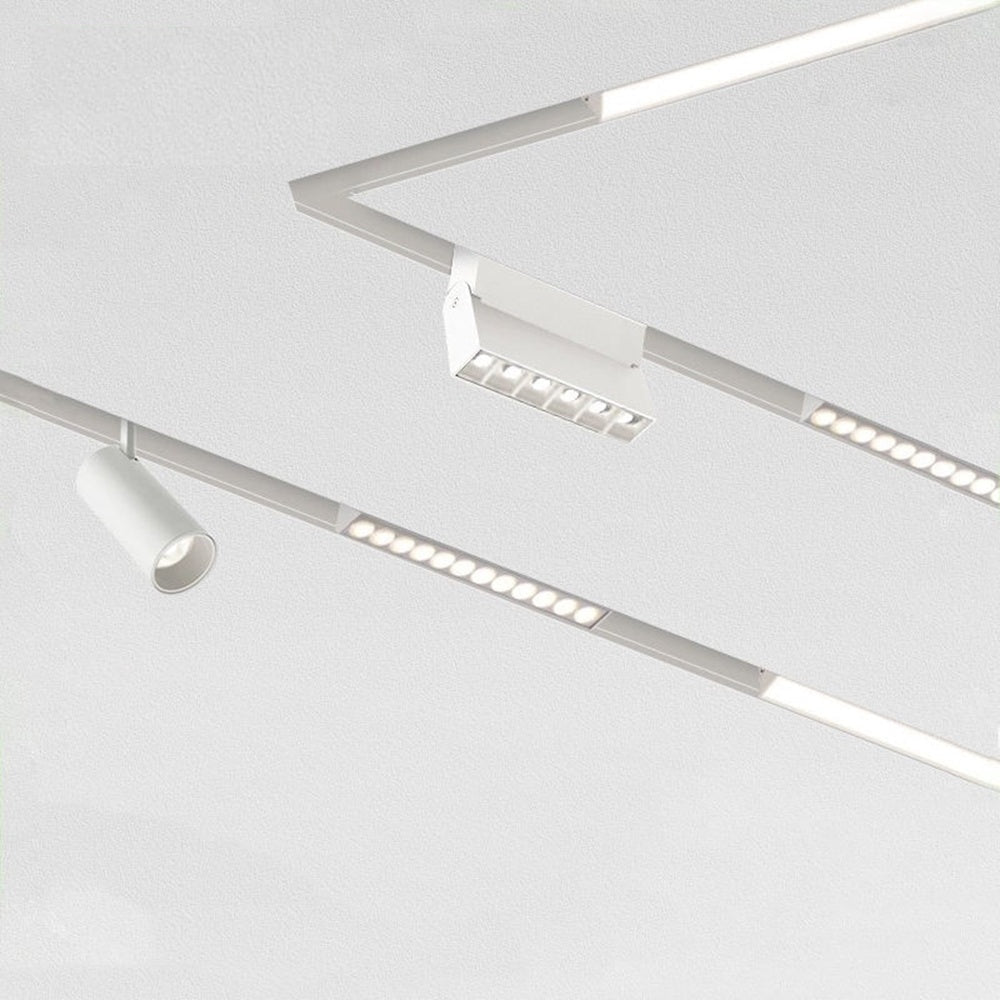

| Type of Item | 20mm Magnetic Track Lights |
| Warranty | 3 Years |
| Wattage | 6W, 7W, 12W, 18W, 20W, 24W, 30W, 75W, 100W, 150W, 200W |
| Width | 20mm (Track) |
- At Jainsons Lights, we are committed to the highest levels of customer experience.
- For any after-sales support Contact +919266929991
- For anything else please feel free to reach out to us. Check our Contact Details
We offer a 7-Day conditional Return & exchange Policy for all products. For more details on the Policies, please refer to the Policy Document You Can click here to initiate for Return
