JS-GZ MS30 Ultra-Thin Magnetic Track Lighting System – 48V DC
The slimmest 30 × 5 mm magnetic track channel from the JS-GZ MS30 series — designed for architectural projects, premium homes, and retail showrooms across Delhi NCR. The same track accepts a complete library of light modules: track spots, linear diffusers, laser blades, foldable spots, wall-wash heads, hanging cones, panels, and pendants — all of which snap on magnetically and can be repositioned without tools. Available in stock at Jainsons Lights Delhi.
Product Range

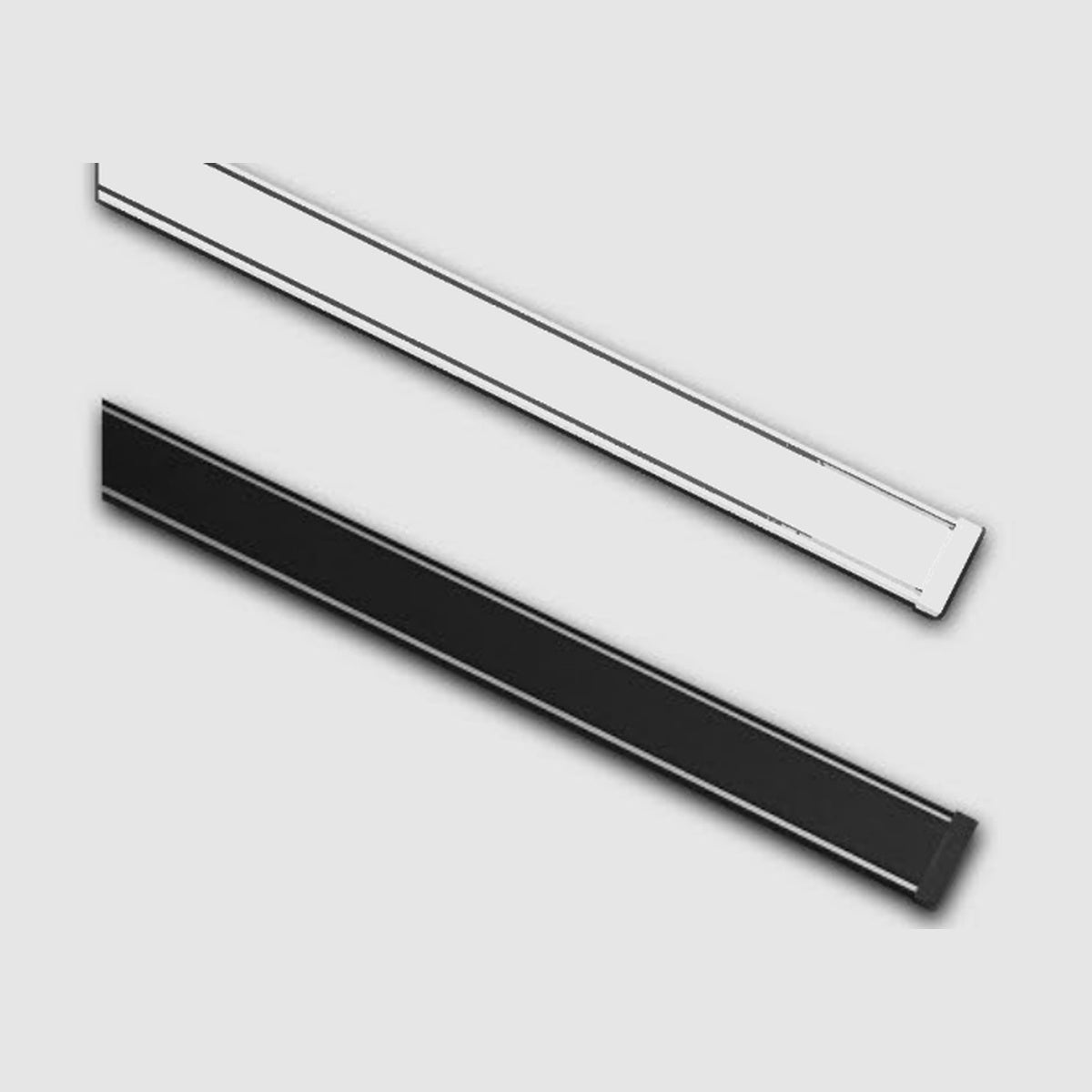

1. Track Channels (30 × 5 mm) — 1m / 2m / 3m
Aluminium magnetic channels, 30 mm wide × 5 mm deep — one of the slimmest profiles available. Surface-mount, suspended (with hanging kit), or recessed in false ceiling. Available in Black and White body colour to match every interior.
- 1m channel: MS30/BK-1M, MS30/WH-1M — for short runs, accent strips, wardrobe niches.
- 2m channel: MS30/BK-2M, MS30/WH-2M — the everyday workhorse for living rooms, offices, retail.
- 3m channel: MS30/BK-3M, MS30/WH-3M — for long uninterrupted runs, dining tables, corridor washes.
2. Connectors & Adapters — 5 types
Snap-fit modules to join channels into any layout — straight, L, T, cross or step.

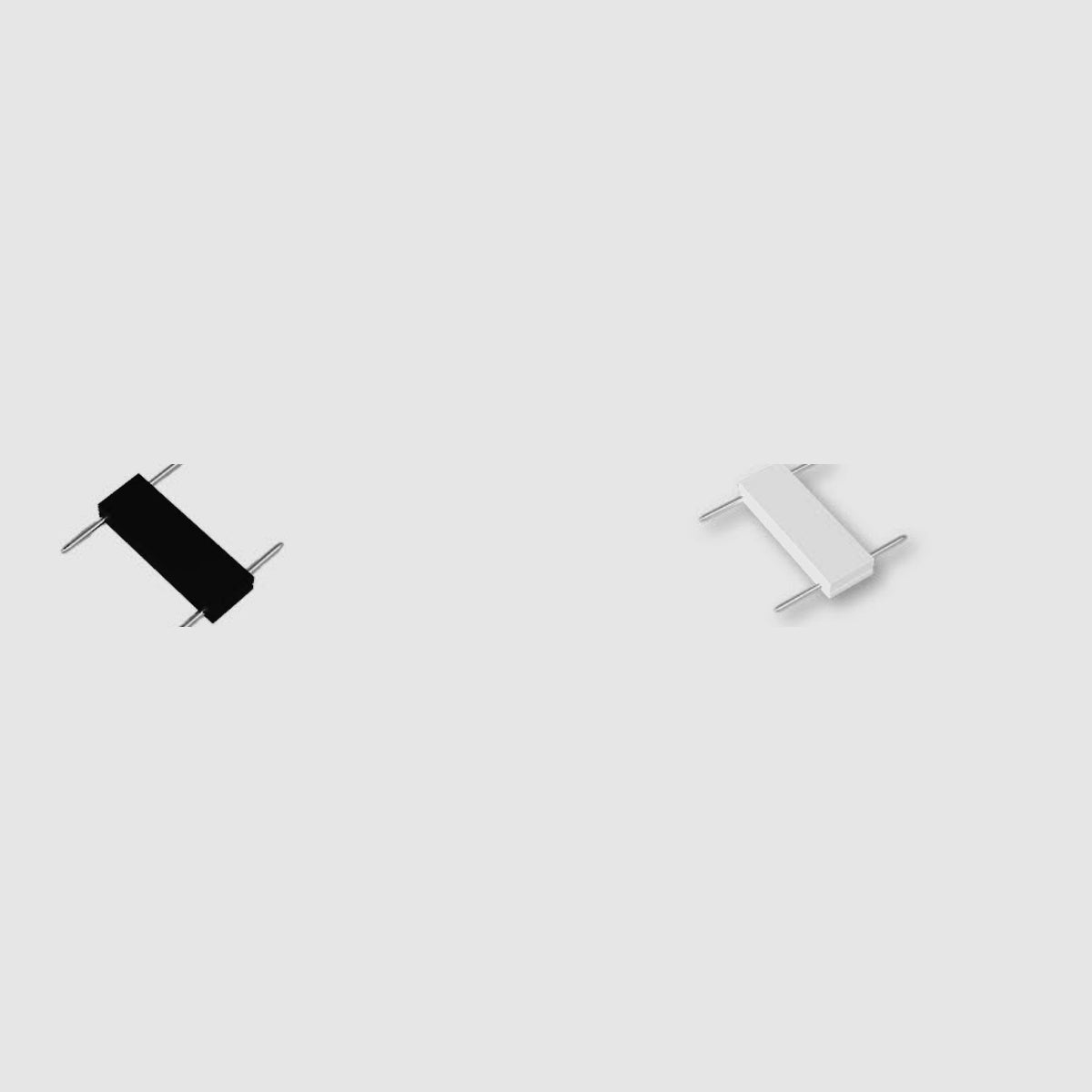

- Straight Connect Module (30×30×5 mm) — joins two tracks end-to-end.

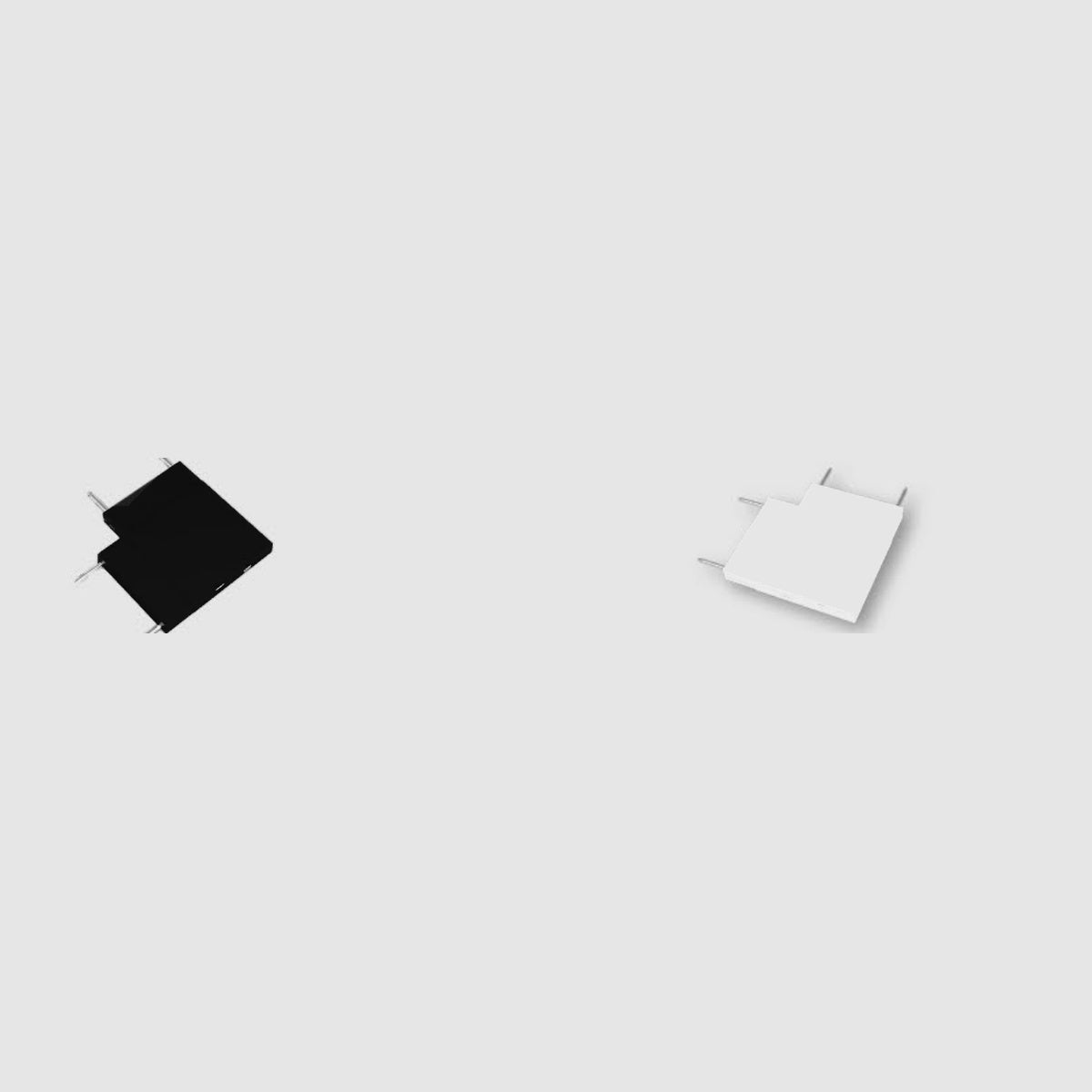

- L Connect Module (45×45×5 mm) — 90° corner.

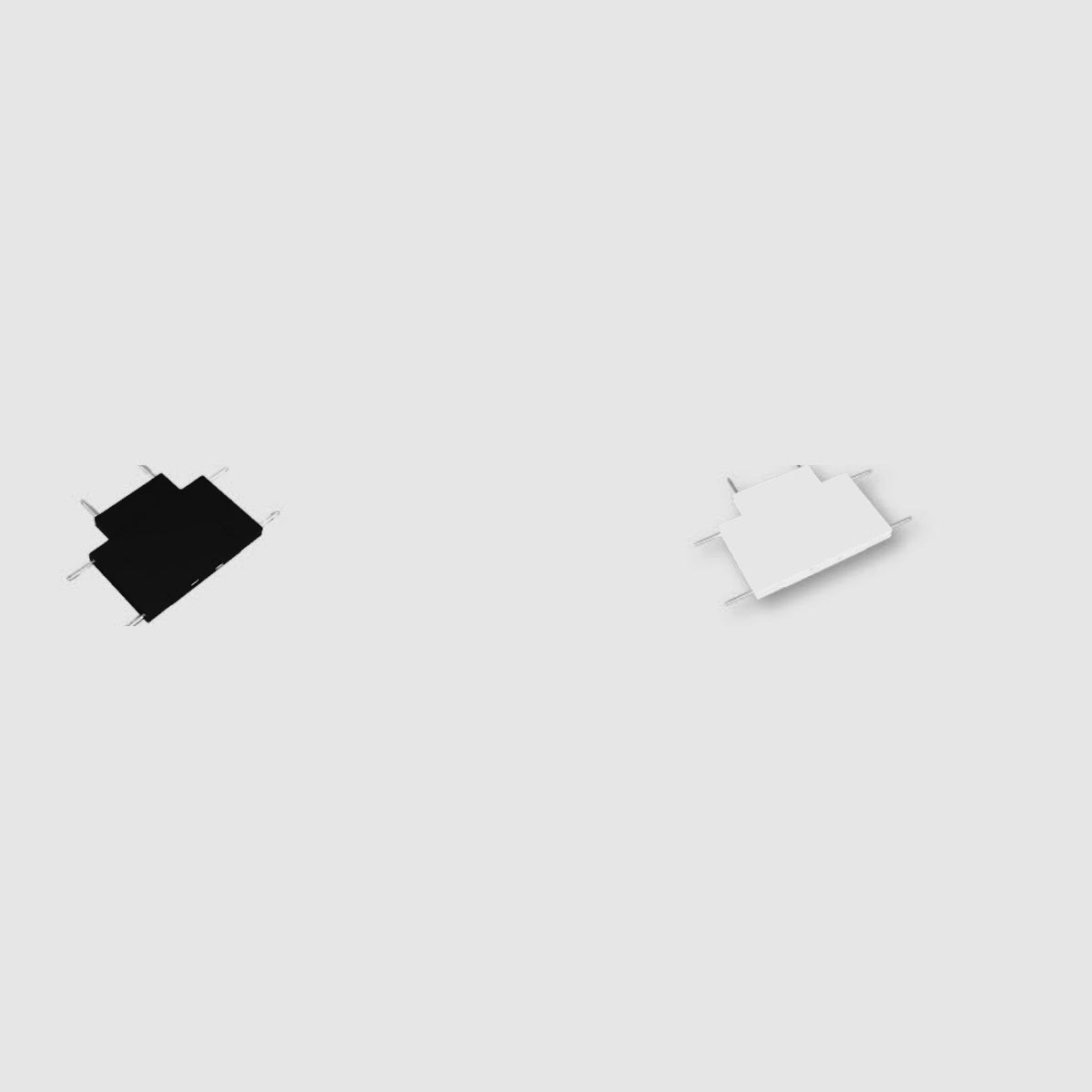

- T Connect Module (60×45×5 mm) — three-way junction.

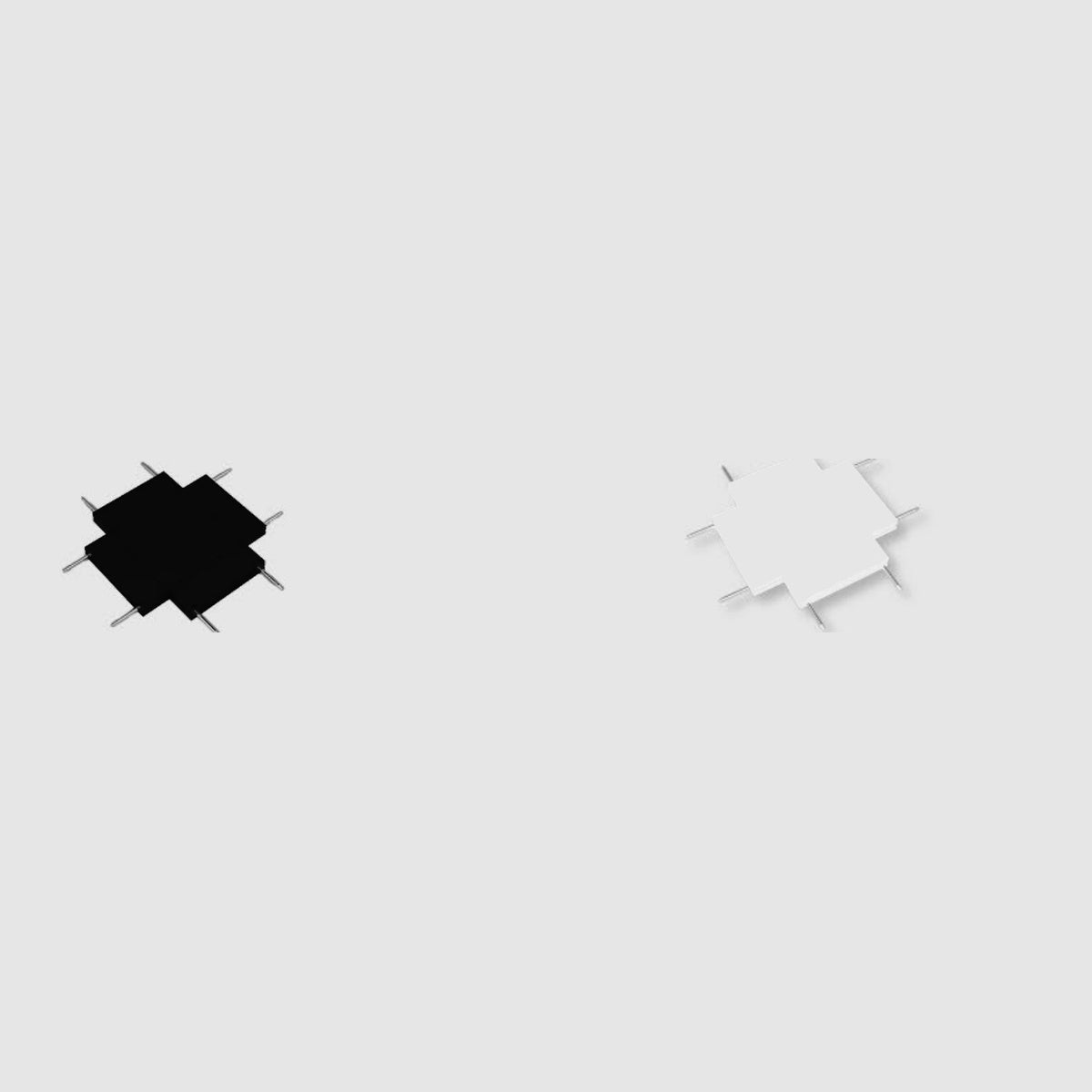

- Cross Connect Module (60×60×5 mm) — four-way junction.

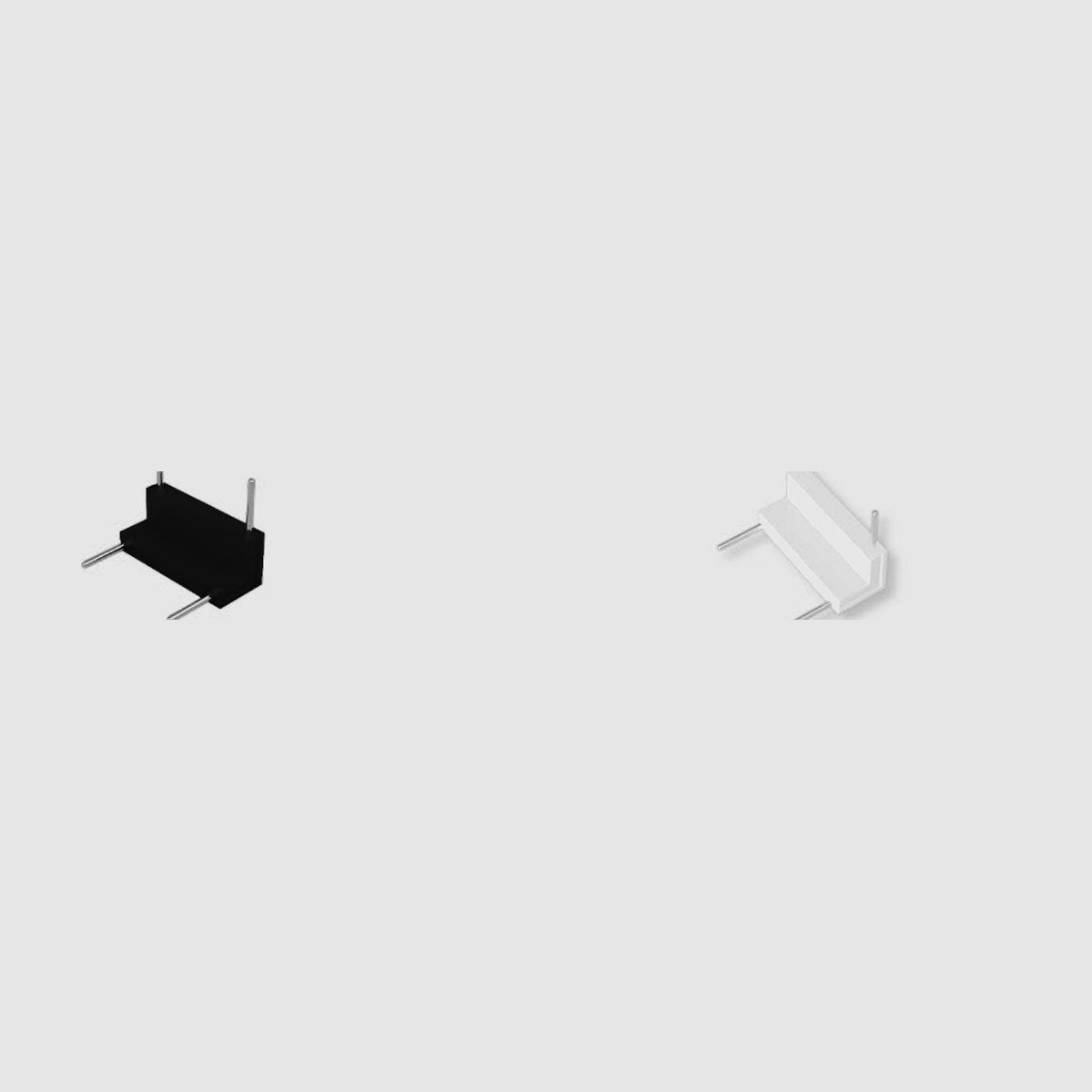

- In & Out Connect Module (25×25×5 mm) — step / level change.

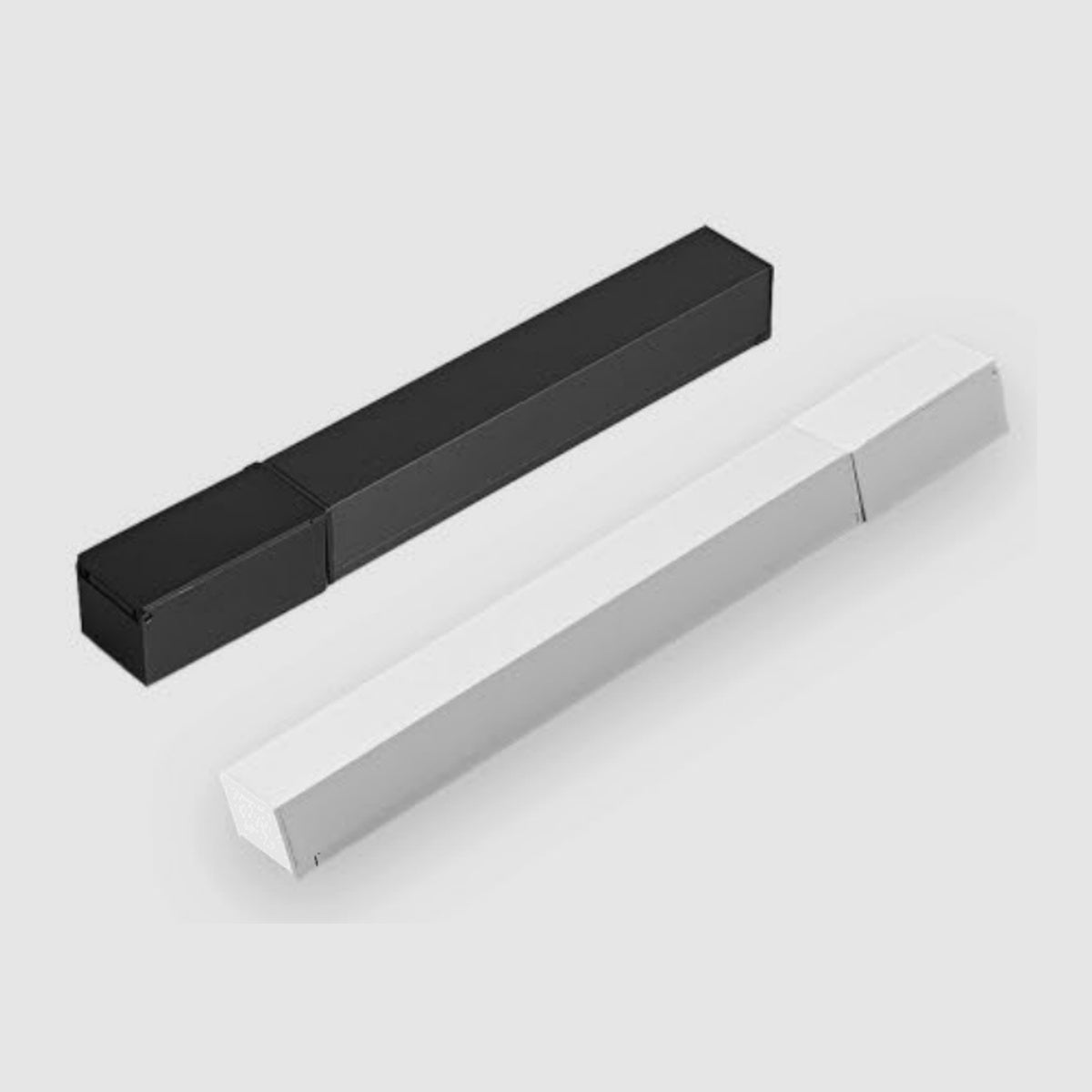

3. Power Supplies — Standard, Wifi+BLE Smart, Zigbee Smart
48V DC drivers in 100 W and 200 W ratings. Smart variants integrate with home automation via Wifi + BLE or Zigbee protocols — control dimming, scenes, and CCT over the Tuya app or any compatible hub.
- 100W standard / 100W Wifi+BLE / 100W Zigbee — for runs up to ~2 metres at full module load.
- 200W standard / 200W Wifi+BLE / 200W Zigbee — for long runs or high-density installations.
Input: 190–245V AC · Output: DC 48V · Output current: 2.1A (100W) / 4.2A (200W).

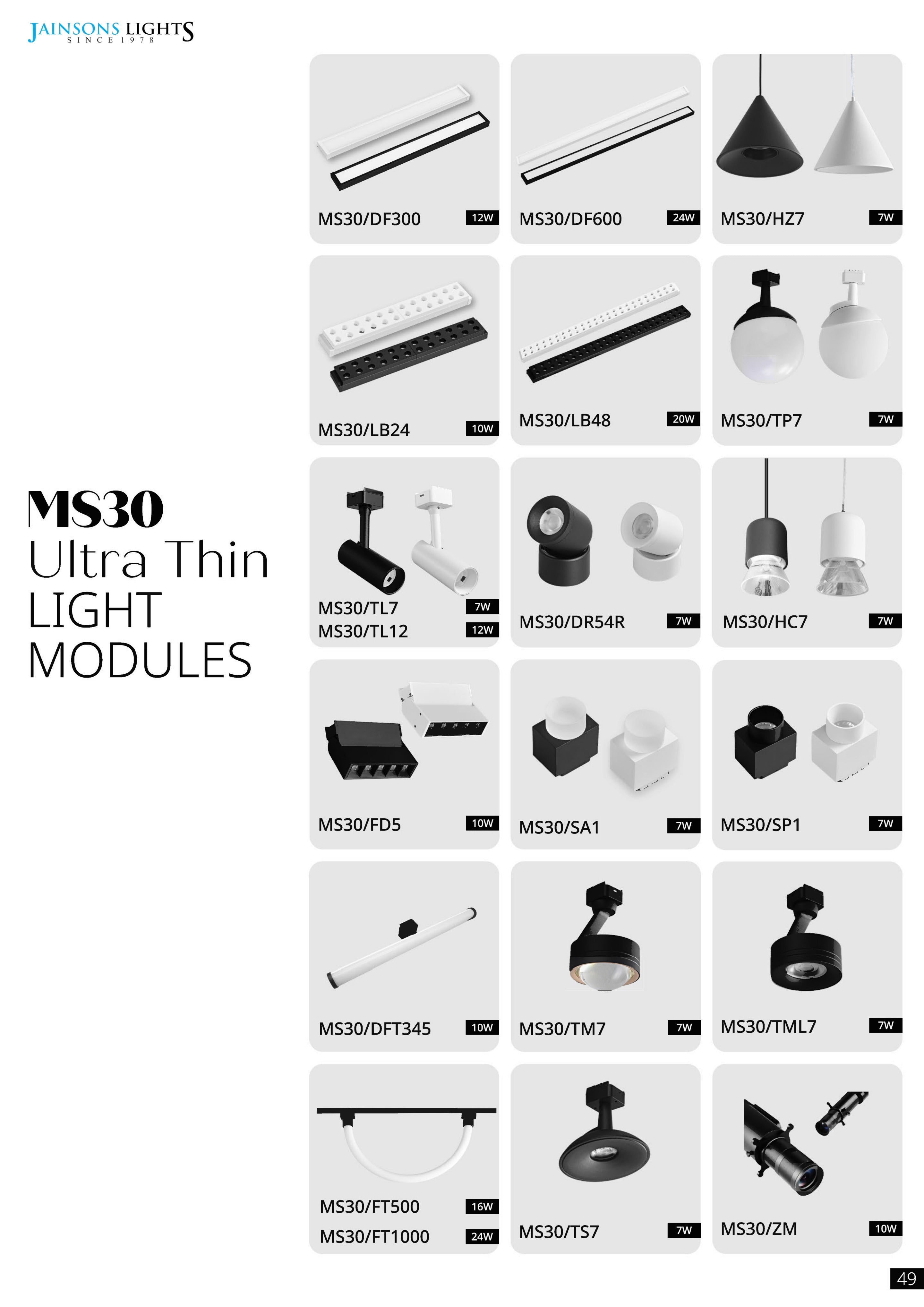

4. Light Modules — Track Spots, Linear Diffusers, Laser Blades, Surface Spots, Pendants & more
All modules are magnetic plug-in. Mix and match across one track. CRI >90 with Bridgelux LEDs (3000K available across the range; 4000K and 3K-6K Tunable on selected models — confirm via WhatsApp).

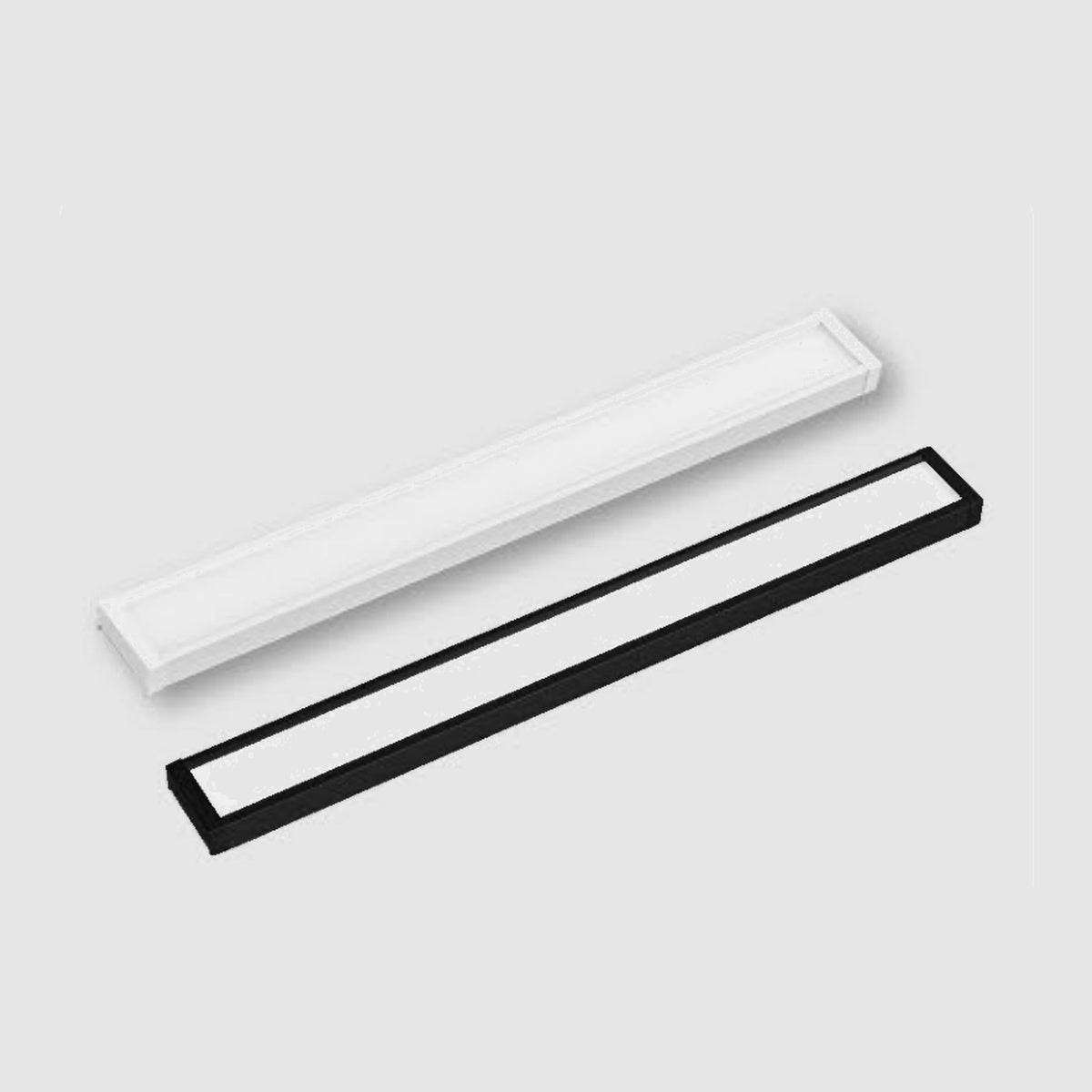

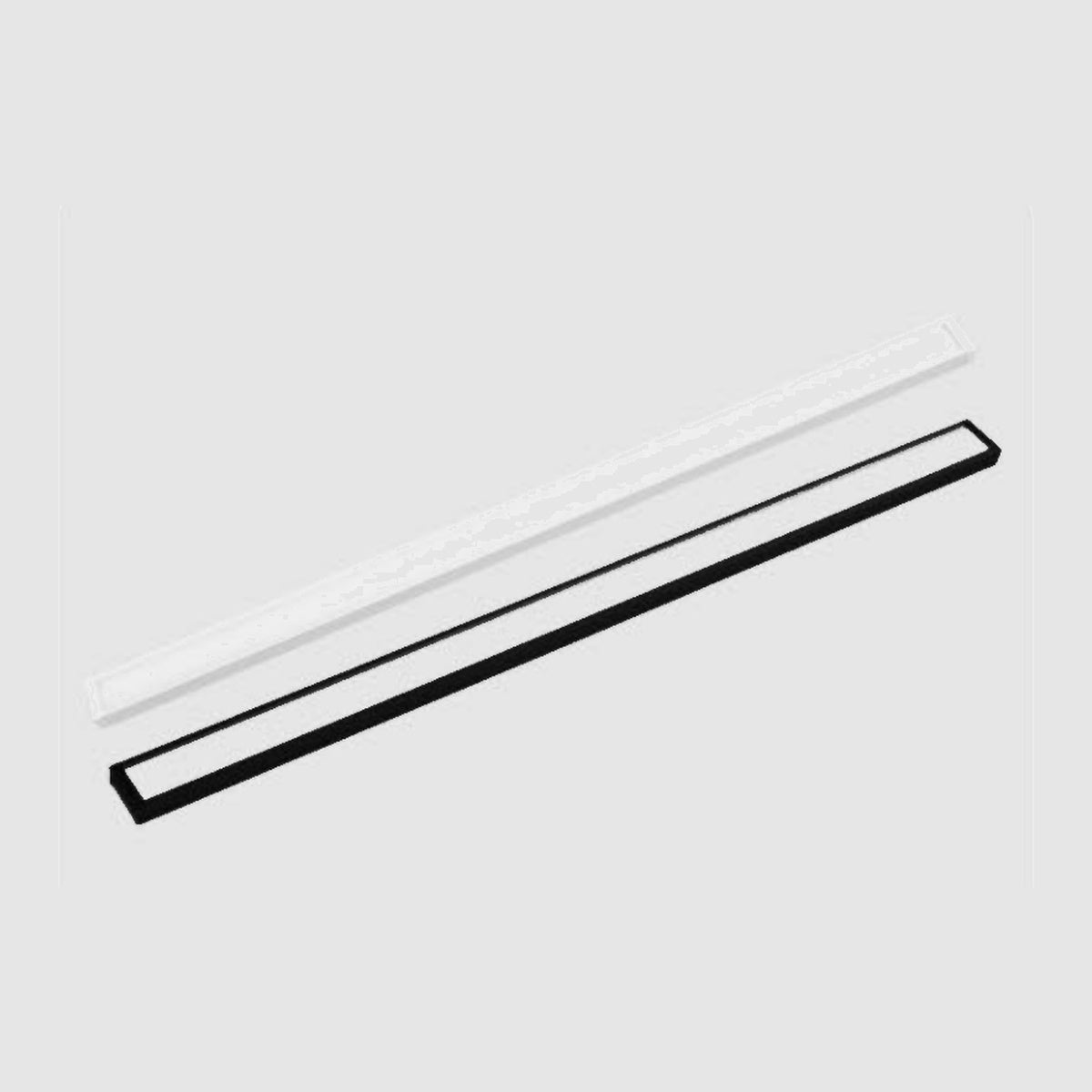

- Linear Diffusers (DF300, DF600): 7W / 14W in 300mm / 600mm — soft continuous ambient light, beam 105°.

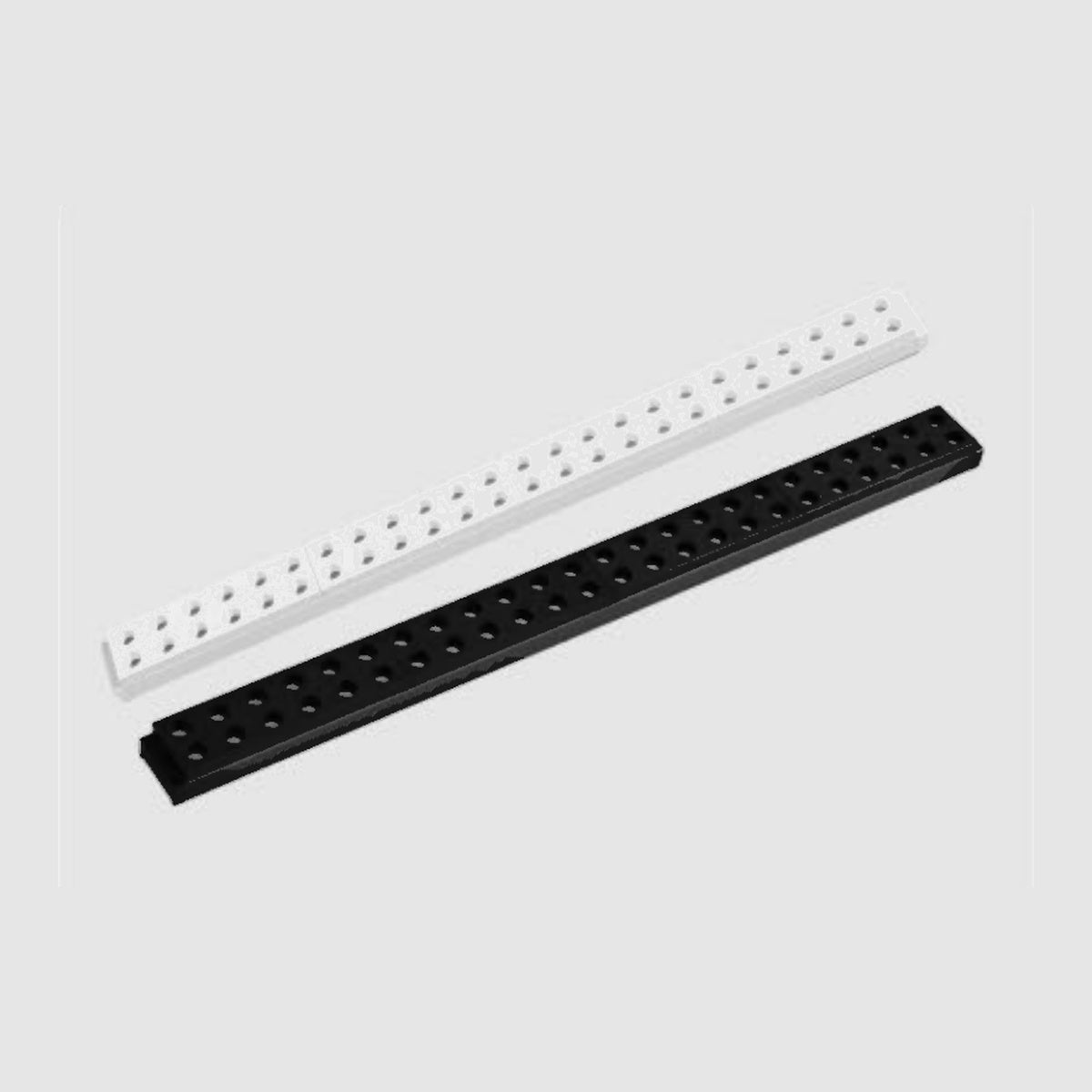

- Laser Blades (LB24, LB48): 5W / 10W in 240mm / 480mm — narrow 30° beam for wall-grazing.

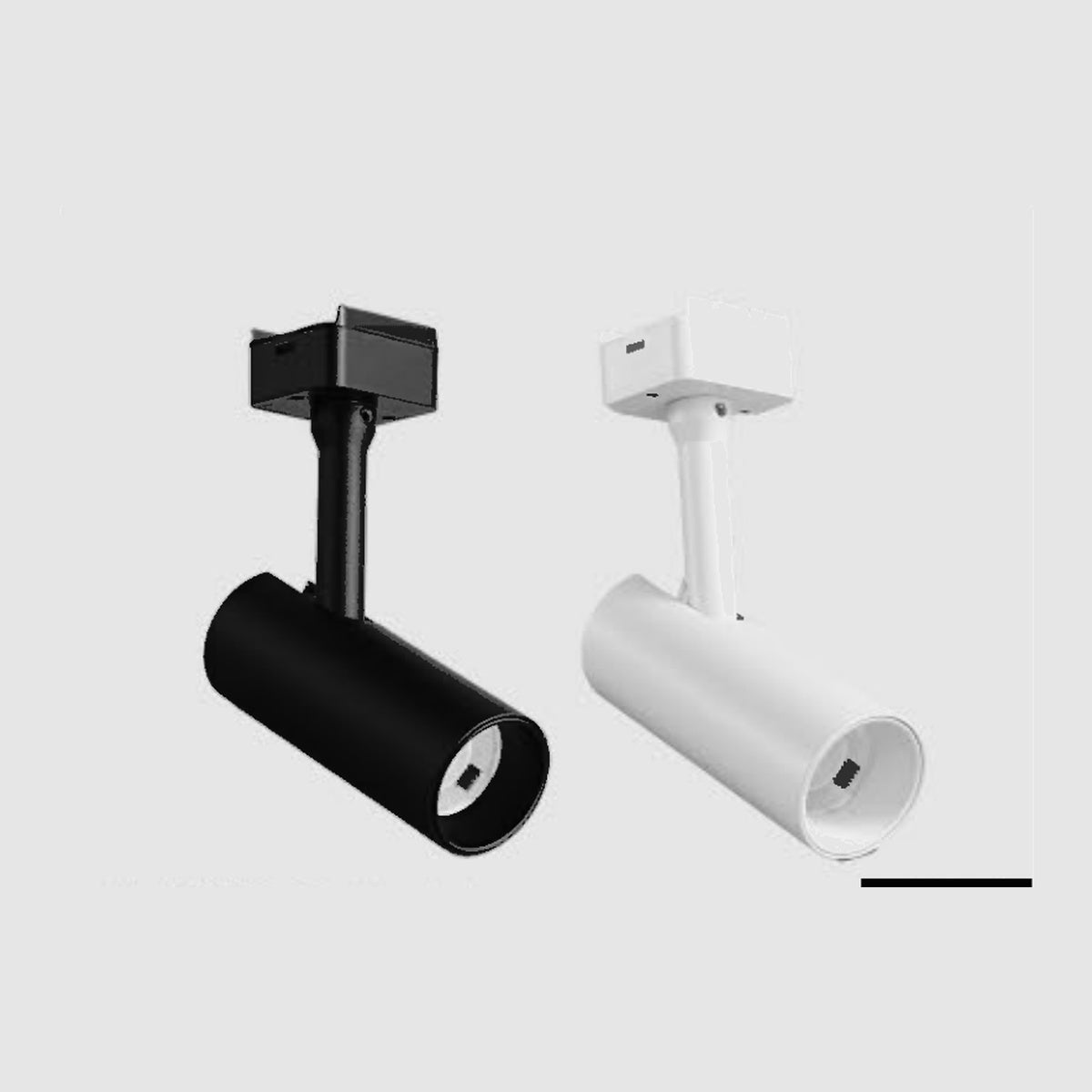

- Track Spots (TL7, TL12, TL20, TL30): 7W / 12W / 20W / 30W — beam 24°, tiltable, the workhorse spot.
- Foldable Spot (FDS): 7W foldable for tight ceiling spaces.

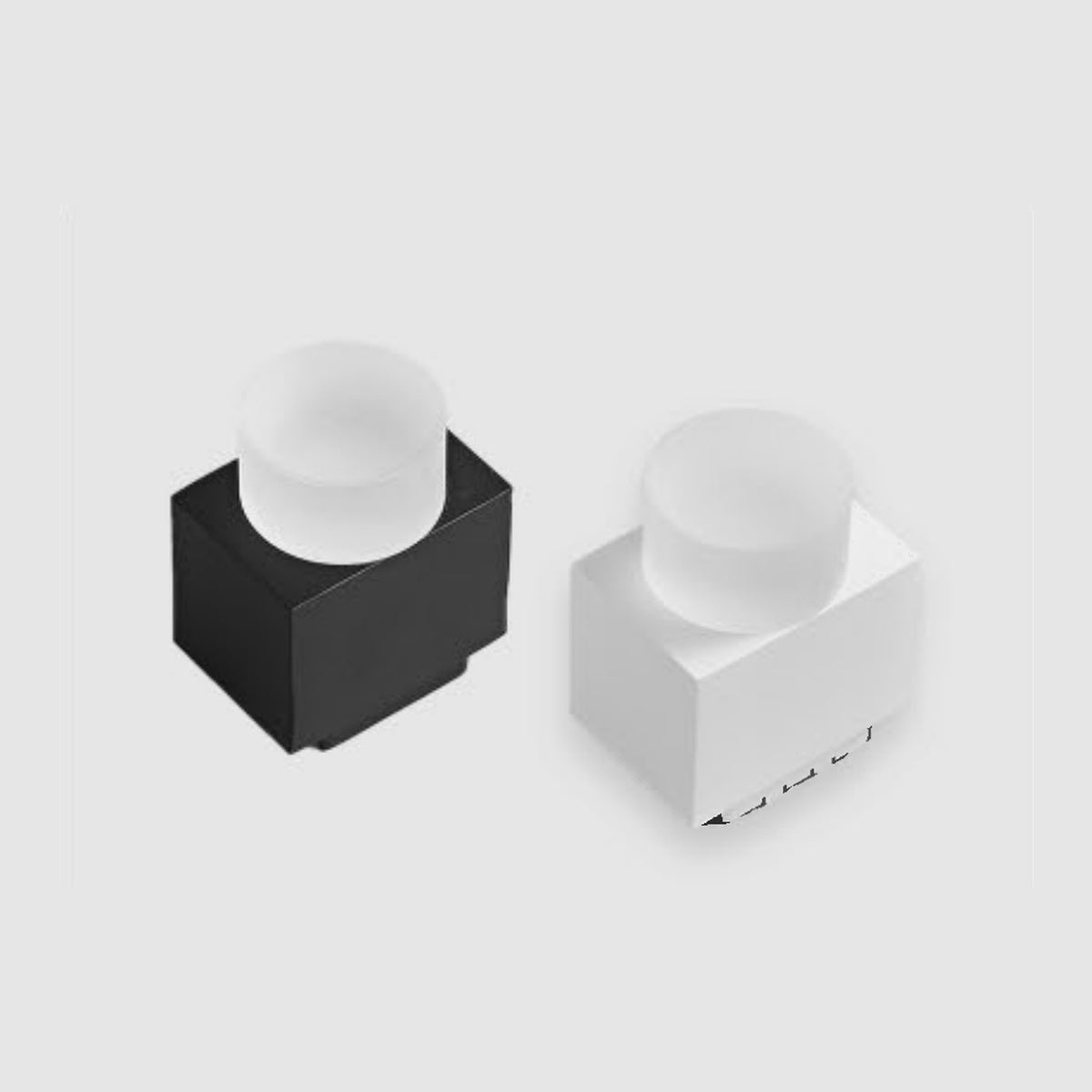

- Mini Surface Spots (SP1, SA1): compact 7W spots, beam 36° / 80°.

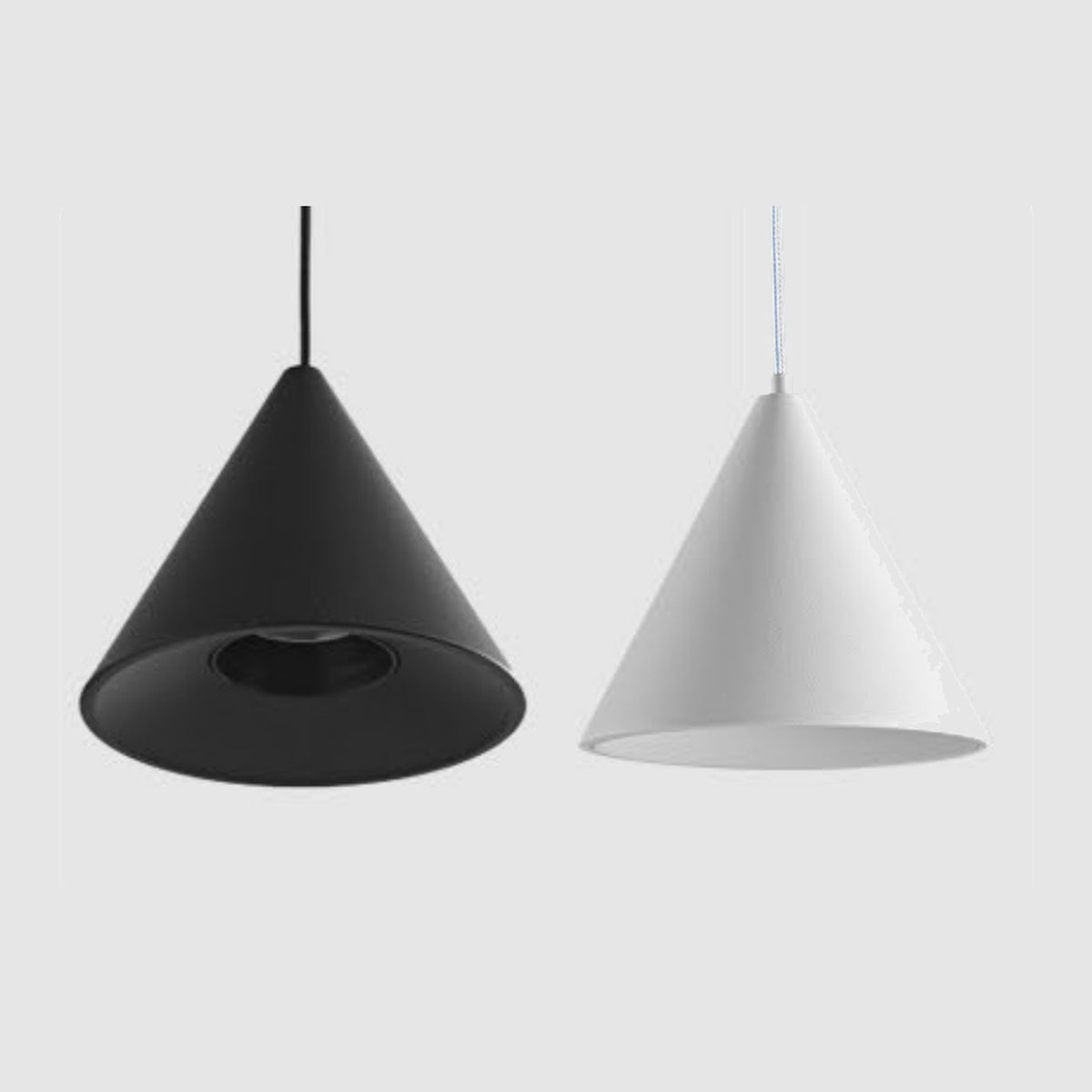

- Wall Wash (HZ7): 7W with 80° beam — for vertical surfaces and feature walls.

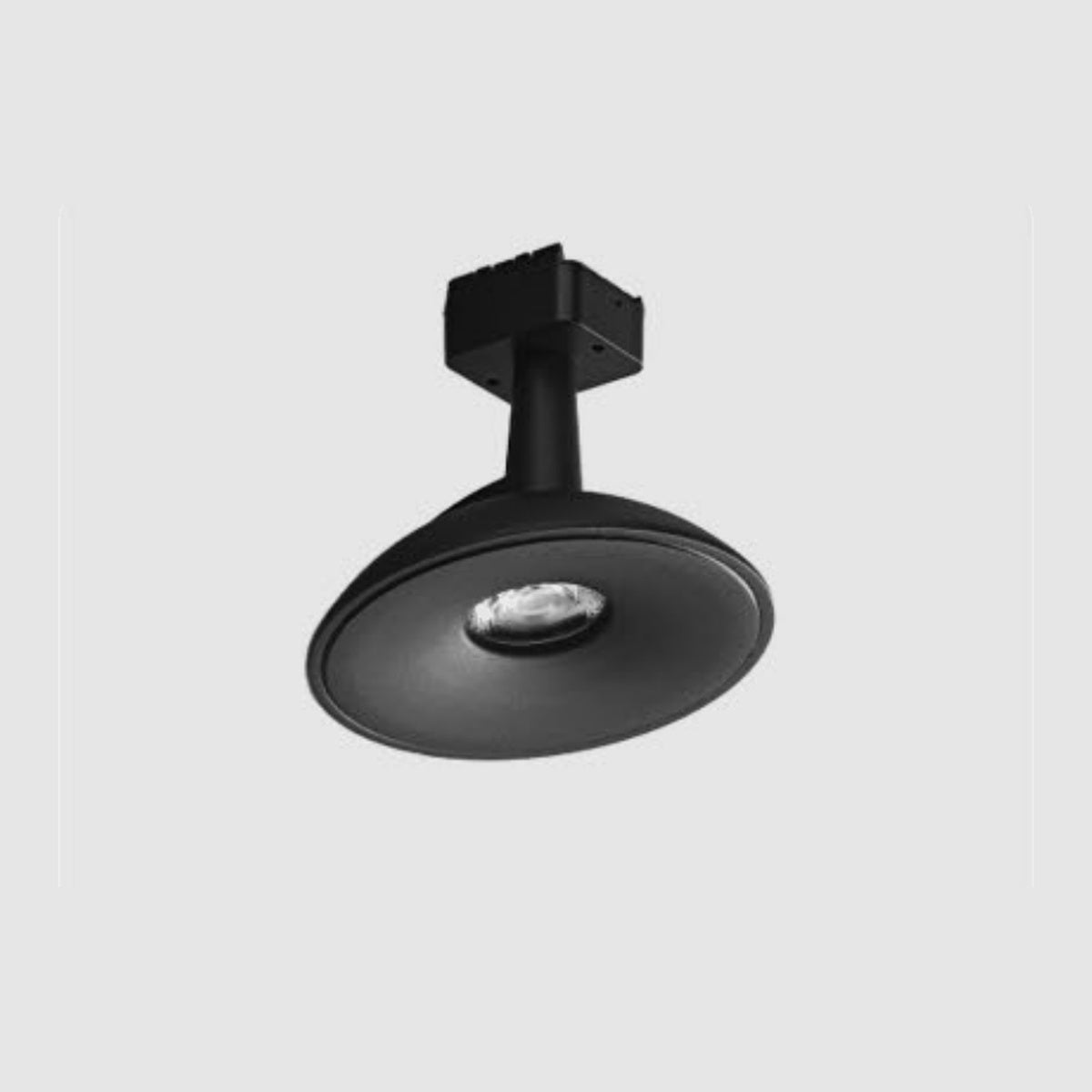

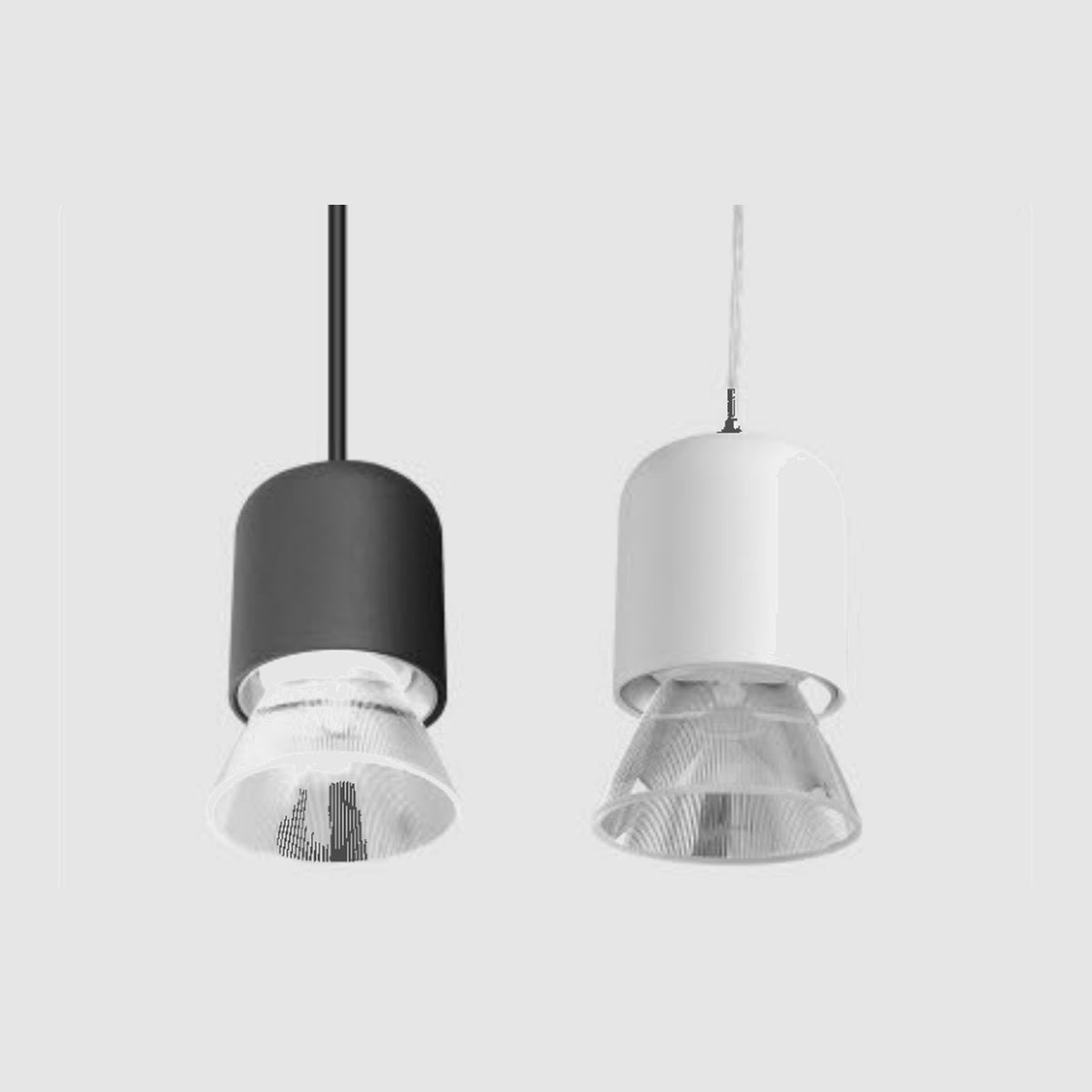

- Hanging Cone (HC7): 7W with 24° beam — drops below the track for dining tables or product displays.

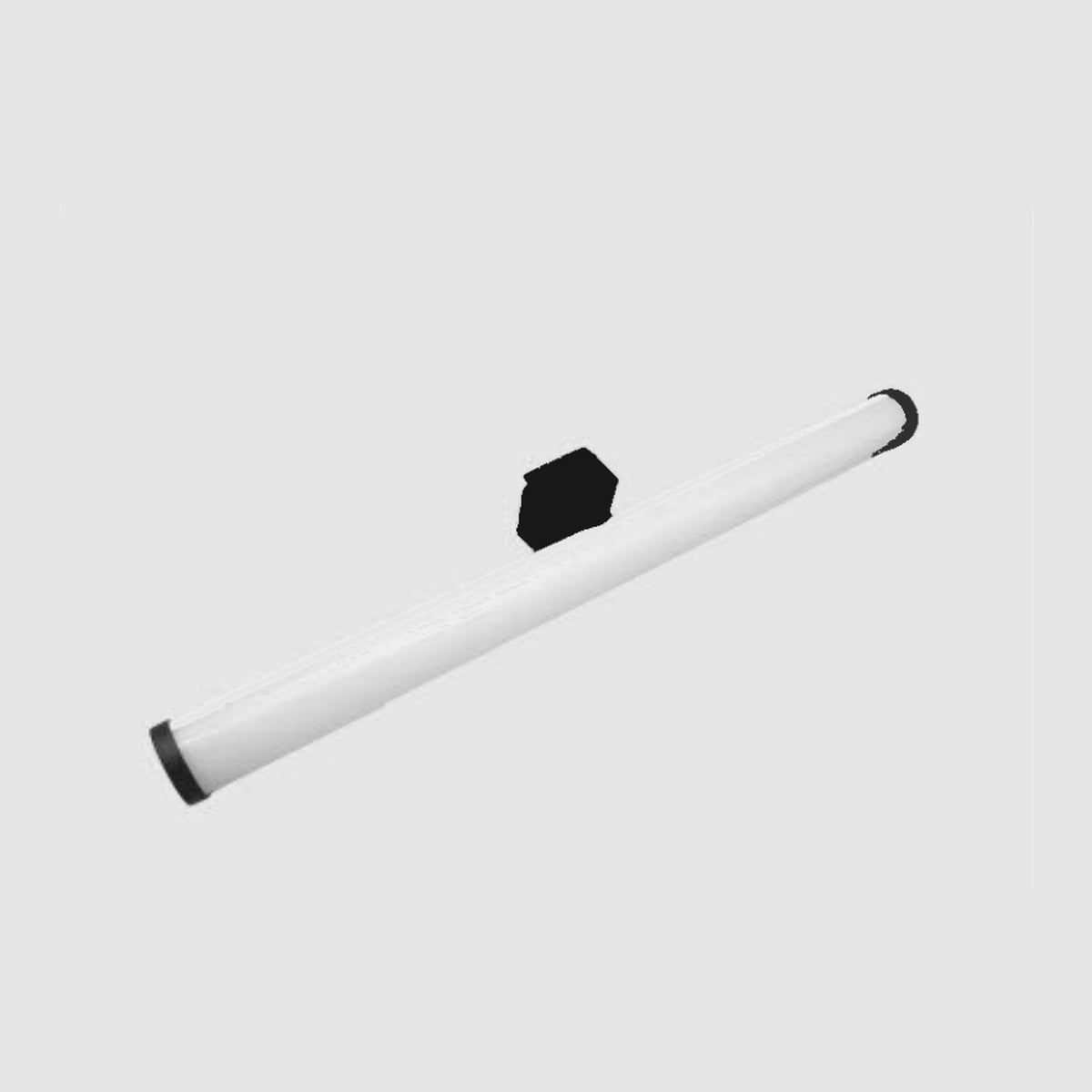

- Diffused Track Linear (DFT345): 10W 345mm with 180° beam — soft general lighting along the track.

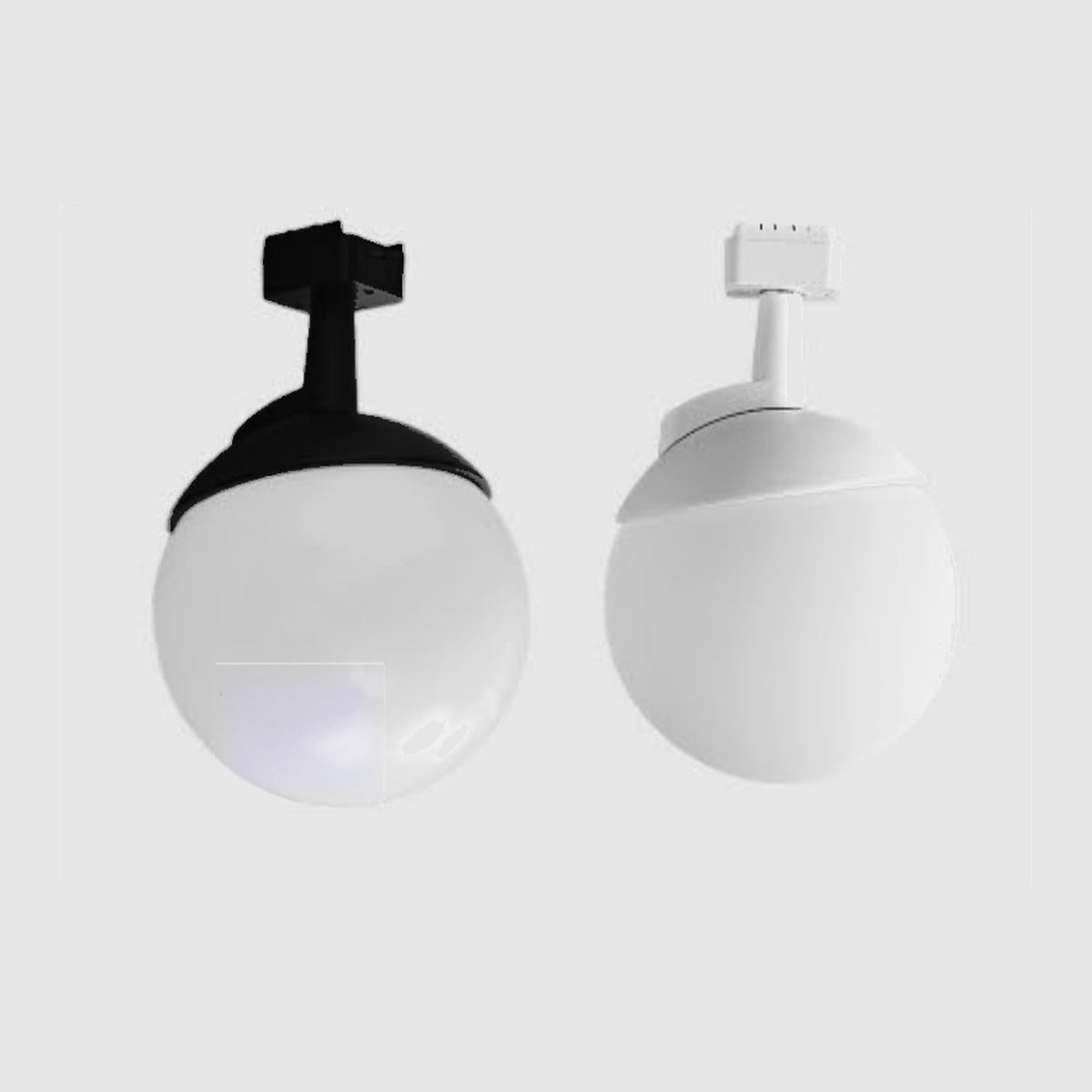

- Track Round Panel (TP7): 15W 110° beam — round 200mm fitting for area lighting.
- Pendant (PD011): 4W 95mm decorative pendant for accent points.
- Flex Light (FT500): 7W 500mm flexible neon-style strip in 360° beam.

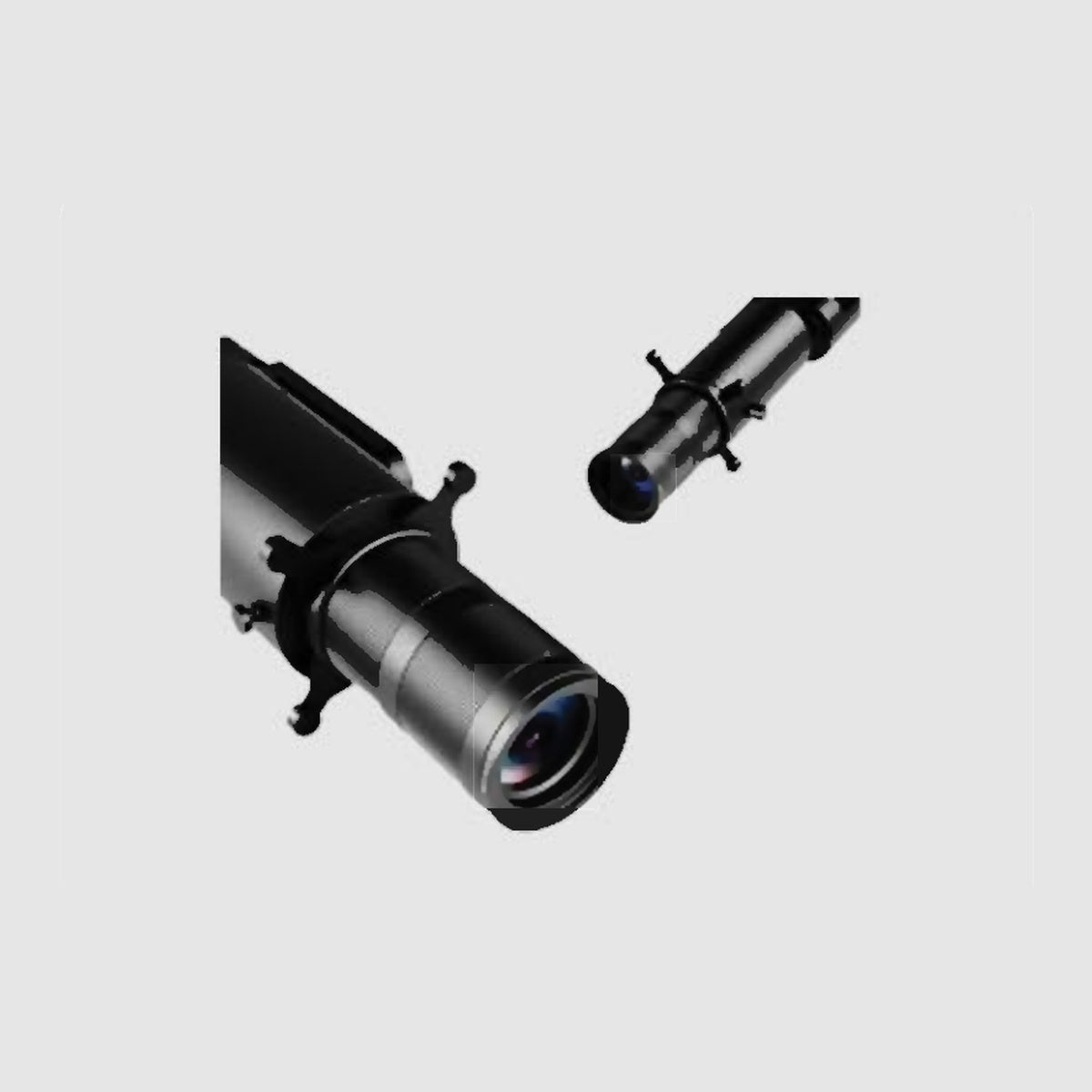

- Adjustable Beam Premium (ZM): single-piece flagship with adjustable beam — for designer feature installations.

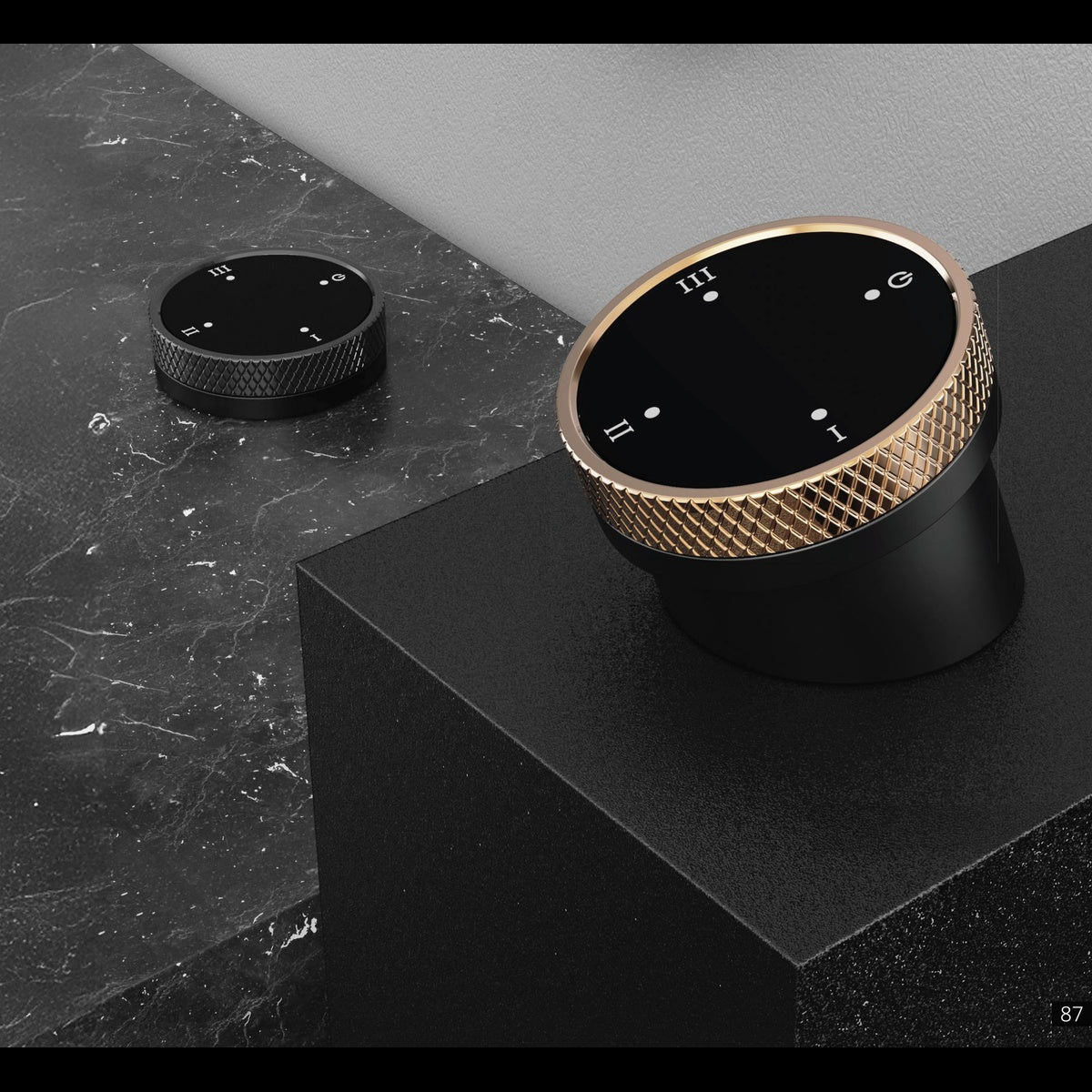

5. Smart Control (BLE + WiFi remote)
For installations with the Wifi+BLE or Zigbee smart power supplies, the optional MS30 Smart Remote works with two AAA batteries and the Tuya Smart app. Pair via WiFi for app-based scene control (modes, brightness, CCT, ON/OFF), or use the physical remote for direct control without the phone.
Compatible with smart-enabled dimmable + tunable modules. Confirm compatibility per SKU via WhatsApp.
Technical Specifications
Track Channels & Accessories
| Product Code | Description | Mounting | Size | Body Colour |
|---|---|---|---|---|
| MS30/BK-1M / MS30/WH-1M | 1m Track Channel | Surface / Suspended / Recessed | 1000 × 30 × 5 mm | Black / White |
| MS30/BK-2M / MS30/WH-2M | 2m Track Channel | Surface / Suspended / Recessed | 2000 × 30 × 5 mm | Black / White |
| MS30/BK-3M / MS30/WH-3M | 3m Track Channel | Surface / Suspended / Recessed | 3000 × 30 × 5 mm | Black / White |
| Straight Connect Module | End-to-end joint | — | 30 × 30 × 5 mm | Black / White |
| L Connect Module | 90° corner | — | 45 × 45 × 5 mm | Black / White |
| T Connect Module | 3-way junction | — | 60 × 45 × 5 mm | Black / White |
| Cross Connect Module | 4-way junction | — | 60 × 60 × 5 mm | Black / White |
| In & Out Connect Module | Step / level change | — | 25 × 25 × 5 mm | Black / White |
Power Supplies (48V DC)
| Product Code | Power | Input | Output | Smart | Dimensions |
|---|---|---|---|---|---|
| MS30/SP100 | 100W | 190–245V AC | DC 48V / 2.1A | Standard ON-Track | 152 × 48 × 24 mm |
| MS30/SP100-BLE | 100W | 190–245V AC | DC 48V / 2.1A | Wifi + BLE (Tuya) | 152 × 48 × 24 mm |
| MS30/SP100-ZB | 100W | 190–245V AC | DC 48V / 2.1A | Zigbee | 152 × 48 × 24 mm |
| MS30/SP200 | 200W | 190–245V AC | DC 48V / 4.2A | Standard ON-Track | 200 × 48 × 24 mm |
| MS30/SP200-BLE | 200W | 190–245V AC | DC 48V / 4.2A | Wifi + BLE (Tuya) | 200 × 48 × 24 mm |
| MS30/SP200-ZB | 200W | 190–245V AC | DC 48V / 4.2A | Zigbee | 200 × 48 × 24 mm |
Light Modules
| Code | Type | Power | Beam | CCT | Dimensions |
|---|---|---|---|---|---|
| MS30/DF300 | Linear Diffuser | 7W | 105° | 3K / 4K | 300 × 32 × 11 mm |
| MS30/DF600 | Linear Diffuser | 14W | 105° | 3K / 4K | 600 × 32 × 11 mm |

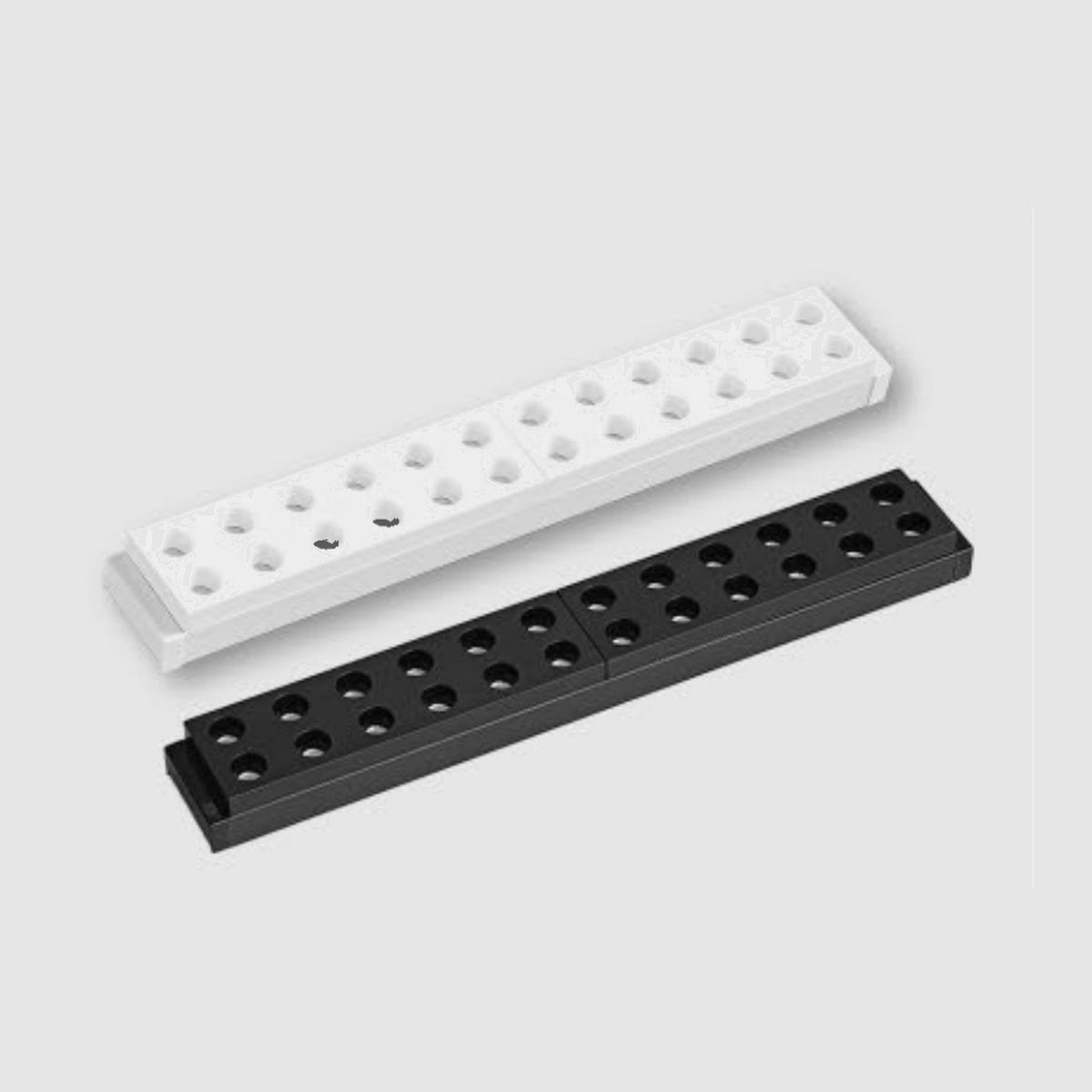

| MS30/LB24 | Laser Blade | 5W | 30° | 3K / 4K | 240 × 32 × 11 mm |
| MS30/LB48 | Laser Blade | 10W | 30° | 3K / 4K | 468 × 32 × 11 mm |
| MS30/TL7 | Track Spot | 7W | 24° | 3K / 4K | Ø36 × 90 × 145 mm |
| MS30/TL12 | Track Spot | 12W | 24° | 3K / 4K | Ø47 × L148 × H210 mm |
| MS30/TL20 | Track Spot | 20W | 24° | 3K / 4K | Ø47 × L160 × H220 mm |
| MS30/TL30 | Track Spot | 30W | 24° | 3K / 4K | Ø47 × L160 × H220 mm |

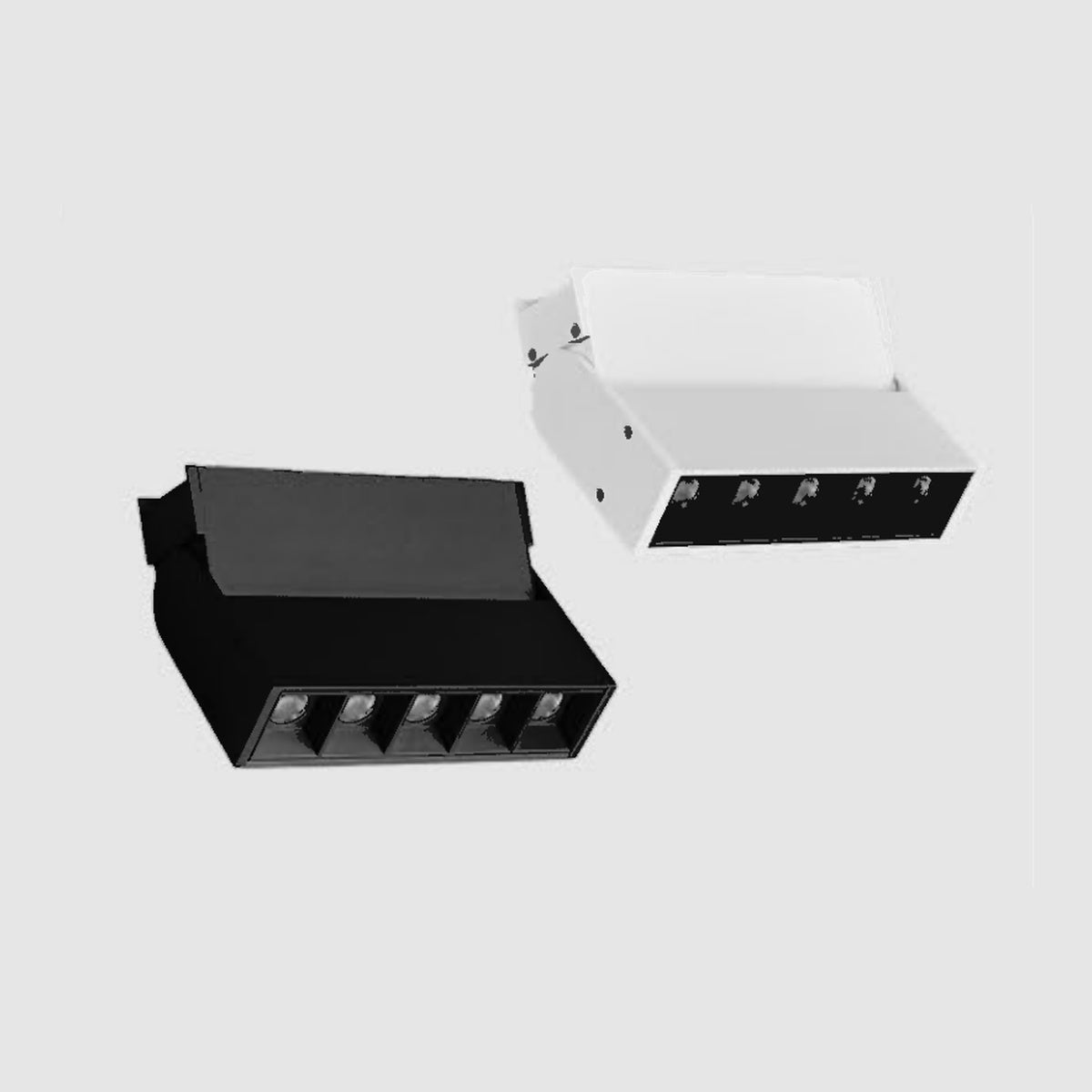

| MS30/FDS | Foldable Spot | 7W | 30° | 3K / 4K | 140 × 35 × 105 mm |

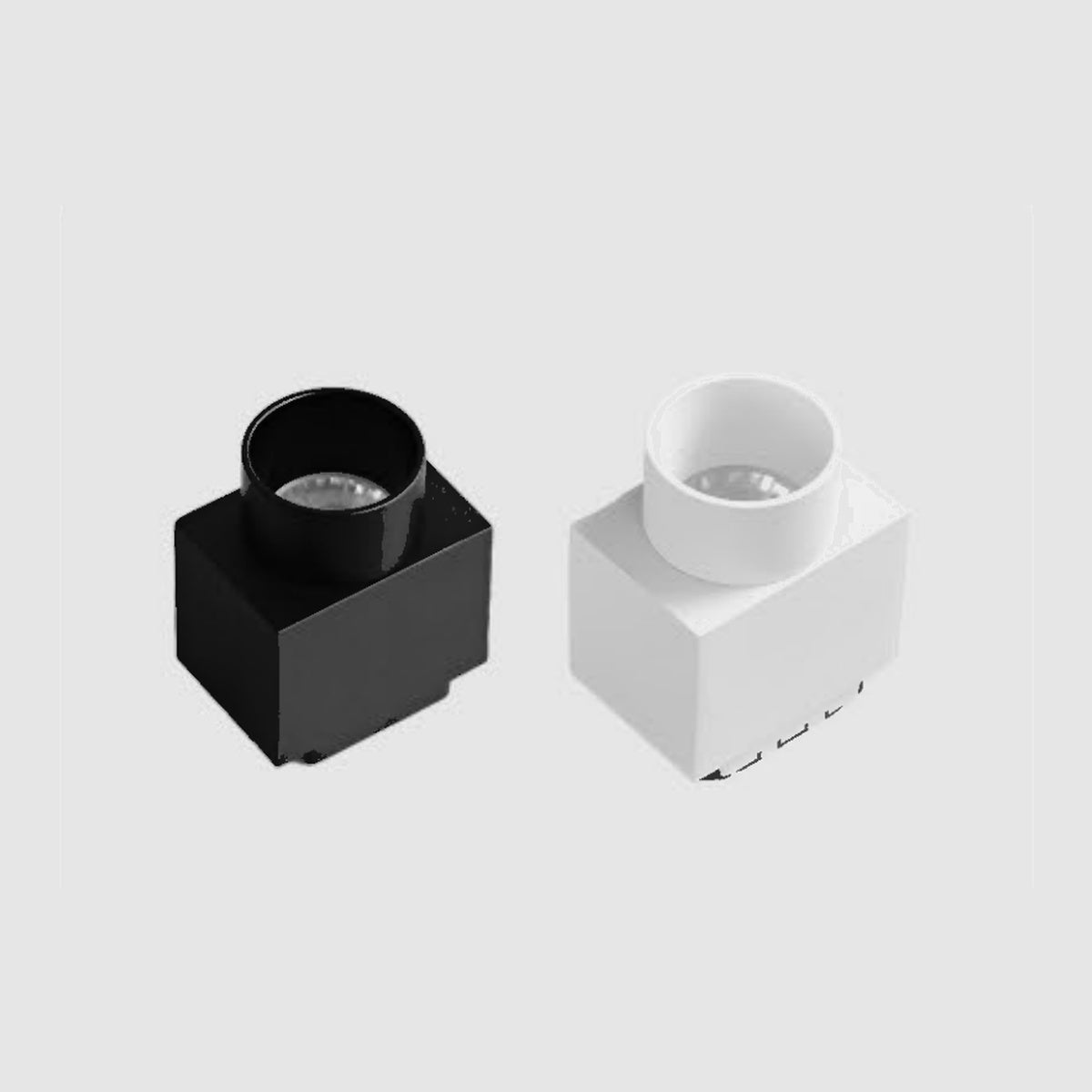

| MS30/SP1 | Mini Surface Spot | 7W | 36° | 3K | 48 × 35 × 60 mm |
| MS30/SA1 | Mini Surface Spot | 7W | 80° | 3K | 48 × 35 × 60 mm |
| MS30/HZ7 | Wall Wash Spot | 7W | 80° | 3K | Ø78 × 90 mm |
| MS30/HC7 | Hanging Cone | 7W | 24° | 3K | Ø72 × 110 mm |
| MS30/DFT345 | Diffused Track Linear | 10W | 180° | 3K / 4K | 345 mm |

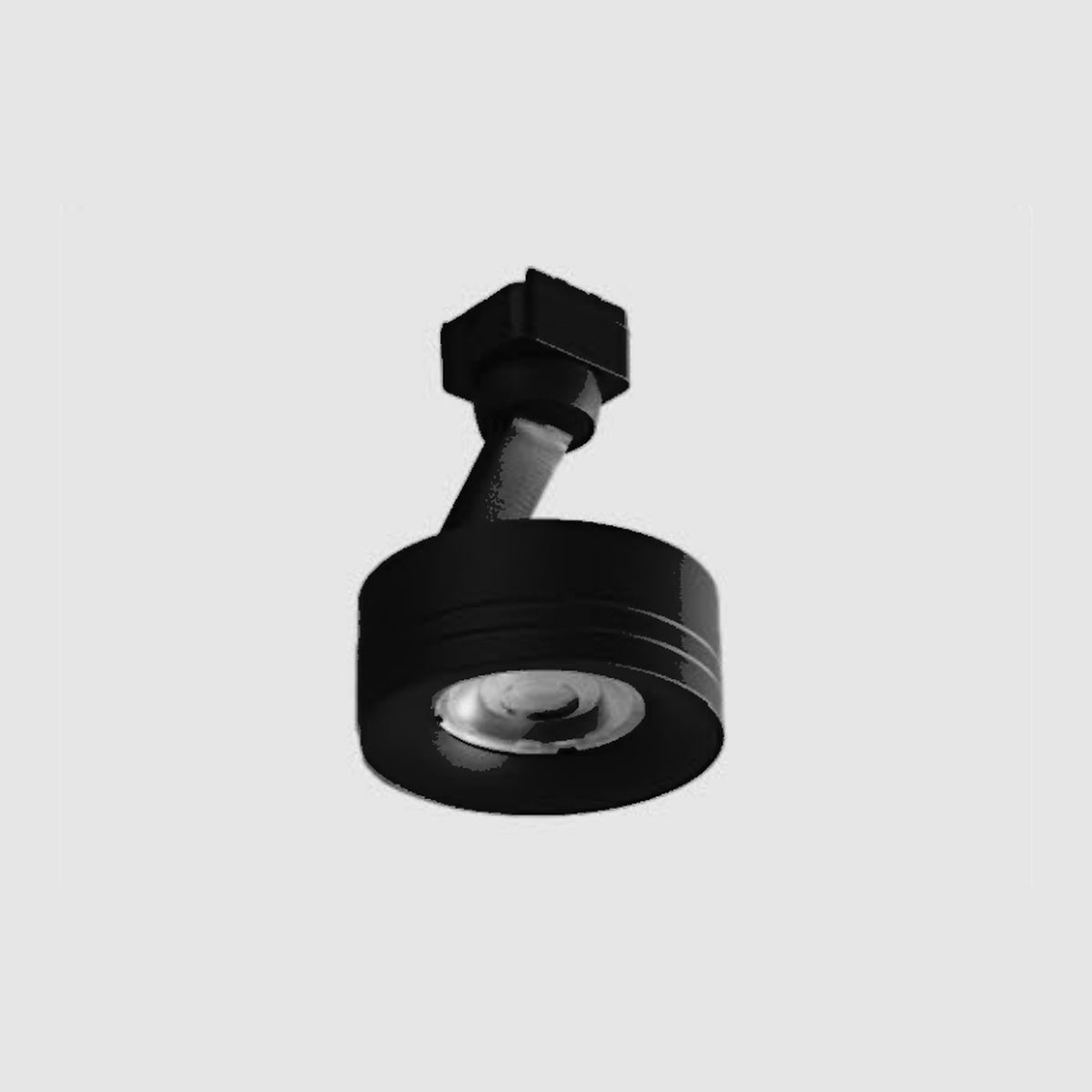

| MS30/TML7 | Track Linear Spot | 7W | 24° | 3K | Ø85 × 50 × 105 mm |
| MS30/TP7 | Track Round Panel | 15W | 110° | 3K | Ø180 × 120 mm |
| MS30/PD011 | Pendant Light | 4W | 20° | 3K / 4K | Ø95 × 120 mm |
| MS30/FT500 | Flex Light | 7W | 360° | 3K | Ø22 × 500 mm |
| MS30/ZM | Adjustable Beam (Premium) | — | Adjustable | 3K | — |
How to Order — Plan Your BOQ in 6 Steps
Send us your floor plan or sketch and we'll prepare the complete BOQ free of cost. Or follow these steps yourself:
- Map the Space — note room size, ceiling height, and where you need light: ambient, accent, wall-wash, focal points.

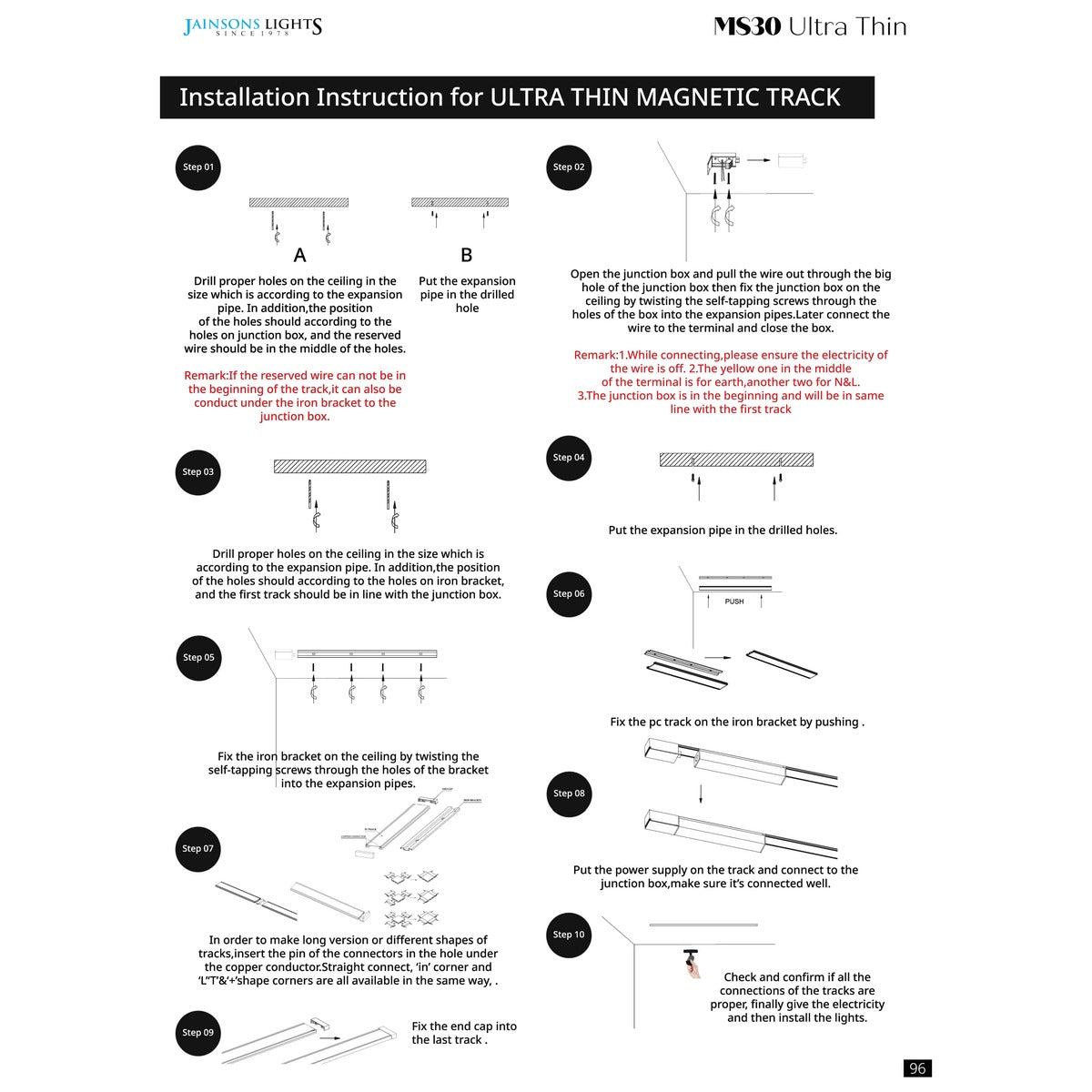

- Choose the Mount — surface (mounted directly), suspended (hanging on wires), or recessed (in POP / gypsum). Same channel works for all three with the right adaptor.
- Plan the Layout — straight, L-shape, U-shape, rectangle. Calculate total straight-track length (1m / 2m / 3m), corner pieces, T/cross junctions, in&out steps, end caps.
- Pick the Light Mix — mix track spots (TL7/TL12) for accents, linear diffusers (DF300/DF600) for ambient, wall-wash (HZ7) for feature walls, pendants (PD011) for table-drop. Choose 3000K (warm) or 4000K (neutral) for each.
- Size the Power Supply — sum the wattage of all modules; match to a 100W or 200W driver. Add Wifi+BLE / Zigbee version if you want app control. Our team can size this for you.
- Send the BOQ — share your final list on WhatsApp; we verify, optimise, and quote.
Need Help Designing or Ordering?
Not sure how many channels or modules you need? Want a custom curved layout?
We offer free design help and BOQ preparation for residential, commercial, and architectural projects across India.
- WhatsApp: Click to chat with our lighting expert
- Call: +91 98991 88821 · Mon–Sat · 10am–8pm IST
- Visit a showroom: 4 Delhi locations — touch and feel the system before ordering.
Once approved, you can order all channels, accessories, and light modules directly from this page.
| Product Description | Details |
|---|---|
| Beam angle | 15°, 24°, 36°, 80°, 120° |
| Body colour | Black, White |
| Cri | Ra>90 |
| Dimming | Standard, Wi-Fi+BLE Smart, Zigbee Smart, Tunable |
| Driver | 48V DC inline driver · 100W / 200W (Std / Wi-Fi BLE / Zigbee) |
| Fixing type | Surface Mount, Hanging Suspension, Recessed (POP / Gypsum) |
| Input voltage | 48V DC |
| Ip rating | IP20 |
| Led colour temperature | 3000K Warm White, 4000K Neutral White, Tunable 3000K-6000K |
| Led type | COB + SMD (CREE/OSRAM) |
| Length | 240mm, 300mm, 480mm, 500mm, 600mm, 1000mm, 1m, 2m, 3m |
| Product family | JS-GZ |
| Type of item | Ultra Slim Magnetic track Lights |
| Warranty | 2 Years |
| Wattage | 4W, 5W, 7W, 10W, 12W, 14W, 15W, 18W, 20W, 30W, 100W, 200W |
| Width | 5mm (ultra-thin track) |
