Eliante Duke Gimbal COB Downlight – 1 to 4 Heads (JS-ELT-HR)
How to choose — step by step
- Choose the fitting
Choose the size or style shown for this range.
- Choose the wattage
Check the fitting dimensions before ordering.
- Choose the control
Choose on/off or dimming, then a warranty or control.
- Choose the light
Choose the documented finishes, beam and light colour.
Options explained
Style

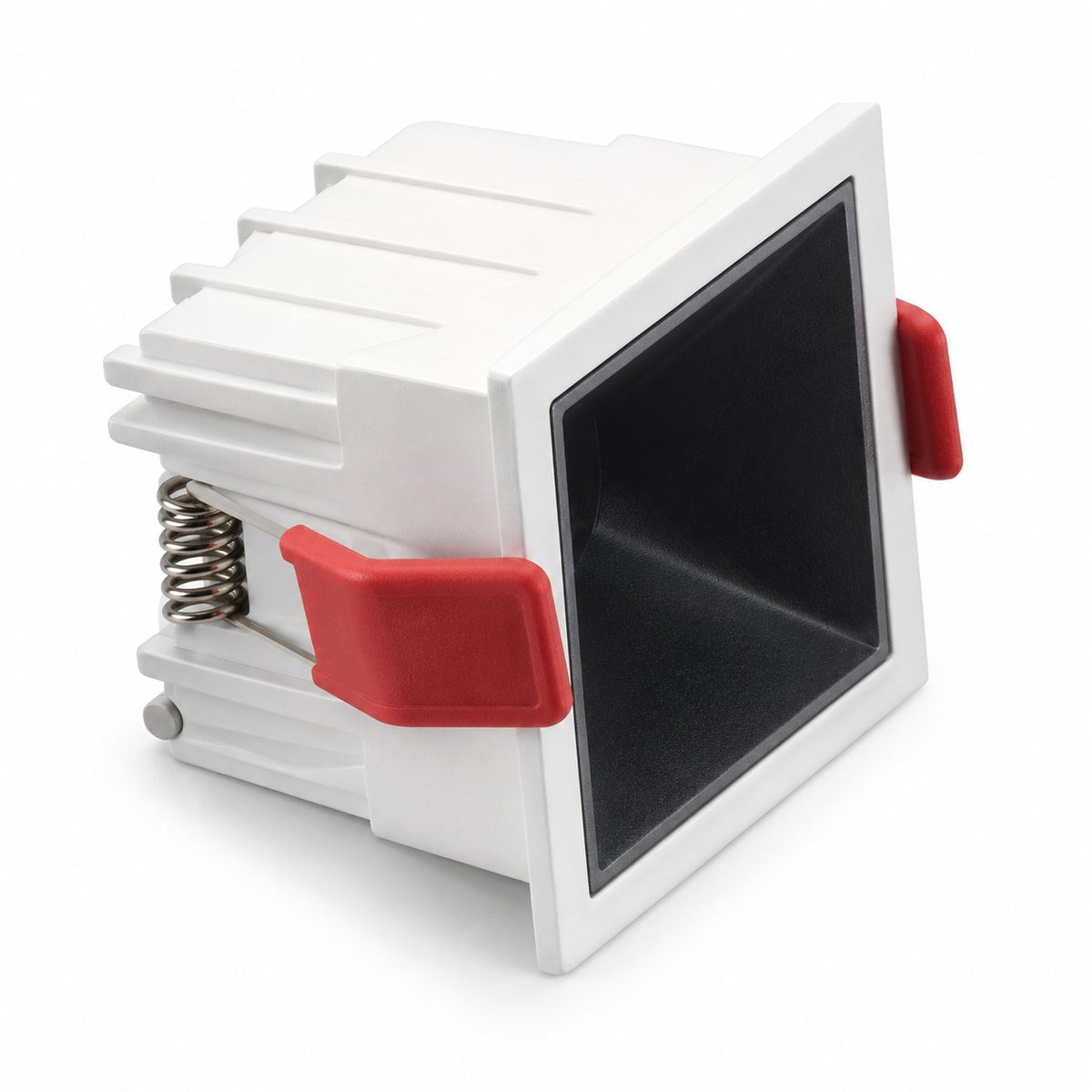

Single Head
Single Head in a recessed gimbal fitting.

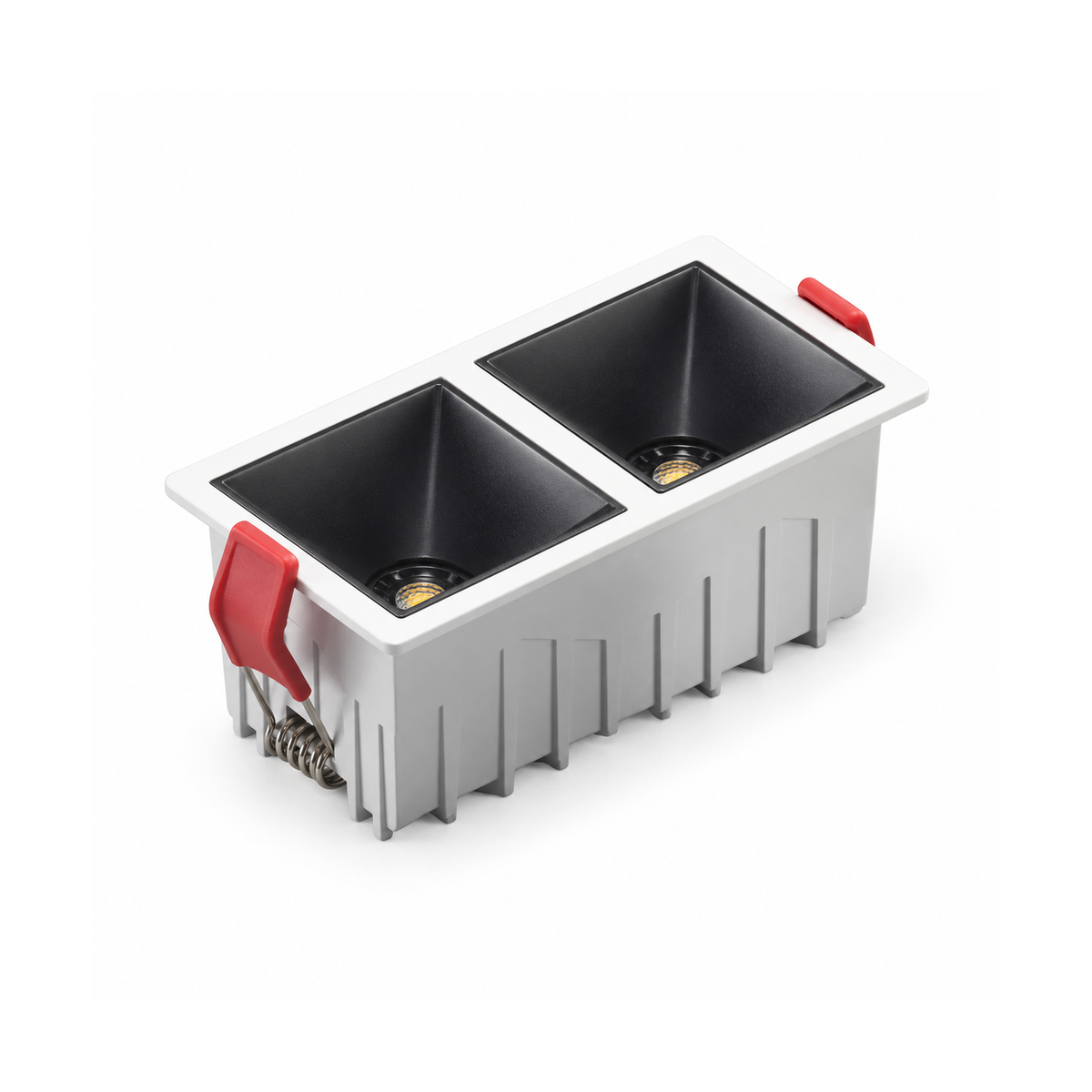

2 Heads
2 Heads in a recessed gimbal fitting.

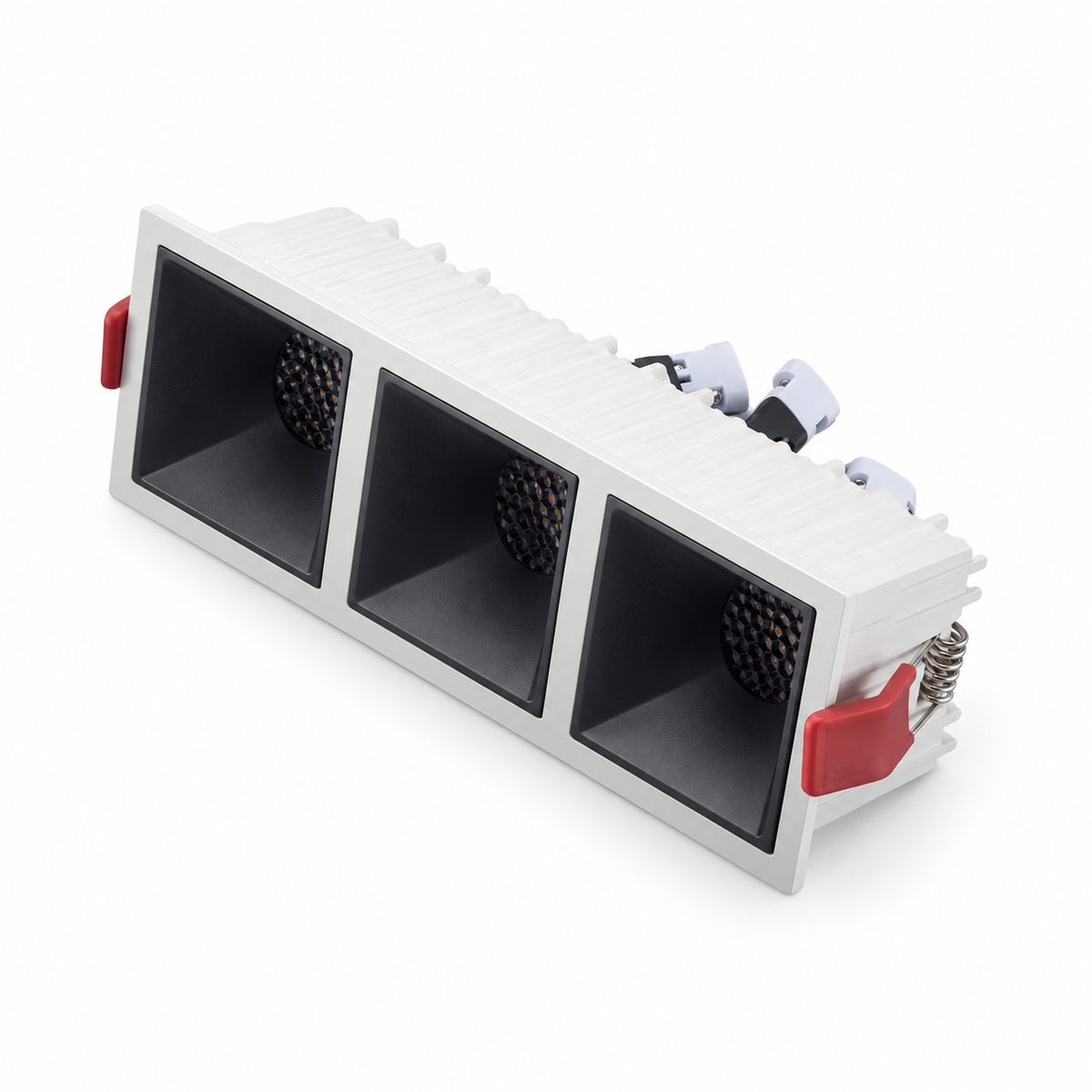

3 Heads
3 Heads in a recessed gimbal fitting.

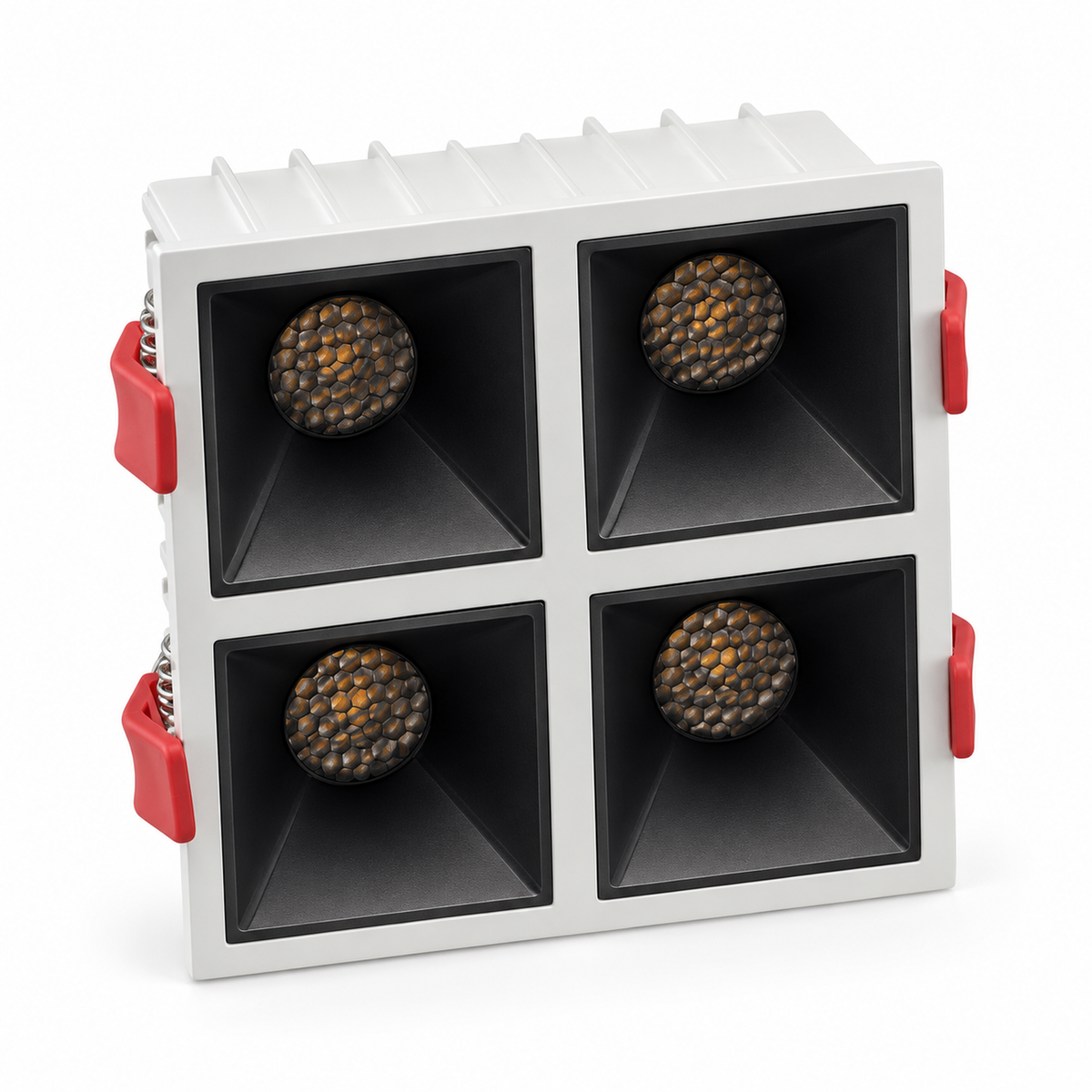

4 Heads
4 Heads in a recessed gimbal fitting.
Wattage
7W
55 × 55 mm ceiling cut-out; 1 head.
12W
75 × 75 mm ceiling cut-out; 1 head.
2×7W
55 × 115 mm ceiling cut-out; 2 heads, 7W per head.
2×12W
2 heads, 12W per head.
3×7W
3 heads, 7W per head.
3×12W
3 heads, 12W per head.
4×7W
115 × 115 mm ceiling cut-out; 4 heads, 7W per head.
4×12W
150 × 150 mm ceiling cut-out; 4 heads, 12W per head.
Pricing Tier
On/off levels
Ultra
On/off lighting with a 5-year warranty.
5-year warrantyPerformance
On/off lighting with a 3-year warranty.
3-year warrantyStandard
On/off lighting with a 2-year warranty.
2-year warrantyEssential
The Essential on/off option, with a 2-year warranty.
2-year warranty3-in-1 Colour Switch
Switch between warm, neutral and cool white. Driver: 2-year warranty.
2-year warranty
Dimmable single colour
Wall dimmer
TriacDim a single white tone with a Triac wall dimmer. Driver: 2-year warranty.
2-year warrantyBuilding control dimming
1–10VDim a single white tone through a 1–10V building control system. Driver: 2-year warranty.
2-year warrantyBuilding control dimming
DALI DT-6Dim a single white tone through a DALI building system. Driver: 5-year warranty.
5-year warrantyRemote only dimming
RFDim a single white tone with Remote only (RF). Driver: 2-year warranty.
2-year warrantyRemote + app dimming
RF + BLEDim a single white tone with Remote + app (RF + BLE). Driver: 3-year warranty.
3-year warrantyZigbee dimming
ZigbeeDim a single white tone through a Zigbee hub. Driver: 3-year warranty.
3-year warranty
Tunable white
Building control tunable CRI 90
DALI DT-8Tune white and dim it through a DALI system. Driver: 5-year warranty.
5-year warrantyTriac tunable Eco
Tune white and dim it using Triac control. Eco LED; 2-year warranty.
2-year warrantyRemote only tunable Eco
RFTune white and dim it with Remote only (RF). Eco LED; 2-year warranty.
2-year warrantyRemote only tunable Essential
RFTune white and dim it with Remote only (RF). Essential LED; 2-year warranty.
2-year warrantyRemote + app tunable Eco
RF + BLETune white and dim it with Remote + app (RF + BLE). Eco LED; 2-year warranty.
2-year warrantyRemote + app tunable CRI 90
RF + BLETune white and dim it with Remote + app (RF + BLE). CRI 90 LED; 3-year warranty.
3-year warrantyZigbee tunable Eco
ZigbeeTune white and dim it through a Zigbee hub. Eco LED; 2-year warranty.
2-year warranty
Colour
RGB + tunable White
Choose coloured light or adjustable white light. Driver: 3-year warranty.
3-year warranty
Body colour
White
White finish.
Black
Black finish.
Ring colour
Black
Black finish.
Beam angle
24°
24° beam.
40°
40° beam.
60°
60° beam.
Colour temperature
2700K
2700K extra warm white.
3000K
3000K warm white.
4000K
4000K neutral white.
5000K
5000K cool daylight.
6000K
6000K cool white.
Tunable
Change from warm to cool on the control.
3-in-1 (warm · neutral · cool)
Switch between warm, neutral and cool white.
For bulk, hotel and project orders. We reply on WhatsApp with price and delivery time.
Couldn't load pickup availability
Catalogues & Downloads
Eliante Duke Gimbal COB Downlight – 1 to 4 Heads
Eliante by Jainsons Lights, Delhi, since 1978. Duke Gimbal is a recessed COB concealed downlight available with one, two, three or four heads. It uses Cree or Bridgelux LEDs and Philips, Fulham or Osram drivers, with 130 lm/W efficiency.
Available in this range
- Single Head, 2 Heads, 3 Heads and 4 Heads.
- Ring colour: Black. Body colours: White or Black. Tell us when ordering.
- Beam angles: 24°, 40° or 60°.
- Colour temperatures: 2700K, 3000K, 4000K or 6500K. Tell us when ordering.
- GR reflector.
Types and sizes
| Type | Power and dimensions | Cut-out |
|---|---|---|
| Single Head | 7W: 65 × 65 × H52 mm; 12W: 85 × 85 × H63 mm | 55 × 55 and 75 × 75 mm respectively |
| 2 Heads | 2×7W: 65 × 126 × H52 mm; 2×12W: 85 × 167 × H63 mm | 55 × 115 and 75 × 160 mm respectively |
| 3 Heads | 3×7W: 65 × 187 × H52 mm; 3×12W: 85 × 252 × H63 mm | 55 × 175 and 75 × 240 mm respectively |
| 4 Heads | 4×7W: 126 × 126 × H52 mm; 4×12W: 165 × 165 × H63 mm | 115 × 115 and 150 × 150 mm respectively |
LED Pricing Tiers
Quality levels
- Ultra (5yr): Bridgelux V-Series + Fulham premium driver, ~150 lm/W, for retail, hospitality and premium homes.
- Performance (3yr): Bridgelux E-Series high-lumen, ~125 lm/W, for retail, hospitality and commercial use.
- Standard (2yr): Bridgelux E-Series, ~100 lm/W, for everyday homes and offices.
- Essential (2yr): entry-level LED, ~80 lm/W, a budget option for low-use areas.
Colour switch
- 3-in-1 Colour Switch (2yr): set one light to warm, neutral or cool white.
DALI and smart control
- Dali Dimmable DT-6 (5yr): flicker-free 1–100% dimming on a DALI bus.
- Dali Tunable DT-8 (5yr): brightness and colour temperature on one DALI address.
- RF+BLE Tunable (3yr): wireless dimming and colour-temperature control.
- RF+BLE Tunable Eco (2yr): wireless dimming and colour-temperature control, by remote or phone; a value option.
- Zigbee Tunable Eco (2yr): Zigbee brightness and colour-temperature control; a value option.
- Zigbee Dimming (3yr): Zigbee smart-home brightness control for single-colour light.
Dimming
- Triac Dimmable (2yr): dims on a standard Triac (phase-cut) wall dimmer.
- Triac Tunable Eco (2yr): the value version of Triac tunable.
- 1-10V Dimmable (2yr): for 1-10V control systems in offices, retail and hotels.
- RF Dimming (2yr): dim with a wireless remote (Remote only).
- RF+BLE Dimming (3yr): dim with a remote or your phone over Bluetooth.
Tunable white and colour
- RF Tunable Eco (2yr): change colour temperature with a wireless remote; a value option.
- RF Tunable Essential (2yr): the budget version of Remote-only tunable.
- RGB + Tunable White (3yr): full colour and tunable white, by remote or phone.
Not every option is offered on every size. Read the LED Ranges explainer.
How to order
- Choose the Style first.
- Choose the wattage and check the cut-out in the table.
- Choose the pricing tier and check that the dimmer or control system on site matches (Triac, 1-10V, DALI, remote, Zigbee).
- Tell us colour temperature, beam angle and ring colour in the order note or on WhatsApp 98991 88821.
Need help?
Design help and BOQ help: WhatsApp 98991 88821 or visit one of our 4 Delhi showrooms: Chandni Chowk, Bhagirath Palace, Kotla or Ghitorni.
Download the full catalogue
| Specification | Details |
|---|---|
| Product Family | JS-ELT-HR |
| Type of Item | COB Concealed |
