By Eliante by Jainsons Lights

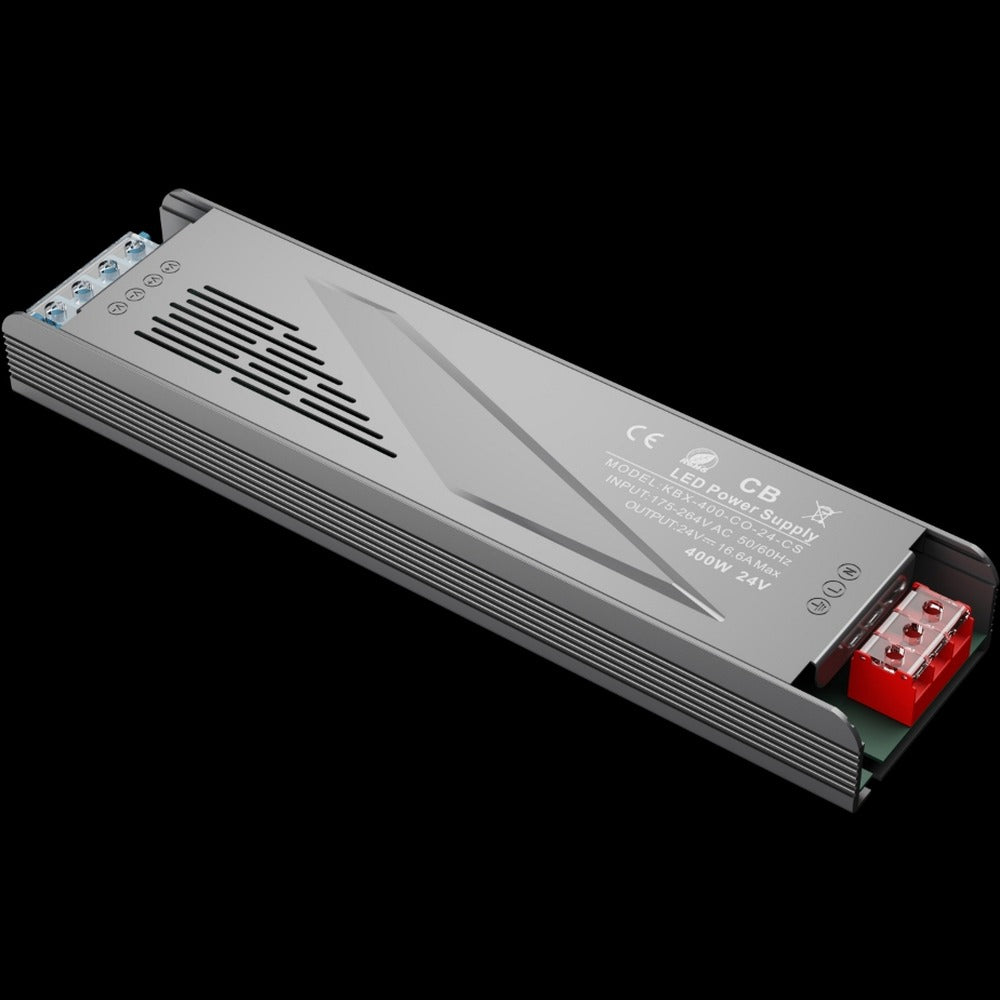

JS-LYT A Series LED Driver 12V/24V 36W-400W – Constant Voltage Power Supply, IP20

Rs. 648.03 - Rs. 2,240.51
Tax included. Shipping charged as per actual — confirmed before dispatch.
Voltage: 12V
Wattage: 36W
Rs. 648.03
Rs. 3,051.00 Rs. 648.03
-79%
In Stock — Ready to ShipOrder today and we dispatch within 2 business days. Ships from · Mumbai
Shipping details

LYT “A Series” LED Power Supply – IP20 — 12V/24V, 36W-400W, IP20
Rs. 648.03
Rs. 3,051.00 Rs. 648.03

LYT “A Series” LED Power Supply – IP20

LYT “A Series” LED Power Supply – IP20 — IP20 rated, 12V/24V constant-voltage LED power supply, available from 36W to 400W.

LYT “A Series” LED Power Supply – IP20

Key features

  • Air naturally dissipates heat
  • Built-in EMI filter circuit
  • Average trouble-free working time >30,000 hrs
  • The product has short circuit protection
  • Over-voltage, overload and overheat protection
  • Surge protection 2KV

Available voltage and wattage combinations

Voltage: 12V, 24V
Wattage: 36W, 60W, 100W, 150W, 200W, 250W, 300W, 400W

Amperage table

Voltage Wattage Amperage
12V 36W 3A
12V 60W 5A
12V 100W 8.5A
12V 150W 12.5A
12V 200W 16.7A
12V 250W 20.83A
12V 300W 25A
12V 400W 33.3A
24V 36W 1.5A
24V 60W 2.5A
24V 100W 4.2A
24V 150W 6.3A
24V 200W 8.3A
24V 250W 10.4A
24V 300W 12.5A
24V 400W 16.7A

Dimensions (L x W x H)

Voltage Wattage Dimensions
12V 36W 95x25x20mm
12V 60W 121x36x24mm
12V 100W 140x51x25mm
12V 150W 180x51x25mm
12V 200W 180x51x25mm
12V 250W Not specified — pending supplier confirmation
12V 300W 189x60x29mm
12V 400W 222x60x29mm
24V 36W 95x25x20mm
24V 60W 121x36x24mm
24V 100W 140x51x25mm
24V 150W 180x51x25mm
24V 200W 180x51x25mm
24V 250W Not specified — pending supplier confirmation
24V 300W 189x60x29mm
24V 400W 222x60x29mm

IP rating and installation environment

IP20 — indoor, dry-location use only. Water damage is not covered under warranty for IP20 products.

Protection features

Short circuit, Over-voltage, Overload, Overheat, Surge (2KV)

Warranty & GST

  • GST: 18% extra
  • Warranty: 2 years
  • No warranty for human damage, wrong wiring, overload use, or environmental factors

Water damage is not covered under warranty for IP20/IP40 rated variants.

Selection & installation guidance

  • Choose a driver wattage at least 20% above your connected LED load for reliable long-term operation.
  • Match the driver voltage (12V / 24V / 48V) to your LED strip or fixture's rated voltage — do not mix voltages.
  • Electrical installation should be completed by a qualified professional.

Notes on this listing

250W (12V and 24V): confirmed as a priced price-list variant, but the supplier's specification page has no dimension row for it (the spec table jumps from 200W straight to 300W). Dimension left blank, pending supplier confirmation.

Specification Details
Body material Metal (aluminium housing)
Input voltage 12V, 24V
Ip rating IP20
Product family JS-LYT
Shape Linear
Type of item Constant Voltage Driver
Warranty 2 Years
Wattage 36W, 60W, 100W, 150W, 200W, 250W, 300W, 400W
