JS-LYT CL Series Dimmable LED Driver 12V/24V 250W-300W – Triac/0-10V/PWM Constant Voltage
Couldn't load pickup availability
YSD “CL” Series Dimmable LED Power Supply
YSD “CL” Series Dimmable LED Power Supply — IP20 rated, 12V/24V constant-voltage LED power supply, available from 250W to 300W.
Key features
Not specified by the supplier for this series — pending confirmation.
Available voltage and wattage combinations
Voltage: 12V, 24V
Wattage: 250W, 300W
Amperage table
| Voltage | Wattage | Amperage |
|---|---|---|
| 12V | 250W | 20.8A |
| 12V | 300W | 25A |
| 24V | 250W | 10.4A |
| 24V | 300W | 12.5A |
Dimensions (L x W x H)
Not specified by the supplier for this product — pending confirmation.
IP rating and installation environment
IP20 — indoor, dry-location use only. Water damage is not covered under warranty for IP20 products.
Dimming protocol
Triac / 0–10V / 1–10V / 10V PWM / Resistor dim
Warranty & GST
- GST: 18% extra
- Warranty: 2 years
- No warranty for human damage, wrong wiring, overload use, or environmental factors
Water damage is not covered under warranty for IP20/IP40 rated variants.
Selection & installation guidance
- Choose a driver wattage at least 20% above your connected LED load for reliable long-term operation.
- Match the driver voltage (12V / 24V / 48V) to your LED strip or fixture's rated voltage — do not mix voltages.
- Electrical installation should be completed by a qualified professional.
Notes on this listing

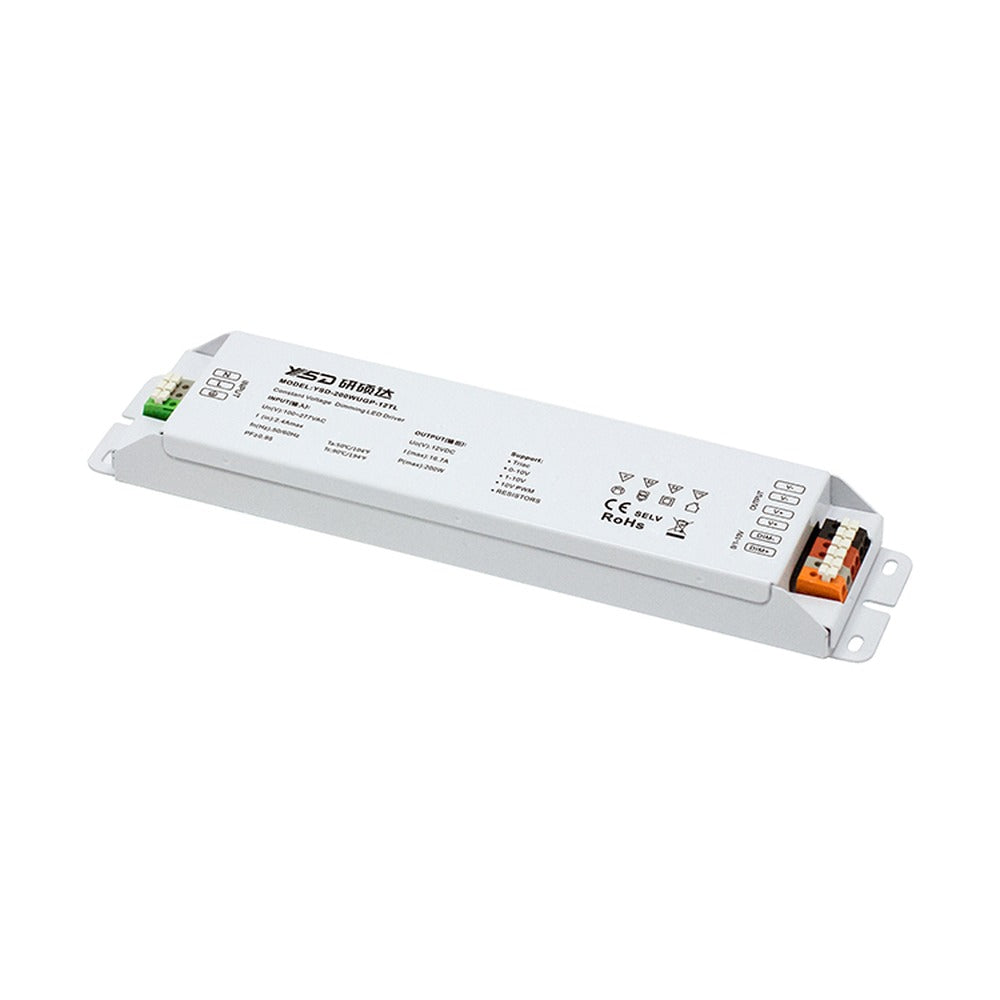

Image note: the supplier price list's own CL Series photo is too low-resolution to use. The photo shown is the manufacturer's (YSD) official photo for their equivalent Triac/0-10V/1-10V/PWM/Resistor dimmable driver line, confirmed by matching dimming protocol and wattage — the enclosure shape may differ slightly from the exact unit pictured in the price list.
Supplier information gap: this series has no dedicated specification page anywhere in the source catalogue — only its commercial price-list entry. Physical dimensions and detailed feature bullets are not available and are not shown below; the dimming protocol above is confirmed from the price list's own heading text. Product photo is pending a clean supplier image.
| Specification | Details |
|---|---|
| Dimming method | Triac / 0–10V / 1–10V / 10V PWM / Resistor dim |
| Input voltage | 12V, 24V |
| Ip rating | IP20 |
| Product family | JS-LYT |
| Type of item | Constant Voltage Driver |
| Warranty | 2 Years |
| Wattage | 250W, 300W |
