JS-LYT CP Series Dimmable LED Driver 12V/24V/48V 60W-200W – Triac/0-10V/PWM Constant Voltage
Couldn't load pickup availability

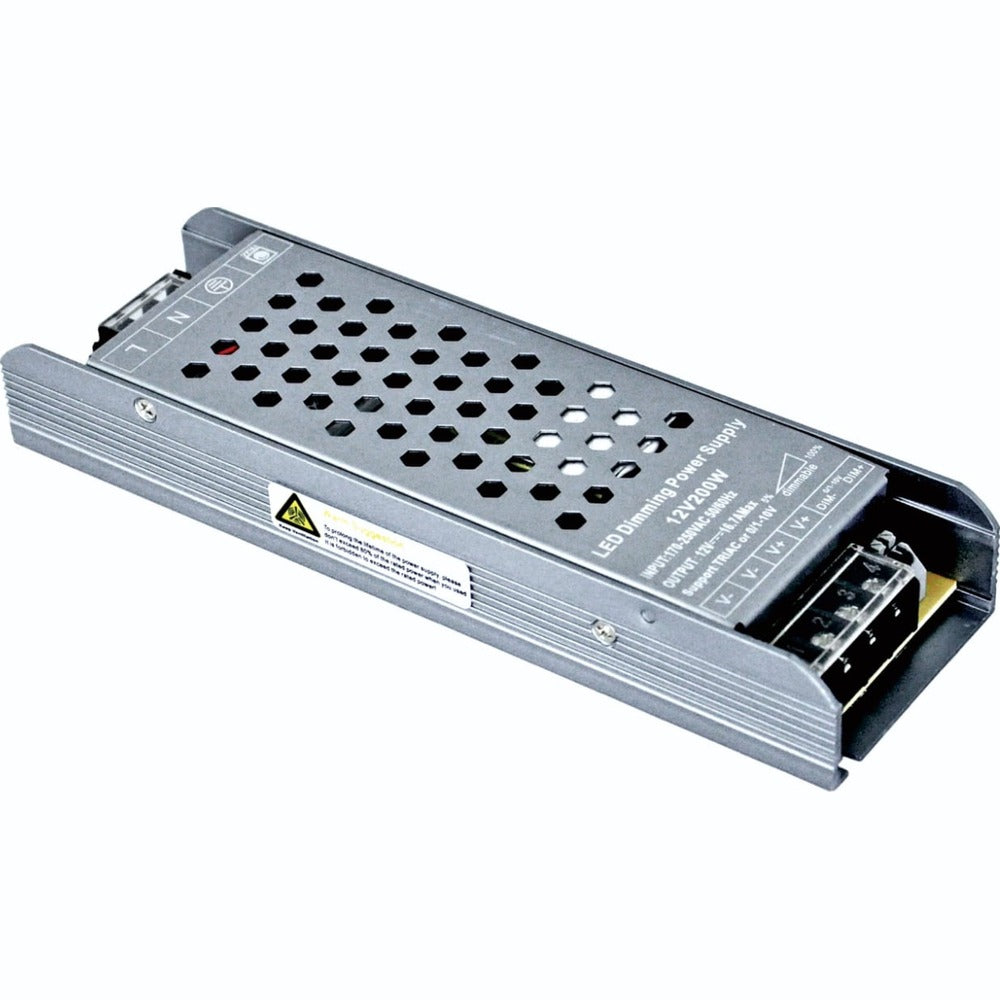

YSD “CP” Series Dimmable LED Power Supply
YSD “CP” Series Dimmable LED Power Supply — IP20 rated, 12V/24V/48V constant-voltage LED power supply, available from 60W to 200W.
Key features
- Designed for indoor installations
- Triac / 0-10V / 1-10V / 10V PWM / Resistor dim
- Soft and smooth, flicker-free, jitter-free
- Dimming range: 0~100%, LED starts at 1% possible
- 0-100% flicker-free, high frequency exemption level
- Cooling by free air convection
Available voltage and wattage combinations
Voltage: 12V, 24V, 48V
Wattage: 60W, 100W, 150W, 200W
Amperage table
| Voltage | Wattage | Amperage |
|---|---|---|
| 12V | 60W | 5A |
| 12V | 100W | 8.5A |
| 12V | 150W | 12.5A |
| 12V | 200W | 17A |
| 24V | 60W | 2.5A |
| 24V | 100W | 4A |
| 24V | 150W | 6.25A |
| 24V | 200W | 8A |
| 48V | 100W | 2A |
| 48V | 150W | 3.13A |
| 48V | 200W | 4.16A |
Dimensions (L x W x H)
Not specified by the supplier for this product — pending confirmation.
IP rating and installation environment
IP20 — indoor, dry-location use only. Water damage is not covered under warranty for IP20 products.
Dimming protocol
Triac / 0–10V / 1–10V / 10V PWM / Resistor dim
Protection features
Overload, Over-temperature, Short circuit, Over-voltage (auto-recovering)
Suitable applications
Internal LED lighting application (Class I / II / III)
Warranty & GST
- GST: 18% extra
- Warranty: 2 years
- No warranty for human damage, wrong wiring, overload use, or environmental factors
Water damage is not covered under warranty for IP20/IP40 rated variants.
Selection & installation guidance
- Choose a driver wattage at least 20% above your connected LED load for reliable long-term operation.
- Match the driver voltage (12V / 24V / 48V) to your LED strip or fixture's rated voltage — do not mix voltages.
- Electrical installation should be completed by a qualified professional.
| Specification | Details |
|---|---|
| Body material | Metal (perforated aluminium housing) |
| Dimming method | Triac / 0–10V / 1–10V / 10V PWM / Resistor dim |
| Input voltage | 12V, 24V, 48V |
| Ip rating | IP20 |
| Product family | JS-LYT |
| Shape | Linear |
| Type of item | Constant Voltage Driver |
| Warranty | 2 Years |
| Wattage | 60W, 100W, 150W, 200W |
