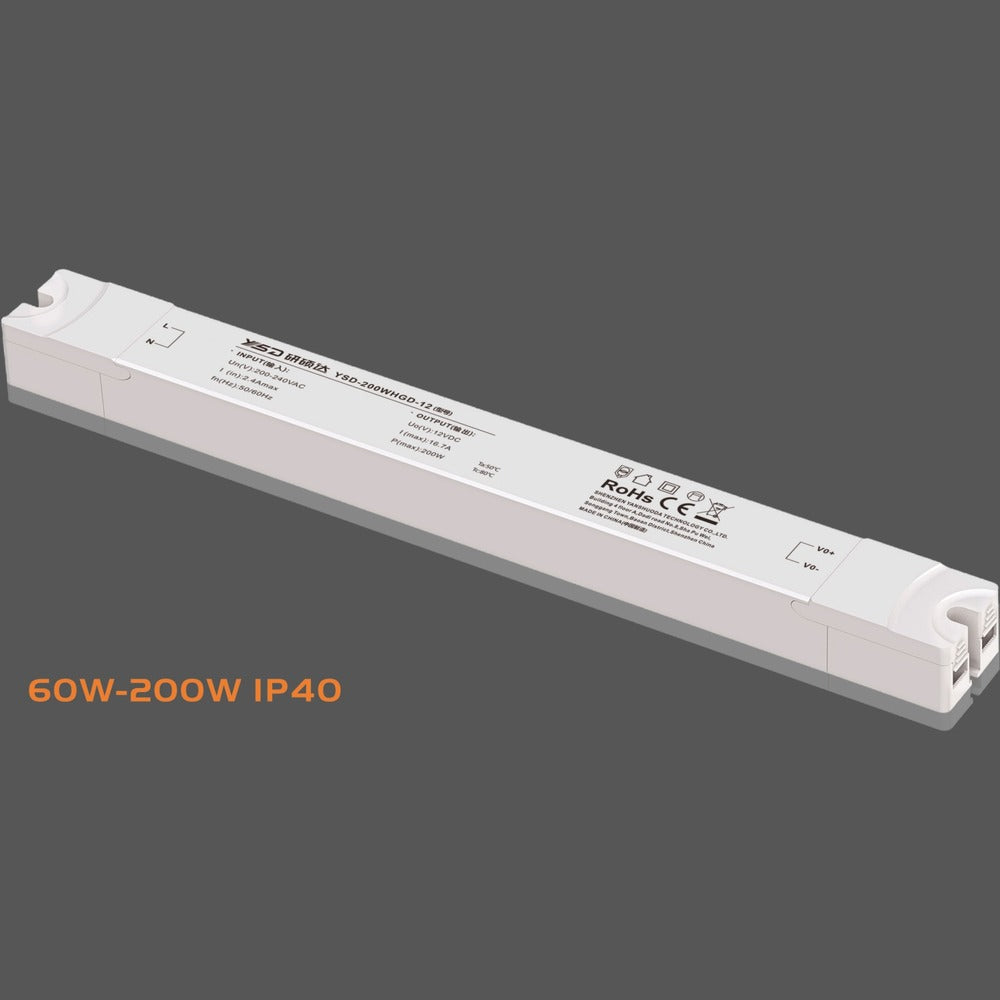

JS-LYT GD Series LED Driver 12V/24V 100W-200W – Slim Linear Constant Voltage Power Supply, IP40
Couldn't load pickup availability
YSD GD Linear LED Power Supply – IP40
YSD GD Linear LED Power Supply – IP40 — IP40 rated, 12V/24V constant-voltage LED power supply, available from 100W to 200W.
Key features
- Small, slim & mute design
- Intelligent slow start
- Convenient contact wiring design
- Internal glue filling process
- Moisture-proof / insect-proof / dust-proof
- Air natural convection cooling
- High energy saving & high efficiency
Available voltage and wattage combinations
Voltage: 12V, 24V
Wattage: 100W, 150W, 200W
Amperage table
| Voltage | Wattage | Amperage |
|---|---|---|
| 12V | 100W | 8.5A |
| 12V | 150W | 12.5A |
| 12V | 200W | 17A |
| 24V | 100W | 4A |
| 24V | 150W | 6.25A |
| 24V | 200W | 8A |
Dimensions (L x W x H)
Not specified by the supplier for this product — pending confirmation.
IP rating and installation environment
IP40 — indoor, dust-protected use. Water damage is not covered under warranty for IP40 products.
Warranty & GST
- GST: 18% extra
- Warranty: 2 years
- No warranty for human damage, wrong wiring, overload use, or environmental factors
Water damage is not covered under warranty for IP20/IP40 rated variants.
Selection & installation guidance
- Choose a driver wattage at least 20% above your connected LED load for reliable long-term operation.
- Match the driver voltage (12V / 24V / 48V) to your LED strip or fixture's rated voltage — do not mix voltages.
- Electrical installation should be completed by a qualified professional.
Notes on this listing
Note: the supplier's spec sheet for this series also shows a gear-dimming diagram (25/55/75/100%), but this product is not listed as dimmable in the confirmed product options (Voltage / Wattage only). This is flagged as an open question — the dimming diagram has not been added to this description pending your confirmation of whether GD Linear is actually dimmable.
| Specification | Details |
|---|---|
| Body material | Plastic (moulded housing) |
| Input voltage | 12V, 24V |
| Ip rating | IP40 |
| Product family | JS-LYT |
| Shape | Linear |
| Type of item | Constant Voltage Driver |
| Warranty | 2 Years |
| Wattage | 100W, 150W, 200W |
