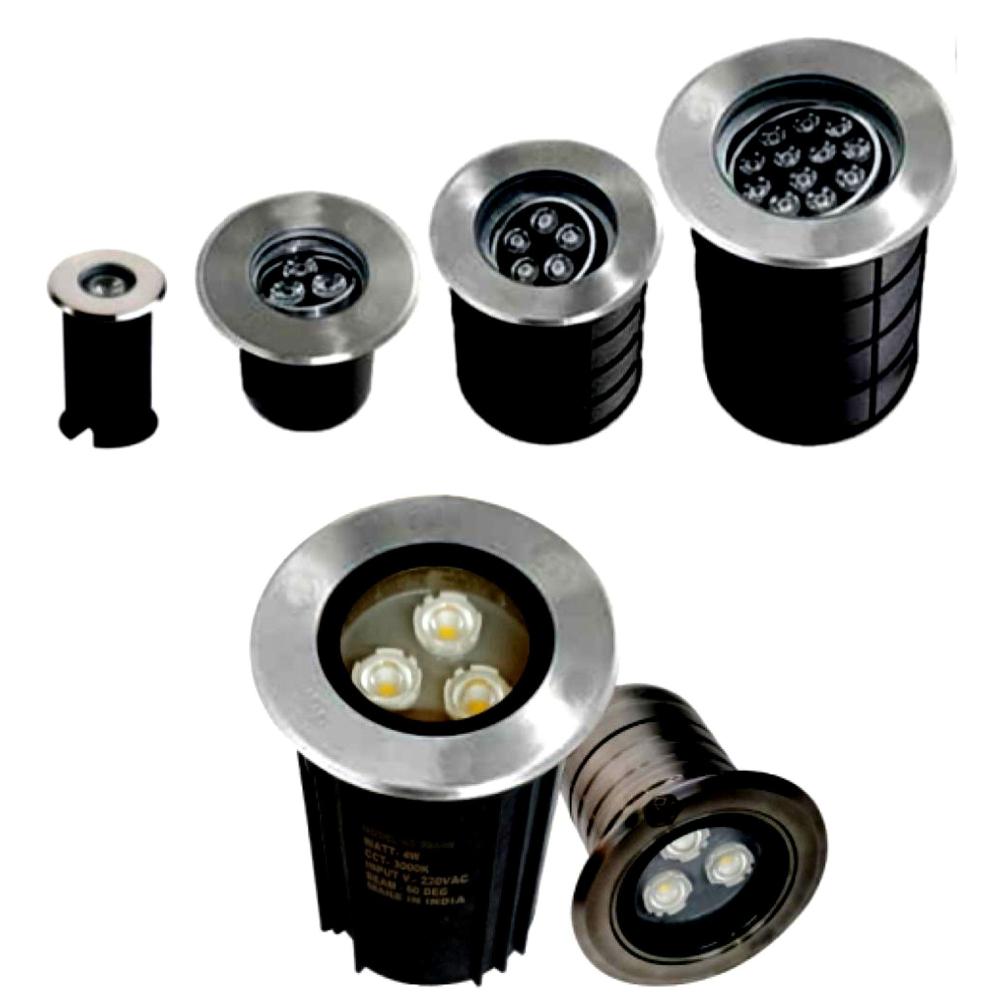

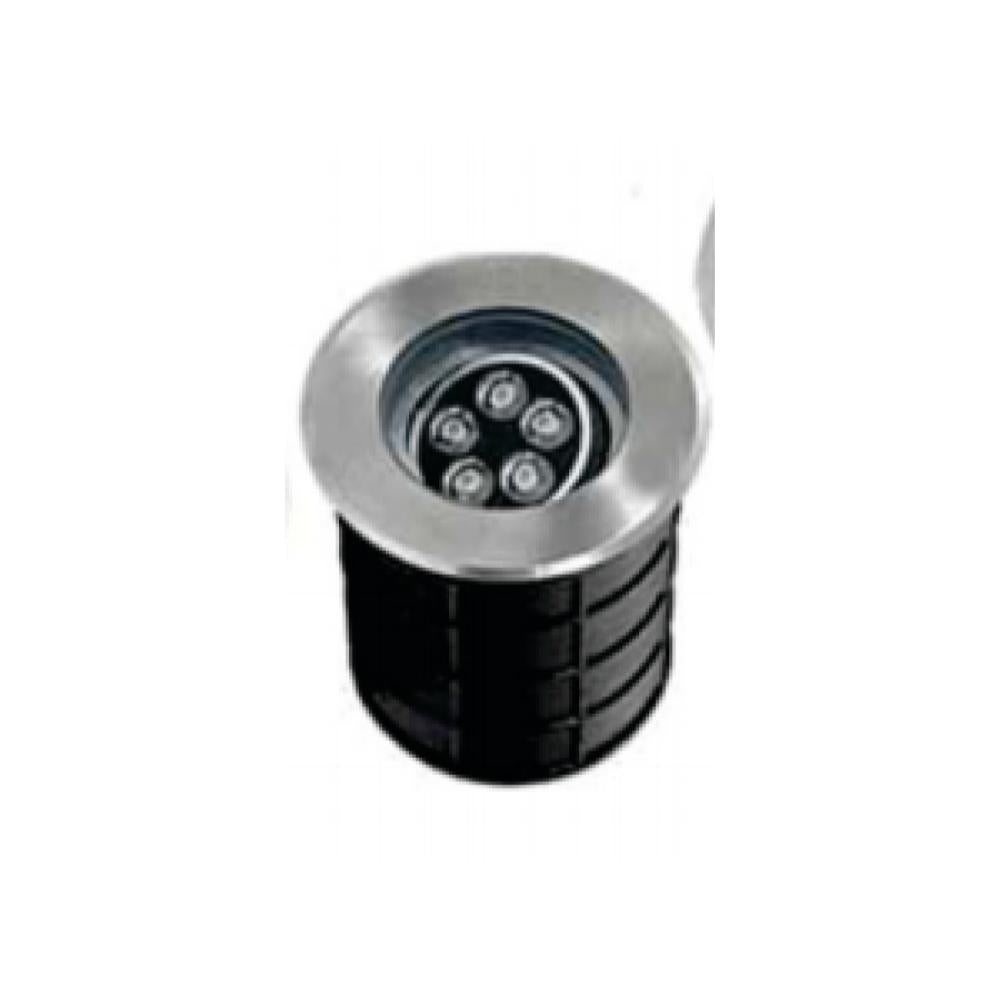

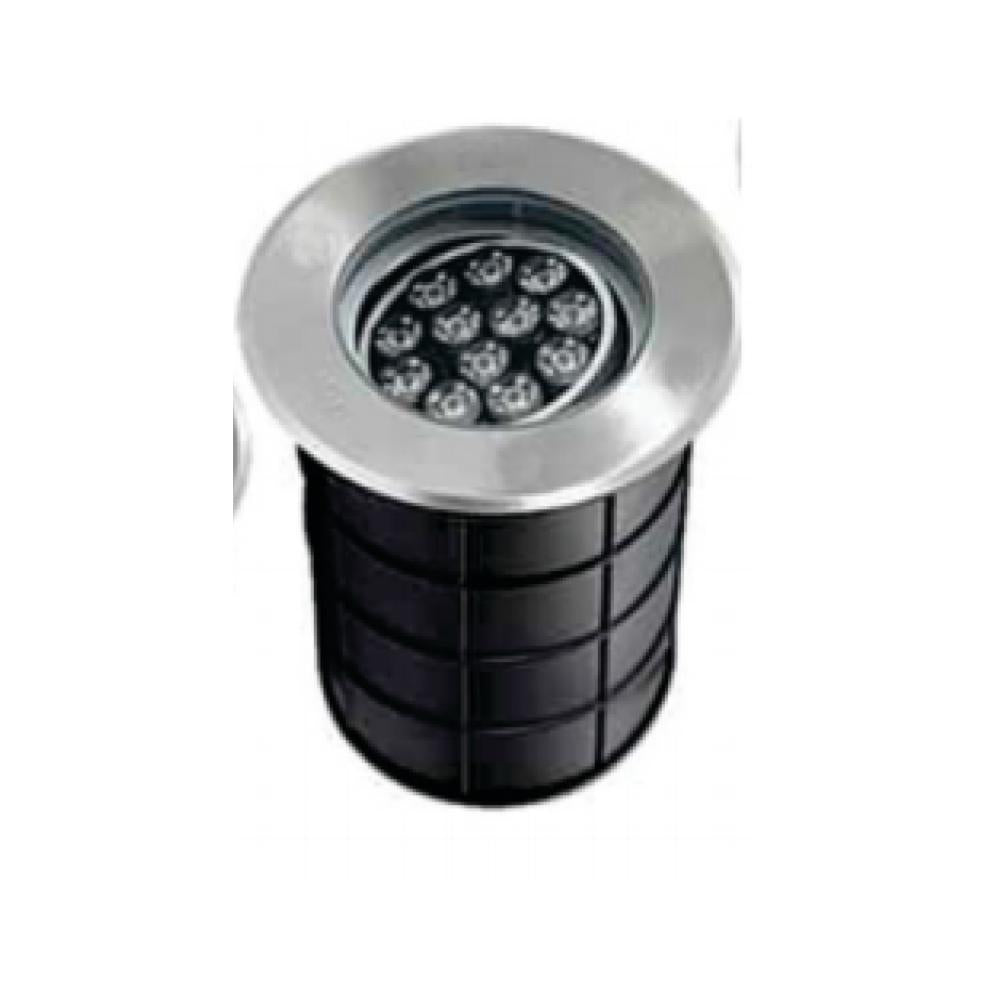

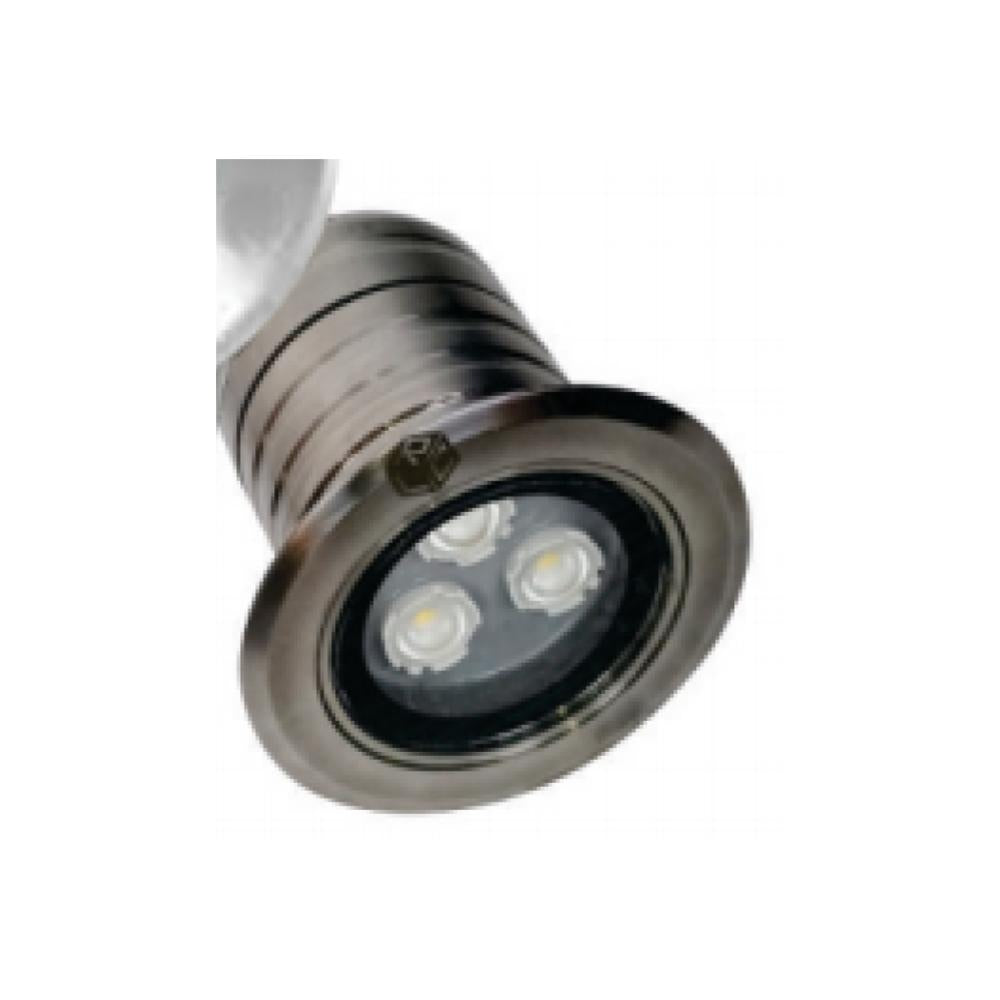

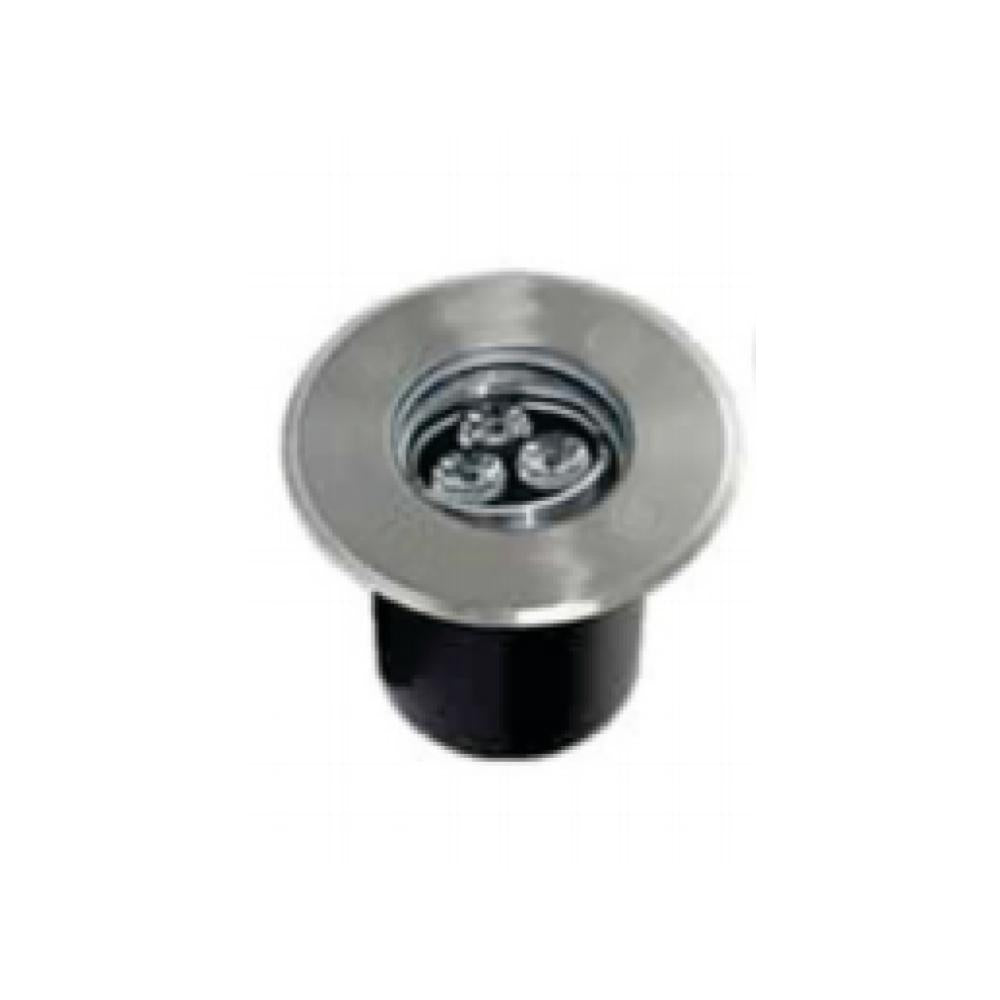

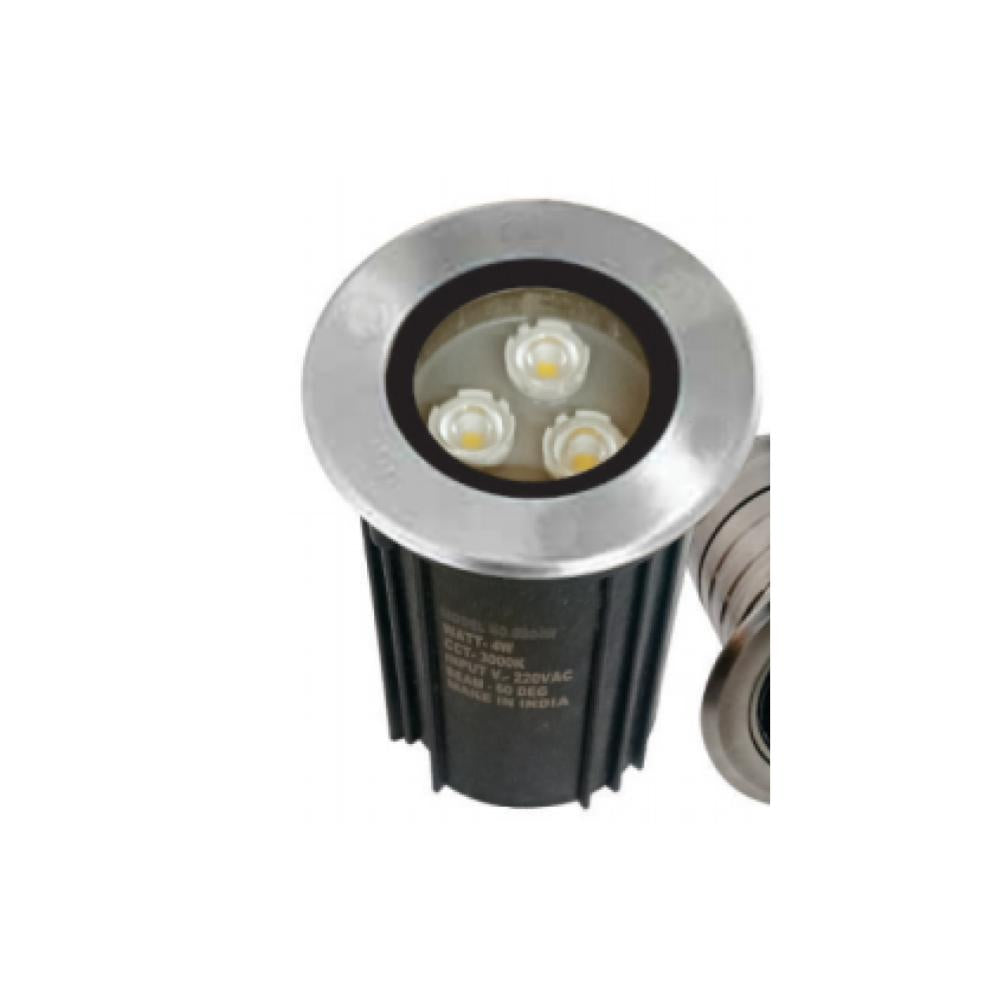

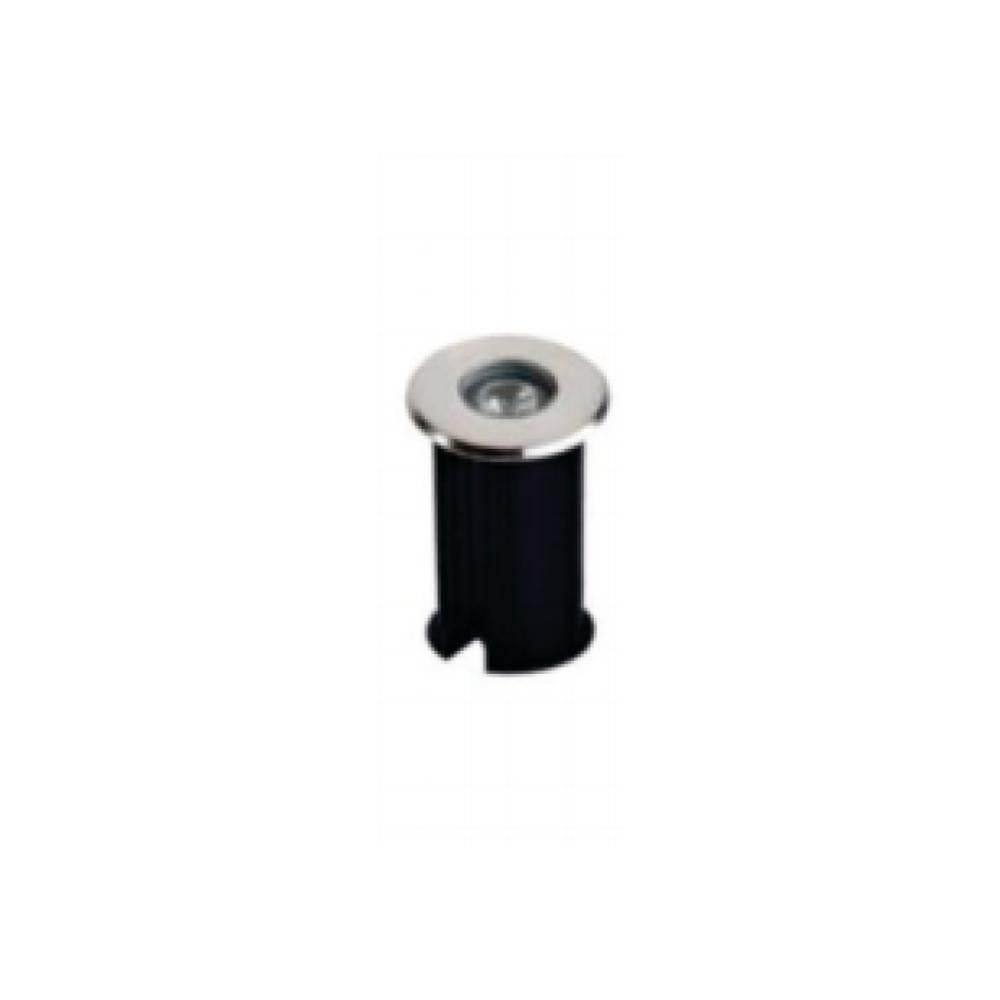

JSRC Stainless Steel In-Ground LED Uplighter

The JSRC Stainless Steel In-Ground LED Uplighter is a premium architectural lighting fixture designed for landscape lighting, façade highlighting, tree uplighting, and outdoor architectural illumination.

Constructed with a durable SS-304 stainless steel body, this recessed uplighter is built to withstand harsh outdoor environments while maintaining long-term performance and reliability.

The luminaire features high-efficiency SMD LEDs, providing powerful illumination with multiple wattage options ranging from 1W to 36W, making it suitable for both subtle accent lighting and high-intensity architectural lighting applications.

With IP67 and IP68 protection options, the fixture offers superior resistance to water and dust, making it ideal for gardens, pathways, building facades, landscapes, and outdoor installations.

Key Features

• Architectural stainless steel in-ground uplighter
• Suitable for landscape lighting and façade illumination
• SS-304 stainless steel body construction
• Available in 1W to 36W power options
• Input Voltage: 220V AC / 12V DC / 24V DC
• IP67 & IP68 waterproof protection options
• High efficiency SMD LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• Clear toughened glass (5mm thickness)

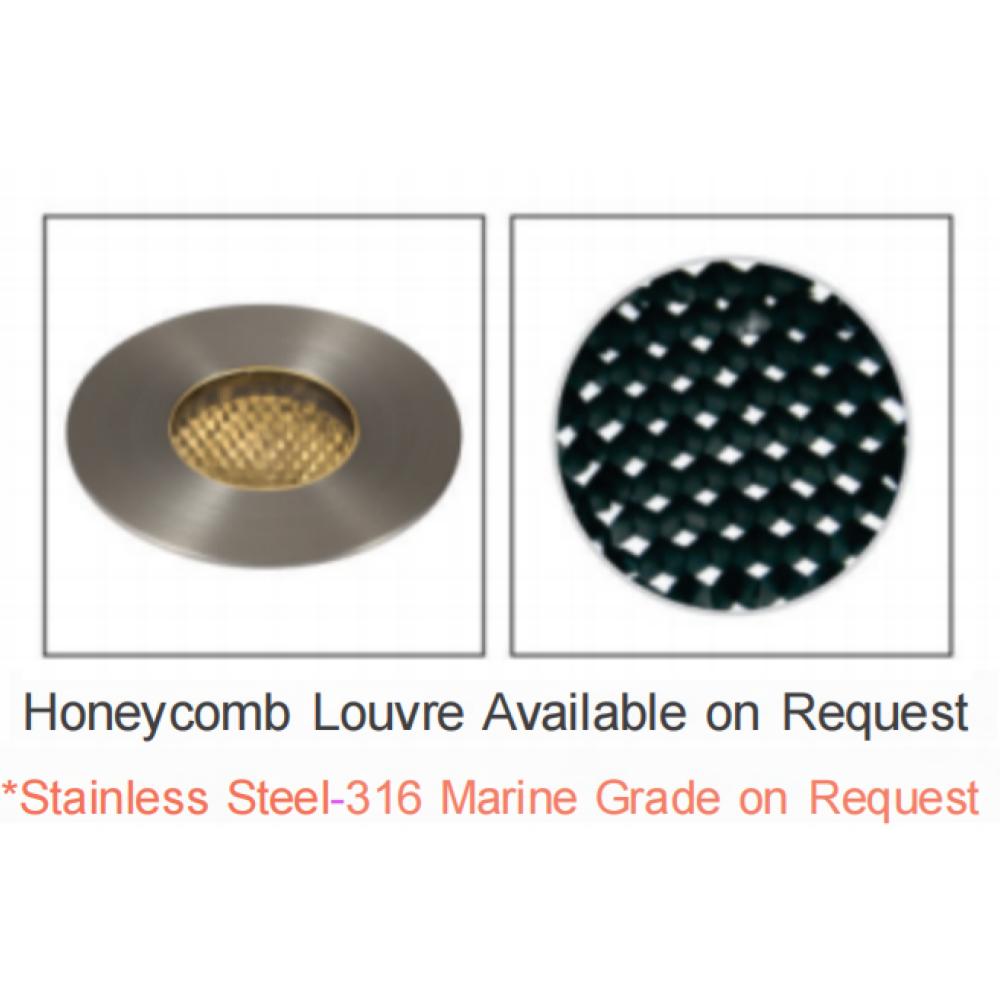

• Optional honeycomb louvre for glare control
• Dimmable driver support
• 2 Years Warranty

LED Colour Options

Available in multiple colour temperatures and dynamic colour options:

• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• Red
• Green
• Blue
• Amber
• RGB
• RGBW

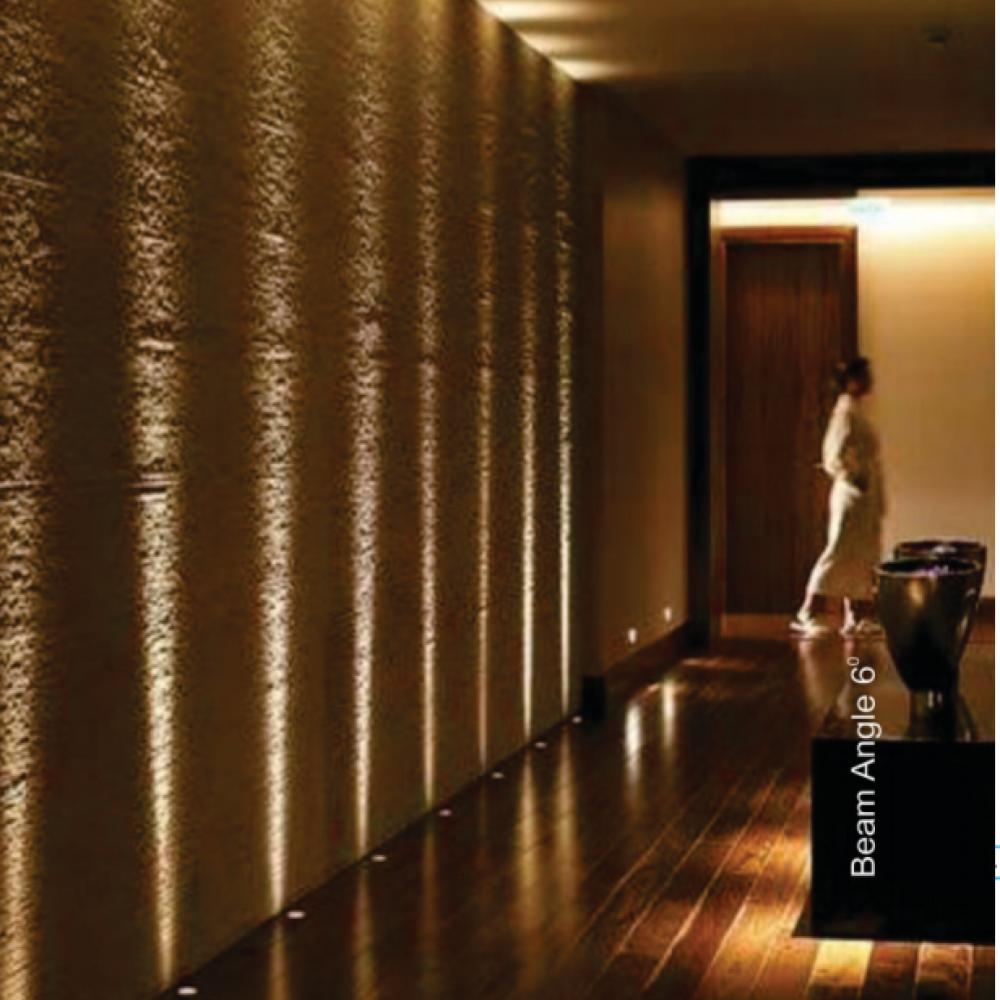

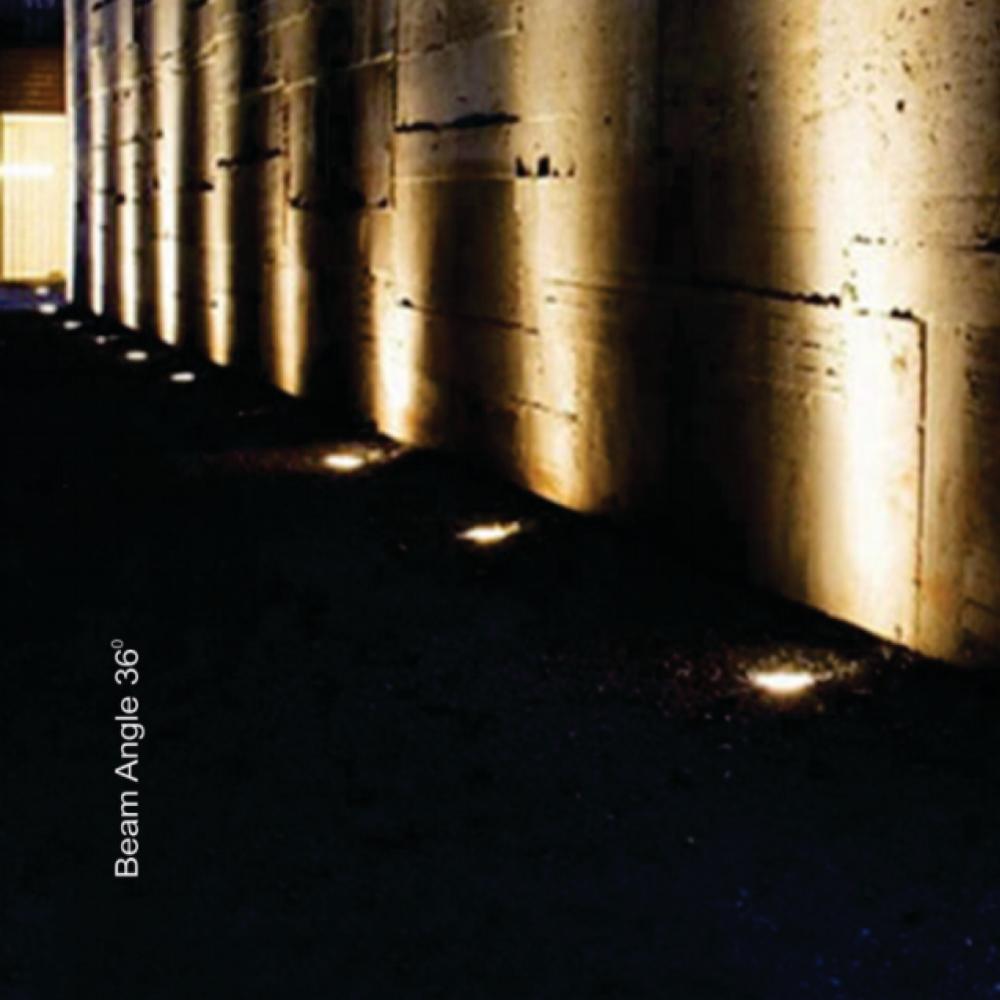

Beam Angle Options

Multiple beam angles are available to suit different lighting applications:

• 8°
• 15°
• 24°
• 36°
• 60°

These beam angles allow designers to create focused tree uplighting, façade highlights, or wide landscape illumination.

Construction & Materials

• Body: SS-304 Stainless Steel
• Pre-Mount Housing: ABS casing
• Glass: 5mm clear toughened glass
• Ingress Protection: IP67 / IP68
• Impact Protection: IK08
• LED Type: High efficiency SMD LEDs

Electrical & Installation

• Input Voltage: 220VAC / 12VDC / 24VDC
• Power Cable: High Temperature Silicon 3C x 1.5 sq.mm – 500mm length
• Accessories: IP67 / IP68 connectors available

Dimming & Control Options

Supports advanced lighting control systems:

• Triac dimming
• PWM dimming
• 1–10V dimming
• DALI dimming

Applications

Ideal for outdoor architectural lighting such as:

• Landscape lighting
• Tree uplighting
• Building façade illumination
• Monument lighting
• Garden pathways
• Hotels & resorts
• Commercial buildings
• Residential outdoor lighting

Technical Size & Installation Chart

Size & Wattage Input Voltage & IP Rating Dimensions (Without Casing)
1W (1LED x 1W) – 42mm 220VAC (IP67) OD-42 / H-75 / Cut-27
1W (1LED x 1W) – 42mm 12VDC / 24VDC (IP68) OD-42 / H-75 / Cut-27
1W (1LED x 1W) – 50mm 220VAC (IP67) OD-50 / H-70 / Cut-35
1W (1LED x 1W) – 50mm 12VDC / 24VDC (IP68) OD-50 / H-60 / Cut-35
3W (1LED x 3W) – 70mm 220VAC (IP67) OD-70 / H-85 / Cut-50
3W (1LED x 3W) – 50mm 12VDC / 24VDC (IP68) OD-50 / H-70 / Cut-35
3W (3LED x 1W) – 70mm 220VAC (IP67) OD-70 / H-95 / Cut-63
3W (3LED x 1W) – 90mm 220VAC (IP67) OD-90 / H-100 / Cut-65
3W (3LED x 1W) – 90mm 12VDC / 24VDC (IP68) OD-90 / H-75 / Cut-65
6W (3LED x 2W) – 90mm 220VAC (IP67) OD-90 / H-100 / Cut-65
6W (3LED x 2W) – 90mm 12VDC / 24VDC (IP68) OD-90 / H-75 / Cut-65
9W (3LED x 3W) – 90mm 220VAC (IP67) OD-90 / H-115 / Cut-65
9W (3LED x 3W) – 90mm 12VDC / 24VDC (IP68) OD-90 / H-75 / Cut-65
12W (6LED x 2W) – 125mm 220VAC (IP67) OD-125 / H-120 / Cut-90
12W (6LED x 2W) – 125mm 12VDC / 24VDC (IP68) OD-125 / H-75 / Cut-90
18W (9LED x 2W) – 150mm 220VAC (IP67) OD-150 / H-135 / Cut-115
18W (9LED x 2W) – 150mm 12VDC / 24VDC (IP68) OD-150 / H-80 / Cut-115
24W (12LED x 2W) – 150mm 220VAC (IP67) OD-150 / H-140 / Cut-115
24W (12LED x 2W) – 150mm 12VDC / 24VDC (IP68) OD-150 / H-80 / Cut-115
36W (18LED x 2W) – 180mm 220VAC (IP67) OD-180 / H-180 / Cut-150
36W (18LED x 2W) – 180mm 12VDC / 24VDC (IP68) OD-180 / H-80 / Cut-150



Product Description Details
Body colour Silver
Body material Steel
Fixing type Recessed
Product family JSRC
Type of item Steel Body In-Ground Burial Light
Warranty 2 years
