JSRC 3030 Outdoor Sleek Linear Wall Washer | 12W–48W | 300mm–1200mm | 12V/24V/220V | IP66 | 2 Year Warranty | Architectural Facade Lighting
Couldn't load pickup availability

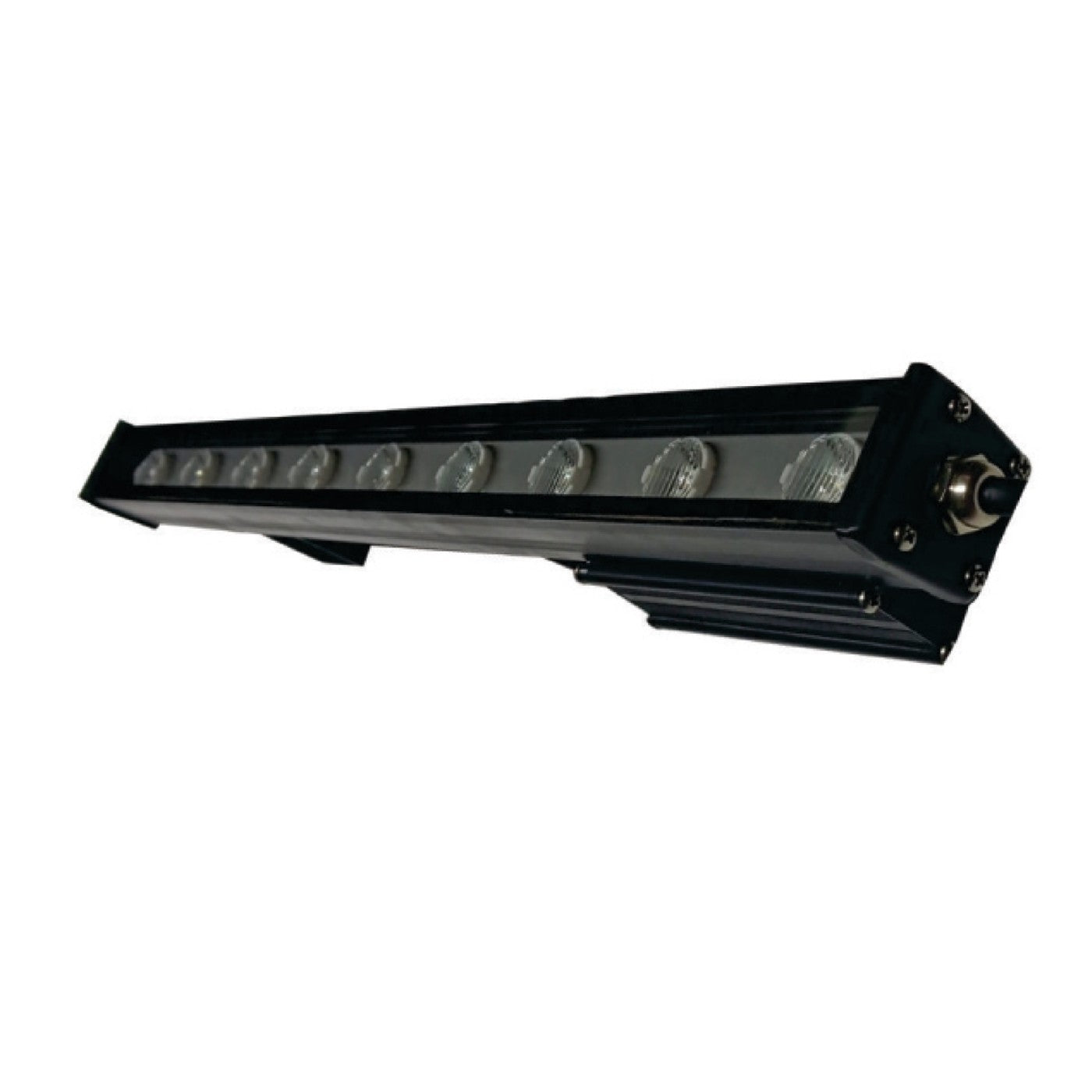

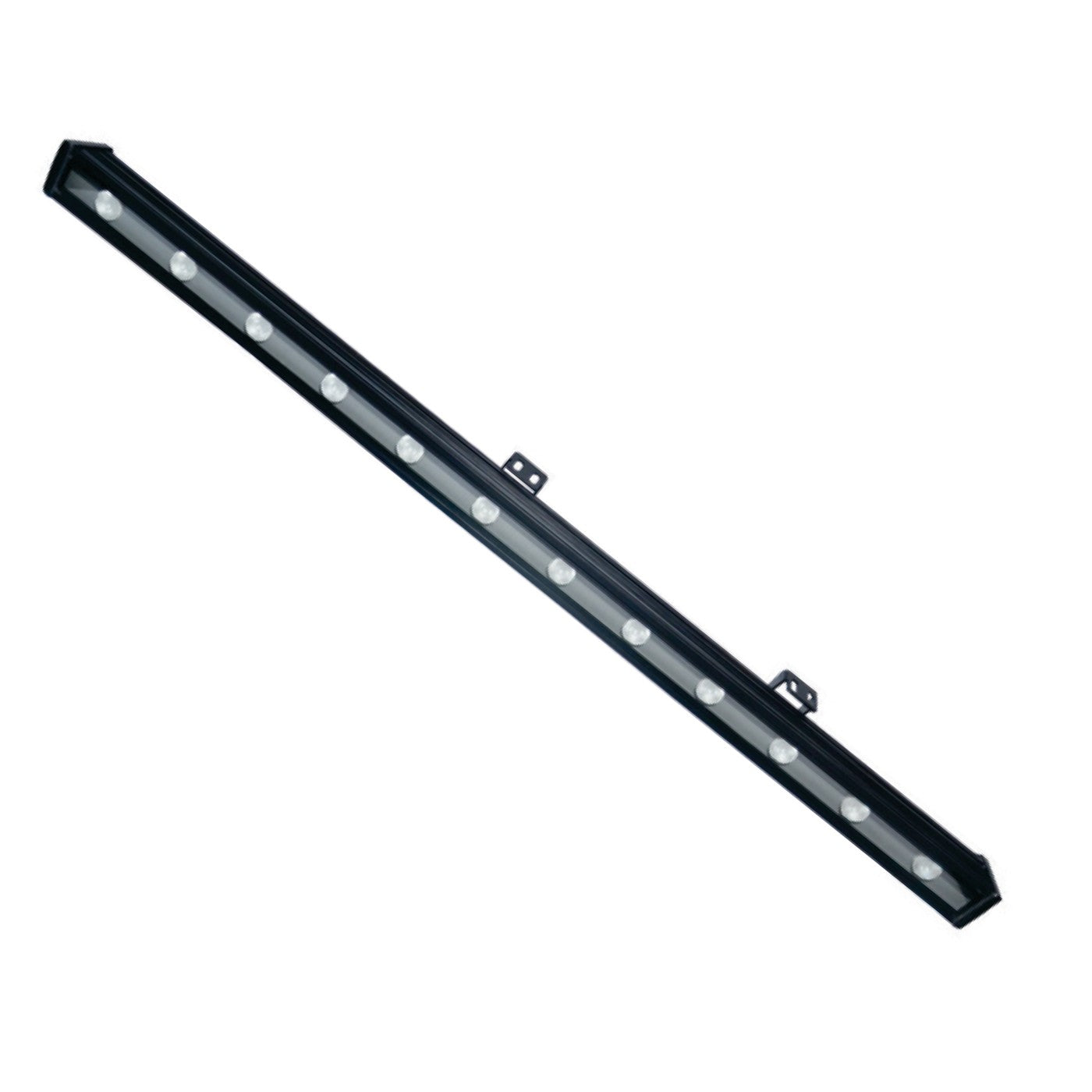

JSRC 3030 Outdoor Sleek Linear Wall Washer
The JSRC 3030 Outdoor Linear Wall Washer is a high-performance architectural lighting fixture designed to highlight building facades, textured walls, monuments, and outdoor architectural elements with smooth and uniform illumination.
Featuring a sleek linear aluminium body, this wall washer provides precise light distribution for wall grazing and facade lighting applications. The fixture is engineered for outdoor use with IP66 weatherproof protection, ensuring reliable performance in rain, dust, and harsh environmental conditions.
Available in multiple lengths from 300mm to 1200mm and wattage options from 12W to 48W, the JSRC 3030 allows lighting designers and architects to create flexible and scalable facade lighting solutions for both small accent lighting and large architectural installations.
Key Features
• Premium architectural outdoor wall washer
• Sleek linear aluminium body design
• Designed for facade lighting and wall grazing effects
• IP66 weatherproof rating for outdoor installations
• Available lengths: 300mm / 500mm / 600mm / 1000mm / 1200mm
• Power options: 12W / 18W / 24W / 36W / 48W
• Input voltage: 12V / 24V / 220V AC
• LED lifespan: 50,000 hours
• CRI >80 for accurate colour rendering
• Power Factor >0.9
• Impact protection: IK07
• 2 Years Warranty
LED Colour Options
Available in multiple colour temperatures and dynamic lighting options:
• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• Red
• Green
• Blue
• Amber
• RGB
• RGBW
Beam Angle Options
• 6°
• 15°
• 24°
• 36°
• 60°
• 15° × 30°
• 15° × 55°
Ideal for grazing textured walls, highlighting architectural details, and illuminating building facades.
Fixture Dimensions
Compact linear body designed for architectural installations:
Width: 45mm
Height: 60mm
Construction & Materials
• Body: Extruded aluminium with powder coating
• Glass: 4mm clear toughened glass
• Ingress Protection: IP66
• Impact Rating: IK07
• LED Type: High efficiency SMD LEDs
Mounting
The fixture is supplied with adjustable mounting clamps for secure installation on walls, floors, or architectural structures.
Optional Add-Ons
Available on request:
• Honeycomb louvre for glare control
• Dimmable driver options
• Triac / PWM / 1-10V / DALI dimming support
Applications
Perfect for:
• Building facade lighting
• Monuments and heritage structures
• Landscape walls
• Hotels and resorts
• Commercial buildings
• Luxury residences
• Outdoor architectural lighting
| Product Description | Details |
|---|---|
| Body material | Aluminium Die Cast |
| Fixing type | Surface |
| Height | 30mm |
| Input voltage | 12v/24v/220v |
| Ip rating | IP66 |
| Led colour options | White (6k)/Warm White (3k)/Neutral White (4k)/RGB/Red/Green/Blue/Amber |
| Led colour temperature | Warm White (27k)/White (6k)/Warm White (3k)/Neutral White (4k)/RGB/RGBW/Red/Green/Blue/Amber |
| Product family | JSRC |
| Shape | Linear |
| Type of item | Outdoor Wall Washer |
| Warranty | 2 Years |
| Width | 30mm |
