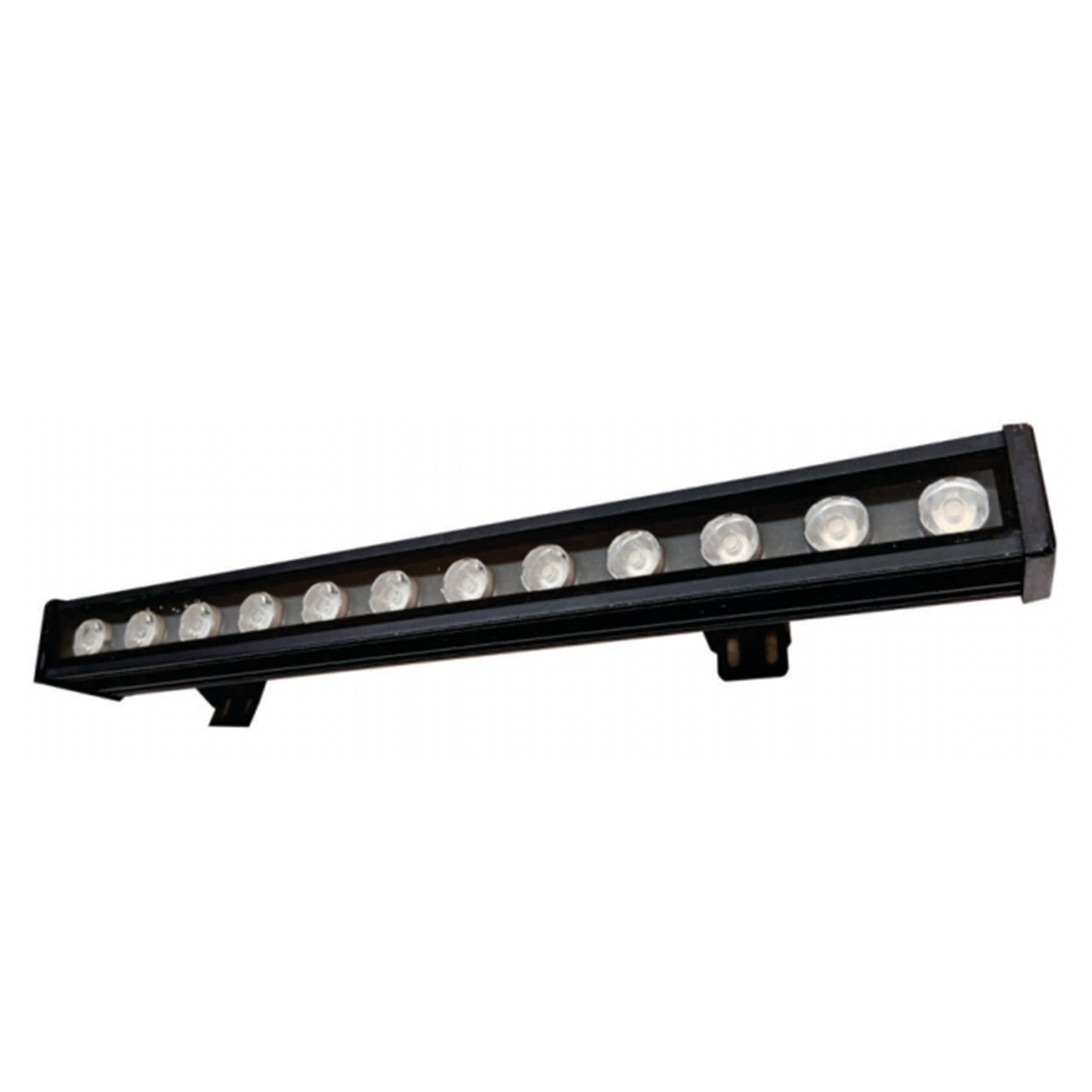

JSRC 4650 Outdoor Heavy Linear Wall Washer
The JSRC 4650 Outdoor Heavy Linear Wall Washer is a robust architectural lighting fixture designed for large facade lighting projects, monuments, textured walls, and outdoor architectural highlights.
Built with a heavy-duty aluminium body (60mm width), this fixture delivers powerful and uniform illumination for wall washing and wall grazing applications. Its solid construction and enhanced heat dissipation make it suitable for long-duration outdoor installations.
A key advantage of the JSRC 4650 is the inbuilt driver integrated inside the luminaire body, which provides better waterproof protection, simplified installation, and improved reliability compared to external driver systems.
With IP66 weatherproof protection, the fixture performs reliably in outdoor environments including rain, dust, and humidity, making it ideal for commercial buildings, heritage structures, hotels, and landscape architecture.
Available in multiple lengths from 300mm to 1200mm and power options from 12W to 60W, the JSRC 4650 provides flexible lighting solutions for both small accent lighting and large facade illumination projects.
Key Features
• Heavy-duty architectural wall washer
• 60mm wide aluminium body for better heat dissipation
• Inbuilt LED driver inside fixture body
• Enhanced waterproof protection for driver
• IP66 outdoor weatherproof rating
• Available lengths: 300mm / 500mm / 600mm / 1000mm / 1200mm
• Power options: 12W / 18W / 24W / 36W / 48W / 60W
• Input voltage: 12V / 24V / 220V AC
• LED lifespan: 50,000 hours
• CRI >85
• Power Factor >0.9
• Impact protection: IK07
• 2 Years Warranty
LED Colour Options
Available in multiple static and dynamic lighting options:
• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• RGB
• RGBW
Beam Angle Options
• 6°
• 15°
• 24°
• 36°
• 60°
• 15° × 30°
• 15° × 55°
These beam options allow designers to achieve precise wall grazing or wide facade illumination depending on the project requirement.
Fixture Dimensions
Width: 60mm
Height: 45mm
Heavy profile designed for high power facade lighting applications.
Construction & Materials
• Body: Extruded aluminium with powder coating
• Glass: 4mm clear toughened glass
• Ingress Protection: IP66
• Impact Rating: IK07
• LED Type: High efficiency SMD LEDs
Optional Add-Ons
Available on request:
• Honeycomb louvre for glare control
• Dimmable driver options
• Triac / PWM / 1-10V / DALI dimming support
Applications
Ideal for illuminating:
• Building facades
• Heritage monuments
• Hotels and resorts
• Landscape architecture
• Commercial buildings
• Luxury residential exteriors
• Architectural walls and textures
| Product Description | Details |
|---|---|
| Body material | Aluminium Die Cast |
| Fixing type | Surface |
| Height | 30mm |
| Input voltage | 12v/24v/220v |
| Ip rating | IP66 |
| Led colour options | White (6k)/Warm White (3k)/Neutral White (4k)/RGB/Red/Green/Blue/Amber |
| Led colour temperature | Warm White (27k)/White (6k)/Warm White (3k)/Neutral White (4k)/RGB/RGBW/Red/Green/Blue/Amber |
| Product family | JSRC |
| Shape | Linear |
| Type of item | Outdoor Wall Washer |
| Warranty | 2 Years |
| Width | 30mm |
