JS-LTM 20mm Magnetic Track Light Series – | Recessed, Surface, Suspension Tracks | Spotlights, Linear, Wall Washer, Pendants | Smart Dimming Options | 5-Year Warranty | Black/White Body Color
Choose your parts
- Type
Choose the type from the available combinations.
- Size/Type
Choose the size/type from the available combinations.
- Led Colour/Dimming
Choose the led colour/dimming from the available combinations.
- Plan the complete layout
Check the track, power and connections with our team.
Options explained
Type
Recessed
Track channel recessed into the ceiling.
Surface
Track channel mounted on the ceiling surface.
Track accessories
Connection and mounting parts for the track.
Lights
Choose a light module for the track.
Inline driver
Power supply mounted on the track.
External Driver
Power supply mounted outside the track.
Size/Type
1m
1 m channel.
2m
2 m channel.
3m
3 m channel.
L Corner
L Corner.
Curved Corner
Curved Corner.
T Corner
T Corner.
X Corner
X Corner.
Track Jointer
Track Jointer.
Hanging Set
Hanging Set.
Straight Adapter
Straight Adapter.
Corner Adapter
Corner Adapter.
50cm Input wire
50cm Input wire.
150cm Input wire
150cm Input wire.
End Caps
End Caps.
Laser Blade-6Led-10w
Laser Blade-6Led-10w.
Laser Blade-12 led -20w
Laser Blade-12 led -20w.
Movable Laser Blade-6led -10w
Movable Laser Blade-6led -10w.
Movable Laser Blade-12 led -20w
Movable Laser Blade-12 led -20w.
Linear Diffuser-10w
Linear Diffuser-10w.
Linear Diffuser-20w
Linear Diffuser-20w.
Linear Diffuser-30w
Linear Diffuser-30w.
Corner 90° Diffuser-24w
Corner 90° Diffuser-24w.
Movable Linear Diffuser-10w
Movable Linear Diffuser-10w.
Movable Linear Diffuser-20w
Movable Linear Diffuser-20w.
Track spot 7w
Track spot 7w.
Track spot 12w
Track spot 12w.
Track spot 15w
Track spot 15w.
Track spot 20w
Track spot 20w.
Hanging Spot 12w
Hanging Spot 12w.
Laser Wall Washer 6 led -10w
Laser Wall Washer 6 led -10w.
Laser Wall Washer 12 Led 20w
Laser Wall Washer 12 Led 20w.
Laser Spotlight 8w
Laser Spotlight 8w.
Laser Spotlight 16w
Laser Spotlight 16w.
Tube for 20mm track 10w - 1mtr
Tube for 20mm track 10w - 1mtr.
Tube for 20mm track 15w - 2mtr
Tube for 20mm track 15w - 2mtr.
GOBO Track 12w Beam angle Adjustable
GOBO Track 12w Beam angle Adjustable.
Iris Hanging 12w
Iris Hanging 12w.
Desire Hanging 7w
Desire Hanging 7w.
Desire Hanging 12w
Desire Hanging 12w.
Desire Hanging 20w
Desire Hanging 20w.
Ignite Hanging 8w
Ignite Hanging 8w.
Ignite Hanging 15w
Ignite Hanging 15w.
Ignite Hanging 22w
Ignite Hanging 22w.
48vx100w
100W, 48V power supply.
48vx200w
200W, 48V power supply.
48vx300w
300W, 48V power supply.
Led Colour/Dimming
Not applicable
No light colour or dimming selection applies to this part.
On/off, single light colour
One light colour with on/off control.
Remote + app (RF + BLE), tunable white
Remote + app (RF + BLE) with adjustable white light.
DALI dimming
DALI control for dimming.
DALI DT8, tunable white
DALI DT8 control with adjustable white light.
Zigbee, tunable white
Zigbee control with adjustable white light.
Analog dimming
Analog control for dimming.
For bulk, hotel and project orders. We reply on WhatsApp with price and delivery time.
Couldn't load pickup availability
Design your magnetic track system
Pick the shape, then the lights — we list every part and power supply with live prices.
Catalogues & Downloads
20mm Magic – 20mm Magnetic Track Light Series

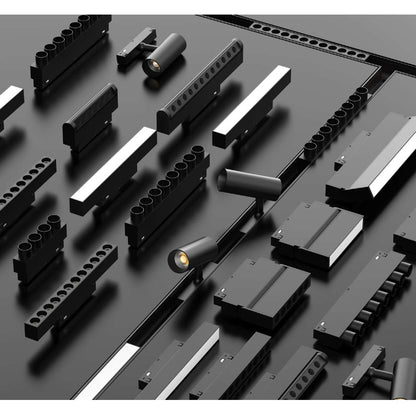

The 20mm Magic Magnetic Track Series is a premium, 48V system designed for modern homes, offices, galleries and retail spaces. Enjoy 5-year warranty, high-lumen, flicker-free LEDs, and a complete ecosystem of spotlights, linear modules, wall washers and hanging lights – all running on one seamless magnetic track.
Why choose the 20mm Magic Magnetic Track?
- Very high build quality aluminium profiles and precision-engineered light modules.
- Magnetic click-in installation – move, add or rotate fixtures instantly without tools.
- Future-ready control options – from simple single-colour to full app-based tunable white.
- Long life LEDs with excellent colour consistency and stable performance over time.
Mounting Options
- Recessed (Trimless/Concealed) – clean, invisible profile for luxury interiors and false ceilings.
- Surface – ideal where false ceilings are not possible; sits neatly on the ceiling.
- Hanging/Suspended – elegant linear runs suspended from the ceiling for double-height and open spaces.
Smart Controls & Dimming
Choose the control ecosystem that matches your project – from basic dimming to fully automated smart lighting:
- Single Colour – fixed CCT options for simple on/off or basic dimming.
- Wireless Tunable White – BLE + RF and Zigbee options for app, remote or gateway control.
- DALI Dimmable – smooth digital dimming for professional lighting control systems.
- DALI Tunable White – dynamic white (2700K–6500K, where used) for human-centric lighting.
- Analog Dimmable – simple, budget-friendly dimming via standard drivers.
Light Modules & Applications
Mix and match different modules on the same track to create layered lighting:
- Laser Blade & Movable Laser Blade – sharp, glare-controlled beams for retail shelves and feature walls.
- Linear Diffused Downlights – soft, uniform light for general illumination and corridors.
- Wall Washers – even vertical lighting to highlight textures, art and merchandise.
- Track Spots – adjustable beam angles for accenting products or focal points.
- Hanging Pendants (Iris, Desire, Ignite, Core, Tubes) – decorative pendants that clip directly onto the track for dining tables, counters and islands.
- Accessories – corners, T & X connectors, hanging kits and power modules to build continuous lines or creative shapes.
Performance & Reliability
- High lumen output with excellent efficacy for energy-efficient projects.
- Flicker-free drivers for visual comfort and better performance on camera.
- Up to 50,000 hours rated LED life (L70) for long-term reliability.
- Surge & over-voltage protection for stable operation and reduced failures.
Not sure which combination is right for your project?
Share your layout with us on WhatsApp or give us a quick call. Our team will help you choose the ideal mix of tracks, modules and control options for your space.
📘 Download Full Catalogue And Price List (PDF)
Complete Technical Specifications
Tap a category below to expand details.
1. Tracks & Corners
| Item | Dimensions | Wattage |
|---|---|---|
| Magic-TC 20mm Trimless Recessed (1M/2M/3M) | W: 62.4mm × H: 47mm | - |
| Magic-TH 20mm Surface Track (1M/2M/3M) | W: 24.7mm × H: 53.25mm | - |
| Magic-TC Trimless Corner | 101 × 101 × 47 mm | - |
| Magic-TH Surface Corner | 80 × 80 × 53.2 mm | - |
2. Connectors & Accessories
| Curved Corner (Surface/Trimless) |
| T Corner & Plus Connector |
| Magic-Straight Joint (150mm) |
| Magic-Corner Joint (80mm) |
| Magic Input Module (50cm / 150cm) |
| End Cap Set |
3. Laser Blade Modules
| Item | Wattage | Dimensions | CRI |
|---|---|---|---|
| Magic Laser Blade (6 LED) | 10W | 112 × 22 × 25 mm | 80/90 |
| Magic Laser Blade (12 LED) | 20W | 220 × 22 × 25 mm | 80/90 |
| Movable Laser Blade (6 LED) | 10W | 112 × 22 × 90 mm | 80/90 |
| Movable Laser Blade (12 LED) | 20W | 220 × 22 × 90 mm | 80/90 |
4. Linear Diffusers
| Item | Wattage | Length |
|---|---|---|
| Magic Linear Diffuser | 10W / 20W / 30W | 205mm / 305mm / 405mm |
| Magic Corner 90° Diffuser | 24W | 300 × 320 mm |
| Movable Linear Diffuser | 10W / 20W | 205mm / 305mm |
5. Track Spots
| Item | Wattage | Beam Angles |
|---|---|---|
| Magic Track Spot (Small) | 7W | 15° / 24° / 36° / 60° |
| Magic Track Spot (Medium) | 12W / 15W | 15° / 24° / 36° / 60° |
| Magic Track Spot (Large) | 20W | 15° / 24° / 36° / 60° |
| Magic Track Spot (Round) | 12W | 24° / 36° |
6. Wall Washers & Spotlights
| Item | Wattage | Dimensions |
|---|---|---|
| Laser Wall Washer (6 LED) | 10W | 132 × 22 × 42 mm |
| Laser Wall Washer (12 LED) | 20W | 246 × 22 × 42 mm |
| Magic Spotlight | 8W / 16W | 110mm / 218mm Length |
7. Magnetic Tubes
| Item | Wattage | Length |
|---|---|---|
| Magic Tube (1M) | 10W | 1000 mm |
| Magic Tube (2M) | 15W | 2000 mm |
8. GOBO & Pendants
| Item | Wattage | Optics |
|---|---|---|
| Magic GOBO Track | 12W | Adjustable 25–35° |
| Magic Iris Hanging | 12W | 24° / 36° / 55° |
| Magic Desire Hanging | 7W / 12W / 20W | 12° / 24° / 36° / 55° |
| Magic Ignite Hanging | 8W / 15W / 22W | 110° |
9. Power Supplies
| Item | Voltage | Wattage |
|---|---|---|
| Internal Power Supply | 48V | 100W / 200W |
| External Power Supply | 48V | 100W / 200W / 300W |
| Specification | Details |
|---|---|
| Cut-Out Size | 52mm |
| Cut out max mm | 52.0 |
| Cut out min mm | 52.0 |
| Product Family | JS-LTM |
| Shape | Linear |
| Ship est kg | 1.0 |
| Type of Item | COB Track Light |
