Eliante Mini COB Spotlight – Small Recessed, 4W to 15W (JS-ELT-HR)
How to choose — step by step
- Choose the fitting
Choose the documented style or finish for this range.
- Choose the wattage
Choose a wattage listed for this fitting.
- Choose the control
Choose on/off or dimming, then a warranty or control.
- Choose the light
Choose the documented finish and light colour.
Options explained
Wattage
4W
4W: Ø62 × H25 mm; 7W: Ø72 × H28 mm; 12W: Ø83 × H31 mm; 15W: Ø105 × H35 mm.
7W
4W: Ø62 × H25 mm; 7W: Ø72 × H28 mm; 12W: Ø83 × H31 mm; 15W: Ø105 × H35 mm.
12W
4W: Ø62 × H25 mm; 7W: Ø72 × H28 mm; 12W: Ø83 × H31 mm; 15W: Ø105 × H35 mm.
15W
4W: Ø62 × H25 mm; 7W: Ø72 × H28 mm; 12W: Ø83 × H31 mm; 15W: Ø105 × H35 mm.
Pricing Tier
On/off levels
Ultra
Pricing Tier: Ultra (5yr).
5-year warrantyPerformance
Pricing Tier: Performance (3yr).
3-year warrantyStandard
Pricing Tier: Standard (2yr).
2-year warrantyEssential
Essential (2yr): entry-level LED, ~80 lm/W, a budget option for low-use areas.
2-year warranty3-in-1 Colour Switch
3-in-1 Colour Switch (2yr): set one light to warm, neutral or cool white.
2-year warranty
Dimmable single colour
Wall dimmer
TriacTriac Dimmable (2yr): dims on a standard Triac (phase-cut) wall dimmer.
2-year warrantyBuilding control dimming
1–10V1-10V Dimmable (2yr): for 1-10V control systems in offices, retail and hotels.
2-year warrantyBuilding control dimming
DALI DT-6Pricing Tier: Dali Dimmable DT-6 (5yr).
5-year warrantyRemote only dimming
RFRF Dimming (2yr): dim with a wireless remote (Remote only).
2-year warrantyRemote + app dimming
RF + BLERF+BLE Dimming (3yr): dim with a remote or your phone over Bluetooth.
3-year warrantyZigbee dimming
ZigbeeZigbee Dimming (3yr): Dimming through a Zigbee control system.
3-year warranty
Tunable white
Building control tunable CRI 90
DALI DT-8Dali Tunable DT-8 (5yr): brightness and colour temperature on one DALI address.
5-year warrantyTriac tunable Eco
Triac Tunable Eco (2yr): the value version of Triac tunable.
2-year warrantyWall dimmer tunable CRI 90
Tune white and dim it using Triac control. CRI 90 LED; 2-year warranty.
2-year warrantyRemote only tunable Eco
RFRF Tunable Eco (2yr): change colour temperature with a wireless remote; a value option.
2-year warrantyRemote only tunable CRI 90
RFTune white and dim it with Remote only (RF). CRI 90 LED; 2-year warranty.
2-year warrantyRemote only tunable Essential
RFRF Tunable Essential (2yr): the budget version of Remote-only tunable.
2-year warrantyRemote + app tunable Eco
RF + BLERF+BLE Tunable Eco (2yr): wireless dimming and colour-temperature control, by remote or phone; a value option.
2-year warrantyRemote + app tunable CRI 90
RF + BLERF+BLE Tunable (3yr): wireless dimming and colour-temperature control.
3-year warrantyZigbee tunable Eco
ZigbeeZigbee Tunable Eco (2yr): Zigbee brightness and colour-temperature control; a value option.
2-year warrantyZigbee tunable CRI 90
ZigbeeTune white and dim it through a Zigbee control system. CRI 90 LED; 3-year warranty.
3-year warranty
Colour
RGB + tunable White
RGB + Tunable White (3yr): full colour and tunable white, by remote or phone.
3-year warranty
Outer ring
White
White outer ring finish.
Black
Black outer ring finish.
Beam angle
24°
24° beam angle.
Colour temperature
2700K
2700K extra warm white.
3000K
3000K warm white.
4000K
4000K neutral white.
5000K
5000K cool daylight.
6000K
6000K cool white.
Tunable
Change from warm to cool on the control.
3-in-1 (warm · neutral · cool)
Switch between warm, neutral and cool white.
Body colour
Black
Black body colour finish.
White
White body colour finish.
For bulk, hotel and project orders. We reply on WhatsApp with price and delivery time.
Couldn't load pickup availability
Catalogues & Downloads

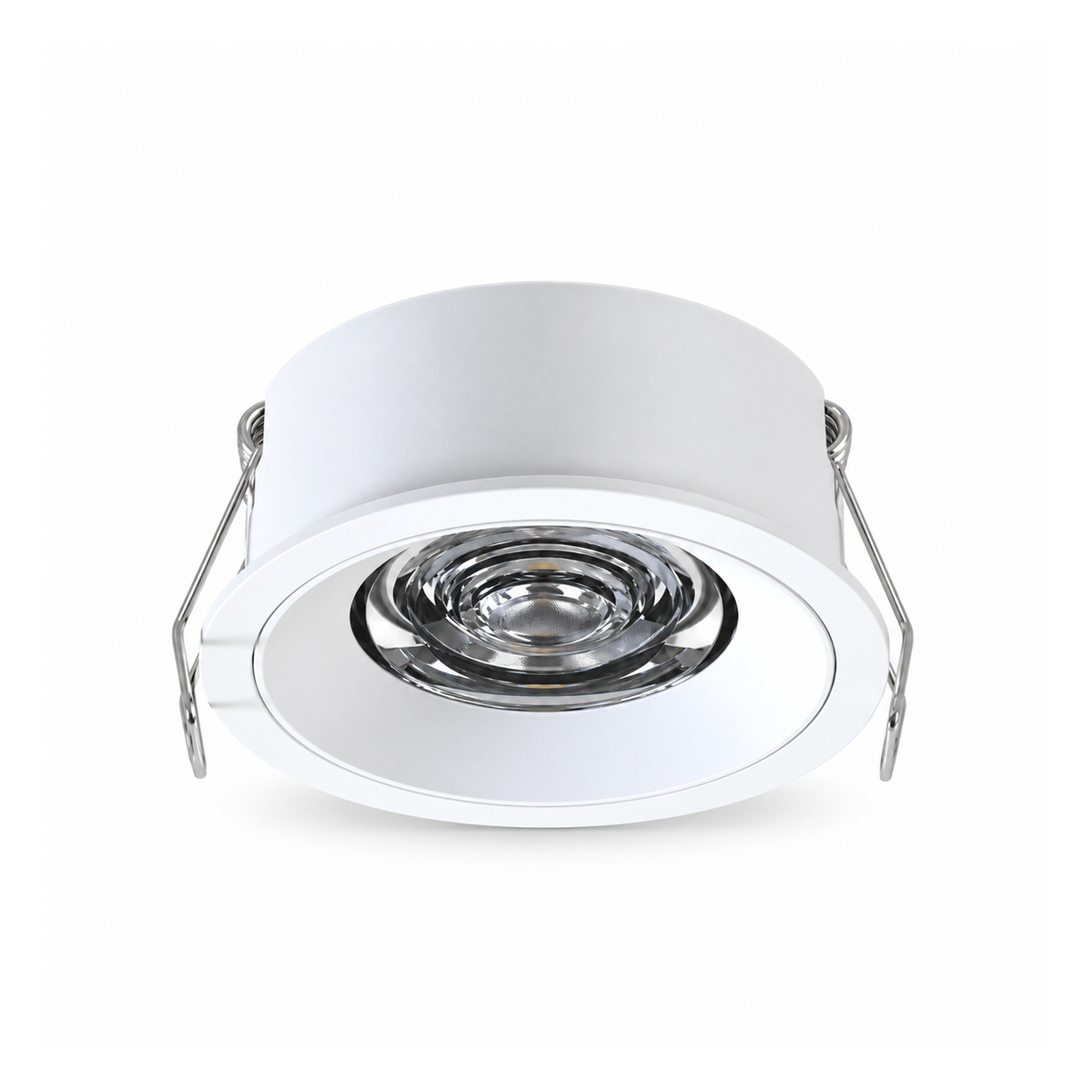

Eliante Mini COB Spotlight – Small Recessed, 4W to 15W
Eliante by Jainsons Lights, Delhi, since 1978. Mini is a recessed COB concealed spotlight for small ceiling spaces. It has an aluminium die-cast body, Bridgelux or Cree LED, and Philips, Fulham or Osram driver options. It gives 120–140 lm/W and has a low 25–35 mm height.
Available in this range
- Mini Spotlight, recessed.
- Outer ring: White or Black. Body: Black or White.
- Beam angle: 24°.
- Colour temperatures: 2700K, 3000K, 3500K, 4000K, 5000K or 6500K. Tell us when ordering.
- Very low height: 25–35 mm.
- Tri-colour with remote + Bluetooth + Wi-Fi dimming available, with 2.4G remote, Bluetooth and DALI-2 options.
Types and sizes
| Type | Power and dimensions | Cut-out |
|---|---|---|
| Mini Spotlight | 4W: Ø62 × H25 mm; 7W: Ø72 × H28 mm; 12W: Ø83 × H31 mm; 15W: Ø105 × H35 mm | Ø55, Ø65, Ø75 and Ø95 mm respectively |
LED Pricing Tiers
Quality levels
- Ultra (5yr): Bridgelux V-Series + Fulham premium driver, ~150 lm/W, for retail, hospitality and premium homes.
- Performance (3yr): Bridgelux E-Series high-lumen, ~125 lm/W, for retail, hospitality and commercial use.
- Standard (2yr): Bridgelux E-Series, ~100 lm/W, for everyday homes and offices.
- Essential (2yr): entry-level LED, ~80 lm/W, a budget option for low-use areas.
Colour switch
- 3-in-1 Colour Switch (2yr): set one light to warm, neutral or cool white.
DALI and smart control
- Dali Dimmable DT-6 (5yr): flicker-free 1–100% dimming on a DALI bus.
- Dali Tunable DT-8 (5yr): brightness and colour temperature on one DALI address.
- RF+BLE Tunable (3yr): wireless dimming and colour-temperature control.
- RF+BLE Tunable Eco (2yr): wireless dimming and colour-temperature control, by remote or phone; a value option.
- Zigbee Tunable Eco (2yr): Zigbee brightness and colour-temperature control; a value option.
- Zigbee Dimming (3yr): Zigbee smart-home brightness control for single-colour light.
Dimming
- Triac Dimmable (2yr): dims on a standard Triac (phase-cut) wall dimmer.
- Triac Tunable Eco (2yr): the value version of Triac tunable.
- 1-10V Dimmable (2yr): for 1-10V control systems in offices, retail and hotels.
- RF Dimming (2yr): dim with a wireless remote (Remote only).
- RF+BLE Dimming (3yr): dim with a remote or your phone over Bluetooth.
Tunable white and colour
- RF Tunable Eco (2yr): change colour temperature with a wireless remote; a value option.
- RF Tunable Essential (2yr): the budget version of Remote-only tunable.
- RGB + Tunable White (3yr): full colour and tunable white, by remote or phone.
Not every option is offered on every size. Read the LED Ranges explainer.
How to order
- Choose the wattage and check the cut-out in the table.
- Choose the pricing tier and check that the dimmer or control system on site matches (Triac, 1-10V, DALI, remote, Zigbee).
- Tell us colour temperature, beam angle and ring colour in the order note or on WhatsApp 98991 88821.
Need help?
Design and BOQ help: WhatsApp 98991 88821 or visit one of our 4 Delhi showrooms: Chandni Chowk, Bhagirath Palace, Kotla or Ghitorni.
Download the full catalogue
