Eliante Pull-Out COB Spotlight – Single & Double
Eliante by Jainsons Lights, Delhi, since 1978. Eliante Pull-Out is a recessed COB LED spotlight in aluminium die casting, available in Single and Double styles.
Available in this range

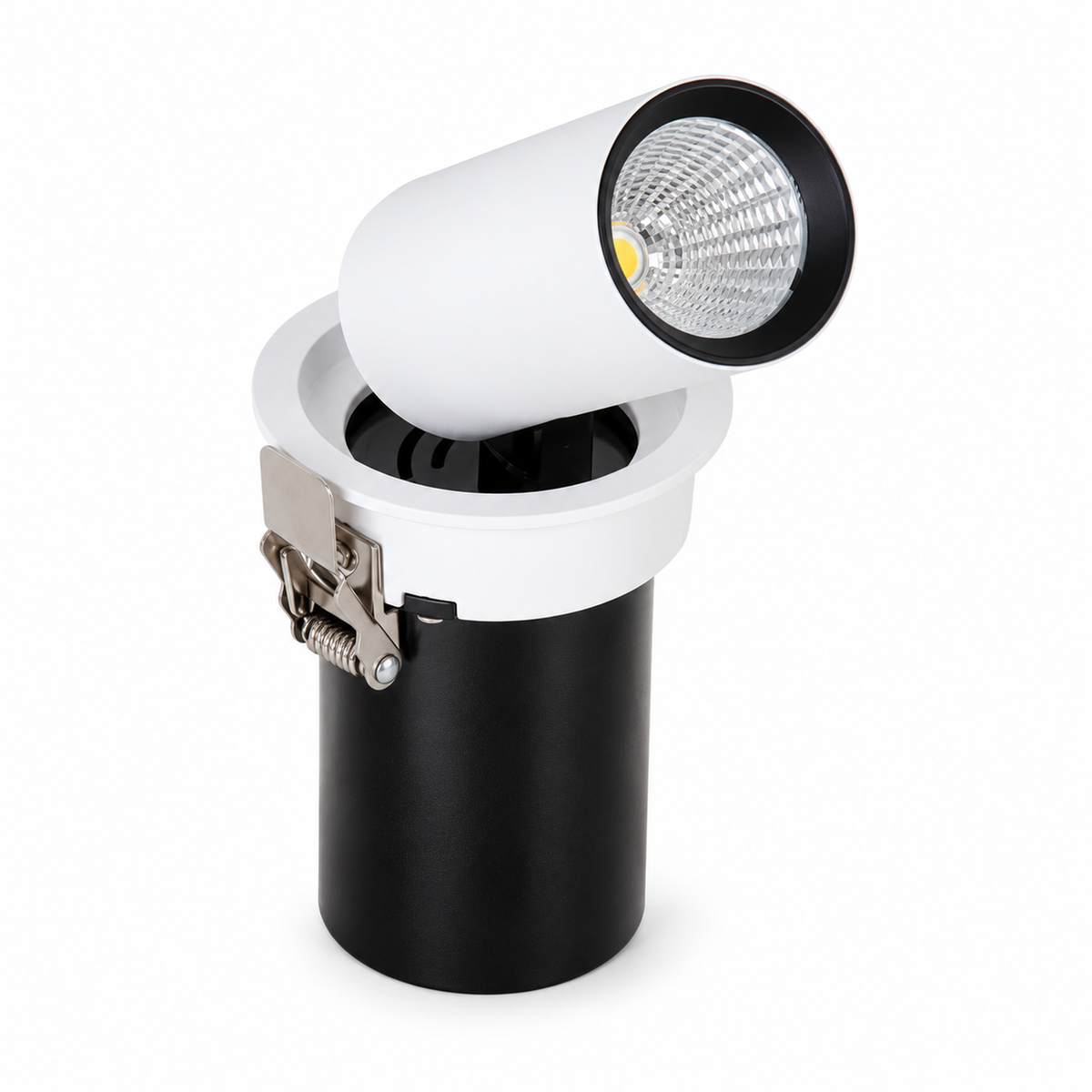

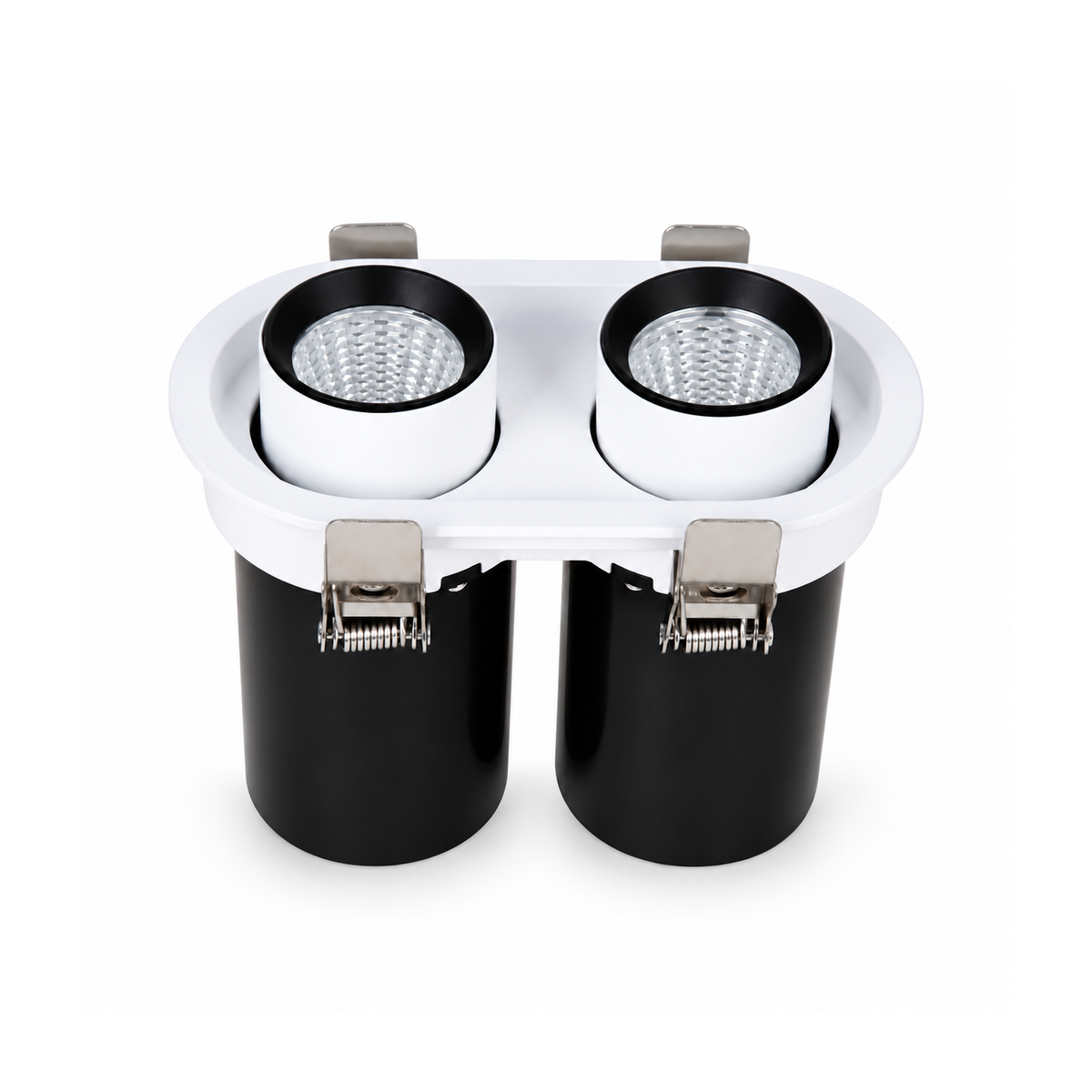

- Single and Double styles. Double has two lights in one fitting.
- Body colours: Black or White. Tell us when ordering.
- Beam angle: 38°.
- Reflector: GR or Shinland.
Types and sizes
| Type | Power and dimensions | Cut-out |
|---|---|---|
| Single | 10W: Ø85 × H110 mm; 12W: Ø103 × H112 mm | Ø75 and Ø95 mm respectively |
| Double, two lights in one fitting | 2×7W: 135 × 72 × H100 mm; 2×12W: 185 × 98 × H120 mm | 65 × 125 mm and 175 × 90 mm respectively |
Choose your option
Plain white light (on/off)
- Ultra (5yr) — Top LED and driver.
- Performance (3yr) — Plain white light with a 3-year warranty.
- Standard (2yr) — Plain white light with a 2-year warranty.
- Essential (2yr) — Value option, CRI 80.
- 3-in-1 Colour Switch (2yr) — Set one light to warm, neutral or cool white with the wall switch.
Dimming
- Dali Dimmable DT-6 (5yr) — Dims with a DALI DT-6 control system.
- Zigbee Dimming (3yr) — Dims through a Zigbee control system.
- Triac Dimmable (2yr) — We make this light dimmable. Use any fan dimmer with it (not included).
- 1-10V Dimmable (2yr) — For 1-10V control systems in offices, retail and hotels.
- RF Dimming (2yr) — Remote only: dim with a wireless RF remote.
- RF+BLE Dimming (3yr) — Remote + app: dim with a remote or your phone over Bluetooth.
Tunable white and colour
- Dali Tunable DT-8 (5yr) — Adjust brightness and white colour with a DALI DT-8 system.
- RF+BLE Tunable (3yr) — Remote + app: adjust brightness and colour temperature.
- RF+BLE Tunable Eco (2yr) — Remote + app: a value option for adjustable brightness and colour temperature.
- Zigbee Tunable (3yr) — Control brightness and colour temperature through a Zigbee smart home system.
- Zigbee Tunable Eco (2yr) — Control brightness and colour temperature through a Zigbee smart home system; a value option.
- Triac Tunable CRI 90 (2yr) — Adjust brightness and colour temperature on Triac control, with CRI 90.
- Triac Tunable Eco (2yr) — The value version of Triac tunable.
- RF Tunable CRI 90 (2yr) — Remote only: change colour temperature with a wireless remote, with CRI 90.
- RF Tunable Eco (2yr) — Remote only: change colour temperature with a wireless remote; a value option.
- RF Tunable Essential (2yr) — Remote only: the budget version of RF tunable.
- RGB + Tunable White (3yr) — Full colour and tunable white, controlled by remote or phone.
Own-assembled Eliante lights use CRI 90 LEDs in every option except Essential (CRI 80).
Upgrades such as CRI 97 or a flicker-free driver can be added to suitable options.
Light colour: Warm White 3000K (pre-selected), Neutral White 4000K or White 6000K, plus 2700K or 5000K at 15% more; tunable options change it on demand.
Not every option is offered on every size.
How to order
- Choose the Style first.
- Then choose the wattage and check the cut-out in the table.
- Then choose the pricing tier and check that the dimmer or control system on site matches (Triac, 1-10V, DALI, remote, Zigbee).
- Tell us colour temperature, beam angle and ring colour in the order note or on WhatsApp.
Need help?
Design help and BOQ help: WhatsApp or visit one of our 4 Delhi showrooms: Chandni Chowk, Bhagirath Palace, Kotla or Ghitorni.
Download the full catalogue
| Specification | Details |
|---|---|
| Product Family | JS-ELT-HR |
| Type of Item | COB Concealed |
