Eliante Adjustable Dome COB Downlight – Recessed & Surface (JS-ELT-HR)
How to choose — step by step
- Pick a shape
Choose recessed, trimless or surface fitting. Check the body size and ceiling cut-out in the description.
- Choose the lens
Dome and Snoot give a 36° spot. Black Hole gives a 24° beam, Zoom adjusts from 15–36°, and Fish Eye gives a 120° spread. Only lenses for your shape are shown.
- Choose the wattage
Pick from the sizes offered for your shape and lens. Double Square has two heads, shown as 2×10W or 2×12W.
- Choose a pricing tier
Select an LED or control option; the warranty is shown on each button. Pick body colour, reflector colour and LED colour in the next steps. Trimless comes in white only.
For bulk, hotel and project orders. We reply on WhatsApp with price and delivery time.
Couldn't load pickup availability
Catalogues & Downloads
Eliante Adjustable Dome COB Downlight – Recessed & Surface
Eliante by Jainsons Lights, Delhi, since 1978. The Adjustable Dome COB Downlight has one adjustable head that tilts from 0–30° and rotates 355°. A positioning gear keeps the aim in place. It uses an anti-glare COB LED and is available in recessed and surface styles.
Available in this range
- Round recessed, Trimless, Square, Double Square, Small Cut-out (concealed) and Round Surface bodies. Square Surface is available on request.
- Dome Lens, Black Hole Anti-Glare, Snoot, Zoom 15–36° and Fish Eye 120° lens options.
- Body colours: white or black. Trimless is available in white only.
- On the plain Dome, the inner ring is available in shining black or chrome.
Types and sizes
| Type | Power and dimensions | Cut-out |
|---|---|---|
| Round recessed | 7W: Ø63 × H42 mm; 10W: Ø73 × H51 mm; 12W: Ø85 × H57 mm; 15W and 18W: Ø106 × H73 mm; 25W and 30W: Ø130 × H90 mm | Ø55, Ø65, Ø75, Ø95 and Ø120 mm respectively |
| Round lens versions: Black Hole Anti-Glare, Snoot, Zoom 15–36° and Fish Eye 120° | 10W or 12W, Ø85 mm body | Ø75 mm |

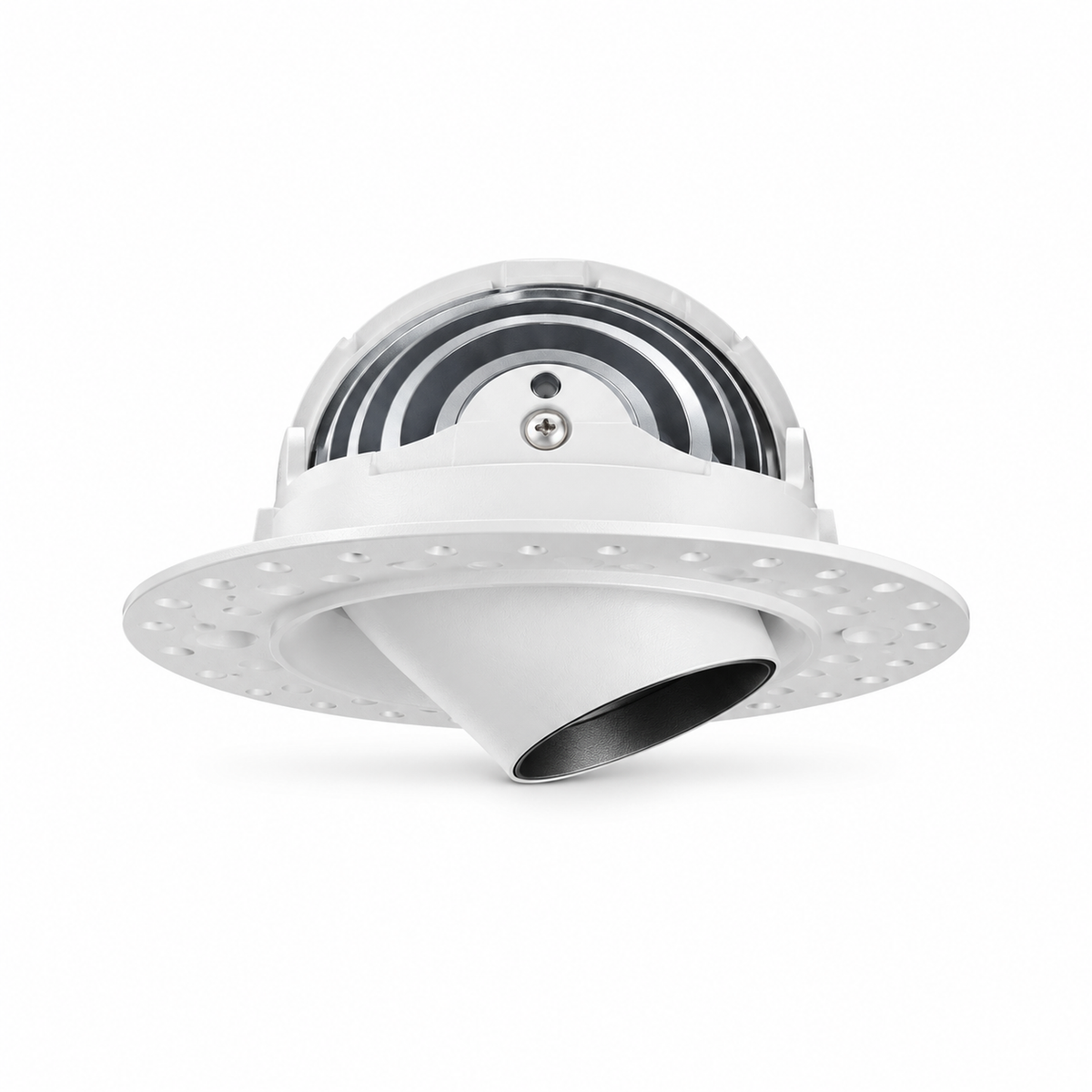

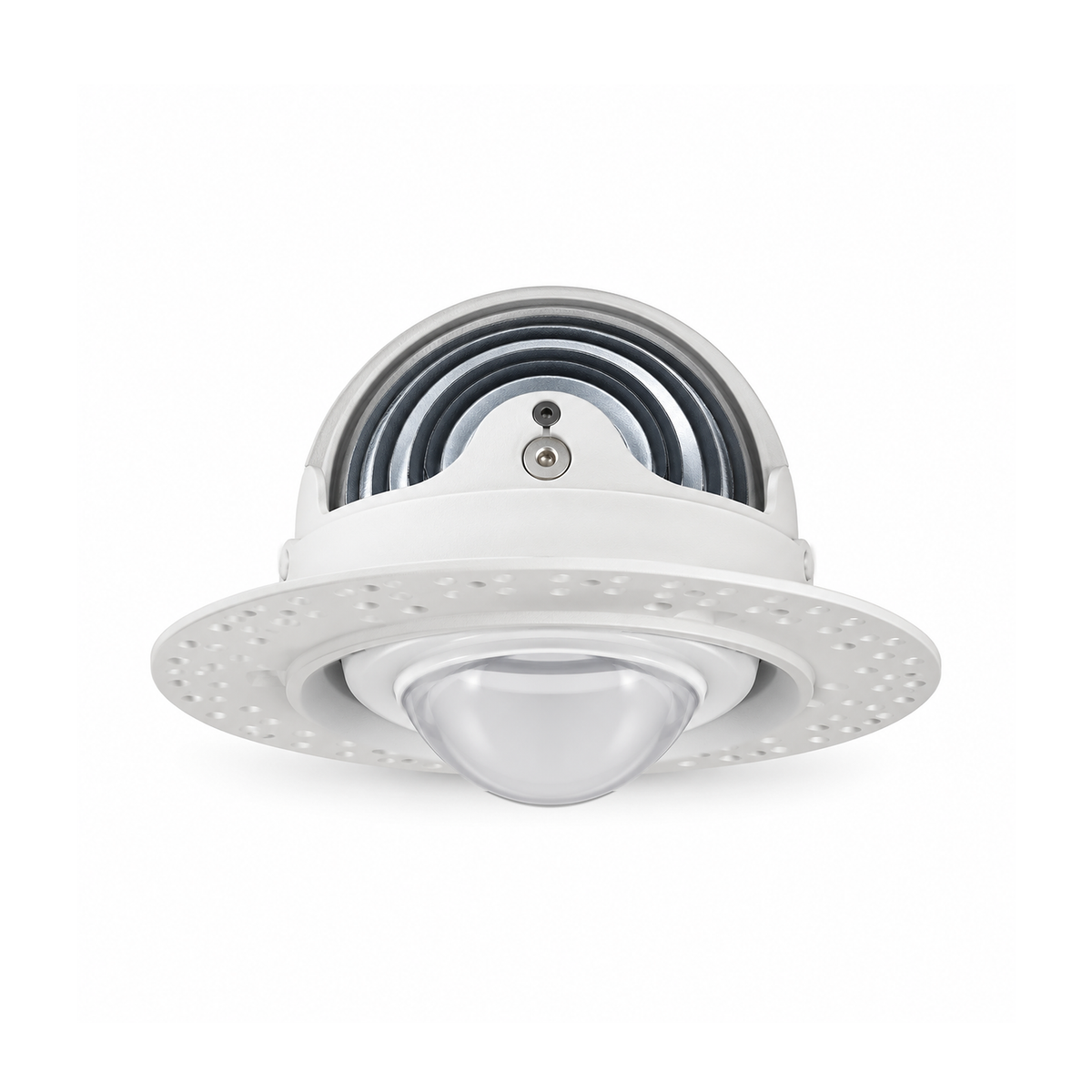

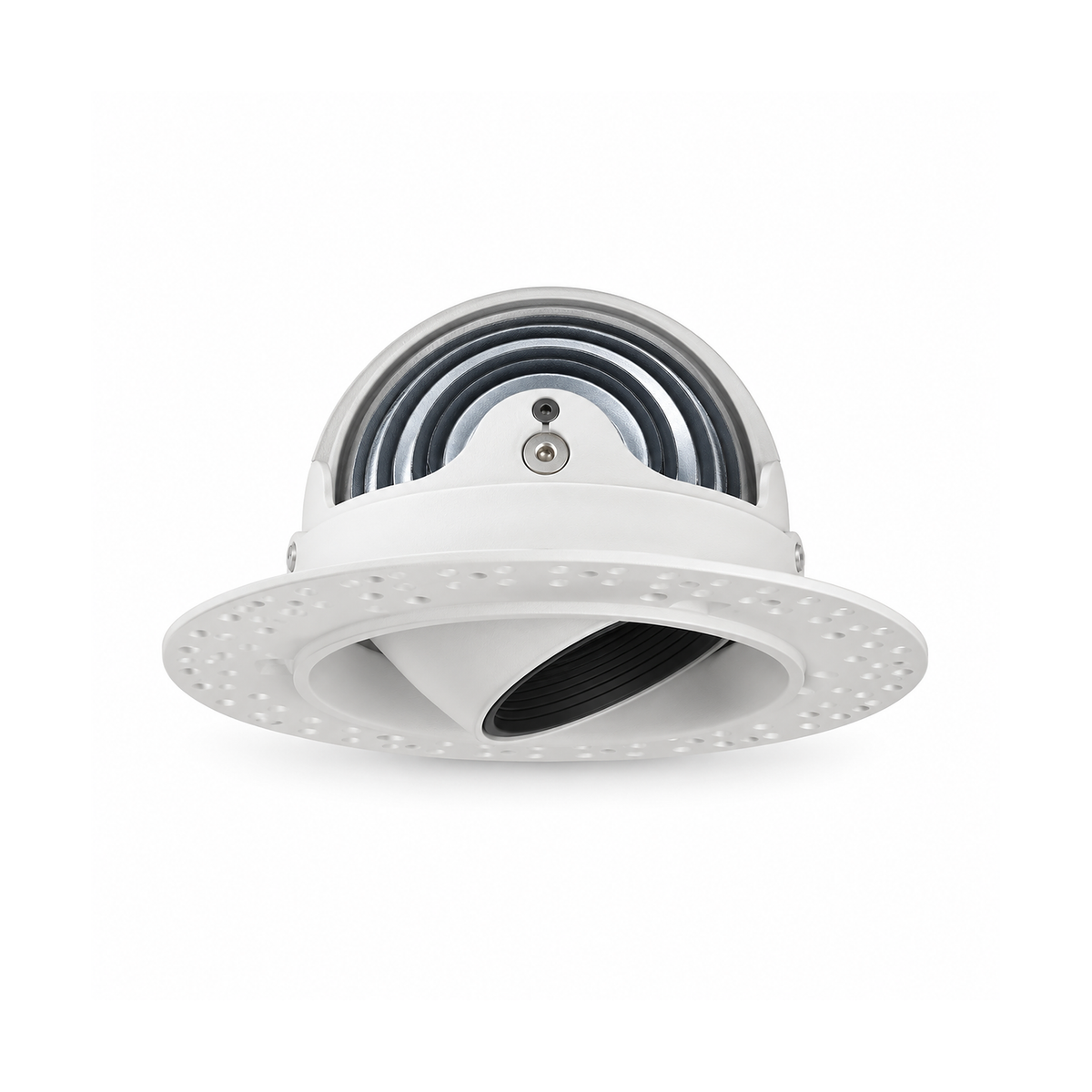

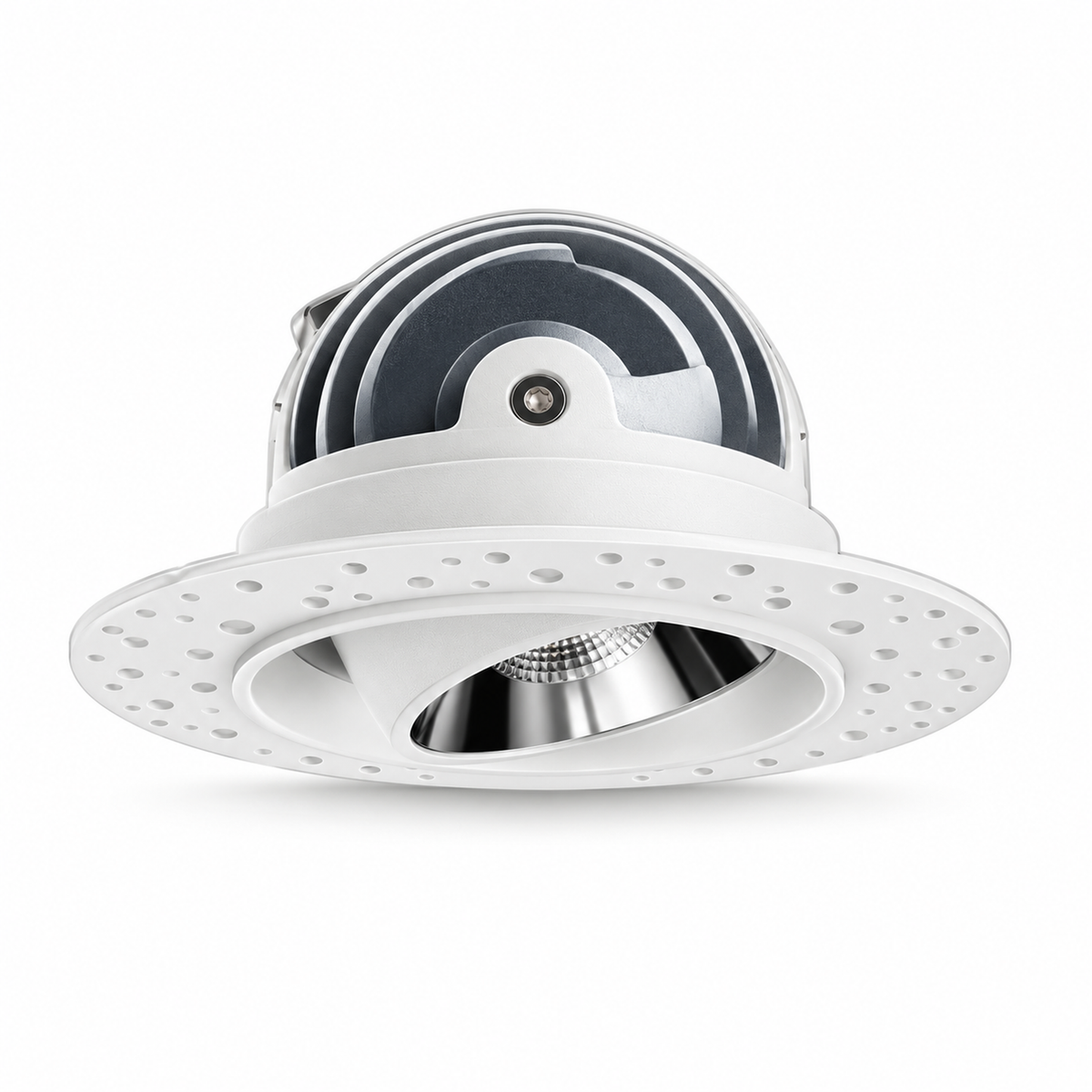

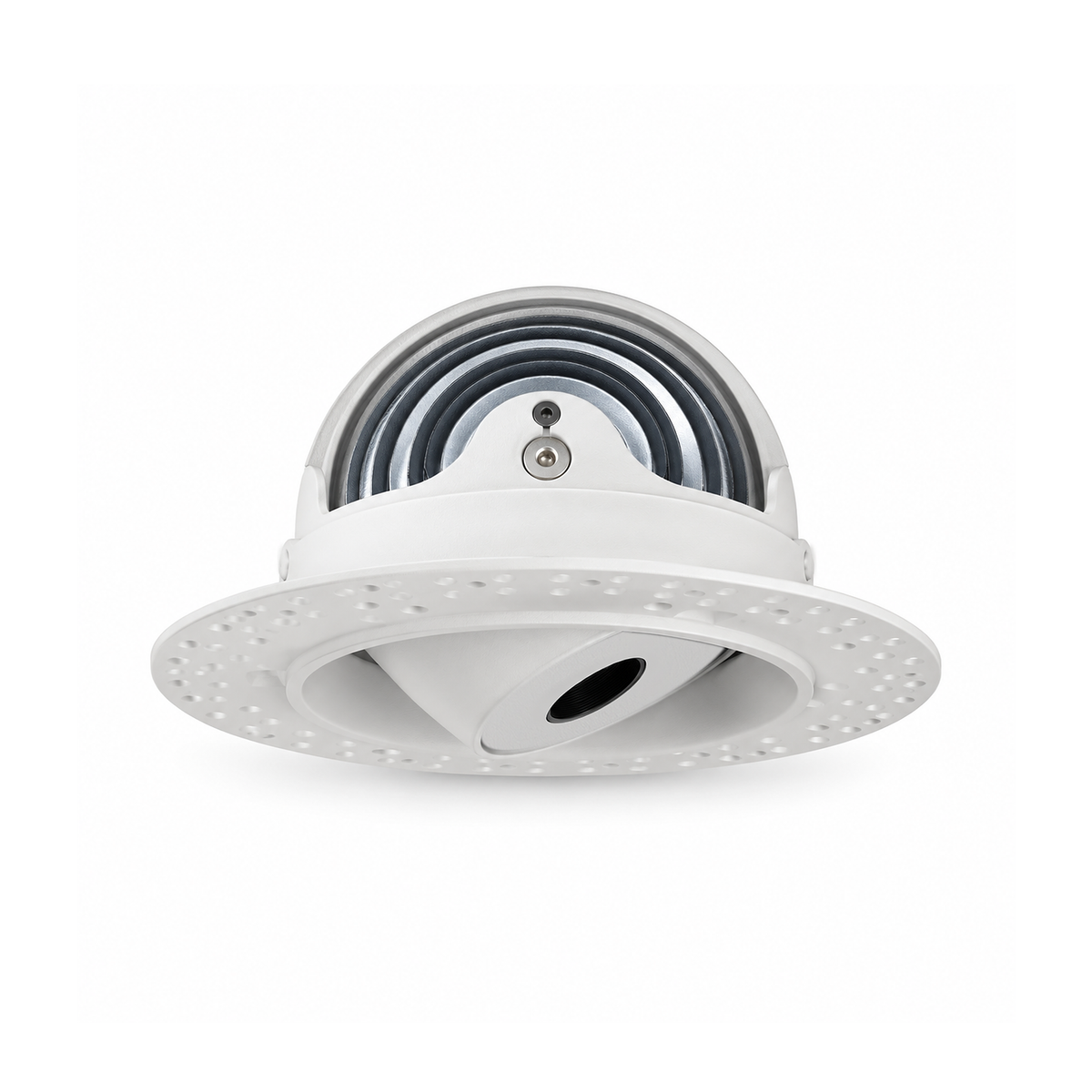

| Trimless, plaster-in with no visible trim | 10W or 12W; flange Ø108 mm; height 57–73 mm; white body | Ø75 mm |

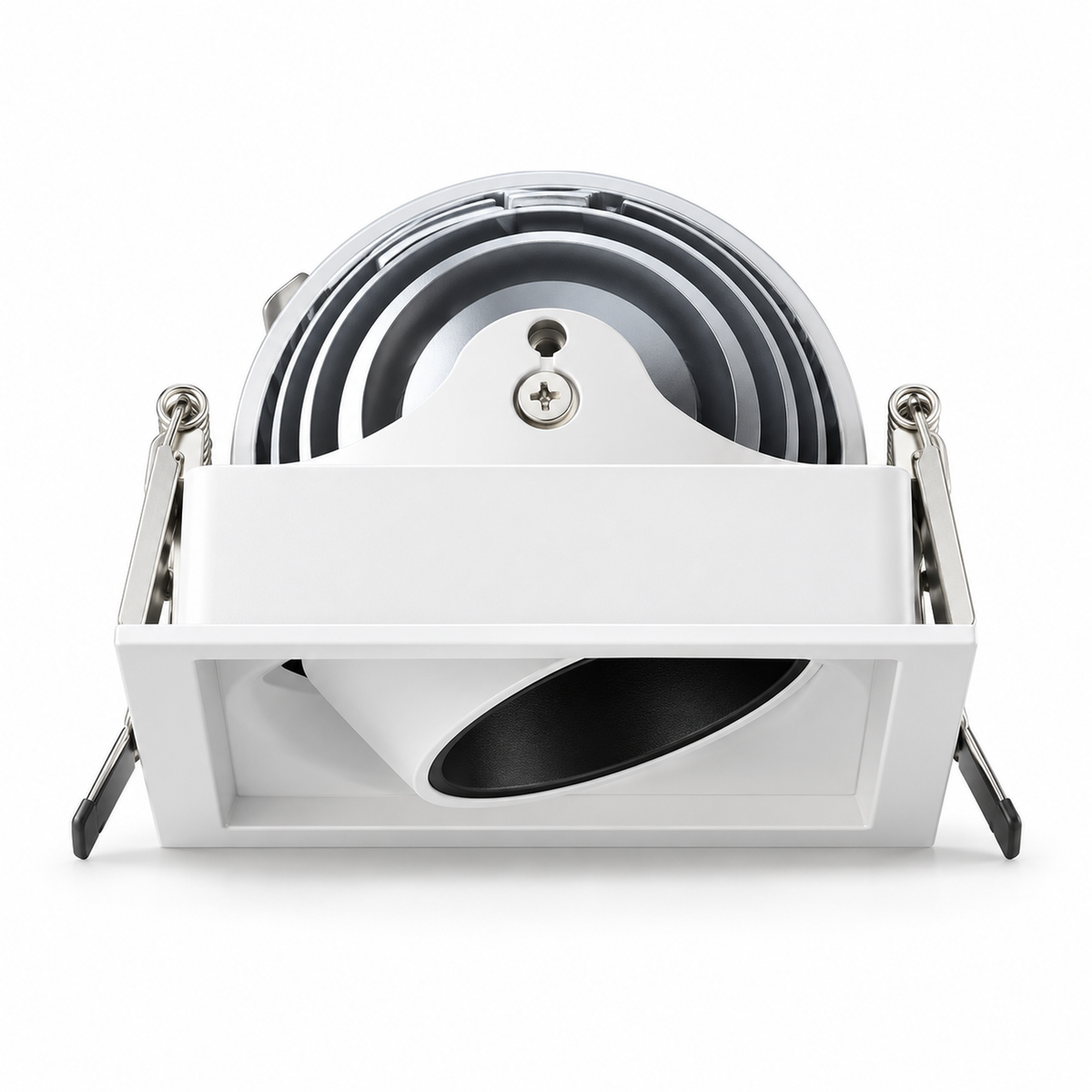

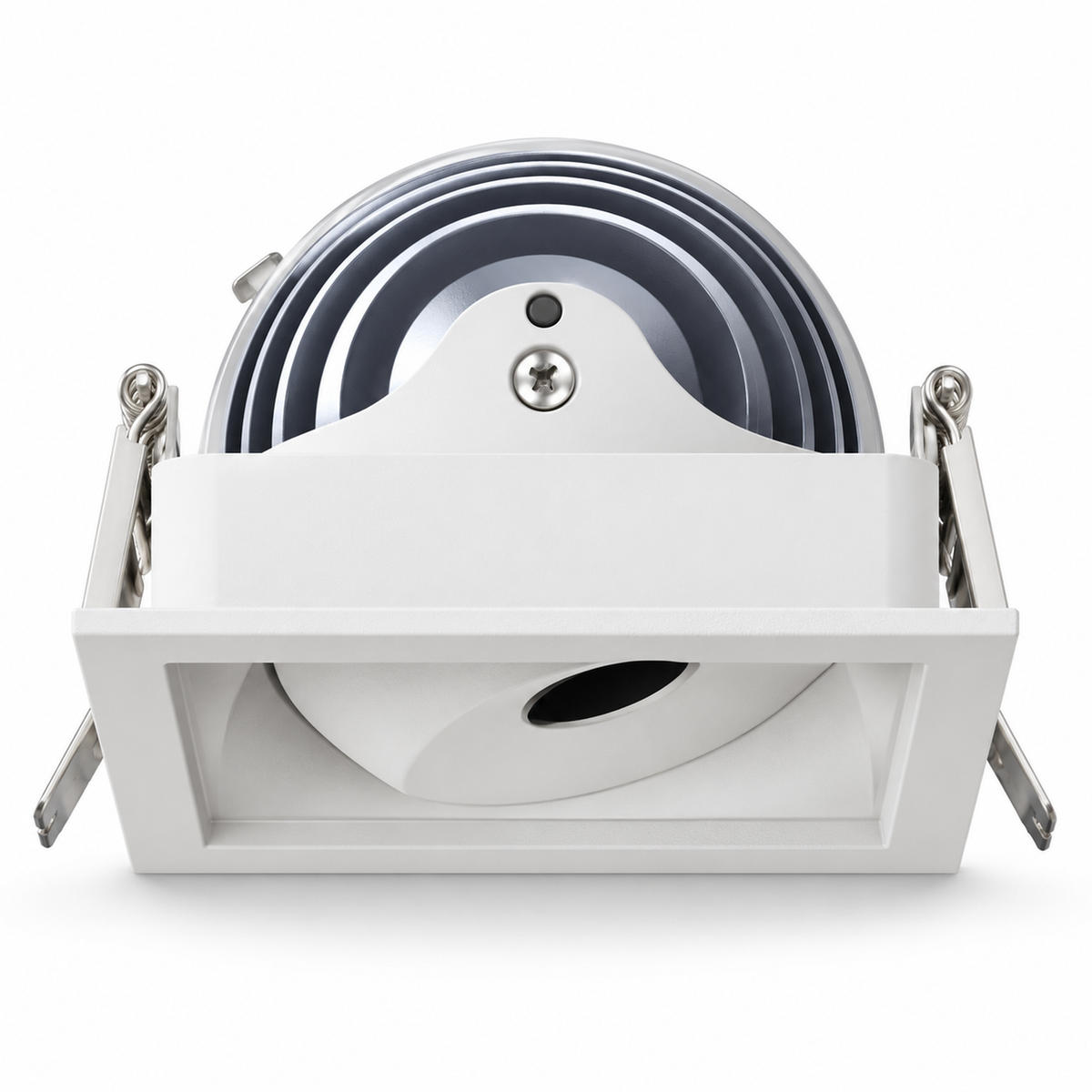

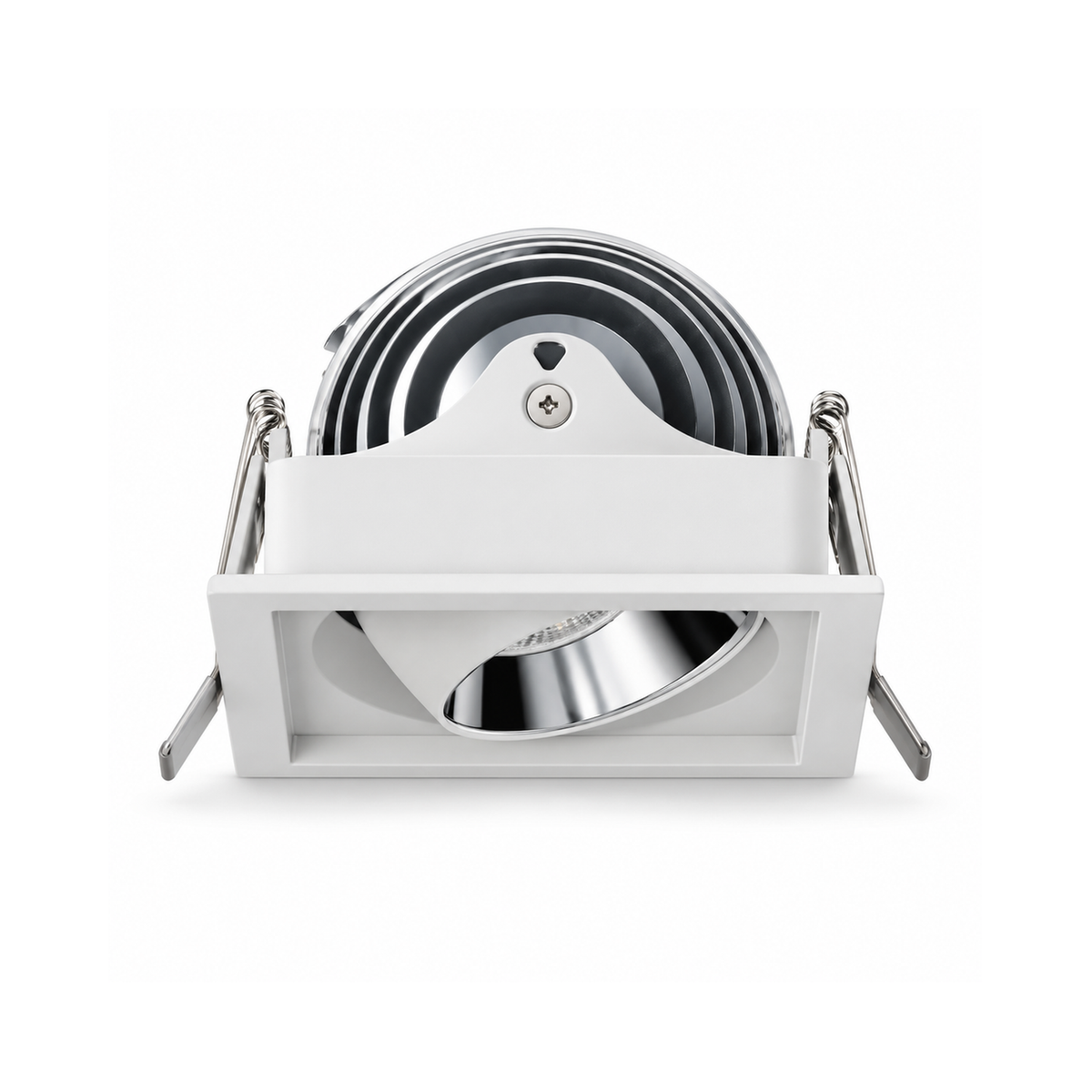

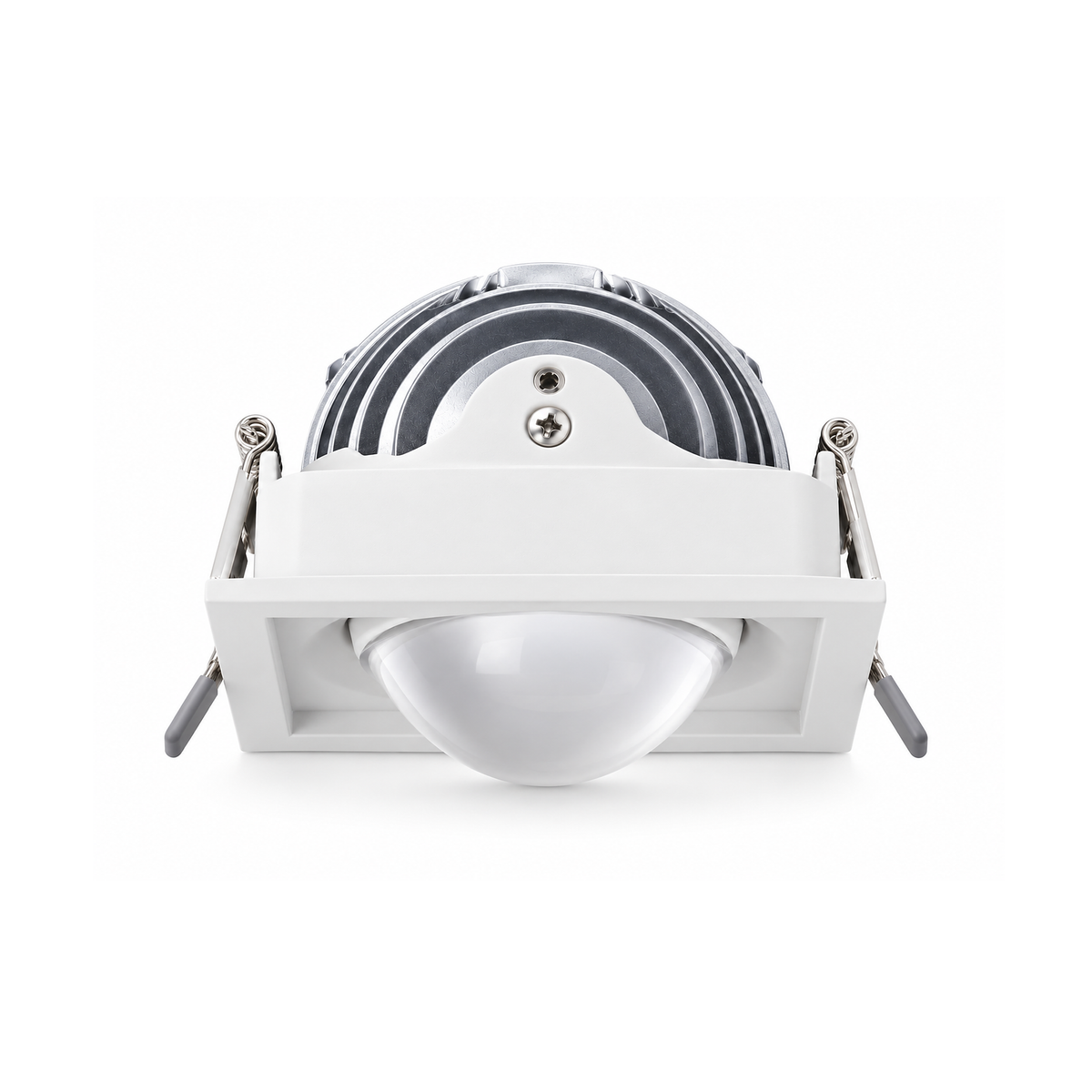

| Square recessed | 10W or 12W; 85 × 85 mm; height 61–77 mm | 75 × 75 mm |

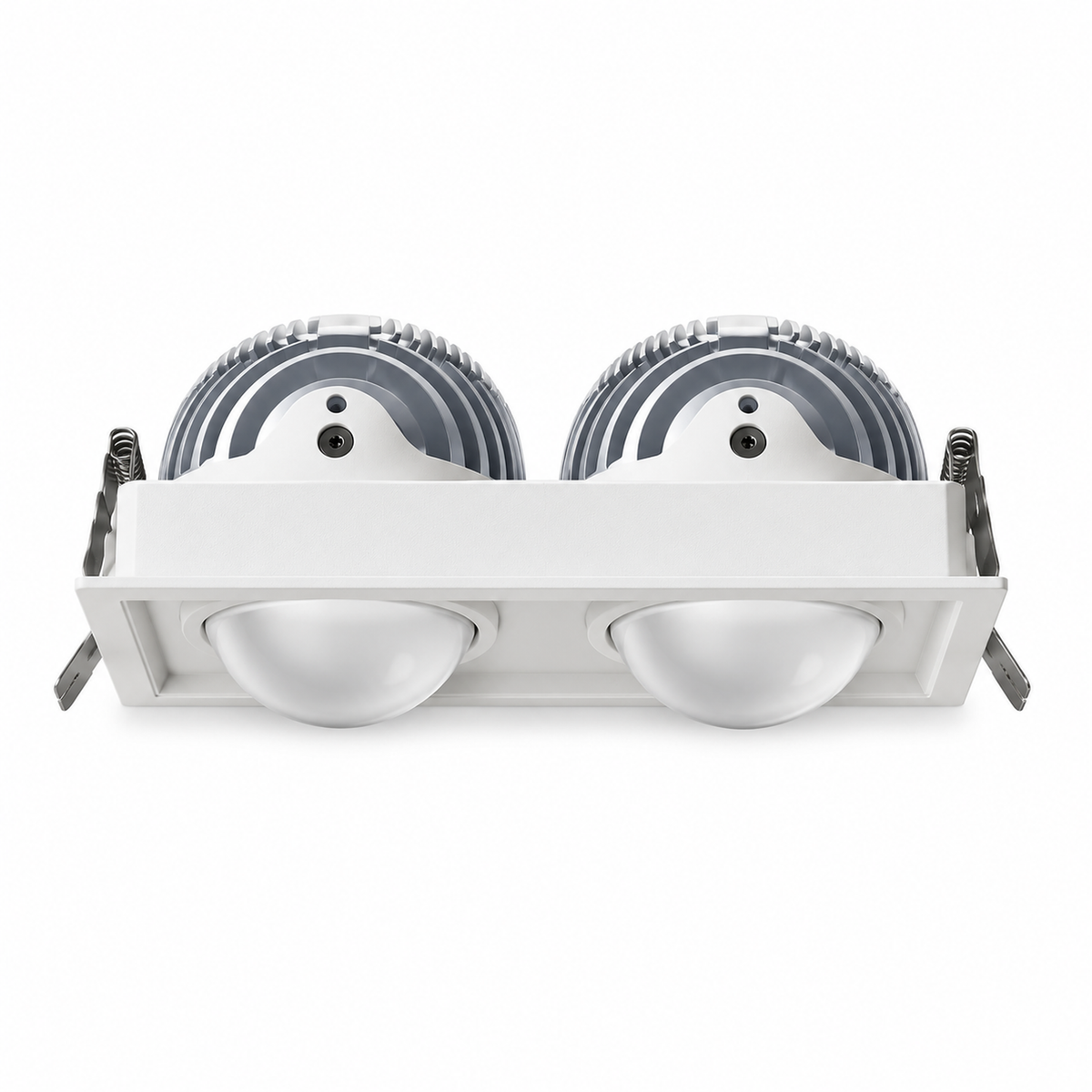

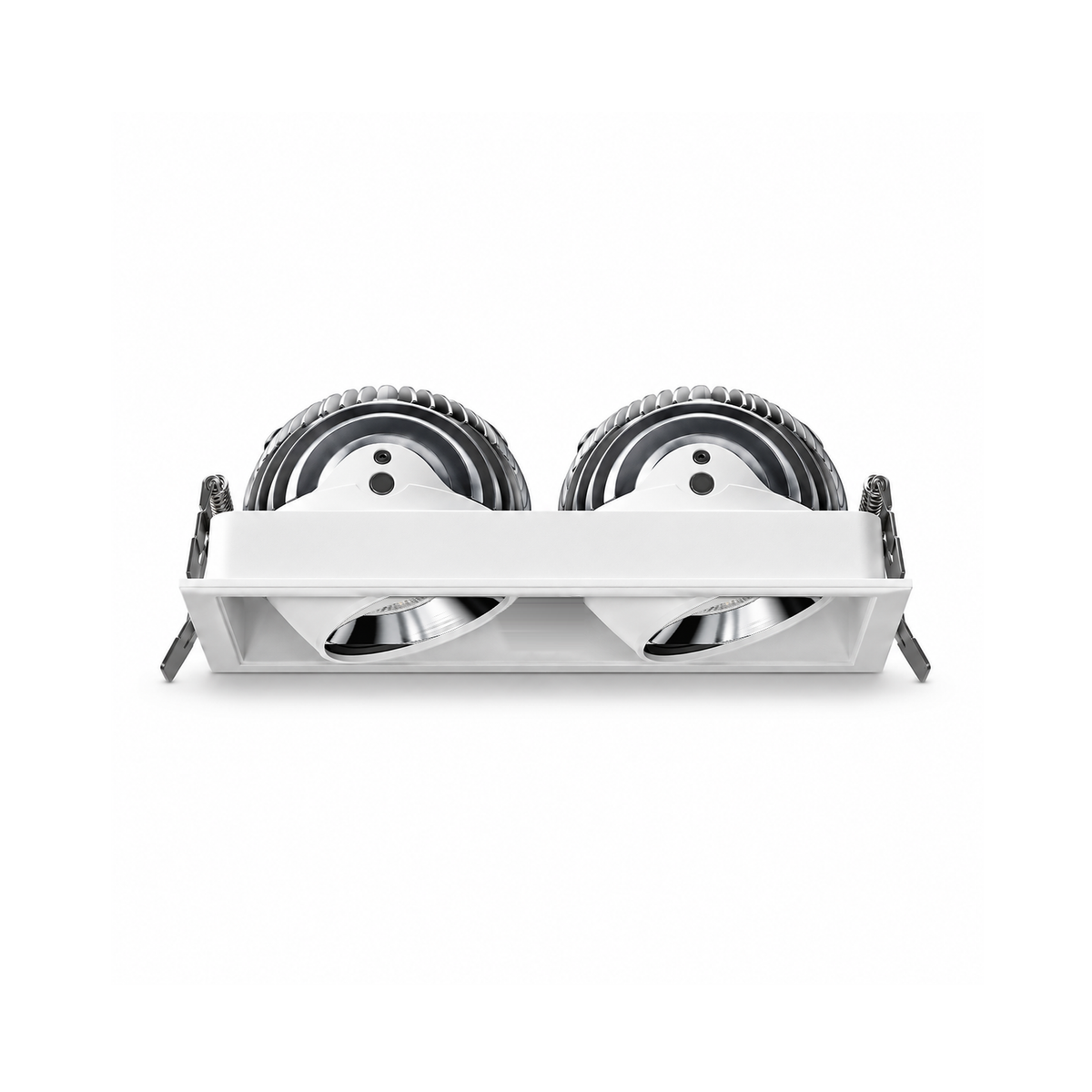

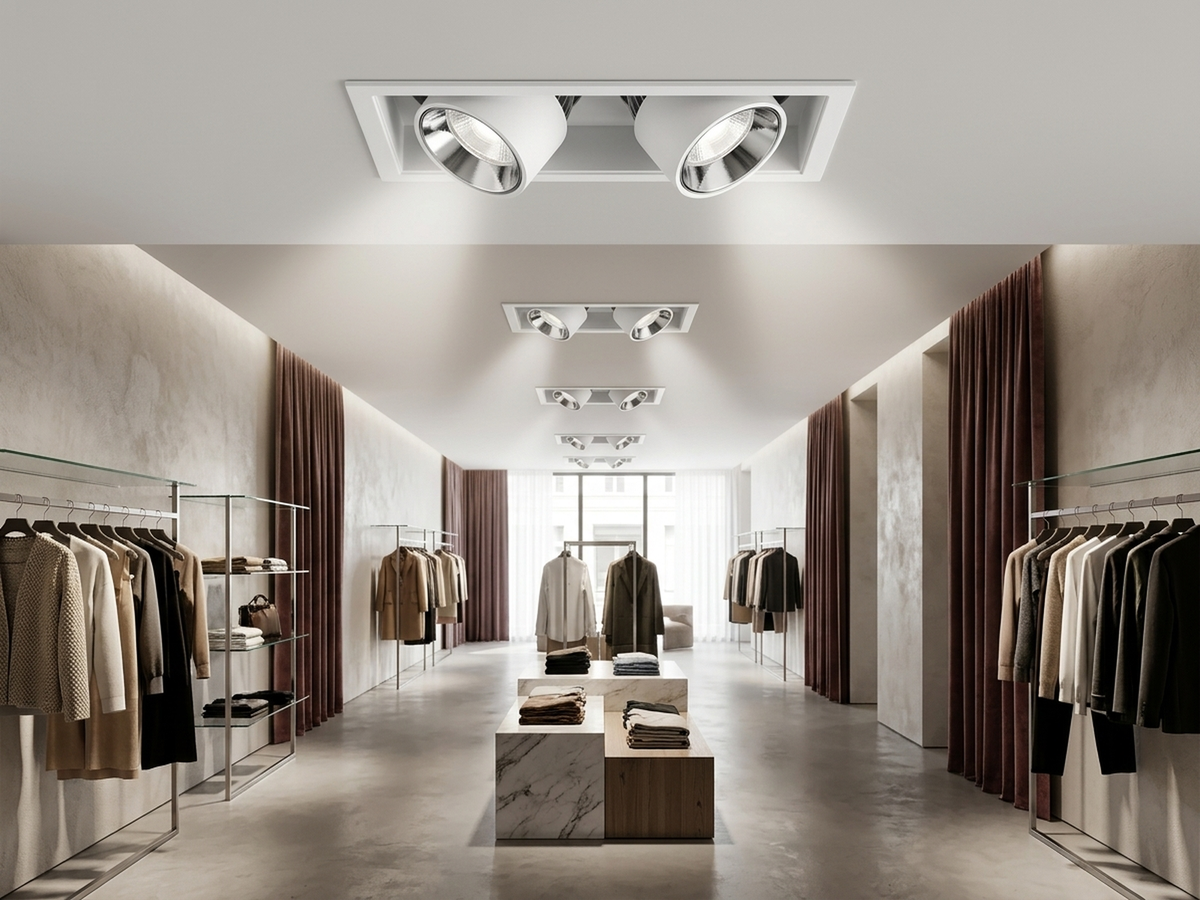

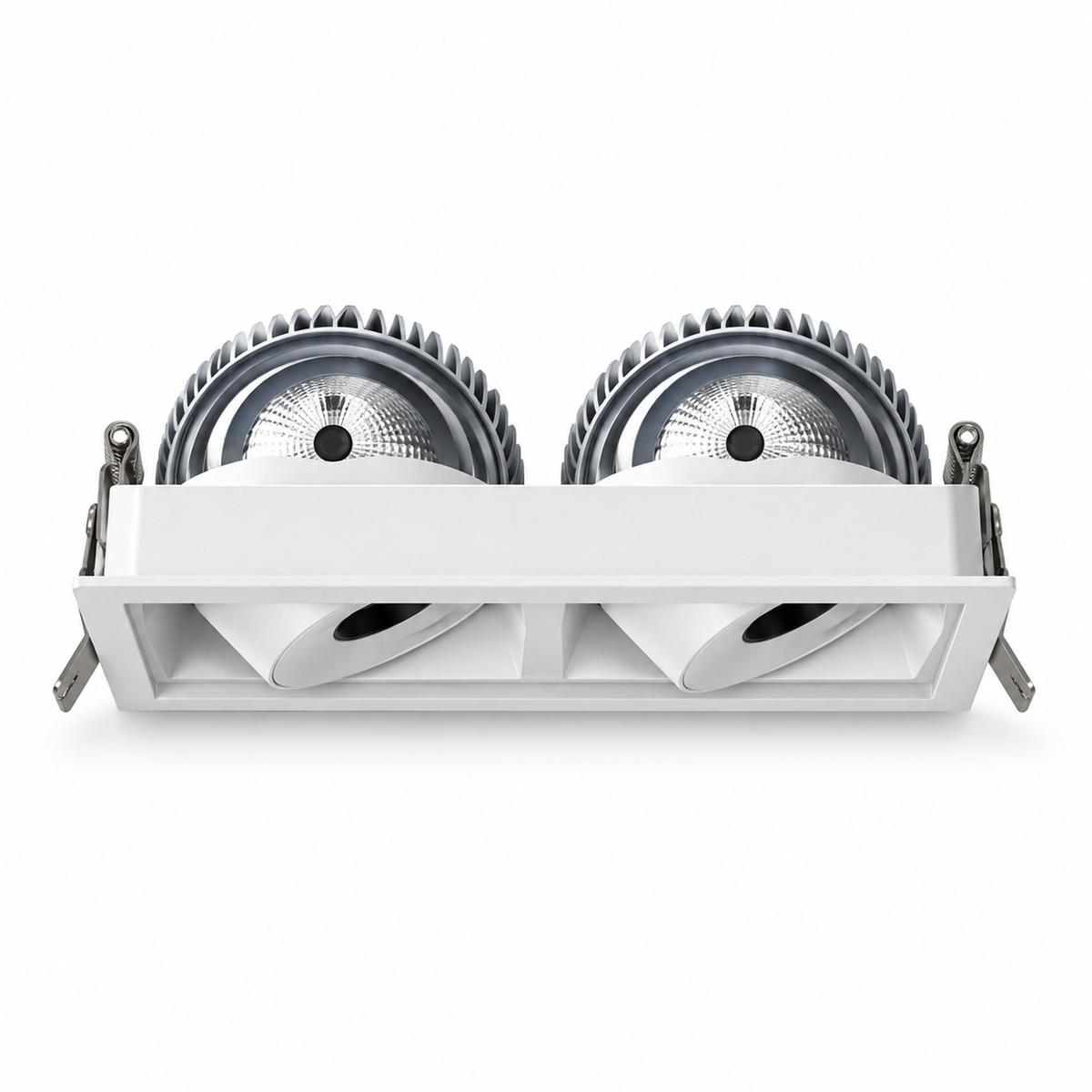

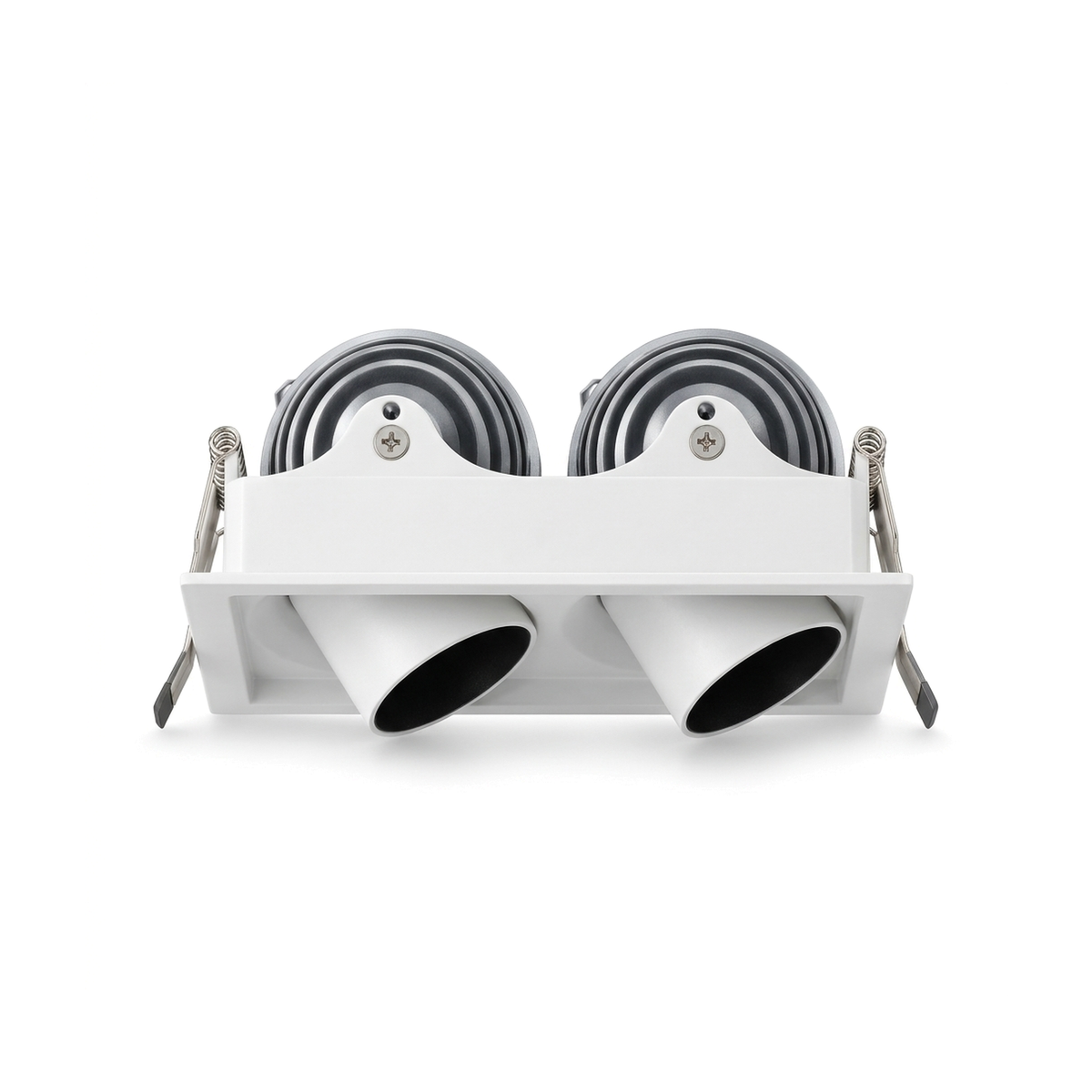

| Double Square, two heads in one frame | 2 × 10W or 2 × 12W; 160 × 85 mm; height 61–77 mm | 150 × 75 mm |

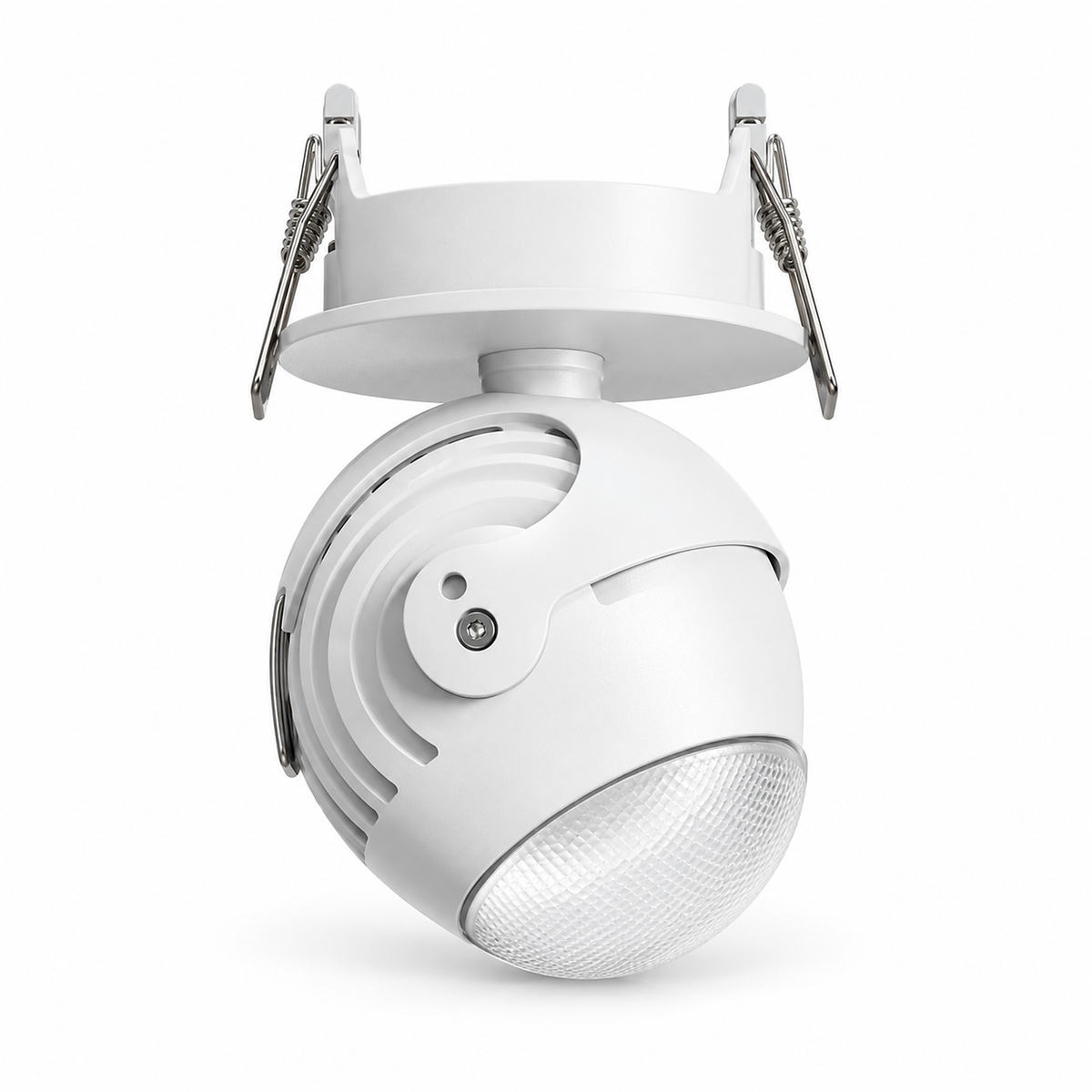

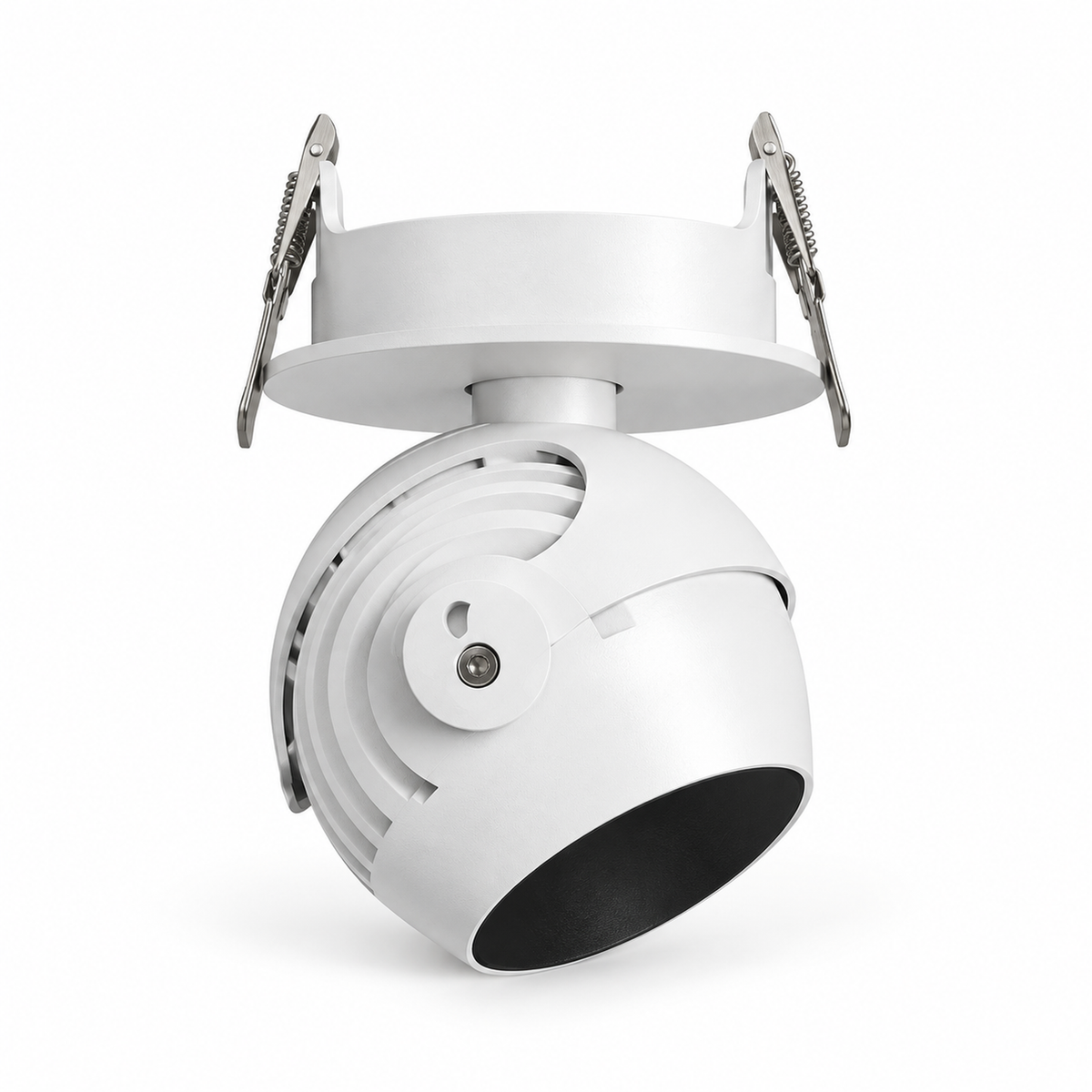

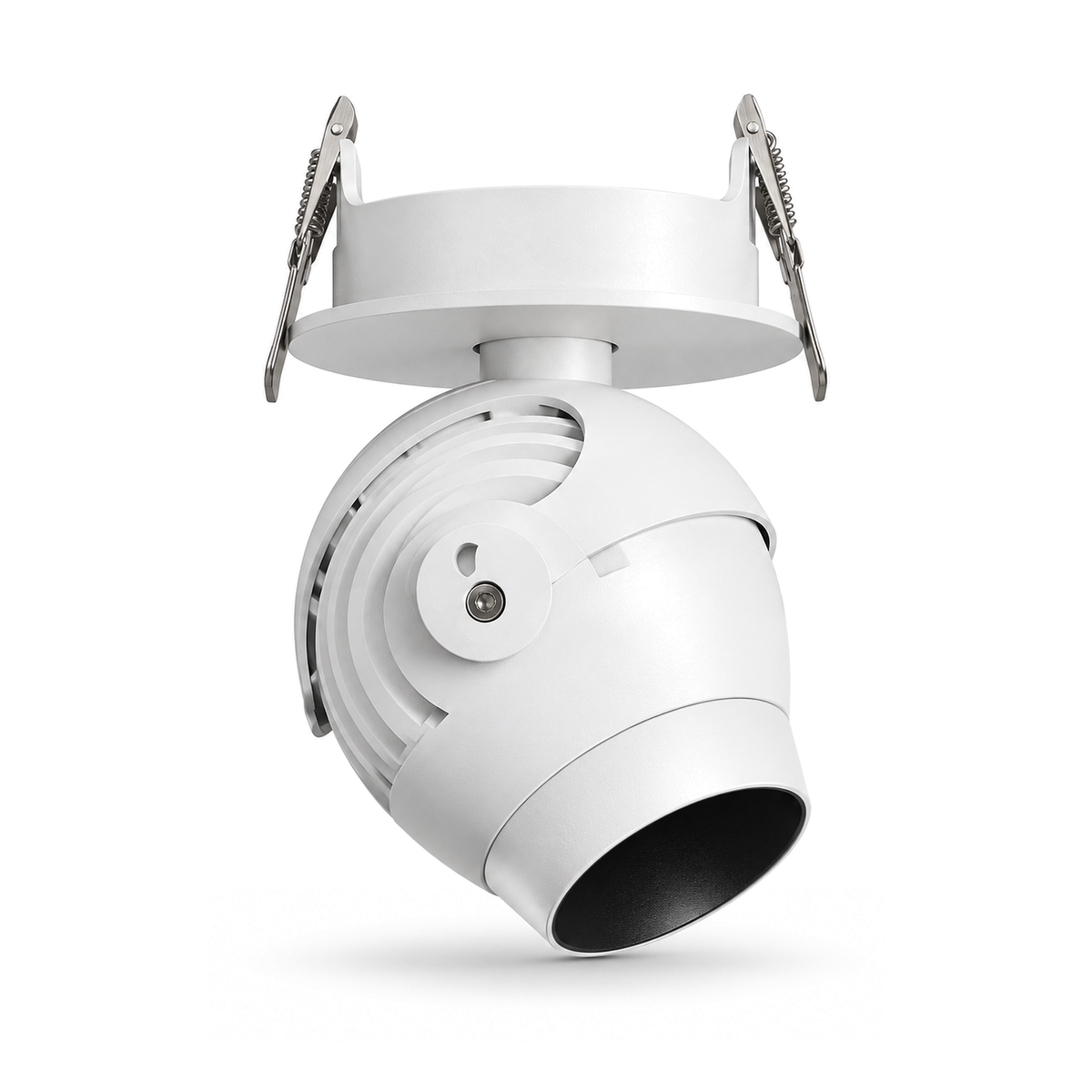

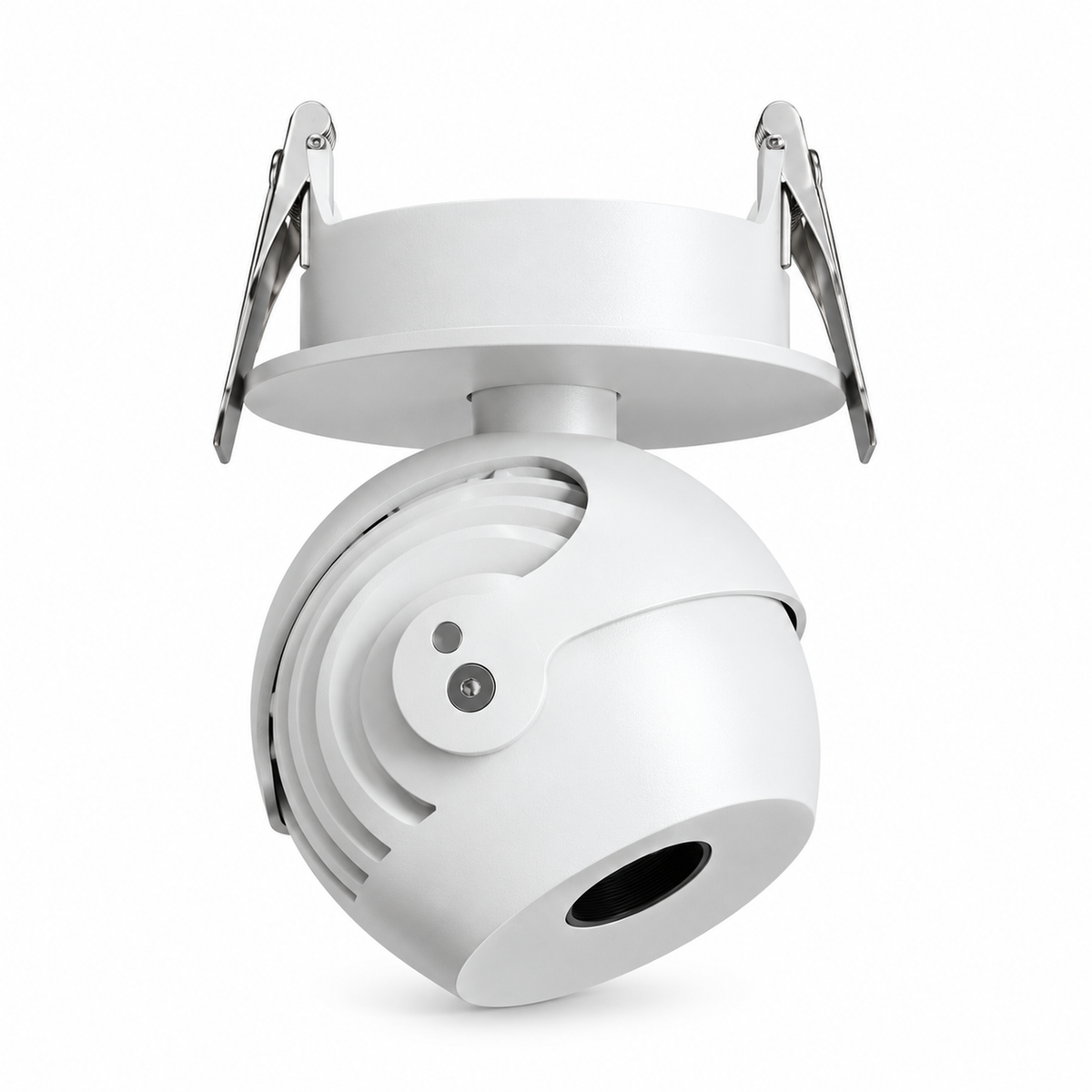

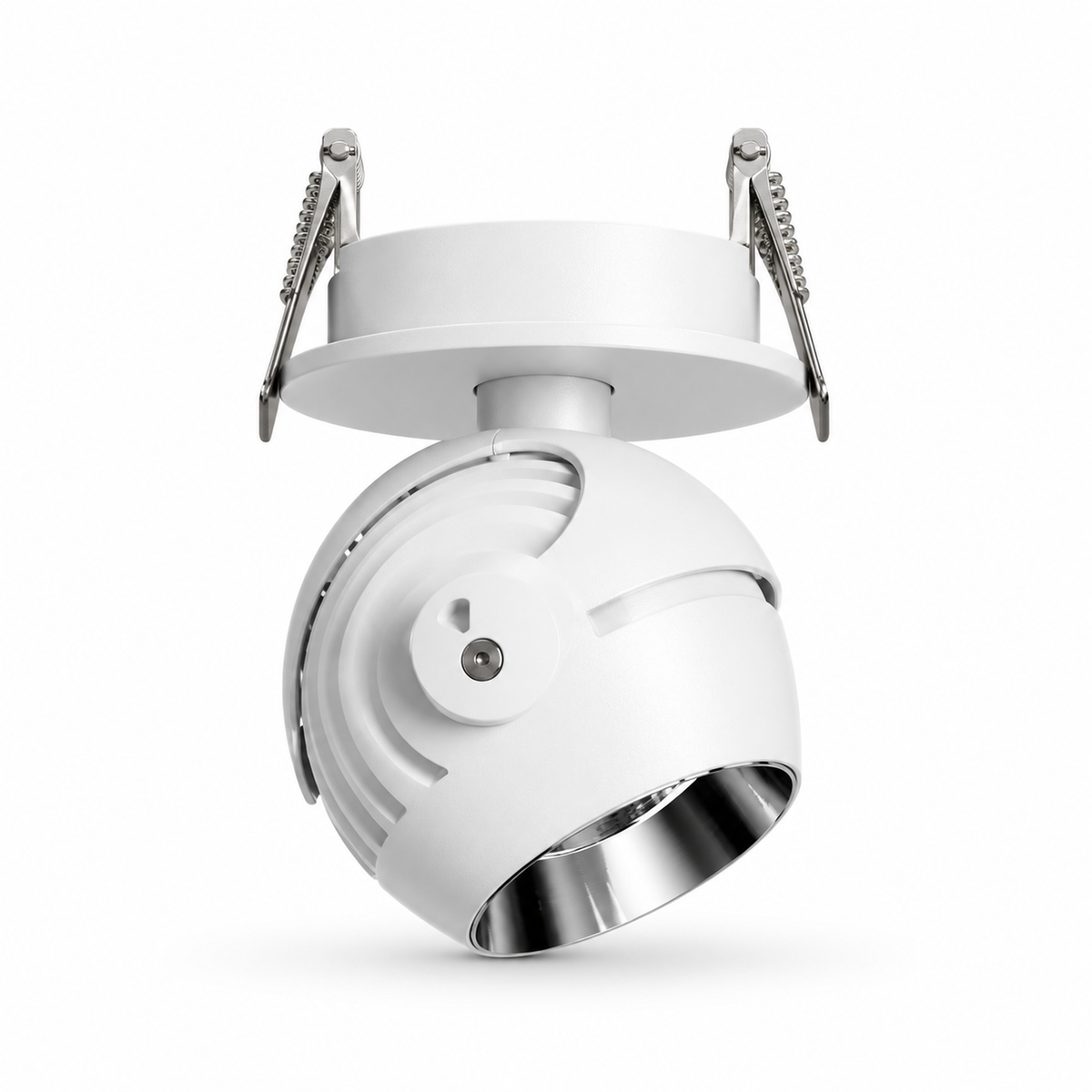

| Small Cut-out (concealed), pull-down ball head below a recessed collar | 10W or 12W; Ø65 × H104 mm | Ø55 mm |

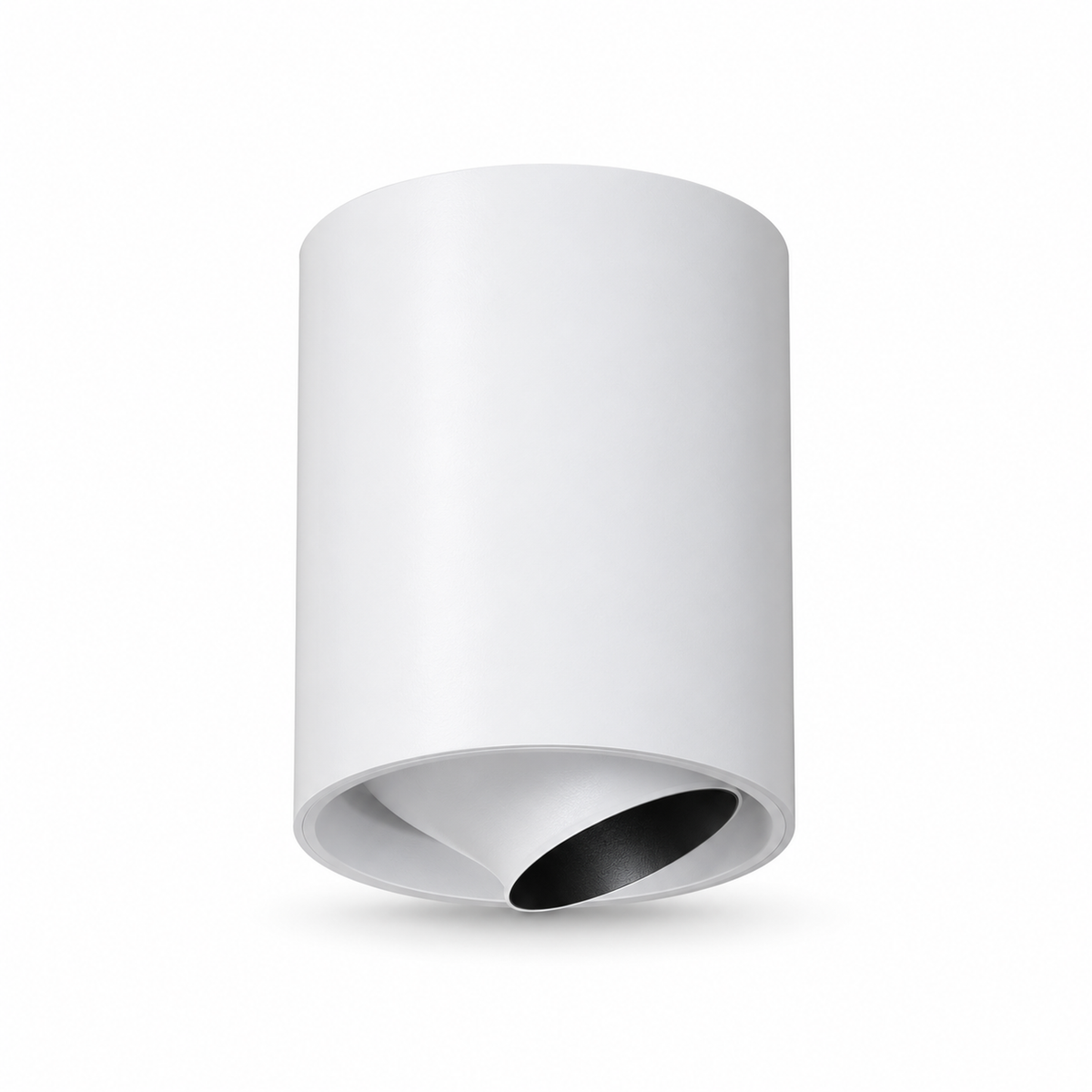

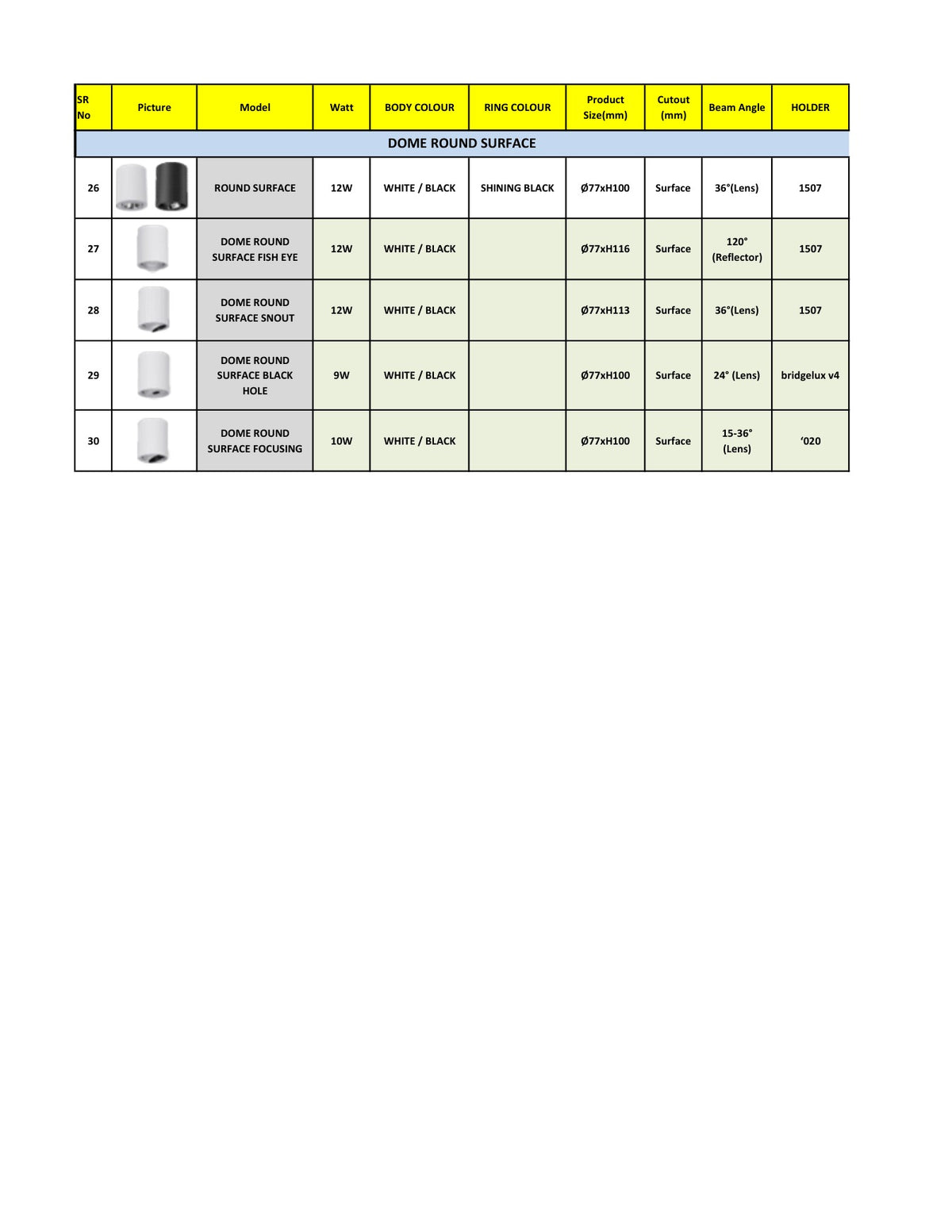

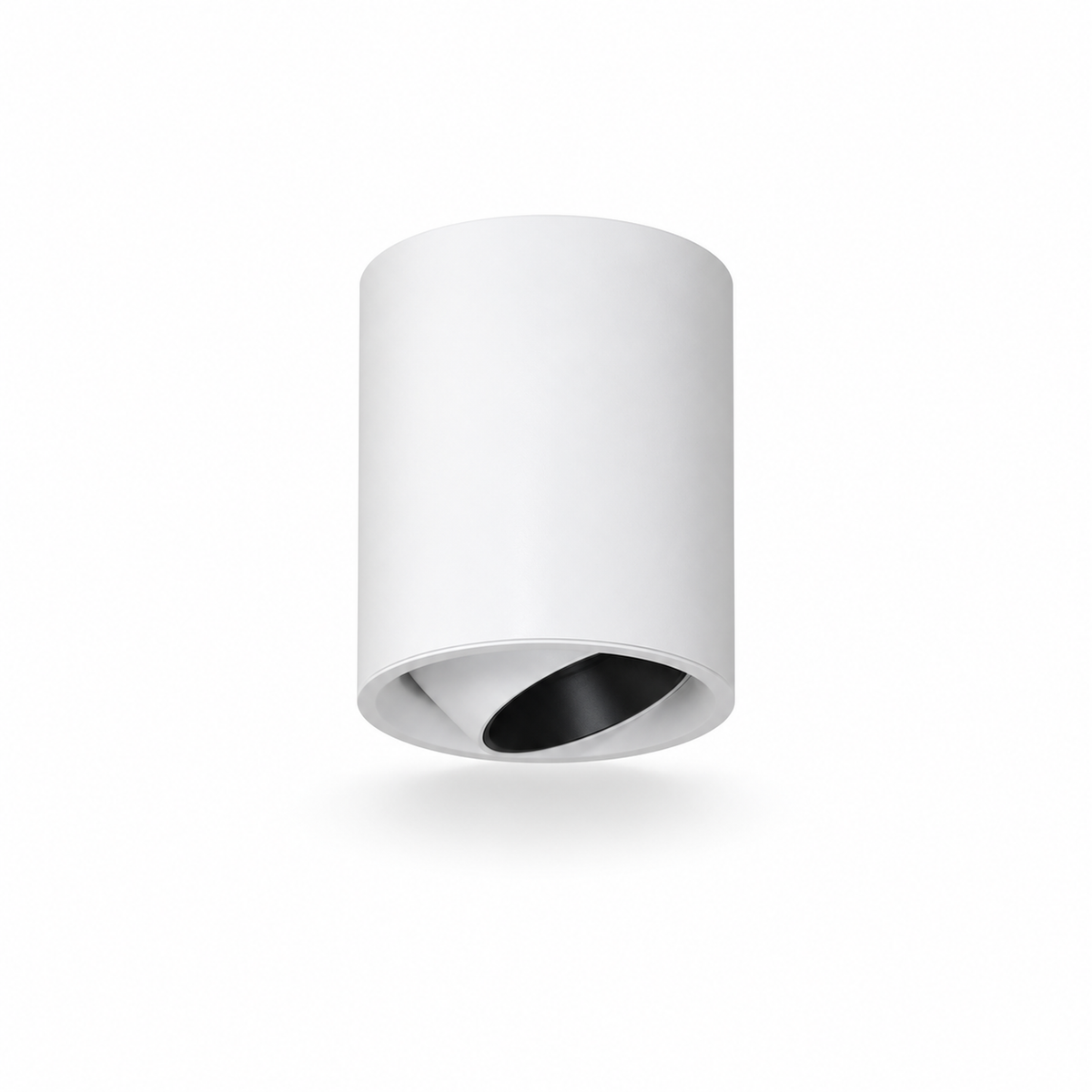

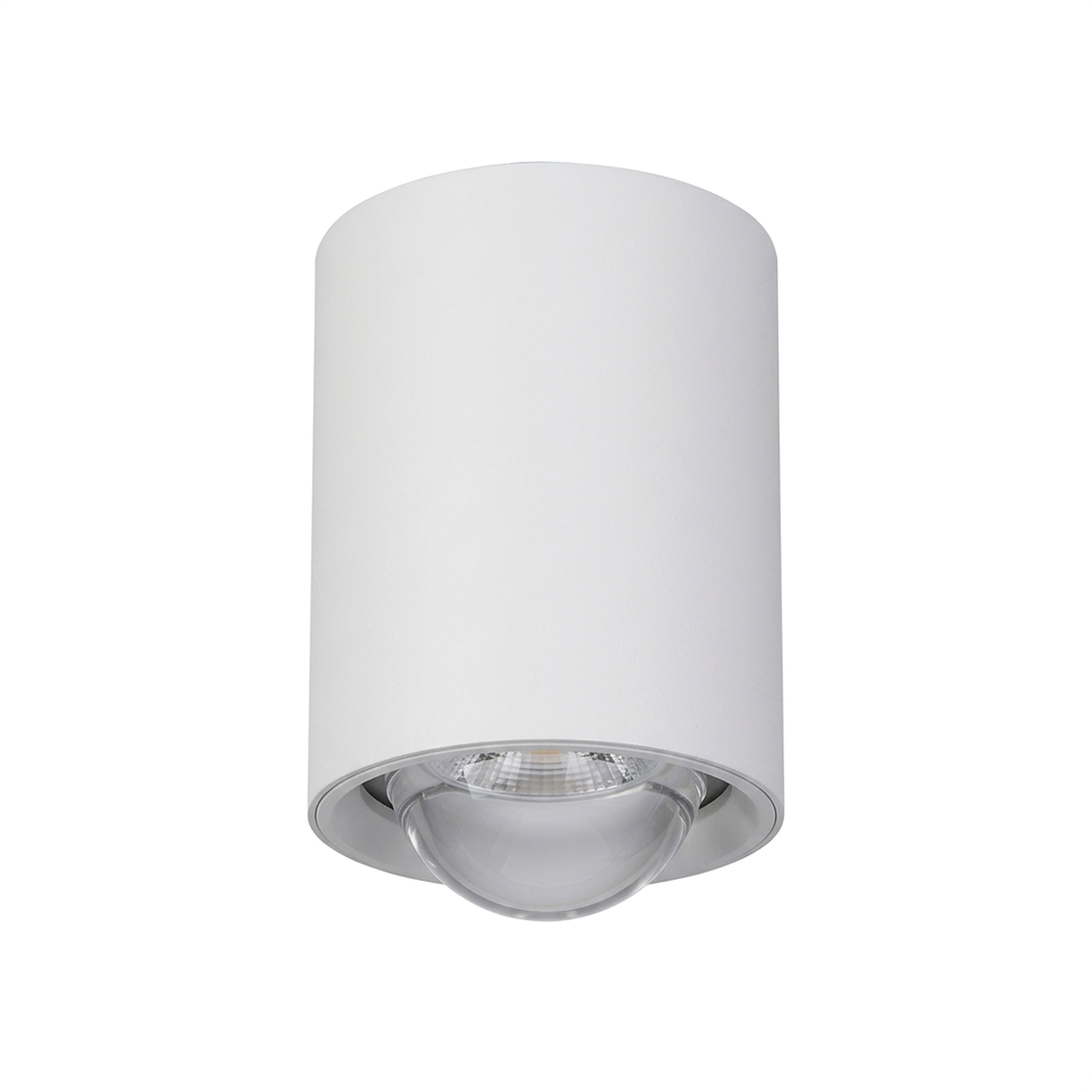

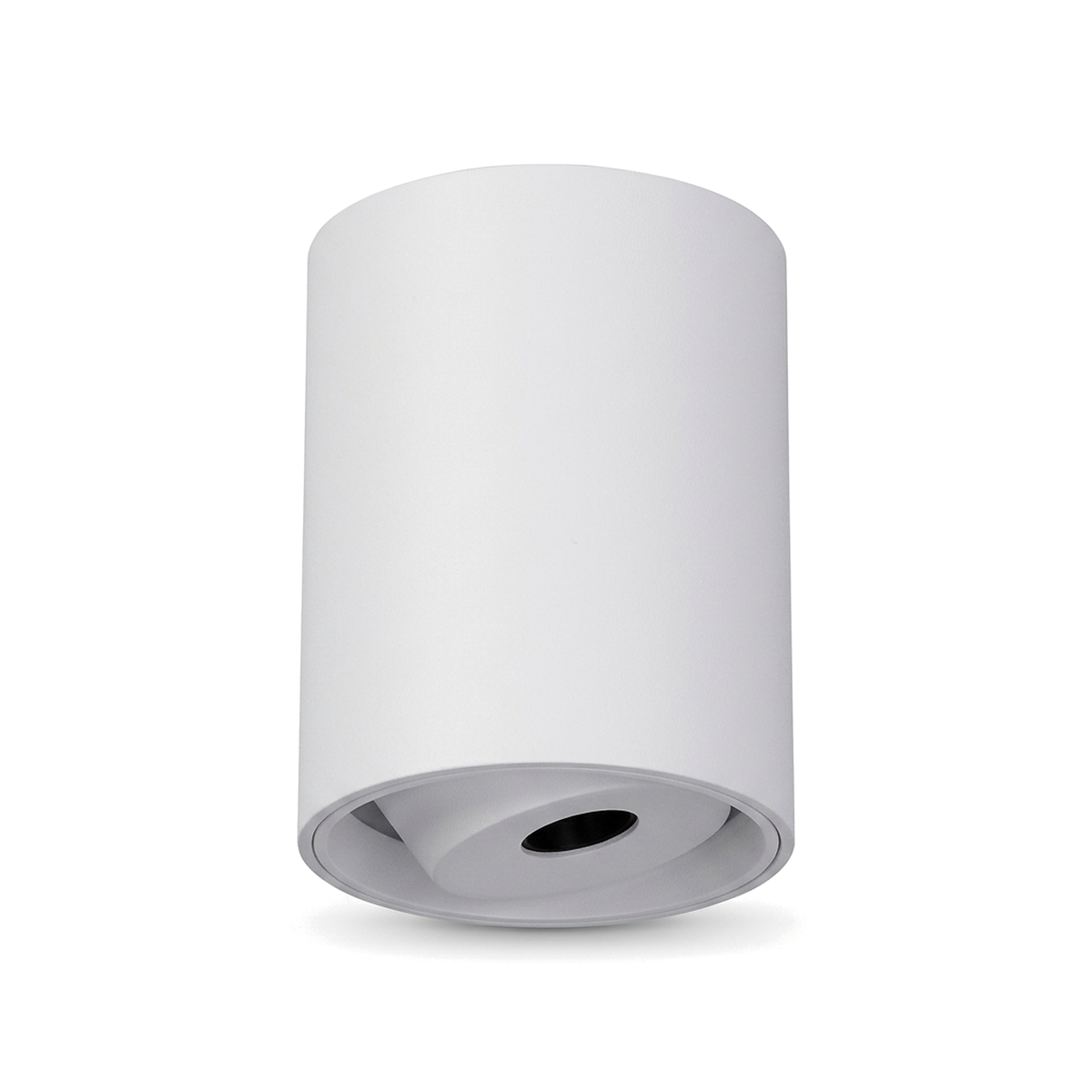

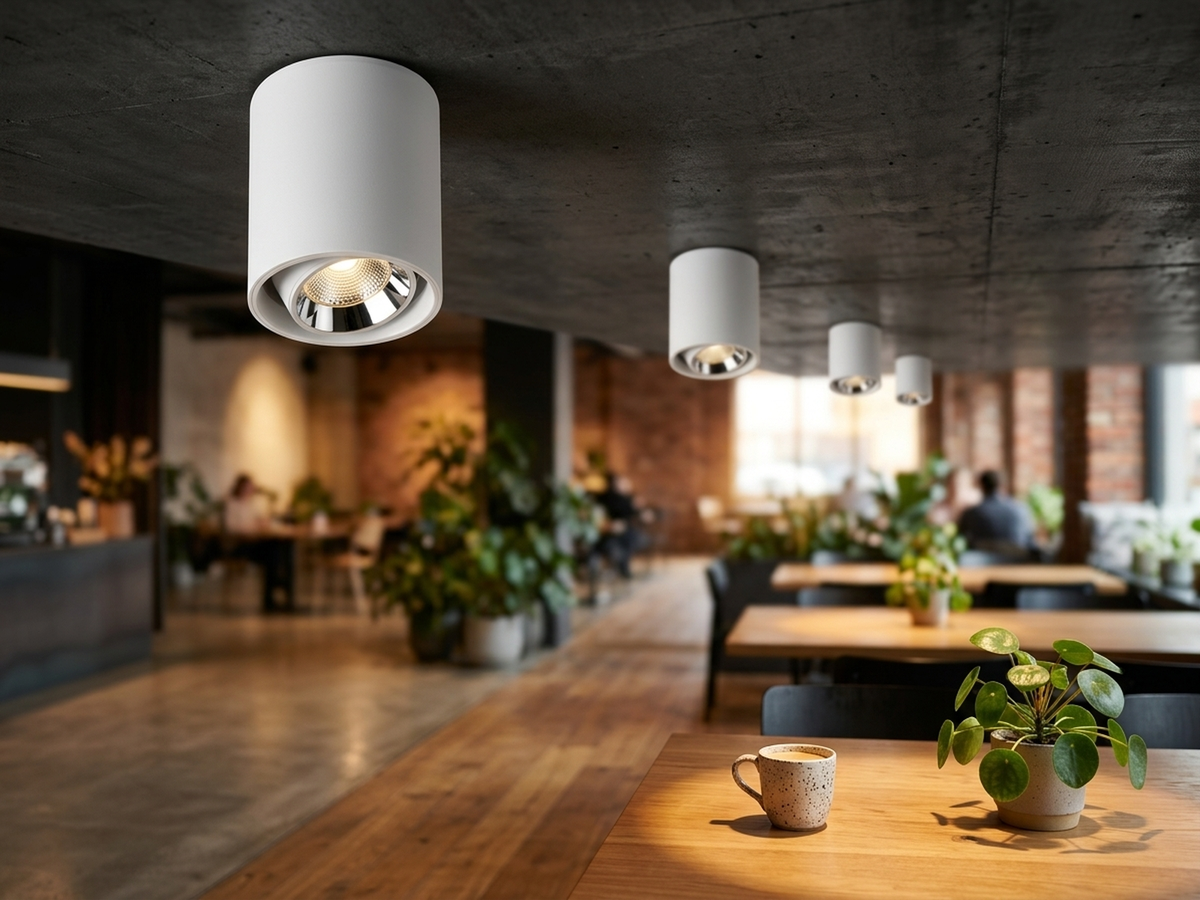

| Round Surface, ceiling-mounted cylinder | 10W or 12W; Ø77 × H100–118 mm | No cut-out needed |
| Square Surface, square ceiling-mounted body (all 5 lenses) | 12W; 77 × 77 mm; on request | No cut-out needed. Ask for the price on WhatsApp 98991 88821 |
Choose the lens

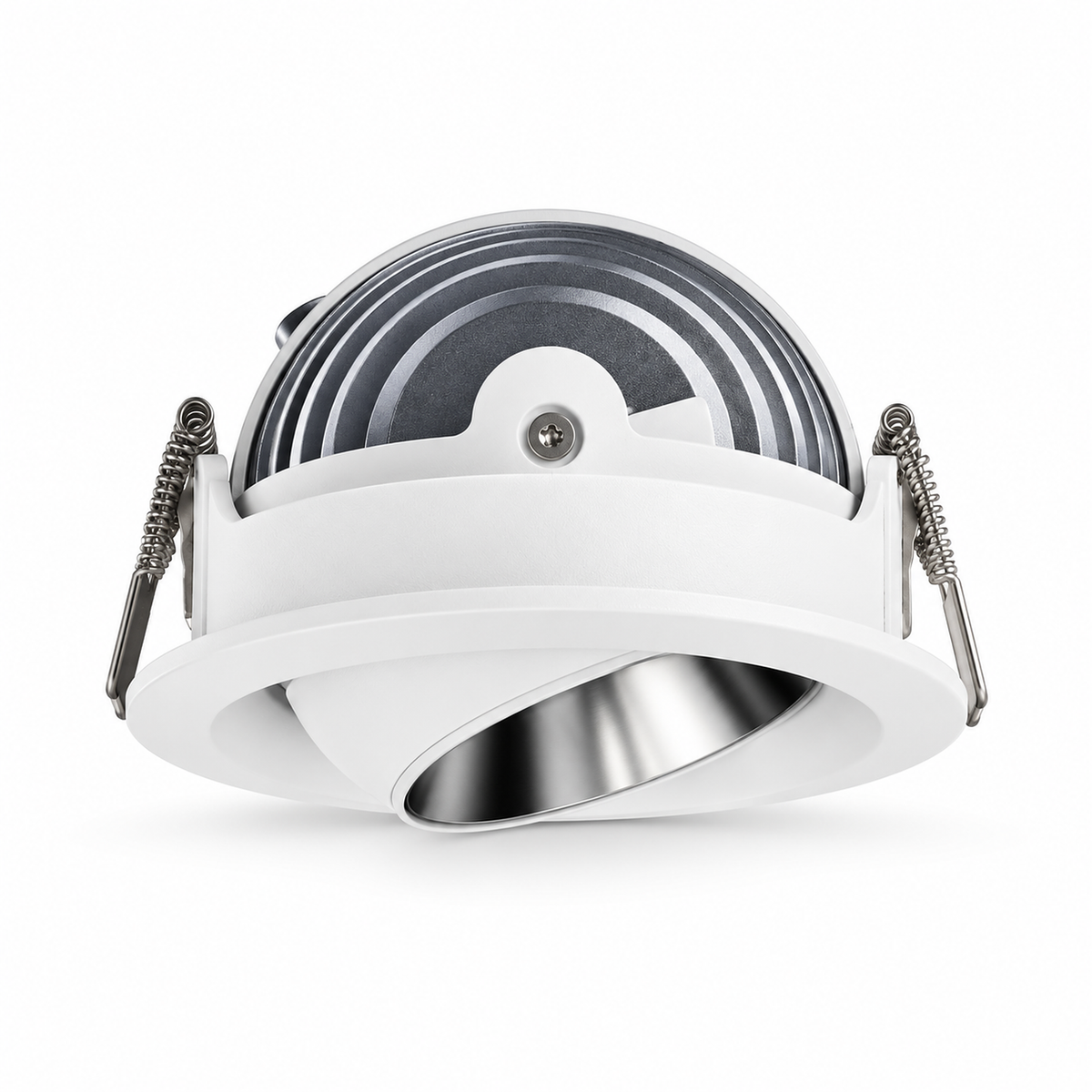

- Dome Lens: 36° lens for a clean general spot.

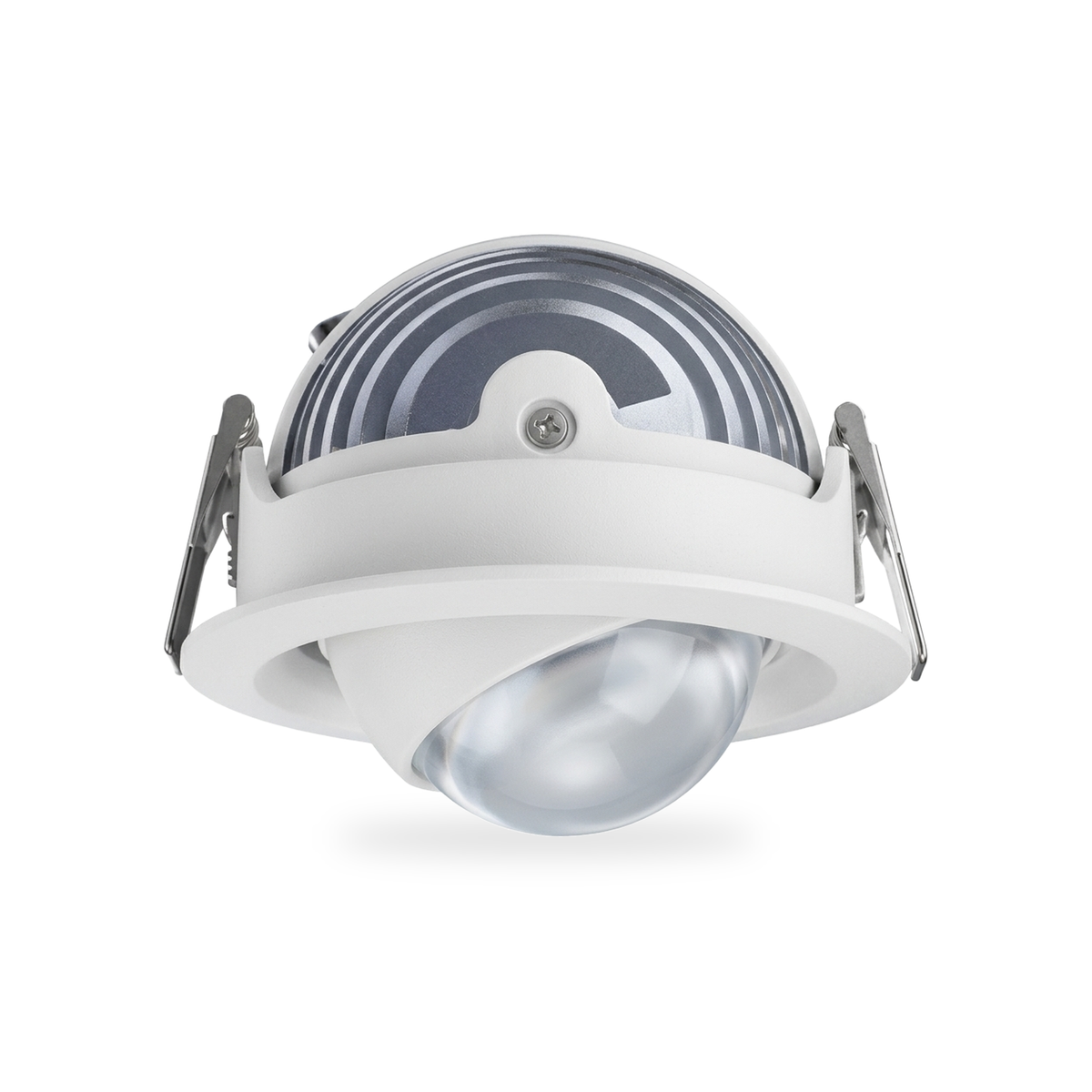

- Fish Eye 120°: wide, soft spread.

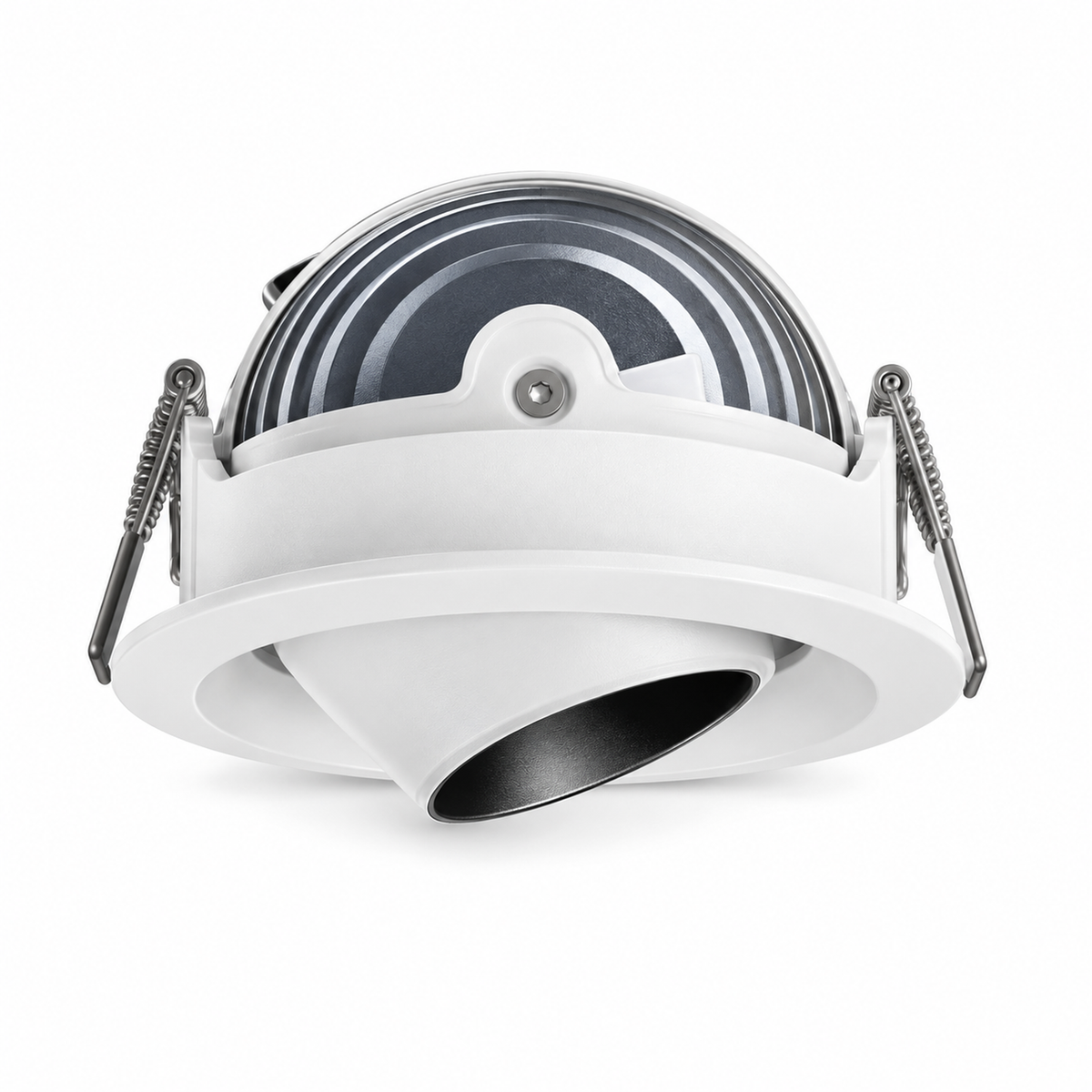

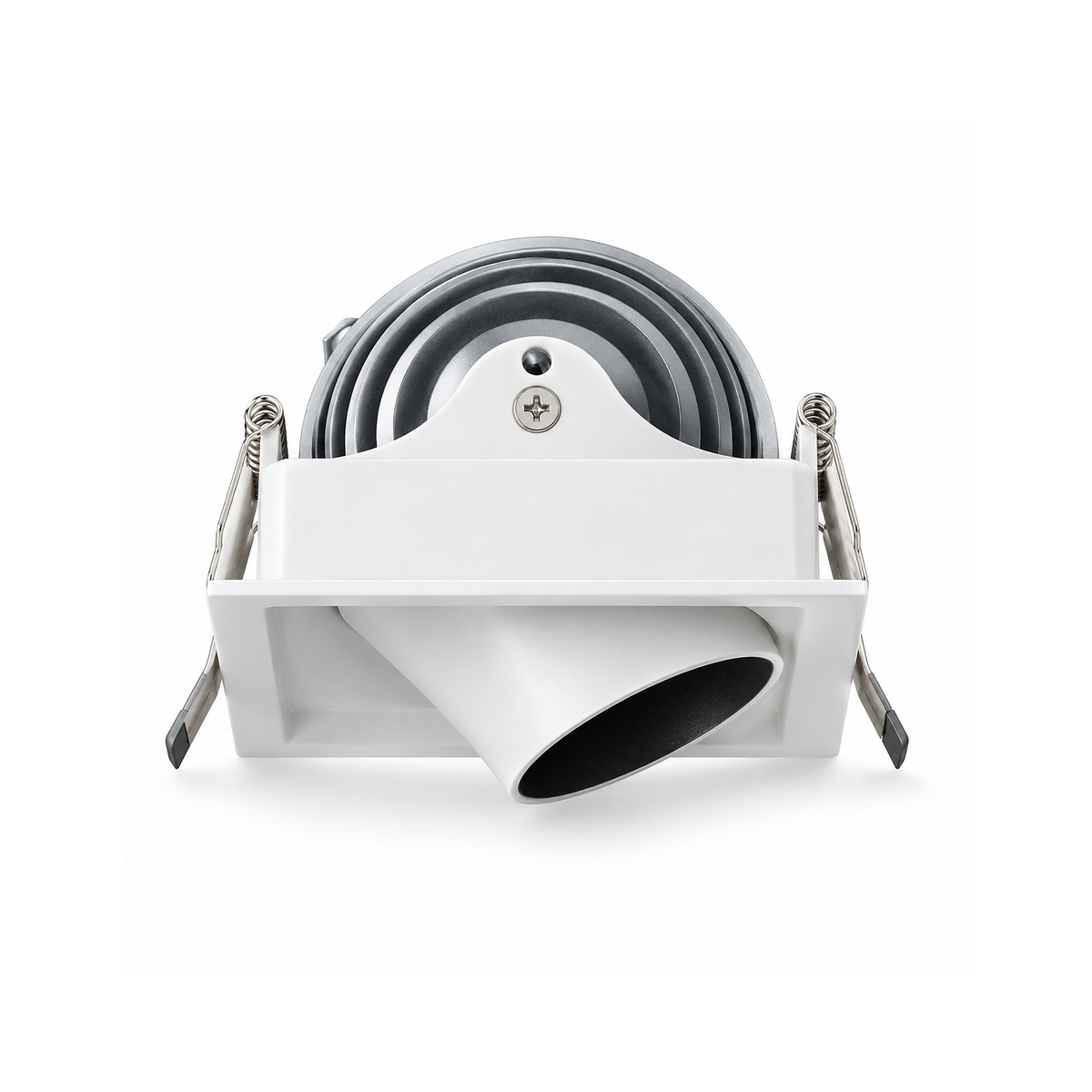

- Snoot: 36° lens with a projecting anti-glare snoot.

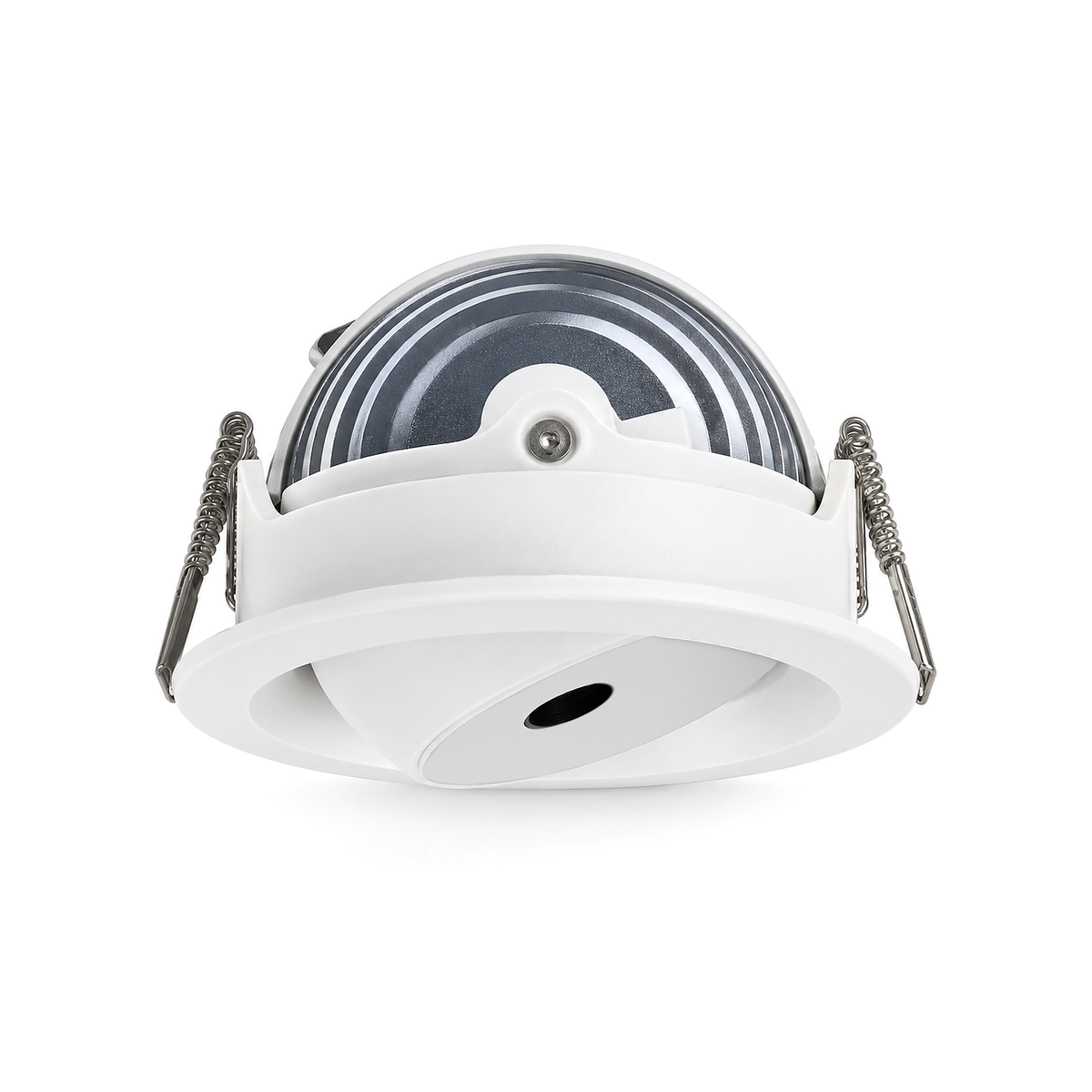

- Black Hole Anti-Glare: 24° narrow beam from a small dark aperture, with very low glare. Available in 10W, or 2 × 10W on Double Square.

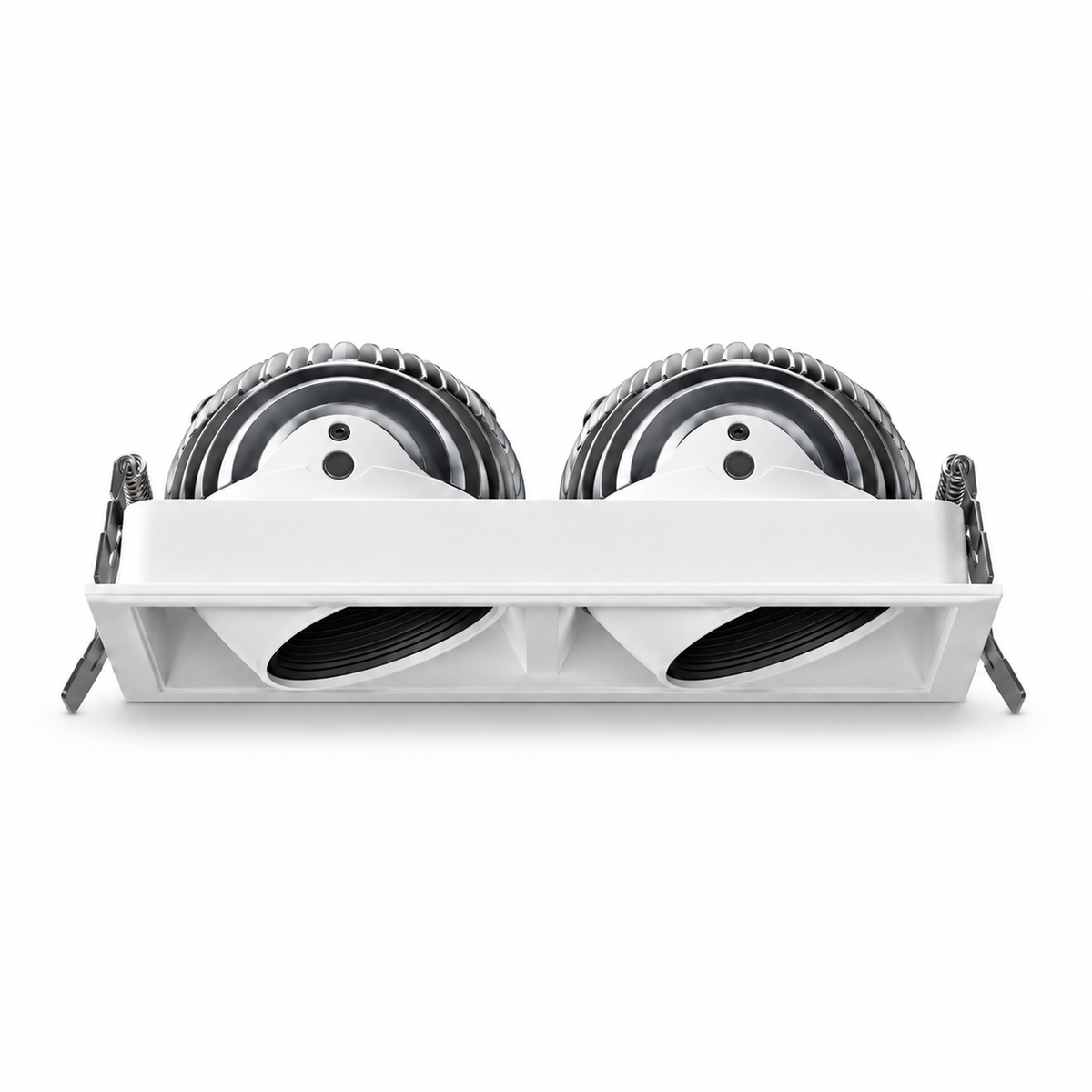

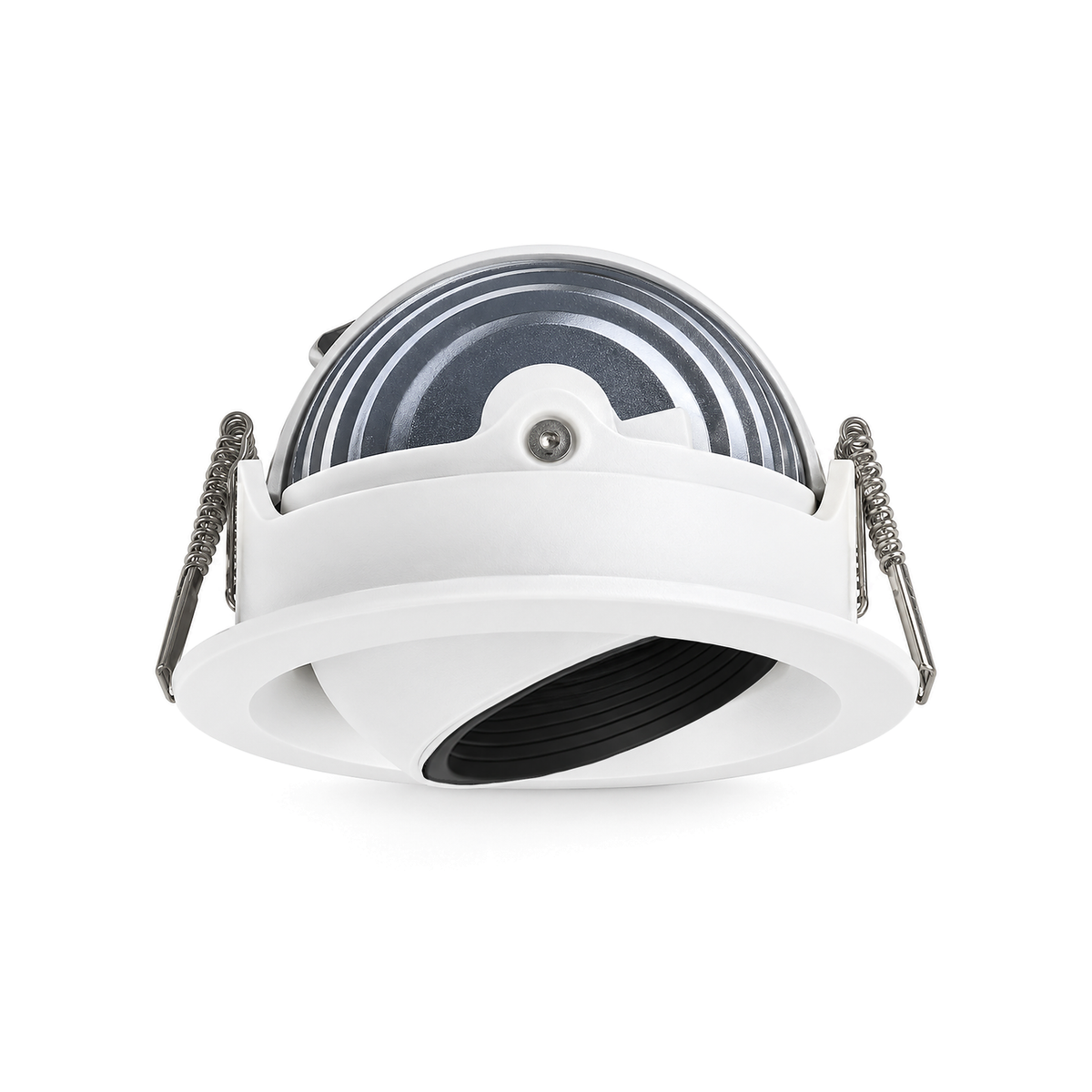

- Zoom 15–36°: adjustable (focusing) beam from 15–36°. Available in 10W, or 2 × 10W on Double Square.
Fish Eye, Snoot and Dome Lens are available in 12W. Choose the Style first (body shape + lens), then the wattage, then the pricing tier.
LED Pricing Tiers
- Ultra (5yr): Bridgelux V-Series + Fulham premium driver, ~150 lm/W, for retail, hospitality and premium homes.
- Performance (3yr): Bridgelux E-Series high-lumen, ~125 lm/W, for retail, hospitality and commercial use.
- Standard (2yr): Bridgelux E-Series, ~100 lm/W, for everyday homes and offices.
- Essential (2yr): entry-level LED, ~80 lm/W, a budget option for low-use areas.
- Dali Dimmable DT-6 (5yr): flicker-free 1–100% dimming on a DALI bus.
- Dali Tunable DT-8 (5yr): brightness and colour temperature on one DALI address.
- RF+BLE Tunable (3yr): wireless dimming and colour-temperature control.
- Zigbee Tunable (3yr): smart-home control with colour temperature.
Not every tier is offered on every size. Essential is not offered on 10W. For other options, including Ultra High CRI 97, Flicker-Free 90 CRI, RF Dimming, Triac, RGB+TW and 0/1-10V, contact us on WhatsApp. Read the LED Ranges explainer.
How to order
- Choose your Style first: the body shape and lens.
- Choose the wattage to suit your ceiling and lighting plan. Check the cut-out before installation.
- Tell us your body colour (white or black) and, for the plain Dome, the inner ring (shining black or chrome) in the order note or on WhatsApp. Trimless is white only.
- Select an LED pricing tier available for your chosen size.
- Contact us on WhatsApp for other LED options or help with your selection.
Need help?
Ask us for design help and BOQ help on WhatsApp 98991 88821. You can also visit one of our four Delhi showrooms: Chandni Chowk, Bhagirath Palace, Kotla or Ghitorni.

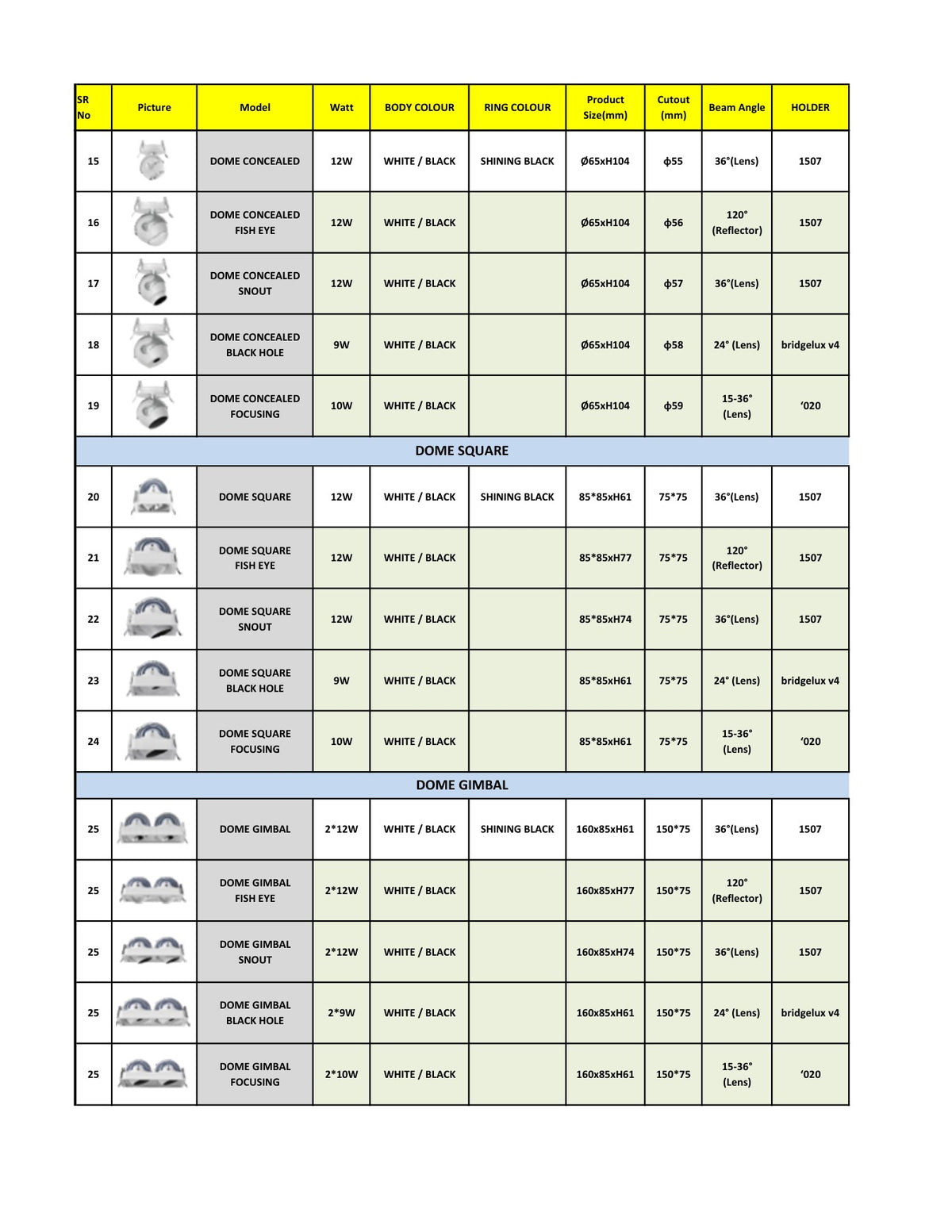

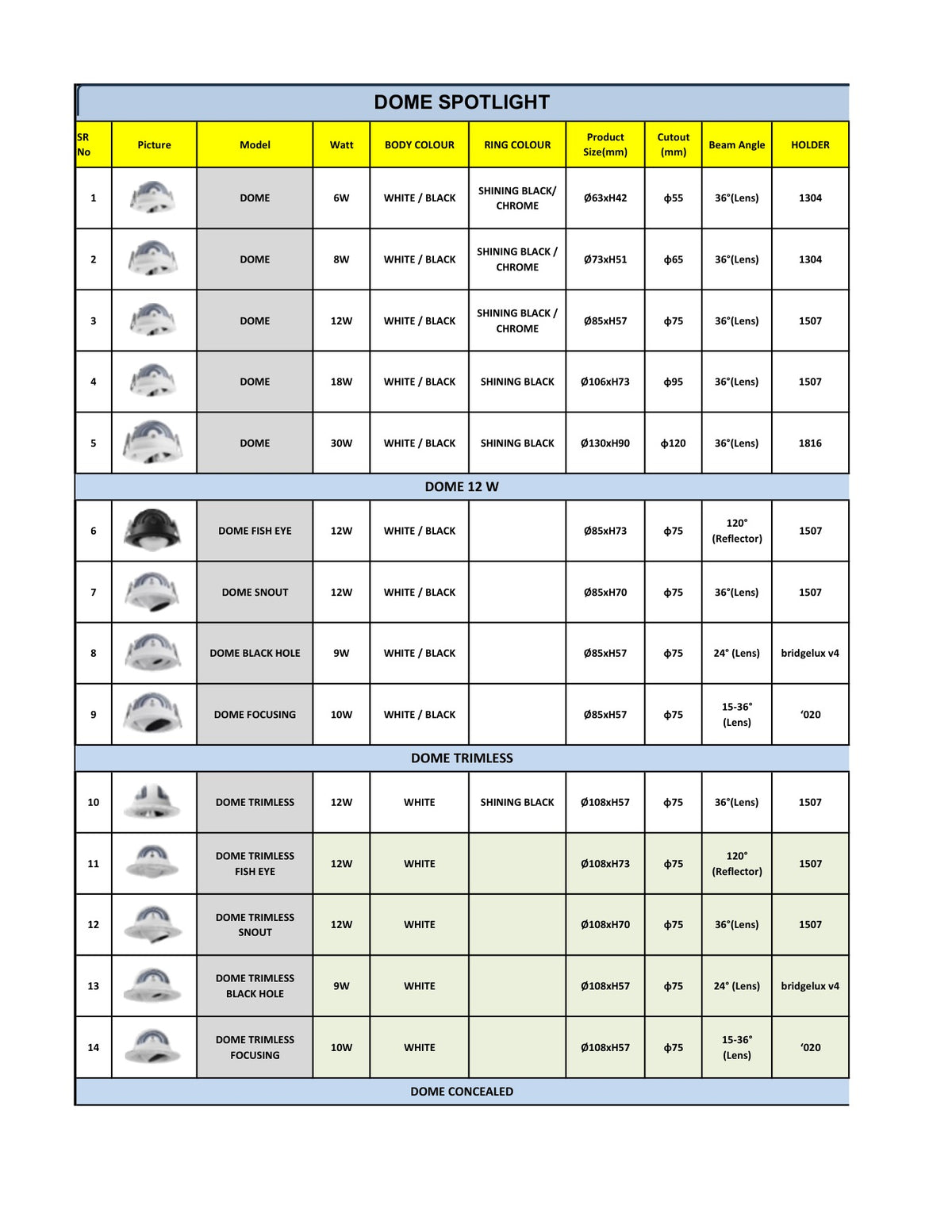

Download the full catalogue
| Specification | Details |
|---|---|
| Product Family | JS-ELT-HR |
| Shape | Round |
| Type of Item | COB Concealed |
