By Eliante by Jainsons Lights

JS-ELT Maxx Model COB LED Downlight (7W–50W) – High-Output Premium Range, 8 Wattages, Anti-Glare Architectural Series

Rs. 482.00 - Rs. 8,322.00
Tax included. Shipping charged as per actual — confirmed before dispatch.

Options explained

Wattage

  • 7W

    75 mm ceiling cut-out; body Ø90 mm, height 52 mm.

  • 12W

    75 mm ceiling cut-out; body Ø90 mm, height 62 mm.

  • 15W

    100 mm ceiling cut-out; body Ø115 mm, height 70 mm.

  • 18W

    100 mm ceiling cut-out; body Ø115 mm, height 70 mm.

  • 25W

    125 mm ceiling cut-out; body Ø135 mm, height 77 mm.

  • 30W

    145 mm ceiling cut-out; body Ø160 mm, height 90 mm.

  • 40W

    145 mm ceiling cut-out; body Ø160 mm, height 90 mm.

  • 50W

    145 mm ceiling cut-out; body Ø160 mm, height 105 mm.

Pricing Tier

On/off levels

  • Ultra

    On/off lighting with a 5-year warranty.

    5-year warranty
  • Flicker-Free CRI 90

    Flicker-free lighting with CRI 90 colour rendering and a 5-year warranty.

    5-year warranty
  • High Lumen CRI 90

    Brighter light with CRI 90 colour rendering and a 5-year warranty.

    5-year warranty
  • Ultra High CRI 97

    CRI 97 shows colours more accurately. Driver: 5-year warranty.

    5-year warranty
  • CRI 97 + Flicker-Free

    Combines CRI 97 colour rendering with a flicker-free driver. Driver: 5-year warranty.

    5-year warranty
  • Performance

    On/off lighting with a 3-year warranty.

    3-year warranty
  • Standard

    On/off lighting with a 2-year warranty.

    2-year warranty
  • Essential

    The Essential on/off option, with a 2-year warranty.

    2-year warranty
  • 3-in-1 Colour Switch

    Switch between warm, neutral and cool white. Driver: 2-year warranty.

    2-year warranty

Dimmable single colour

  • Wall dimmer
    Triac

    Dim a single white tone with a Triac wall dimmer. Driver: 2-year warranty.

    2-year warranty
  • Building control dimming
    1–10V

    Dim a single white tone through a 1–10V building control system. Driver: 2-year warranty.

    2-year warranty
  • Building control dimming
    DALI DT-6

    Dim a single white tone through a DALI building system. Driver: 5-year warranty.

    5-year warranty
  • Remote only dimming
    RF

    Dim a single white tone with Remote only (RF). Driver: 2-year warranty.

    2-year warranty
  • Remote + app dimming
    RF + BLE

    Dim a single white tone with Remote + app (RF + BLE). Driver: 3-year warranty.

    3-year warranty
  • Zigbee dimming
    Zigbee

    Dim a single white tone through a Zigbee hub. Driver: 3-year warranty.

    3-year warranty

Tunable white

  • Building control tunable CRI 90
    DALI DT-8

    Tune white and dim it through a DALI system. Driver: 5-year warranty.

    5-year warranty
  • Triac tunable Eco

    Tune white and dim it using Triac control. Eco LED; 2-year warranty.

    2-year warranty
  • Wall dimmer tunable CRI 90

    Tune white and dim it using Triac control. CRI 90 LED; 2-year warranty.

    2-year warranty
  • Remote only tunable Eco
    RF

    Tune white and dim it with Remote only (RF). Eco LED; 2-year warranty.

    2-year warranty
  • Remote only tunable CRI 90
    RF

    Tune white and dim it with Remote only (RF). CRI 90 LED; 2-year warranty.

    2-year warranty
  • Remote only tunable Essential
    RF

    Tune white and dim it with Remote only (RF). Essential LED; 2-year warranty.

    2-year warranty
  • Remote + app tunable Eco
    RF + BLE

    Tune white and dim it with Remote + app (RF + BLE). Eco LED; 2-year warranty.

    2-year warranty
  • Remote + app tunable CRI 90
    RF + BLE

    Tune white and dim it with Remote + app (RF + BLE). CRI 90 LED; 3-year warranty.

    3-year warranty
  • Tunable 1800–4000K Remote + app CRI 90
    RF + BLE

    Adjust white light from extra-warm 1800K to 4000K, and dim it, with Remote + app (RF + BLE). Driver: 3-year warranty.

    3-year warranty
  • Zigbee tunable Eco
    Zigbee

    Tune white and dim it through a Zigbee hub. Eco LED; 2-year warranty.

    2-year warranty
  • Zigbee tunable CRI 90
    Zigbee

    Tune white and dim it through a Zigbee hub. CRI 90 LED; 3-year warranty.

    3-year warranty

Colour

  • RGB + tunable White

    Choose coloured light or adjustable white light. Driver: 3-year warranty.

    3-year warranty

Body colour

  • White

    White finish.

  • Black

    Black finish.

Reflector colour

  • Gun Black

    Gun Black finish.

  • Matt Black

    Matt Black finish.

  • Matt White

    Matt White finish.

Beam angle

  • 36°

    36° beam.

  • 45°

    45° beam.

  • 55°

    55° beam.

Colour temperature

  • 2700K

    2700K extra warm white.

  • 3000K

    3000K warm white.

  • 4000K

    4000K neutral white.

  • 5000K

    5000K cool daylight.

  • 6000K

    6000K cool white.

  • Tunable

    Change from warm to cool on the control.

  • 3-in-1 (warm · neutral · cool)

    Switch between warm, neutral and cool white.

Wattage: 7W
Pricing Tier: Ultra (5yr)
Rs. 1,004.00
Rs. 3,622.90 Rs. 1,004.00
-73%
Get a project quote

For bulk, hotel and project orders. We reply on WhatsApp with price and delivery time.

Questions? Chat with us on WhatsApp
Assembled on OrderComponents in stock. Dispatched in 3–4 days. Ships from · Delhi
How it works

Catalogues & Downloads

Maxx Model COB Downlight Catalogue (PDF) 1 page 3.3 MB Catalogue View PDF

Since 1978 · 4 Delhi showrooms · Up to 5-year warranty

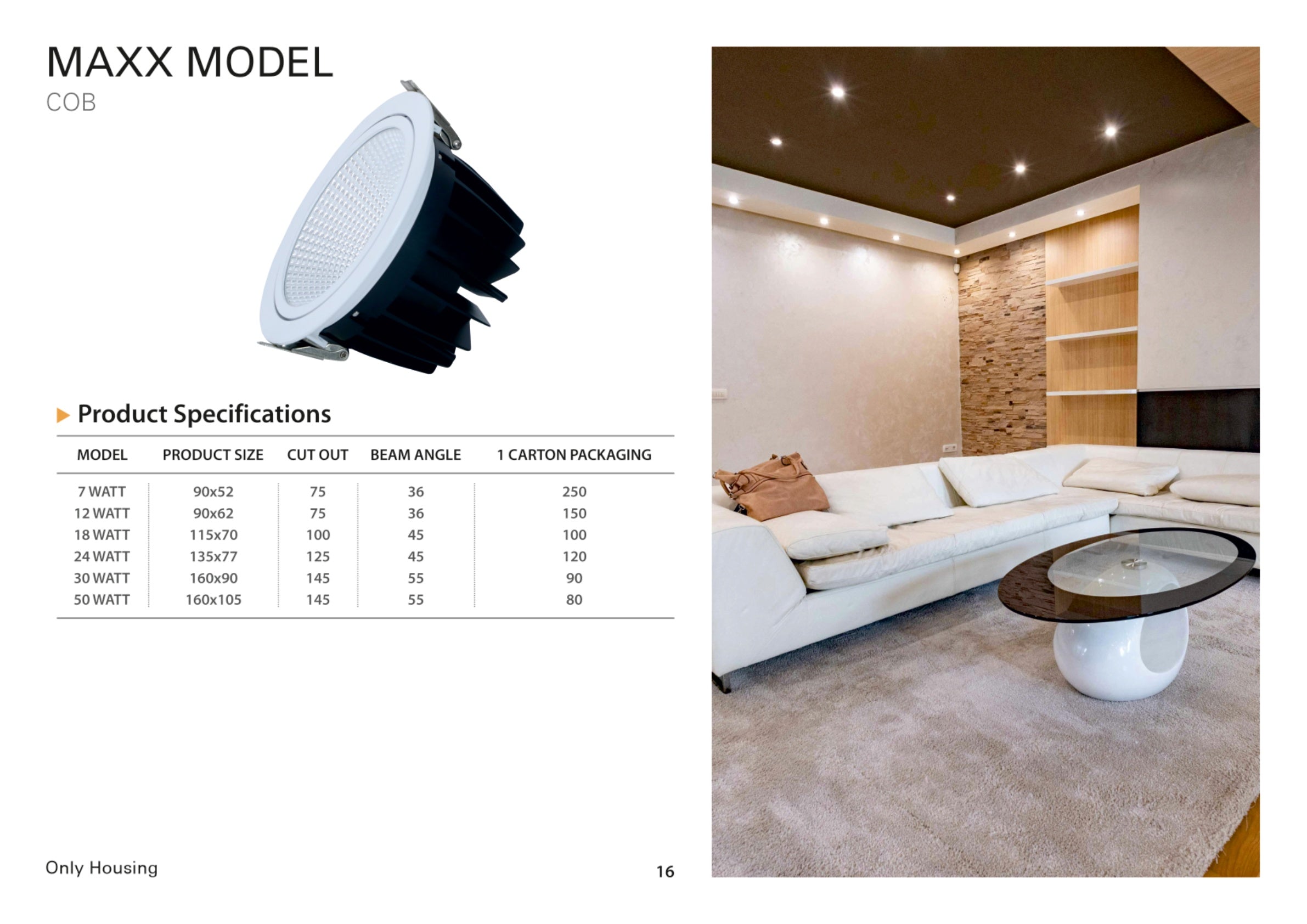

01 maxx cover full page
Rs. 1,004.00
Rs. 3,622.90 Rs. 1,004.00

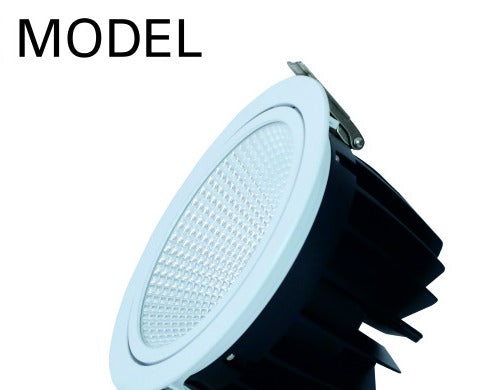

Maxx Model COB LED Downlight — High-Output Premium Architectural Range

Maxx Model is the high-output Eliante COB downlight — eight wattages spanning 7W accent through 50W high-bay-ready output, with a premium anti-glare deep-recessed reflector design. Built for commercial retail, hospitality, large residential and architectural applications where bright, sustained output matters. Imported housing with tiltable trim, multiple beam angles (36° / 45° / 55°) and the full 8-tier LED quality matrix.

Available in this range

  • Wattages: 7W, 12W, 15W, 18W, 25W, 30W, 40W, 50W
  • Body: Imported deep-recessed housing, anti-glare front-open design, tiltable
  • Reflector finishes: Gun Black, Matt Black, Matt White (mention preference at checkout)
  • Body colours: White, Black housing
  • Beam angles: 36° / 45° / 55° (varies by wattage — see spec table)
  • Mounting: Concealed, spring-clip ceiling install
  • Anti-glare: Yes — deep-recessed COB, front-open design

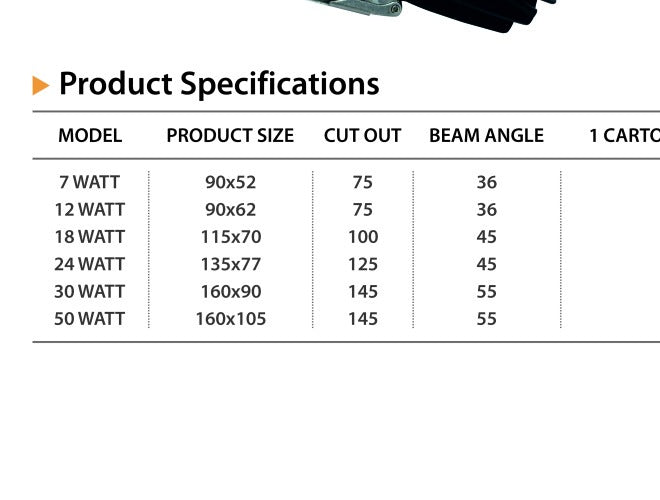

Specifications

Wattage Dimensions Body Ø Cut-out Height Beam
7W D-90,cut-75mm,H-52mm Ø90 mm Ø75 mm 52 mm 36°
12W D-90,cut-75mm,H-62mm Ø90 mm Ø75 mm 62 mm —
15W D-115,cut-100mm,H-70mm Ø115 mm Ø100 mm 70 mm 45°
18W D-115 X cut-100 X H-70 mm Ø115 mm Ø100 mm 70 mm —
25W D-135,cut-125mm,H-77mm Ø135 mm Ø125 mm 77 mm —
30W D-160,cut-145mm,H-90mm Ø160 mm Ø145 mm 90 mm 55°
40W D-160 X cut-145 X H-90 mm Ø160 mm Ø145 mm 90 mm —
50W D-160,cut-145mm,H-105mm Ø160 mm Ø145 mm 105 mm —

LED Pricing Tiers — pick the quality + warranty that fits your project

Each wattage comes in four quality levels, with colour-quality, dimming and smart-control options also available. The warranty for each option is shown in brackets. Options vary by wattage. See our LED Ranges explainer for full technical detail.

  • Ultra (5yr) — Bridgelux V-Series + Fulham premium driver. ~150 lm/W. Mission-critical retail, hospitality, premium homes.
  • Performance (3yr) — Bridgelux E-Series high-lumen. ~125 lm/W. Retail, hospitality, commercial.
  • Standard (2yr) — Bridgelux E-Series. ~100 lm/W. Reliable everyday residential & office.
  • Essential (2yr) — Generic Chinese LED. ~80 lm/W. Budget-friendly for low-usage areas.
  • Dali Dimmable DT-6 (5yr) — Flicker-free 1–100% smooth dimming on DALI bus.
  • Dali Tunable DT-8 (5yr) — Brightness + CCT (warm to cool) on a single DALI address.
  • RF+BLE Tunable (3yr) — Wireless dimming + colour-temperature adjustment.
  • Zigbee Tunable (3yr) — Smart-home integration with CCT control.

Colour quality and flicker-free

  • High Lumen CRI 90 (5yr) — Brighter output with CRI 90 colour rendering.
  • Ultra High CRI 97 (5yr) — CRI 97 for the truest colours; suited to art, jewellery, boutiques and kitchens.
  • Flicker-Free CRI 90 (5yr) — Flicker-free driver and CRI 90; comfortable for long hours and clean on camera.
  • CRI 97 + Flicker-Free (5yr) — CRI 97 with a flicker-free driver.
  • 3-in-1 Colour Switch (2yr) — Set one light to warm, neutral or cool white.

Dimming

  • Triac Dimmable (2yr) — Dims on a standard Triac (phase-cut) wall dimmer.
  • Triac Tunable CRI 90 (2yr) — Adjust brightness and colour temperature on Triac control, with CRI 90.
  • Triac Tunable Eco (2yr) — The value version of Triac tunable.
  • 1-10V Dimmable (2yr) — For 1-10V control systems in offices, retail and hotels.
  • RF Dimming (2yr) — Dim with a wireless RF remote.
  • RF+BLE Dimming (3yr) — Dim with a remote or your phone over Bluetooth.

Tunable white and colour

  • RF Tunable Eco (2yr) — Change colour temperature with a wireless remote; a value option.
  • RF Tunable Essential (2yr) — The budget version of RF tunable.
  • Zigbee Tunable Eco (2yr) — Control brightness and colour temperature through a Zigbee smart home system; a value option.
  • Tunable 1800–4000K RF+BLE (3yr) — From candle-warm 1800K to 4000K, controlled by remote or phone.
  • RGB + Tunable White (3yr) — Full colour and tunable white, controlled by remote or phone.

Not sure which option you need? Message us via the contact page.

How to order

  1. Pick the wattage based on the area you’re lighting (see spec table above).
  2. Pick the reflector finish (Gun Black, Matt Black, Matt White) and body colour (Black or White) — mention on order or via contact us.
  3. Pick the pricing tier: choose a quality level (Ultra/Performance/Standard/Essential) for plain white light, or a colour-quality, dimming or smart option. Check that the dimmer or control system on site matches (Triac, 1-10V, DALI, RF, Zigbee).
  4. Add to cart, or message us via the contact page for a BOQ across multiple wattages.

Need help?

Design and BOQ help — contact us or visit one of our 4 Delhi showrooms (Chandni Chowk, Bhagirath Palace, Kotla, Ghitorni). Our lighting consultants will help you pick the right wattage, reflector finish and pricing tier for your project.

Download the full catalogue

📚 Download Maxx Model Catalogue (PDF)

Full spec sheet with dimensions, beam angles, reflector finishes and pricing reference. Share with your architect or designer.

Specification Details
Product Family JS-ELT-LNX
Shape Round
Ship fragile big true
Type of Item COB Concealed
