JS-LYT 12V LED Strip Lights – 2835 SMD, IP20 & IP65, 3000K–6500K CCT (5m Roll, 2-Year Warranty)

Rs. 477.90 - Rs. 4,248.00
Tax included. Shipping charged as per actual — confirmed before dispatch.
Specification: 2835 | 120LED/m | 5mm PCB | 10W/m | IP20
LED Colour: 6500K Cool White
Rs. 477.90
Rs. 2,250.00 Rs. 477.90
-79%
Team Will Confirm StockOur team will verify availability and confirm before processing your order.
How it works

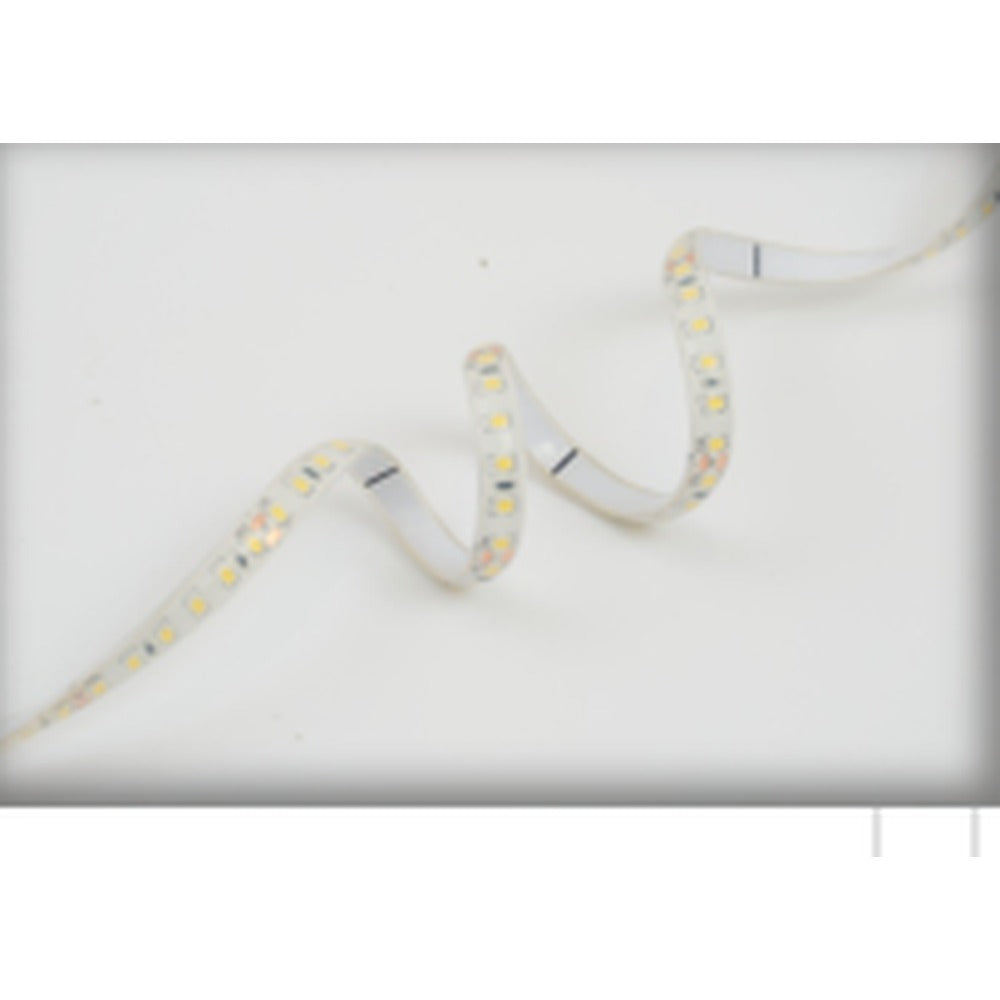

JS-LYT 12V LED Strip Light - close-up on reel
Rs. 477.90
Rs. 2,250.00 Rs. 477.90

JS-LYT 12V LED Strip Lights – 2835 SMD, IP20 & IP65, 5m Roll, 2-Year Warranty

Flexible 2835-SMD LED strips on a 12V system for cabinet lighting, cove lines, showcase shelves and short accent runs. Choose from seven LED densities (120–360 LED/m), Cool, Neutral, Warm and Extra-Warm White, plus a 3CCT Tunable option; IP20 dry-indoor and IP65 splash-protected variants are available. Every roll is a complete 5-metre length, backed by a 2-year manufacturer warranty.

Product Range

1. IP20 Standard Strips – Dry Indoor Use
  • 120LED/5mm/10W — Cool, Neutral and Warm White.
  • 180LED/5mm/15W — Cool, Neutral and Warm White.
  • 120LED/8mm/10W — Cool, Neutral and Warm White.
  • 180LED/10mm/15W — Cool, Neutral and Warm White; also available as a 3CCT Tunable strip.
  • 240LED/10mm/18W — Cool, Neutral and Warm White; 2 Oz copper.
  • 240LED/10mm/20W — Cool, Neutral and Warm White; Pro, 3 Oz copper.
  • 360LED/30mm/36W — Neutral and Warm White; 3-Line.
2. IP65 Waterproof Strips
  • 120LED/8mm/10W — 3000K Warm White.
  • 240LED/10mm/18W — 2700K Extra Warm White.
3. 3CCT Tunable Strips (1 LED NW + 1 LED WW)
  • 180LED/10mm/15W.
  • 240LED/10mm/18W.

Each strip has one Neutral White LED and one Warm White LED side-by-side, switchable via a 3CCT controller — so one roll covers both a neutral and a warm look.

Technical Specifications

View complete specification table
Chip LED/m PCB Size Watt/m CRI IP Rating LED Colour Options Roll Length
2835 120LED/m 5mm 10W/m 80< IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2835 180LED/m 5mm 15W/m 80< IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2835 120LED/m 8mm 10W/m 80< IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2835 180LED/m 10mm 15W/m 80< IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2835 240LED/m 10mm 18W/m 80< IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll (2 OZ)
2835 240LED/m 10mm 20W/m 80< IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll (PRO (3 OZ))
2835 360LED/m 30mm 36W/m 80< IP20 4000K Neutral White, 3000K Warm White 5m Roll (3 LINE)
2835 120LED/m 8mm 10W/m 80< IP65 3000K Warm White 5m Roll
2835 240LED/m 10mm 18W/m 80< IP65 2700K Extra Warm White 5m Roll
2835 180LED/m 10mm 15W/m 80< IP20 3CCT Tunable (1 LED NW + 1 LED WW) 5m Roll
2835 240LED/m 10mm 18W/m 80< IP20 3CCT Tunable (1 LED NW + 1 LED WW) 5m Roll
How to Order

Selected LED Strip Specification

Understand the Specification Cards

2835 (LED Type)
the type of LED chip used on the strip.
LED/m (LED Density)
number of individual LEDs per running metre; higher density = brighter, more even light.
PCB Width
the physical width of the flexible circuit board strip.
Wattage per Metre
how much power the strip draws per metre of length; this is what determines driver sizing.
IP Rating
the strip's protection level against moisture and dust (IP20 = dry indoor only; IP65 = splash-protected).
Roll Length
total metres supplied in one roll.

How to Order Steps

  1. Identify where the strip will be installed and the light effect you need.
  2. Choose the LED density and wattage suitable for the application.
  3. Choose the required CCT or LED colour.
  4. Confirm the IP rating for the installation area.
  5. Confirm the number of rolls and size a compatible driver below.

Driver-Selection Calculator

Connected Load: —

Minimum Driver Capacity (after 20% headroom): —

Recommended Driver: —

Shop a Compatible Driver

Choose a constant-voltage driver that matches the LED strip voltage and meets or exceeds the recommended wattage.

Shop Drivers ↗
View All LED Drivers

Confirm the output voltage, wattage, IP rating and dimming requirements before purchasing the driver.

Quick Driver Chart — Dry Indoor Use

Recommended indoor constant-voltage driver sizes
Wattage per metre 5m 10m 20m

Waterproof Driver-Selection Chart — IP65/Waterproof Installations

Recommended waterproof constant-voltage driver sizes
Wattage per metre 5m 10m 20m

Need Help Choosing?

Get free guidance on strip selection and 12V driver sizing.

Full Price List (PDF)

Download the complete JS-LYT 12V & 24V LED Strip Lights price list — all densities, LED colours and IP ratings in one document.

📖 Download Full Price List (PDF)

Specification Details
Cri 80<
Input voltage 12V
Ip rating IP20, IP65
Led colour temperature 3000K, 4000K, 6500K, 2700K, 3CCT Tunable
Length 5m
Product family JS-LYT
Type of item 12V LED Strip Lights
Warranty 2 Years
Wattage 10W, 15W, 18W, 20W, 36W
