JS-LYT 24V CCT Tunable LED Strip Lights – IP20
Couldn't load pickup availability
JS-LYT 24V CCT Tunable LED Strip Lights – IP20 – 2-Year Warranty

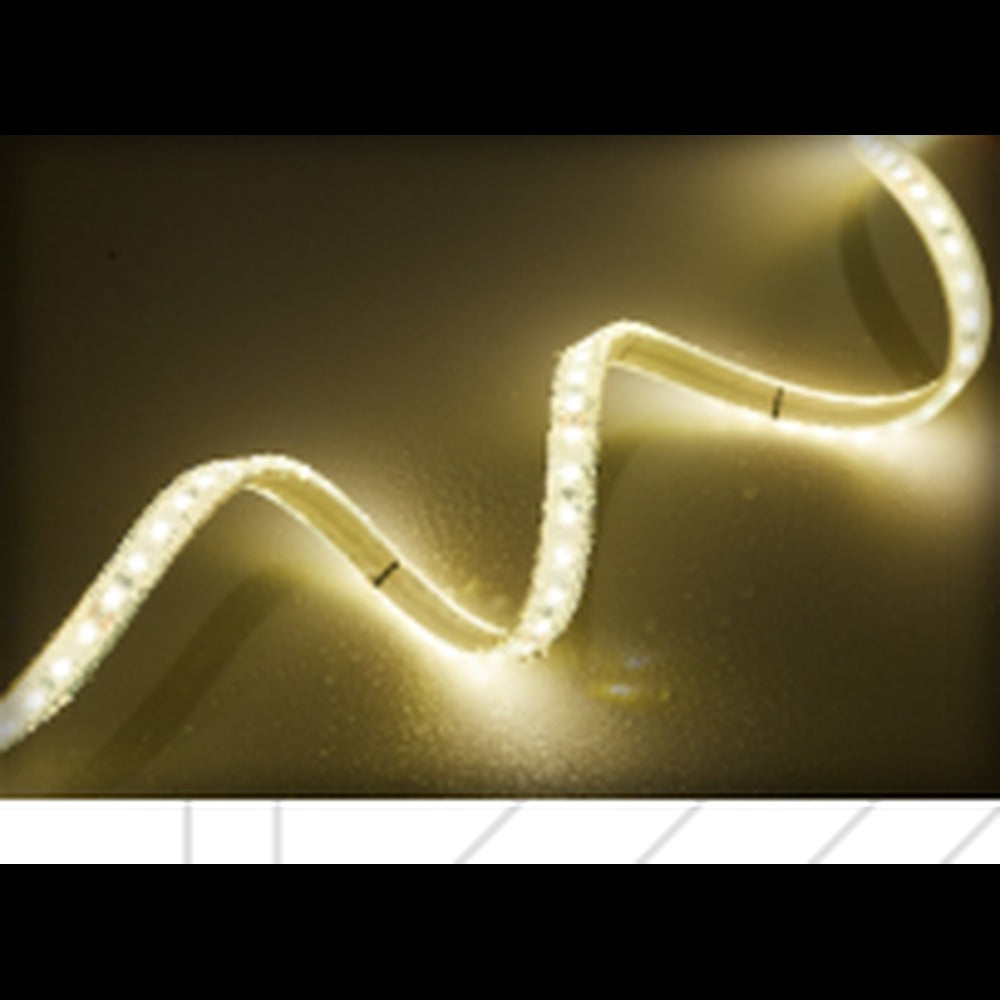

24V strips with one Neutral/Warm White LED pair per module, switchable via a 3CCT controller — one roll covers both a neutral and a warm look. Backed by a 2-year manufacturer warranty.
Product Range
1. CCT Tunable Strips
- 240LED/m/5mm/12W/m/IP20 — 3CCT Tunable (1 LED WH + 1 LED WW)
- 280LED/m/5mm/12W/m/IP20 — 3CCT Tunable (1 LED WH + 1 LED WW)
- 192LED/m/8mm/18W/m/IP20 — 3CCT Tunable (1 LED WH + 1 LED WW)
- 120LED/m/8mm/12W/m/IP20 — 3CCT Tunable
- 240LED/m/10mm/20W/m/IP20 — 3CCT Tunable (1 LED WH + 1 LED WW)
- 240LED/m/10mm/15W/m/IP20 — 2200K-4000K CCT
Technical Specifications
View complete specification table
| Chip | LED/m | PCB Size | Watt/m | CRI | IP Rating | LED Colour Options | Roll Length |
|---|---|---|---|---|---|---|---|
| 2025 | 240 | 5mm | 12W/m | — | IP20 | 3CCT Tunable (1 LED WH + 1 LED WW) | 10m Roll |
| 2835 | 280 | 5mm | 12W/m | — | IP20 | 3CCT Tunable (1 LED WH + 1 LED WW) | 5m Roll |
| 2835 | 192 | 8mm | 18W/m | — | IP20 | 3CCT Tunable (1 LED WH + 1 LED WW) | 5m Roll |
| 2835 | 120 | 8mm | 12W/m | — | IP20 | 3CCT Tunable | 5m Roll |
| 2835 | 240 | 10mm | 20W/m | — | IP20 | 3CCT Tunable (1 LED WH + 1 LED WW) | 5m Roll |
| 2835 | 240 | 10mm | 15W/m | — | IP20 | 2200K-4000K CCT | 5m Roll |
How to Order
Selected LED Strip Specification
Understand the Specification Cards
- 2835 (LED Type)
- the type of LED chip used on the strip.
- LED/m (LED Density)
- number of individual LEDs per running metre; higher density = brighter, more even light.
- PCB Width
- the physical width of the flexible circuit board strip.
- Wattage per Metre
- how much power the strip draws per metre of length; this is what determines driver sizing.
- IP Rating
- the strip's protection level against moisture and dust (IP20 = dry indoor only; IP65 = splash-protected).
- Roll Length
- total metres supplied in one roll.
How to Order Steps
- Identify where the strip will be installed and the light effect you need.
- Choose the LED density and wattage suitable for the application.
- Choose the required CCT or LED colour.
- Confirm the IP rating for the installation area.
- Confirm the number of rolls and size a compatible driver below.
Driver-Selection Calculator
Connected Load: —
Minimum Driver Capacity (after 20% headroom): —
Recommended Driver: —
Shop a Compatible Driver
Choose a constant-voltage driver that matches the LED strip voltage and meets or exceeds the recommended wattage.
Shop Drivers ↗View All LED Drivers
Confirm the output voltage, wattage, IP rating and dimming requirements before purchasing the driver.
Quick Driver Chart — Dry Indoor Use
| Wattage per metre | 5m | 10m | 20m |
|---|
Waterproof Driver-Selection Chart — IP65/Waterproof Installations
| Wattage per metre | 5m | 10m | 20m |
|---|
Need Help Choosing?
Not sure which spec fits your project? We offer free guidance on strip selection and 24V driver sizing.
- WhatsApp: Click here to chat with our lighting expert
- Call: +91-9899188821
Full Price List (PDF)
Download the complete JS-LYT 12V & 24V LED Strip Lights price list — all densities, LED colours and IP ratings in one document.
| Specification | Details |
|---|---|
| Input voltage | 24V |
| Product family | JS-LYT |
| Type of item | 24V CCT Tunable LED Strips |
| Warranty | 2 Years |
