JS-LYT 24V COB Dotless LED Strip Lights – IP20
Couldn't load pickup availability
JS-LYT 24V COB Dotless LED Strip Lights – IP20 – 2-Year Warranty

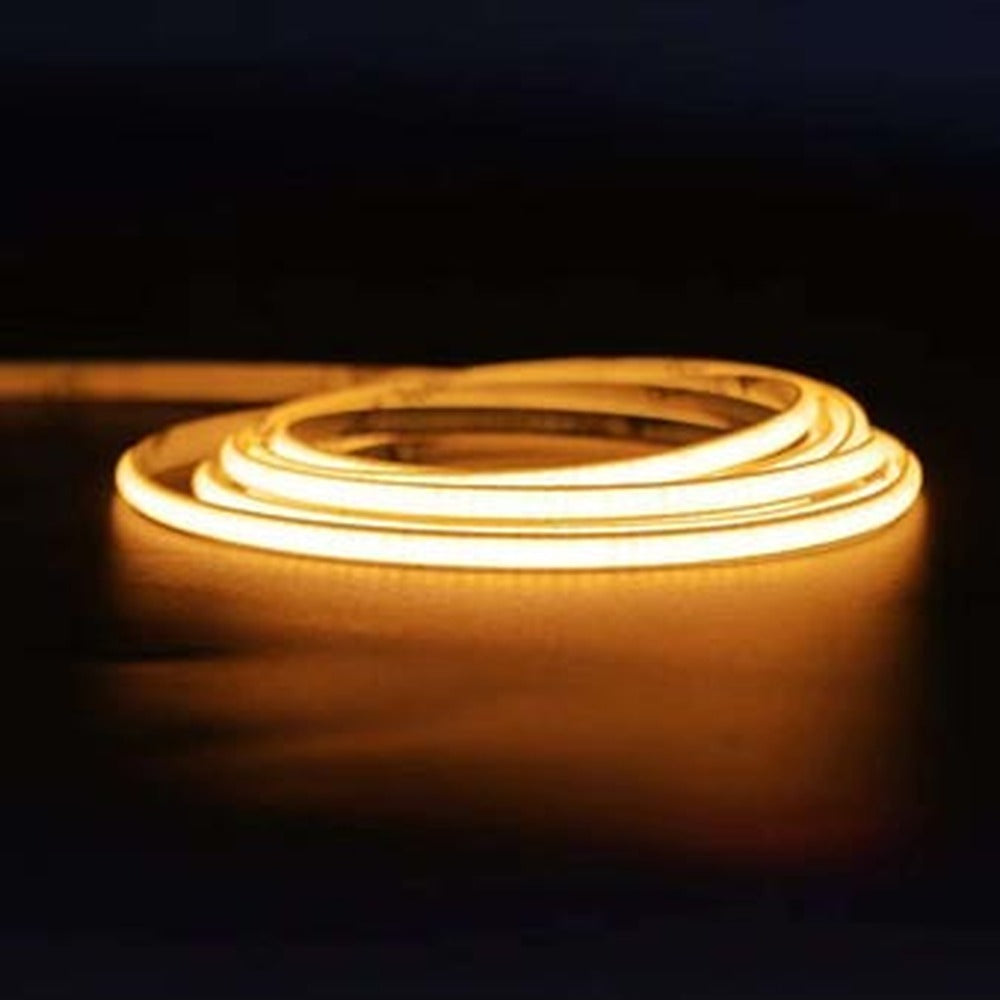

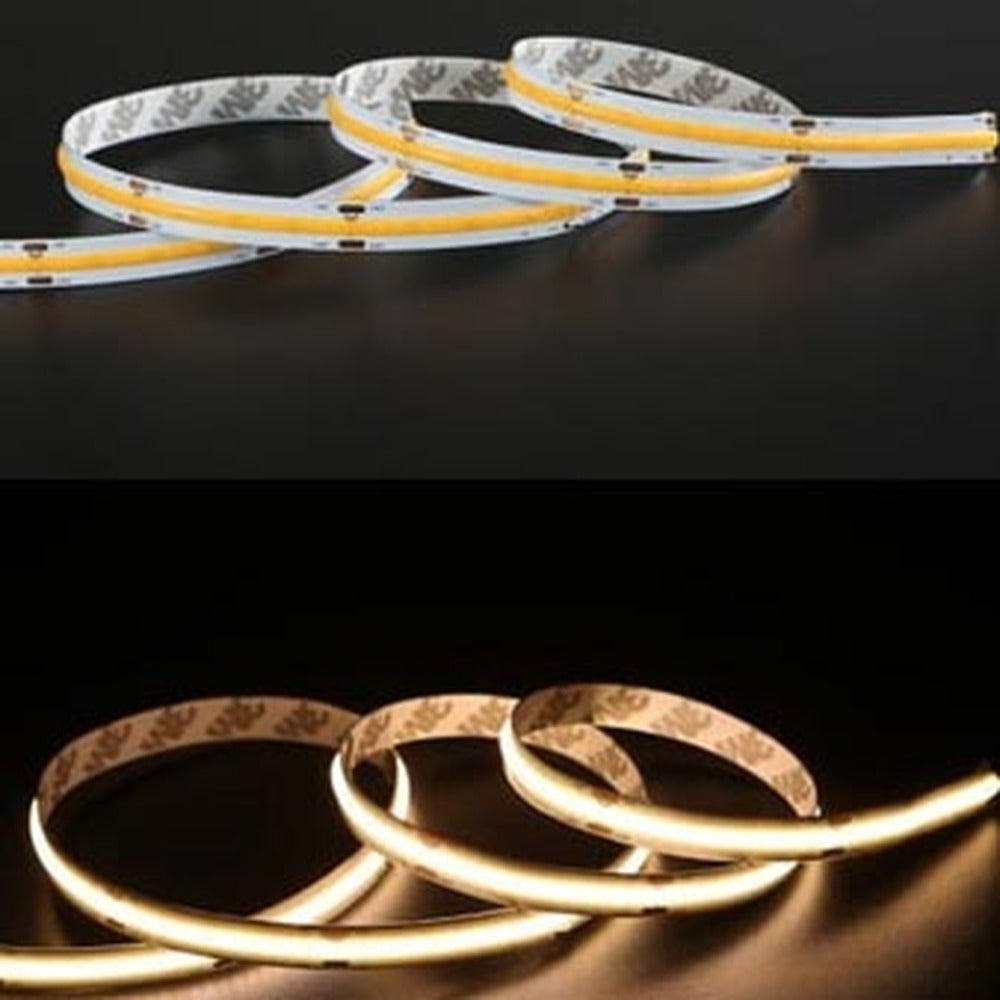

Chip-on-board "dotless" 24V LED strips — continuous, even light with no visible individual LED dots, popular for premium cove and architectural lighting. Backed by a 2-year manufacturer warranty.
Product Range
1. COB Dotless Strips
- 360LED/m/3mm/7W/m/IP20 — 2700K Extra Warm White
- 400LED/m/5mm/10W/m/IP20 — 4000K Neutral White, 3000K Warm White

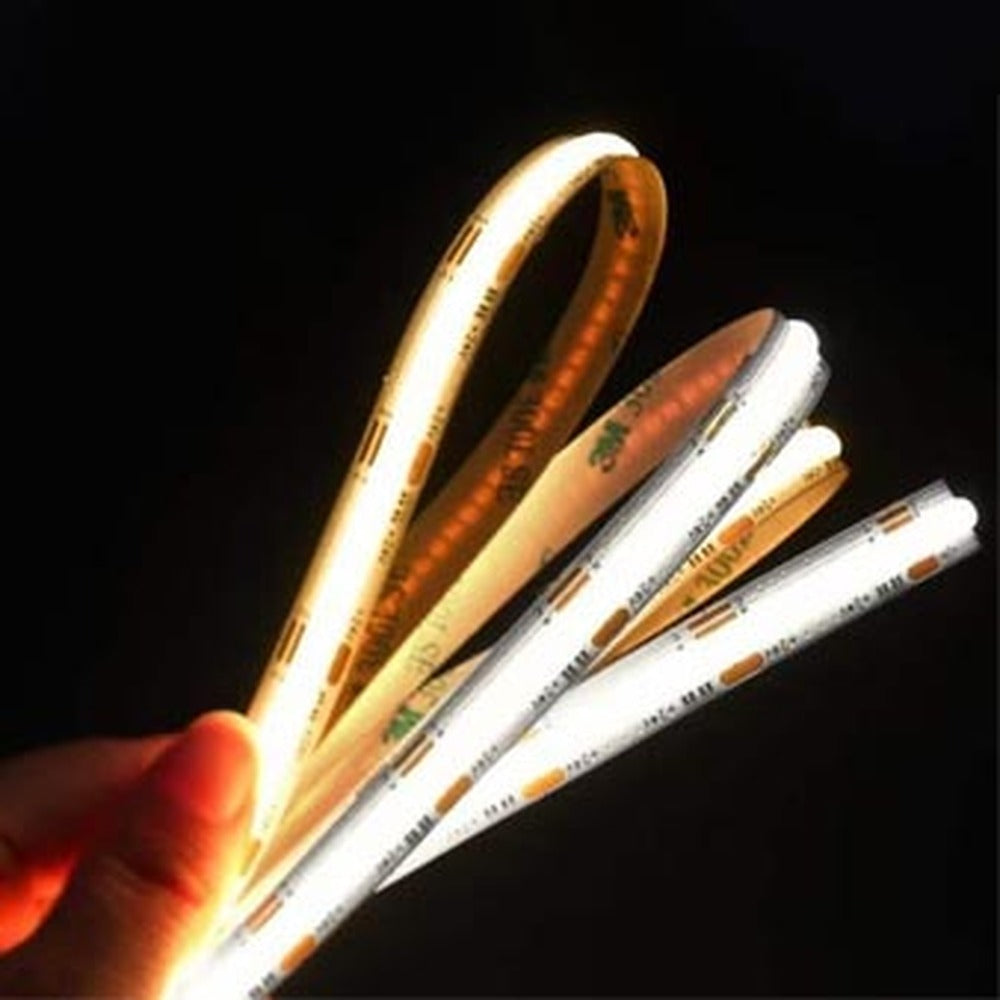

- 608LED/m/5mm/5W/m/IP20 — CCT Tunable
- 480LED/m/8mm/12W/m/IP20 — 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White
- 576LED/m/8mm/12W/m/IP20 — WH-WW CCT Tunable

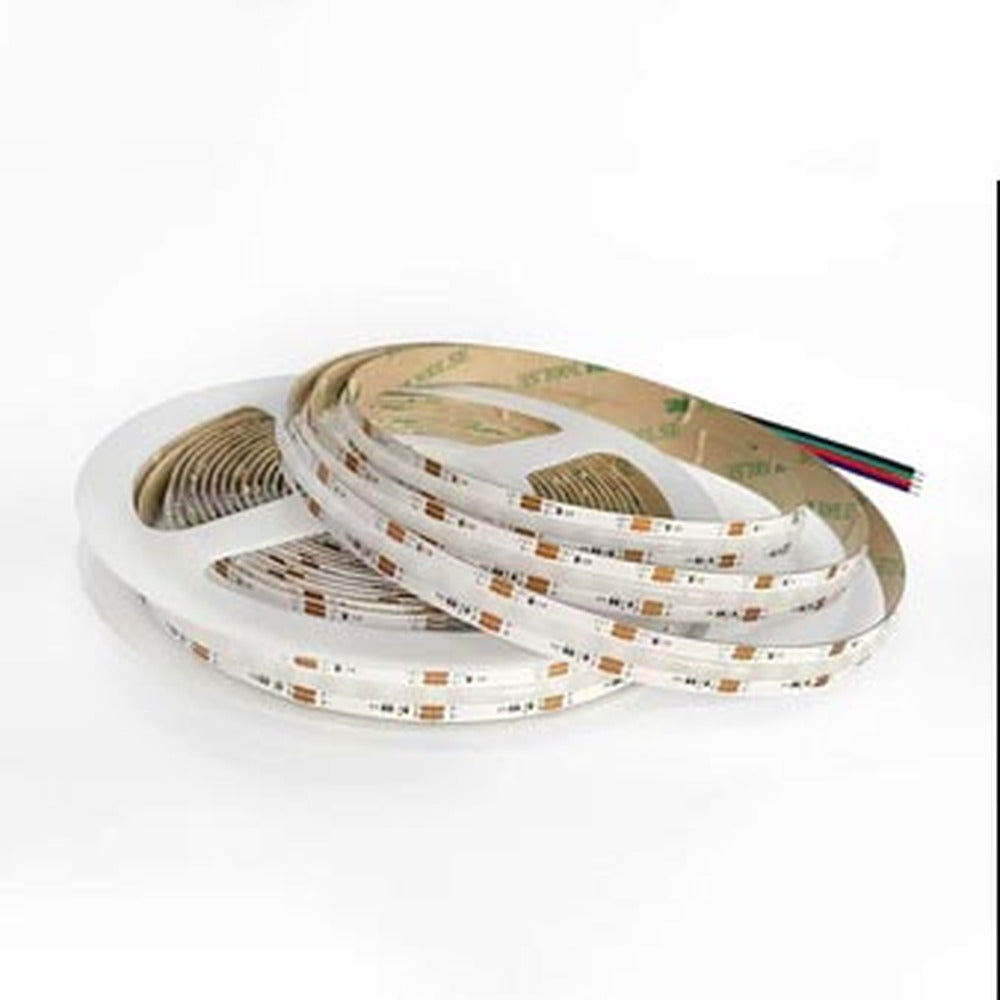

- 576LED/m/10mm/18W/m/IP20 — RGB
Technical Specifications
View complete specification table
| Chip | LED/m | PCB Size | Watt/m | CRI | IP Rating | LED Colour Options | Roll Length |
|---|---|---|---|---|---|---|---|
| COB | 360 | 3mm | 7W/m | — | IP20 | 2700K Extra Warm White | 10m Roll (DOTLESS) |
| COB | 400 | 5mm | 10W/m | — | IP20 | 4000K Neutral White, 3000K Warm White | 10m Roll (DOTLESS) |
| COB | 608 | 5mm | 5W/m | — | IP20 | CCT Tunable | 10m Roll (DOTLESS) |
| COB | 480 | 8mm | 12W/m | — | IP20 | 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White | 10m Roll (DOTLESS) |
| COB | 576 | 8mm | 12W/m | — | IP20 | WH-WW CCT Tunable | 10m Roll (DOTLESS) |
| COB | 576 | 10mm | 18W/m | — | IP20 | RGB | 5m Roll (DOTLESS) |
How to Order
Selected LED Strip Specification
Understand the Specification Cards
- 2835 (LED Type)
- the type of LED chip used on the strip.
- LED/m (LED Density)
- number of individual LEDs per running metre; higher density = brighter, more even light.
- PCB Width
- the physical width of the flexible circuit board strip.
- Wattage per Metre
- how much power the strip draws per metre of length; this is what determines driver sizing.
- IP Rating
- the strip's protection level against moisture and dust (IP20 = dry indoor only; IP65 = splash-protected).
- Roll Length
- total metres supplied in one roll.
How to Order Steps
- Identify where the strip will be installed and the light effect you need.
- Choose the LED density and wattage suitable for the application.
- Choose the required CCT or LED colour.
- Confirm the IP rating for the installation area.
- Confirm the number of rolls and size a compatible driver below.
Driver-Selection Calculator
Connected Load: —
Minimum Driver Capacity (after 20% headroom): —
Recommended Driver: —
Shop a Compatible Driver
Choose a constant-voltage driver that matches the LED strip voltage and meets or exceeds the recommended wattage.
Shop Drivers ↗View All LED Drivers
Confirm the output voltage, wattage, IP rating and dimming requirements before purchasing the driver.
Quick Driver Chart — Dry Indoor Use
| Wattage per metre | 5m | 10m | 20m |
|---|
Waterproof Driver-Selection Chart — IP65/Waterproof Installations
| Wattage per metre | 5m | 10m | 20m |
|---|
Need Help Choosing?
Not sure which spec fits your project? We offer free guidance on strip selection and 24V driver sizing.
- WhatsApp: Click here to chat with our lighting expert
- Call: +91-9899188821
Full Price List (PDF)
Download the complete JS-LYT 12V & 24V LED Strip Lights price list — all densities, LED colours and IP ratings in one document.
| Specification | Details |
|---|---|
| Input voltage | 24V |
| Product family | JS-LYT |
| Type of item | 24V COB Dotless LED Strips |
| Warranty | 2 Years |
