By Eliante by Jainsons Lights

JS-LYT 24V LED Strip Lights – Pro & E Series, IP20

Rs. 743.40 - Rs. 12,744.00
Tax included. Shipping charged as per actual — confirmed before dispatch.
Specification: 1616 | 210LED/m | 3mm PCB | 6W/m | IP20 | 10m Roll
LED Colour: 4000K Neutral White
Rs. 5,310.00
Rs. 25,000.00 Rs. 5,310.00
-79%
Team Will Confirm StockOur team will verify availability and confirm before processing your order.
How it works

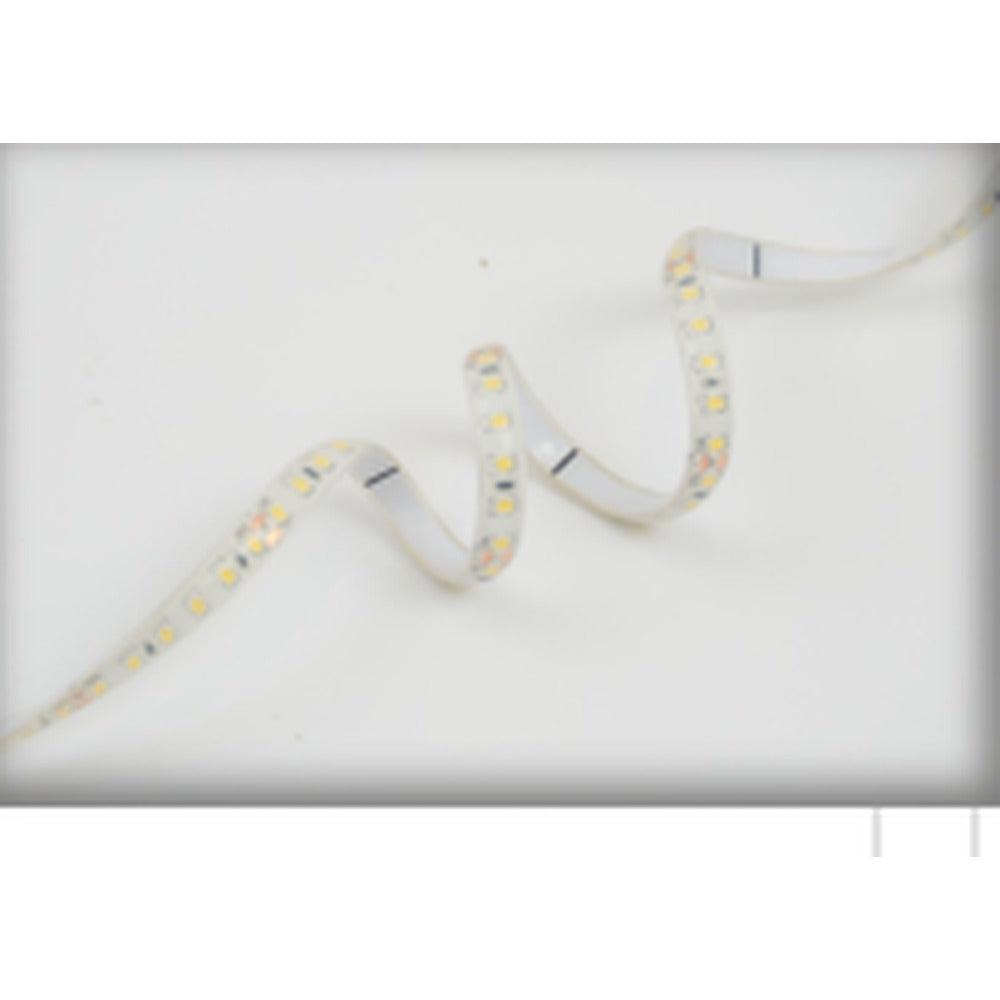

JS-LYT 24V LED Strip - close-up on reel (generic 2835 strip reference photo)
Rs. 5,310.00
Rs. 25,000.00 Rs. 5,310.00

JS-LYT 24V LED Strip Lights – Pro & E Series, IP20 – 2-Year Warranty

Standard 24V Pro Series and colour-optimised E-Series LED strips, IP20 for dry indoor use. Backed by a 2-year manufacturer warranty.

Product Range

1. Pro Series (Standard 24V, IP20)
  • 210LED/m/3mm/6W/m/IP20 — 4000K Neutral White, 3000K Warm White
  • 120LED/m/5mm/10W/m/IP20 — 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White
  • 168LED/m/5mm/12W/m/IP20 — 6000K Cool White, 4000K Neutral White, 3000K Warm White
  • 240LED/m/5mm/11W/m/IP20 — 6500K Cool White, 4000K Neutral White, 3000K Warm White
  • 60LED/m/8mm/6W/m/IP20 — 6500K Cool White, 4000K Neutral White, 3000K Warm White
  • 120LED/m/8mm/5W/m/IP20 — 3000K Warm White
  • 120LED/m/8mm/10W/m/IP20 — 6500K Cool White, 5000K Daylight White, 4000K Neutral White, 3500K Natural White, 3000K Warm White, 2700K Extra Warm White
  • 120LED/m/10mm/12W/m/IP20 — 4000K Neutral White, 3000K Warm White
  • 180LED/m/10mm/15W/m/IP20 — 6500K Cool White, 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White
  • 240LED/m/10mm/20W/m/IP20 — 6500K Cool White, 5000K Daylight White, 4000K Neutral White, 3500K Natural White, 3000K Warm White, 2700K Extra Warm White
  • 240LED/m/10mm/22W/m/IP20 — Pink, Blue, Ice Blue, Red, Amber, Golden Yellow, Lemon Yellow, Purple, Lunar, Orange, Green
  • 240LED/m/15mm/12W/m/IP20 — 3000K Warm White
  • 480LED/m/15mm/23W/m/IP20 — 6500K Cool White, 4000K Neutral White, 3000K Warm White
  • 360LED/m/20mm/26W/m/IP20 — 4000K Neutral White, 2700K Extra Warm White
2. E-Series (Colour-Optimised 24V, IP20)
  • 120LED/m/5mm/10W/m/IP20 — Blue, Ice Blue, Red, Amber, Green
  • 120LED/m/8mm/12W/m/IP20 — 4000K Neutral White, 3000K Warm White
  • 120LED/m/8mm/10W/m/IP20 — Pink, Blue, Ice Blue, Red, Golden, Purple
  • 180LED/m/8mm/15W/m/IP20 — 6500K Cool White, 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White
  • 240LED/m/10mm/20W/m/IP20 — 4000K Neutral White, 3000K Warm White

Technical Specifications

View complete specification table
Chip LED/m PCB Size Watt/m CRI IP Rating LED Colour Options Roll Length
1616 210 3mm 6W/m — IP20 4000K Neutral White, 3000K Warm White 10m Roll
2535 120 5mm 10W/m — IP20 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White 5m Roll
2835 168 5mm 12W/m — IP20 6000K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2025 240 5mm 11W/m — IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2835 60 8mm 6W/m — IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 5m Roll
2835 120 8mm 5W/m — IP20 3000K Warm White 5m Roll
2835 120 8mm 10W/m — IP20 6500K Cool White, 5000K Daylight White, 4000K Neutral White, 3500K Natural White, 3000K Warm White, 2700K Extra Warm White 5m Roll
2835 120 10mm 12W/m — IP20 4000K Neutral White, 3000K Warm White 20m Roll (DROPLESS)
2835 180 10mm 15W/m — IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White 5m Roll
2835 240 10mm 20W/m — IP20 6500K Cool White, 5000K Daylight White, 4000K Neutral White, 3500K Natural White, 3000K Warm White, 2700K Extra Warm White 5m Roll
2835 240 10mm 22W/m — IP20 Pink, Blue, Ice Blue, Red, Amber, Golden Yellow, Lemon Yellow, Purple, Lunar, Orange, Green 10m Roll
2835 240 15mm 12W/m — IP20 3000K Warm White 10m Roll (2 LINE)
2835 480 15mm 23W/m — IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White 10m Roll (2 LINE)
2835 360 20mm 26W/m — IP20 4000K Neutral White, 2700K Extra Warm White 10m Roll (3 LINE)
2835 120 5mm 10W/m — IP20 Blue, Ice Blue, Red, Amber, Green 5m Roll
2835 120 8mm 12W/m — IP20 4000K Neutral White, 3000K Warm White 5m Roll (E SERIES)
2835 120 8mm 10W/m — IP20 Pink, Blue, Ice Blue, Red, Golden, Purple 10m Roll
2835 180 8mm 15W/m — IP20 6500K Cool White, 4000K Neutral White, 3000K Warm White, 2700K Extra Warm White 5m Roll (E - SERIES)
2835 240 10mm 20W/m — IP20 4000K Neutral White, 3000K Warm White 5m Roll (E SERIES)
How to Order

Selected LED Strip Specification

Understand the Specification Cards

2835 (LED Type)
the type of LED chip used on the strip.
LED/m (LED Density)
number of individual LEDs per running metre; higher density = brighter, more even light.
PCB Width
the physical width of the flexible circuit board strip.
Wattage per Metre
how much power the strip draws per metre of length; this is what determines driver sizing.
IP Rating
the strip's protection level against moisture and dust (IP20 = dry indoor only; IP65 = splash-protected).
Roll Length
total metres supplied in one roll.

How to Order Steps

  1. Identify where the strip will be installed and the light effect you need.
  2. Choose the LED density and wattage suitable for the application.
  3. Choose the required CCT or LED colour.
  4. Confirm the IP rating for the installation area.
  5. Confirm the number of rolls and size a compatible driver below.

Driver-Selection Calculator

Connected Load: —

Minimum Driver Capacity (after 20% headroom): —

Recommended Driver: —

Shop a Compatible Driver

Choose a constant-voltage driver that matches the LED strip voltage and meets or exceeds the recommended wattage.

Shop Drivers ↗
View All LED Drivers

Confirm the output voltage, wattage, IP rating and dimming requirements before purchasing the driver.

Quick Driver Chart — Dry Indoor Use

Recommended indoor constant-voltage driver sizes
Wattage per metre 5m 10m 20m

Waterproof Driver-Selection Chart — IP65/Waterproof Installations

Recommended waterproof constant-voltage driver sizes
Wattage per metre 5m 10m 20m

Need Help Choosing?

Not sure which spec fits your project? We offer free guidance on strip selection and 24V driver sizing.

Full Price List (PDF)

Download the complete JS-LYT 12V & 24V LED Strip Lights price list — all densities, LED colours and IP ratings in one document.

📖 Download Full Price List (PDF)

Specification Details
Input voltage 24V
Product family JS-LYT
Type of item 24V Pro & E Series LED Strips
Warranty 2 Years
