JS-TRL 10mm Bespoke Series — White Body Magnetic Track Lighting System (Linear, Lazer, Tiltable Laser Blade & Track Spot Modules)

Rs. 100.89 - Rs. 7,324.61
Tax included. Shipping calculated at checkout.
Type: Recessed Track
Size/Model: Recessed Track 1 Meter (1000mm)
Led Colour: NA
Rs. 2,441.54
Rs. 11,495.00 Rs. 2,441.54
-79%
Team Will Confirm StockOur team will verify availability and confirm before processing your order.
How it works

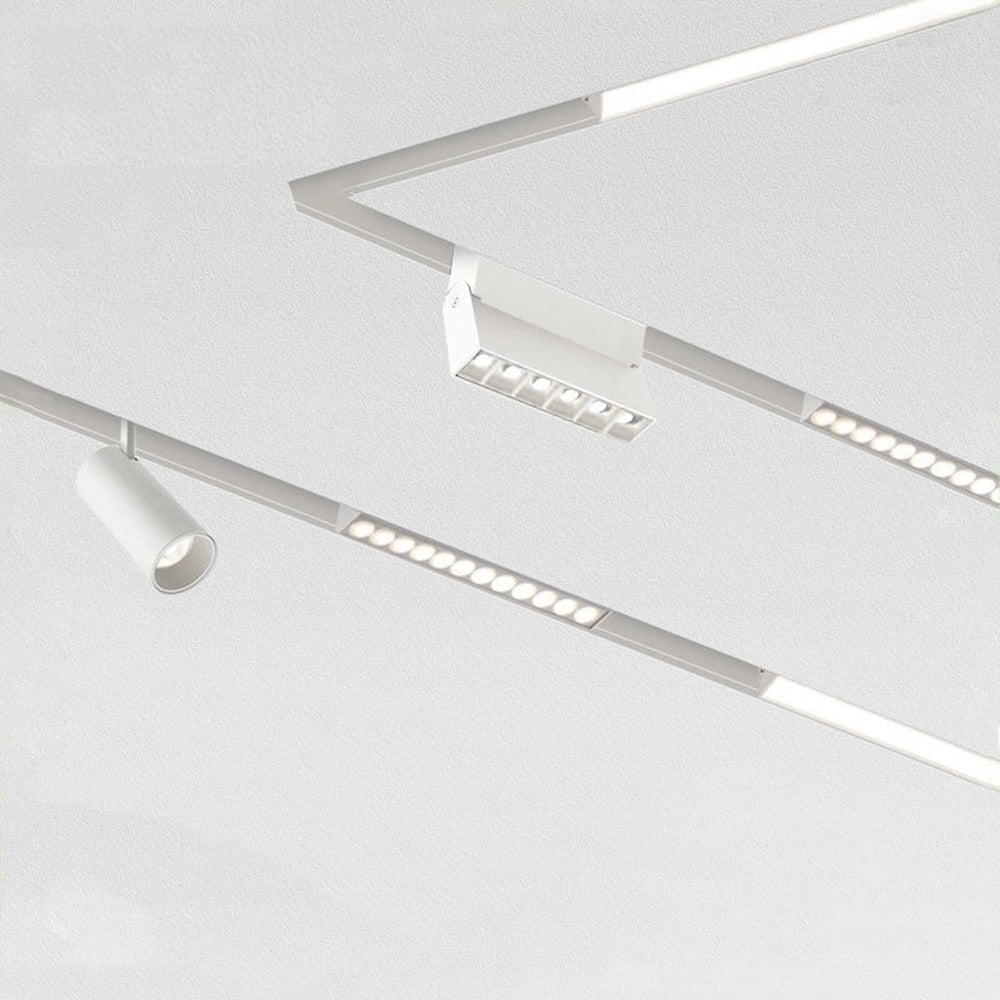

JS-TRL 10mm White Body Magnetic Track — System Overview (Linear, Spot, Grille, Track)
Rs. 2,441.54
Rs. 11,495.00 Rs. 2,441.54

JS-TRL 10mm Bespoke Series — White Body Magnetic Track Lighting · Linear, Laser & Track Spot

Rare in the Indian market — a full 10mm magnetic track range in WHITE body. Most 10mm magnetic track systems are only stocked in black; the JS-TRL Bespoke Series gives architects and interior designers a clean white profile that disappears into white ceilings and POP recesses. Track channels in 1m / 2m / 3m surface and recessed lengths, all jointers, end caps and a complete set of light modules — Linear Diffuser (prismatic), Laser Blade slim, Tiltable Laser Blade adjustable, and Track Spot. Edition: February 2026.

📘 JS-TRL 10mm White Body — Catalogue & Price List

Rare white body 10mm magnetic track range. Bespoke Linear, Lazer Slim, Tiltable Laser Blade and Track Spot modules · 48V DC · IP20 · 2-year warranty. View every module, dimension, beam angle and accessory in the catalogue with full MRP pricing.

⬇ Download Catalogue & Price List (PDF)

⭐ Why JS-TRL 10mm Bespoke White

  • White body — rare in India. Most 10mm tracks ship black; finding the same range in white usually means a 5-7 week China import. We stock the white edition.
  • Glare-Free Deep-Recessed Optics. Laser blade modules are recessed inside the housing — eliminates direct LED view from below, comfortable for galleries, restaurants and showrooms.
  • Prismatic Diffuser on Linear. 120° even wash without hotspots — main light source for living rooms and bedrooms.
  • 10mm slim profile. Track width is only 10mm in cross-section — visually disappears against the ceiling.
  • Surface + Recessed in same range. Same SKU family covers visible architectural track AND plaster-in trimless installations.
  • IP65 outdoor PSU option. Available alongside the standard IP20 SMPS 48V drivers.

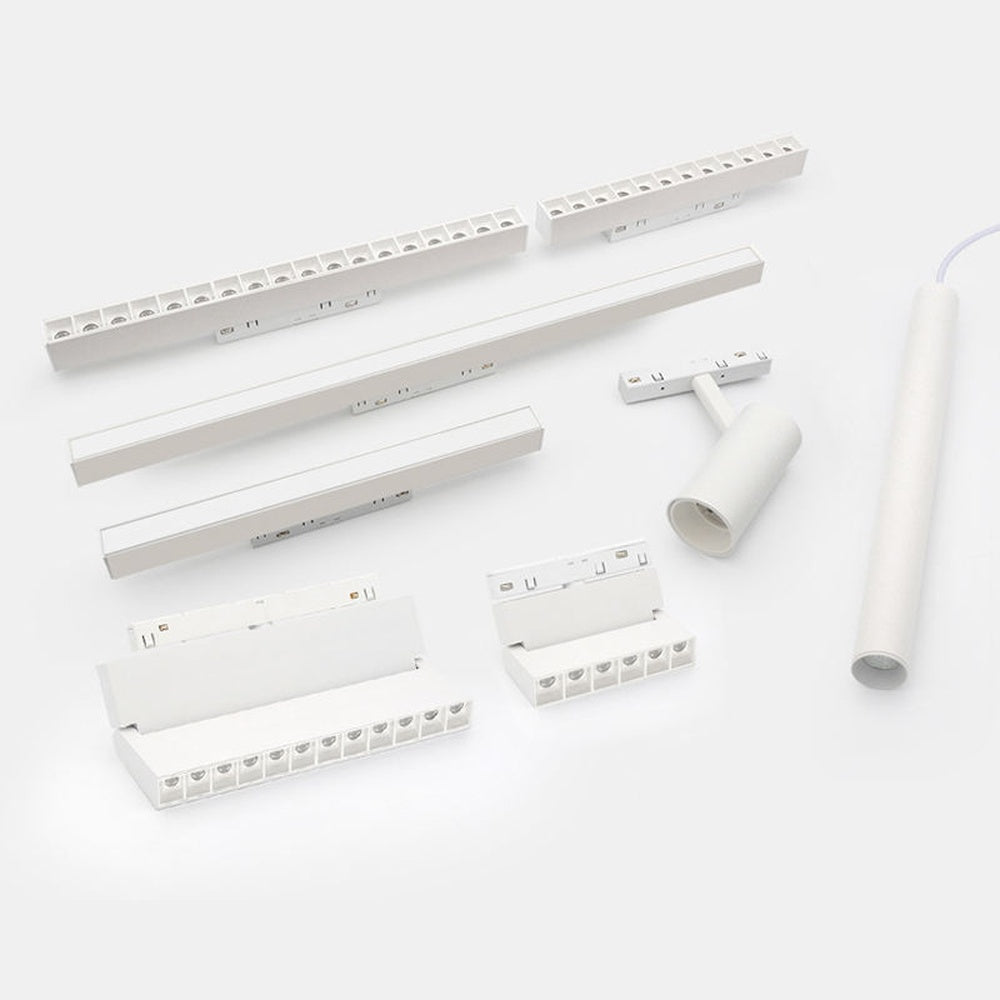

Product Range — All in White Body

1. Track Channels — Recessed & Surface (1M / 2M / 3M, White)
  • Recessed Track — 1m / 2m / 3m, plaster-in for trimless ceiling installations
  • Surface Track — 1m / 2m / 3m, visible-fixed for architectural lighting

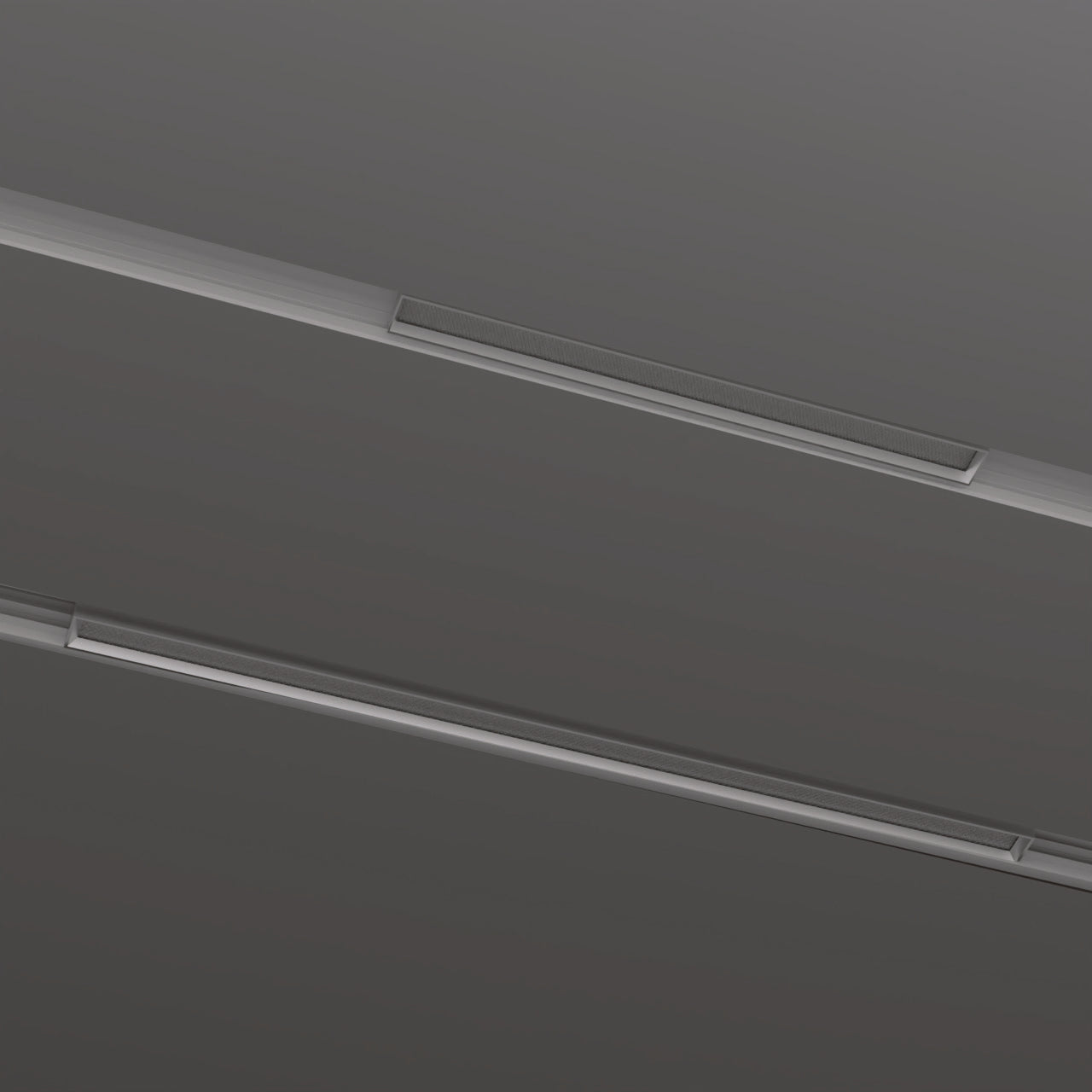

2. Bespoke Linear Diffuser — Prismatic, 120° (15W / 20W, 3K / 4K / 5K)
  • Linear 15W · 300×22×25mm · 120° prismatic diffused · 80+ CRI
  • Linear 20W · 600×22×25mm · 120° prismatic diffused · 80+ CRI

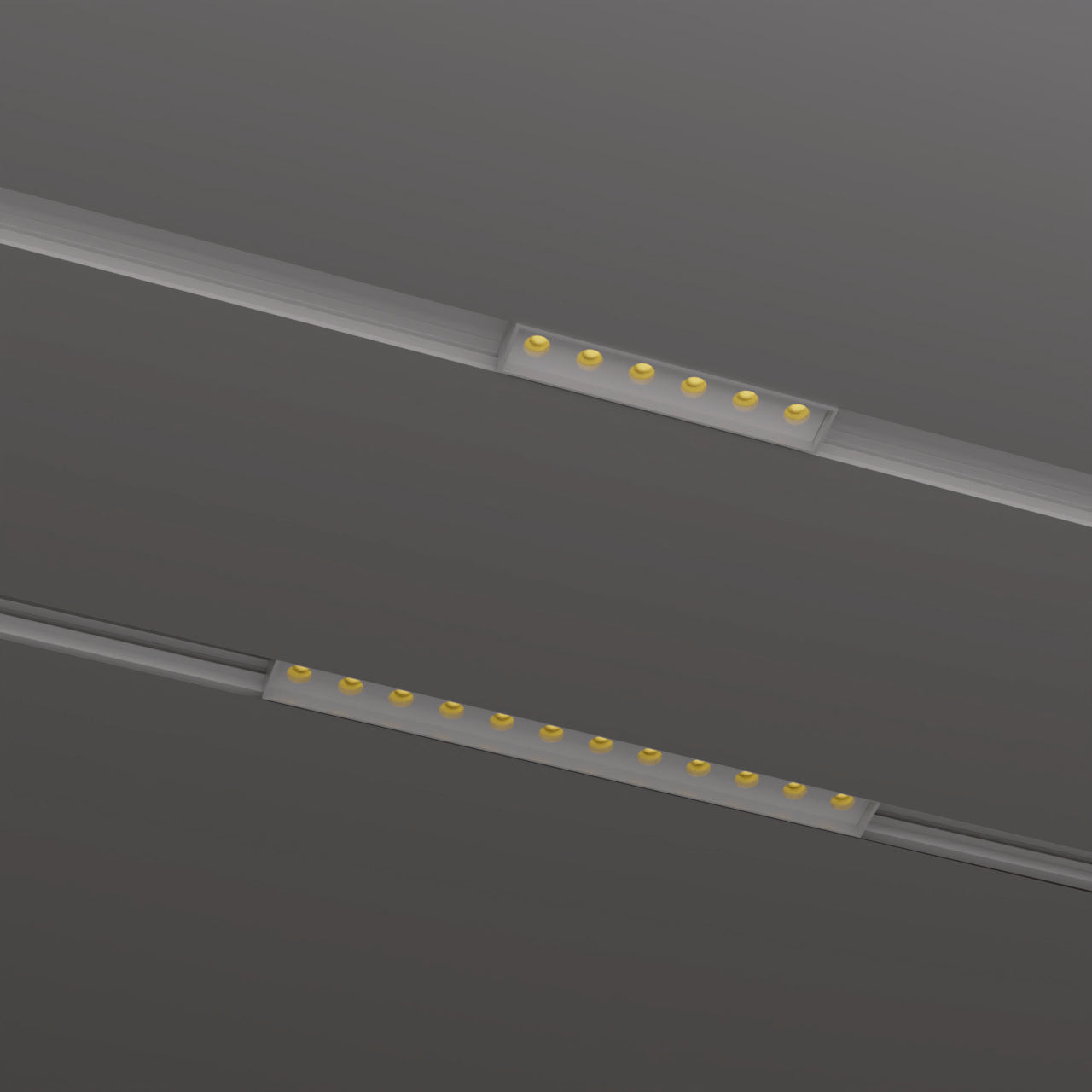

3. Bespoke Lazer — Slim Laser Blade, 36° Glare-Free (6W / 12W, 3K / 4K / 5K)
  • Lazer 6W · 112×22×25mm · 36° narrow · slim 25mm depth
  • Lazer 12W · 220×22×25mm · 36° narrow · slim 25mm depth

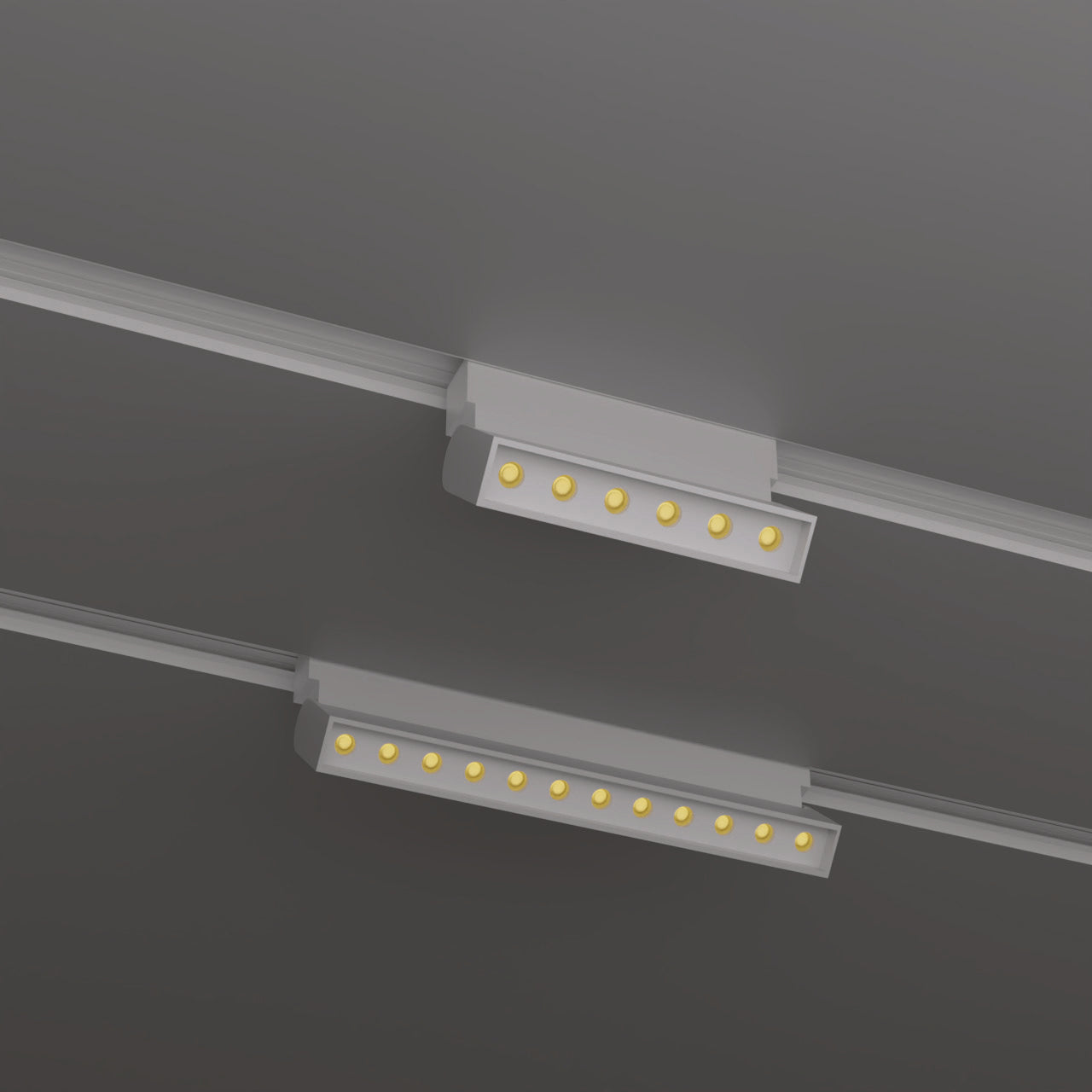

4. Tiltable Laser Blade — Deep-Recessed Laser Blade, 36° Glare-Free (6W / 12W, 3K / 4K / 5K)
  • Tiltable Laser Blade 6W · 112×22×100mm · 36° · 100mm tiltable deep housing · TILTABLE head for accent positioning
  • Tiltable Laser Blade 12W · 230×23×100mm · 36° · 100mm tiltable deep housing

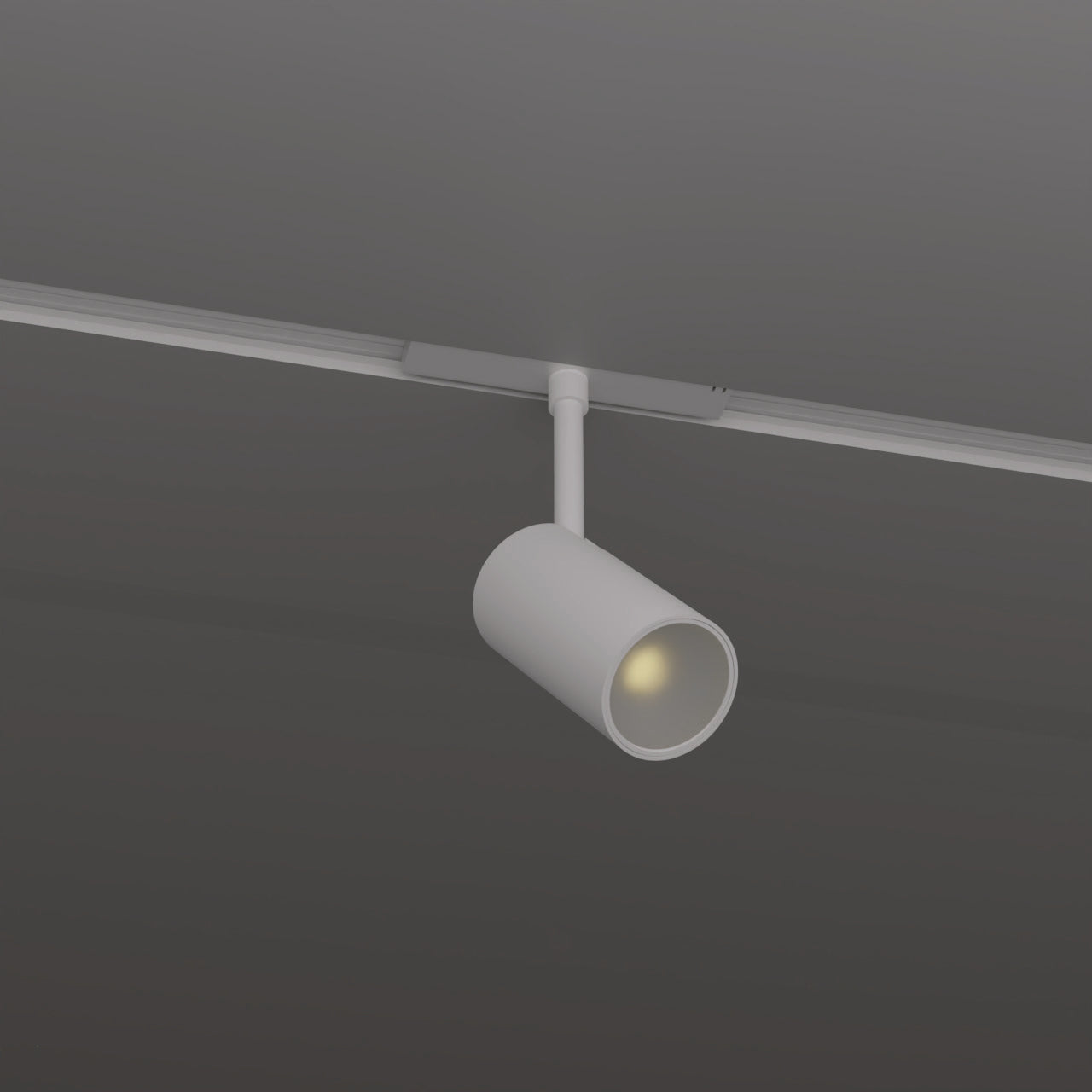

5. Bespoke Track Spot — Adjustable Spotlight (10W, 3K / 4K / 5K)
  • Track Spot 10W · Ø45×100mm · 36° beam · adjustable head for accent lighting

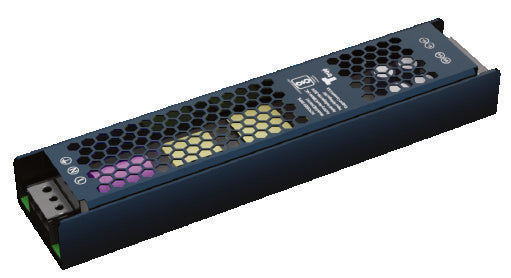

6. Power Supplies (48V DC)
  • SMPS 100W · 48V DC · IP20 indoor inline driver
  • SMPS 200W · 48V DC · IP20 indoor inline driver
  • IP65 Power Supply 200W · outdoor-rated, for kitchen / wet-area applications
7. Connectors & Accessories
  • End Cap · clean run termination
  • Straight Jointer · joins two track sections inline
  • 2-Way Jointer · 90° corner turn
  • L Jointer · wall-to-ceiling corner adapter

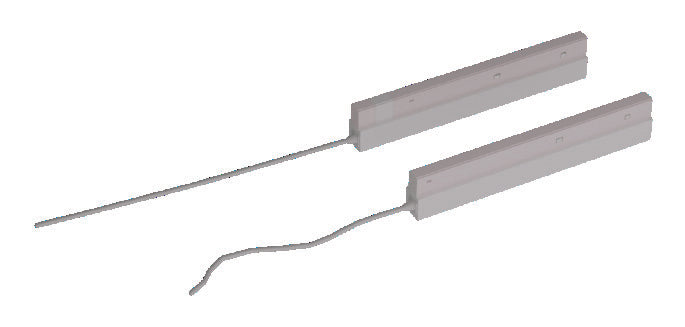

  • Power Supply Cord · feeds the track from the SMPS driver

Technical Specifications

Light Modules — Wattage, Beam & Dimensions
Module W Dimensions (mm) Beam CCT CRI
Bespoke Linear 15W 300×22×25 120° 3K/4K/5K 80+
Bespoke Linear 20W 600×22×25 120° 3K/4K/5K 80+
Bespoke Lazer 6W 112×22×25 36° 3K/4K/5K 80+
Bespoke Lazer 12W 220×22×25 36° 3K/4K/5K 80+
Tiltable Laser Blade 6W 112×22×100 36° 3K/4K/5K 80+
Tiltable Laser Blade 12W 230×23×100 36° 3K/4K/5K 80+
Bespoke Track Spot 10W Ø45×100 36° 3K/4K/5K 80+

All modules: White body · 48V DC · IP20 · Edition Feb 2026.

Track Channels + Power Supplies + Accessories
Item Length / Spec
Recessed Track 1M / 2M / 3M 1000 / 2000 / 3000mm · Plaster-in trimless
Surface Track 1M / 2M / 3M 1000 / 2000 / 3000mm · Surface-mounted
End Cap Clean termination
Straight Jointer / 2-Way Jointer / L Jointer Inline / 90° / wall-ceiling
Power Supply Cord Driver-to-track feed
SMPS 48V DC 100W or 200W · IP20
IP65 Power Supply 200W Outdoor / wet-area rated

How to Order — Plan Your White 10mm Track in 6 Steps

  1. Layout — Sketch the track path. Note total run length + module positions.
  2. Mount Type — Recessed (plaster-in, trimless) or Surface (visible architectural)?
  3. Track Lengths — Mix 1m / 2m / 3m to your run total. Add jointers + end caps.
  4. Light Modules — Choose Linear (ambient wash), Lazer (slim accent), Tiltable Laser Blade (deep recessed accent), or Track Spot (adjustable). Pick 3K / 4K / 5K CCT per module.
  5. Driver — Sum total module wattage, add 20% headroom. 100W or 200W SMPS for indoor; IP65 PSU for kitchen/wet-area.
  6. Order on WhatsApp — Share your BOQ; we verify wattages, suggest optimisations, and ship from Delhi.

Need Help Designing or Ordering?

Product Description Details
Beam angle 36°, 120°
Body colour White
Cri 80+
Dimming Single Color (3K/4K/5K) — no tunable/smart in this white edition
Driver SMPS 48V DC inline · 100W / 200W IP20 · 200W IP65 outdoor
Fixing type Surface Mount, Recessed (plaster-in trimless)
Input voltage 48V DC
Ip rating IP20 (track modules) / IP65 (outdoor PSU option)
Led colour temperature 3000K Warm White, 4000K Neutral White, 5000K Cool White
Led type SMD (premium)
Length 112mm, 220mm, 230mm, 300mm, 600mm, 1m, 2m, 3m
Product family JS-TRL
Type of item 10mm Magnetic Track Lights
Warranty 2 Years
Wattage 6W, 10W, 12W, 15W, 20W, 100W, 200W
Width 10mm (track)
