JSRC In-Ground Asymmetrical LED Uplighter | 6W–12W | 220V | IP67 | 2700K–6000K | 45°–90° Asymmetrical Beam | COB LED | SS304 Body | IK08 | Landscape Wall Grazing Light | 2 Year Warranty
Couldn't load pickup availability
Product Description

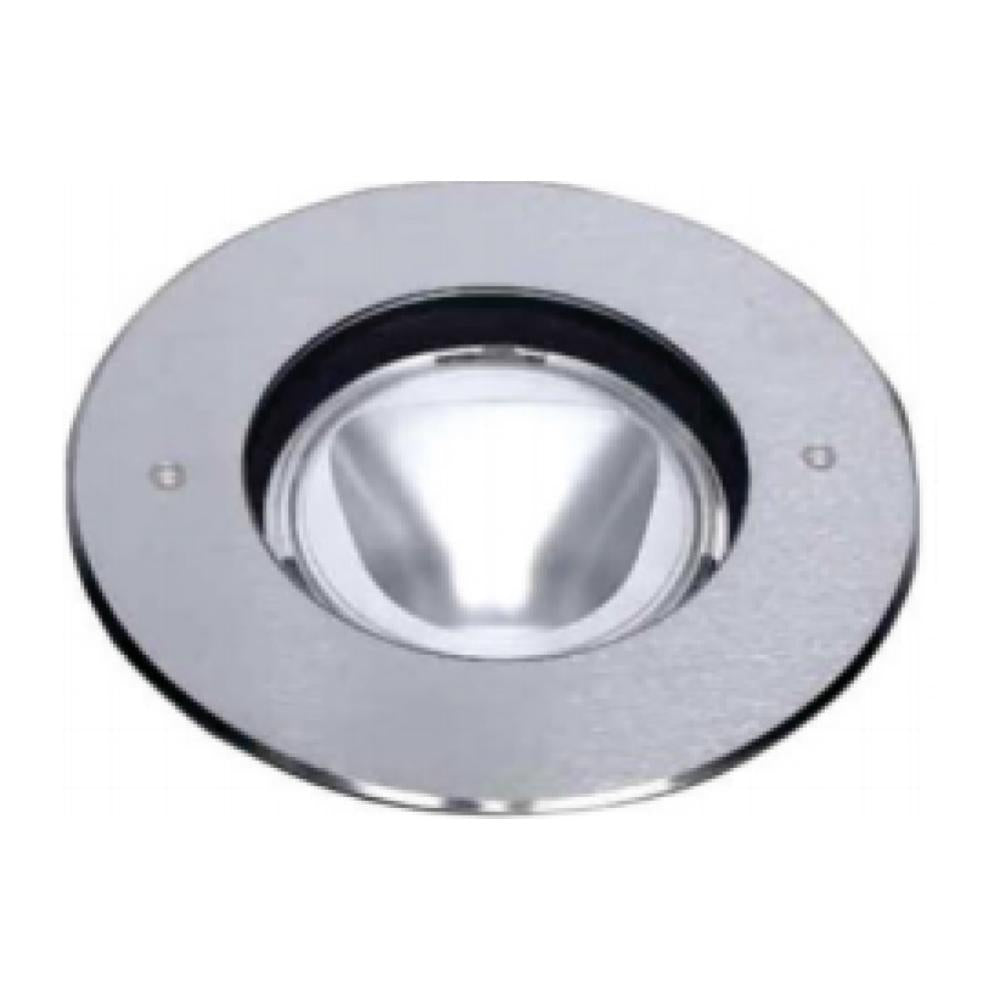

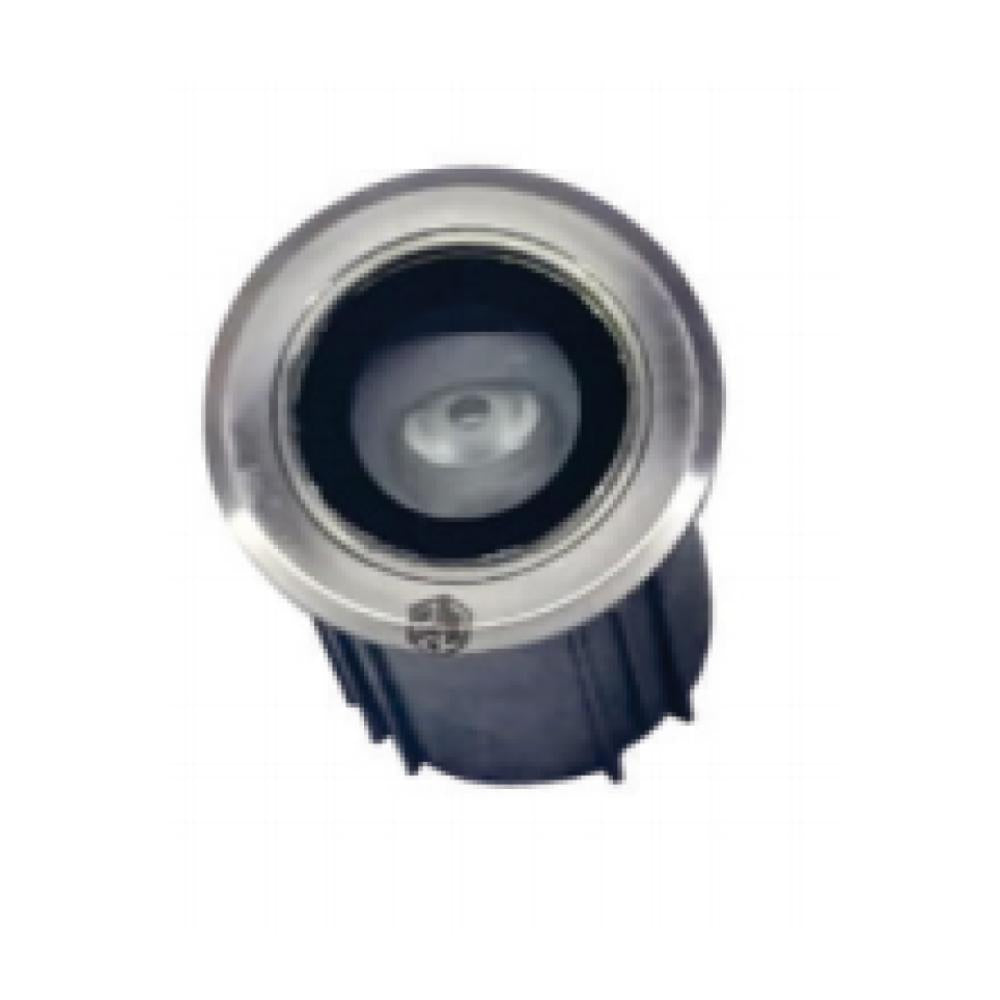

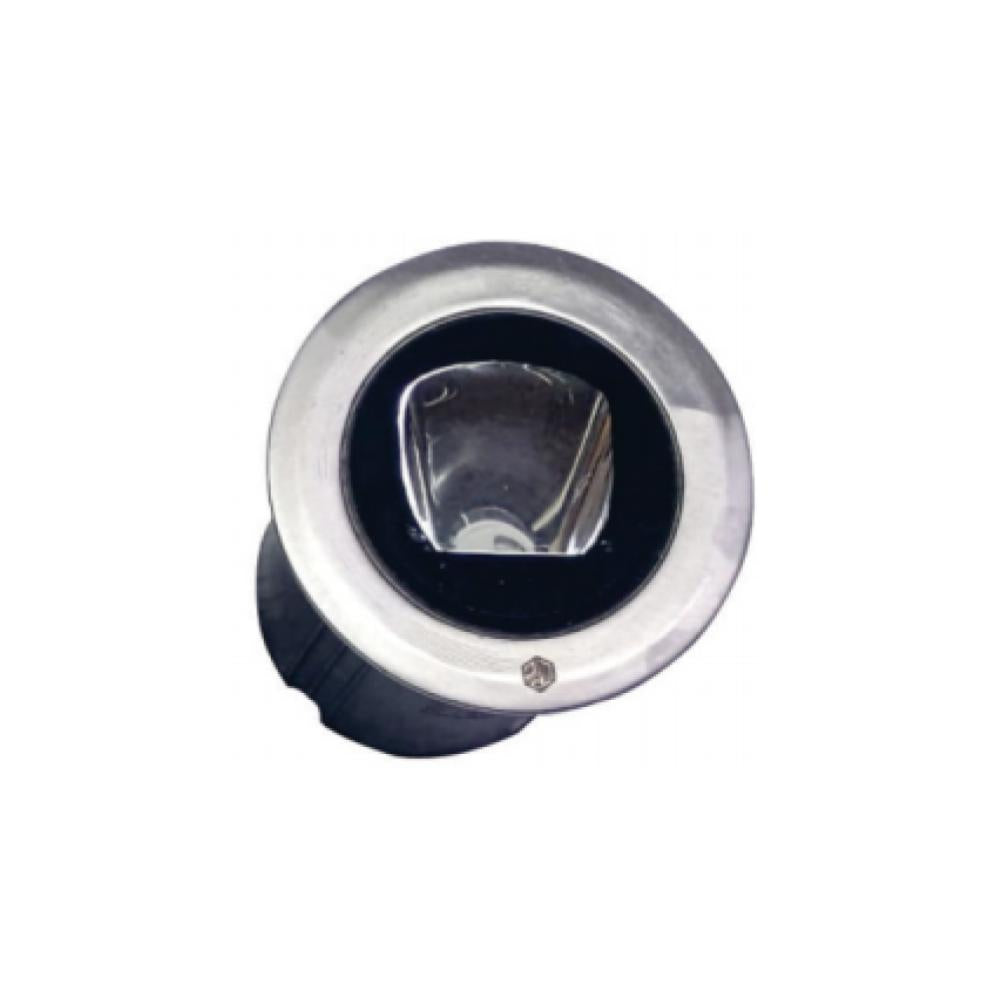

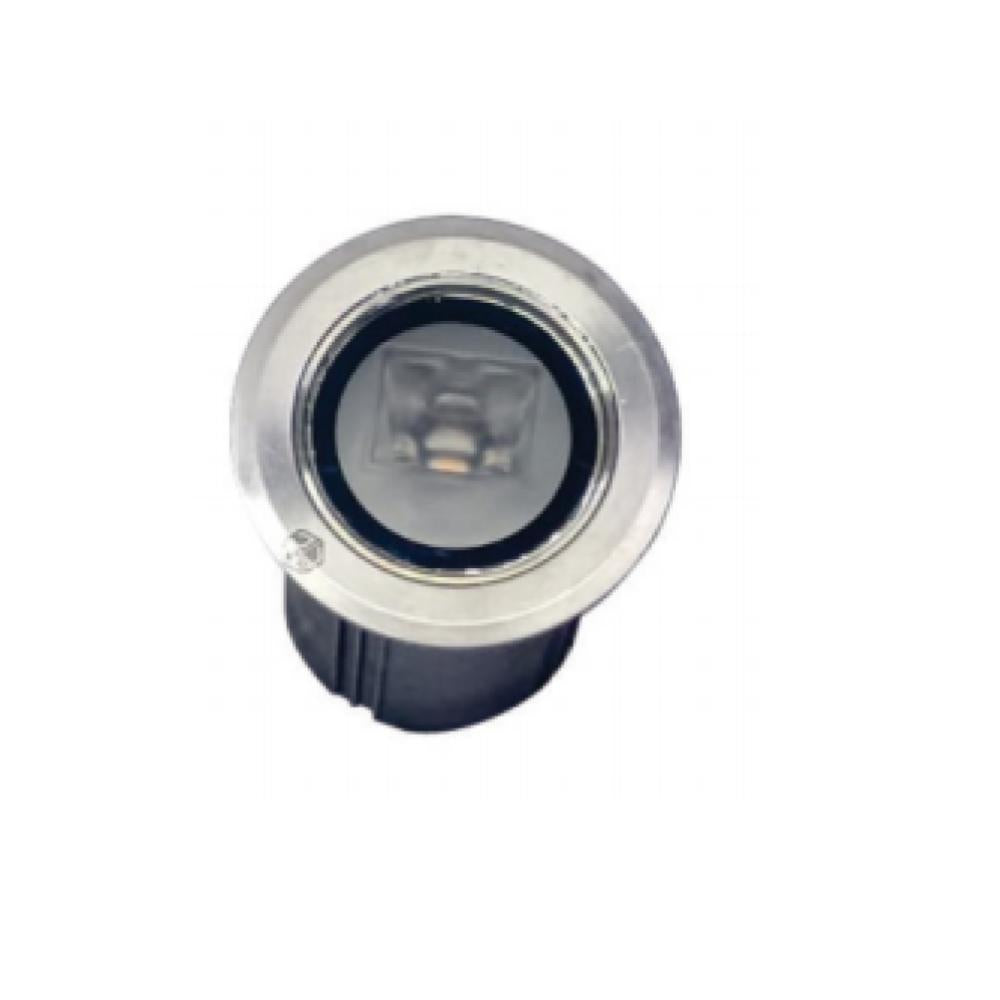

JSRC Stainless Steel In-Ground Asymmetrical LED Uplighter
The JSRC Stainless Steel In-Ground Asymmetrical LED Uplighter is a specialized architectural lighting fixture designed for wall grazing, façade lighting, landscape highlighting, and outdoor architectural illumination.

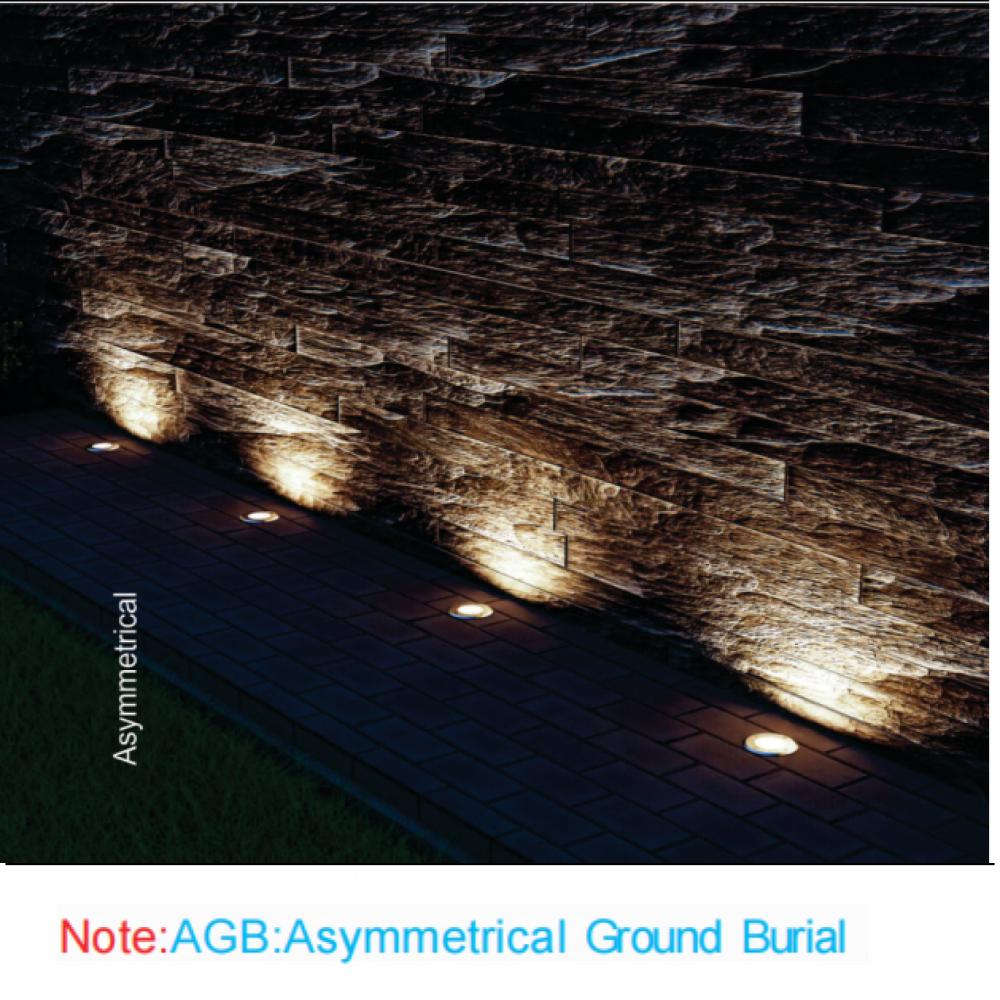

Unlike standard uplighters, this fixture features an asymmetrical optical design, allowing light to be directed toward vertical surfaces such as walls, monuments, boundary walls, and architectural facades. This creates a smooth wall grazing effect while minimizing glare and light spill.
Constructed using a durable SS-304 stainless steel body, the luminaire is engineered to withstand harsh outdoor conditions. Its recessed in-ground installation allows the fixture to sit flush with the ground, making it suitable for landscape pathways, building perimeters, and architectural installations.
The fixture uses high-efficiency COB LEDs and is available in 6W, 9W, and 12W power options, delivering strong illumination for architectural surfaces.
With IP67 waterproof protection, the luminaire provides reliable performance in outdoor environments including rain, dust, and moisture.
Key Features
• Architectural asymmetrical in-ground uplighter
• Designed for wall grazing and façade illumination
• SS-304 stainless steel body construction
• COB LED light source for high output and uniform beam
• Power options: 6W / 9W / 12W
• Input voltage: 220VAC
• IP67 waterproof protection
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• 5mm clear toughened glass
• Optional honeycomb louvre for glare control
• 2 Years Warranty
LED Colour Options
Available in multiple colour temperatures:
• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
Beam Angle Options
Asymmetrical beam angles designed for wall grazing:
• 45°
• 60°
• 90°
• Asymmetrical beam distribution
These optics allow the fixture to evenly illuminate vertical surfaces such as building facades and boundary walls.
Construction & Materials
• Body: SS-304 Stainless Steel
• Pre-Mount Housing: ABS casing
• Glass: 5mm clear toughened glass
• Ingress Protection: IP67
• Impact Protection: IK08
• LED Type: High efficiency COB LED
Electrical & Installation
• Input Voltage: 220VAC
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 500mm length
• Accessories: IP67 / IP68 connectors available
Applications
Ideal for outdoor architectural lighting such as:

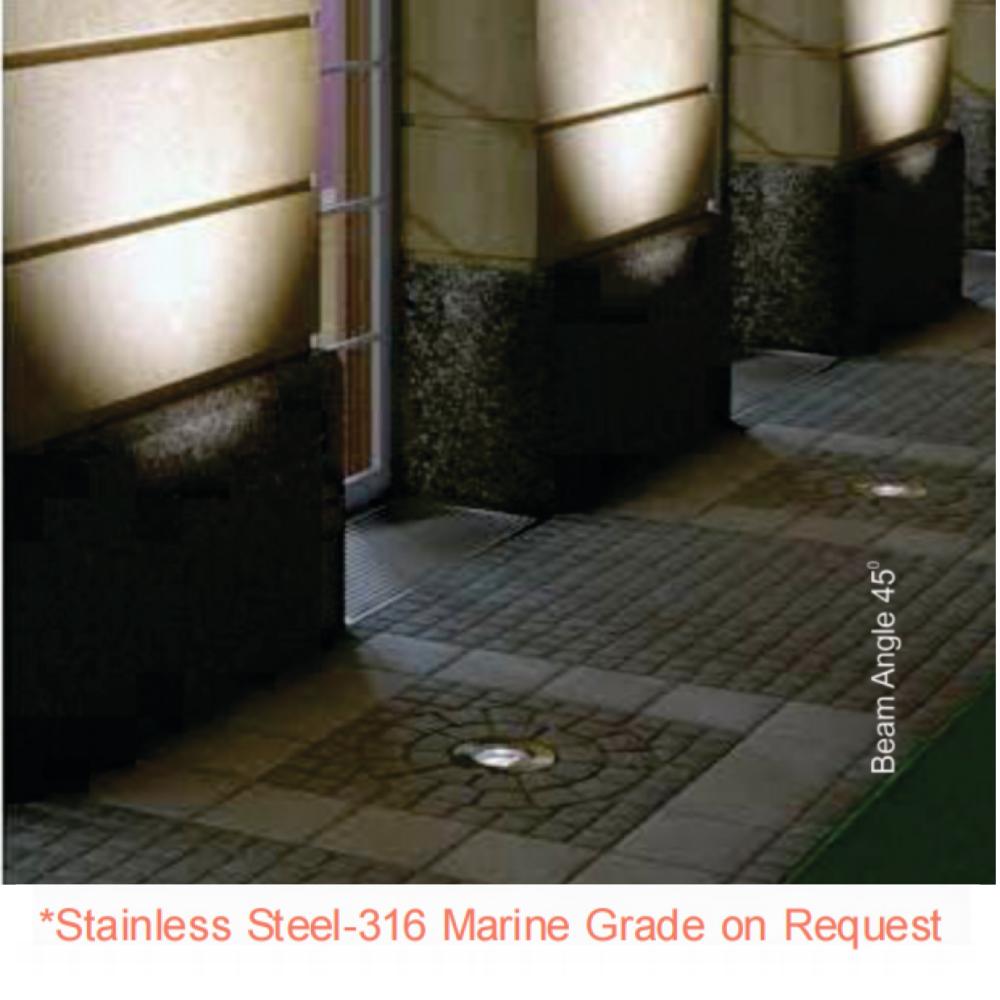

• Wall grazing for building facades
• Boundary wall lighting
• Monument illumination
• Landscape architectural lighting
• Garden and pathway edges
• Hotels and resorts
• Commercial outdoor lighting

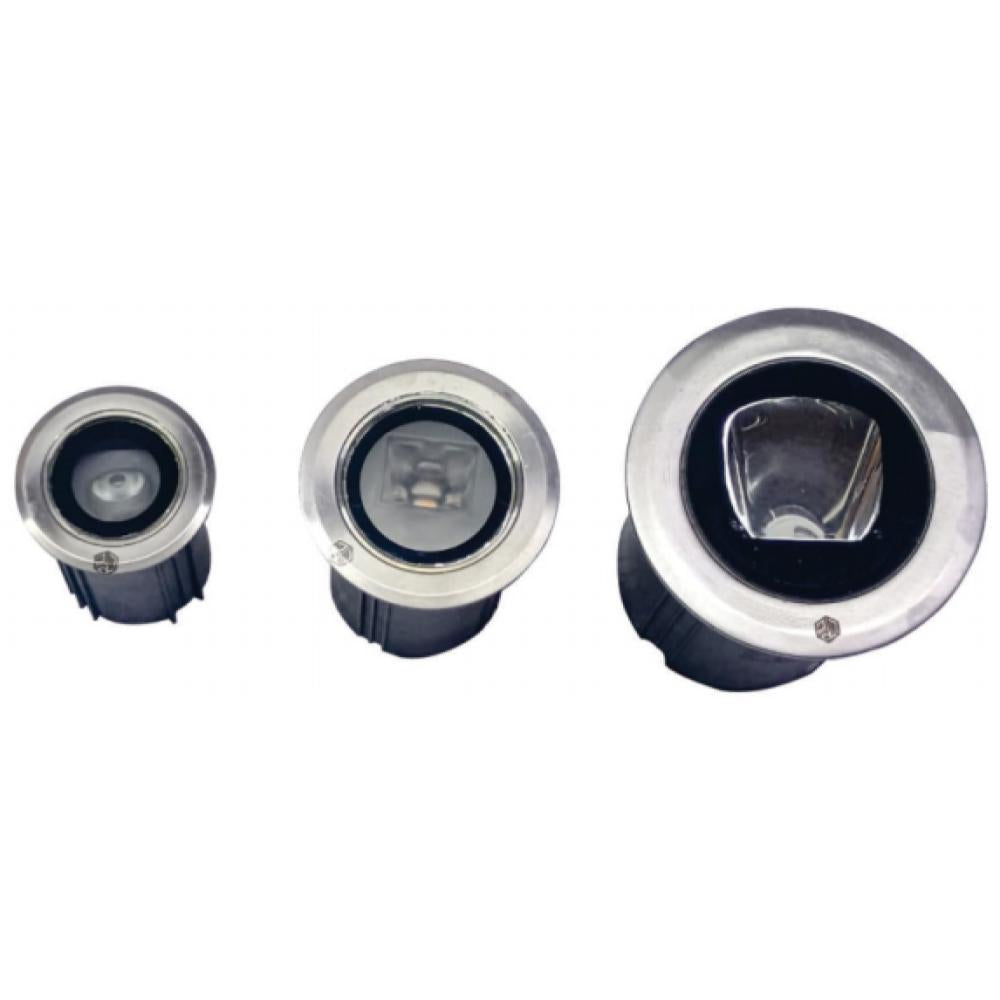

Technical Size & Installation Chart
| Size & Wattage | Input Voltage & IP Rating | Dimensions (Without Casing) |
|---|---|---|
| 6W COB – 90mm | 220VAC (IP67) | OD-90 / H-100 / Cut-65 |
| 9W COB – 90mm | 220VAC (IP67) | OD-90 / H-120 / Cut-65 |
| 12W COB – 125mm | 220VAC (IP67) | OD-125 / H-120 / Cut-90 |
| Product Description | Details |
|---|---|
| Body colour | Silver |
| Fixing type | Recessed |
| Product family | JSRC |
| Type of item | Asymmetrical LED In-Ground Burial Light |
| Warranty | 2 years |
