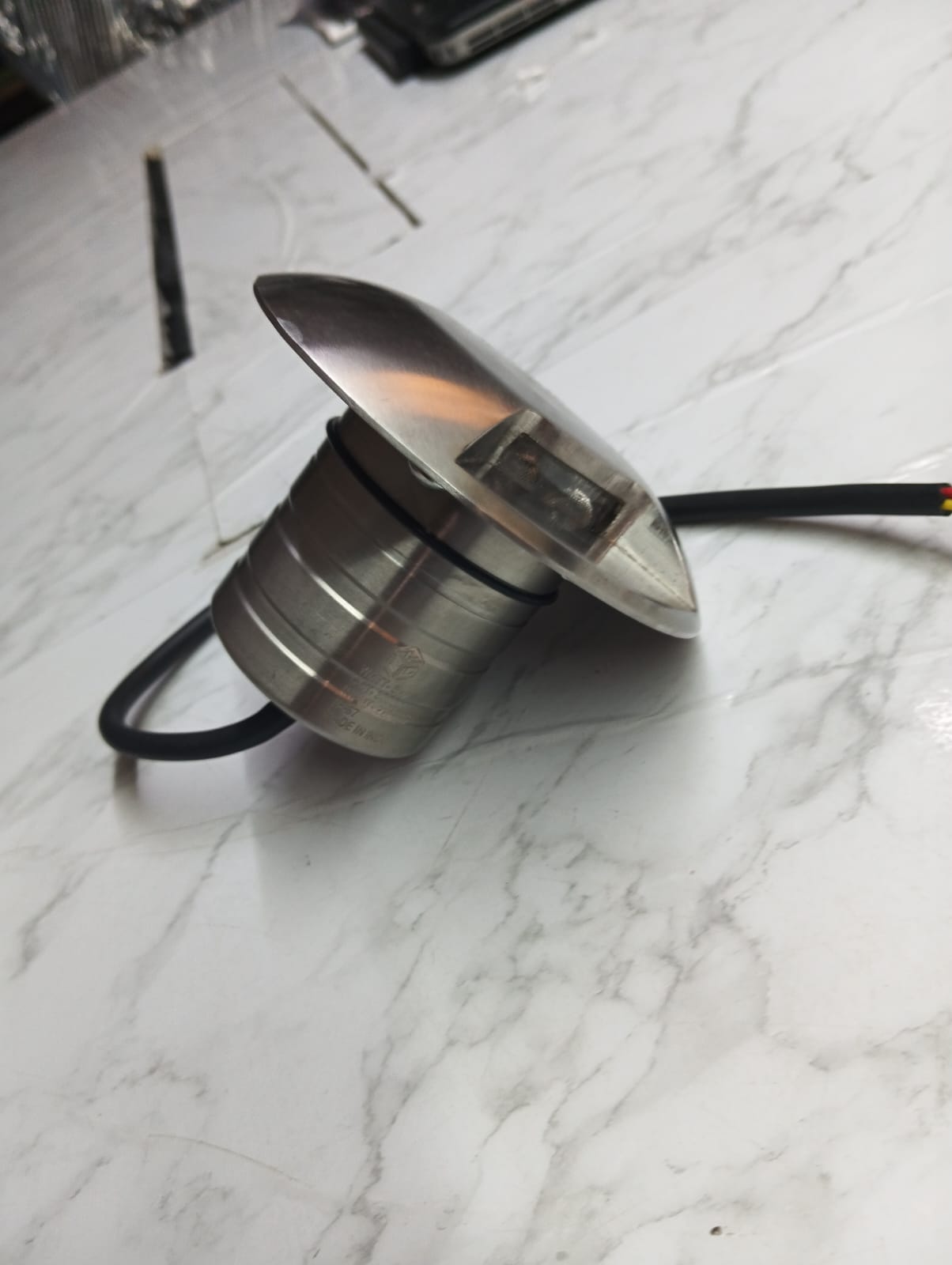

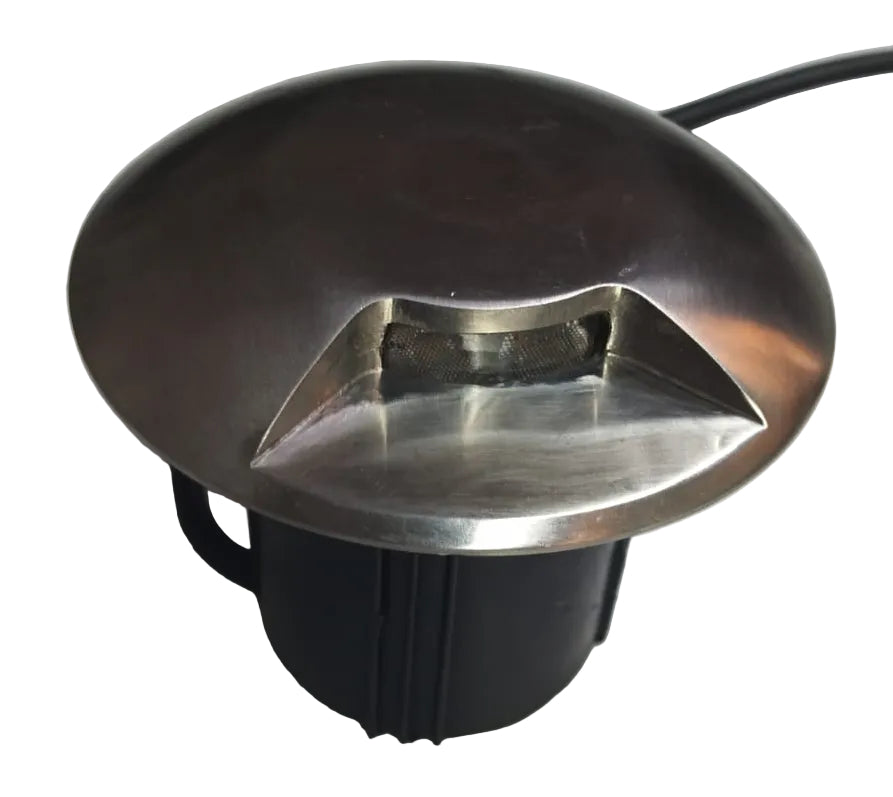

JSRC In-Ground Side Emitting LED Light
The JSRC In-Ground Side Emitting LED Light is a specialized architectural lighting fixture designed for pathway lighting, landscape edges, driveways, and outdoor ambient illumination.
Unlike conventional uplighters, this fixture emits light horizontally (side emitting), making it ideal for illuminating walkways, garden paths, steps, and boundary edges without glare.
The luminaire is available in both walk-over and drive-over variants, making it suitable for pedestrian areas as well as vehicular zones.
Constructed with powder-coated aluminium body or full SS-304 stainless steel body options, the fixture is designed to withstand outdoor conditions and mechanical load. It is also available in SS-316 marine grade on request.
With IP67 protection, the light is resistant to dust and water, making it ideal for landscape and outdoor installations.
Key Features
• In-ground side emitting architectural light
• Designed for pathways, steps, and landscape lighting
• Horizontal light output (glare-free illumination)
• Available in single side, double side, 3-side, and 4-side light output
• Walk-over and drive-over variants available
• Body options: Aluminium / SS-304 Stainless Steel
• Made in India
• IP67 waterproof protection
• Available wattages: 2W / 6W / 10W
• Input voltage: 220VAC / 12VDC / 24VDC
• High efficiency SMD / COB LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK10 (heavy-duty drive-over models)
• LED lifespan: 50,000 hours
• 5mm clear toughened glass
• IP67 / IP68 connectors available on request
• High temperature silicon cable (500mm length)
• 2 Years Warranty
LED Colour Options
Available in multiple colour temperatures:
• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
Beam & Light Distribution
• 1 Side Emitting
• 2 Side Emitting
• 3 Side Emitting
• 4 Side Emitting
Designed for uniform horizontal light spread across pathways and surfaces.
Construction & Materials
• Body: Powder coated aluminium / SS-304 Stainless Steel
• Optional: SS-316 Marine Grade (on request)
• Pre-Mount Housing: ABS casing
• Glass: 5mm clear toughened glass
• Ingress Protection: IP67
• Impact Protection: Up to IK10 (Drive Over models)
• LED Type: SMD / COB LEDs
Electrical & Installation
• Input Voltage: 220VAC / 12VDC / 24VDC
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 500mm length
• Accessories: IP67 / IP68 connectors available
Dimming & Control Options
Supports advanced lighting control systems:
• Triac dimming
• PWM dimming
• 1–10V dimming
• DALI dimming
Applications
Ideal for outdoor architectural and landscape lighting:
• Pathways & walkways
• Garden edges
• Driveways (drive-over models)
• Steps & staircases
• Landscape lighting
• Hotels & resorts
• Residential outdoor areas
• Commercial outdoor projects
Technical Dimensions & Model Details
| Item No | Watt | Dimensions (OD x Cut-out x Height) | Remarks |
|---|---|---|---|
| AL-Body Walk Over – 10W – 170mm | 10W | OD 170mm x Cut 90mm x H 80mm | Aluminium Body – Walk Over |
| AL-Body Walk Over – 2W – 60mm | 2W | OD 60mm x Cut 45mm x H 75mm | Aluminium Body – Walk Over (With Housing) |
| SS-Body Drive Over – 6W – 118mm | 6W | OD 118mm x Cut 75mm x H 90mm | Stainless Steel – Drive Over |
| SS-Body Drive Over – 6W x2 – 118mm | 12W | OD 118mm x Cut 75mm x H 90mm | Stainless Steel – Drive Over |
| SS-Body Drive Over – 4W – 90mm | 4W | OD 90mm x Cut 65mm x H 90mm | Stainless Steel – Drive Over |
| SS-Body Drive Over – 4W x2 – 90mm | 8W | OD 90mm x Cut 65mm x H 90mm | Stainless Steel – Drive Over |
| SS-Body Drive Over – 6W – 150mm | 6W | OD 150mm x Cut — x H 90mm | Stainless Steel – Drive Over |
| SS-Body Drive Over – 6W x2 – 150mm | 12W | OD 150mm x Cut 90mm x H 80mm | Stainless Steel – Drive Over |
Notes
• Walk Over models are suitable for pedestrian pathways
• Drive Over models are designed for vehicular load applications
• Dimensions include Outer Diameter (OD), Cut-out size, and Height
• Some models may require external housing depending on installation
• Ensure installation using IP-rated connectors for outdoor durability
| Product Description | Details |
|---|---|
| Body colour | Silver |
| Body material | Steel |
| Fixing type | Recessed |
| Product family | JSRC |
| Type of item | Steel Body In-Ground Burial Light |
| Warranty | 2 years |
