JSRC Tiltable In-Ground Directional LED Uplighter | 3W–18W | 220V / 12V / 24V | IP67 | 2700K–RGBW | 15°–47° Beam | Adjustable Directional Head | SS304 Ring | IK08 | 2 Year Warranty
Couldn't load pickup availability

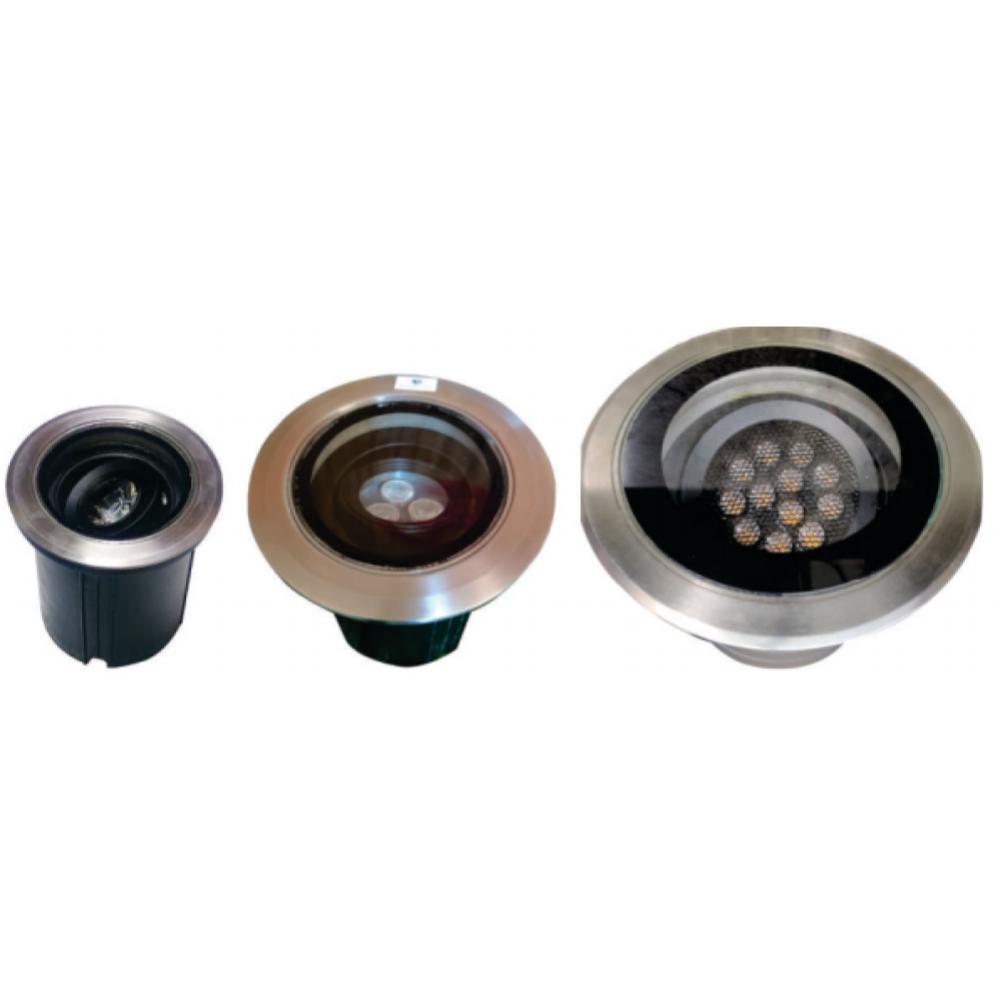

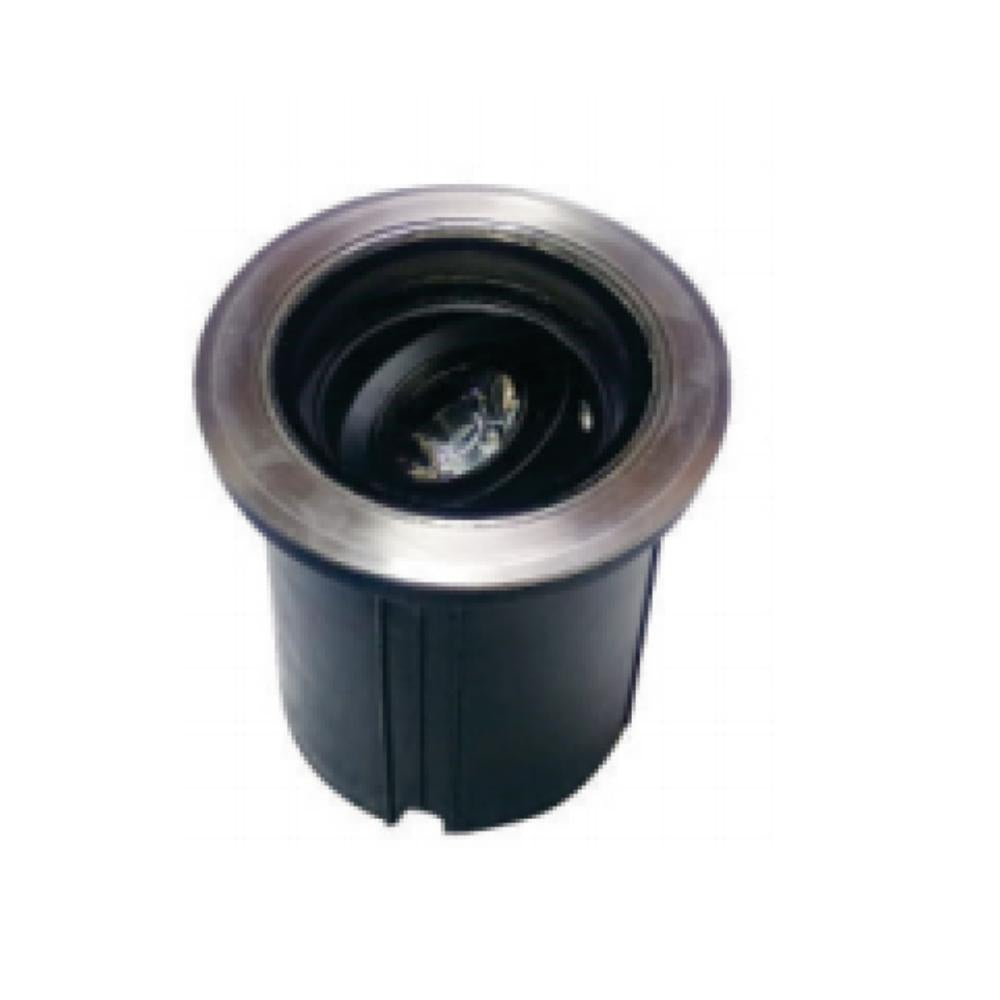

JSRC Stainless Steel In-Ground Directional LED Uplighter
The JSRC Stainless Steel In-Ground Directional LED Uplighter is a versatile recessed outdoor lighting fixture designed for landscape lighting, tree uplighting, façade highlighting, and architectural accent lighting.
Unlike standard uplighters, this luminaire features a directional adjustable light head, allowing the beam to be aimed precisely toward trees, columns, sculptures, or architectural elements. This provides greater flexibility for highlighting specific features in landscape and architectural lighting projects.
The fixture is constructed with a die-cast aluminium body and SS-304 stainless steel ring, providing excellent durability and corrosion resistance for long-term outdoor use. Its recessed installation allows the light to sit flush with the ground surface, making it suitable for gardens, pathways, building perimeters, and landscape zones.
Using high efficiency SMD LEDs, the fixture is available in 3W, 6W, 9W, and 18W power options, allowing lighting designers to select the appropriate output for different applications.
With IP67 waterproof protection, the luminaire ensures reliable performance in outdoor environments exposed to dust, rain, and moisture.
Key Features
• Directional in-ground architectural uplighter
• Adjustable beam direction for targeted accent lighting
• Die-cast aluminium body with SS-304 stainless steel ring
• Power options: 3W / 6W / 9W / 18W
• Input Voltage: 220VAC / 12VDC / 24VDC (optional)
• IP67 waterproof protection
• High efficiency SMD LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• 5mm clear toughened glass

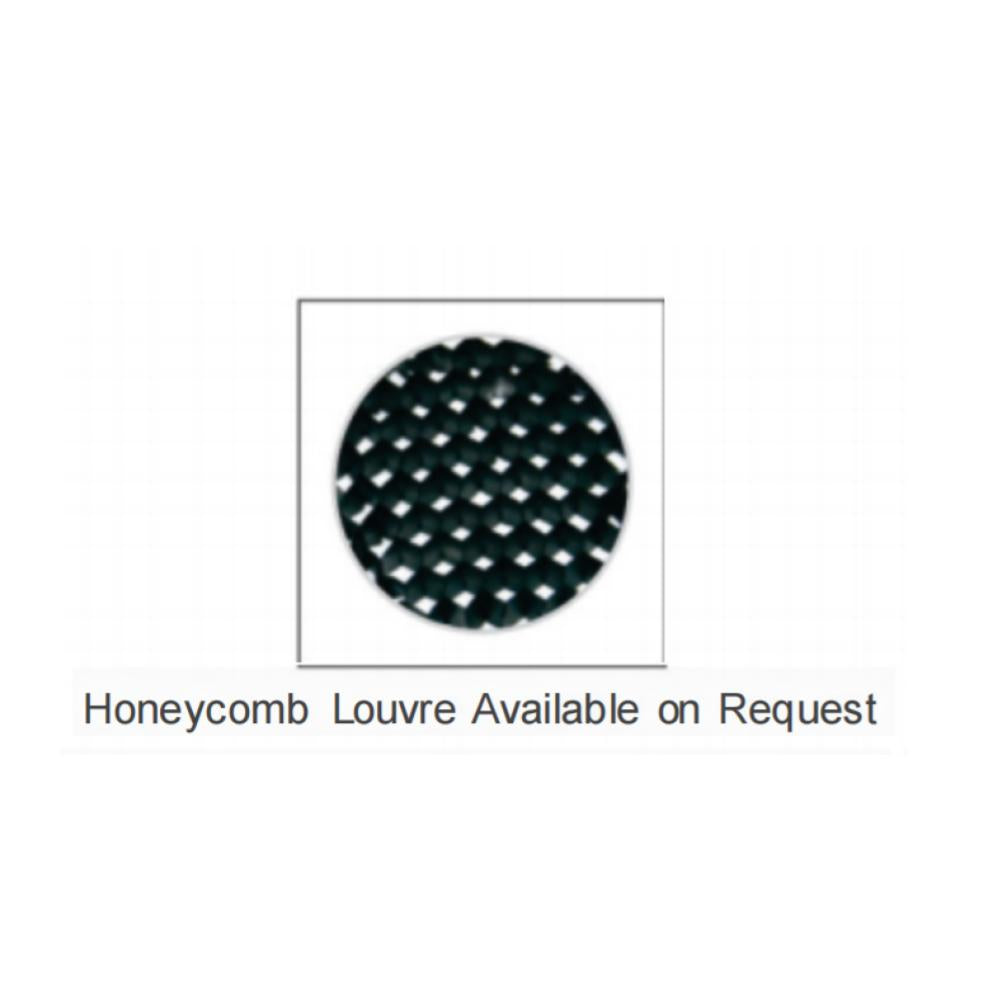

• Optional honeycomb louvre for glare control
• 2 Years Warranty
LED Colour Options
Available in multiple colour temperatures and colour options:
• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• Red
• Green
• Blue
• Amber
• RGB
• RGBW

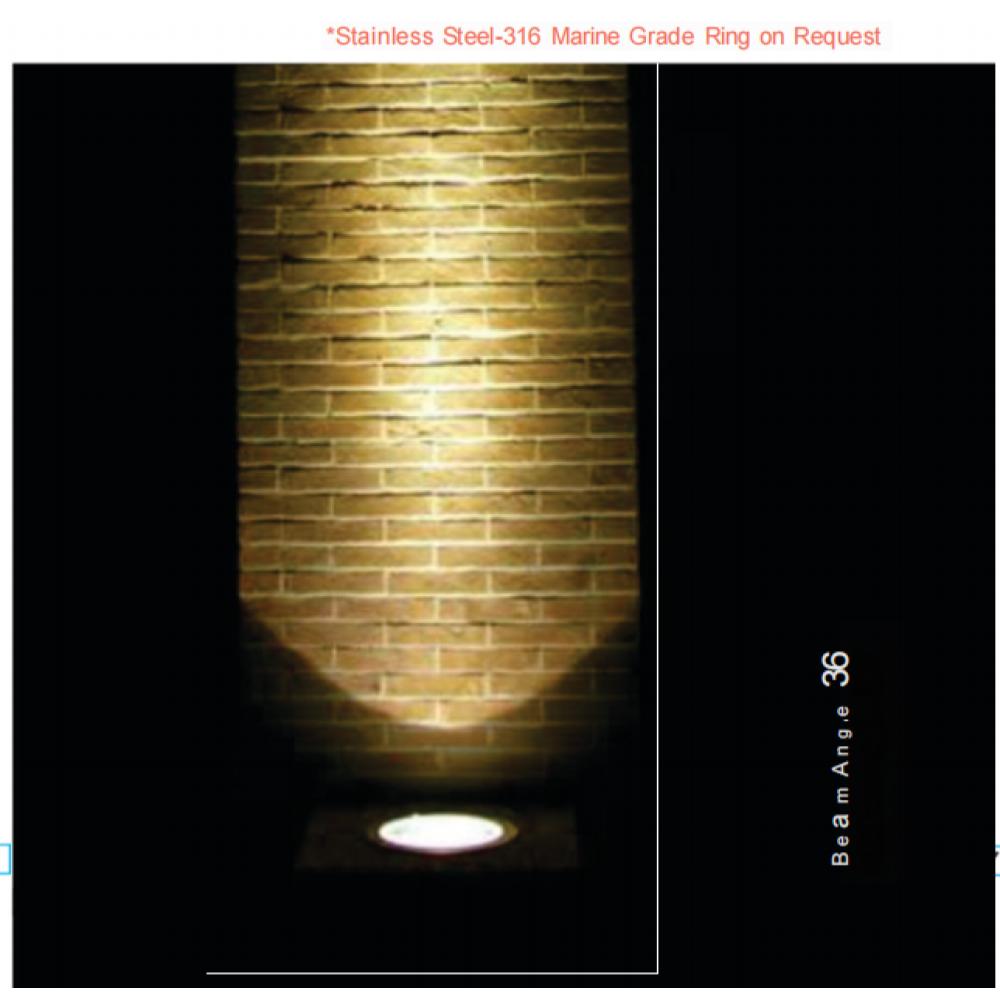

Beam Angle Options
Available beam angles include:
• 15°
• 24°
• 36°
• 47°
These beam angles allow designers to create focused accent lighting or broader illumination depending on the application.
Construction & Materials
• Body: Die-cast aluminium housing
• Front Ring: SS-304 stainless steel
• Pre-Mount Housing: ABS casing
• Glass: 5mm clear toughened glass
• Ingress Protection: IP67
• Impact Protection: IK08
• LED Type: High efficiency SMD LEDs
Electrical & Installation
• Input Voltage: 220VAC / 12VDC / 24VDC (optional)
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 500mm length
• Accessories: IP67 / IP68 connectors available
Applications
Ideal for outdoor architectural lighting such as:
• Tree uplighting
• Landscape lighting
• Building façade illumination
• Monument lighting
• Garden pathways
• Outdoor architectural highlights
• Hotels & resorts
• Residential landscape lighting
Technical Size & Installation Chart
| Size & Wattage | Input Voltage & IP Rating | Dimensions (Without Casing) |
|---|---|---|

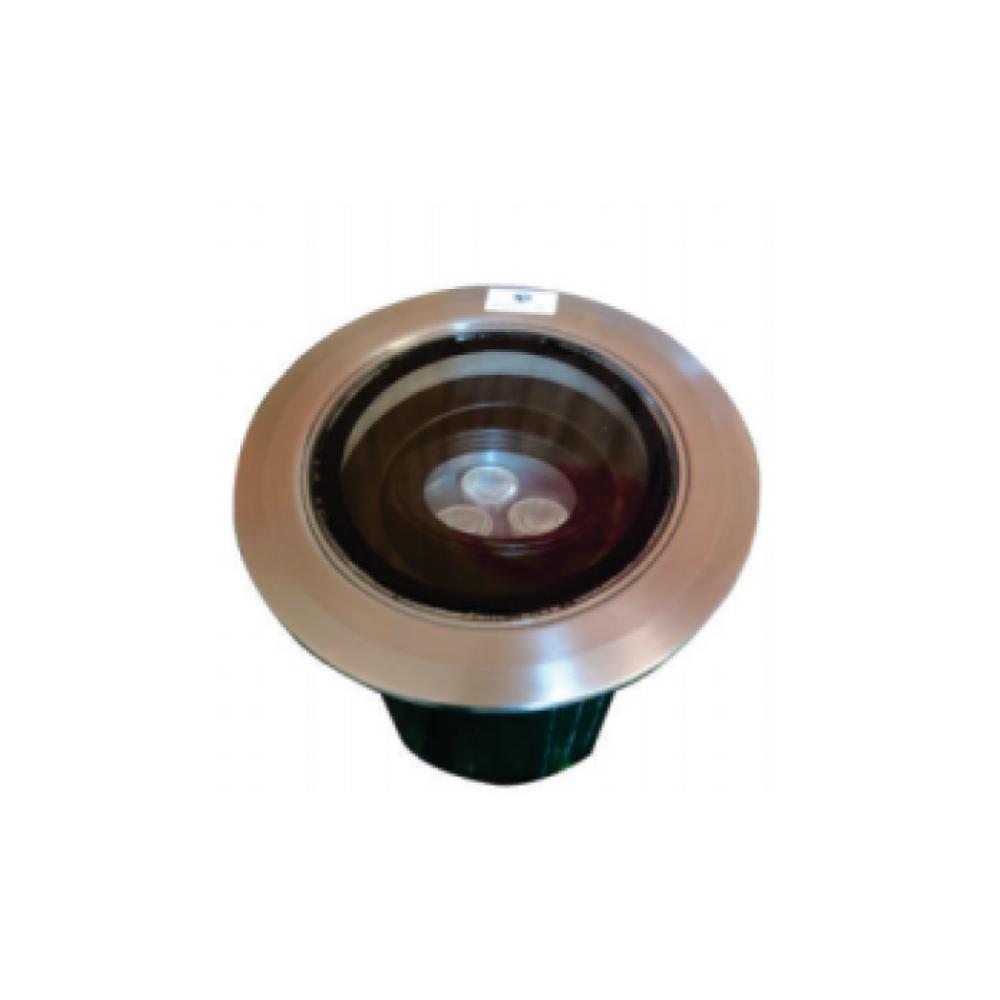

| 9W (3LED x 3W) – 125mm | 220vac/12vdc/24vdc (IP67) | OD-125 / H-120 / Cut-90 |

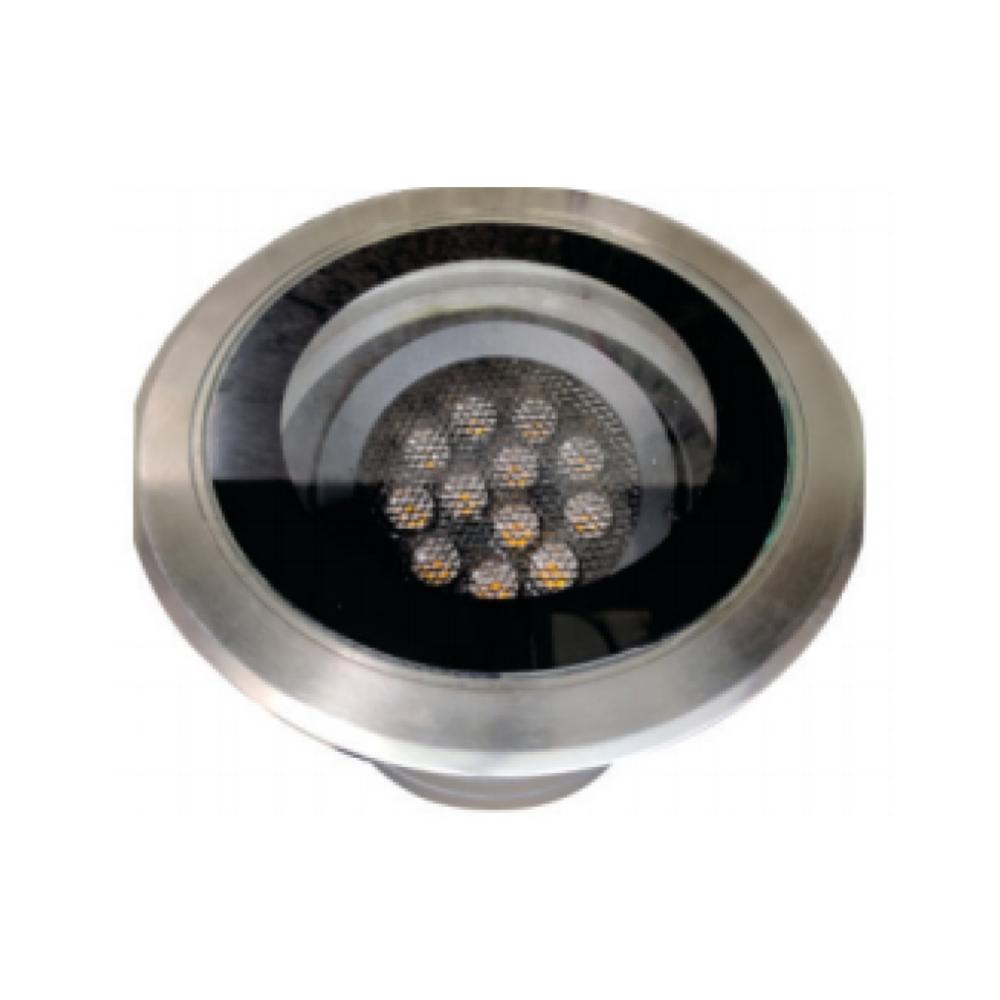

| 18W (9LED x 2W) – 180mm | 220vac/12vdc/24vdc (IP67) | OD-180 / H-180 / Cut-150 |
| Product Description | Details |
|---|---|
| Body colour | Silver |
| Body material | Steel |
| Fixing type | Recessed |
| Product family | JSRC |
| Type of item | Tiltable In-Ground Burial Light |
| Warranty | 2 years |
