JSRC Stainless Steel Surface Mounted Underwater Pool Light | 3W–18W | 12V / 24V DC | IP68 | 2700K–RGBW | SS304 Body | Swimming Pool Light | Made in India | 2 Year Warranty
Couldn't load pickup availability

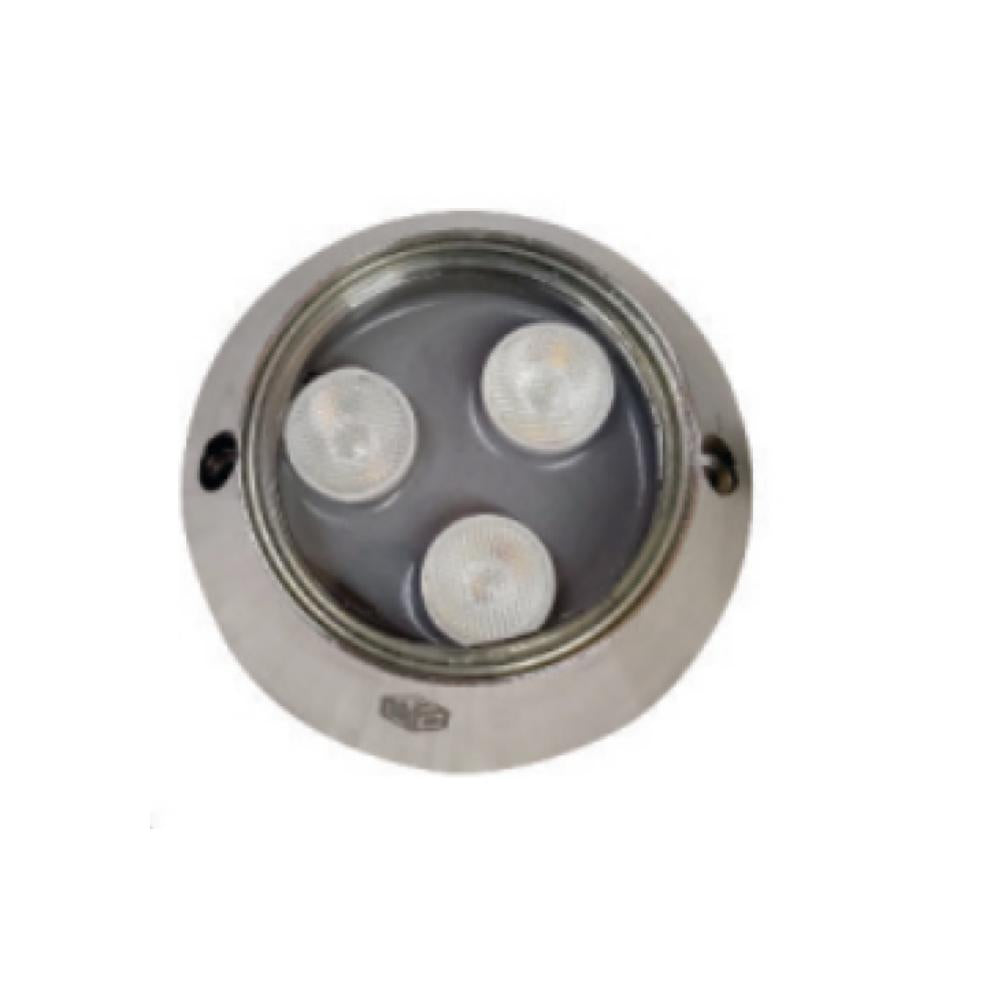

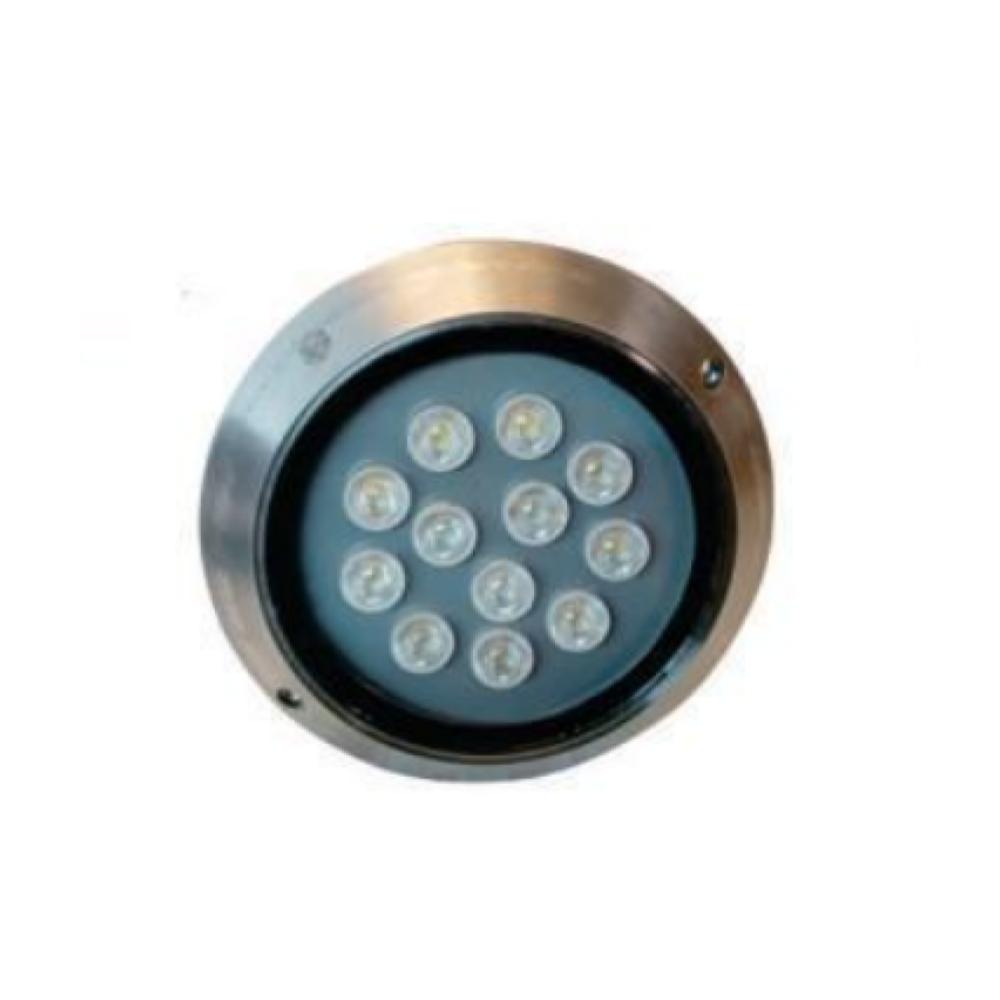

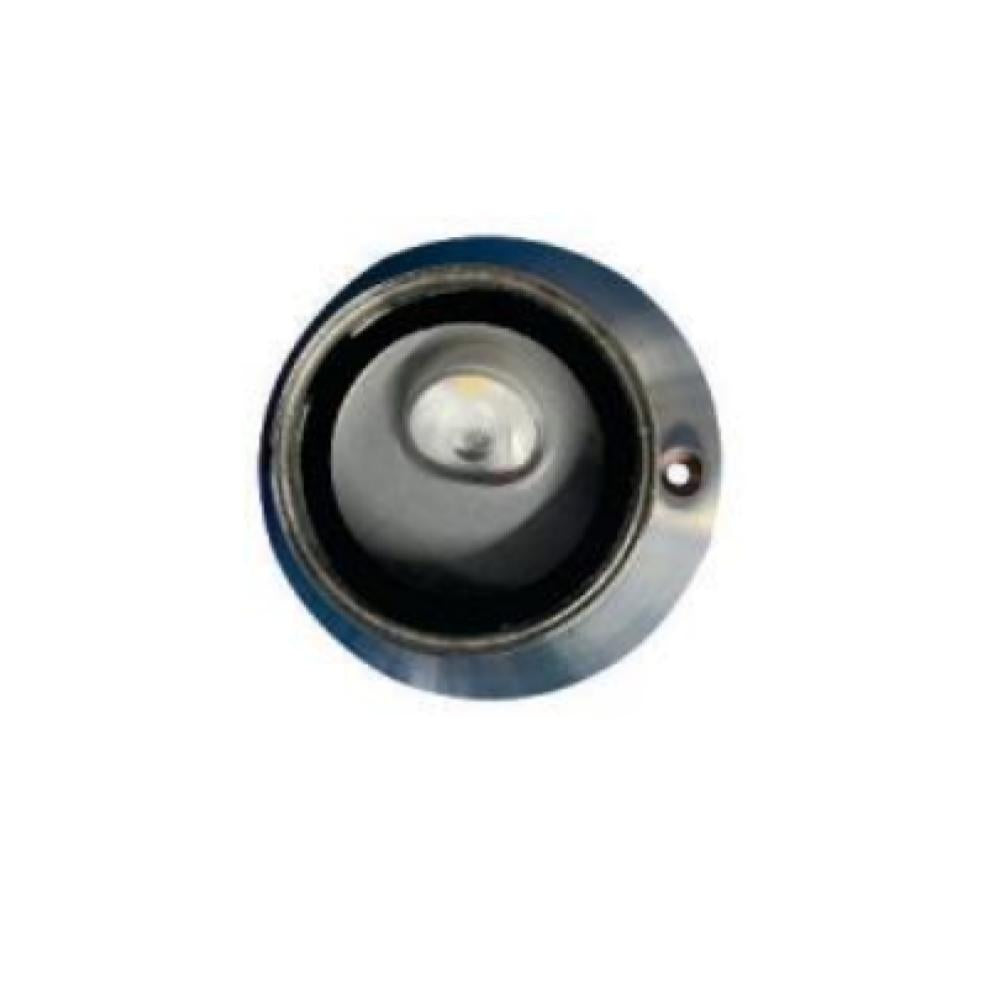

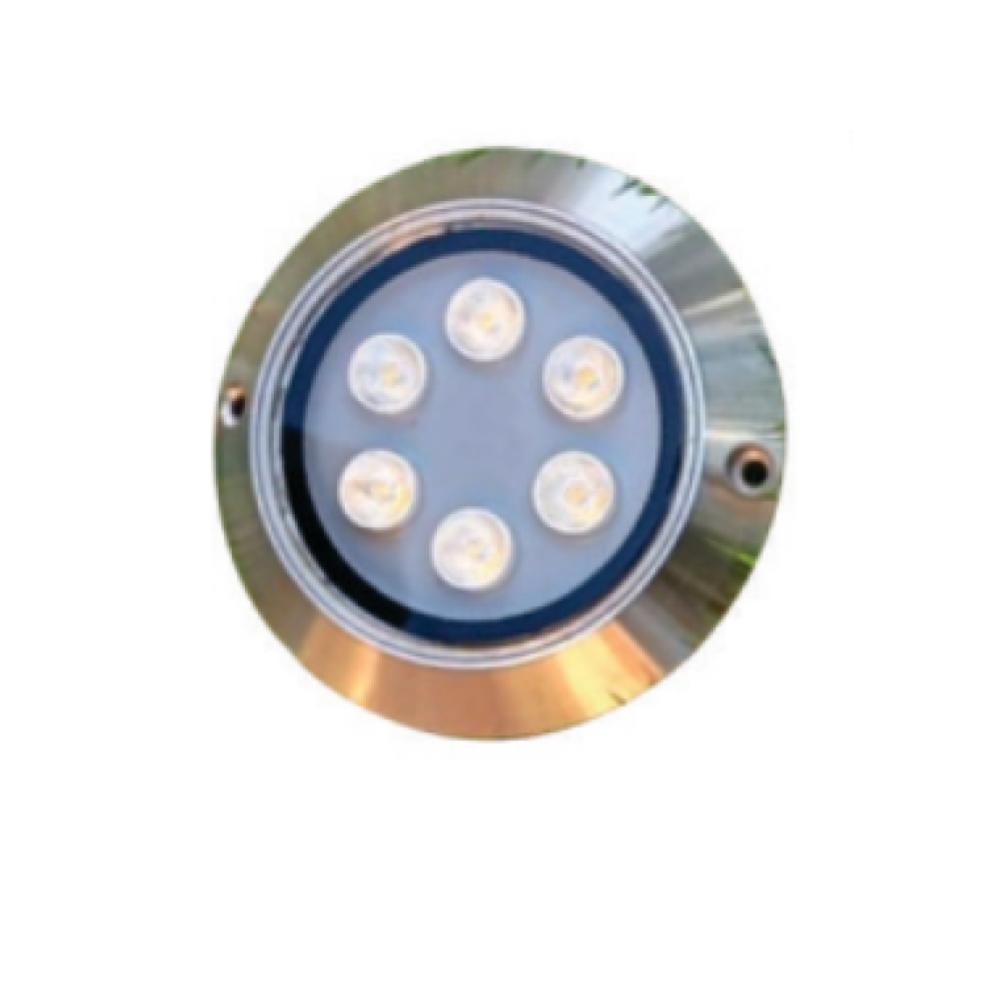

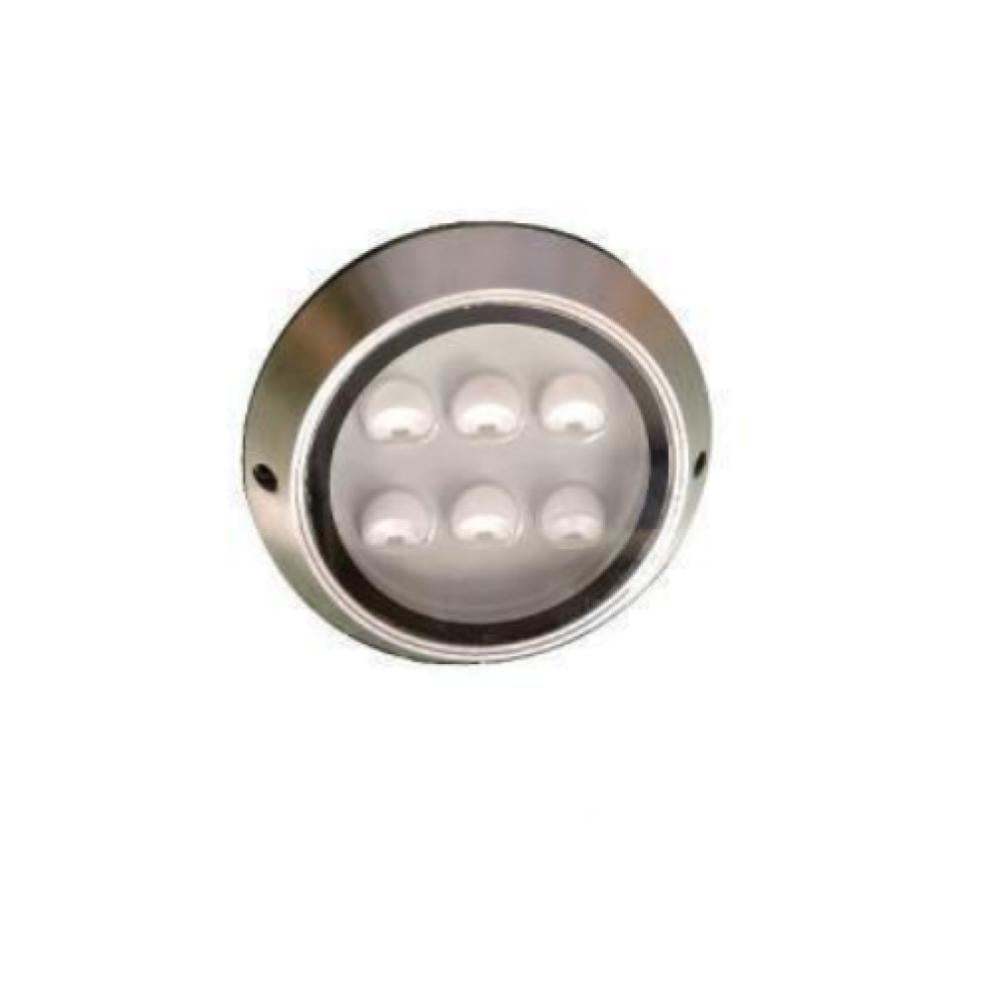

JSRC Stainless Steel Surface Mounted Underwater Pool Light
The JSRC Stainless Steel Surface Mounted Underwater Pool Light is a premium lighting solution designed for swimming pools, fountains, water bodies, and underwater architectural lighting applications.
Engineered for surface mounting inside pools and water features, this luminaire delivers uniform, high-quality illumination with a sleek and durable design.
Constructed with a high-grade SS-304 stainless steel body, the fixture provides excellent corrosion resistance and long-term durability in submerged environments. It is also available in SS-316 marine grade on request for highly corrosive conditions.
Operating on safe low voltage (12V / 24V DC), the light is ideal for underwater applications. With IP68 protection, it ensures complete waterproofing for reliable submerged performance.
The fixture is available in multiple wattages from 3W to 18W, making it suitable for both ambient pool lighting and high-output illumination.
Key Features
• Surface mounted underwater pool light
• Designed for swimming pools, fountains, and water features
• SS-304 stainless steel body construction
• Made in India
• IP68 waterproof (fully submersible)
• Safe low voltage operation: 12V / 24V DC
• Available wattages: 3W / 6W / 9W / 12W / 18W
• Lumens output: 180 / 360 / 540 / 720 / 1080 lm
• High efficiency SMD LEDs
• CRI >85
• Power Factor >0.9
• Impact protection: IK08
• LED lifespan: 50,000 hours
• 5mm clear toughened glass
• IP68 connectors available
• High temperature silicon cable (1 meter length)
• 2 Years Warranty
LED Colour Options
Available in multiple static and dynamic lighting options:
• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• RGB
• RGBW
Beam Angle Options
Multiple beam options available:
• 15°
• 24°
• 36°
• 60°
• Asymmetrical
These options allow for focused lighting, wide spread illumination, or directional pool lighting effects.
Construction & Materials
• Body: SS-304 Stainless Steel
• Optional: SS-316 Marine Grade (on request)
• Glass: 5mm clear toughened glass
• Ingress Protection: IP68
• Impact Protection: IK08
• LED Type: High efficiency SMD LEDs
Electrical & Installation
• Input Voltage: 12VDC / 24VDC
• Power Cable: High temperature silicon 3C x 1.5 sq.mm – 1 meter length
• Accessories: IP68 connectors available
Dimming & Control Options
Supports advanced lighting control systems:
• Triac dimming
• PWM dimming
• 1–10V dimming
• DALI dimming
Applications
Ideal for underwater and architectural lighting:
• Swimming pools
• Fountains
• Water bodies & ponds
• Resorts & hotels
• Landscape water features
• Residential pools
• Commercial aquatic installations

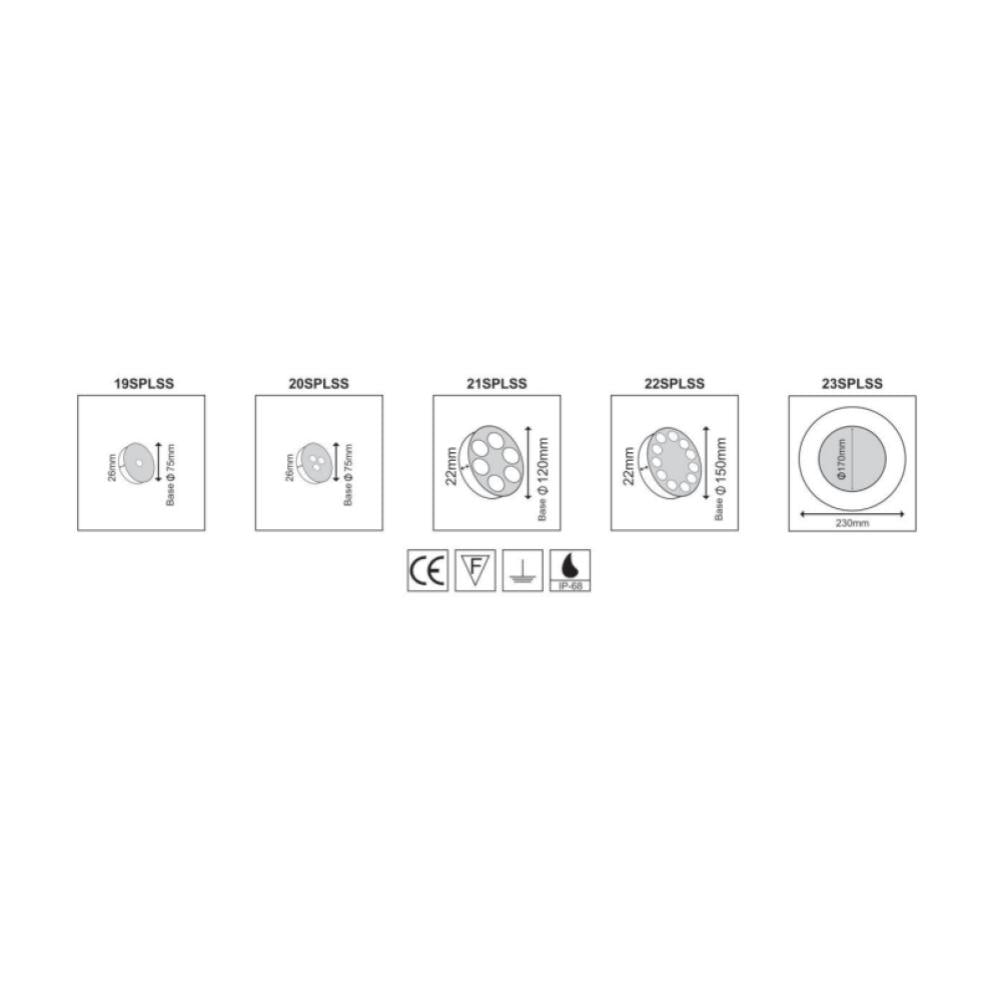

Technical Dimensions & Model Details
| Type | Watt | No. of LEDs | Dimensions (OD x Height) | IP Rating |
|---|---|---|---|---|
| 3W (1 LED x 3W) – 75mm | 3W | 1 | OD 75mm x H 25mm | IP68 |
| 6W (3 LED x 2W) – 75mm | 6W | 2 | OD 75mm x H 25mm | IP68 |
| 9W (3 LED x 3W) – 125mm | 9W | 3 | OD 125mm x H 25mm | IP68 |
| 12W (6 LED x 2W) – 125mm | 12W | 6 | OD 125mm x H 25mm | IP68 |
| 18W (9 LED x 2W) – 150mm | 18W | 9 | OD 150mm x H 25mm | IP68 |
| 20W (Diffused) – 230mm | 20W | — | OD 230mm x H 45mm | IP68 |
Notes for Shopify (Optional – You can include below table)
• All models are IP68 rated for underwater use
• Dimensions are without external mounting accessories
• Suitable for surface mounting inside pools and water bodies

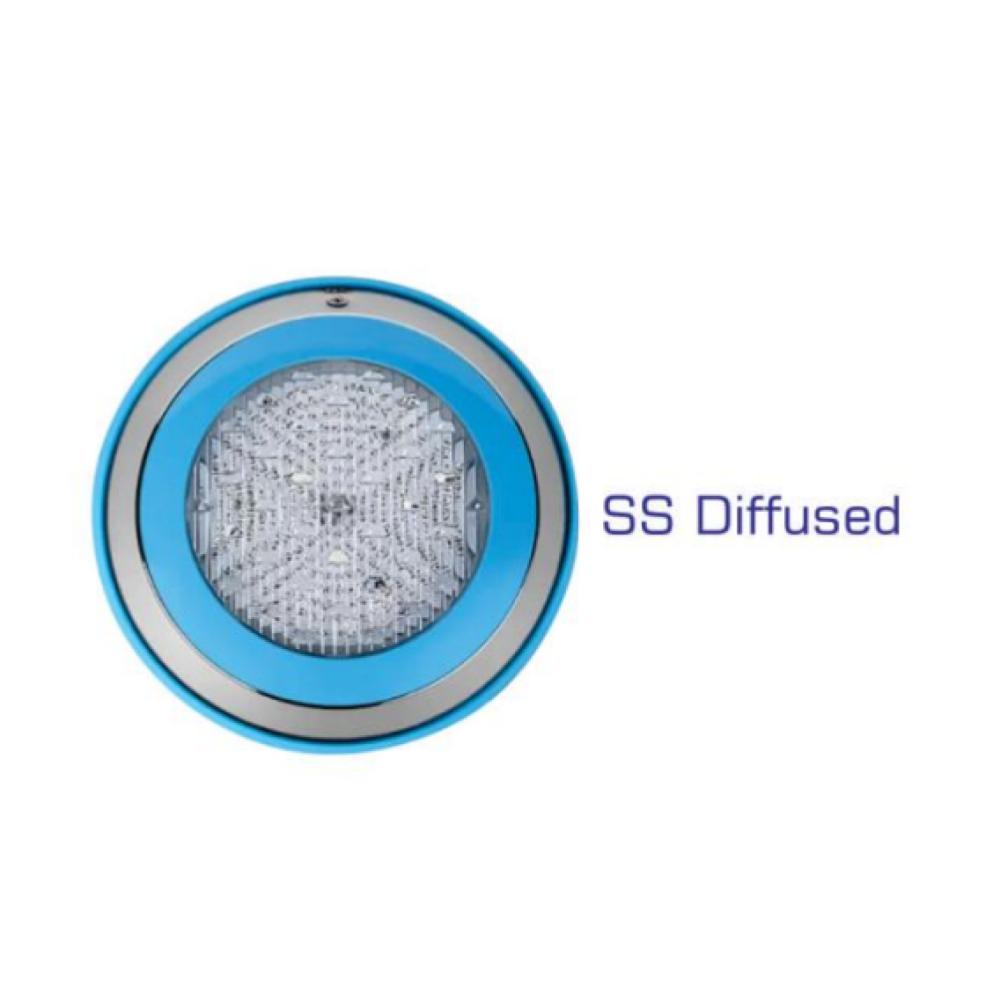

• Diffused model (20W) provides uniform spread lighting
| Product Description | Details |
|---|---|
| Body colour | Silver |
| Body material | Steel |
| Fixing type | Surface |
| Product family | JSRC |
| Type of item | Underwater Surface Light |
| Warranty | 2 years |
