JS-ELT Raffel Ultra-Slim COB LED Downlight (7W–18W) – Front-Open Anti-Glare, Standard / Trimless / Pin-Hole, 3 Reflector Options

Raffel Ultra-Slim COB LED Downlight — Front-Open Anti-Glare Series

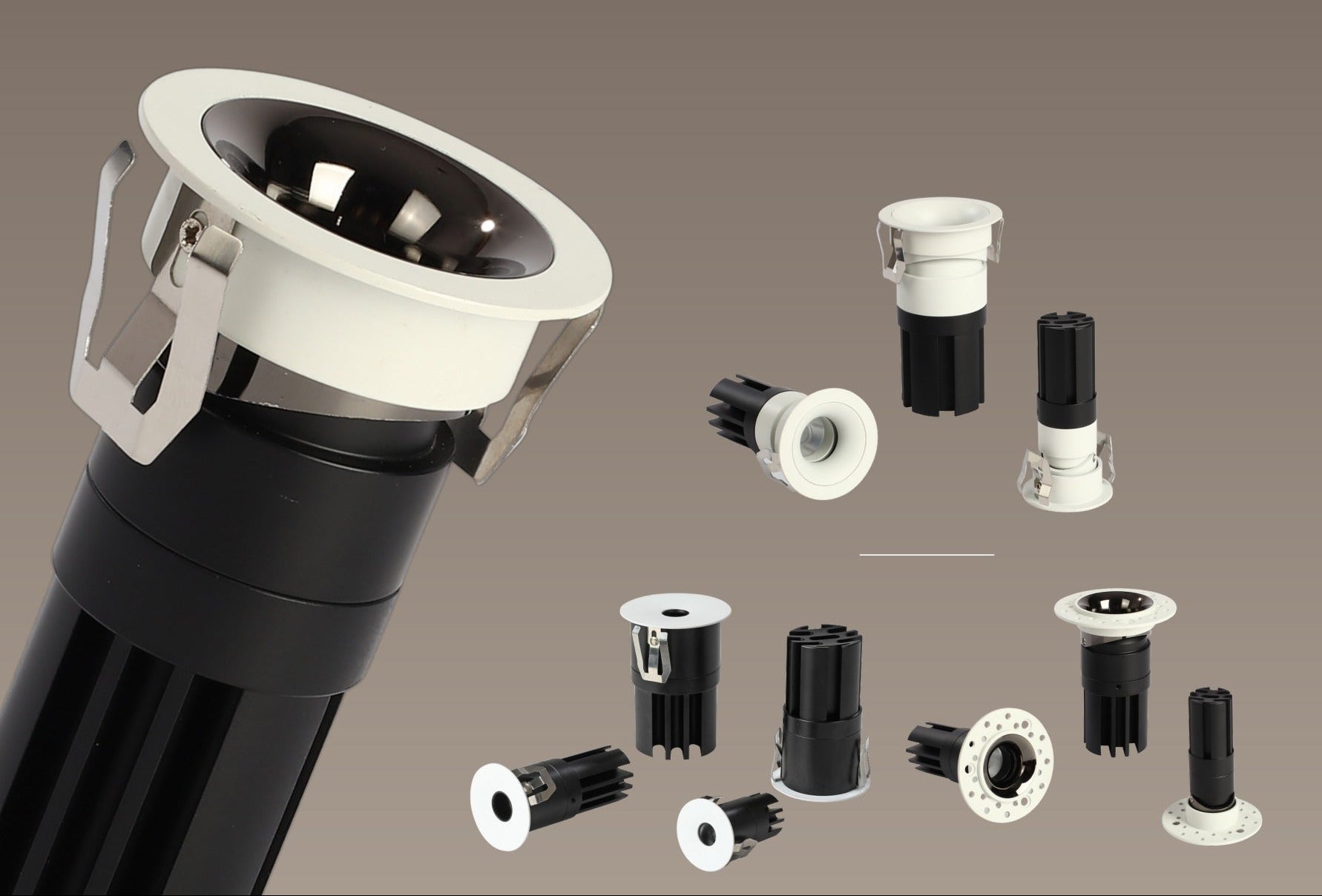

Raffel is a premium ultra-slim COB downlight series with an industry-leading front-open design — deep recessed COB sits well below the trim ring for true anti-glare comfort. Available across four wattages (7W–18W) with three body styles (Standard, Trimless, Pin Hole) and three reflector finishes (Gun Black, Matt Black, Matt White).

Available in this range

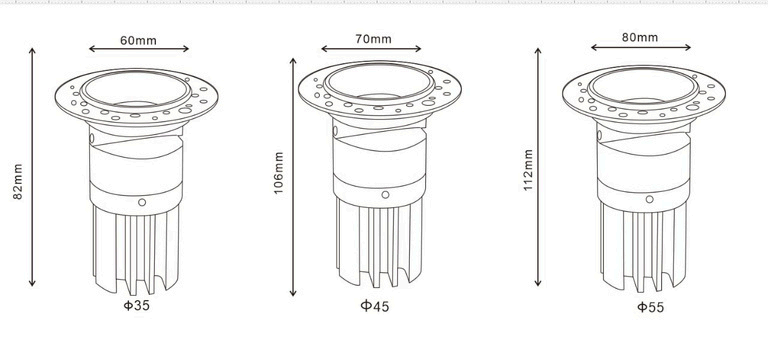

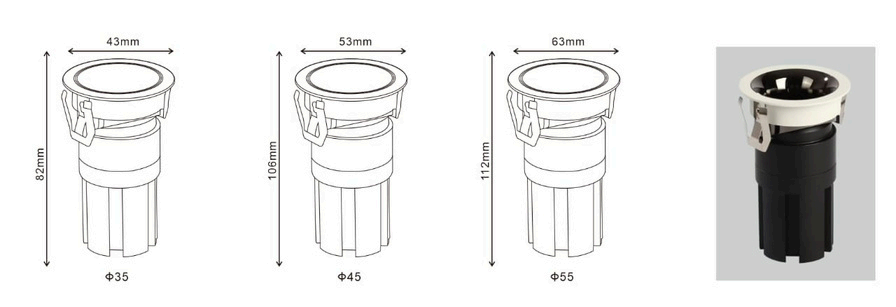

• Wattages: 7W (Ø35 cut-out), 12W (Ø45), 15W (Ø55), 18W (Ø55)

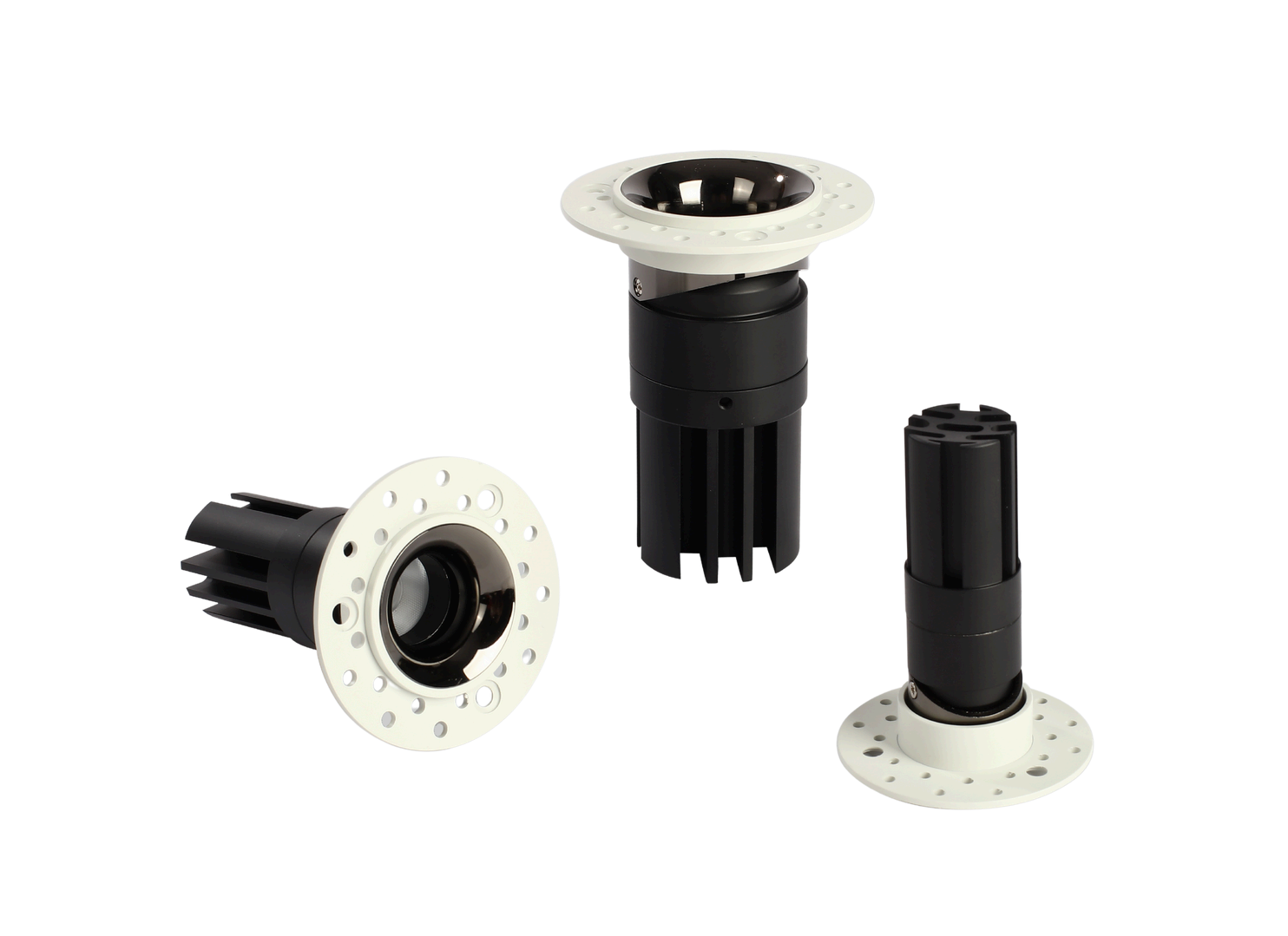

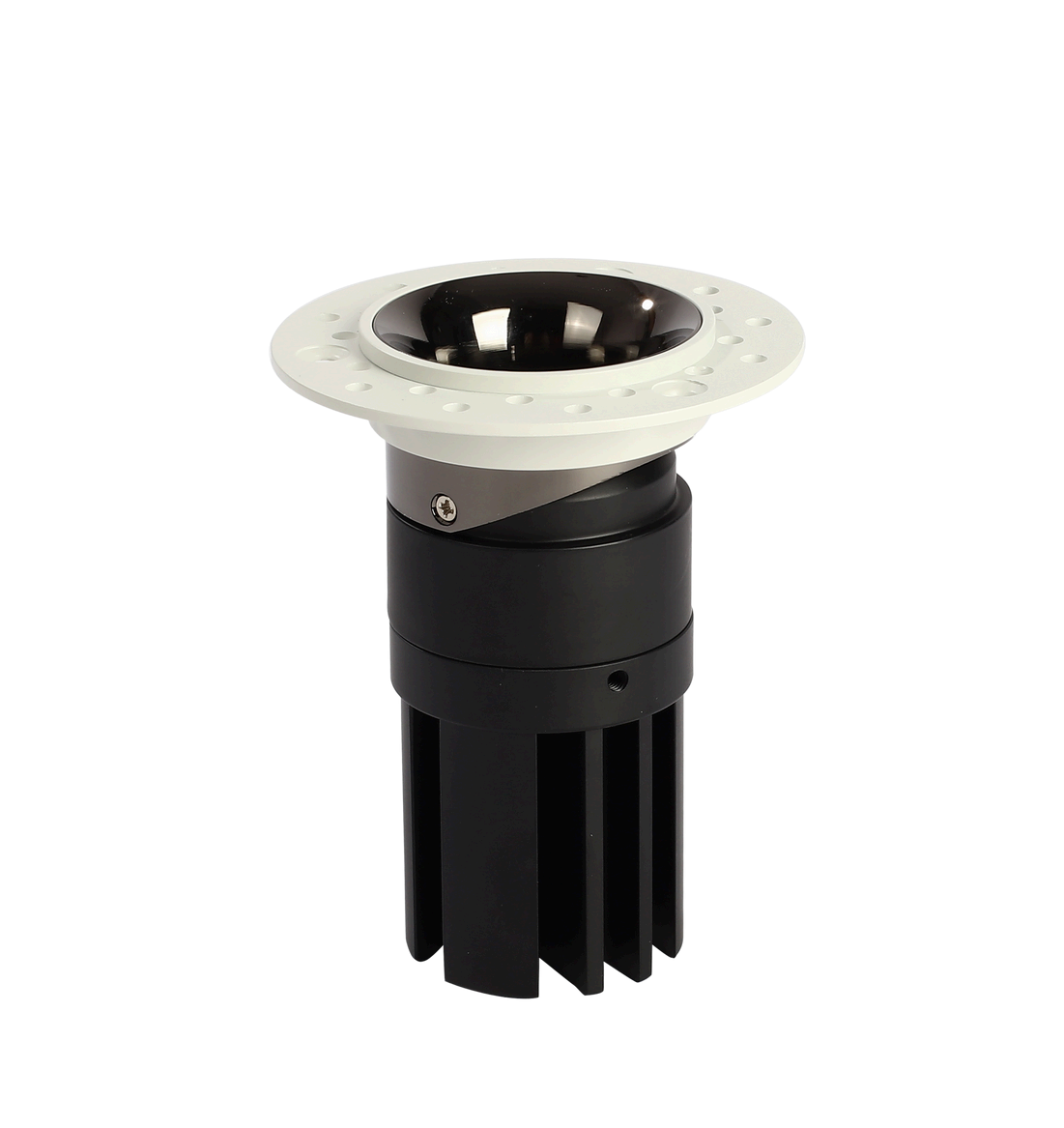

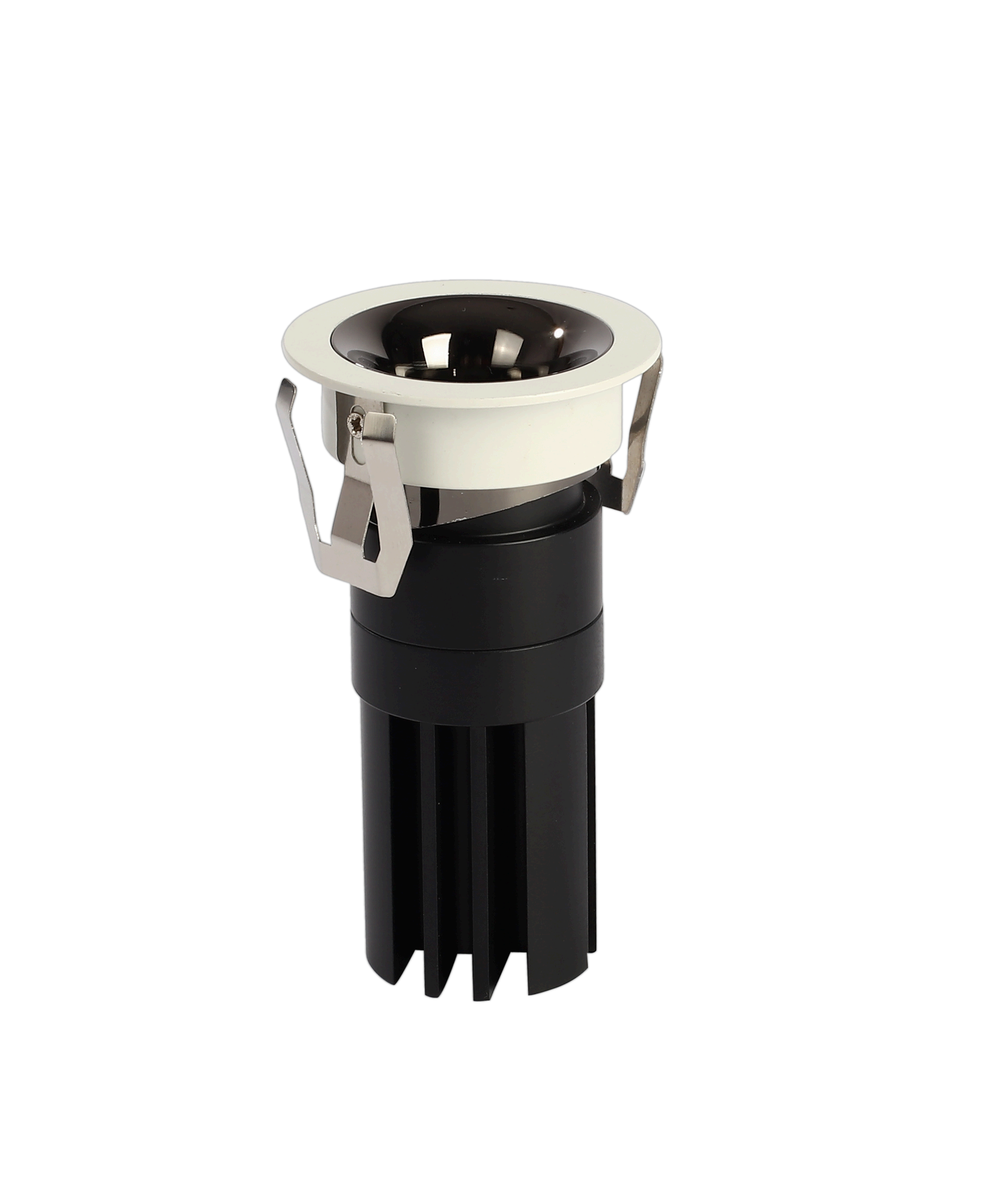

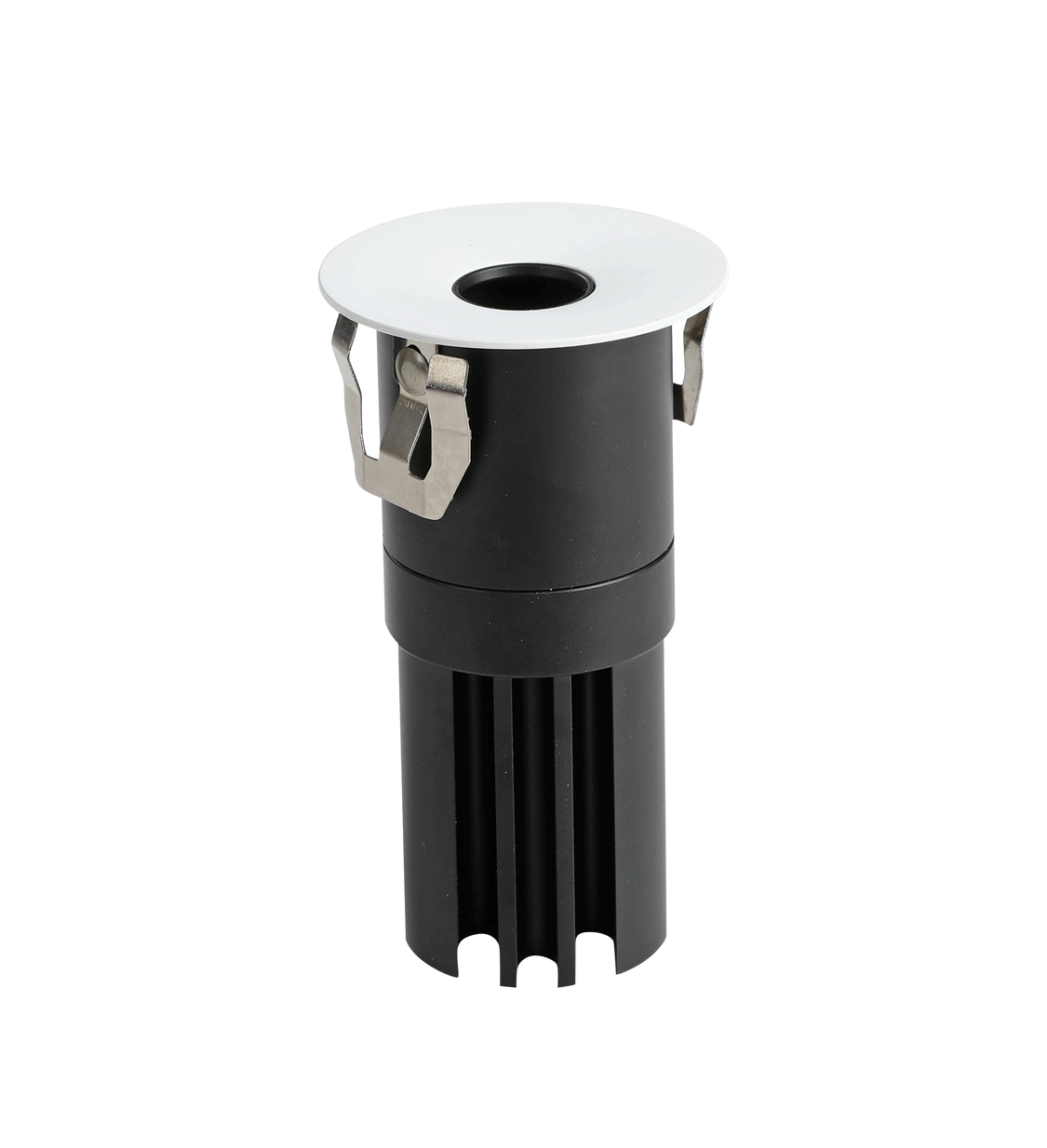

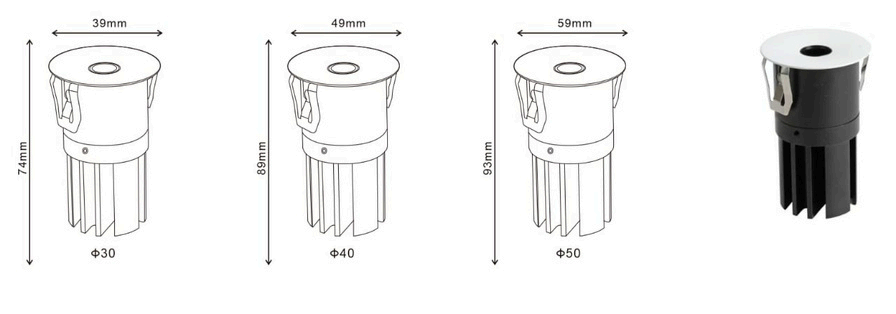

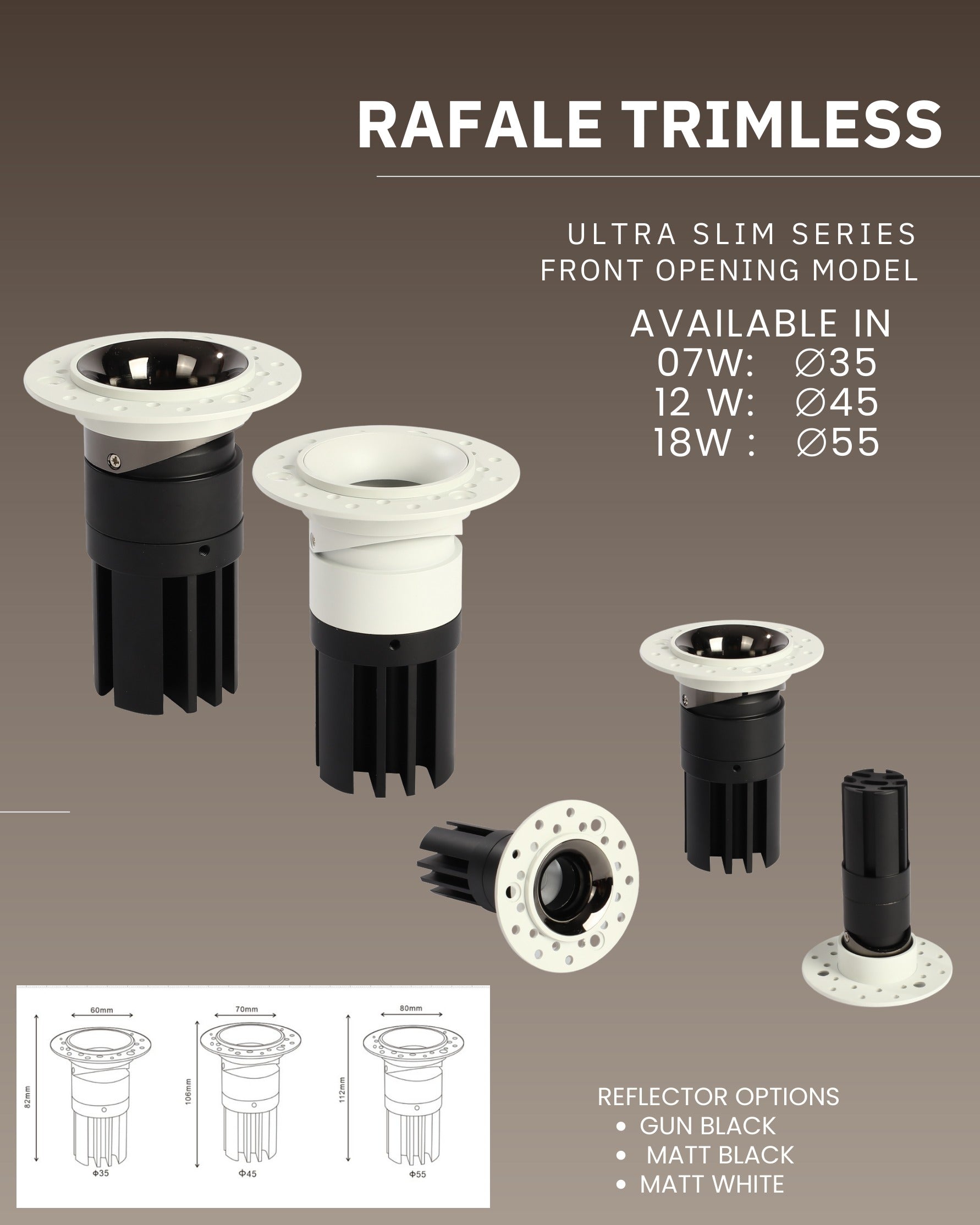

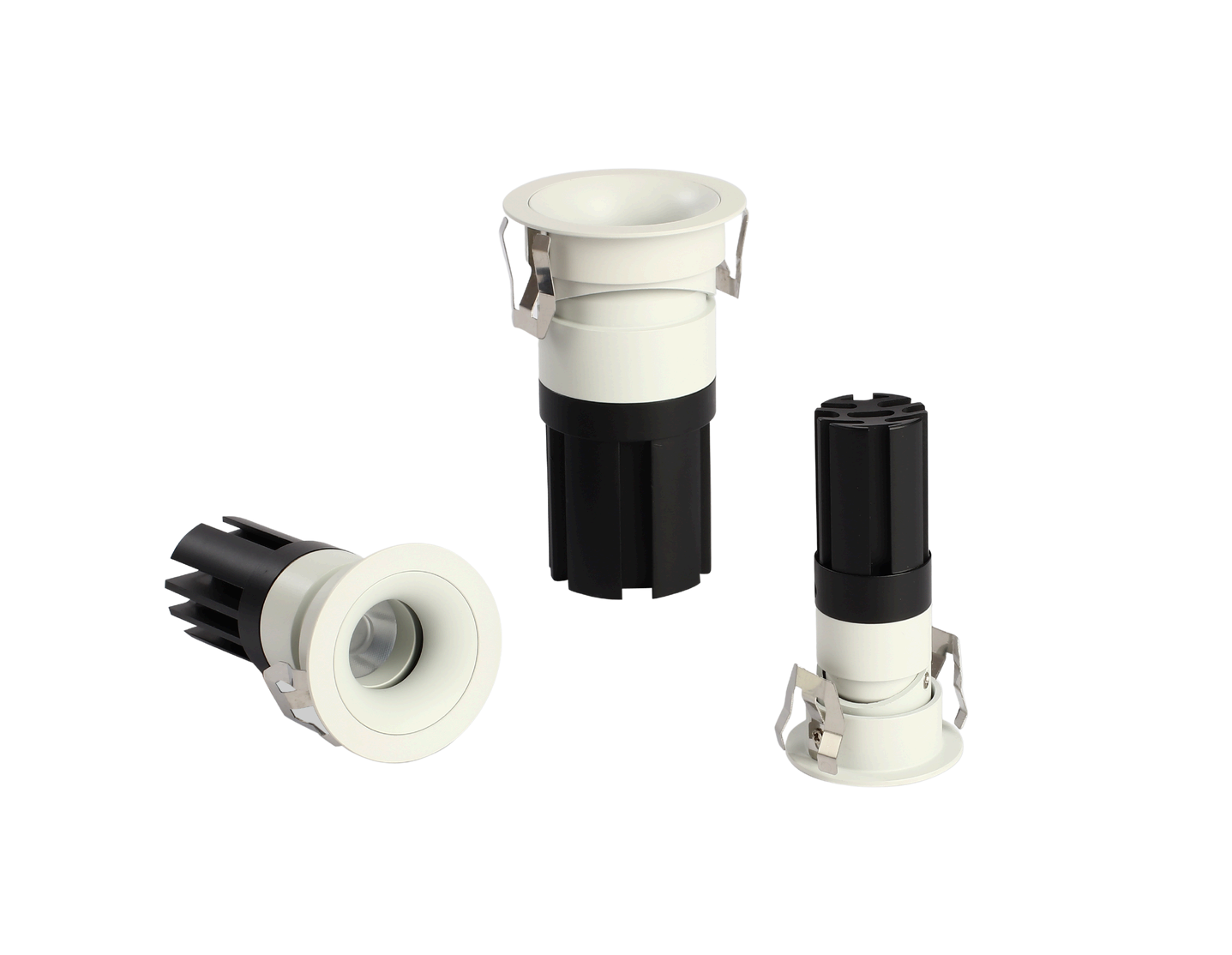

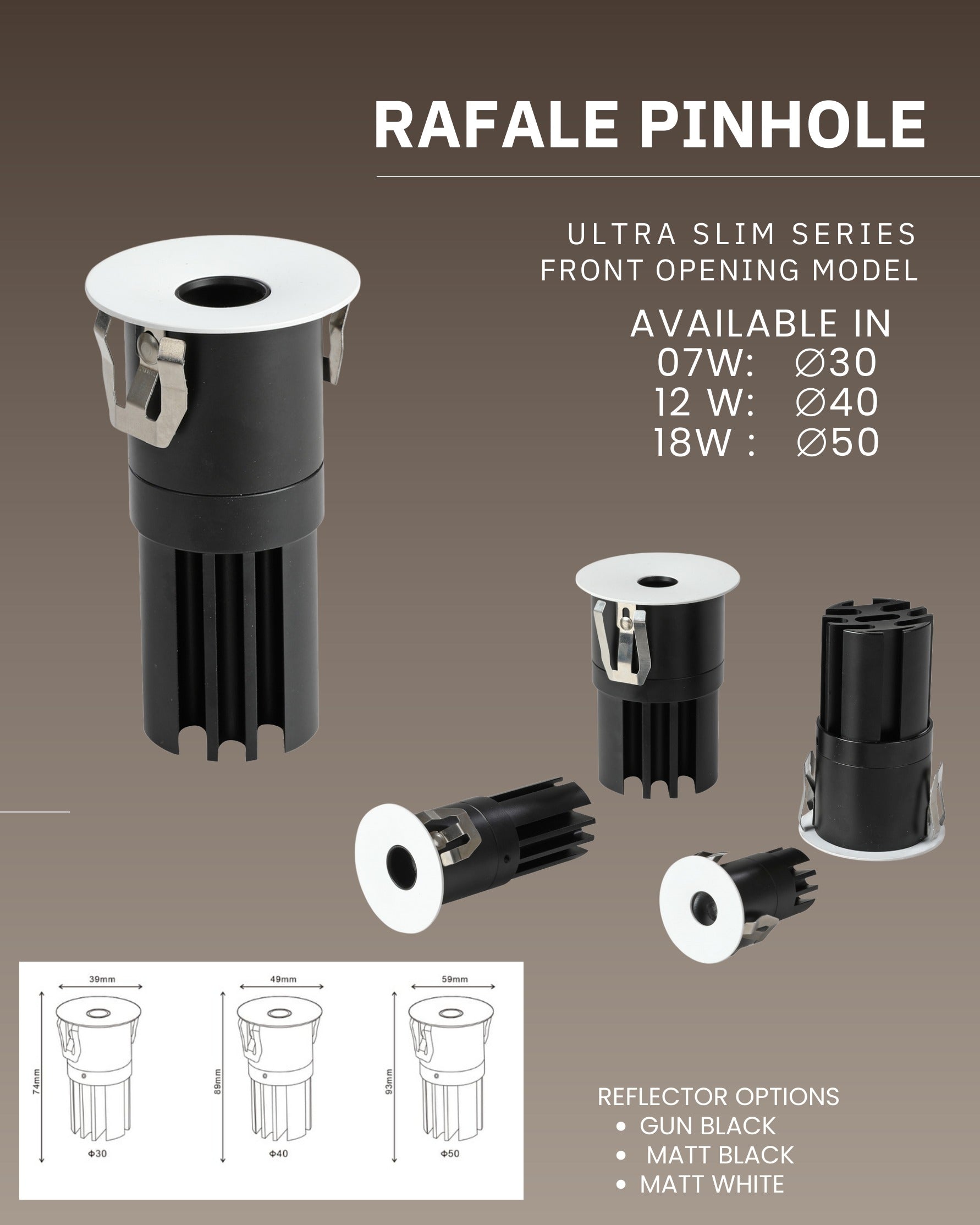

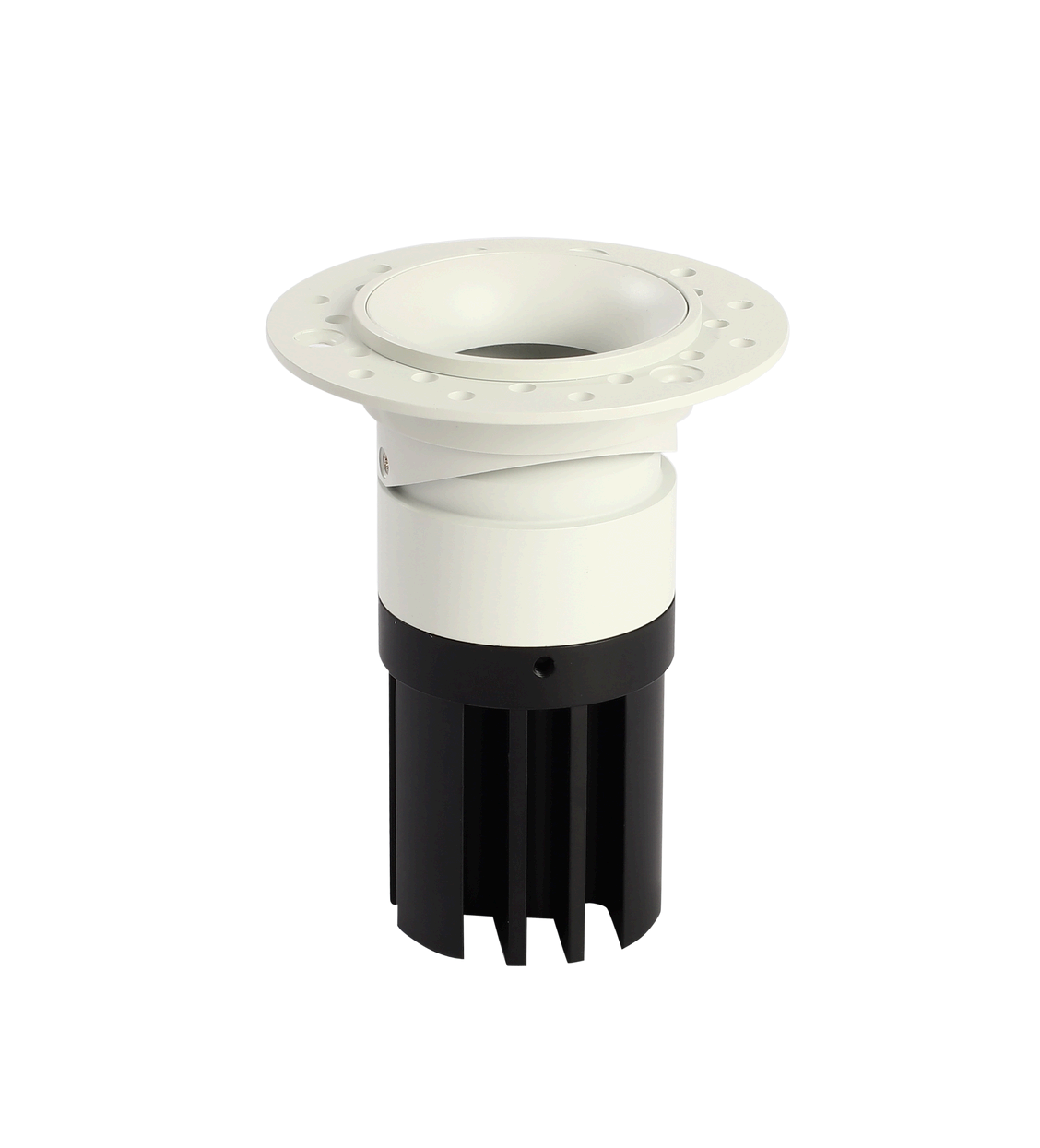

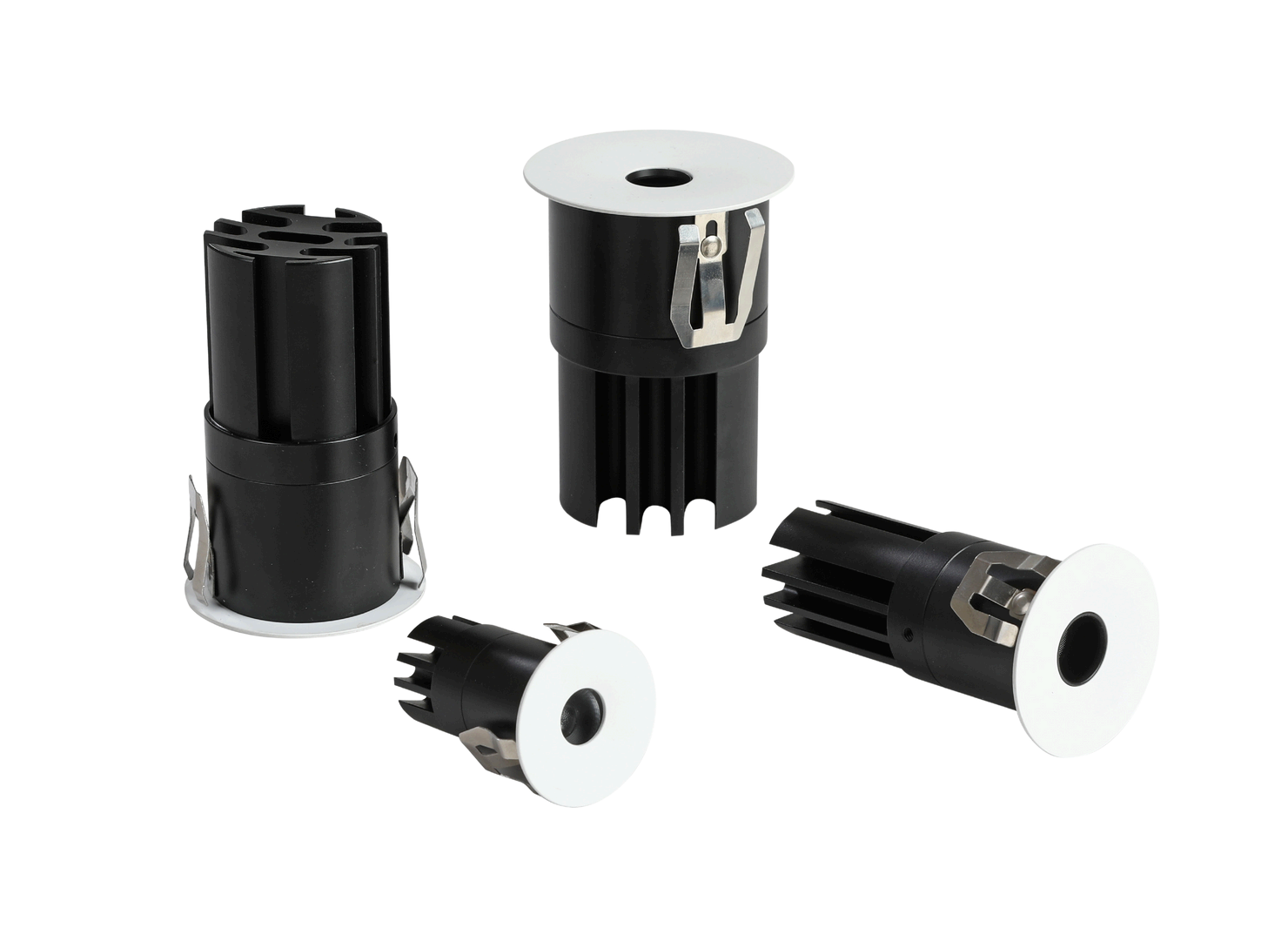

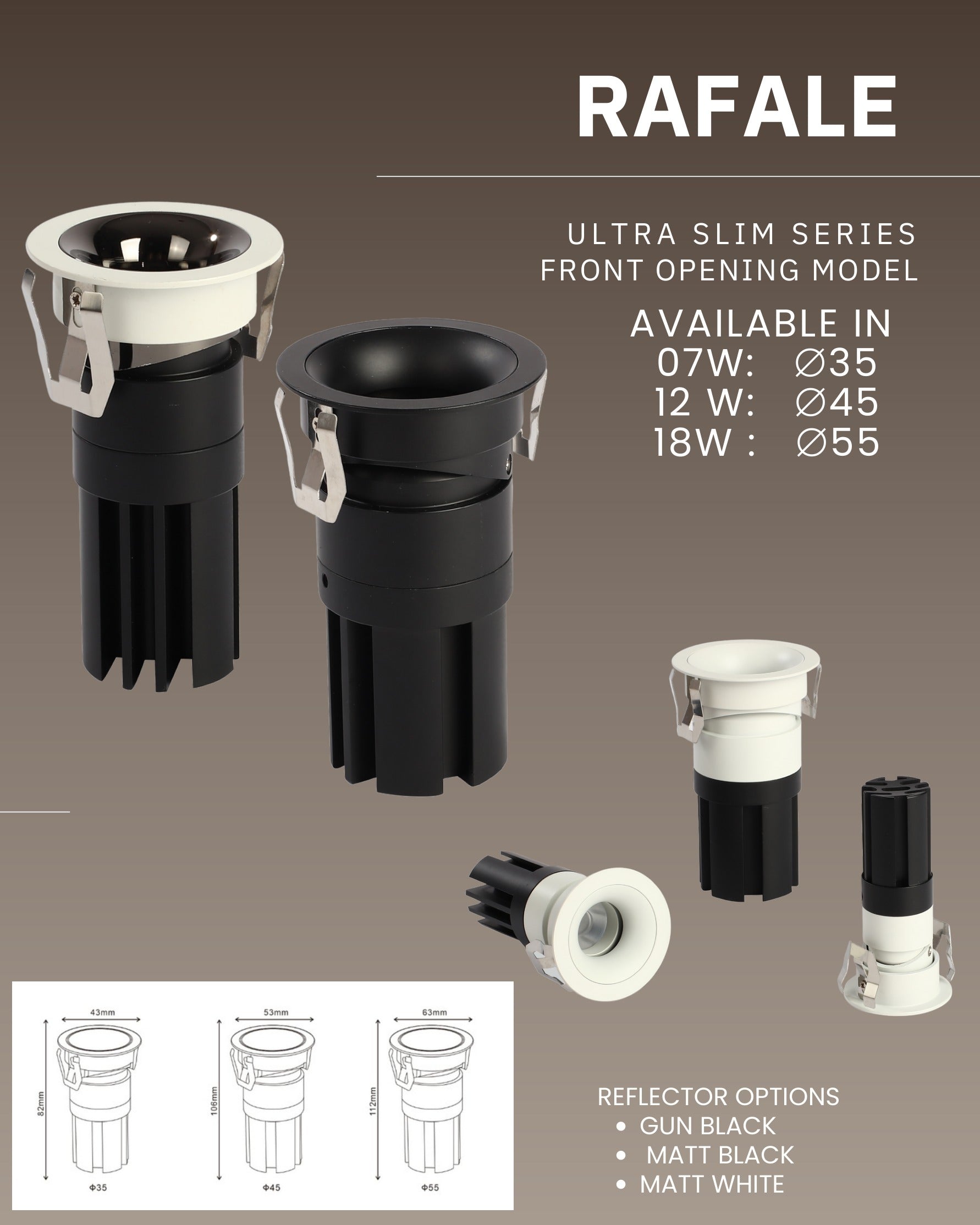

• Styles: Standard (visible trim), Trimless (plaster-flush), Pin Hole (minimal aperture)

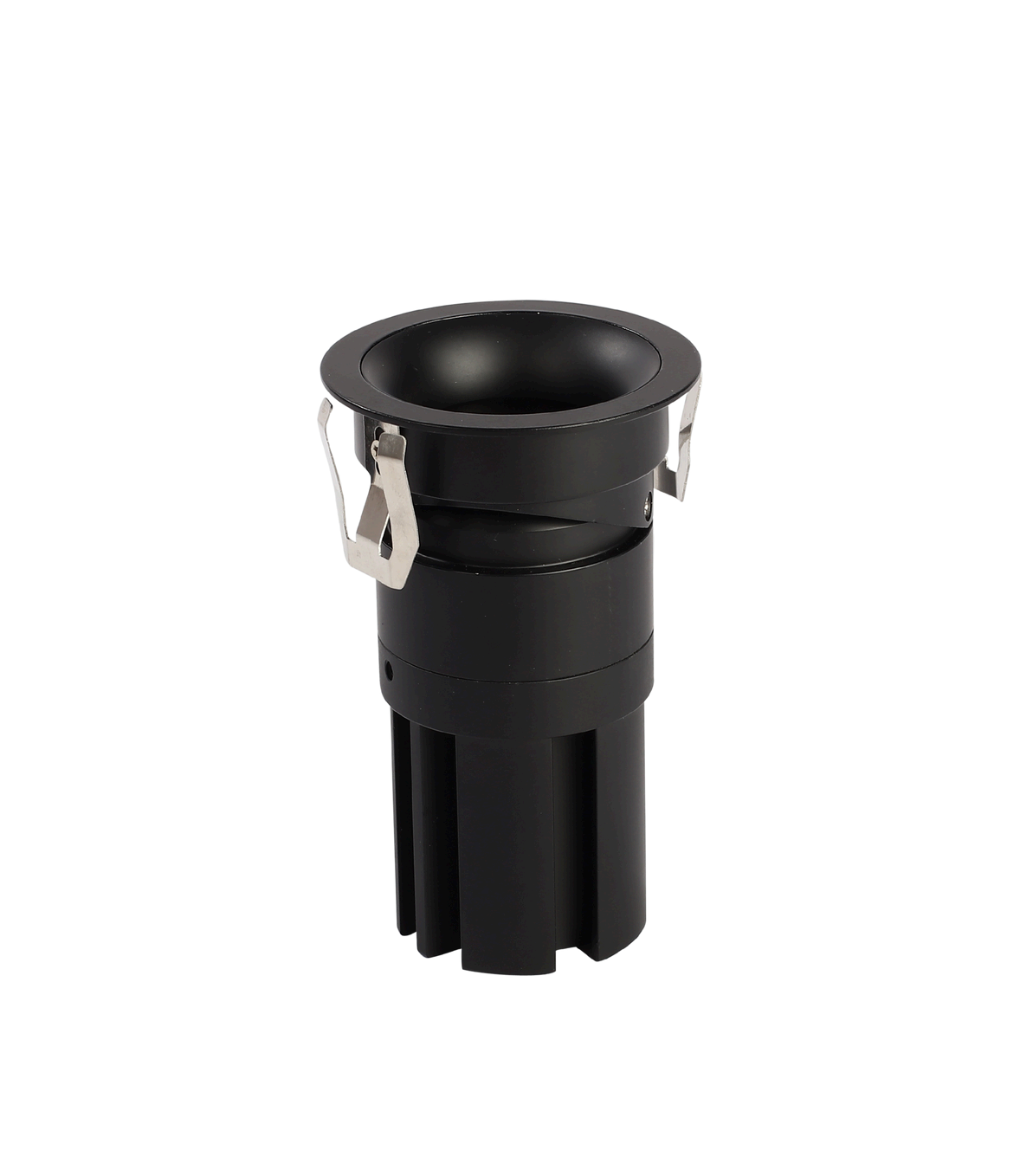

• Reflector finishes: Gun Black, Matt Black, Matt White
• Body colours: White, Black housing
• Beam angle: 36°
• Anti-glare: Yes — deep recessed COB, front-open design

Specifications (Standard variants)

LED Pricing Tiers — pick the quality + warranty that fits your project

Every wattage is available in up to 8 pricing tiers. The first four are quality levels (warranty + LED chip), the next four are smart-dimming protocols. See our LED Ranges explainer for full technical detail.

• Ultra (5yr) — Bridgelux V-Series + Fulham premium driver. ~150 lm/W. Mission-critical retail, hospitality, premium homes.
• Performance (3yr) — Bridgelux E-Series high-lumen. ~125 lm/W. Retail, hospitality, commercial.
• Standard (2yr) — Bridgelux E-Series. ~100 lm/W. Reliable everyday residential & office.
• Essential (2yr) — Generic Chinese LED. ~80 lm/W. Budget-friendly for low-usage areas.
• Dali Dimmable DT-6 (5yr) — Flicker-free 1–100% smooth dimming on DALI bus.
• Dali Tunable DT-8 (5yr) — Brightness + CCT (warm to cool) on a single DALI address.
• RF+BLE Tunable (3yr) — Wireless dimming + colour-temperature adjustment.
• Zigbee Tunable (3yr) — Smart-home integration with CCT control.

Additional options (Ultra High CRI 97, Flicker-Free 90 CRI, RF Dimming, Triac, RGB+TW, RF Tunable Eco/CH, Zigbee Eco) are available on request — message us on WhatsApp for a quote.

How to order

1. Pick the wattage based on the area you're lighting (see spec table above).
2. Choose the style — Standard (with visible trim ring), Trimless (flush, plaster-finished), Pin Hole (minimal aperture).
3. Pick the pricing tier — Ultra/Performance/Standard/Essential for plain CCT, or DT6/DT8/RF+BLE/Zigbee if you want dimming or smart control.
4. Add to cart, or message us on WhatsApp for a BOQ across multiple wattages / styles.

Need help?

Free design and BOQ assistance — contact us or visit one of our 4 Delhi showrooms (Chandni Chowk, Bhagirath Palace, Kotla, Ghitorni). Our lighting consultants will help you pick the right wattage, style and pricing tier for your project.

Download the full catalogue

📘 Download Raffel Catalogue (PDF)

Full spec sheet with dimensions, beam angles, reflector finishes and pricing reference. Share with your architect or designer.
