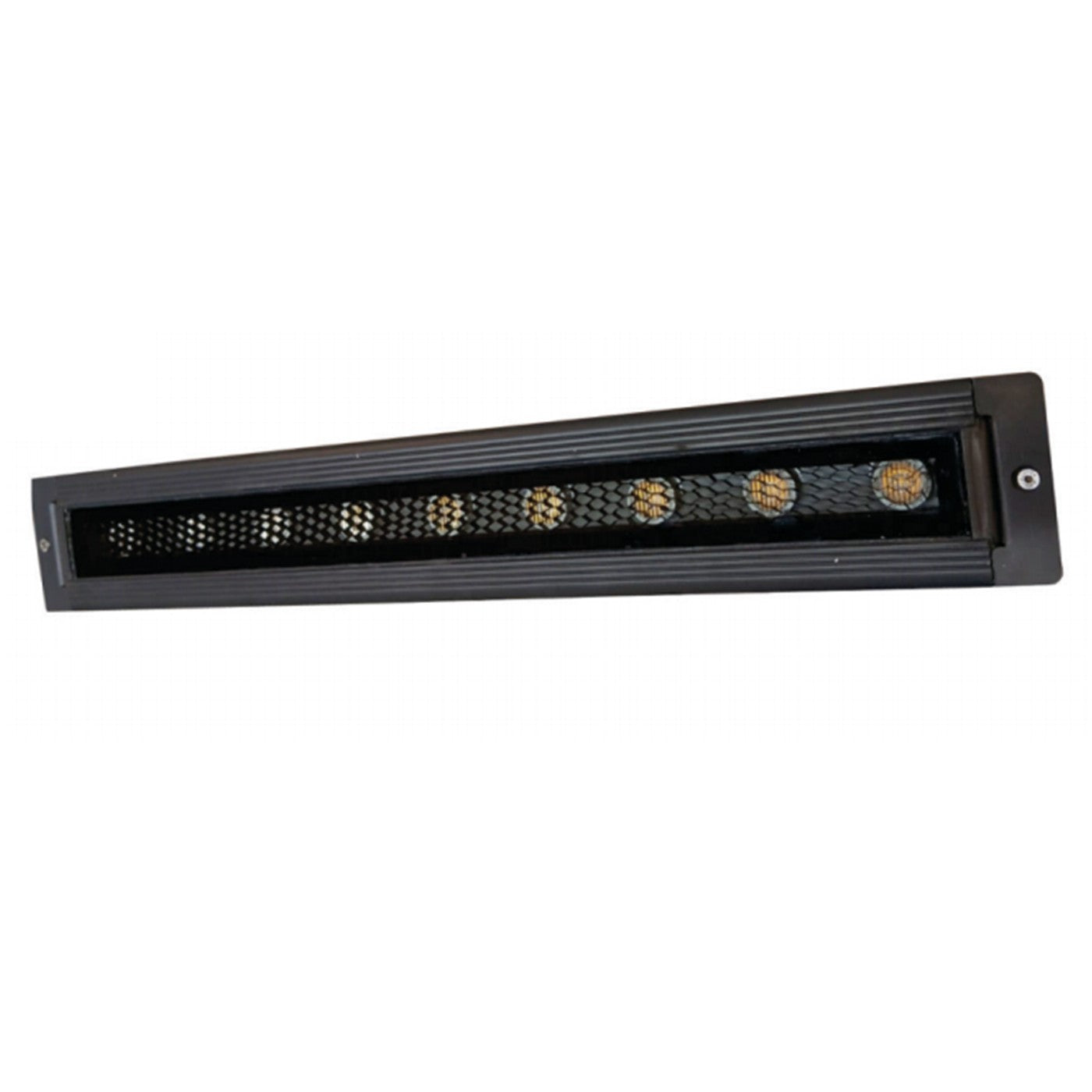

JSRC R-8565 Outdoor In-Ground Linear Wall Washer

The JSRC R-8565 Outdoor In-Ground Linear Wall Washer is a robust architectural lighting fixture designed for recessed floor installations to illuminate building facades, landscape walls, monuments, and architectural surfaces.

Engineered for in-ground applications, this fixture is installed flush with the floor or pavement to produce a powerful wall grazing or wall washing effect. The luminaire features a heavy-duty aluminium body with protective housing, making it suitable for demanding outdoor environments.

With IP67 protection, the fixture offers excellent resistance against water, dust, and outdoor conditions, ensuring reliable long-term operation in landscape lighting and architectural facade projects.

The system includes an inbuilt LED driver integrated inside the fixture body, providing better waterproof protection, easier installation, and improved reliability compared to external driver systems.

Available in multiple lengths from 300mm to 1200mm and power options from 12W to 60W, the JSRC R-8565 provides flexible lighting solutions for both small accent lighting and large-scale facade illumination.

Key Features

• Recessed in-ground architectural wall washer
• Designed for floor or pavement installation
• IP67 waterproof protection for outdoor environments
• Inbuilt driver inside luminaire body for enhanced waterproofing
• Heavy-duty extruded aluminium construction
• Available lengths: 300mm / 500mm / 600mm / 1000mm / 1200mm
• Power options: 12W / 18W / 24W / 36W / 48W / 60W
• Input voltage: 12V / 24V / 220V AC
• LED lifespan: 50,000 hours
• CRI >85
• Power Factor >0.9
• Impact protection: IK09
• 2 Years Warranty

LED Colour Options

Available in multiple colour temperatures and dynamic lighting options:

• 2700K Warm White
• 3000K Warm White
• 4000K Neutral White
• 6000K Cool White
• RGB
• RGBW

Beam Angle Options

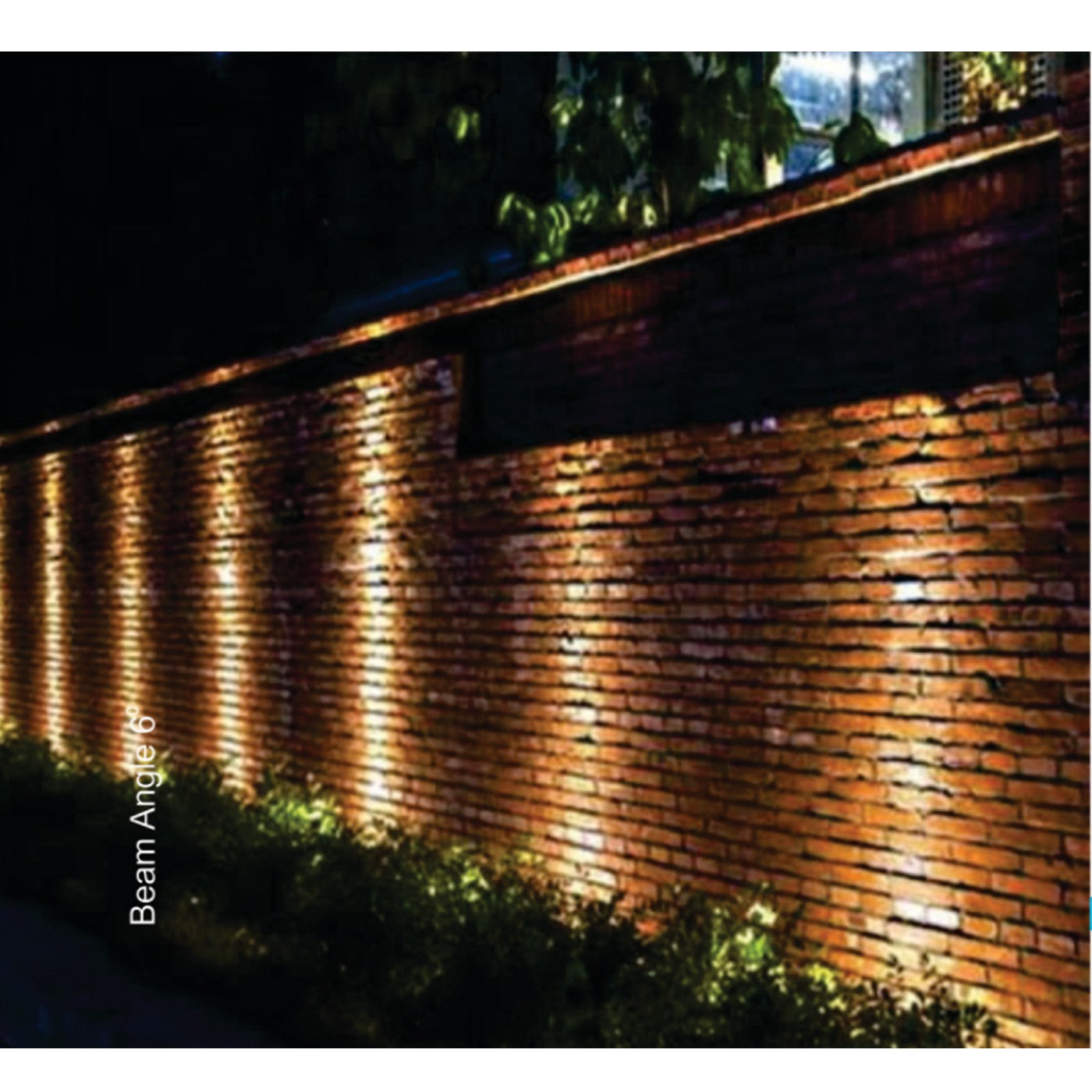

• 6°
• 15°

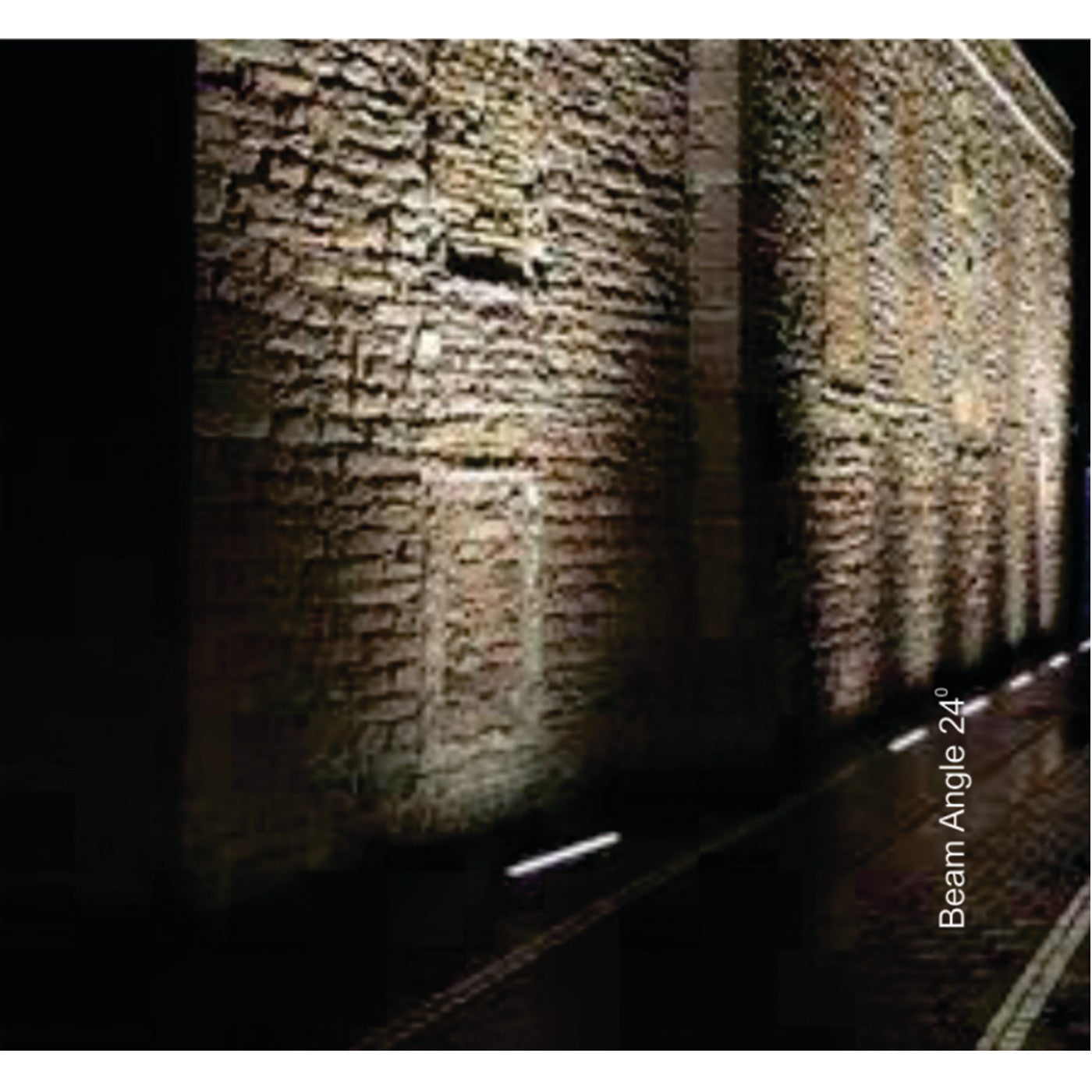

• 24°
• 36°
• 60°
• 15° × 30°

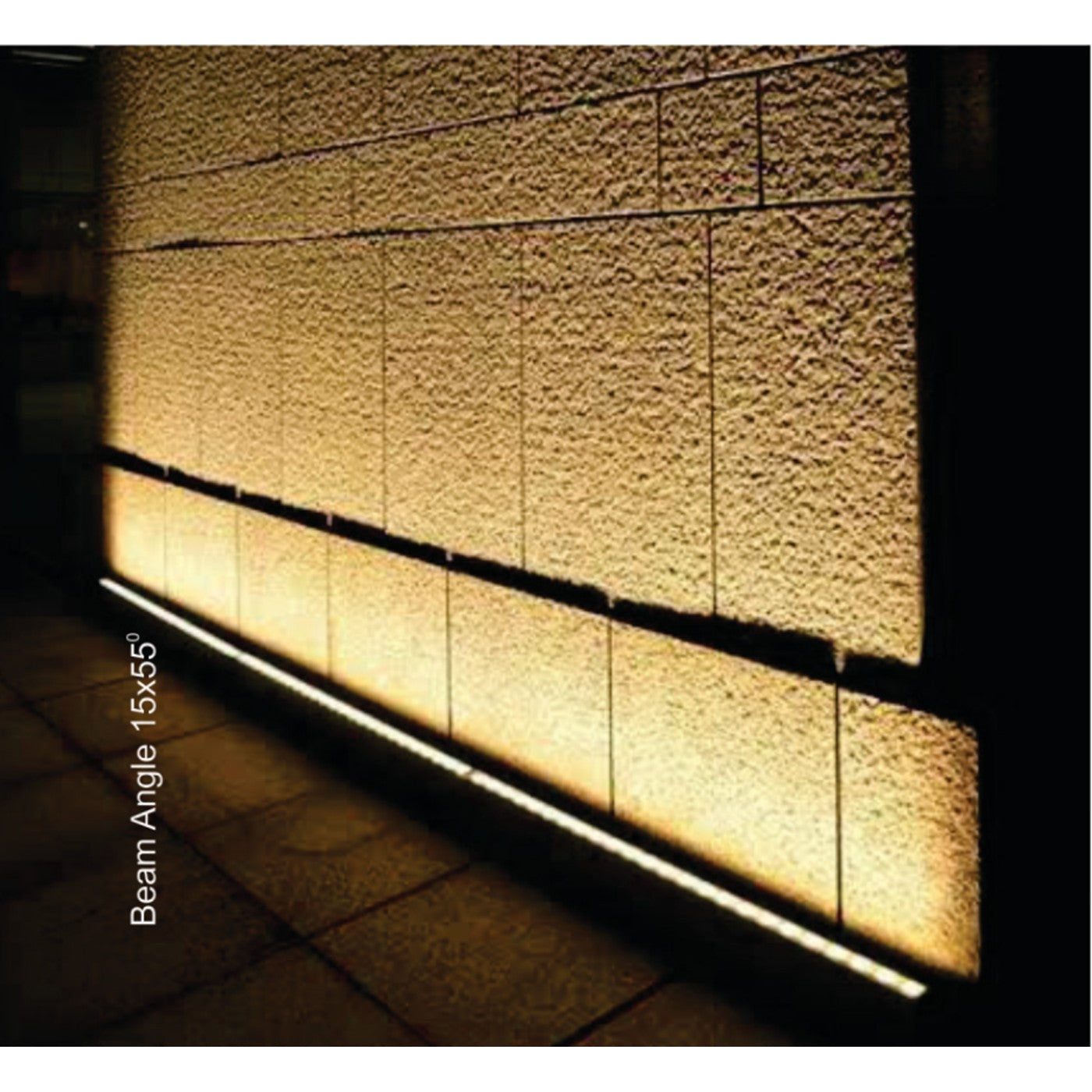

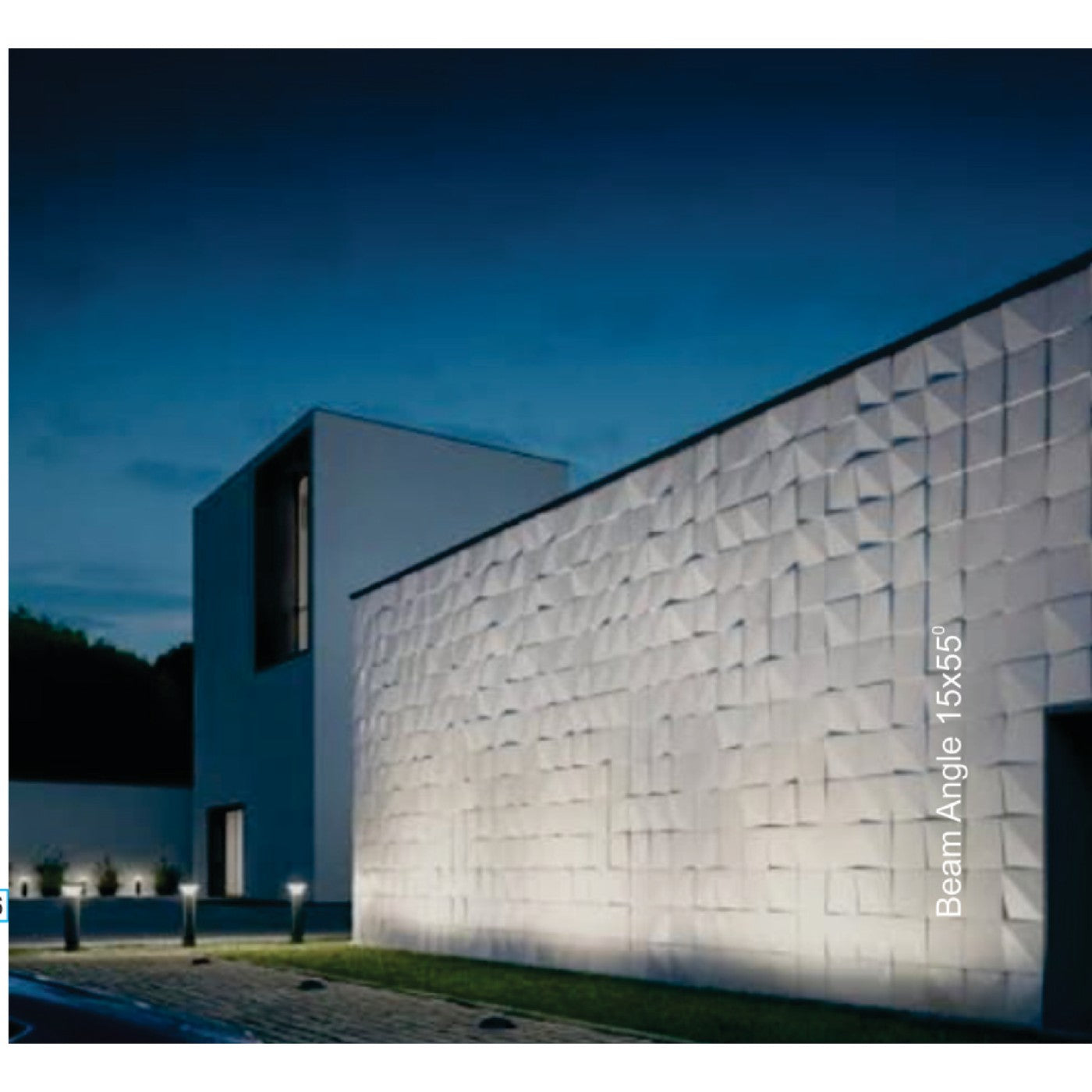

• 15° × 55°
• Diffused

These beam options allow designers to create precise wall grazing effects or wide facade illumination depending on the project requirements.

Fixture Dimensions

Width: 85mm
Height: 80mm
Recessed Cut-Out Depth: 60mm

Designed for flush floor installation in landscape areas, pathways, and building perimeters.

Construction & Materials

• Body: Extruded aluminium with powder coating
• Housing: GI powder coated recessed housing
• Glass: 8mm clear toughened glass
• Ingress Protection: IP67
• Impact Protection: IK09
• LED Type: High efficiency SMD LEDs

Optional Add-Ons

Available on request:

• Honeycomb louvre for glare control
• Dimmable driver options
• Triac / PWM / 1-10V / DALI dimming support

Applications

Ideal for illuminating:

• Building facades
• Monument lighting
• Landscape walls
• Pathways and garden edges
• Hotels and resorts
• Commercial complexes
• Architectural exterior lighting
